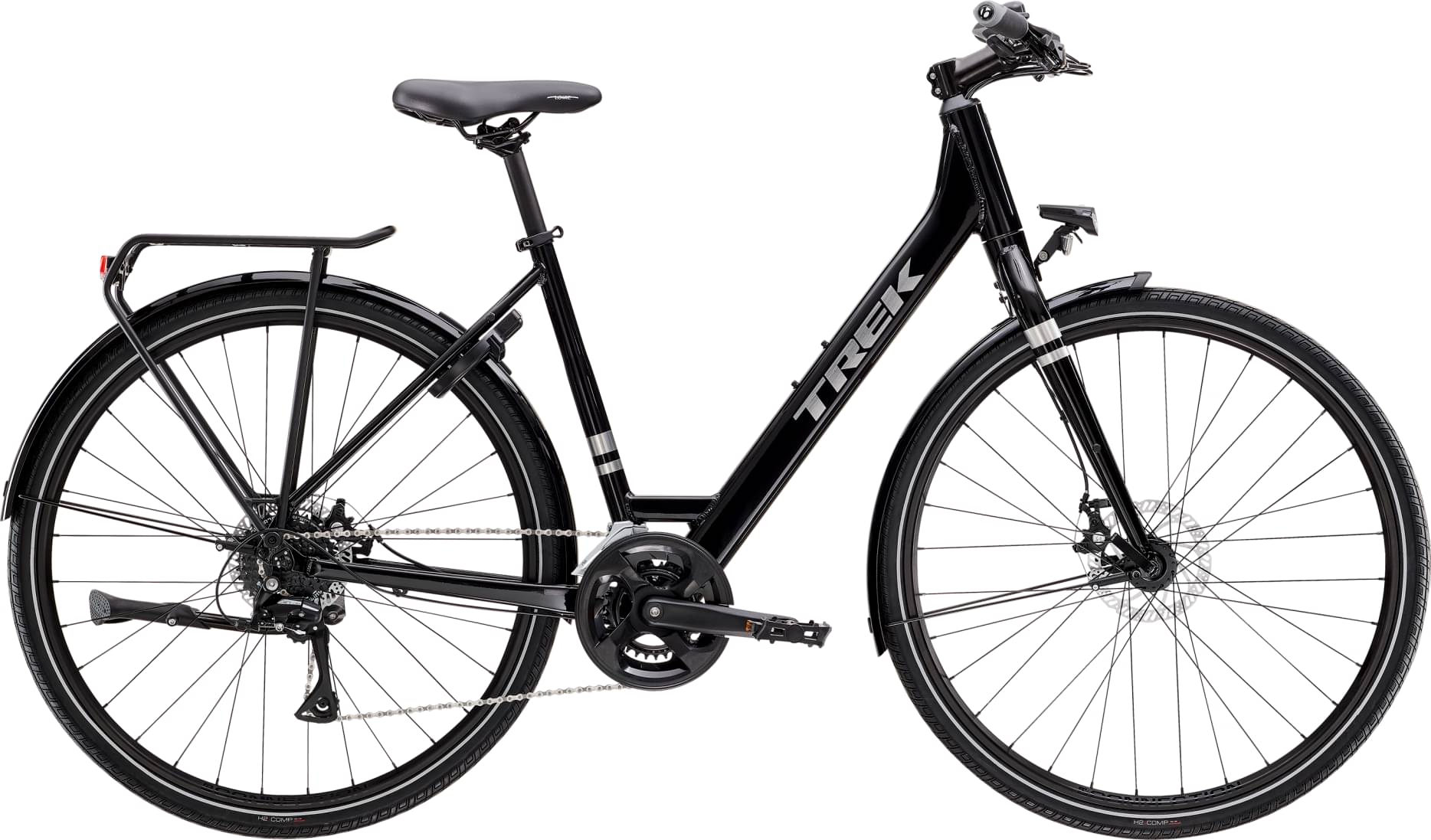

Trek Verve 1 Equipped Lowstep 2025
2025 Urban
Estimate price |
871$
Weight | 16.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Acera -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
Verve Disc, post mount, Steel legs, steel steerer, 460mm axle-to-crown, ThruSkew
Drivetrain
Rear Derailleur
Shimano Acera M3020-8, 40T max cog
Front Derailleur
Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
Shift Levers
Size: S, M, L, Shimano EF500, 2-speed; Size: S, M, L, Shimano EF500, 8-speed
Cassette
Shimano 8-speed, 12-32T
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Chain
KMC Z8.3
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Brakes
Brakes
Tektro MD-M280 mechanical disc
Cockpit
Stem
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Handlebar
Trek Urban, alloy, 25.4 mm, comfort sweep, 45 mm rise, 620 mm width
Grips
Bontrager Satellite
Seat
Saddle
Selle Royal Loire
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.673 mm | 1.666 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm |
| Front Center | 633 mm | 642 mm | 647 mm |
| Rake | 45 mm | 45 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 634 mm | 644 mm | 653 mm |
| Reach | 380 mm | 385 mm | 392 mm |
| Top Tube Length | 568 mm | 594 mm | 604 mm |
| Seat Tube Angle | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1096 mm | 1105 mm | 1110 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 654 mm | 682 mm | 694 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
