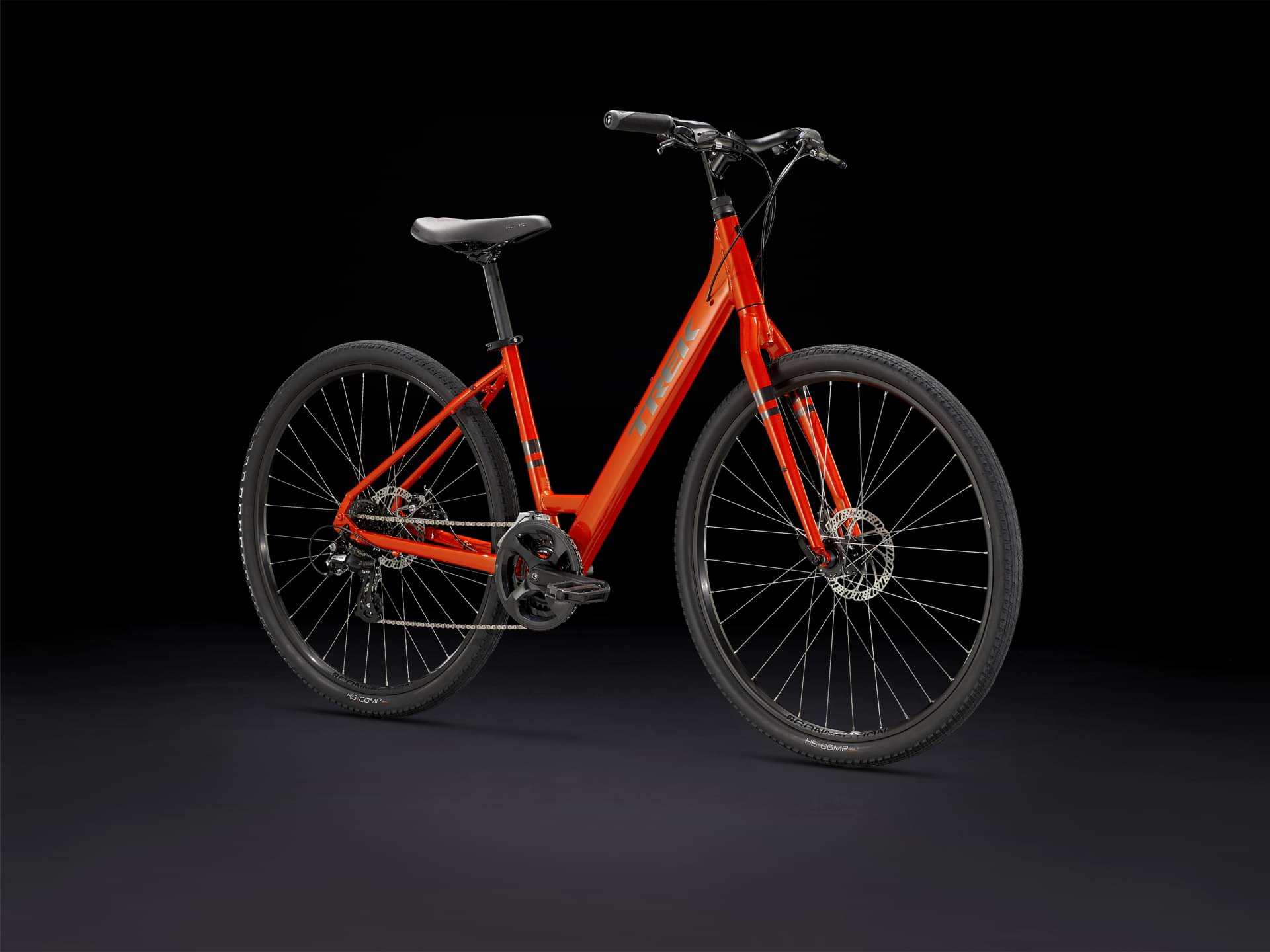

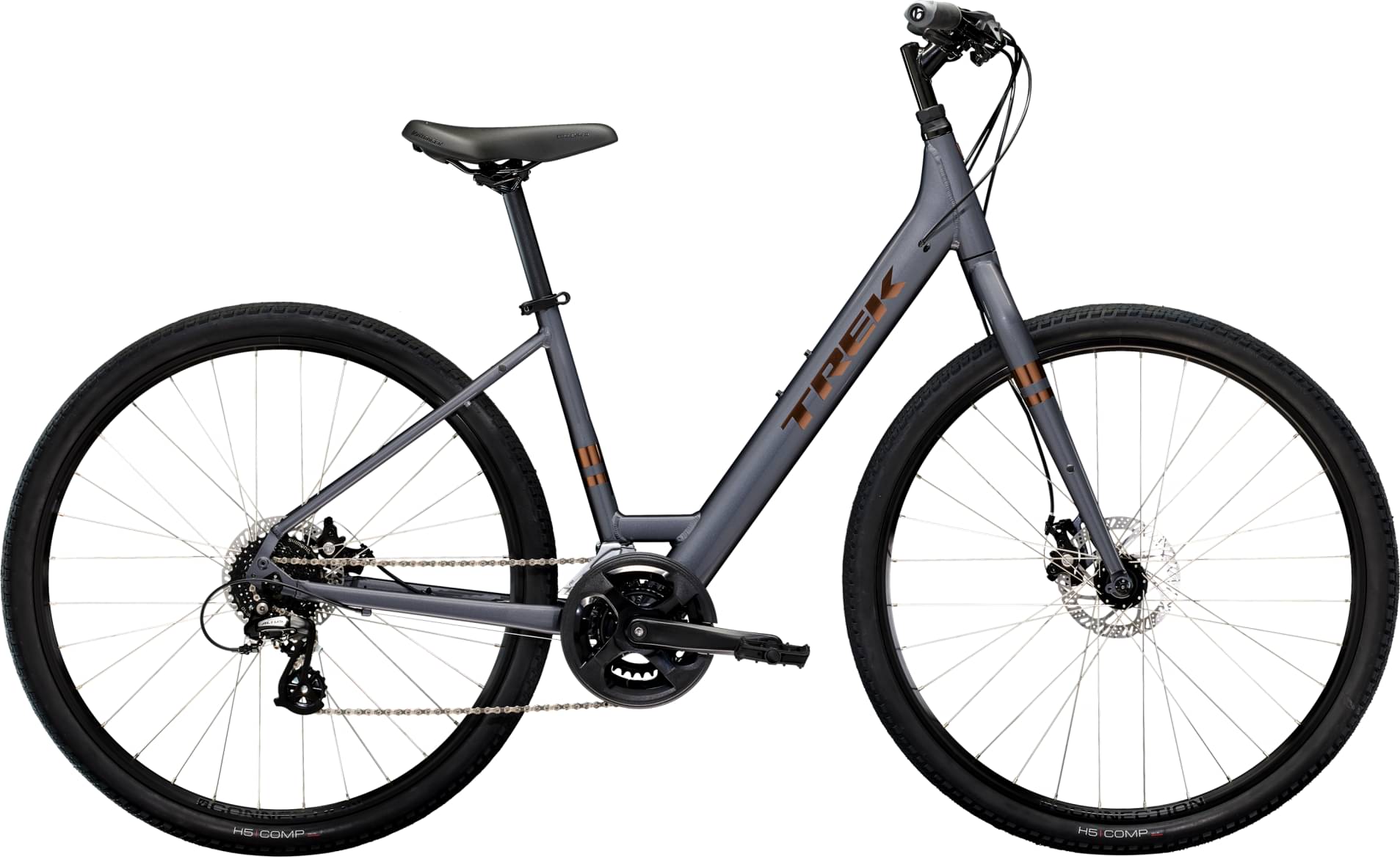

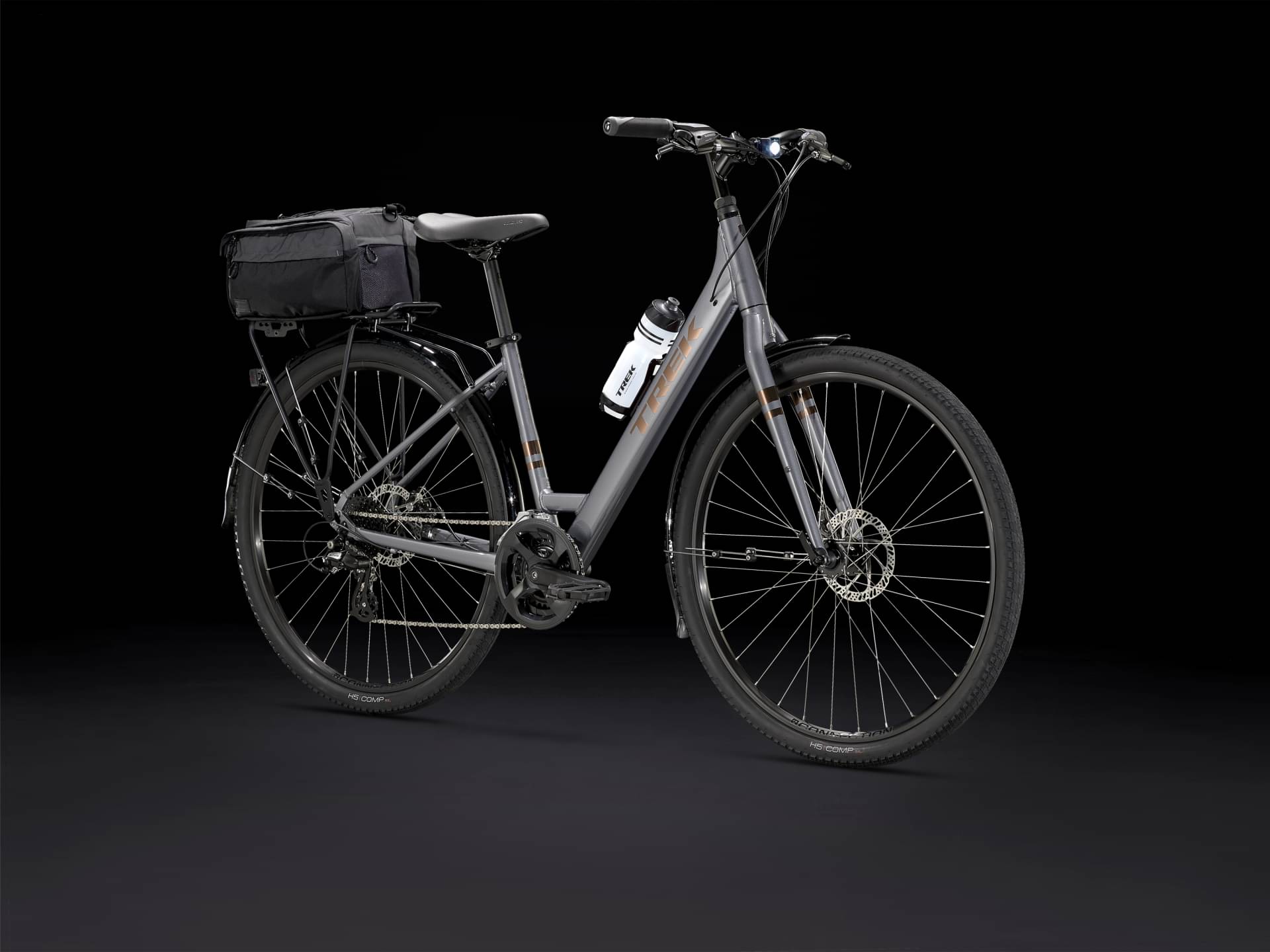

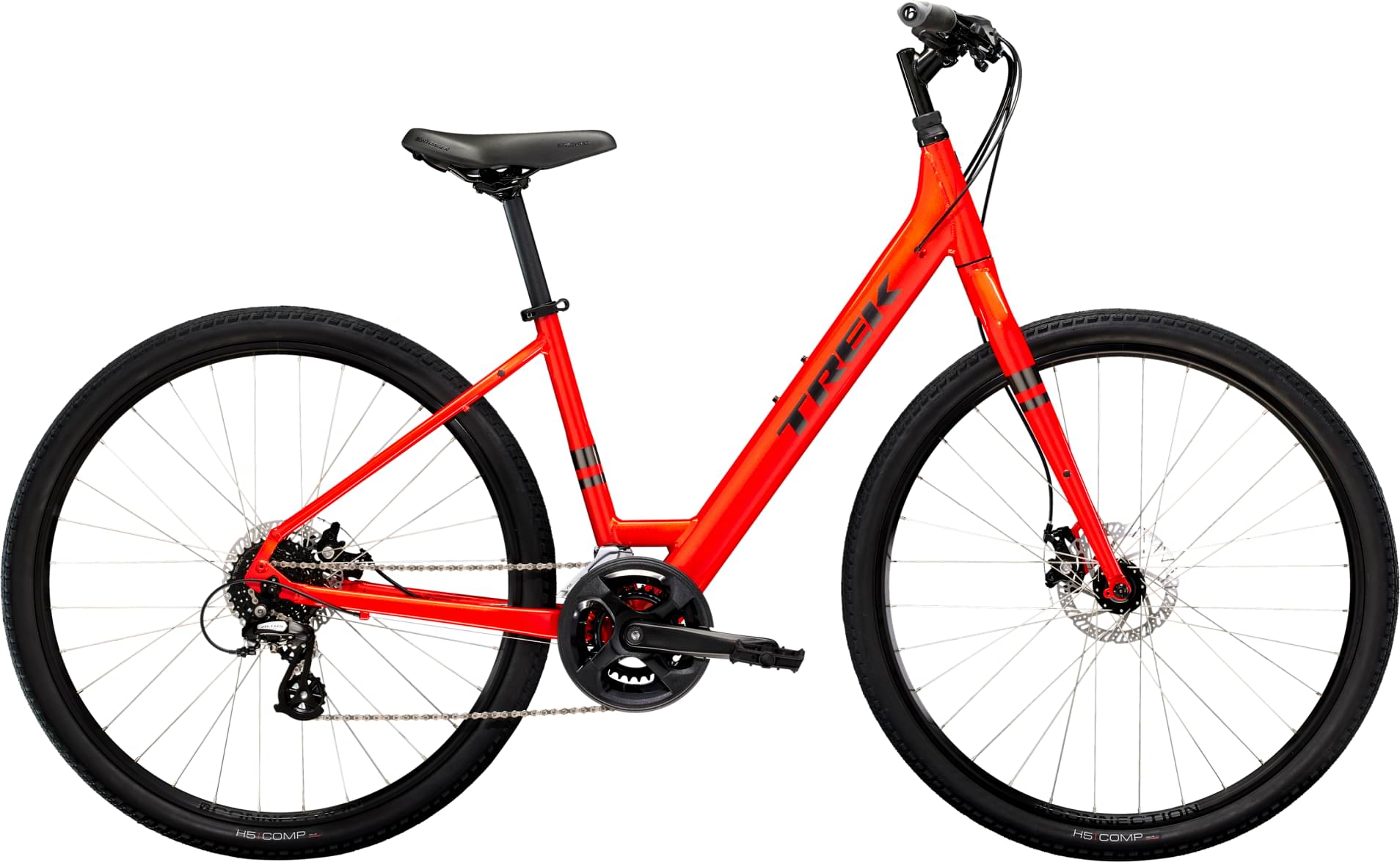

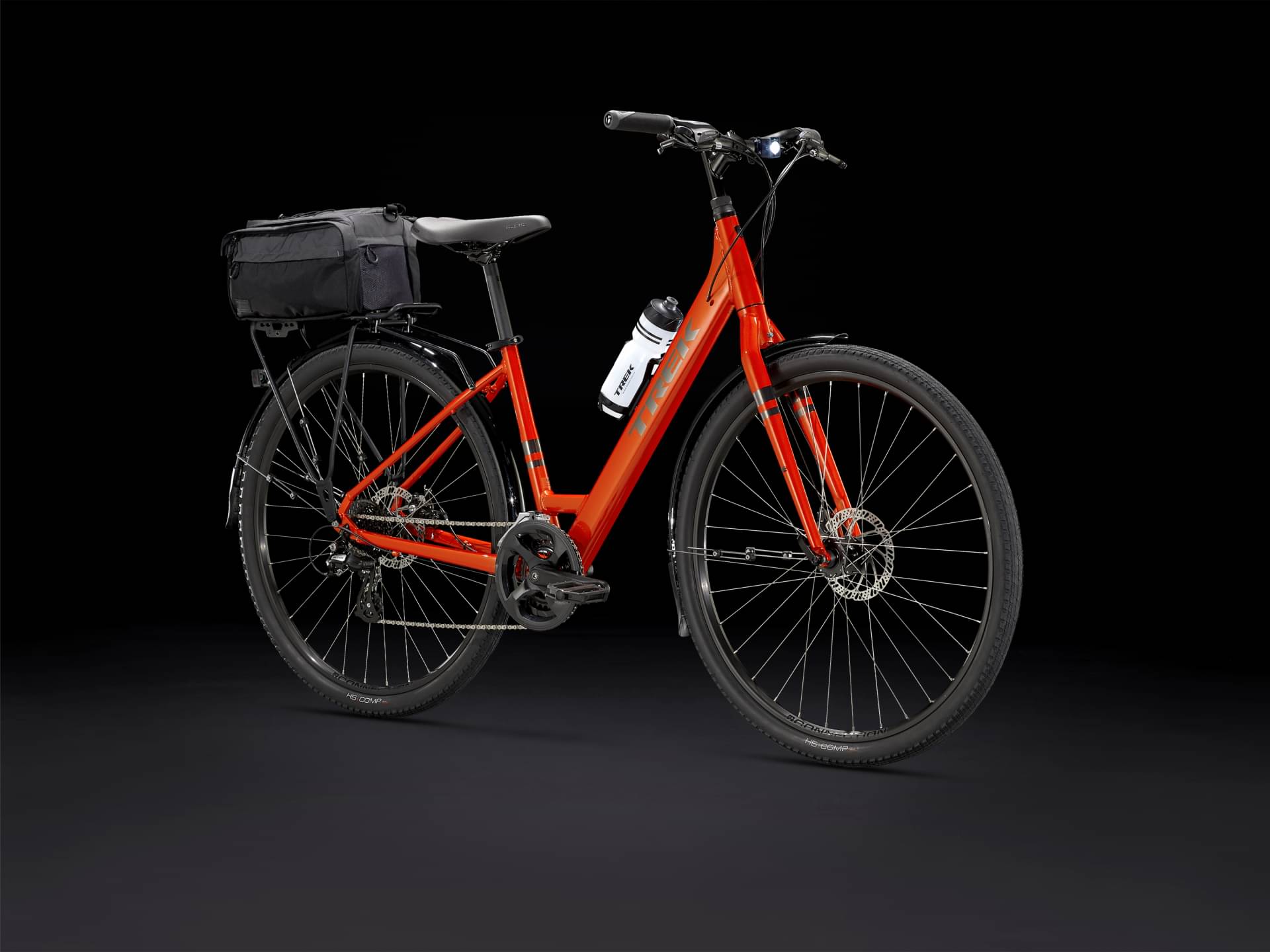

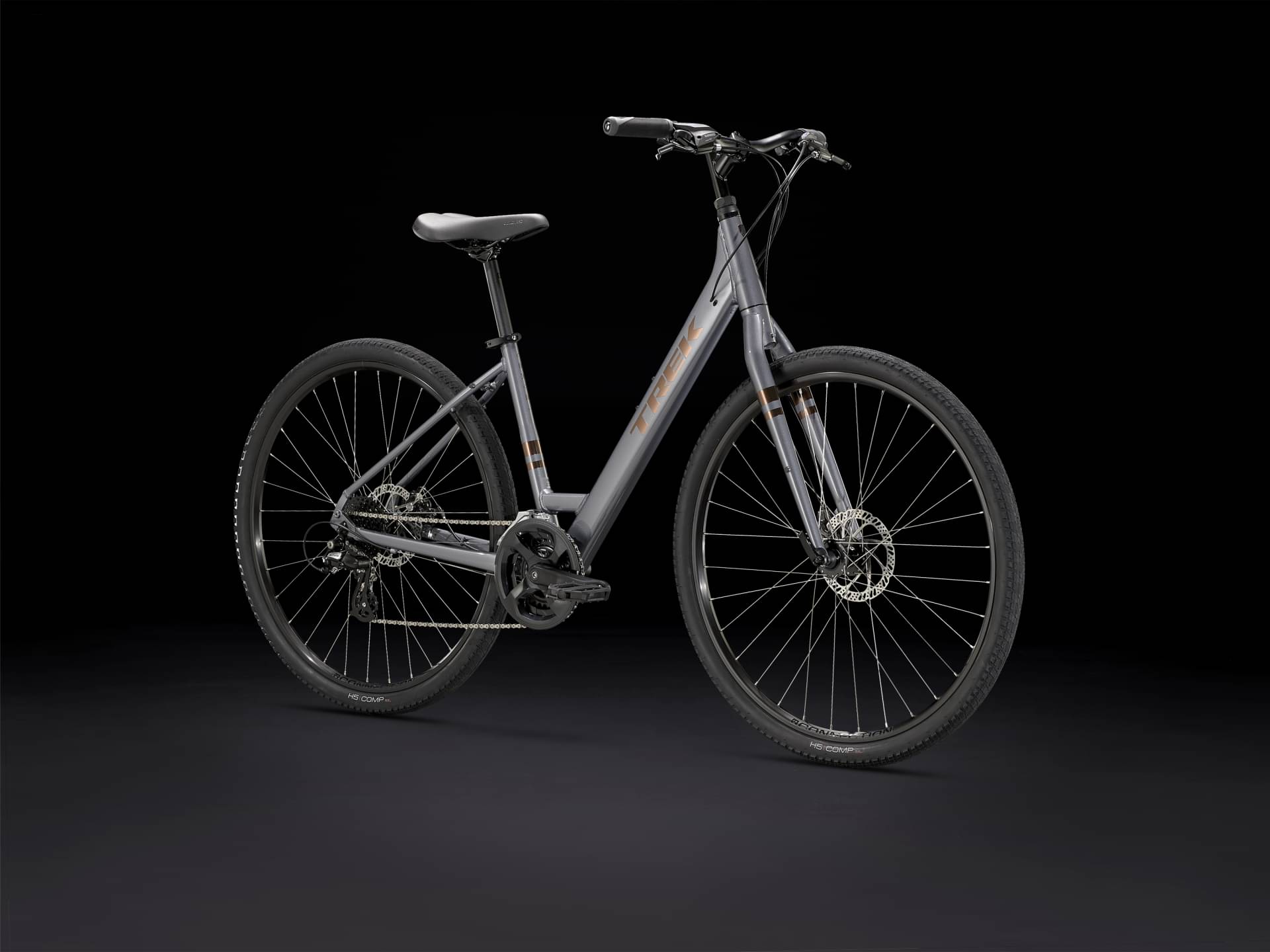

Trek Verve 1 Lowstep Gen 4 2023
2023 Urban
Estimate price |
699$
Weight | 13.64 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
165cm - 175cm
LG
175cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components

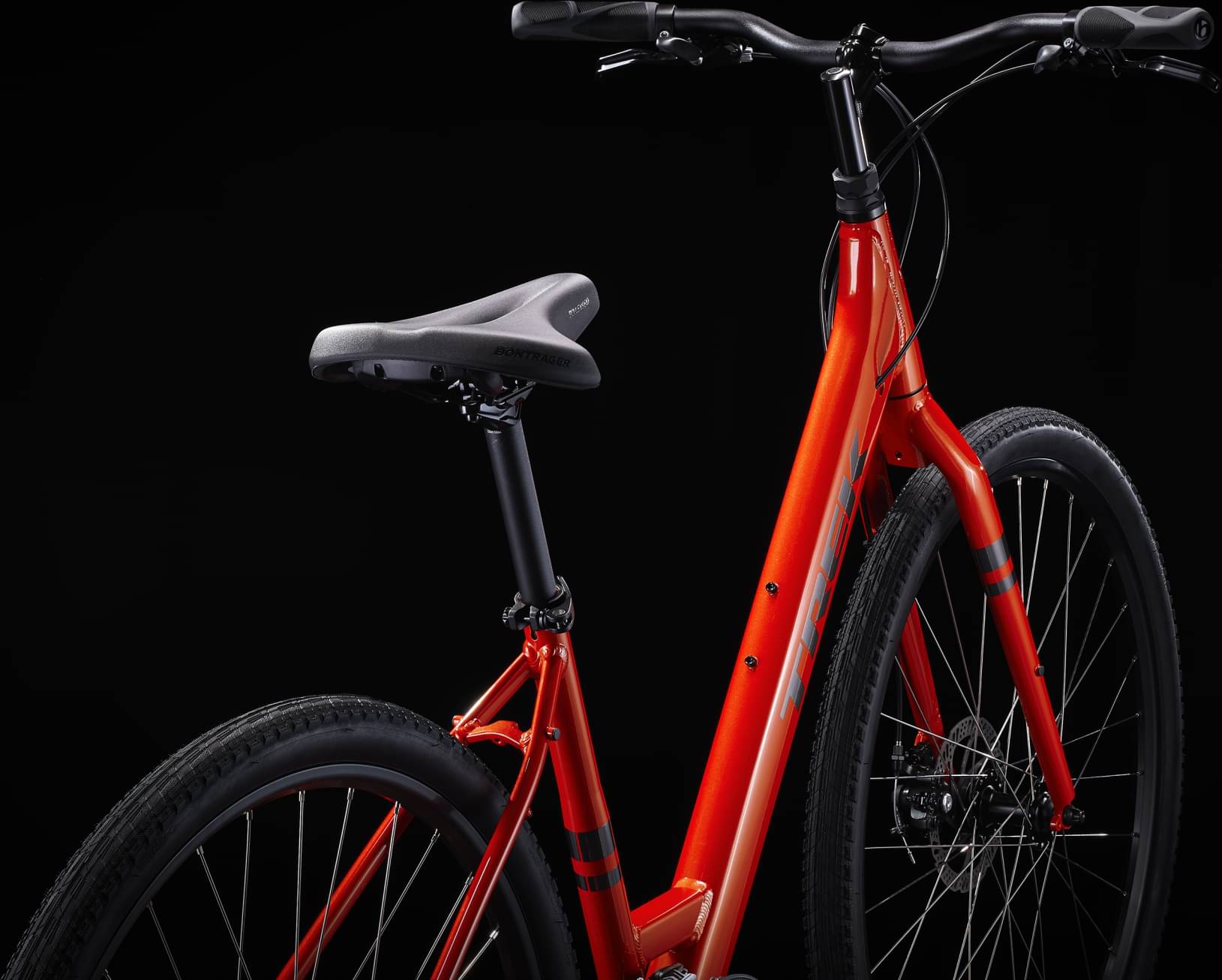

Frame
Frame
Alpha Gold Aluminum, lowstep, rack & fender mounts, DuoTrap S compatible, IS disc brake mount, 135x5mm QR
Suspension Fork
Verve Steel, threaded steel steerer, IS disc mount, 460mm axle-to-crown, 100x5mm QR

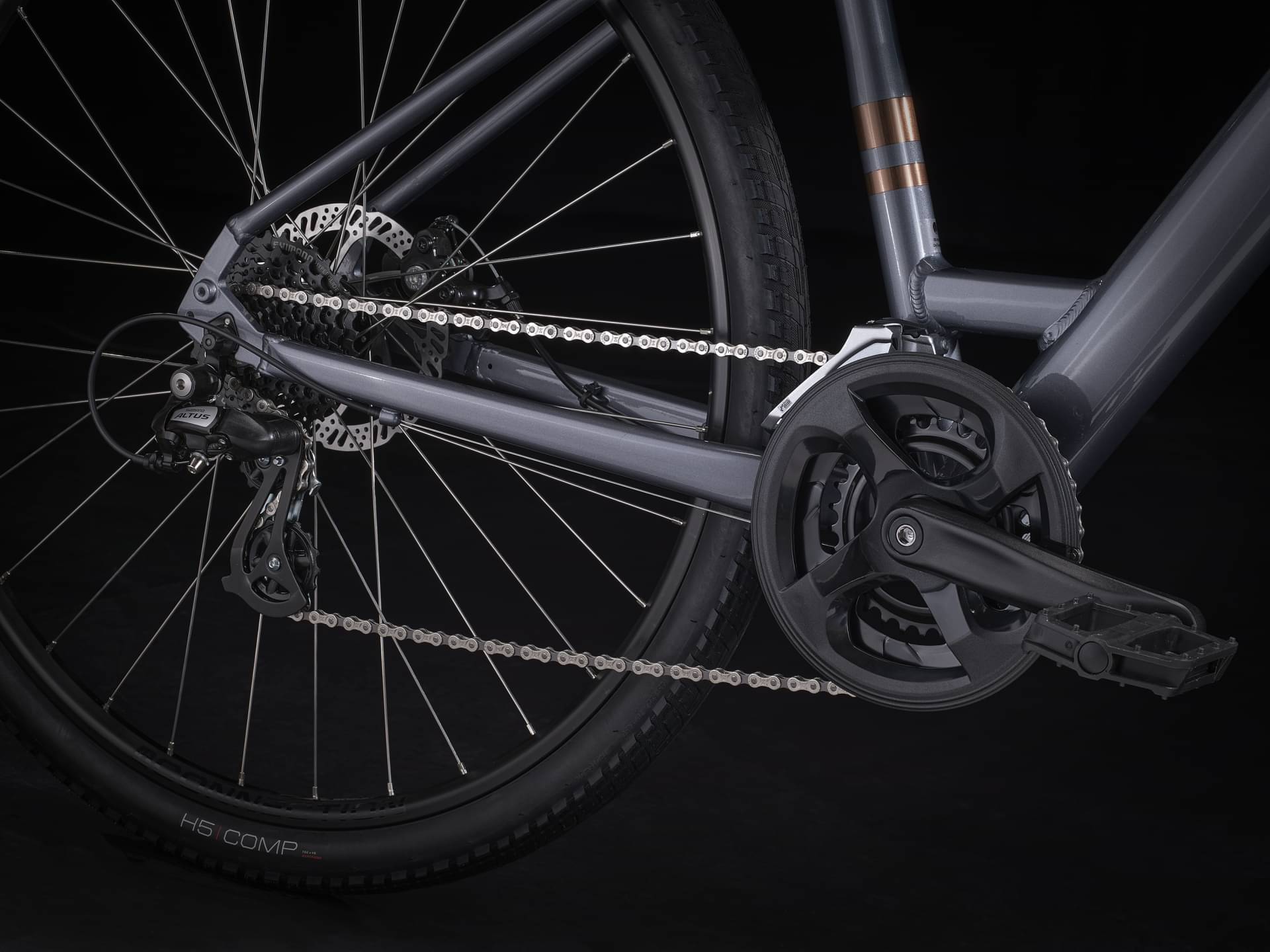

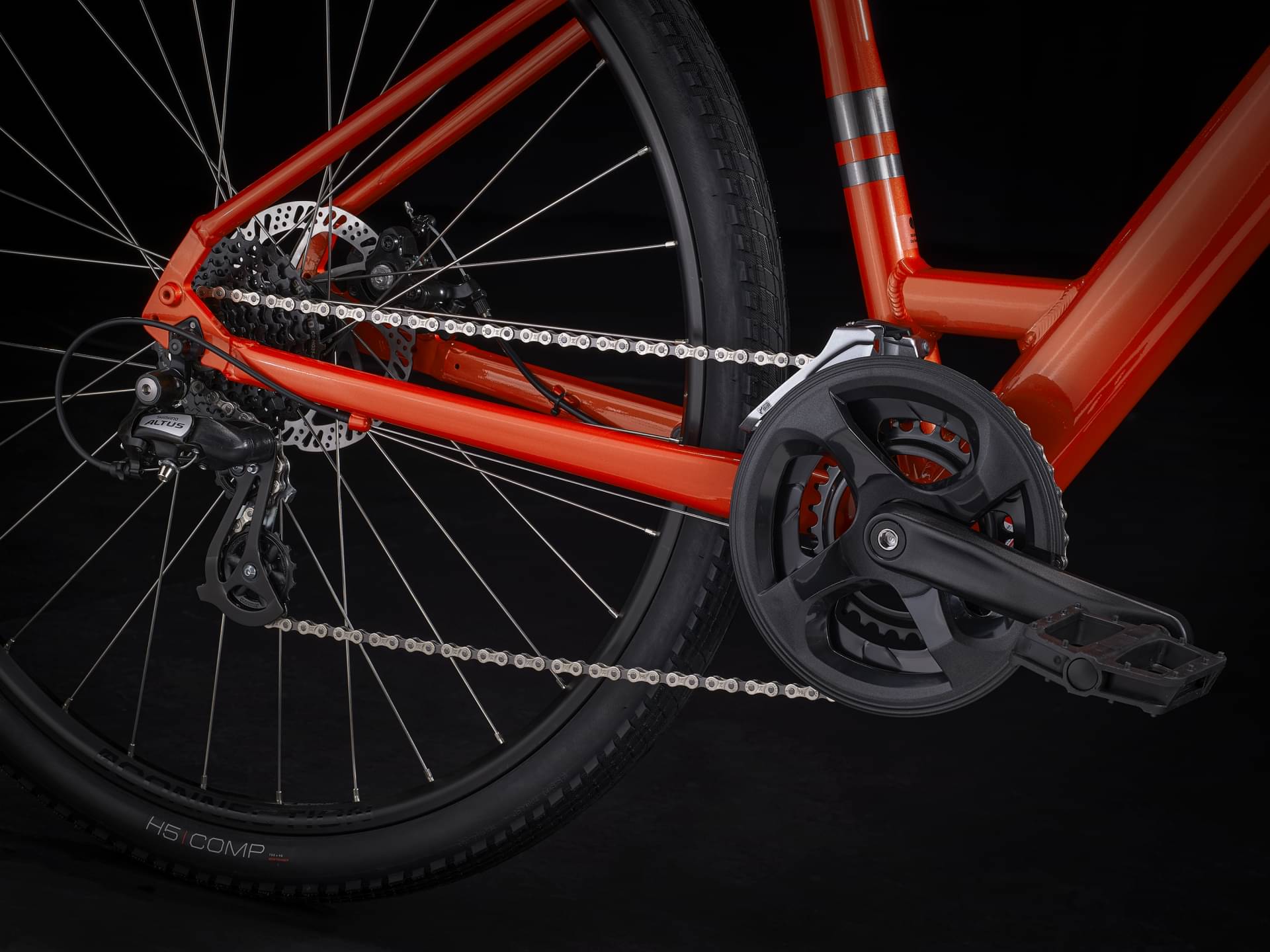

Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 8 speed
Cassette
Shimano HG31, 11-32, 8 speed
Crank
Forged alloy, 46/30, chainguard, 170mm length
Chain
KMC Z8.3
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

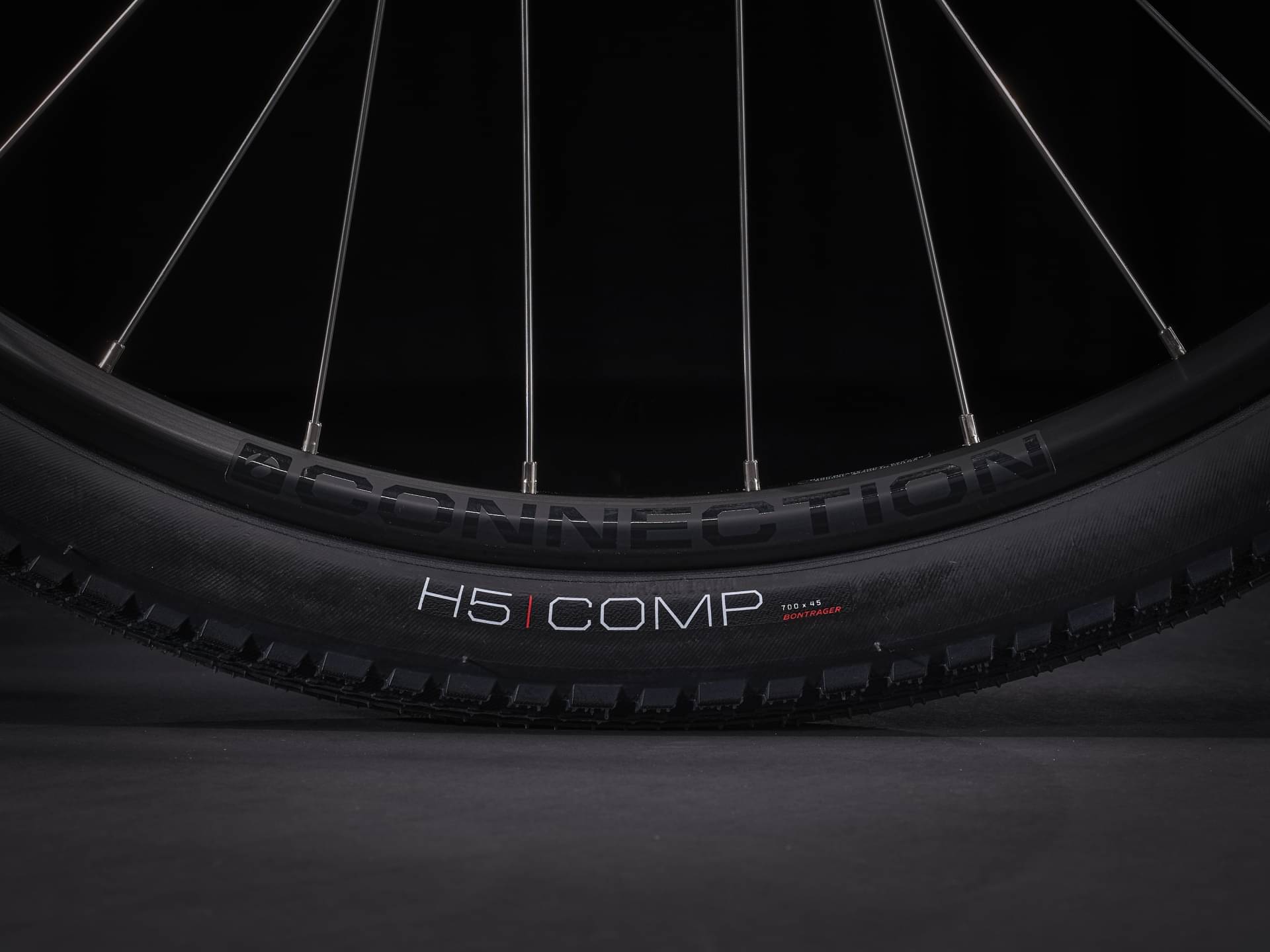

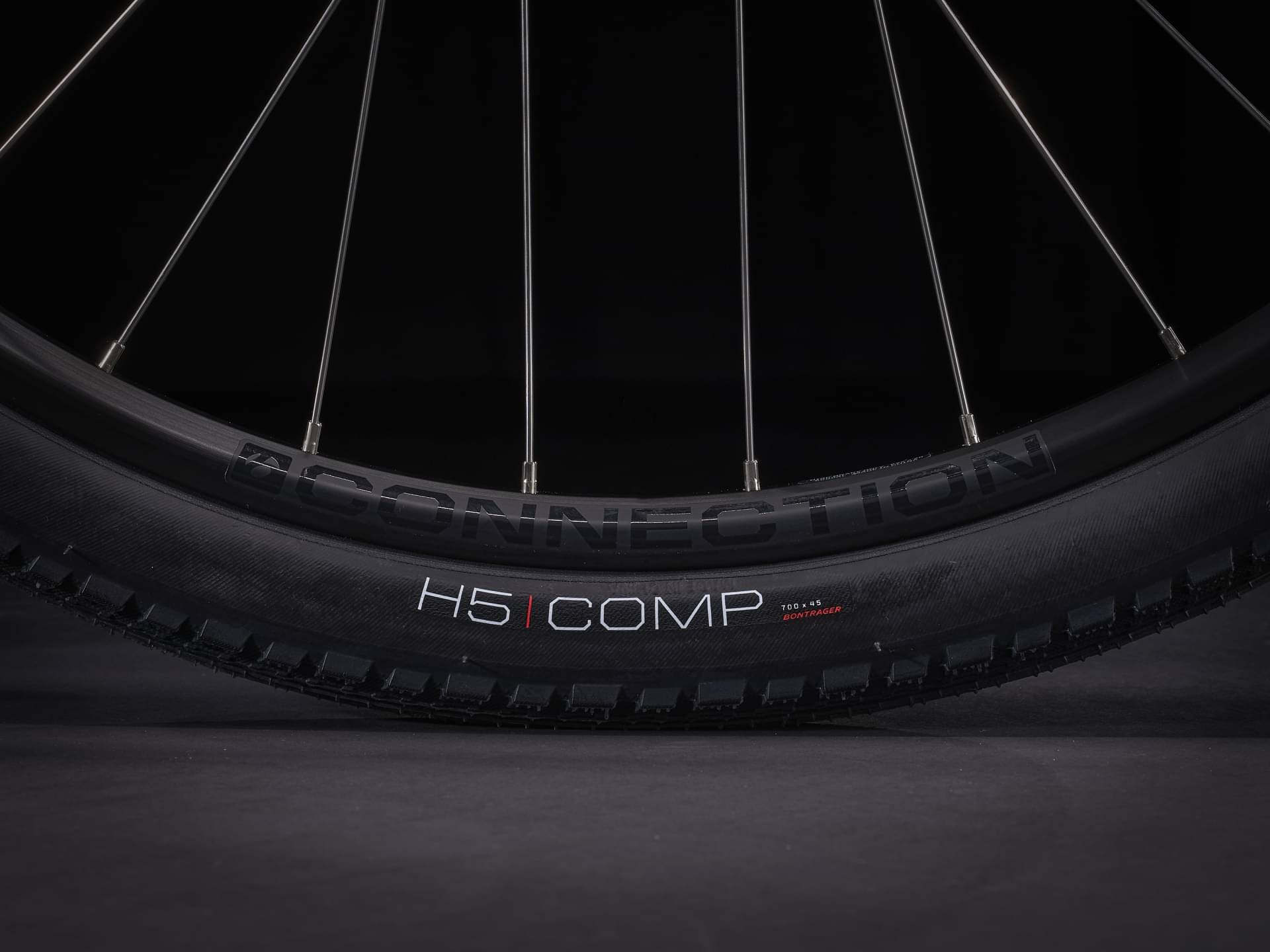

Tires
Bontrager H5 Comp, wire bead, 30 tpi, 700x45mm
Brakes

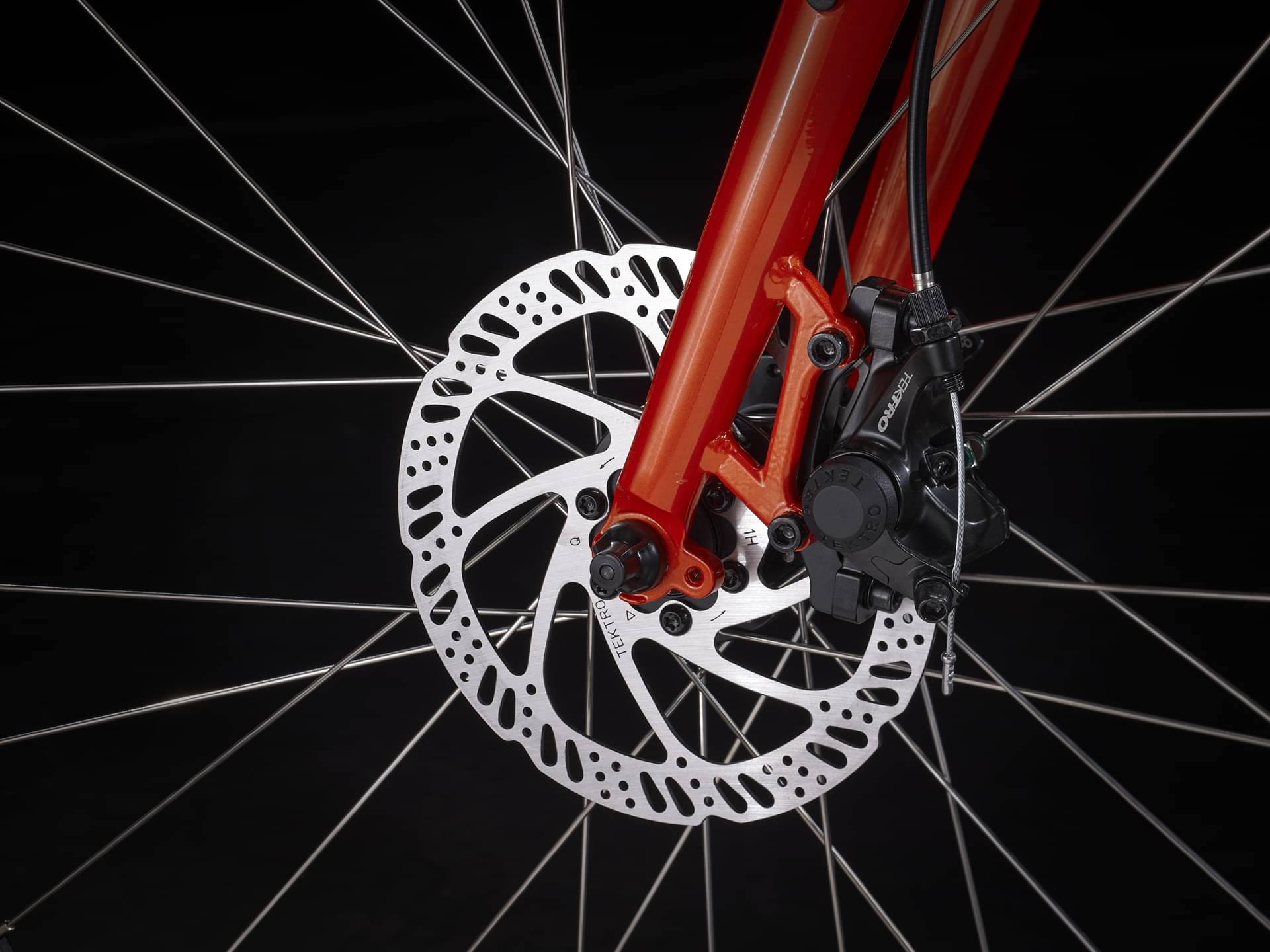

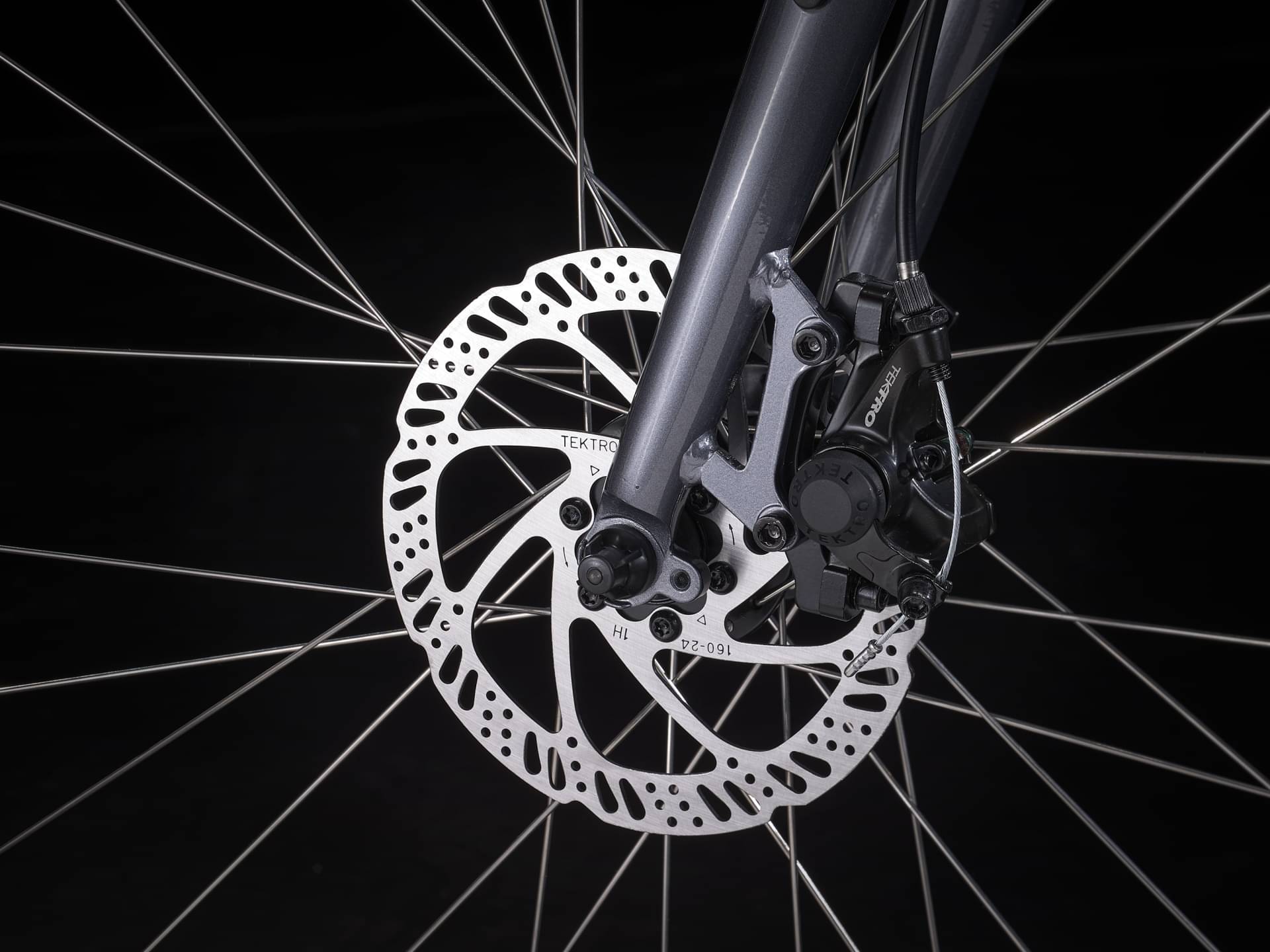

Brakes
Tektro MD-M280 mechanical disc, 160mm rotor
Cockpit
Stem
Size: XS, S, Bontrager Quill, 25.4mm clamp, 25 degree rise, 60mm reach; Size: M, L, Bontrager Quill, 25.4mm clamp, 25 degree rise, 100mm reach

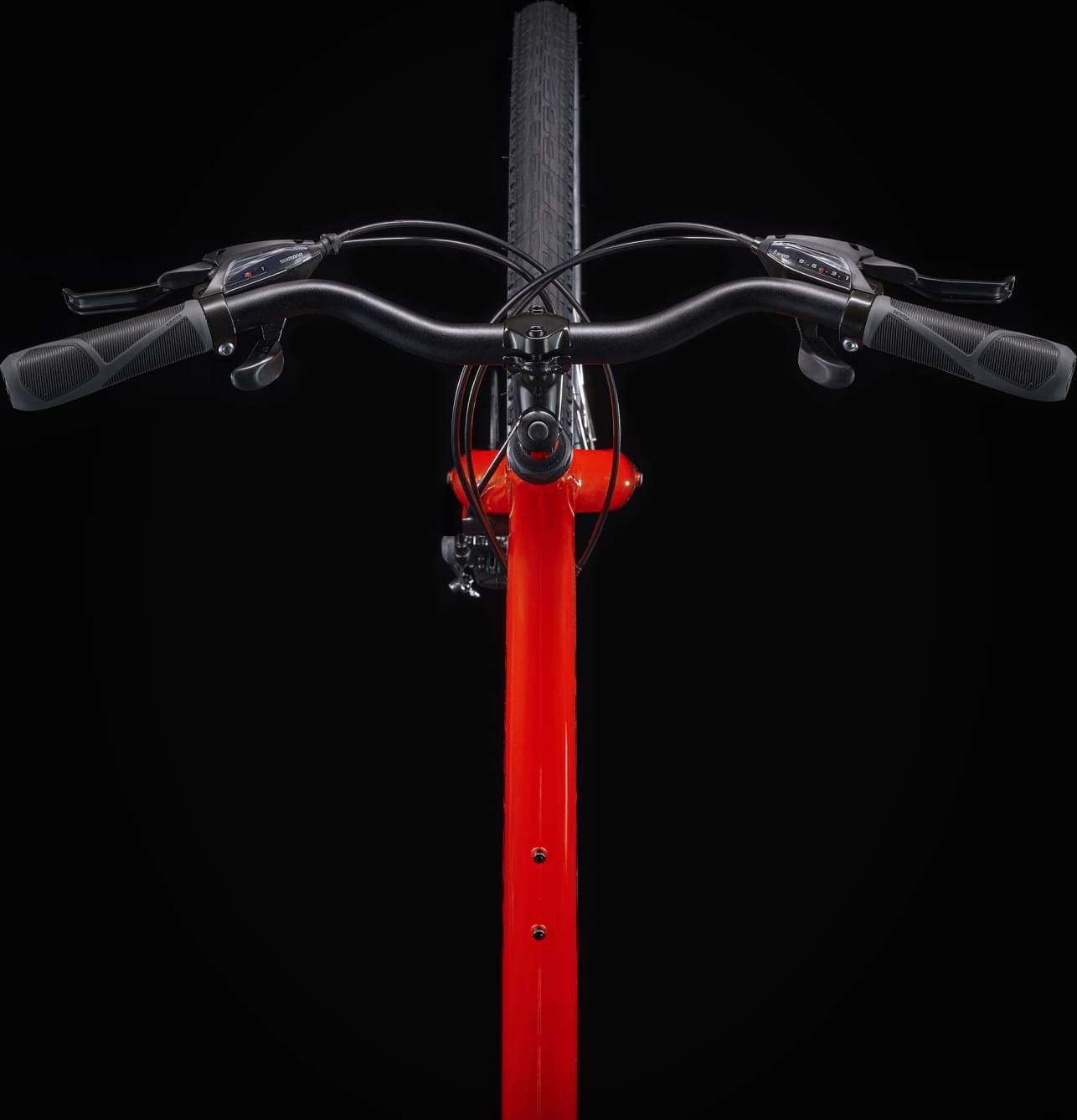

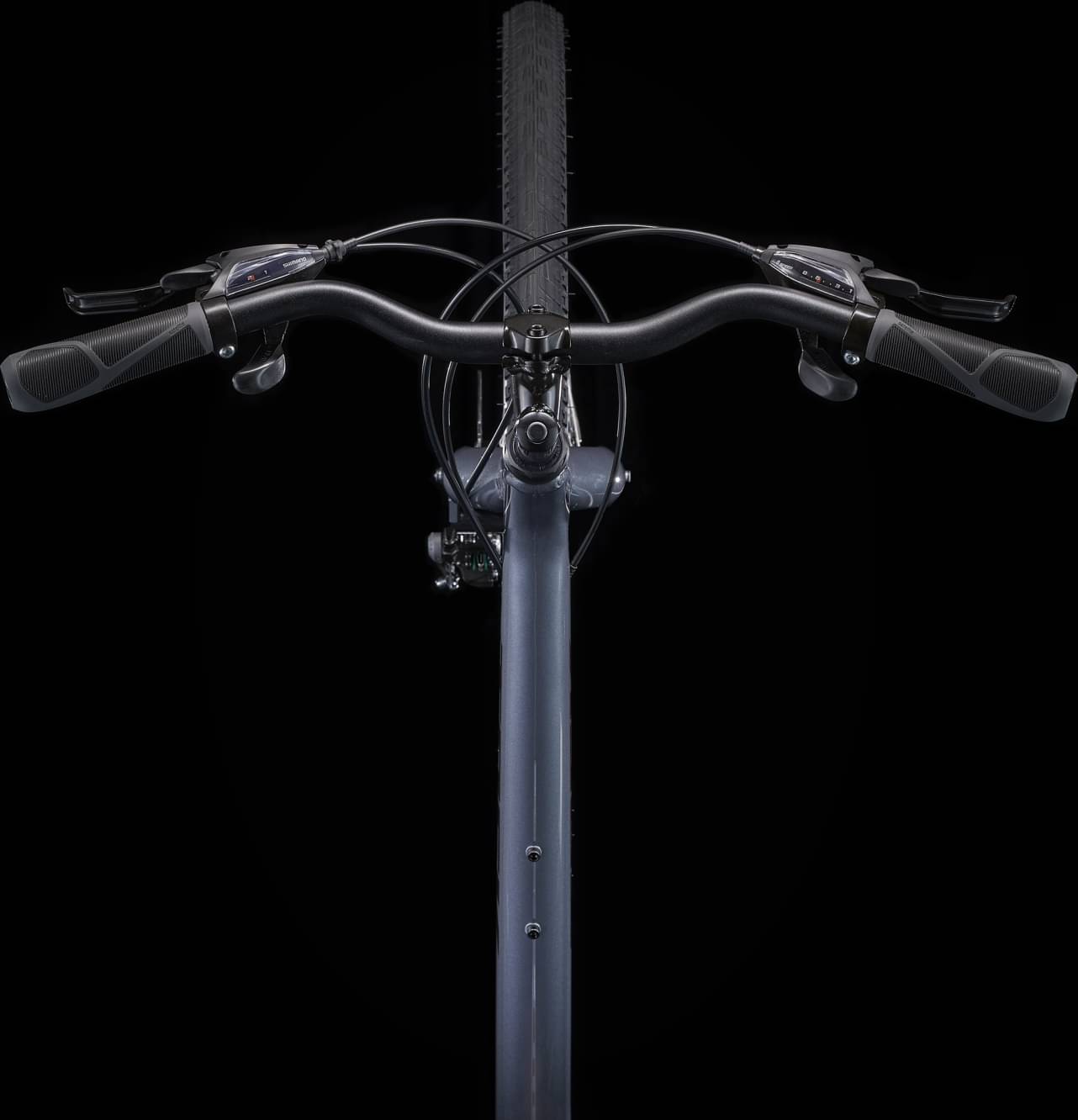

Handlebar
Trek Urban, alloy, 25.4mm, comfort sweep, 45mm rise, 620mm width

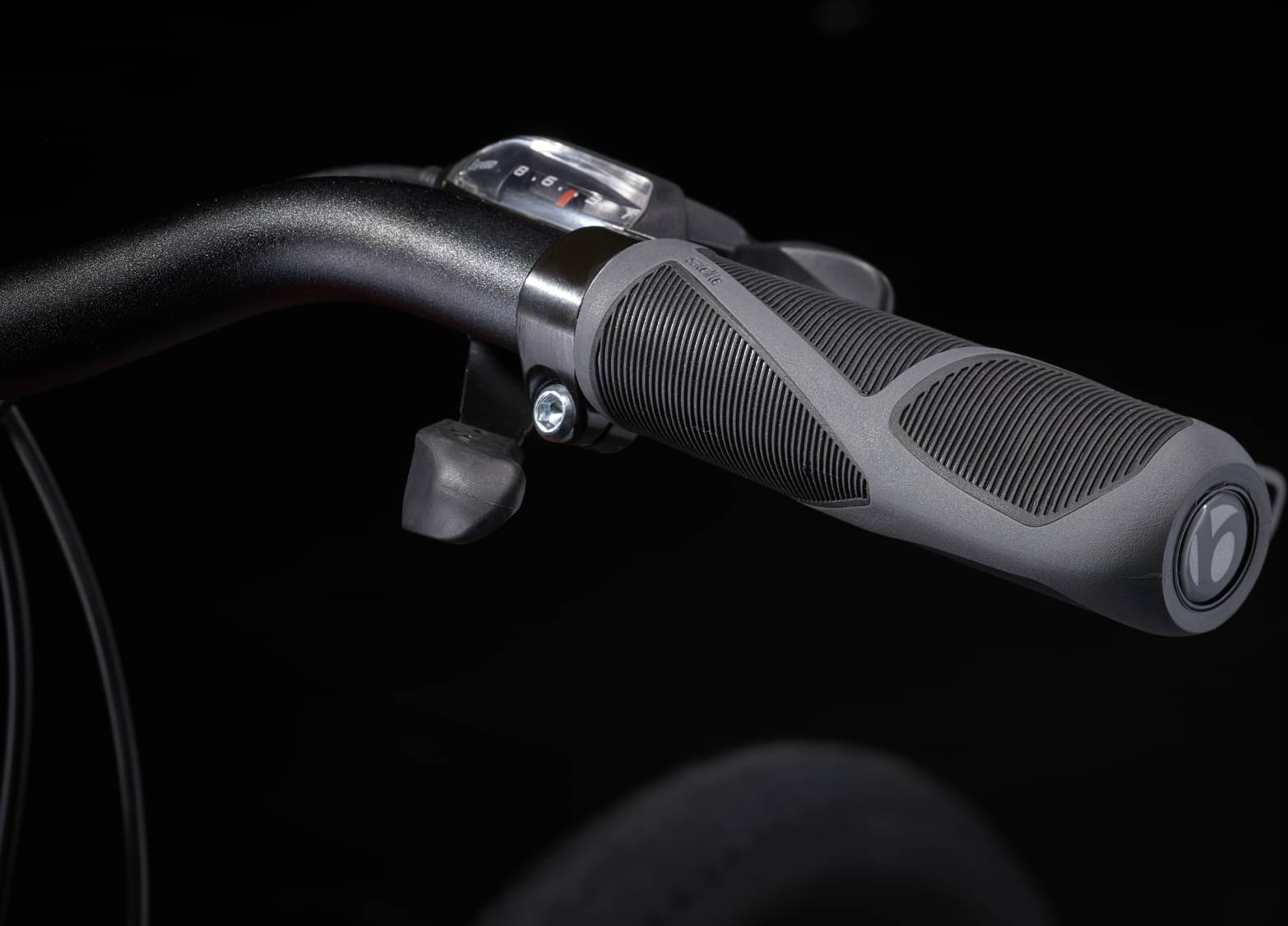

Grips
Bontrager Satellite
Headset
1-1/8'' threaded, semi-integrated, semi-cartridge bearings
Seat

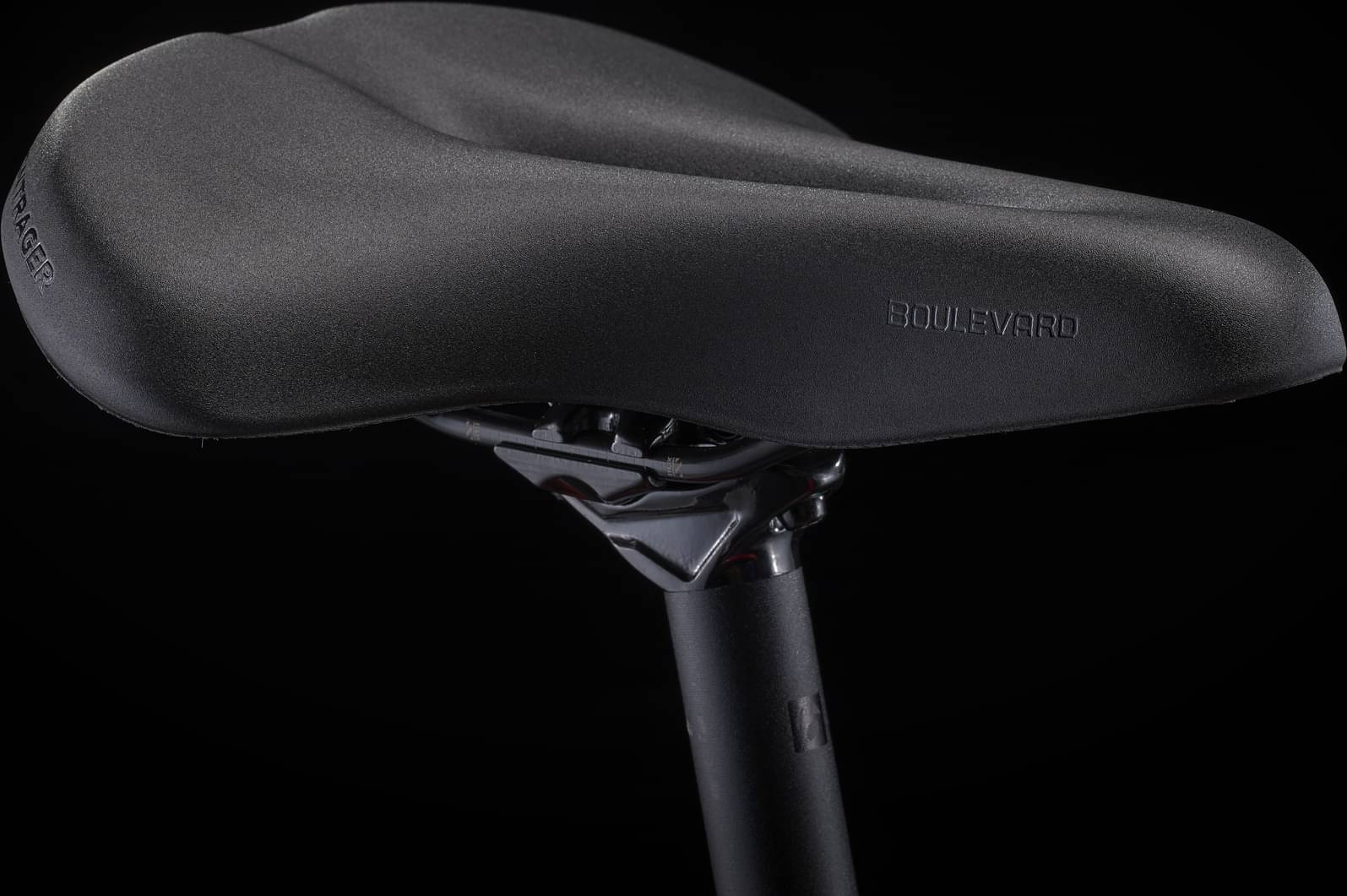

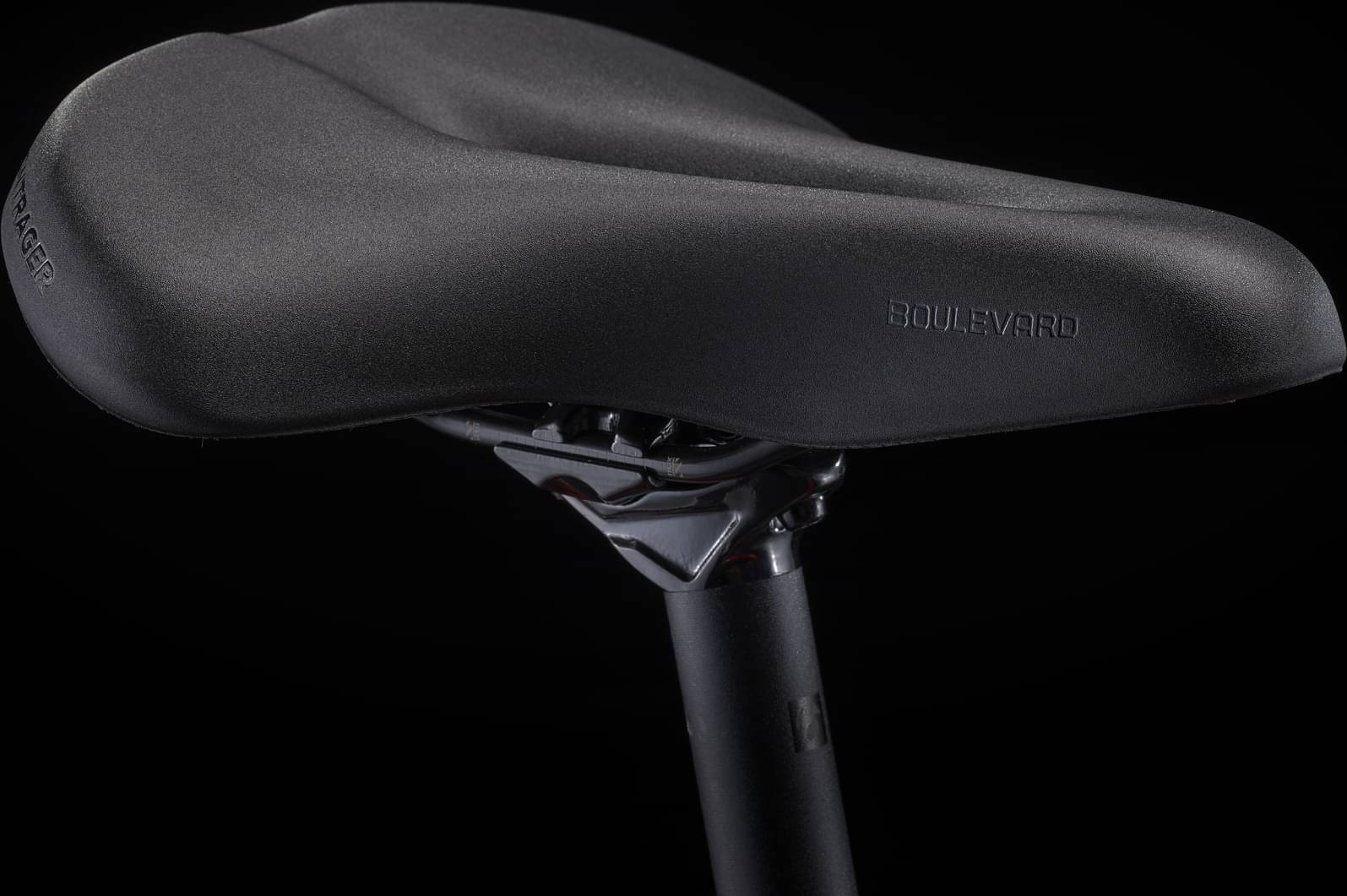

Saddle
Bontrager Boulevard
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.668 mm | 1.673 mm | 1.666 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 617 mm | 633 mm | 642 mm | 647 mm |
| Rake | 41 mm | 45 mm | 45 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 615 mm | 634 mm | 644 mm | 653 mm |
| Reach | 375 mm | 380 mm | 385 mm | 392 mm |
| Top Tube Length | 546 mm | 568 mm | 594 mm | 604 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 350 mm | 440 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1080 mm | 1096 mm | 1105 mm | 1110 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 631 mm | 654 mm | 682 mm | 694 mm |
| Wheels | 700 | 700 | 700 | 700 |
