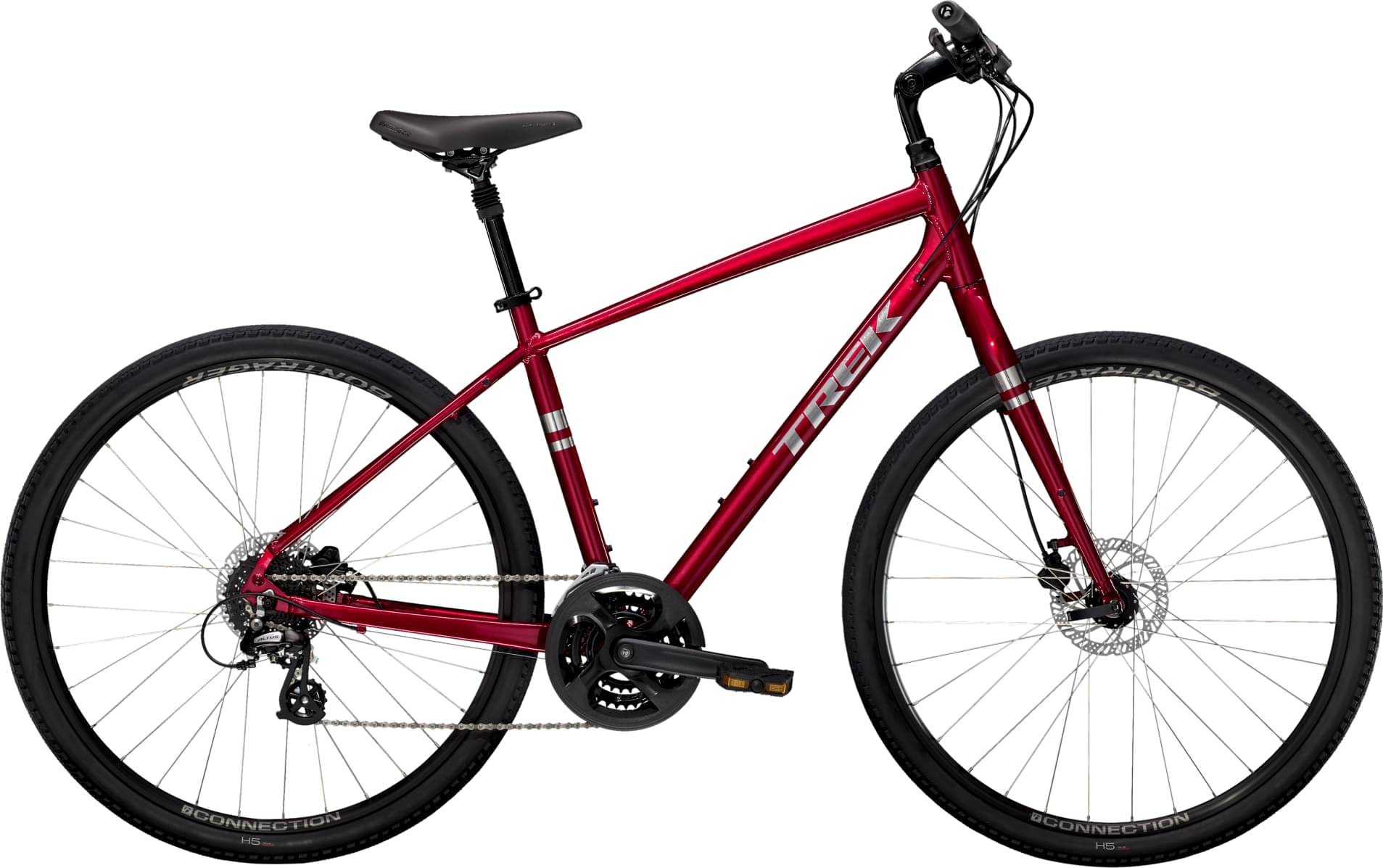

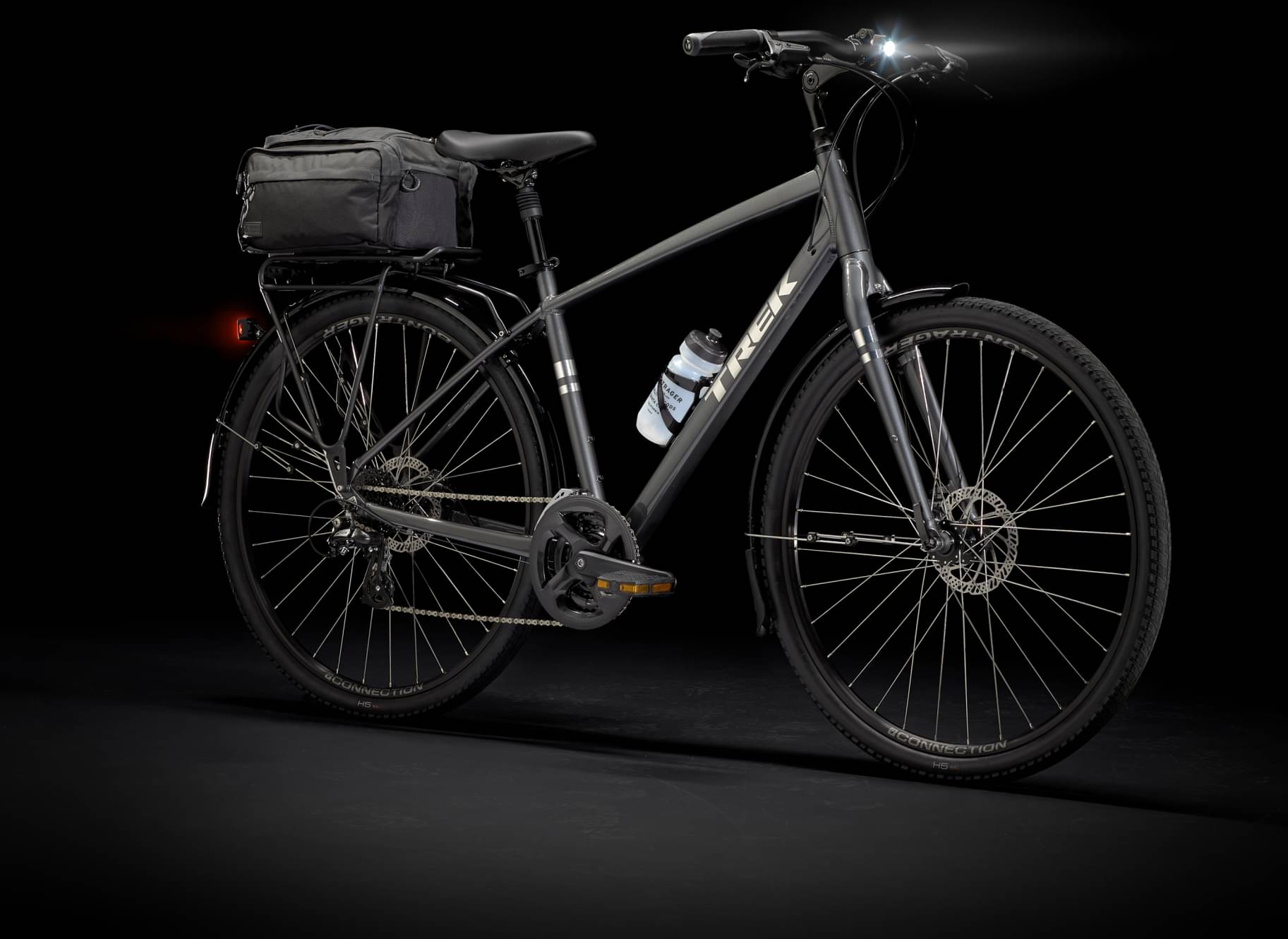

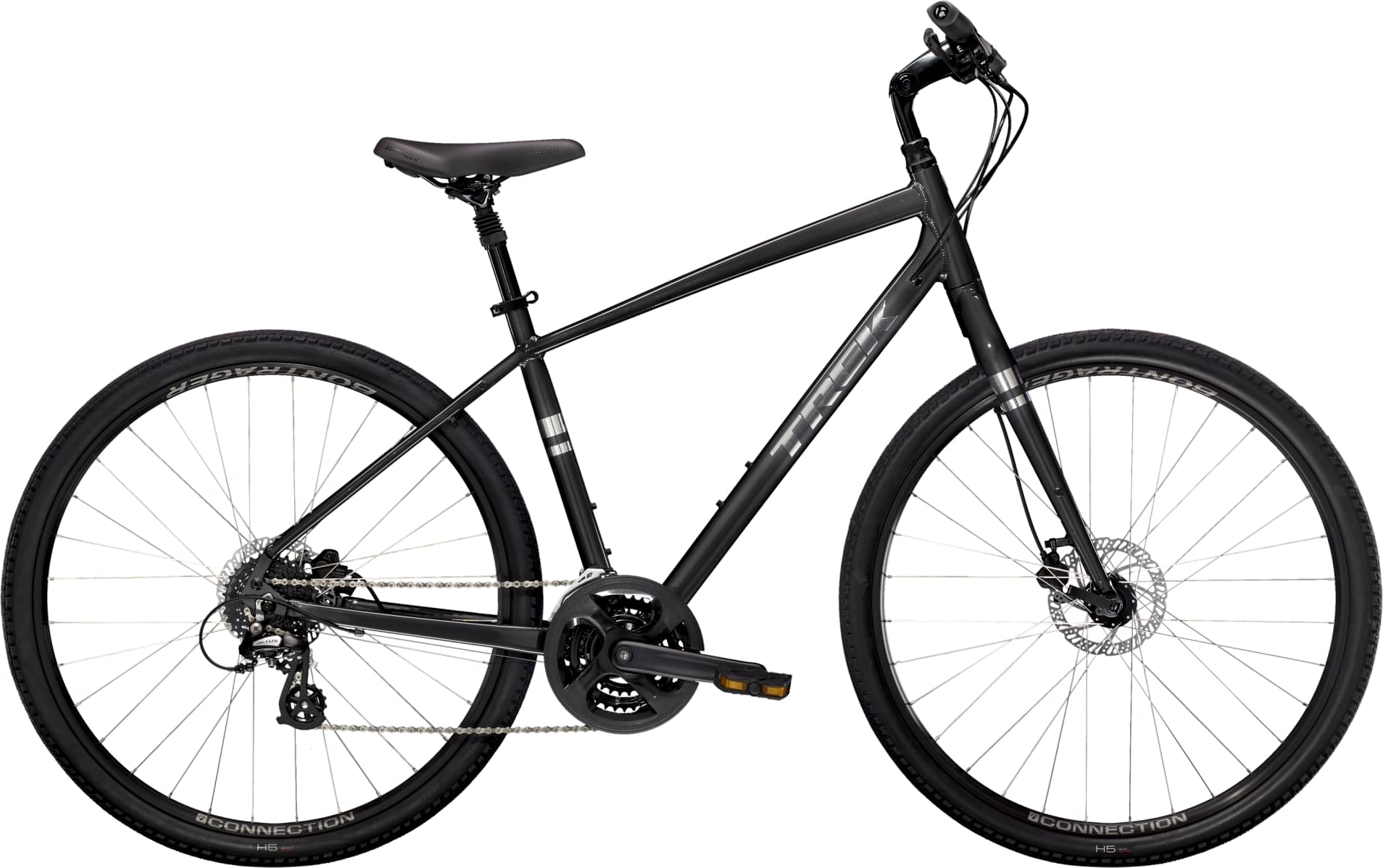

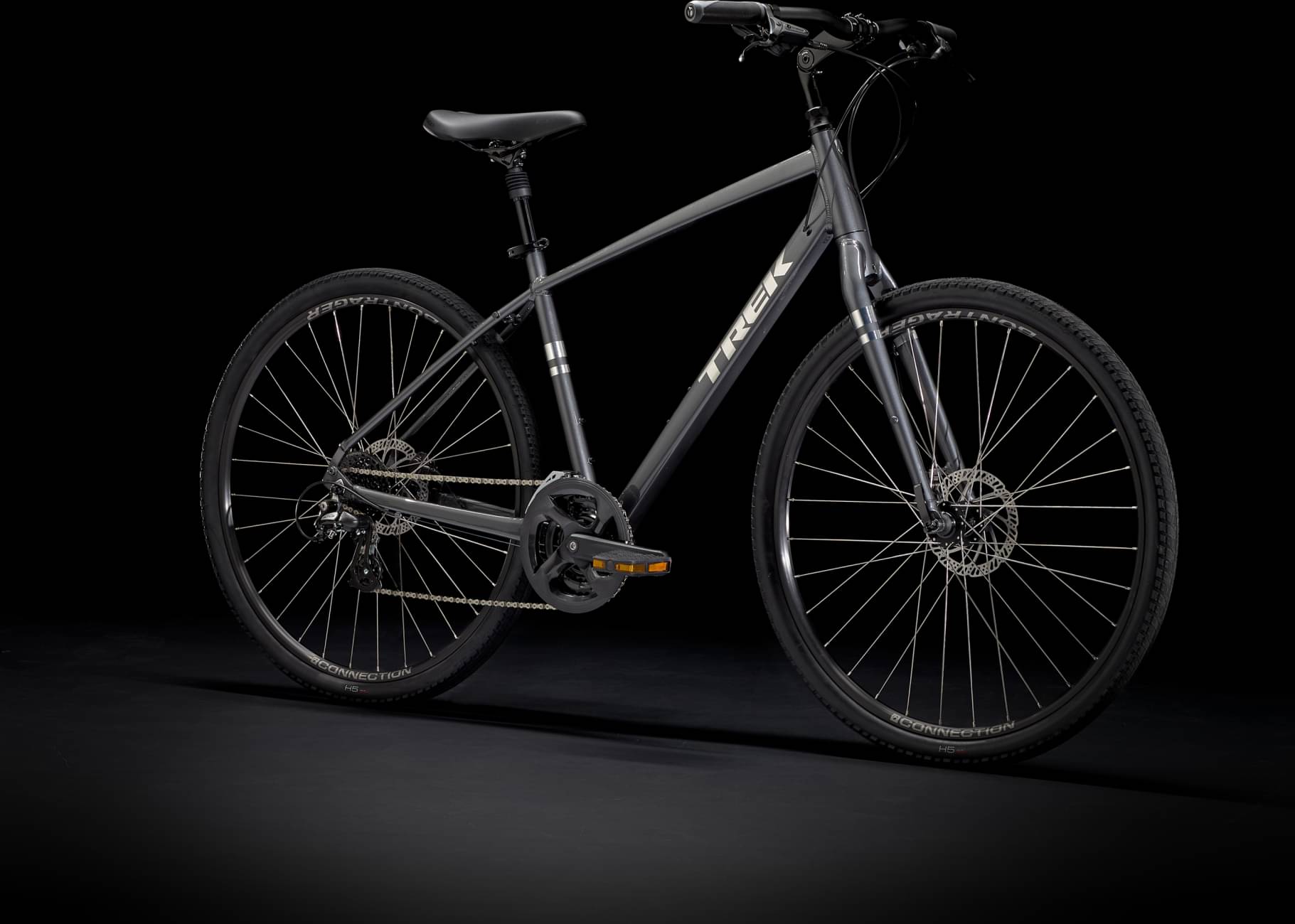

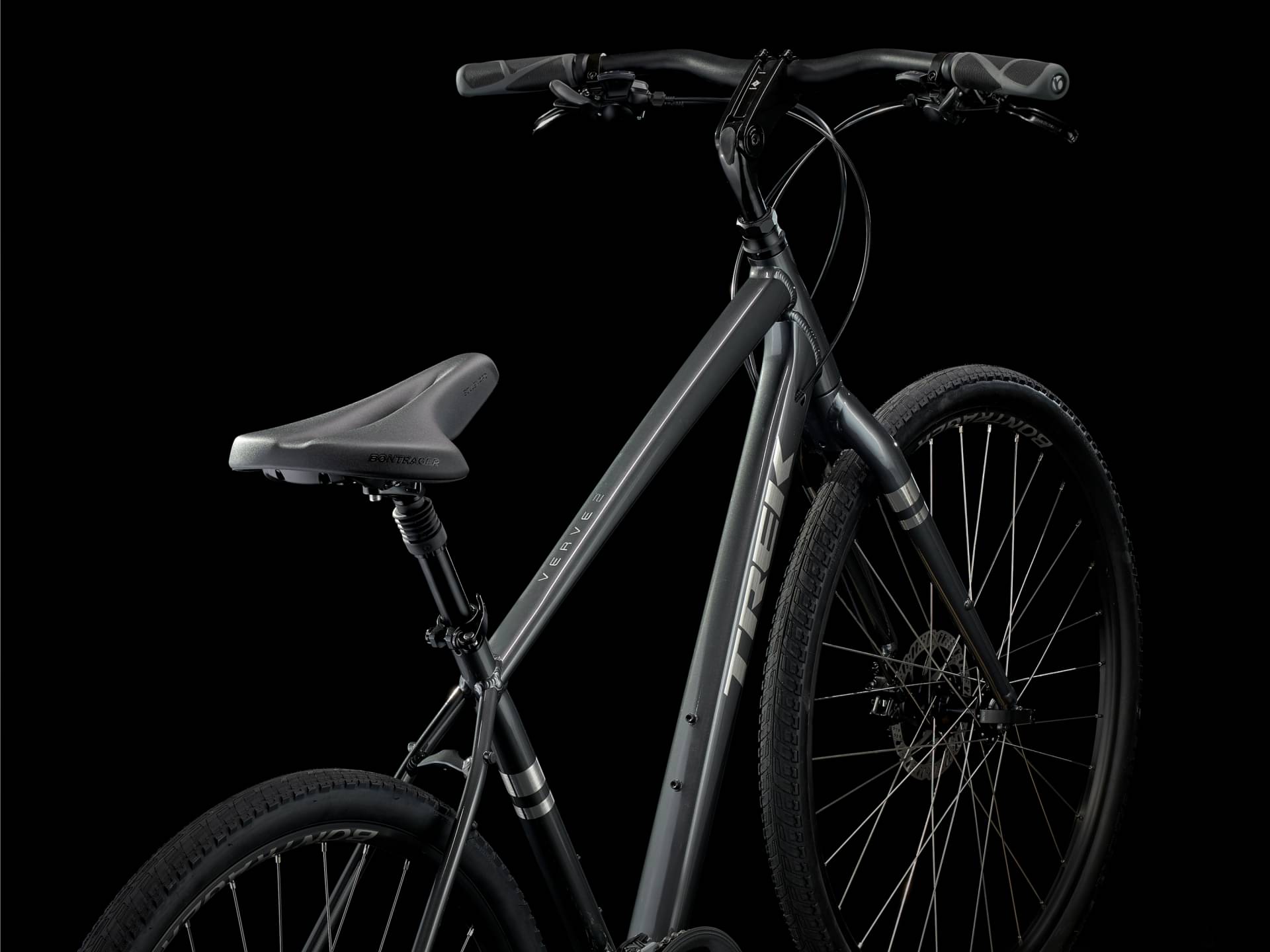

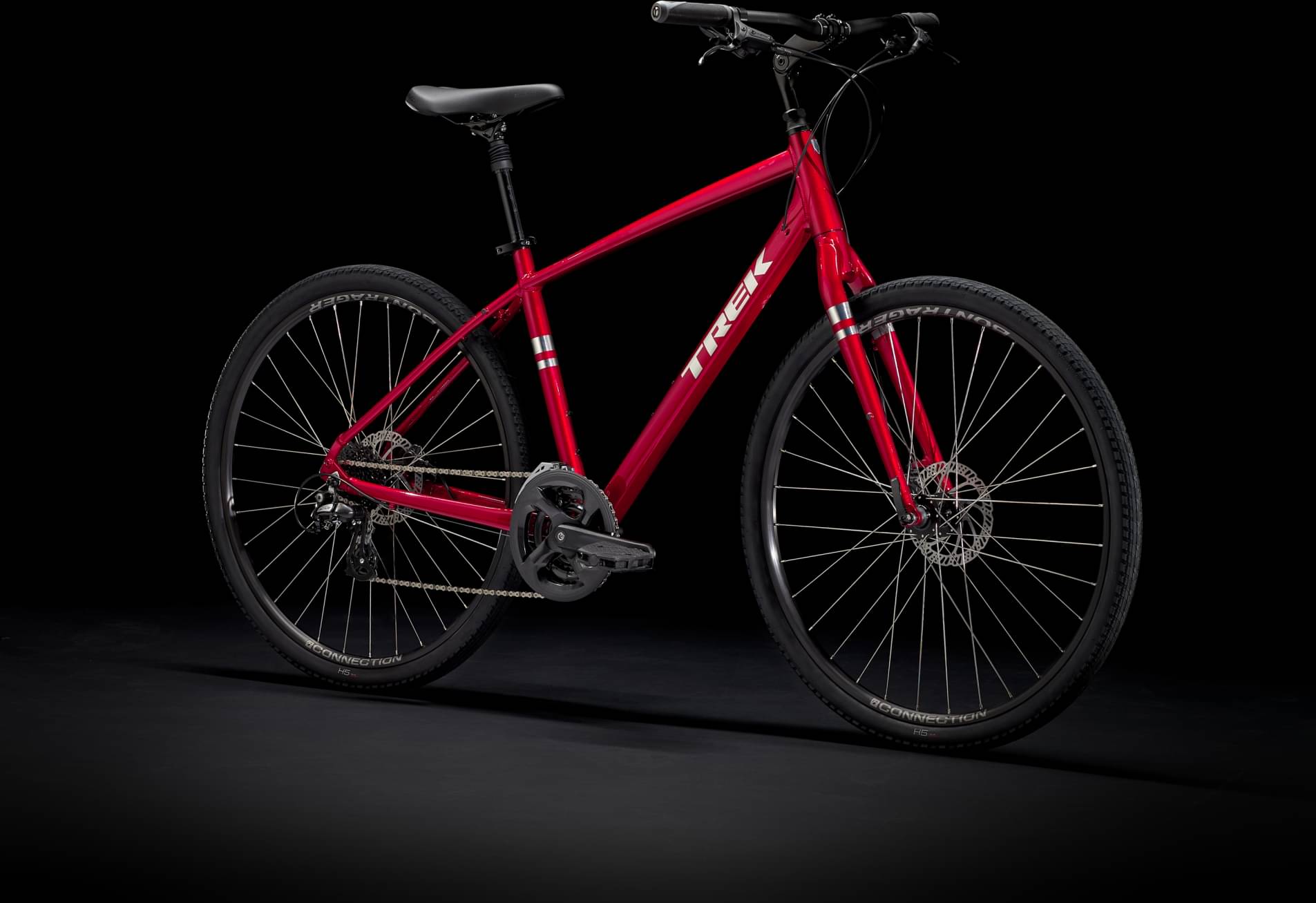

Trek Verve 2 Disc Gen 4 2022
2022 Urban
Estimate price |
799$
Weight | 13.73 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

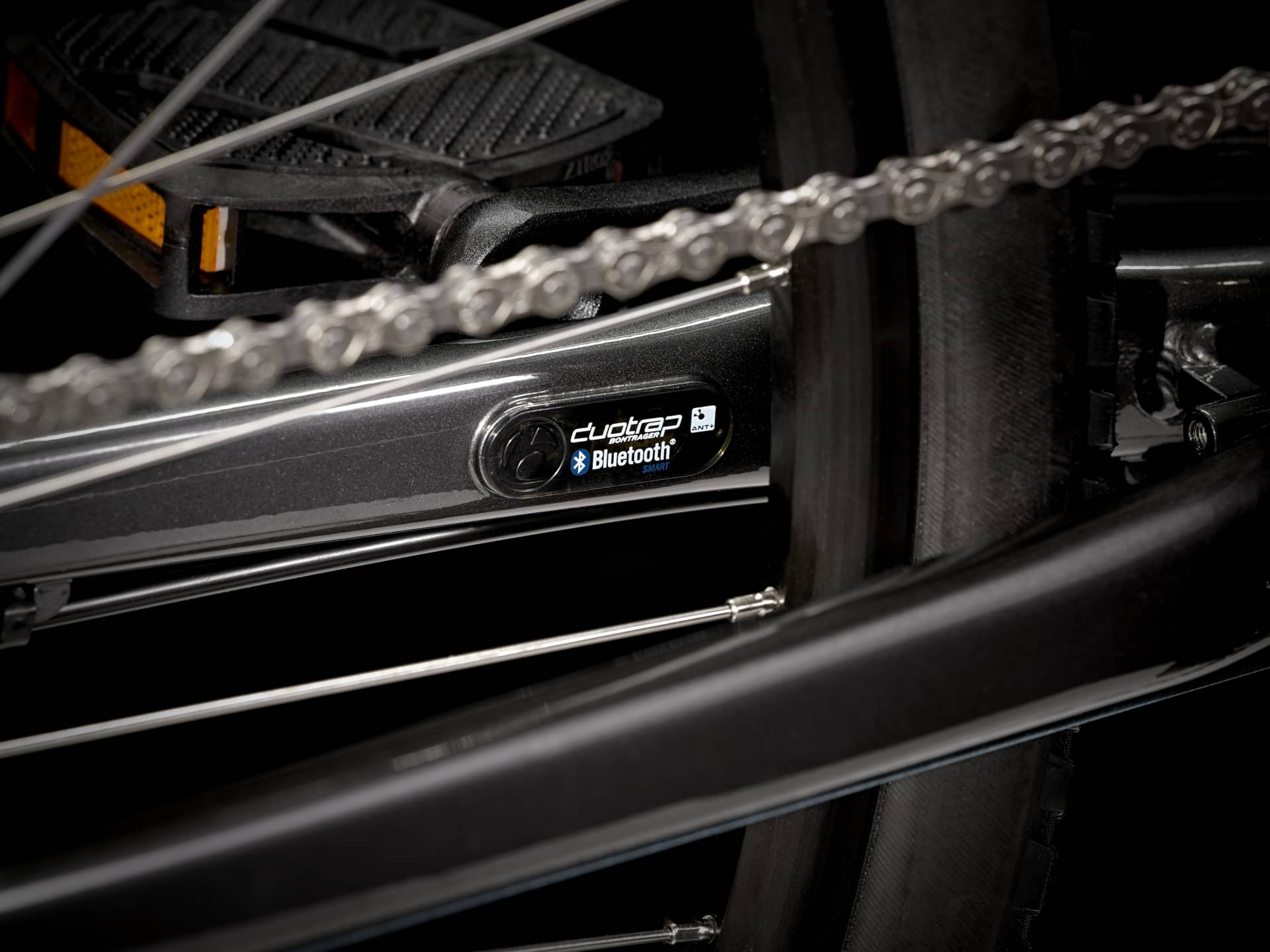

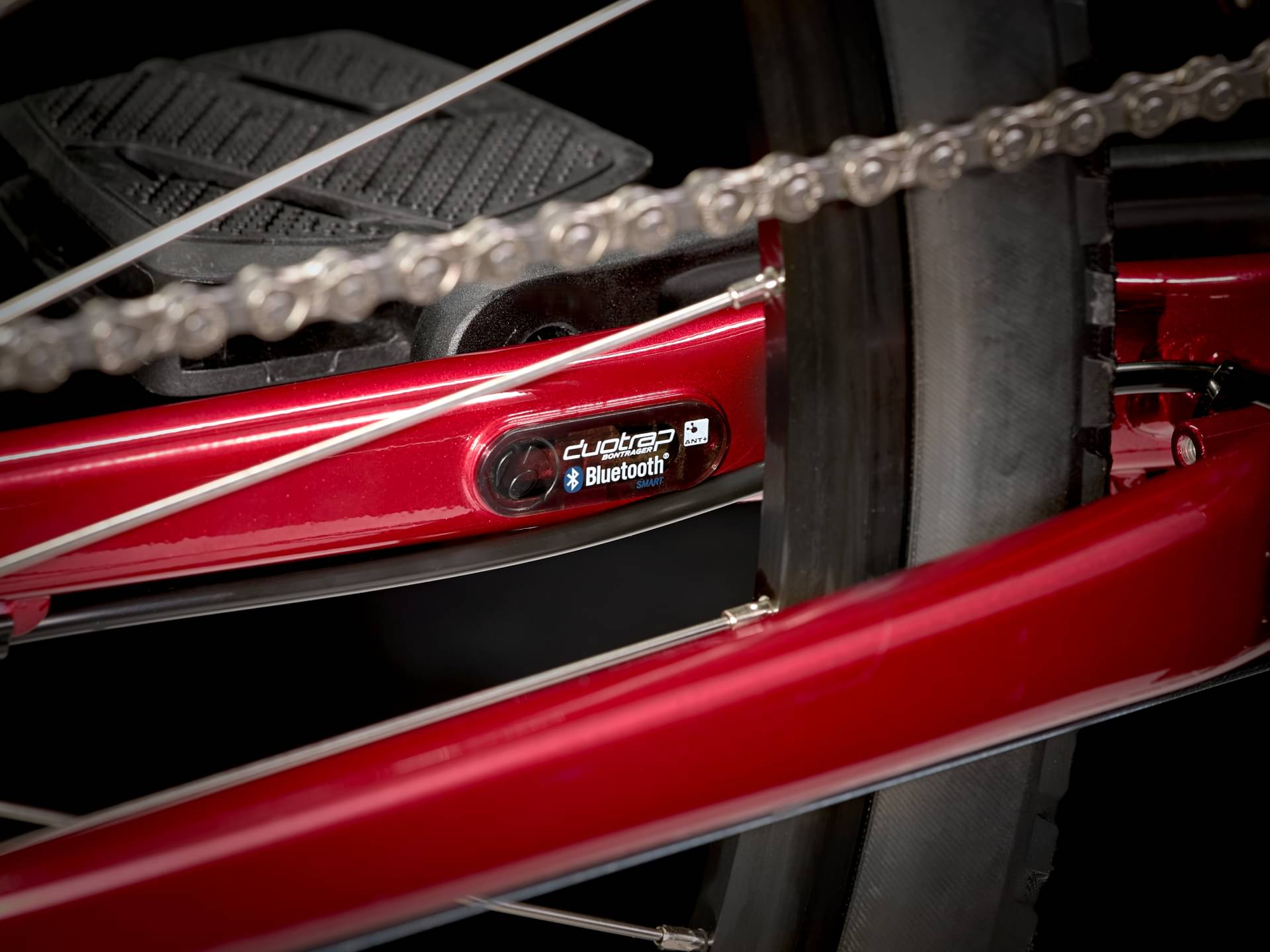

Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, IS disc brake mount, 135x5mm QR
Suspension Fork
Verve Alloy, threaded steel steerer, rack mounts, post mount disc, 460mm axle-to-crown, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Shift Levers
Size: S, M, L, XL, Shimano M315, 8 speed; Size: S, M, L, XL, Shimano Altus M315, 3 speed
Cassette
Shimano HG31, 11-32, 8 speed
Crank

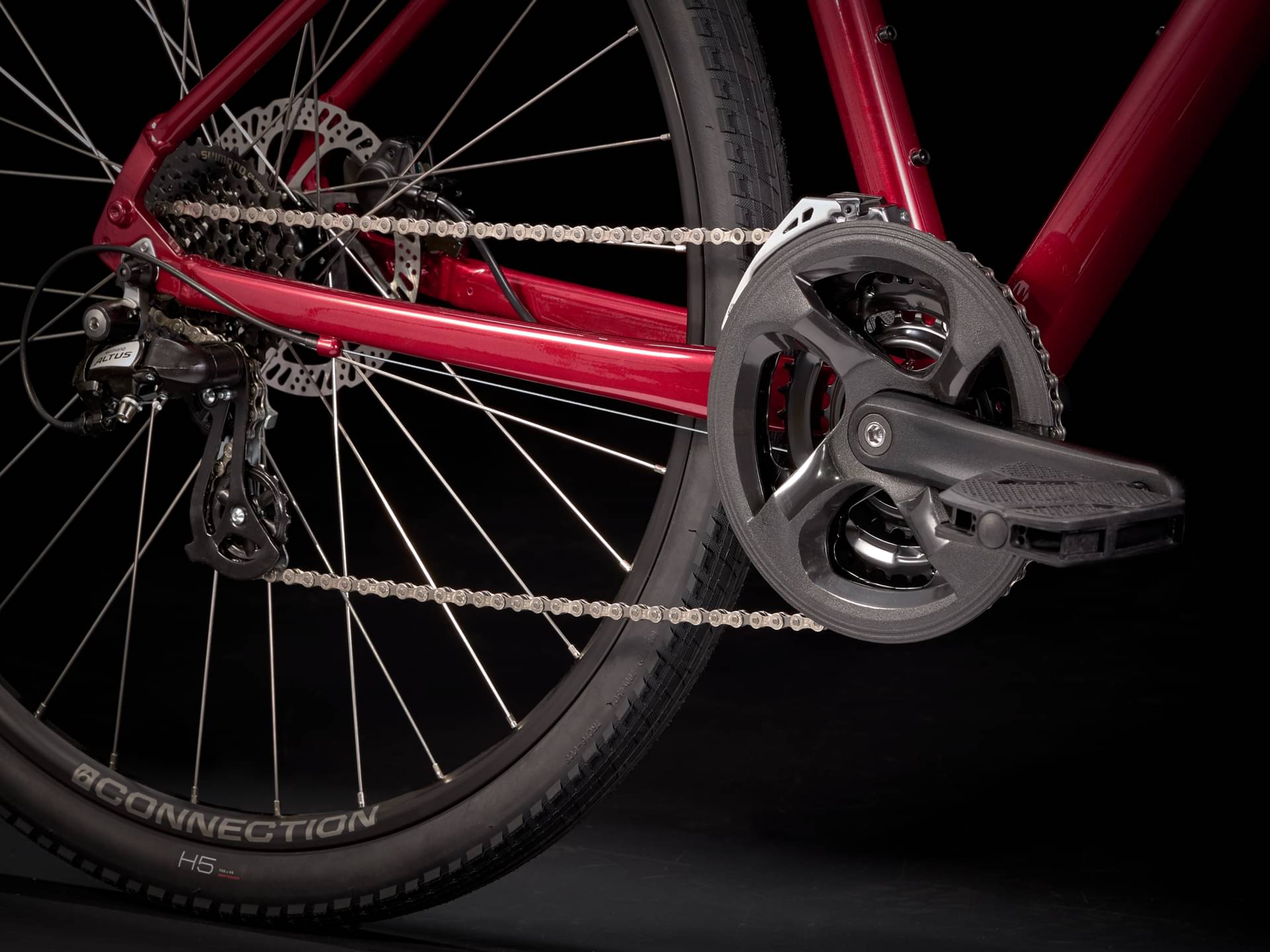

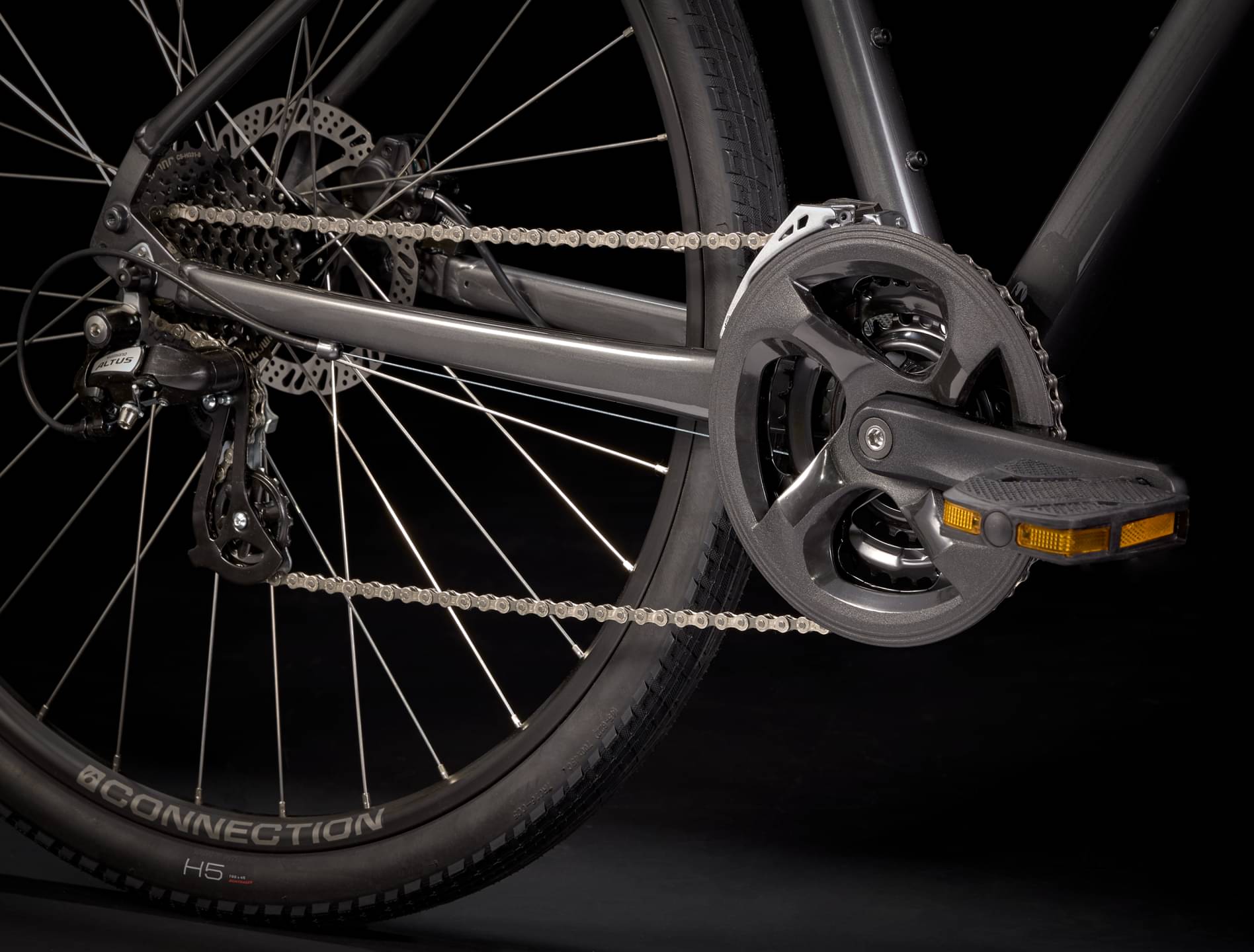

Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z8.3
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

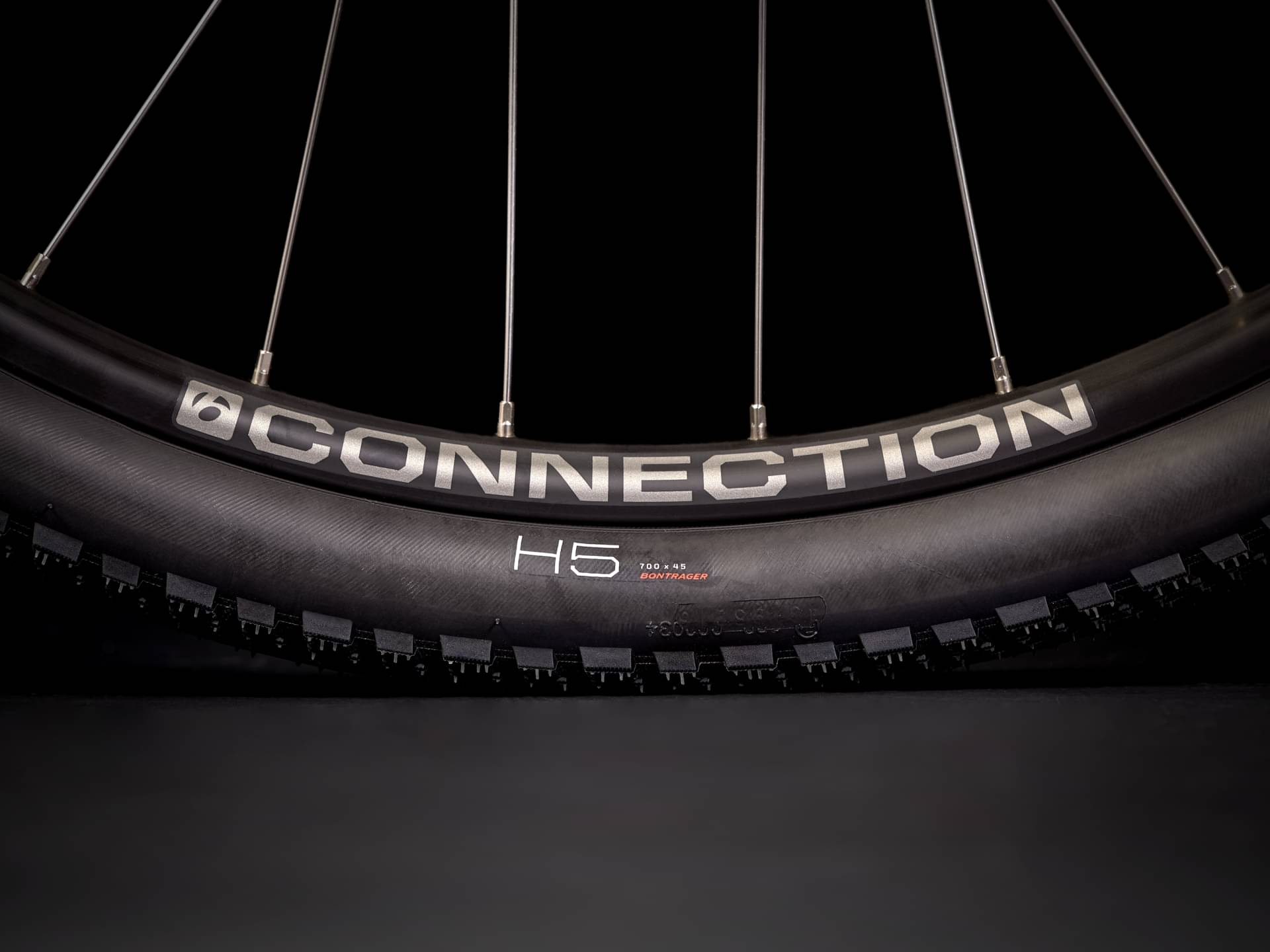

Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager H5 Comp, wire bead, 30 tpi, 700x45mm
Brakes

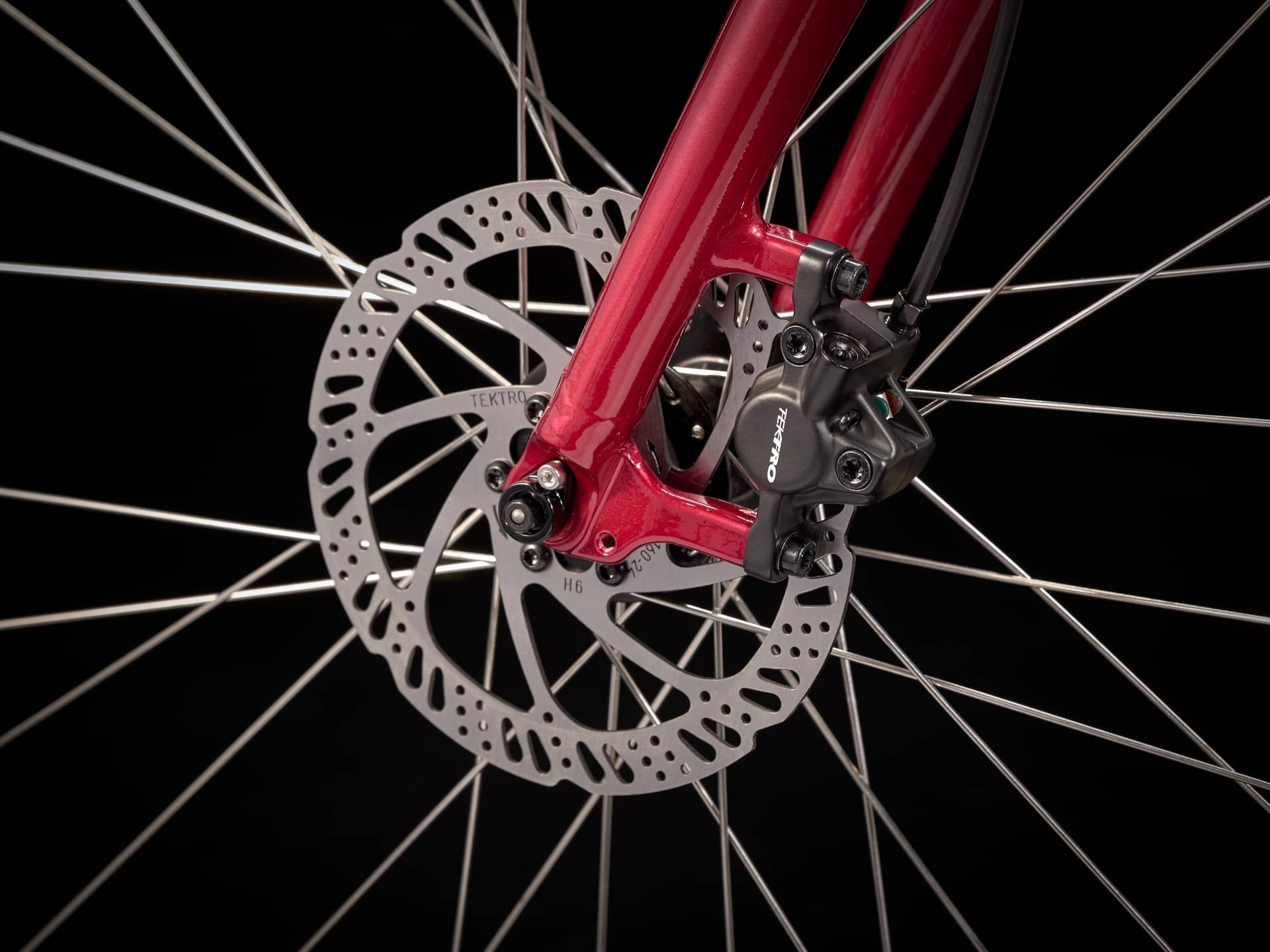

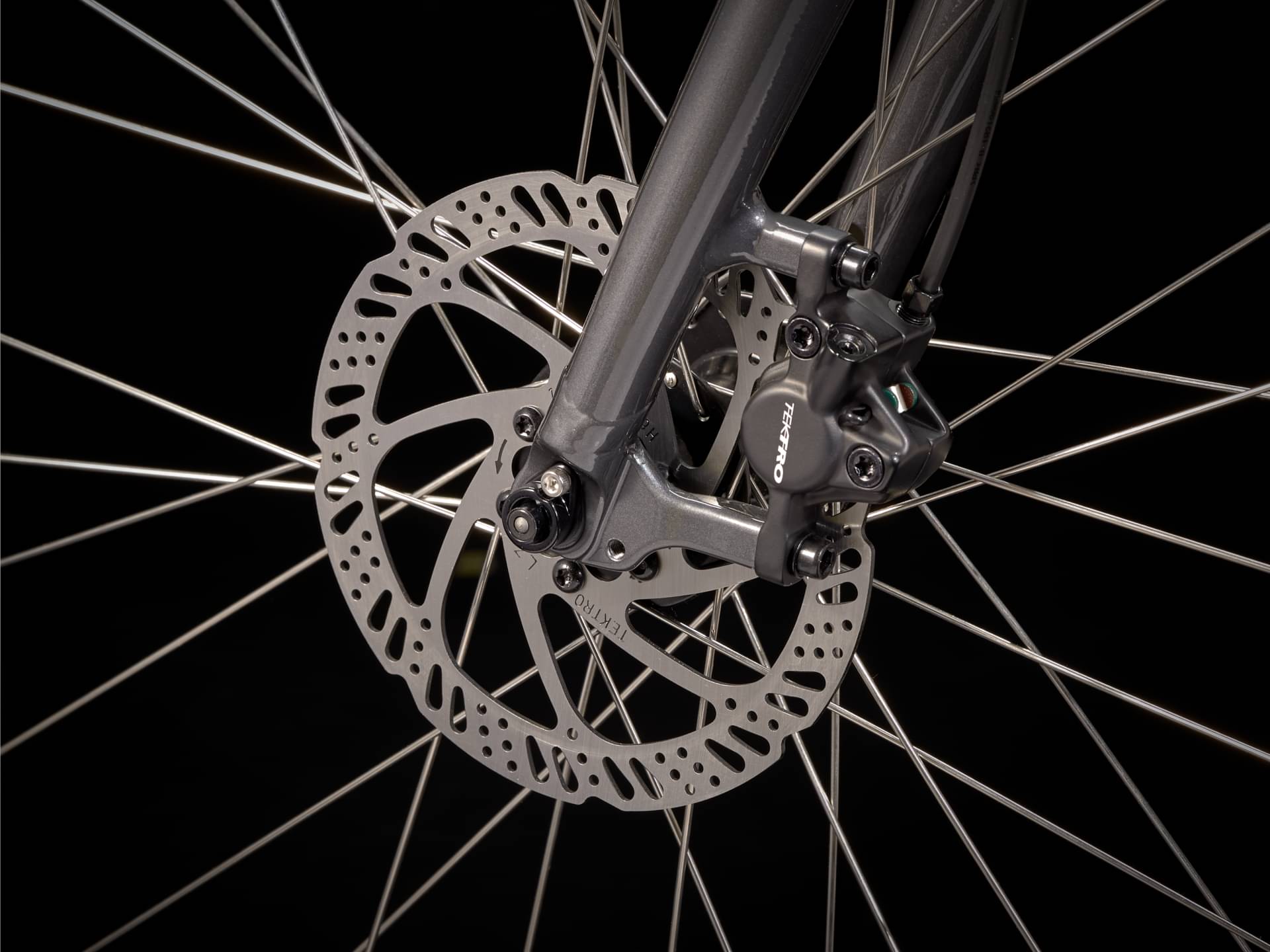

Brakes
Tektro HD-M275 hydraulic disc, 160mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length; Size: L, XL, Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length

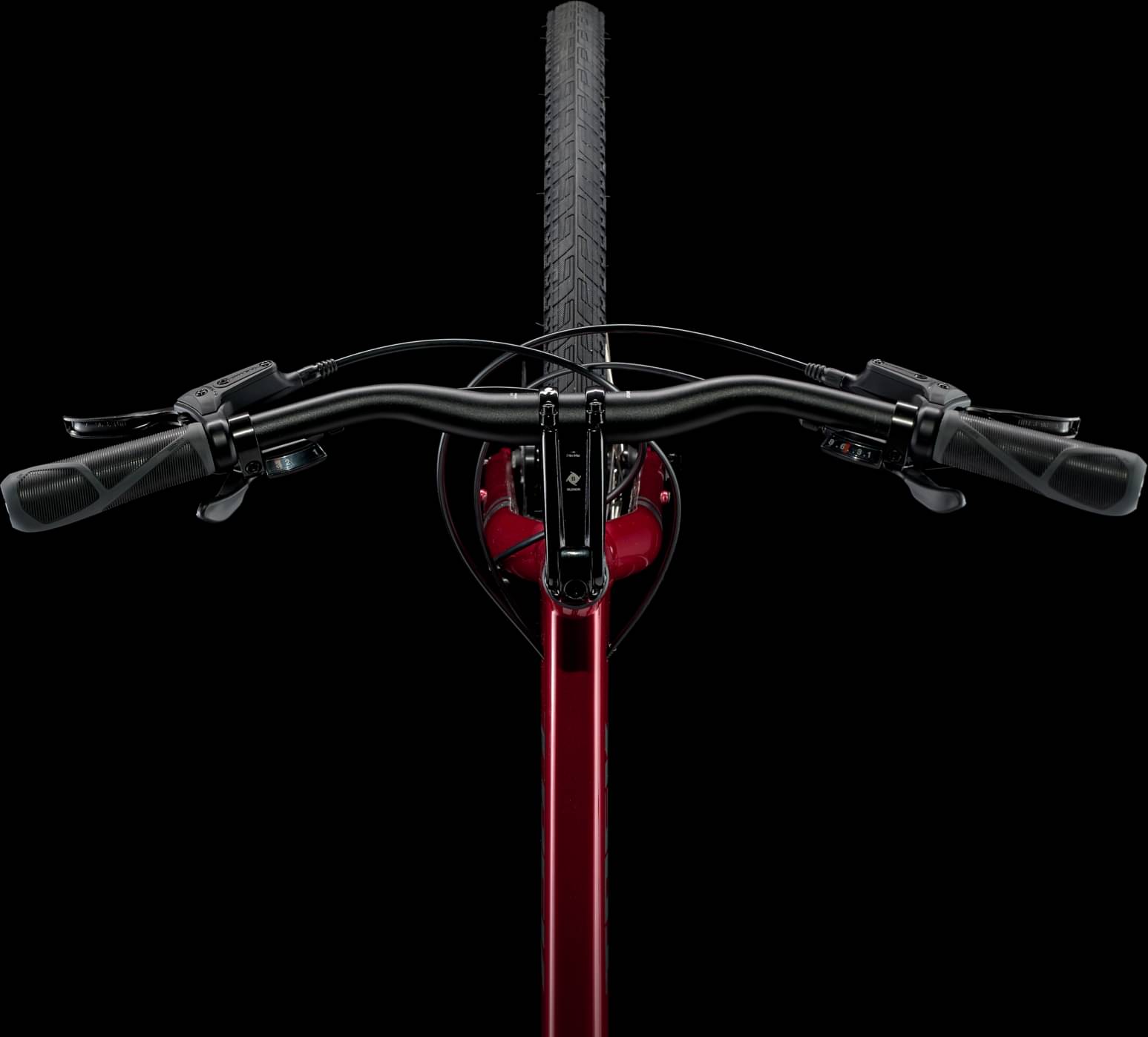

Handlebar

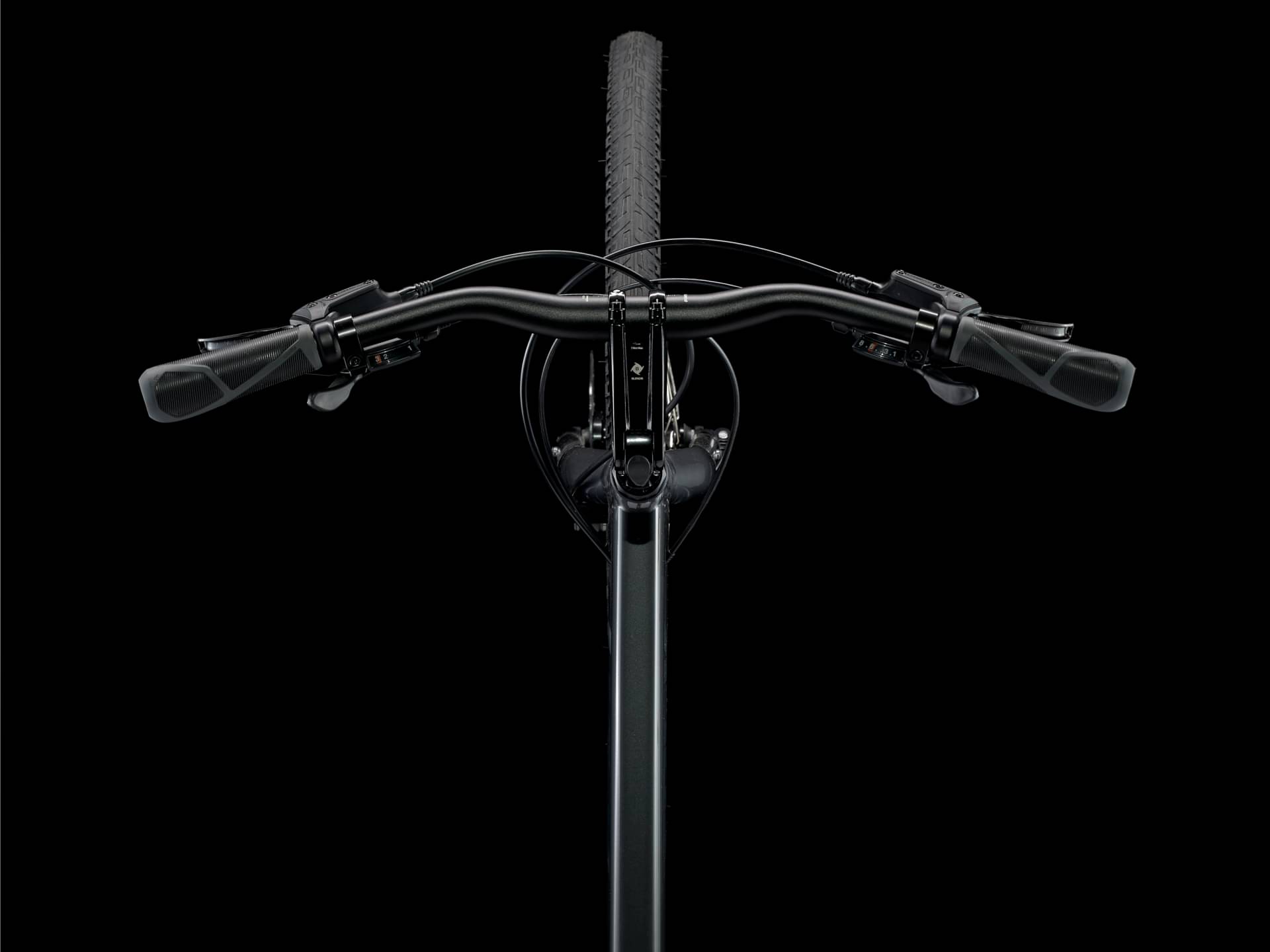

Size: S, M, Bontrager alloy, 31.8mm, comfort sweep, 620mm width; Size: L, XL, Bontrager alloy, 31.8mm, comfort sweep, 660mm width

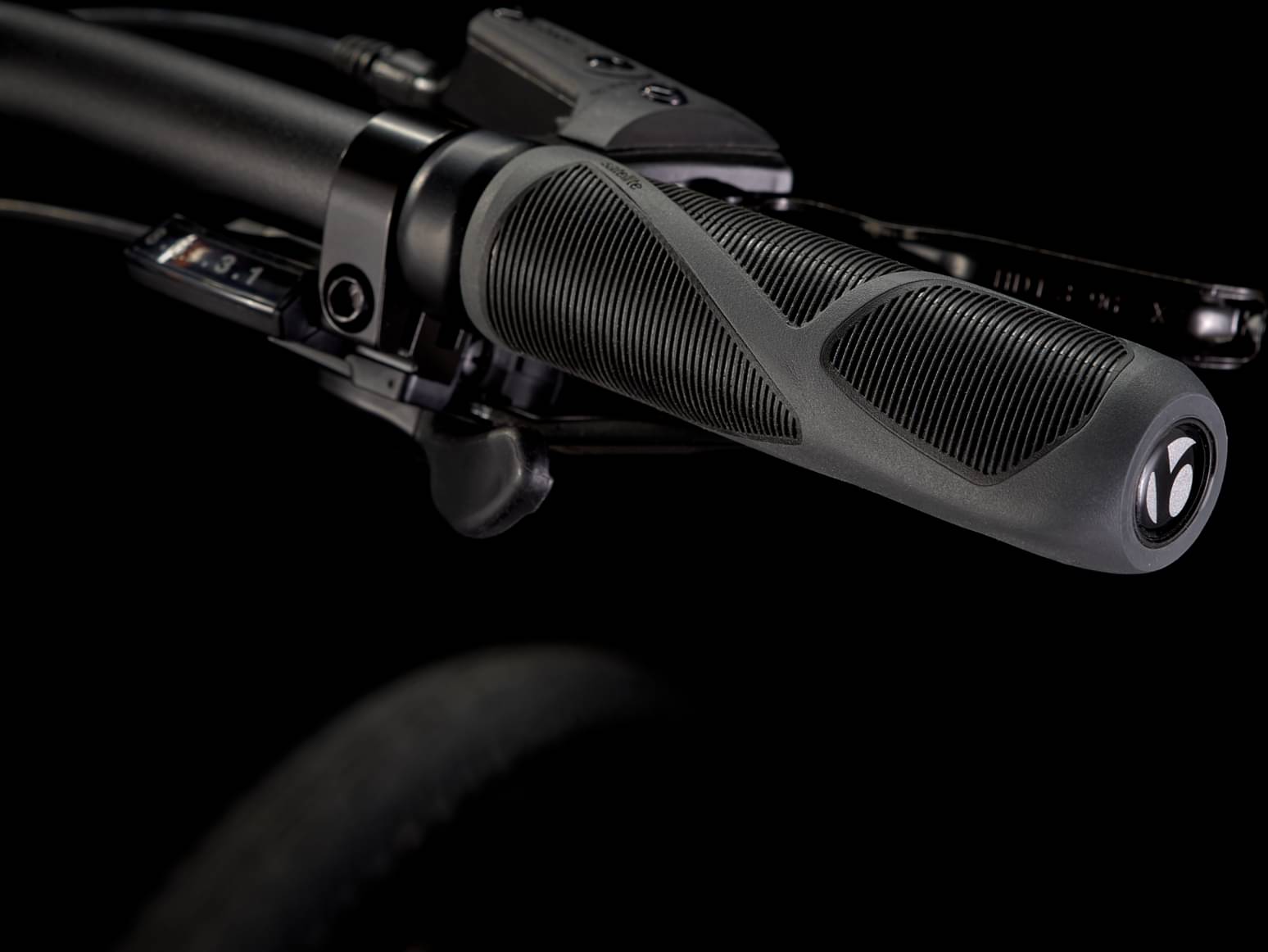

Grips
Bontrager Satellite
Headset
1-1/8'' threaded, semi-integrated, semi-cartridge bearings
Seat
Saddle

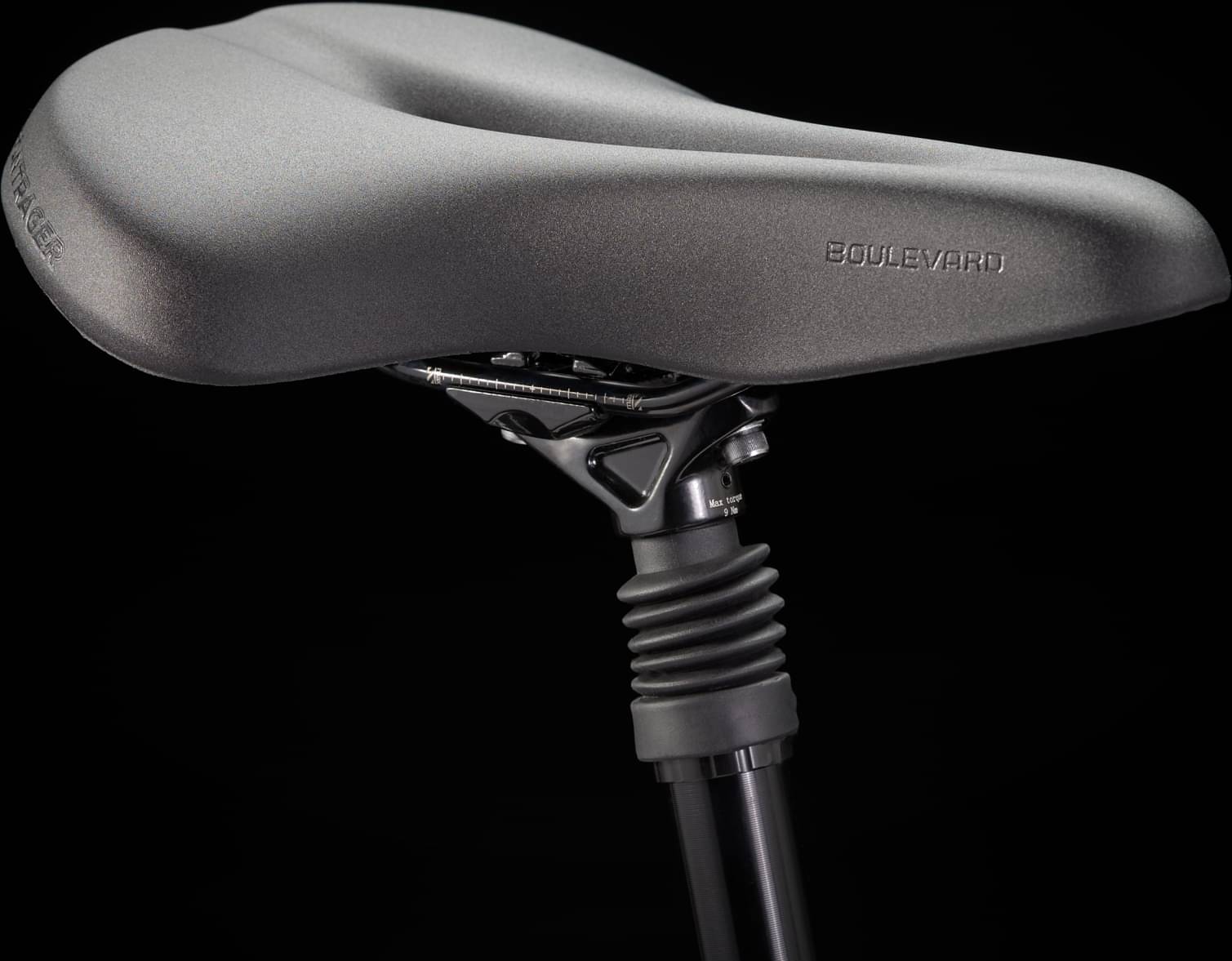

Bontrager Boulevard
Seatpost
Alloy, adjustable suspension, 27.2mm, 300mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.612 mm | 1.617 mm | 1.633 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 629 mm | 637 mm | 640 mm | 655 mm |
| Rake | 46 mm | 45 mm | 40 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 615 mm | 624 mm | 634 mm | 653 mm |
| Reach | 382 mm | 387 mm | 392 mm | 400 mm |
| Top Tube Length | 552 mm | 575 mm | 598 mm | 612 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 370 mm | 430 mm | 485 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1092 mm | 1100 mm | 1103 mm | 1118 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 718 mm | 769 mm | 803 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
