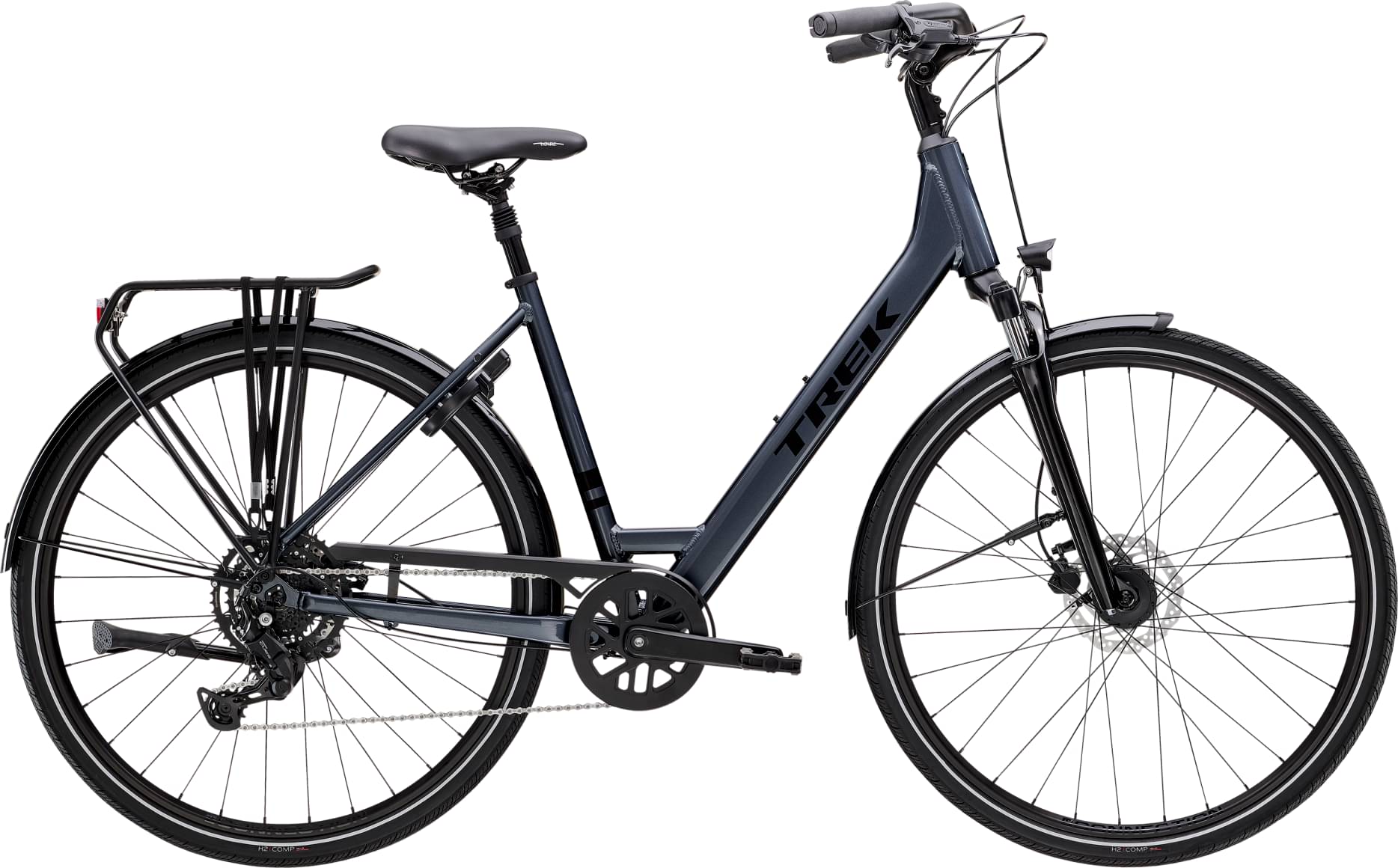

Trek Verve 2 Equipped Lowstep 2025
2025 Urban
Estimate price |
1,046$
Weight | 17.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, Alpha Gold Aluminium, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR; Size: XL, Lightweight aluminium frame with integrated cables and water bottle mounts
Suspension Fork
SR Suntour NEX, coil spring, preload, 50 mm travel, 100x5 mm QR
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9-speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9-speed
Crank
ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Chain
Shimano LG500
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano 3.0 watt dynamo hub
Rear Hub
Shimano TX505, CenterLock
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Loire
Seatpost
Alloy, adjustable suspension, 27.2 mm, 300 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.673 mm | 1.666 mm | 1.633 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 633 mm | 642 mm | 647 mm | 655 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 634 mm | 644 mm | 653 mm | 653 mm |
| Reach | 380 mm | 385 mm | 392 mm | 400 mm |
| Top Tube Length | 568 mm | 594 mm | 604 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1096 mm | 1105 mm | 1110 mm | 1118 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 654 mm | 682 mm | 694 mm | 711 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
