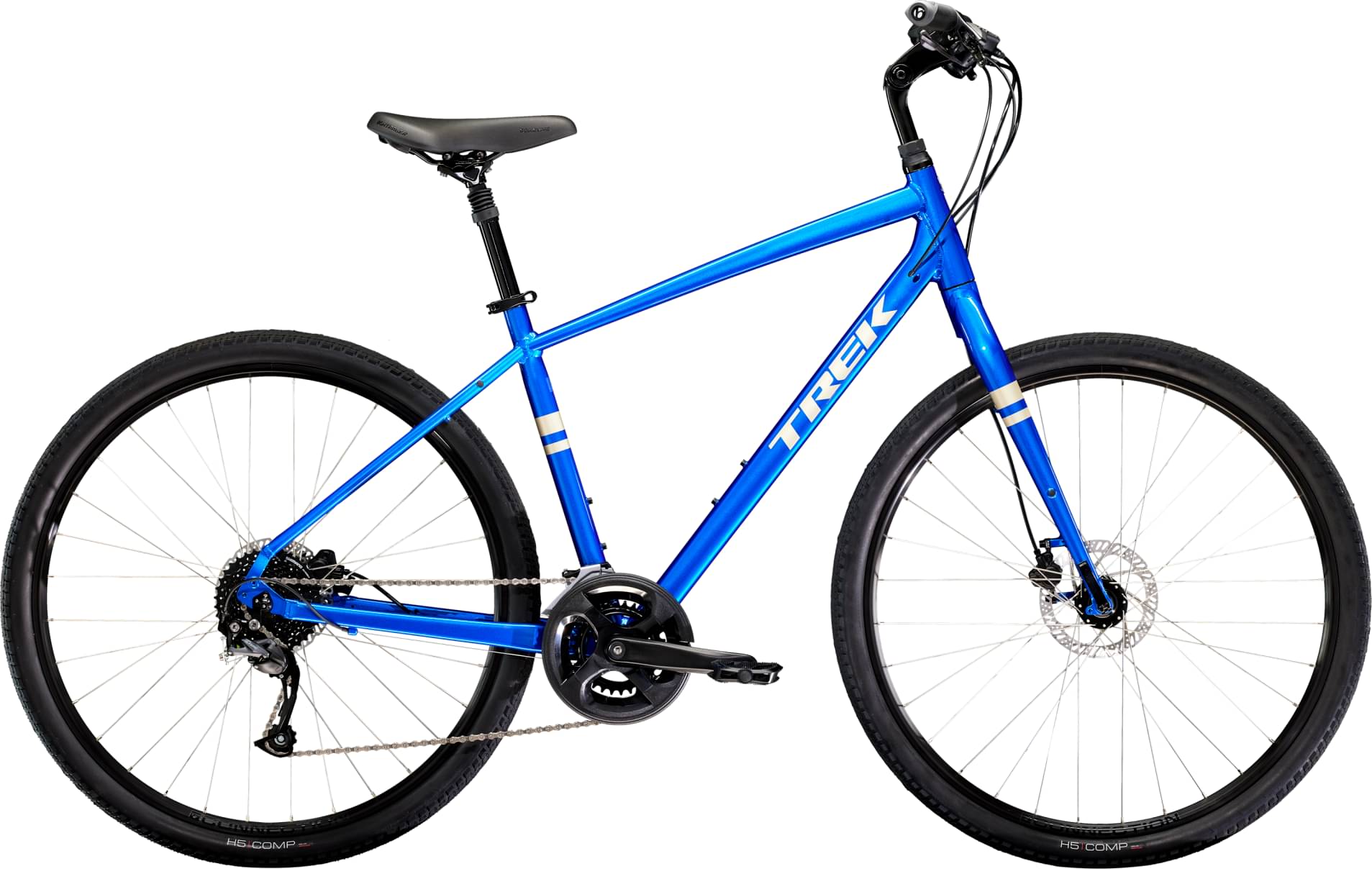

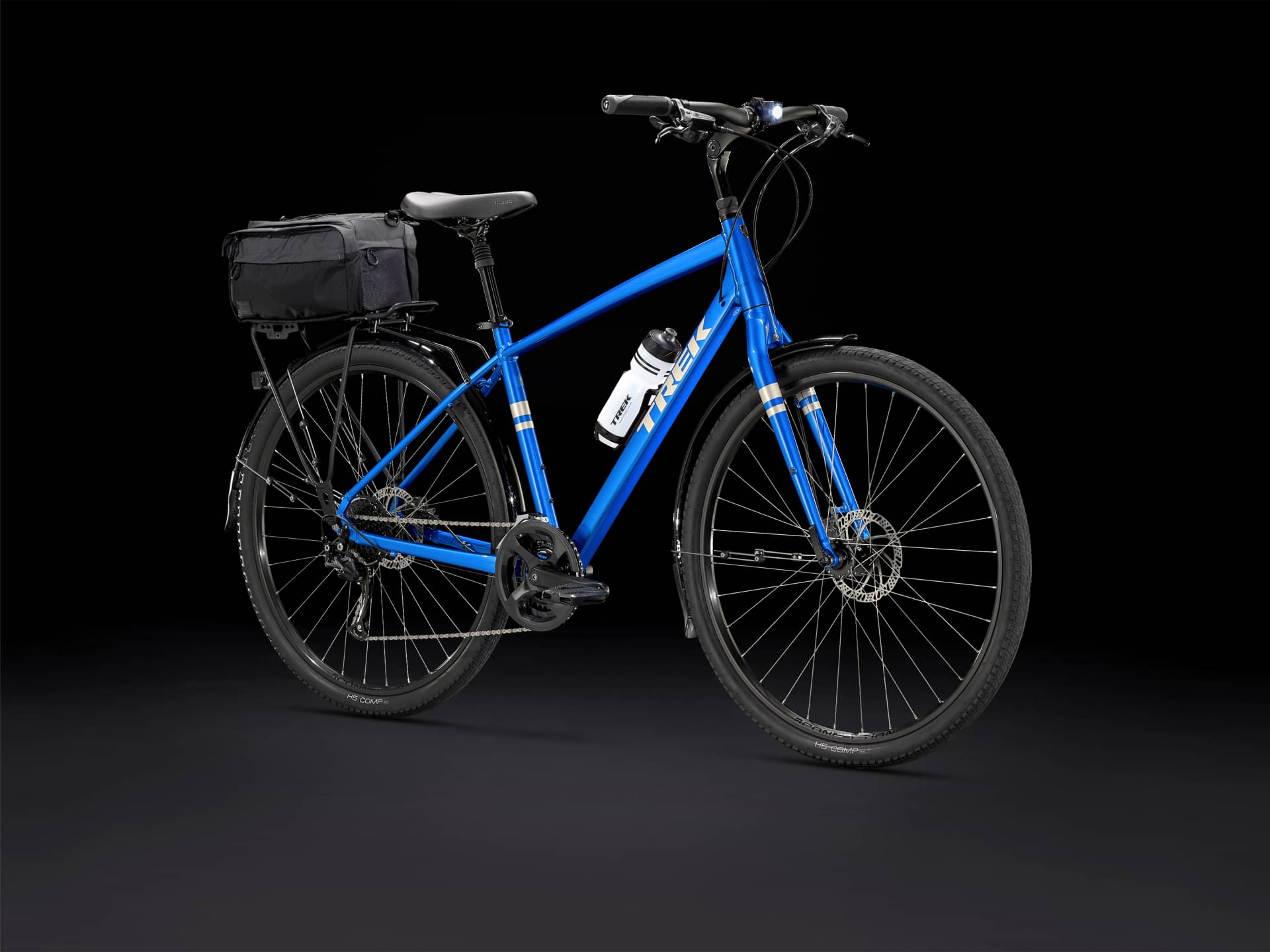

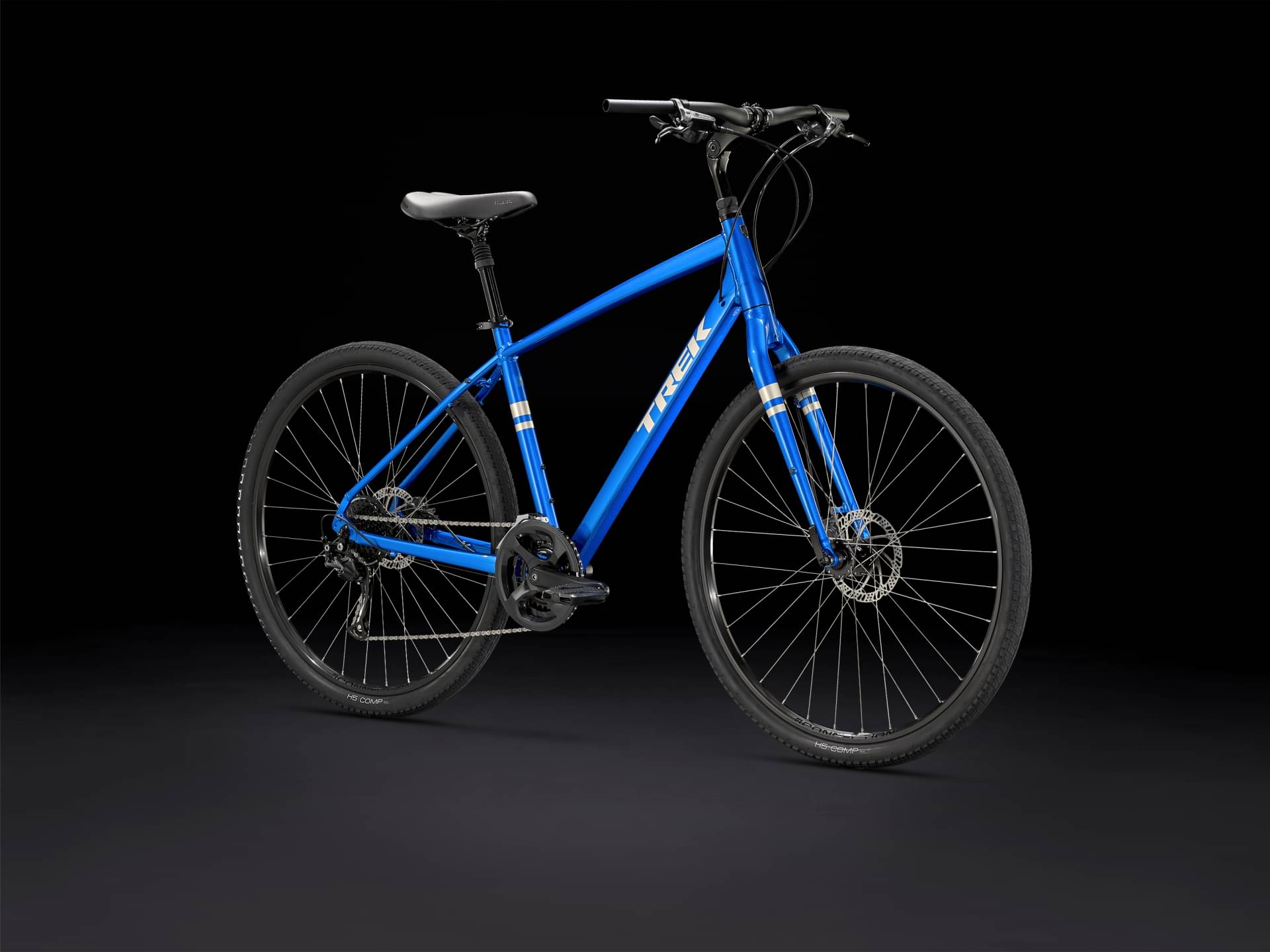

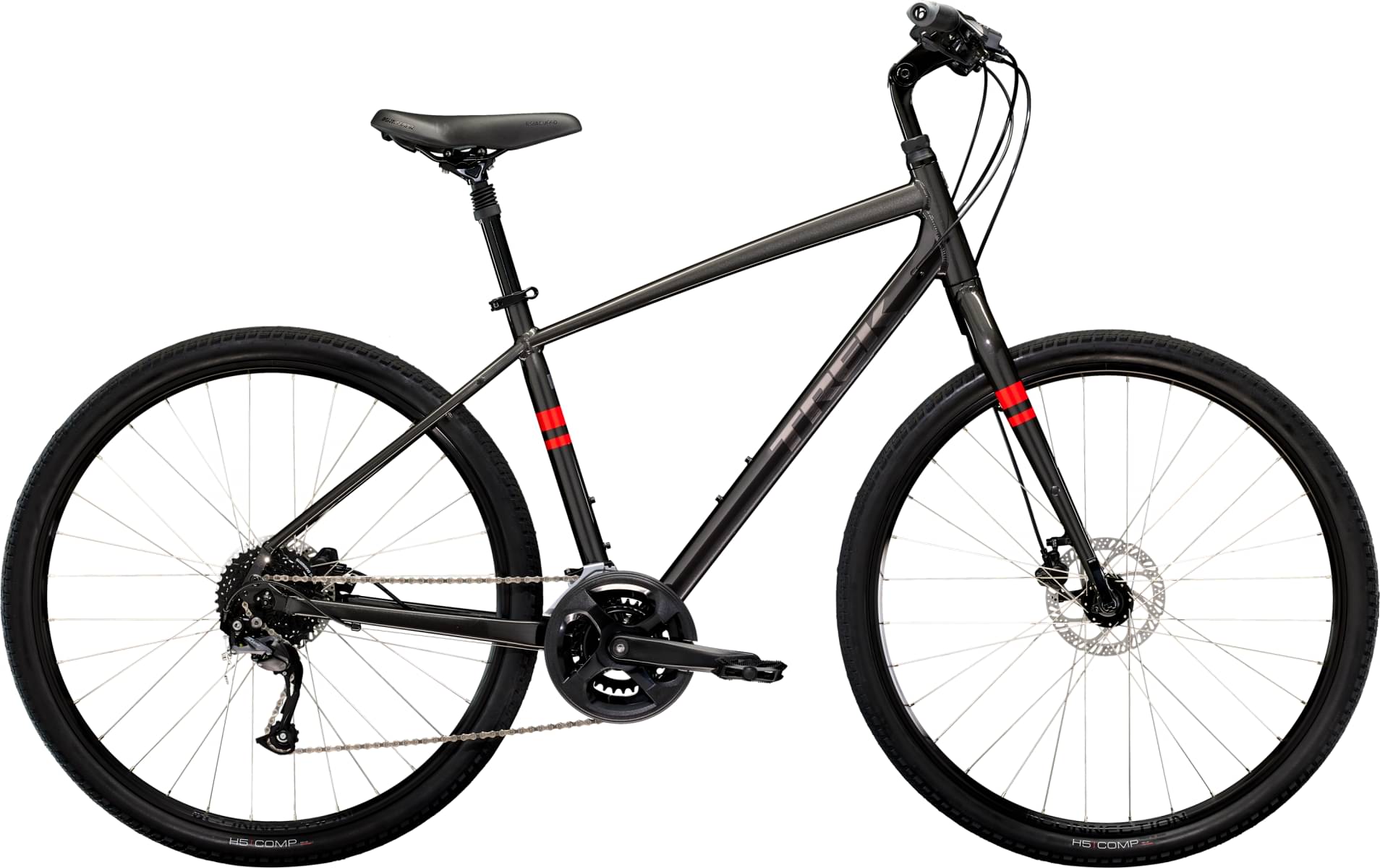

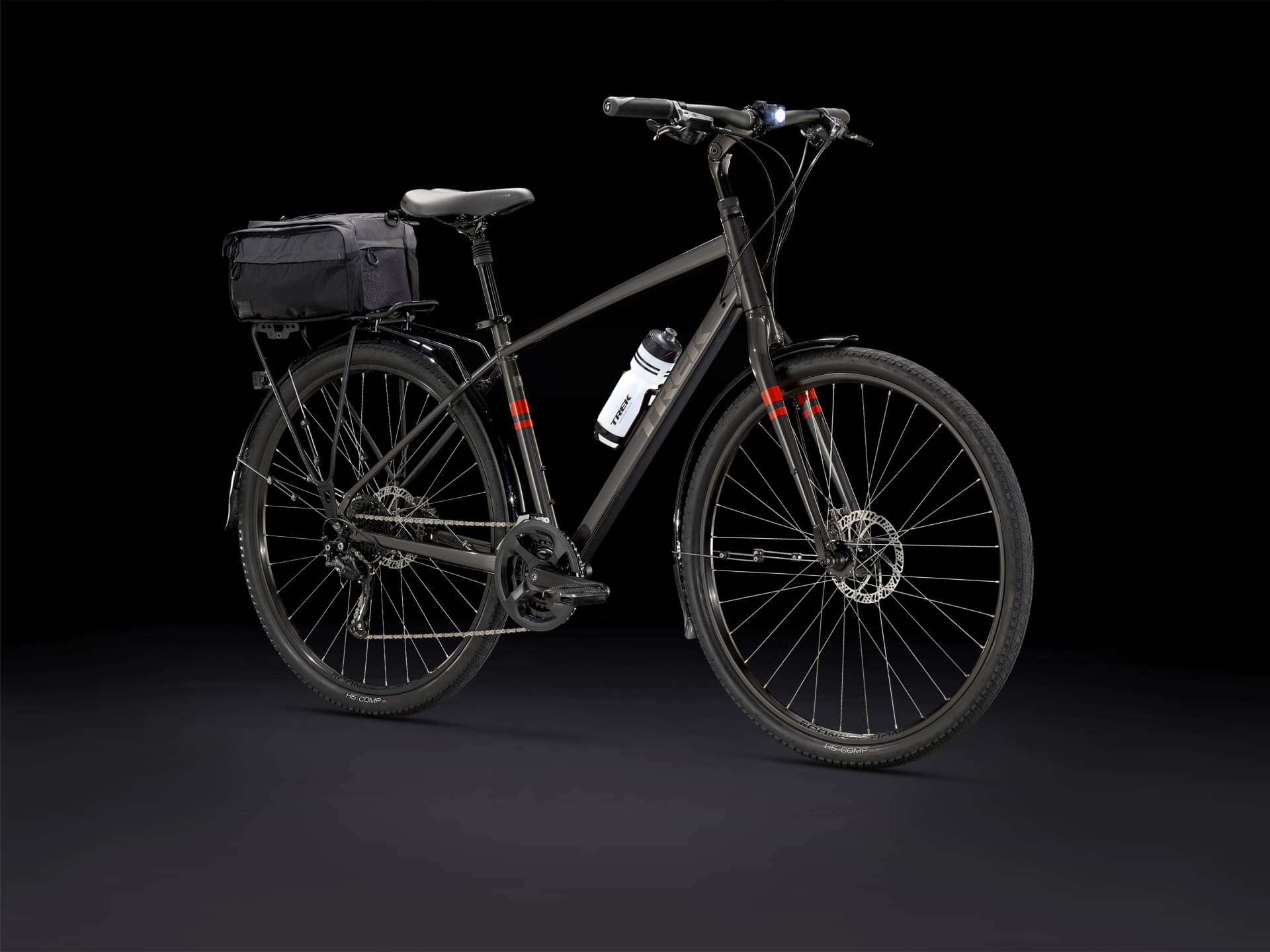

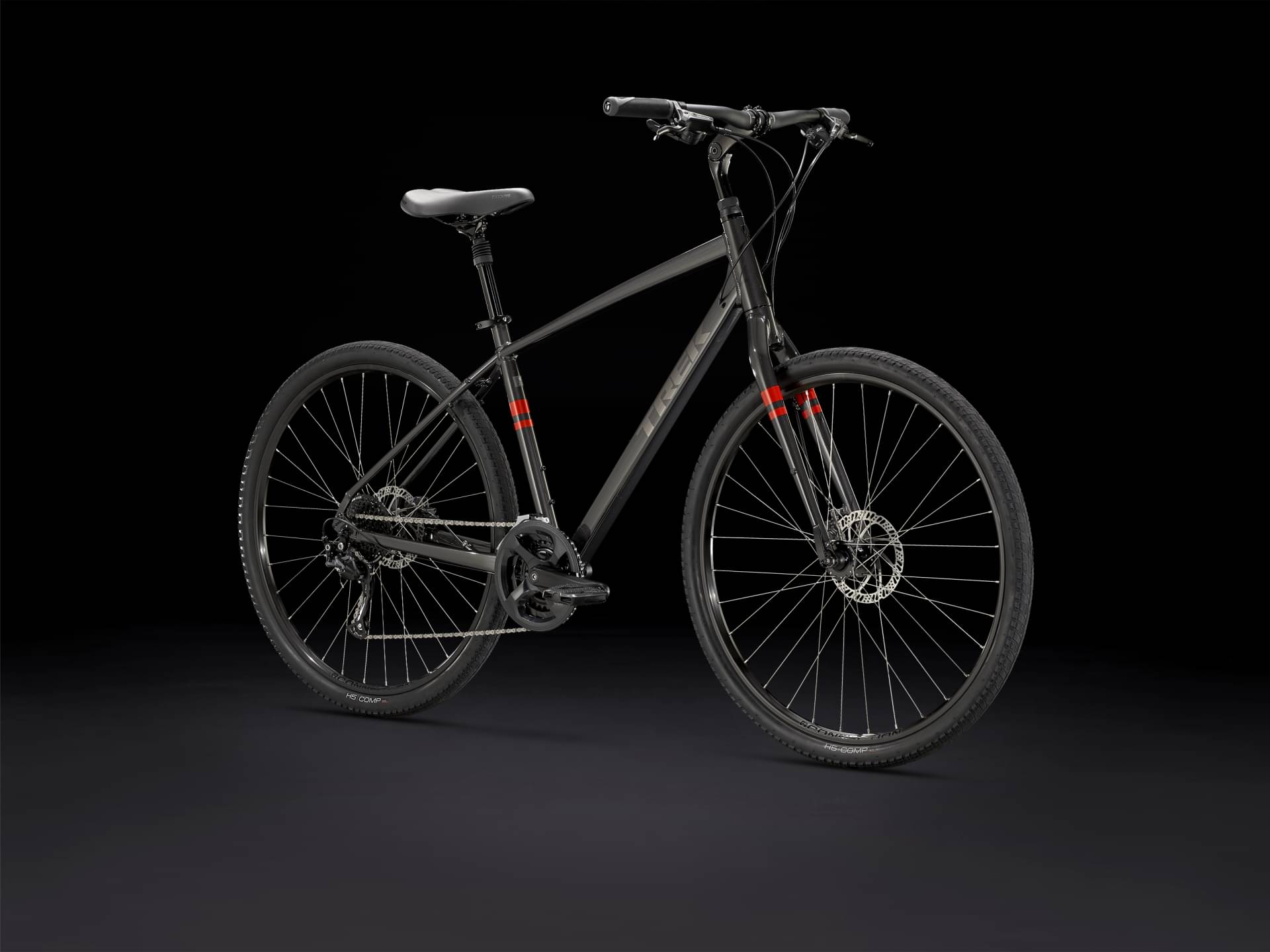

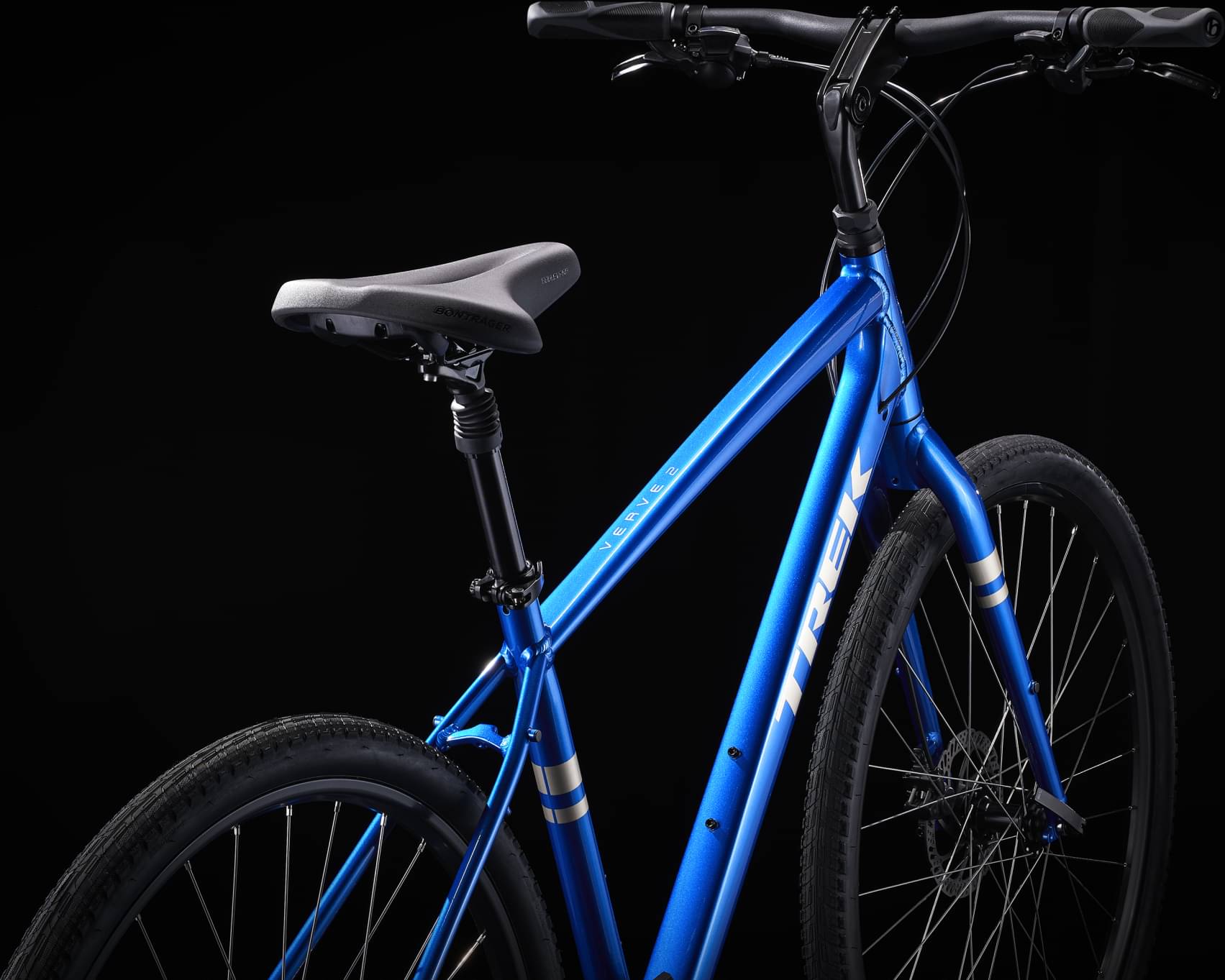

Trek Verve 2 Gen 4 2023
2023 Urban
Estimate price |
850$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

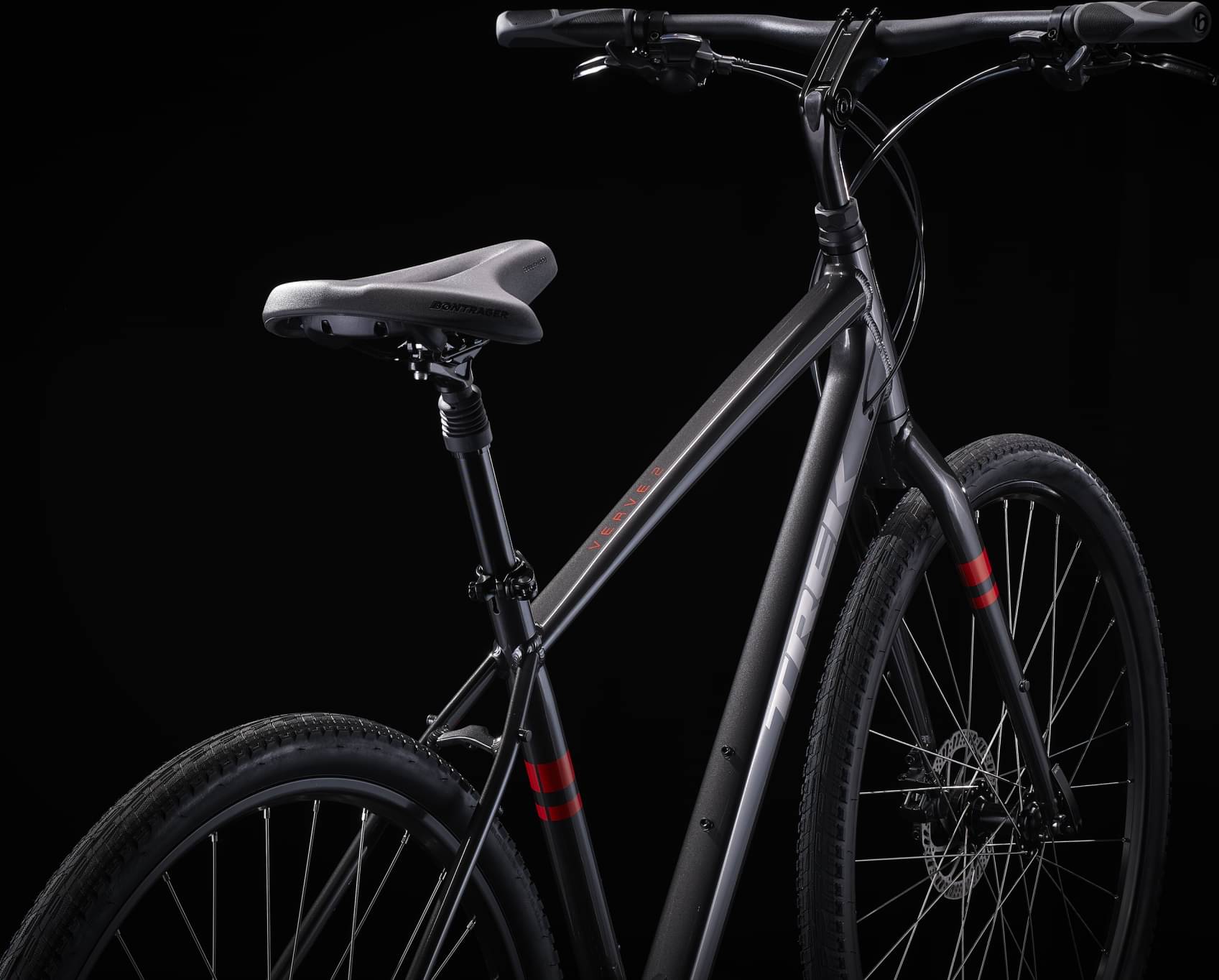

Frame
Frame
Alpha Gold Aluminium, rack and mudguard mounts, DuoTrap S-compatible, IS disc-brake mount, 135x5 mm QR
Suspension Fork
Verve Alloy, threaded steel steerer, rack mounts, post-mount disc, 460 mm axle-to-crown, ThruSkew 5 mm QR

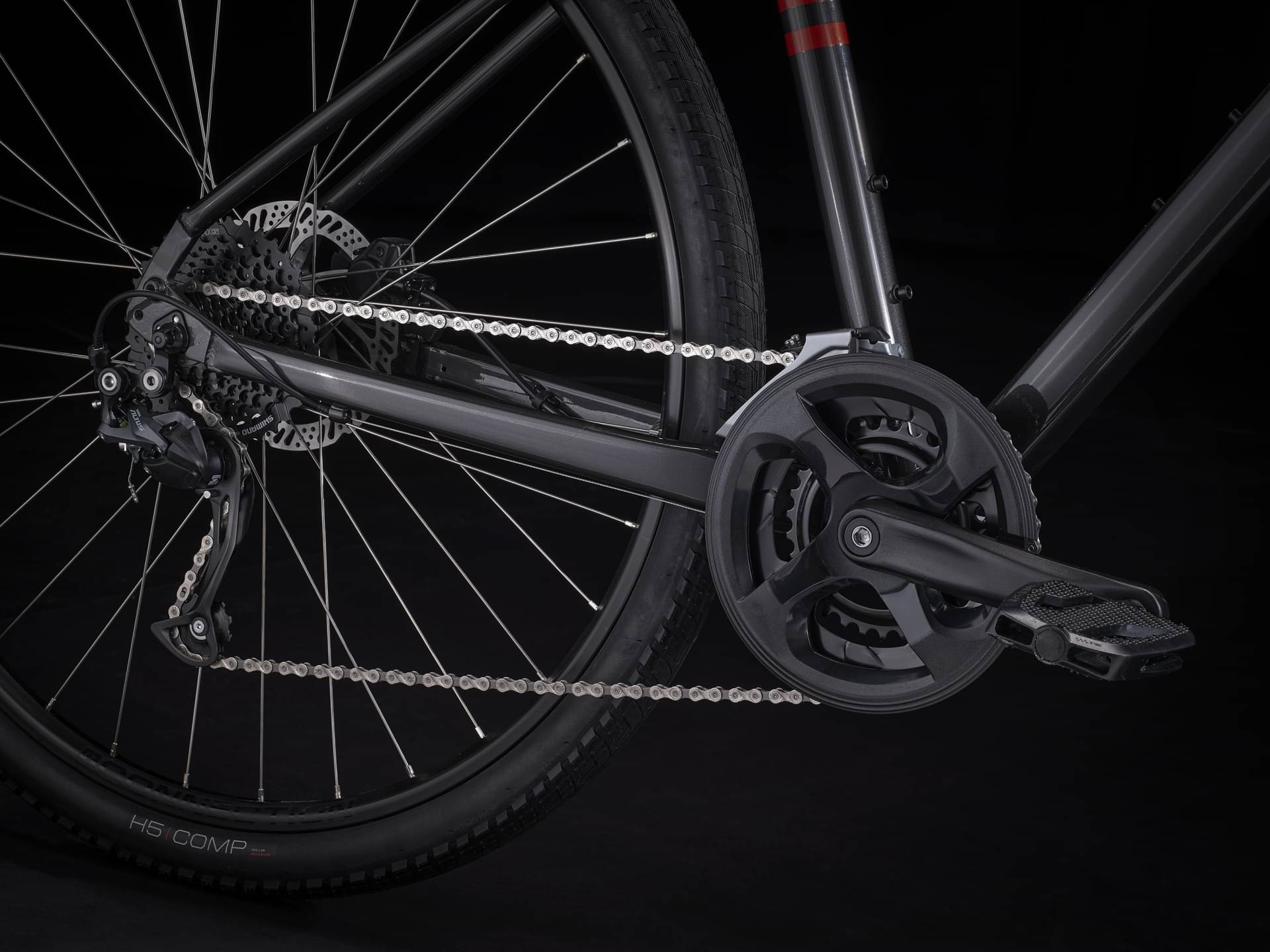

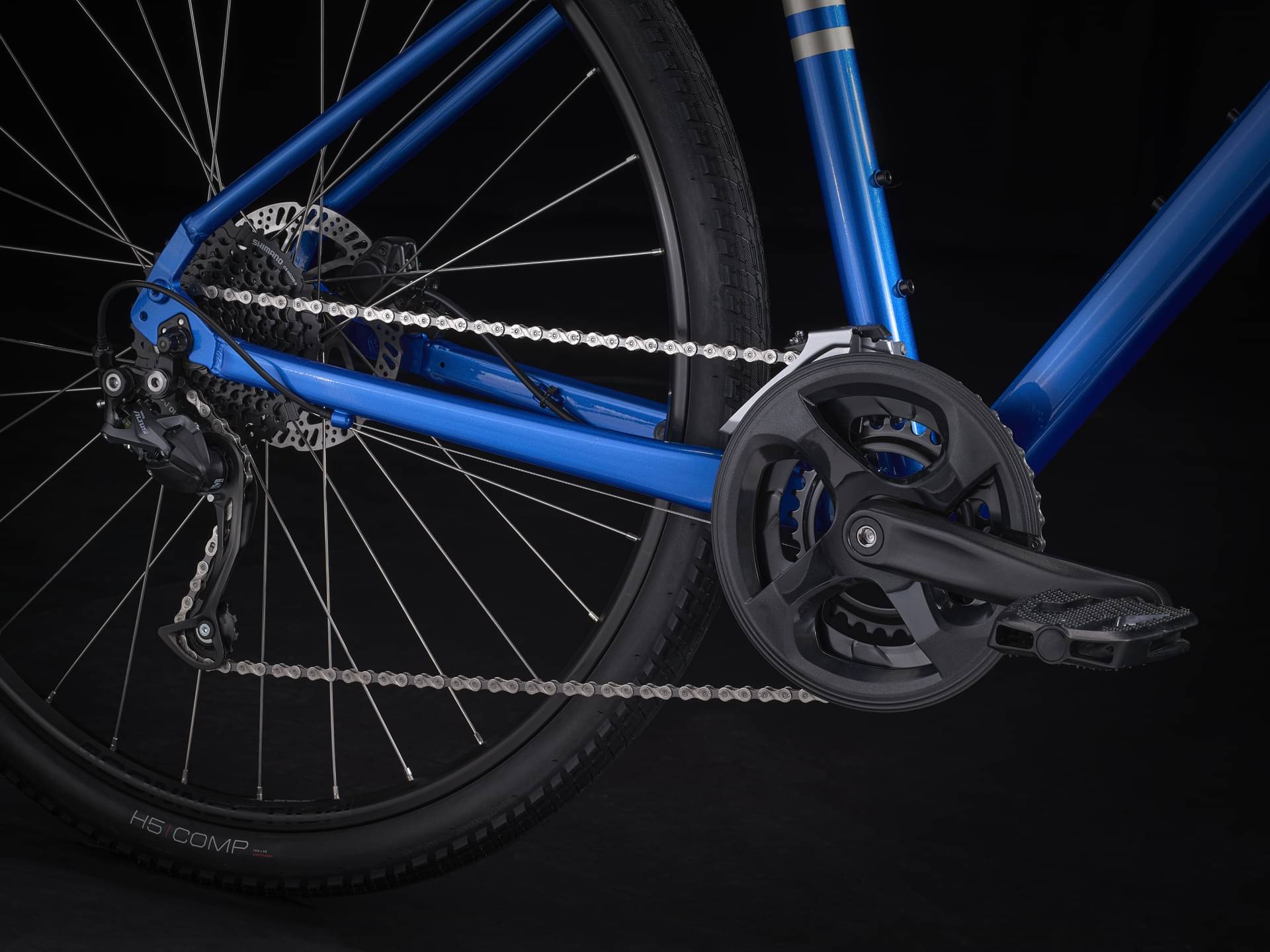

Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull

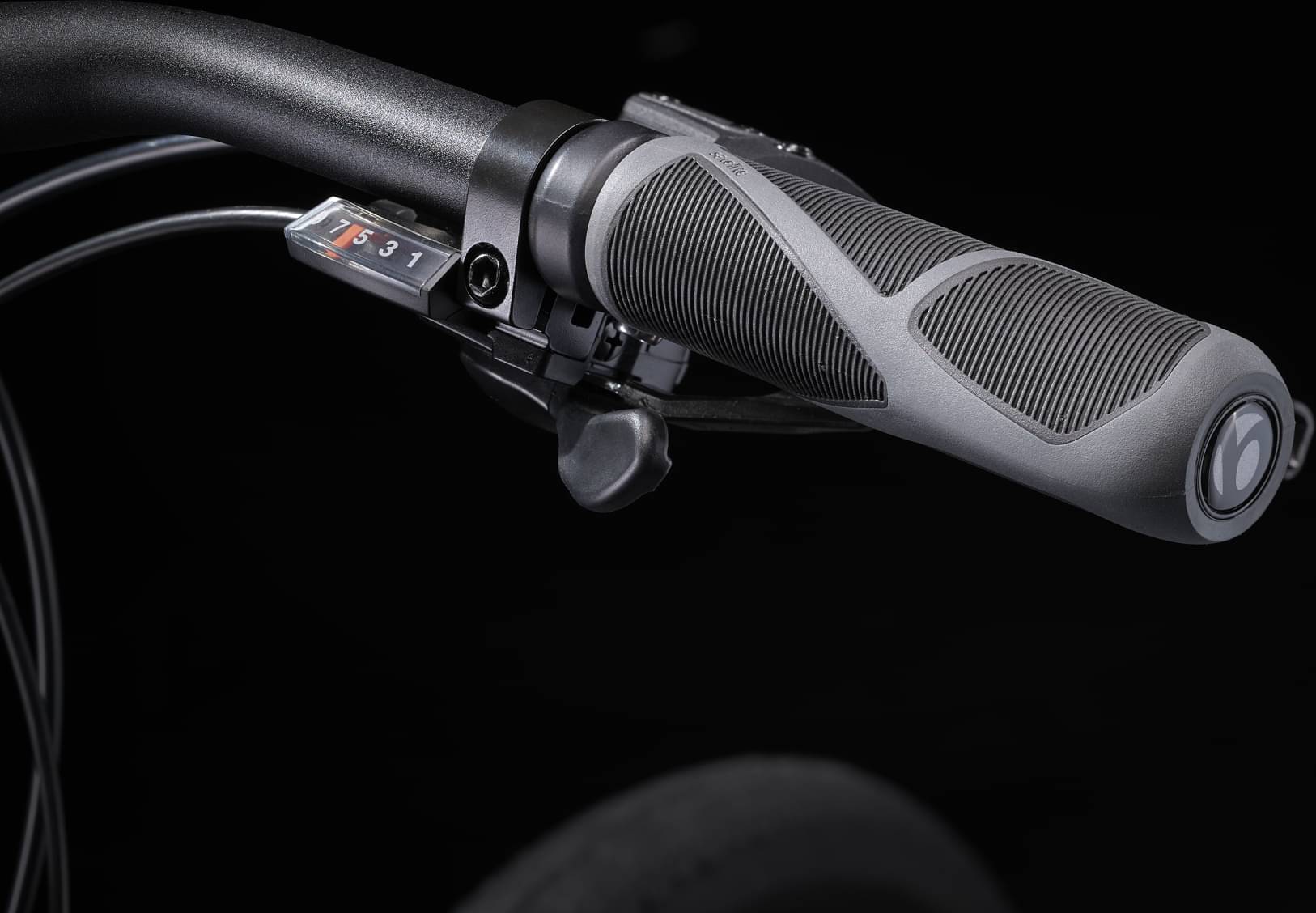

Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Chain
KMC X9
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

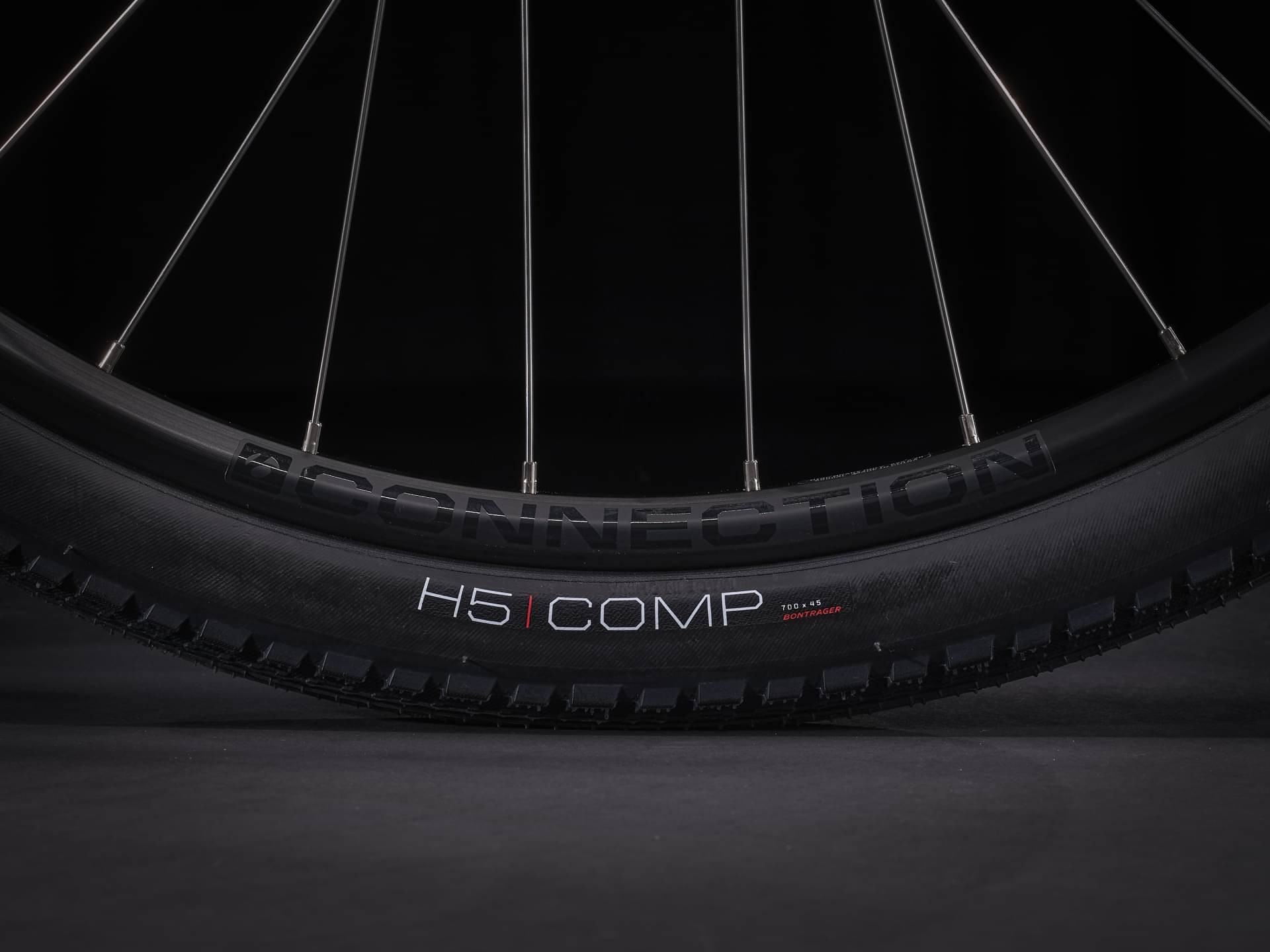

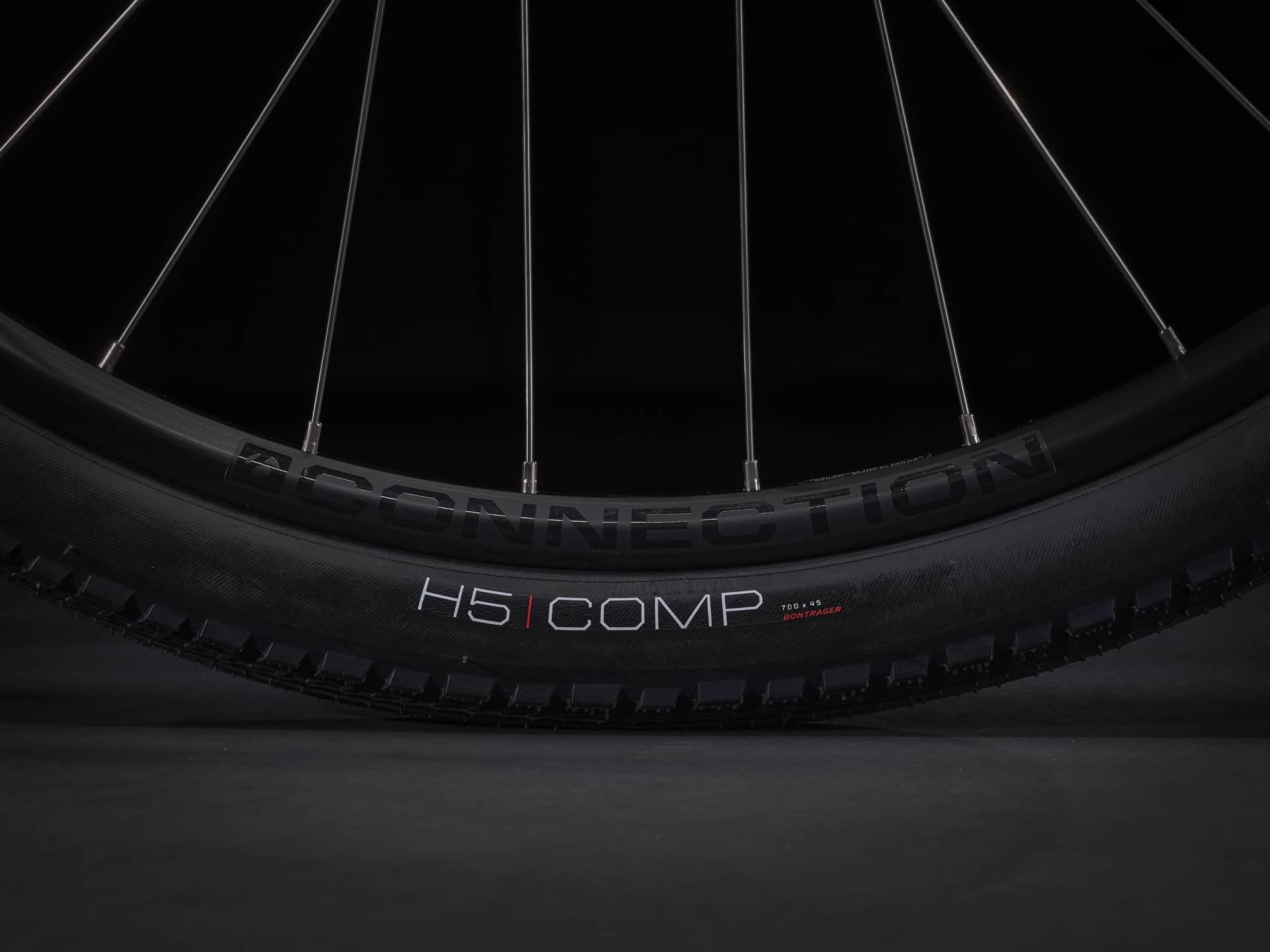

Tires
Bontrager H5 Comp, wire bead, 30 tpi, 700x45 mm
Brakes

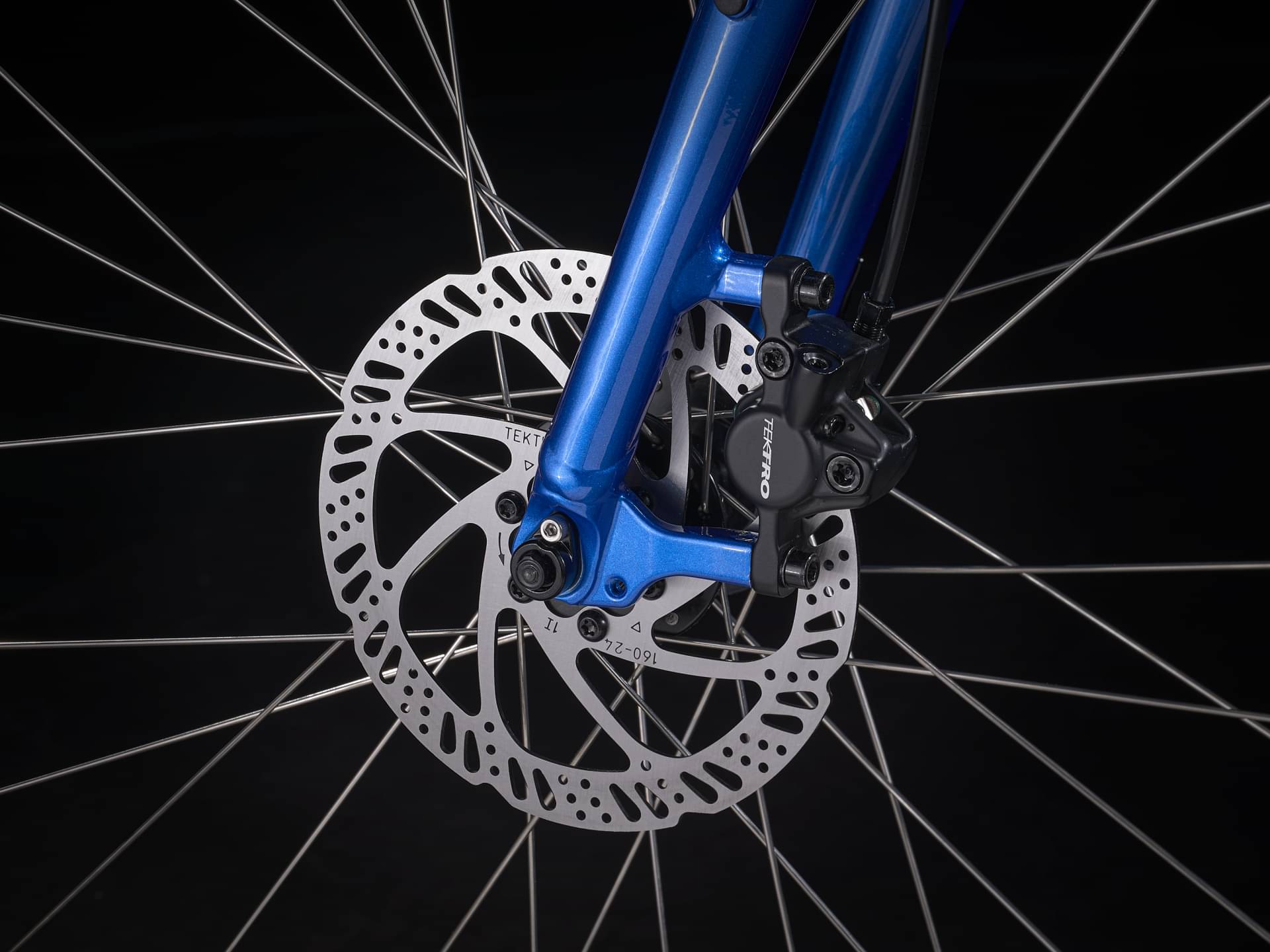

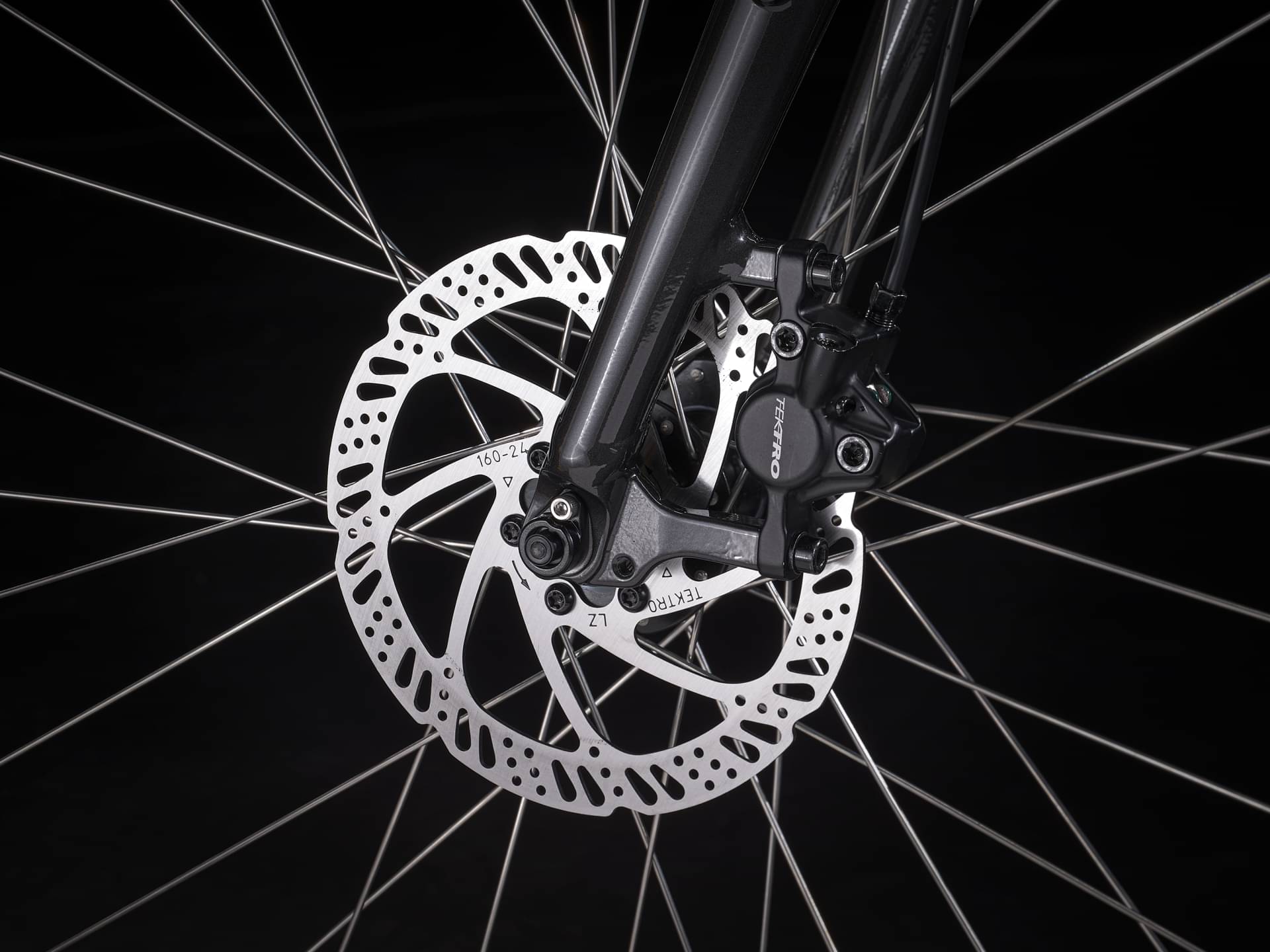

Brakes
Tektro HD-M275 hydraulic disc, 160 mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length

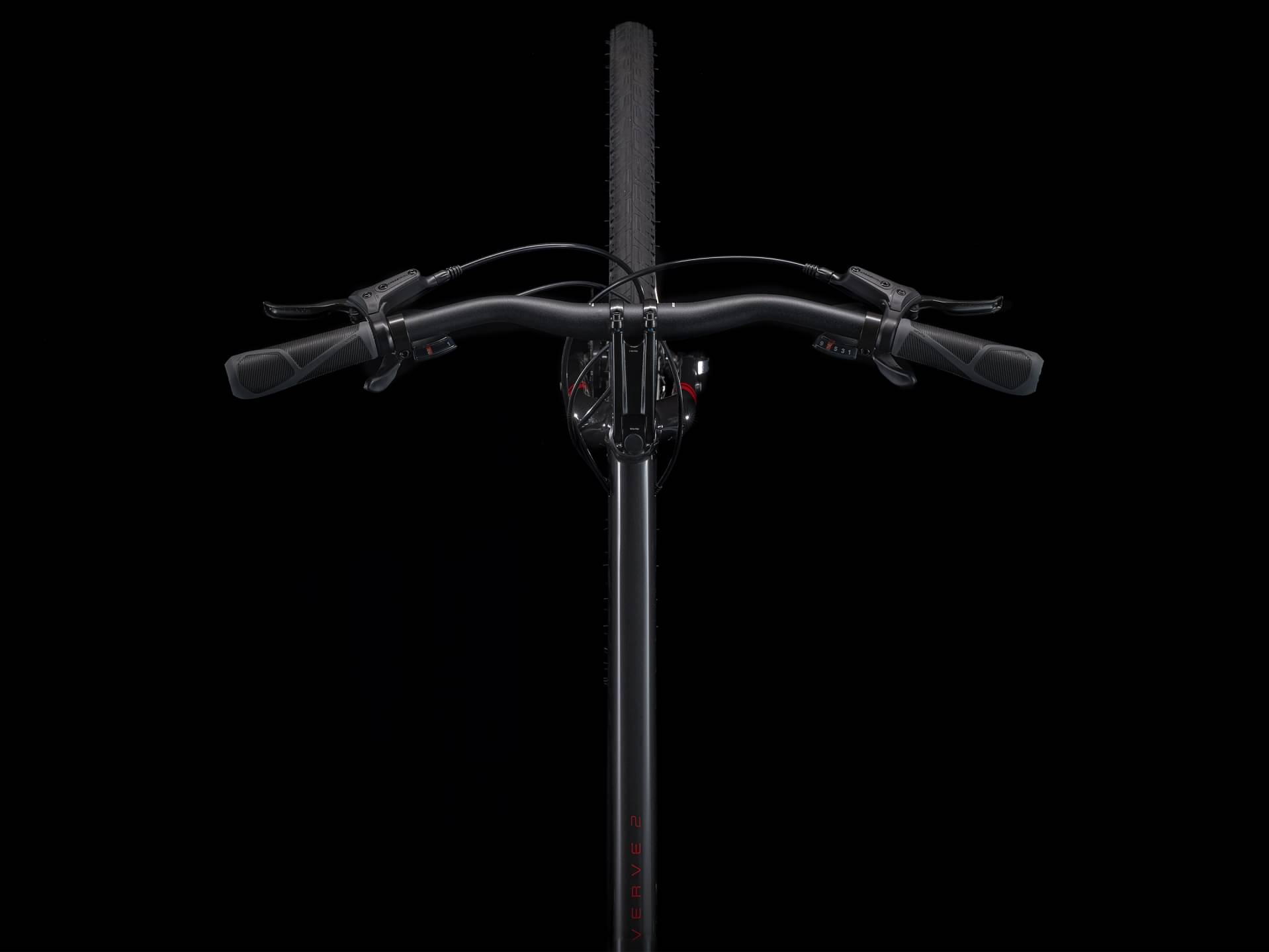

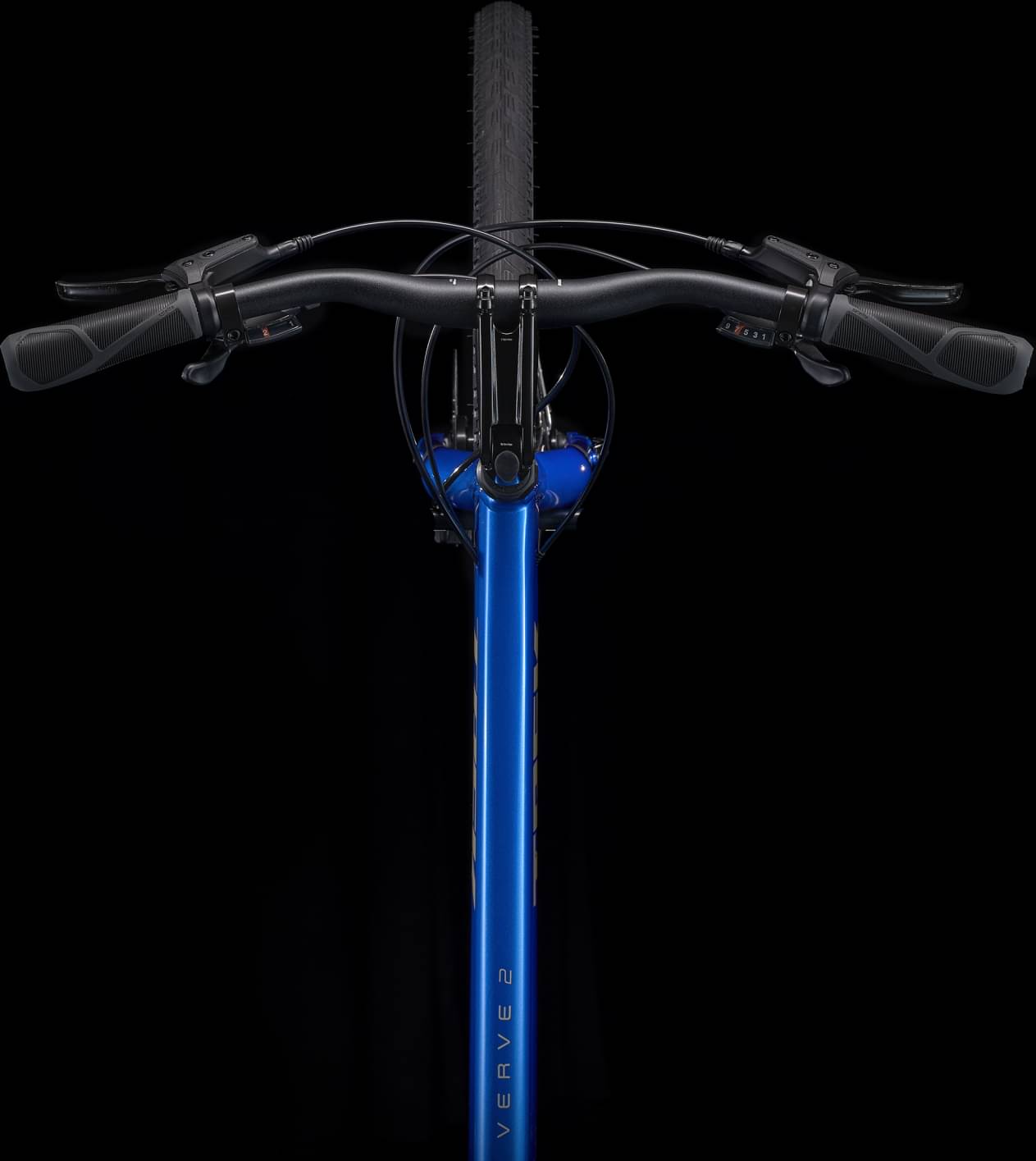

Handlebar
Size: S, M, Bontrager alloy, 31.8 mm, comfort sweep, 620 mm width; Size: L, XL, Bontrager alloy, 31.8 mm, comfort sweep, 660 mm width
Grips
Bontrager Satellite
Seat

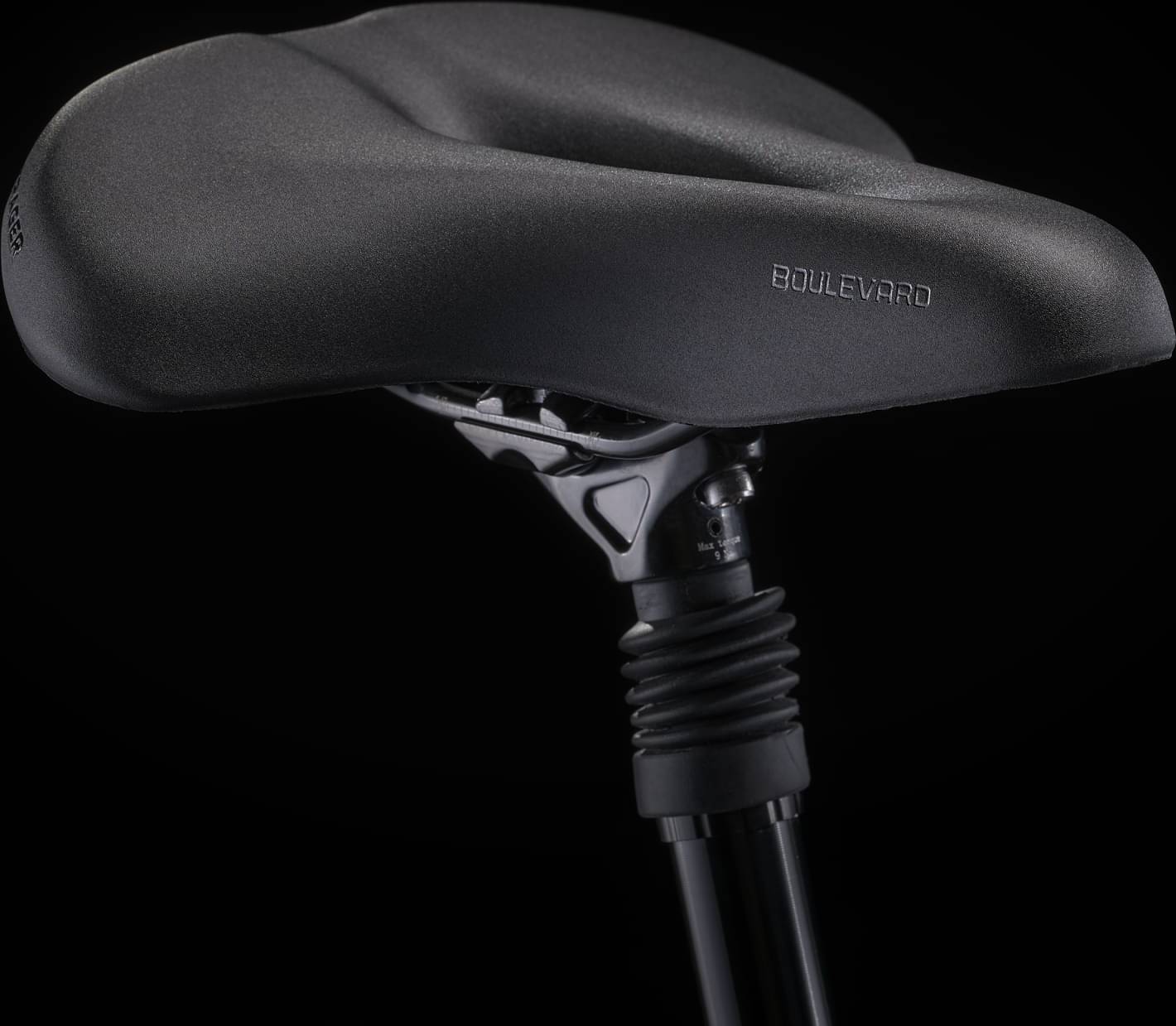

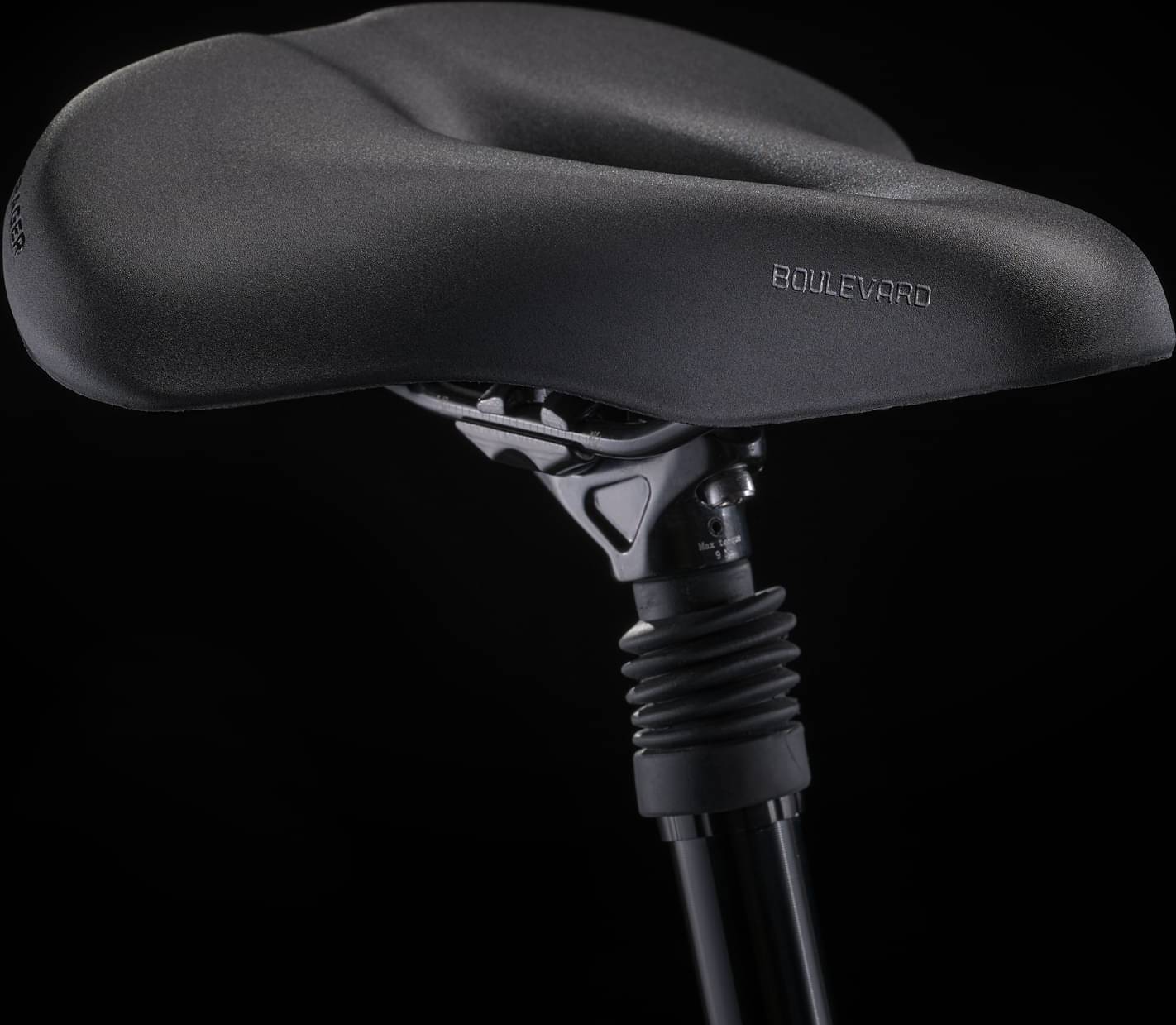

Saddle
Bontrager Boulevard
Seatpost
Alloy, adjustable suspension, 27.2 mm, 300 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.612 mm | 1.617 mm | 1.633 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm |
| Front Center | 637 mm | 640 mm | 655 mm |
| Rake | 45 mm | 40 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 624 mm | 634 mm | 653 mm |
| Reach | 387 mm | 392 mm | 400 mm |
| Top Tube Length | 575 mm | 598 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 430 mm | 485 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 160 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1100 mm | 1103 mm | 1118 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 769 mm | 803 mm | 846 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
