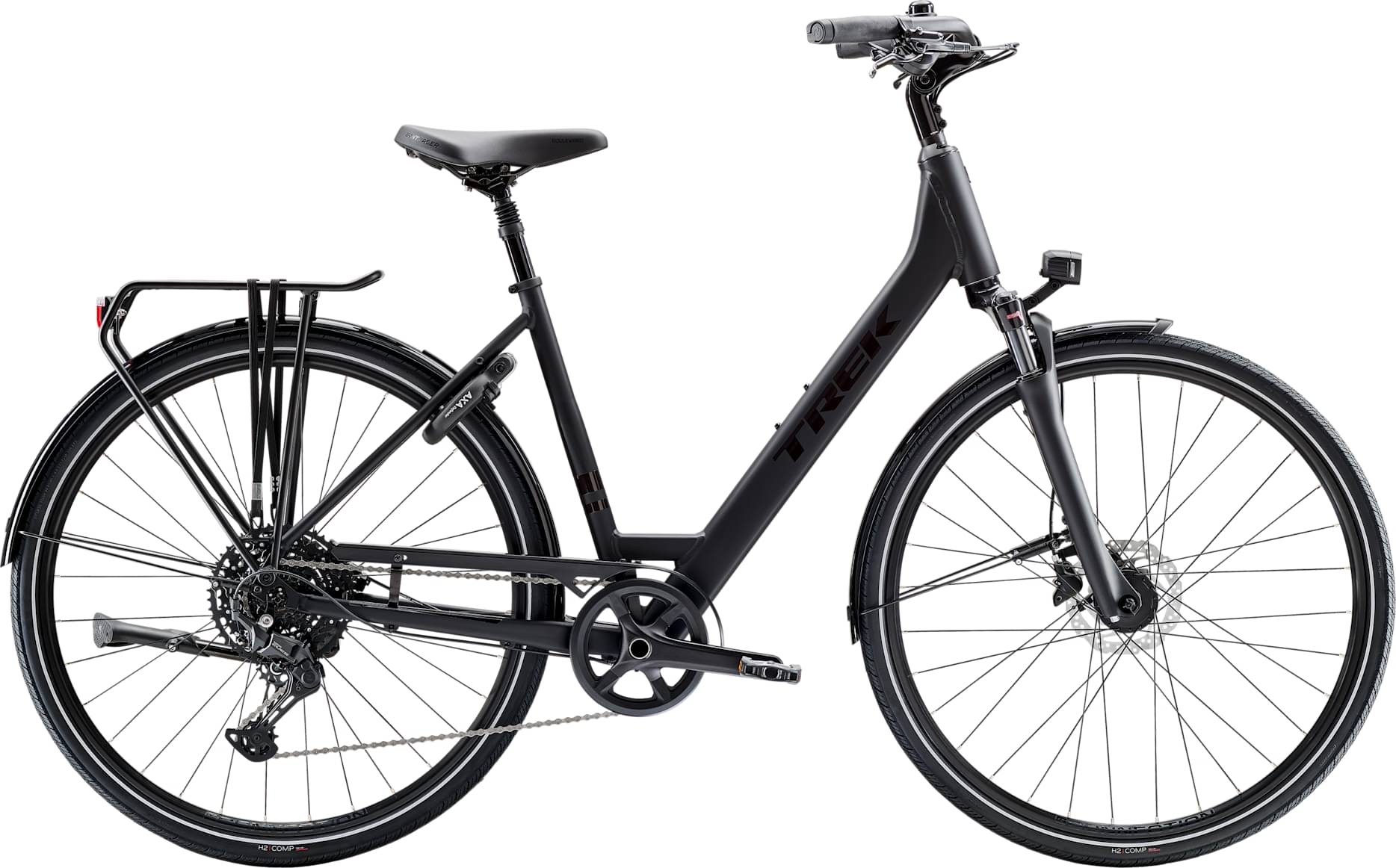

Trek Verve 3 Equipped Lowstep 2025
2025 Urban
Estimate price |
1,279$
Weight | 17.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NX 1
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, Alpha Gold Aluminium, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR; Size: XL, Lightweight aluminium frame with integrated cables and water bottle mounts
Suspension Fork
SR Suntour NX1, coil spring, preload adjuster, lockout, 100mm QR, 50mm travel,
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
Size: S, M, ProWheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, ProWheel alloy, 40T narrow-wide ring, 175 mm length
Chain
Shimano LG500
Pedals
slip-proof aluminium pedals with reflectors
Wheels
Front Hub
Shimano 3.0 watt dynamo hub
Rear Hub
Shimano TX505, CenterLock
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, 85 mm length; Size: L, XL, Bontrager alloy, 31.8 mm clamp, Blendr compatible, 105 mm length
Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, adjustable suspension, 27.2 mm, 300 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.612 mm | 1.617 mm | 1.633 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Front Center | 629 mm | 637 mm | 640 mm | 655 mm |
| Rake | 46 mm | 45 mm | 40 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 615 mm | 624 mm | 634 mm | 653 mm |
| Reach | 382 mm | 387 mm | 392 mm | 400 mm |
| Top Tube Length | 552 mm | 575 mm | 598 mm | 612 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 370 mm | 430 mm | 485 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1092 mm | 1100 mm | 1103 mm | 1118 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 718 mm | 769 mm | 803 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
