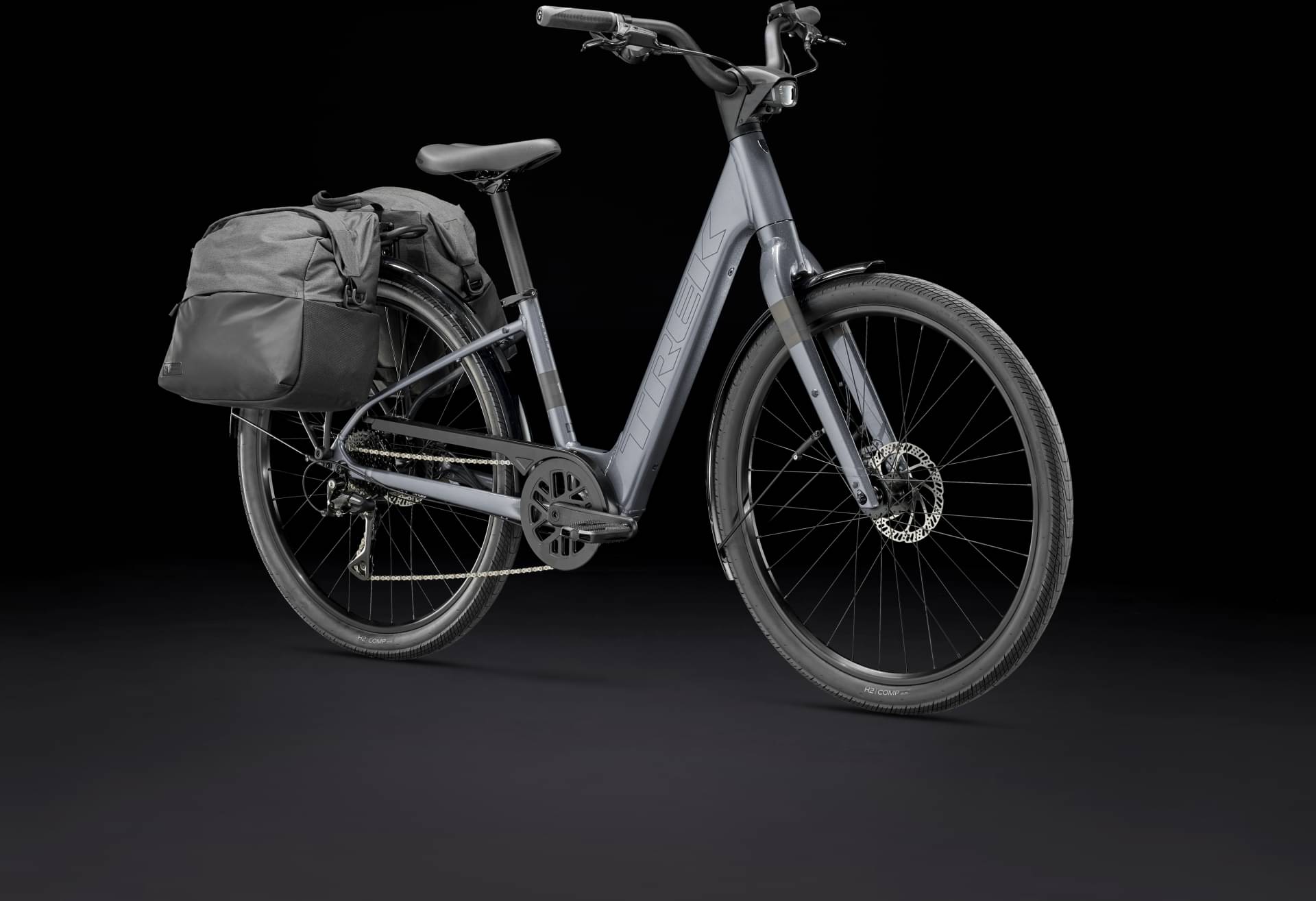

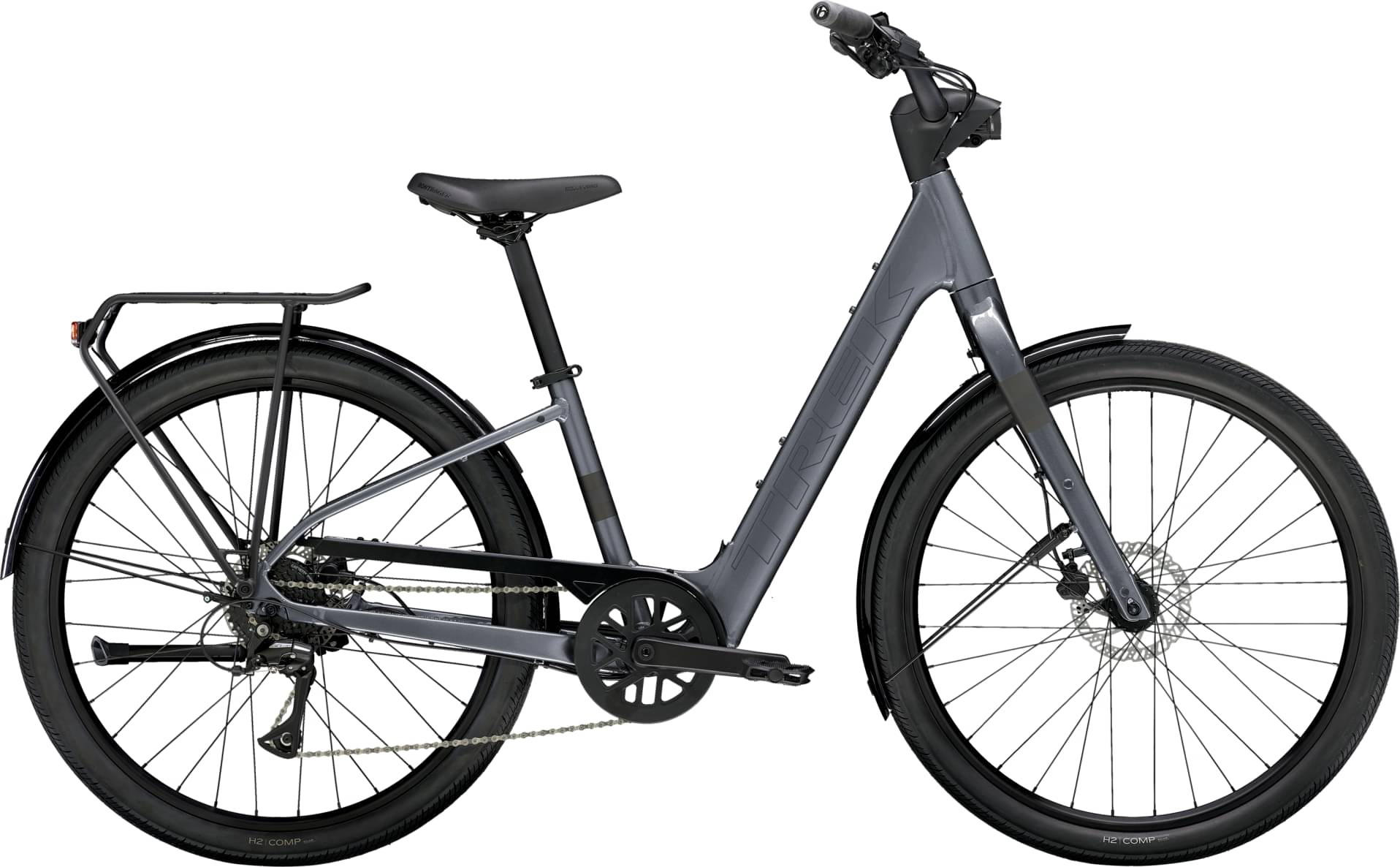

Trek Verve+ 1 Lowstep LT 2025
2025 E-bike
Estimate price |
2,675$
Weight | 18.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera -
Suspension Rigid -
Motor 250W 40Nm hub-drive -
Battery 250Wh, integrated in down tube -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, lowstep, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing
Suspension Fork
Verve+ LT alloy, threadless steel steerer, ThruSkew QR

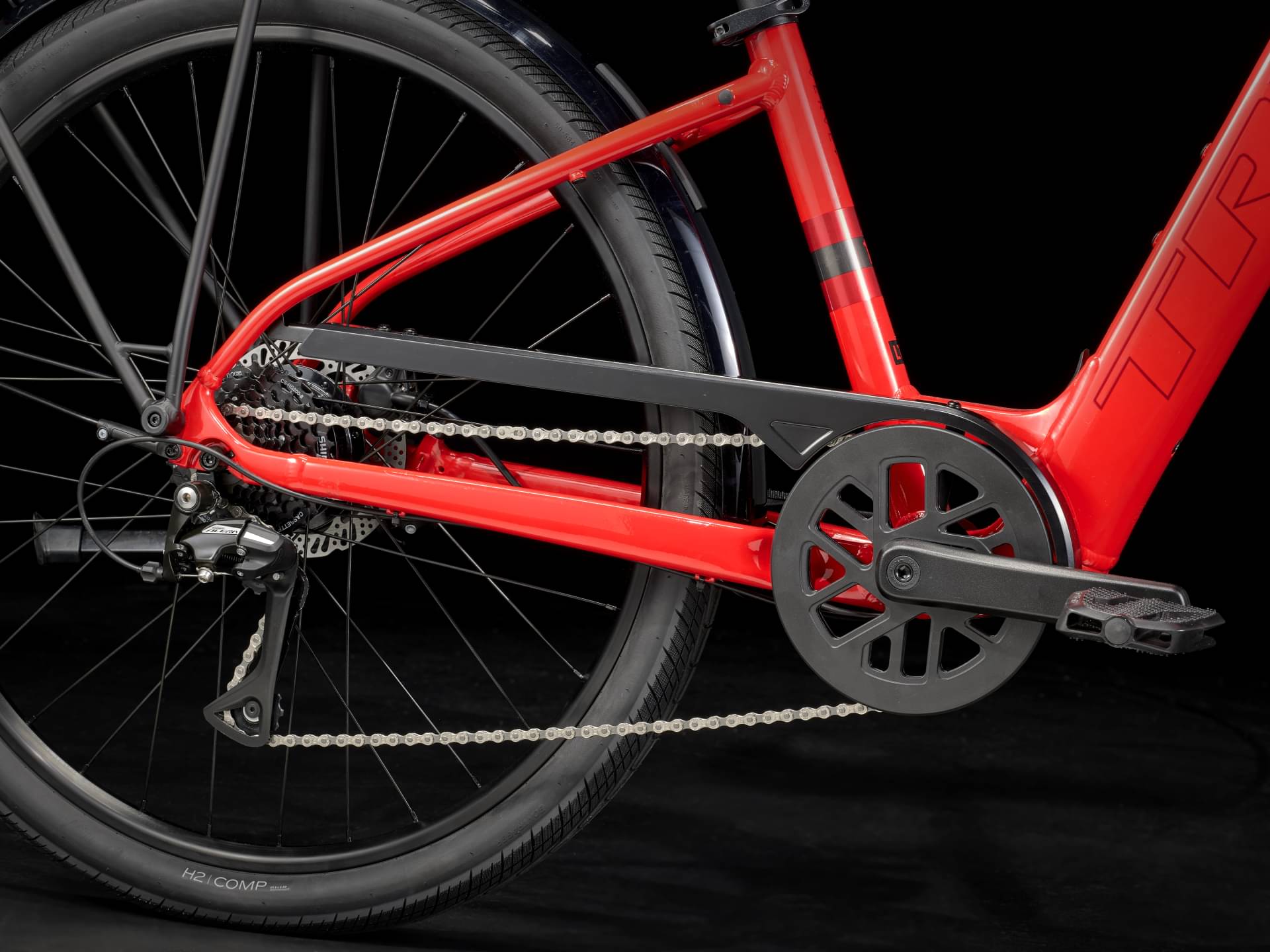

Drivetrain
Rear Derailleur
Shimano Acera M3020-8, 40T max cog

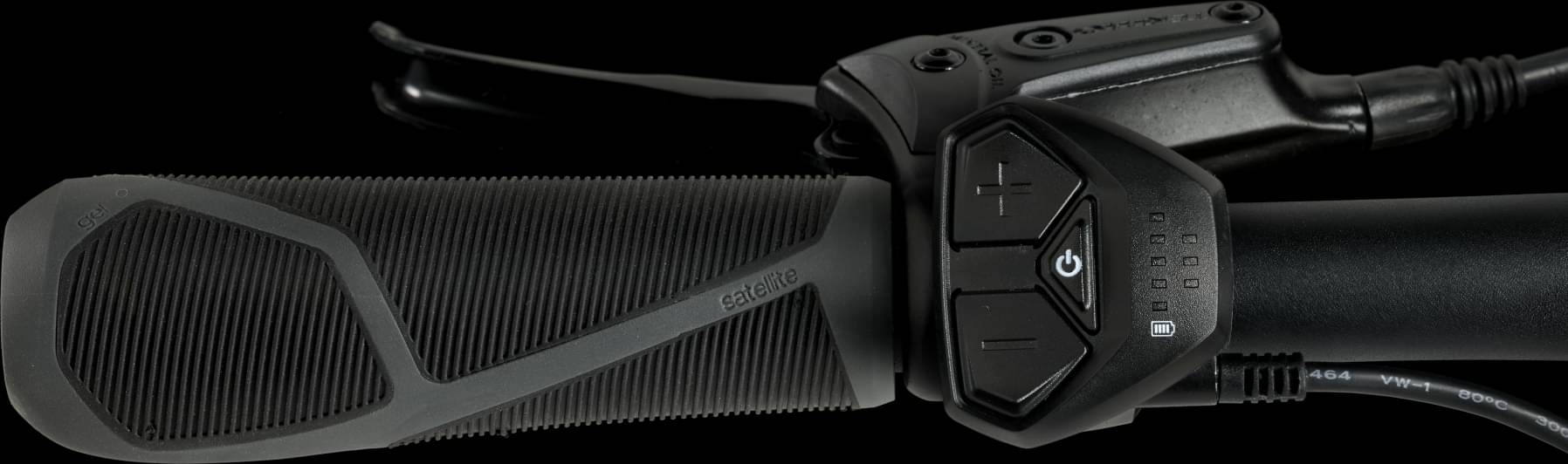

Shift Levers
Shimano M315, 8 speed
Cassette
Shimano HG20, 12-32, 8 speed
Crank
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
Bottom Bracket
Torque sensor, threaded, 122.5mm spindle
Chain
KMC Z8.3
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR

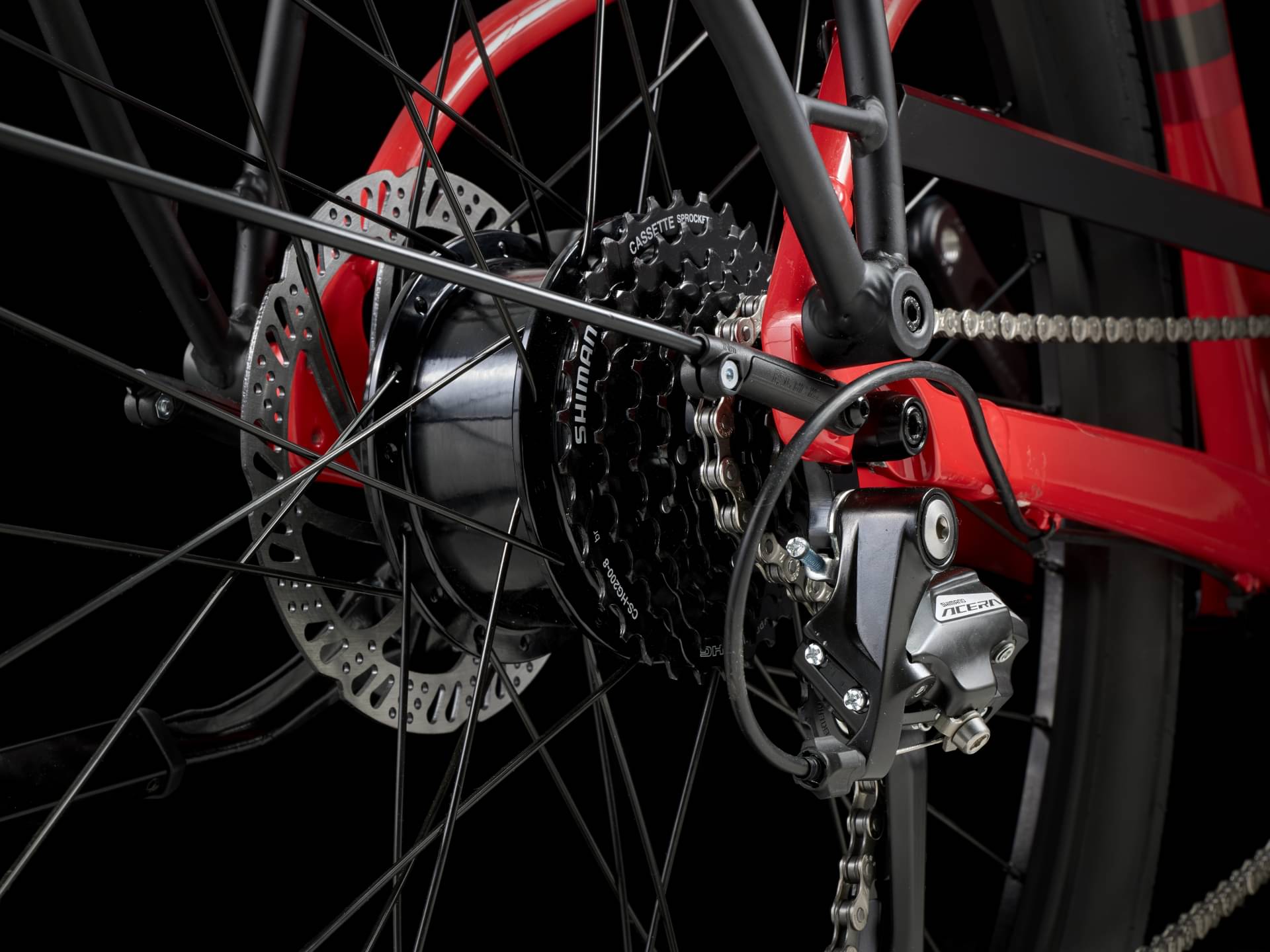

Rear Hub
Hyena hub drive motor, 40Nm, 250W
Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00''
Brakes

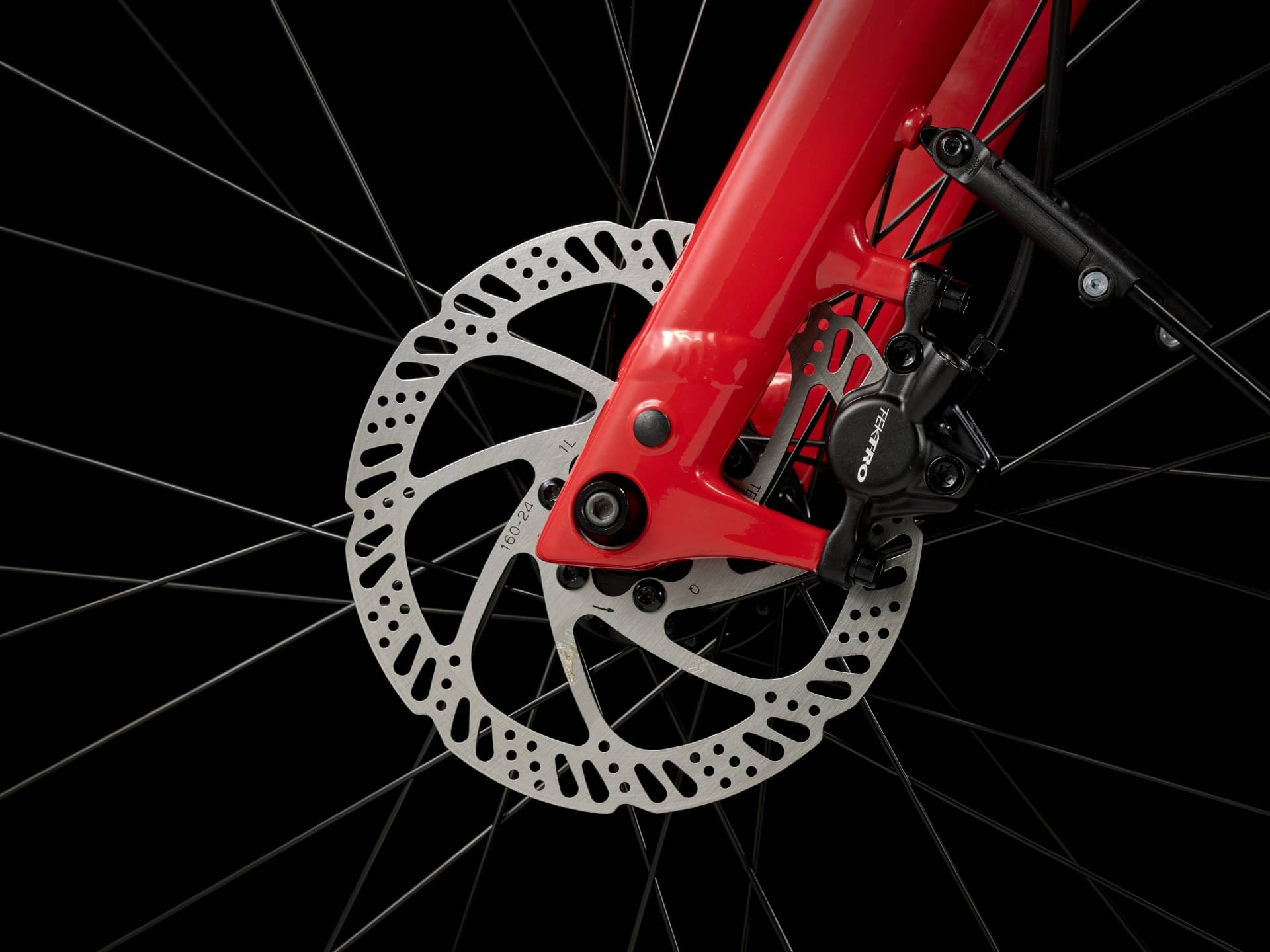

Brakes
Tektro HD-M275 hydraulic disc

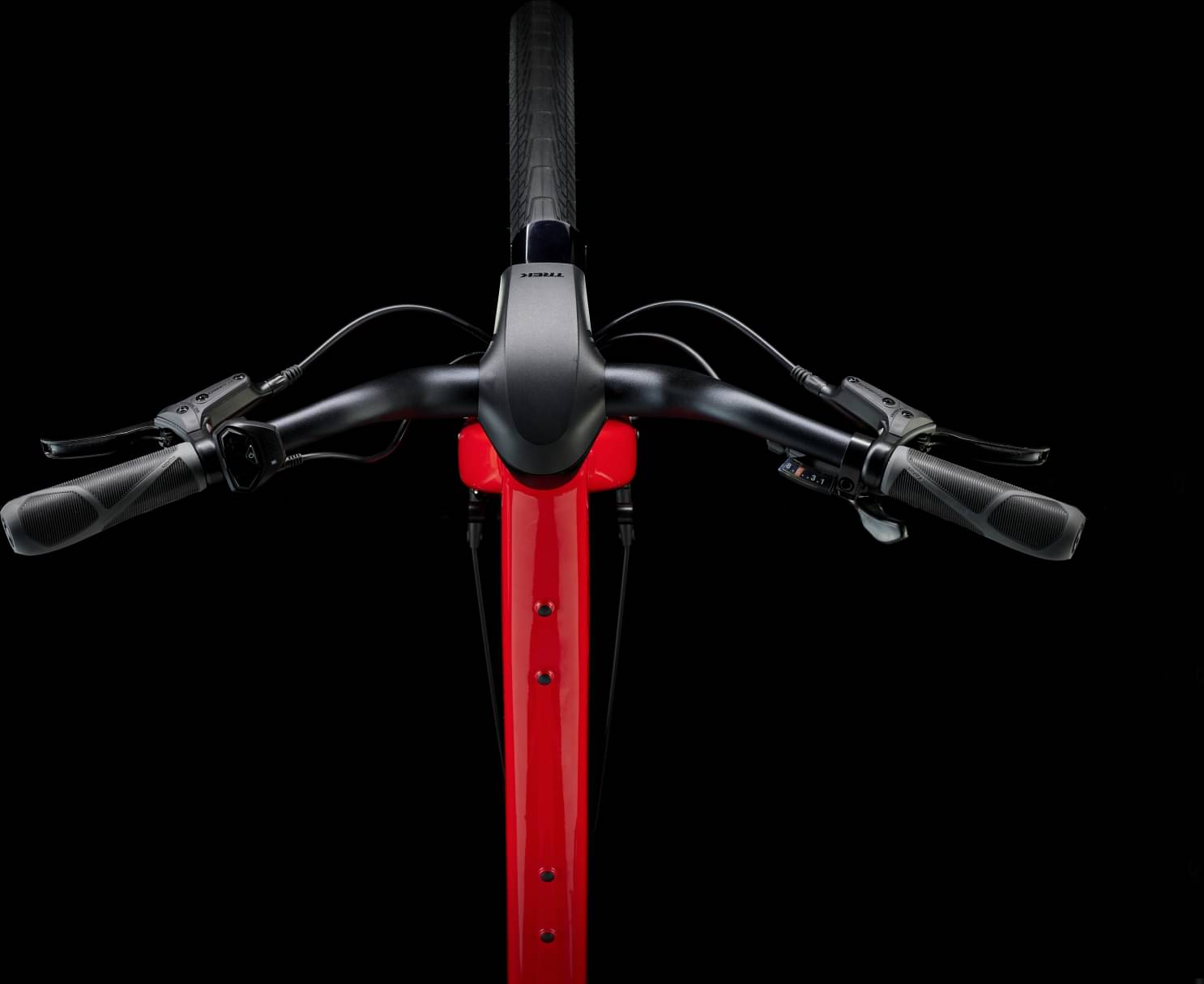

Cockpit
Stem
Integrated stem, 35mm clamp
Handlebar

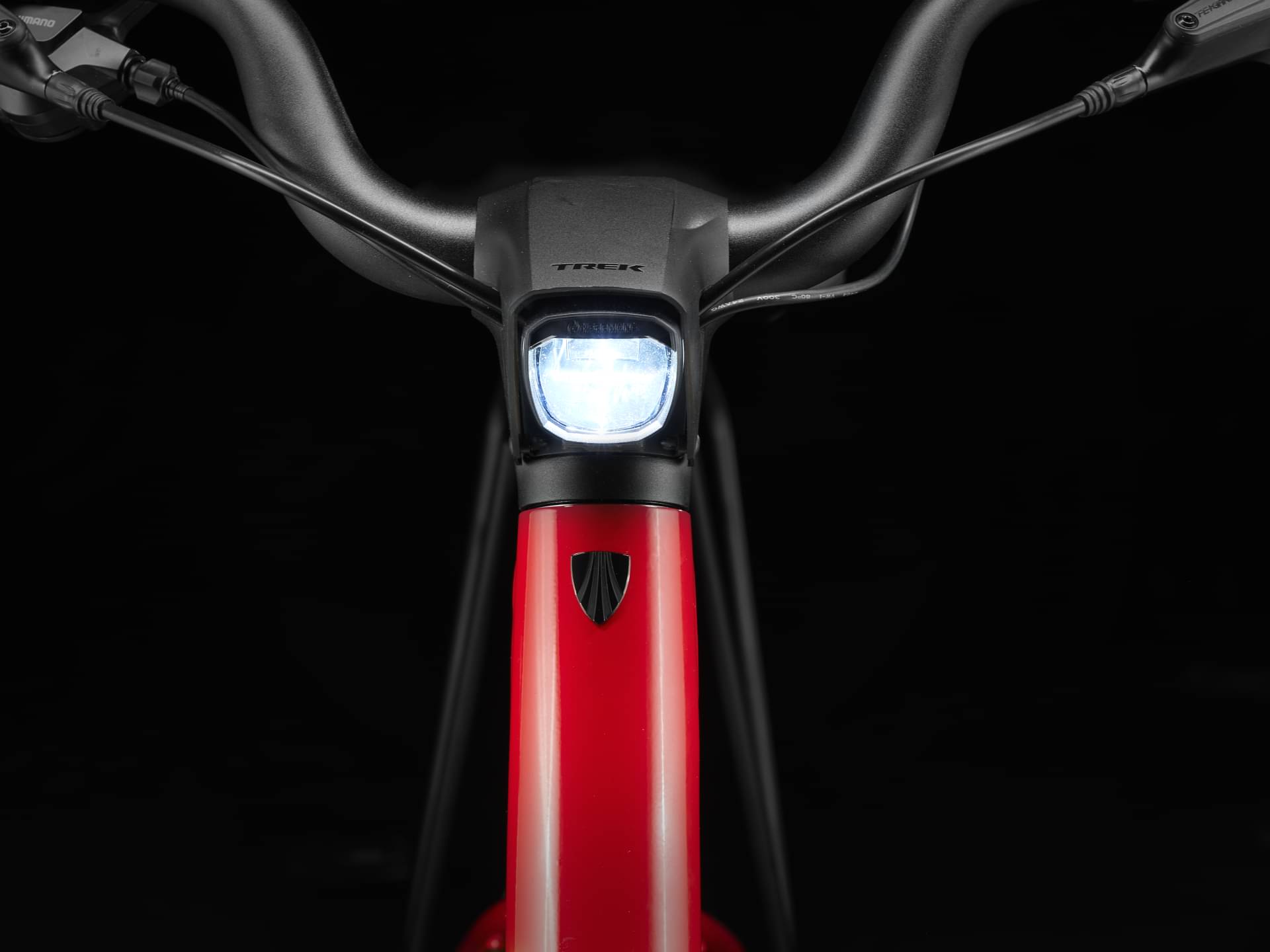

Bar/stem w/ light mount
Grips
Bontrager Satellite
Seat
Saddle
Bontrager Boulevard
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Motor & Battery
Motor
Hyena hub drive motor, 40Nm, 250W

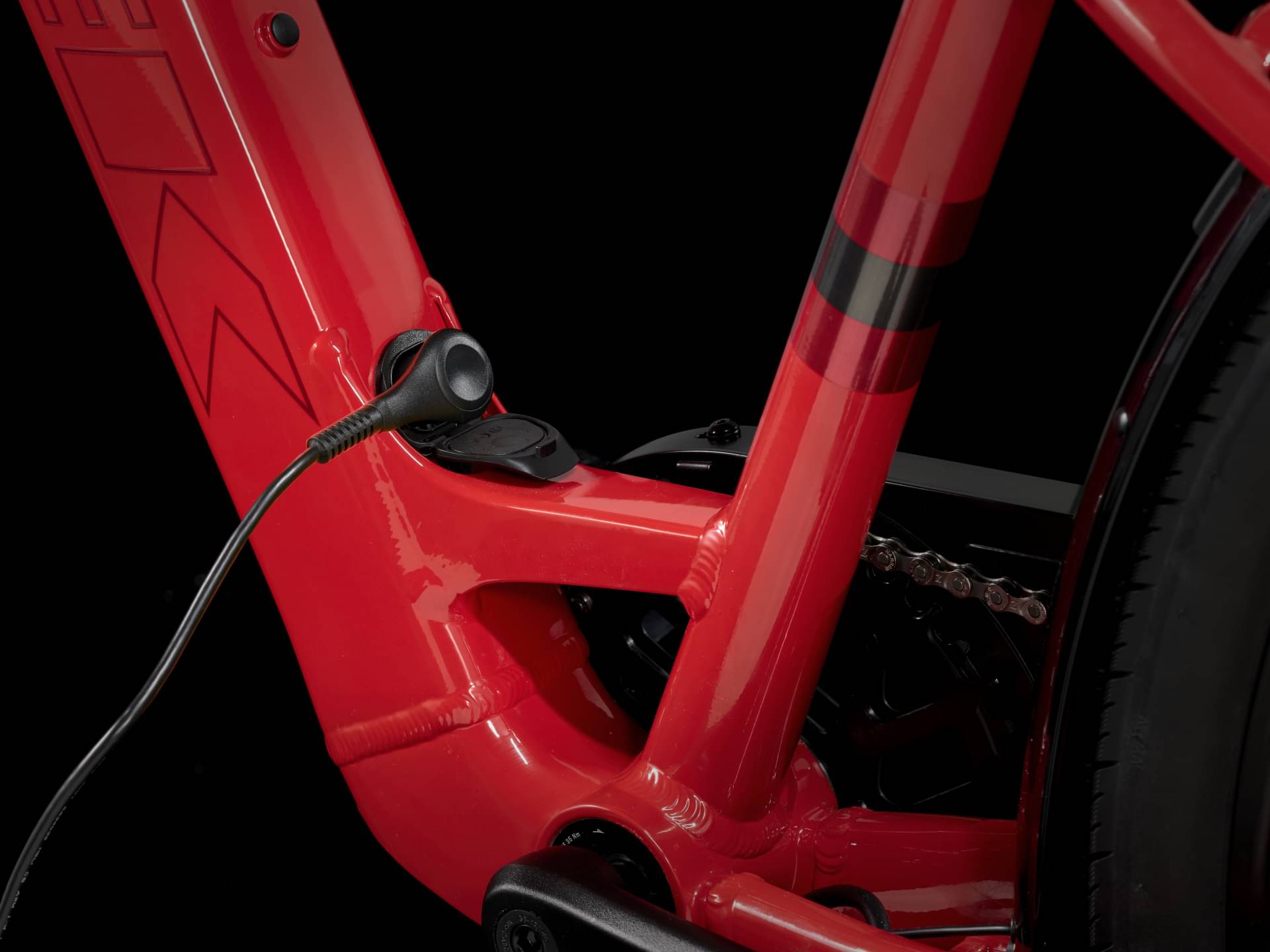

Battery
250Wh, integrated in down tube
Charger
2A, 42V output, 100V-240V AC input
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.598 mm | 1.65 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 637 mm | 668 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 84 mm | 78 mm |
| Stack | 618 mm | 639 mm | 693 mm |
| Reach | 370 mm | 400 mm | 420 mm |
| Top Tube Length | 571 mm | 620 mm | 672 mm |
| Seat Tube Angle | 72 ° | 71 ° | 70 ° |
| Seat Tube Length | 380 mm | 470 mm | 560 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 170 mm | 225 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1117 mm | 1149 mm | 1183 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 410 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
