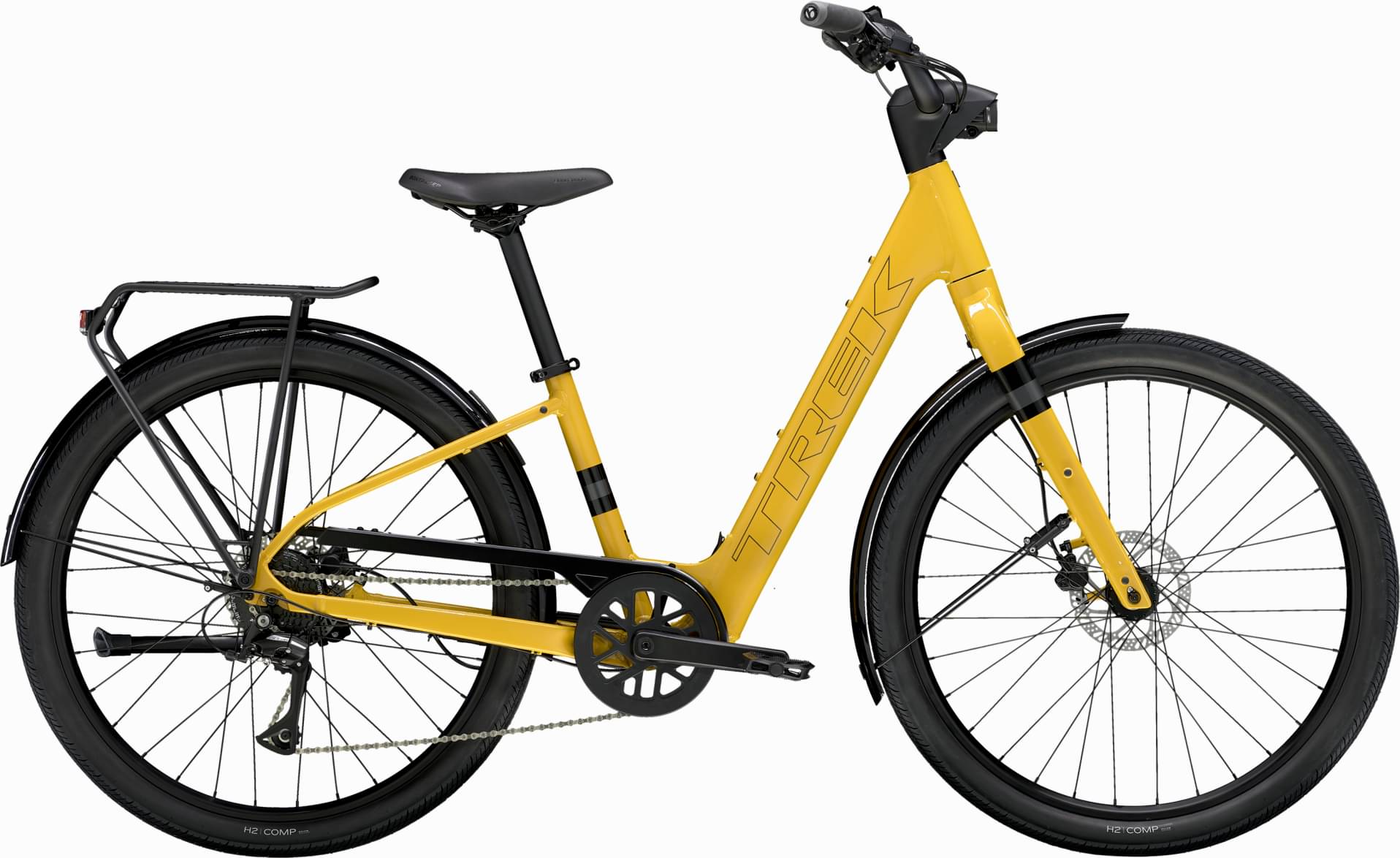

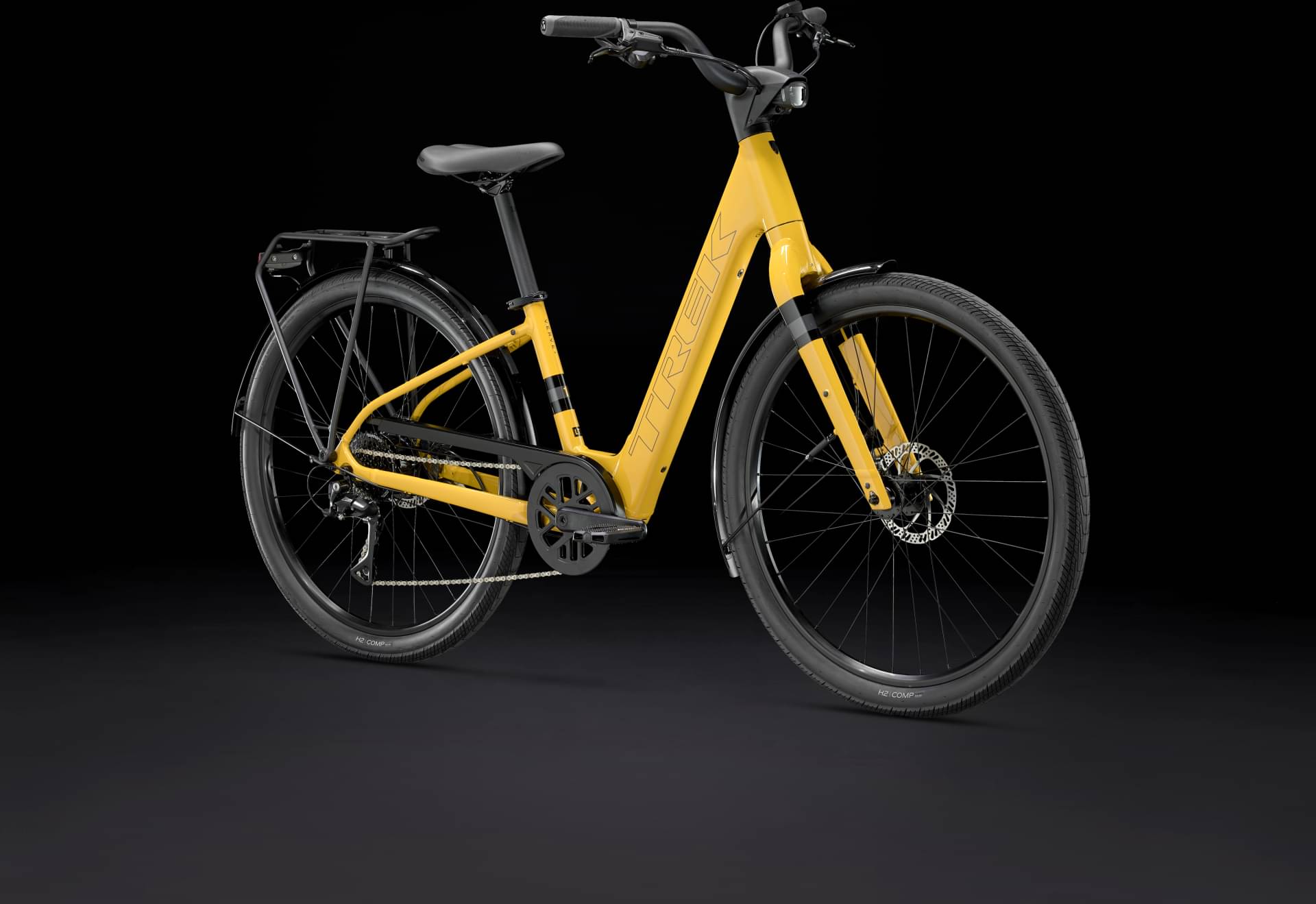

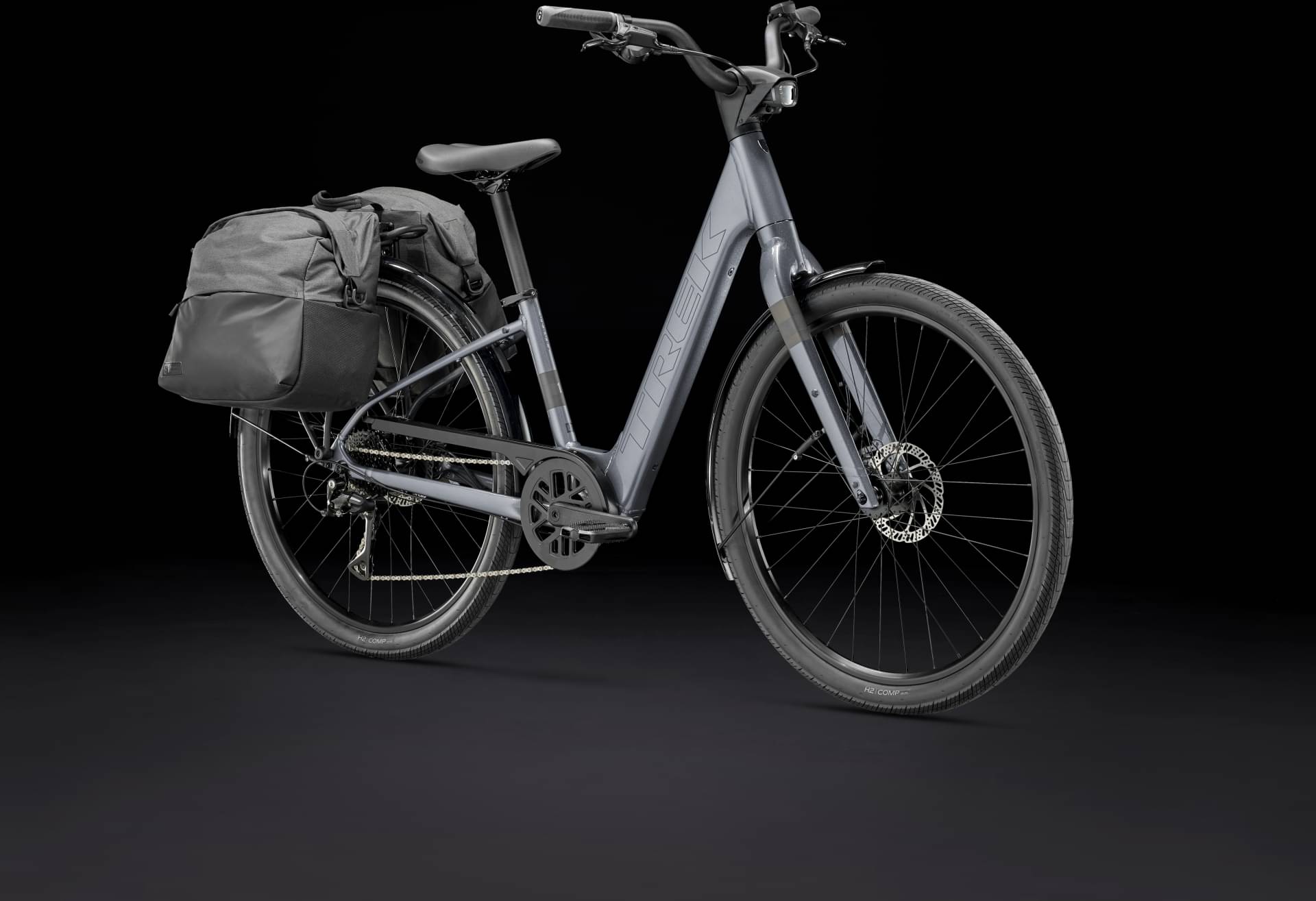

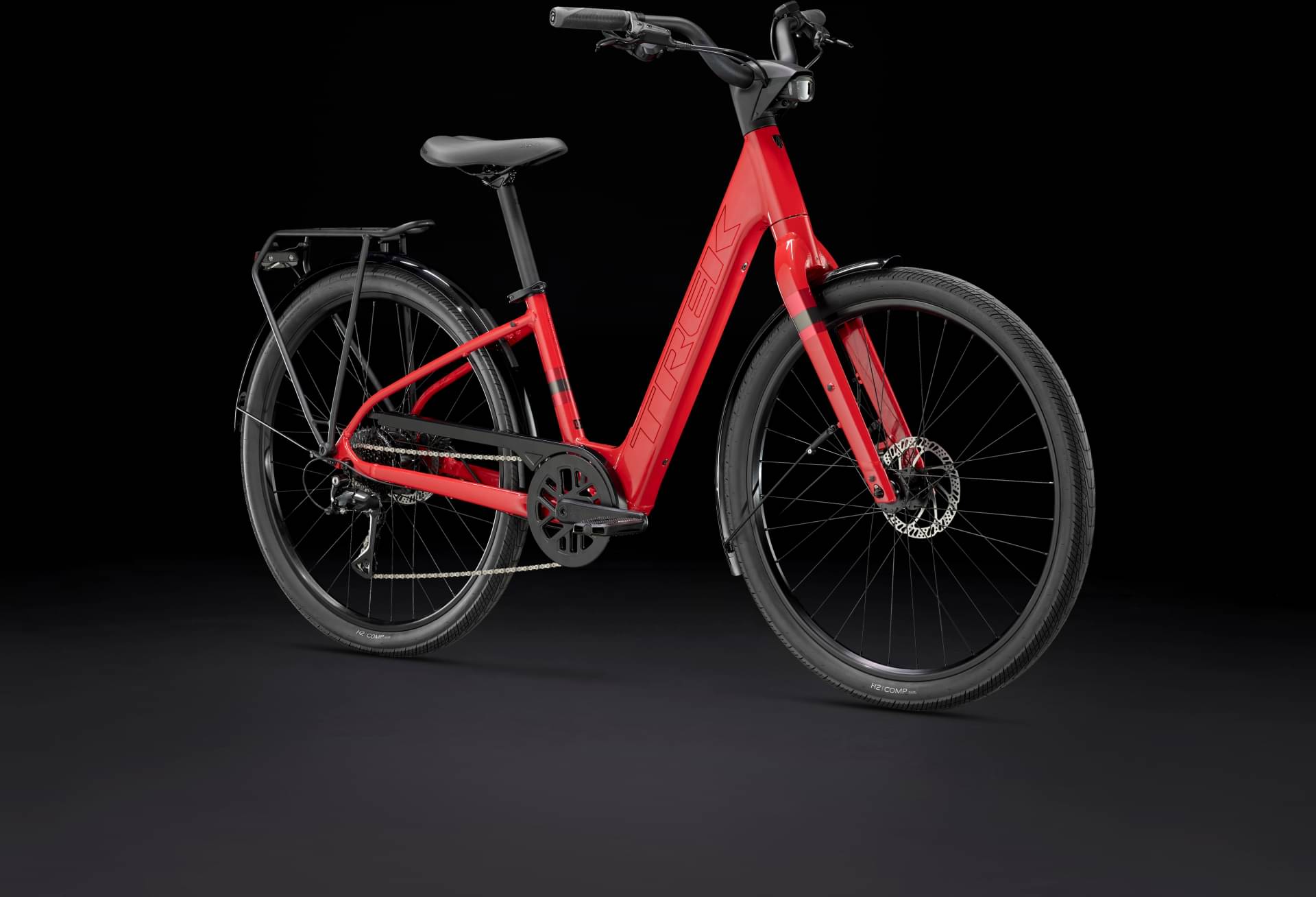

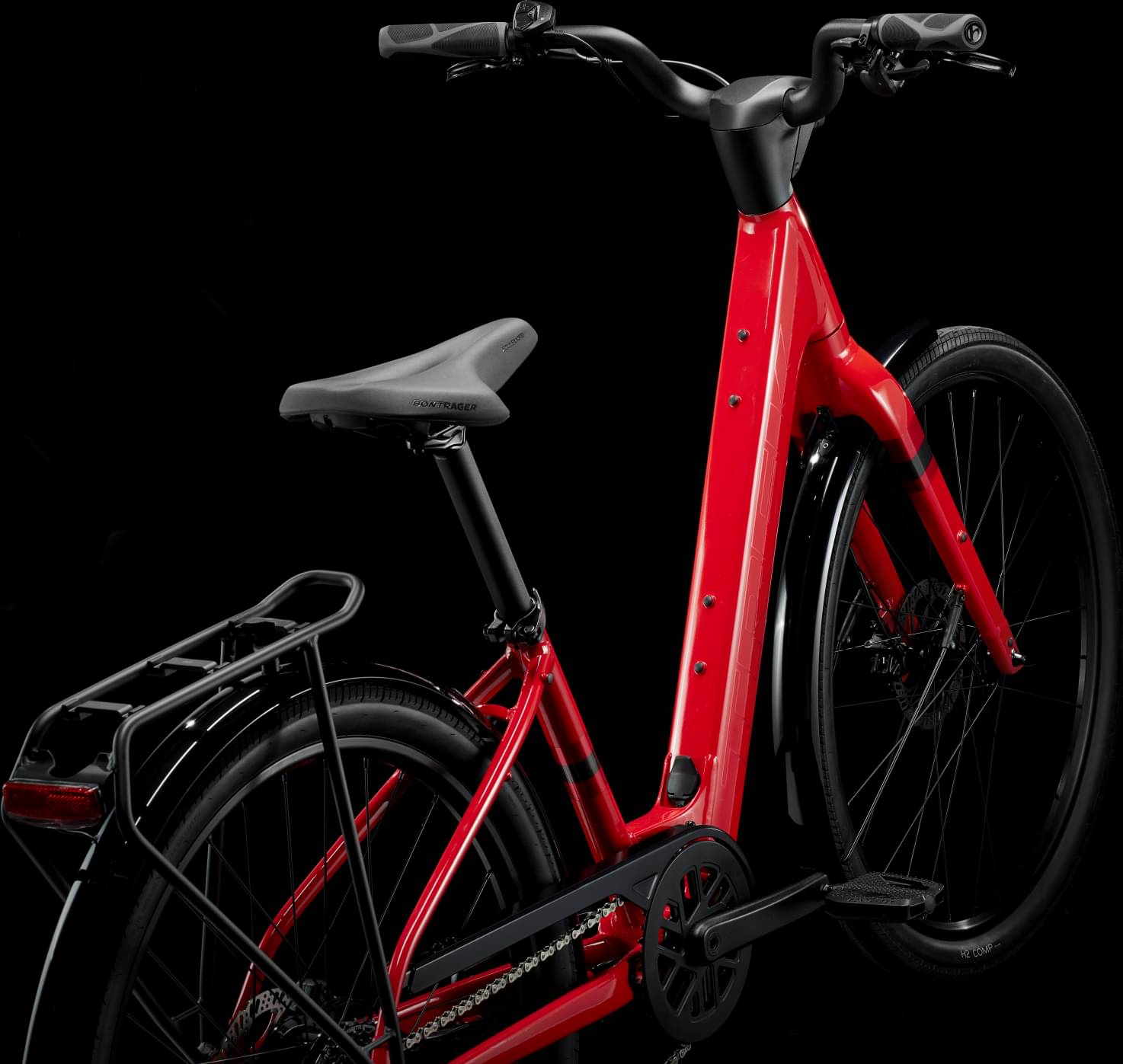

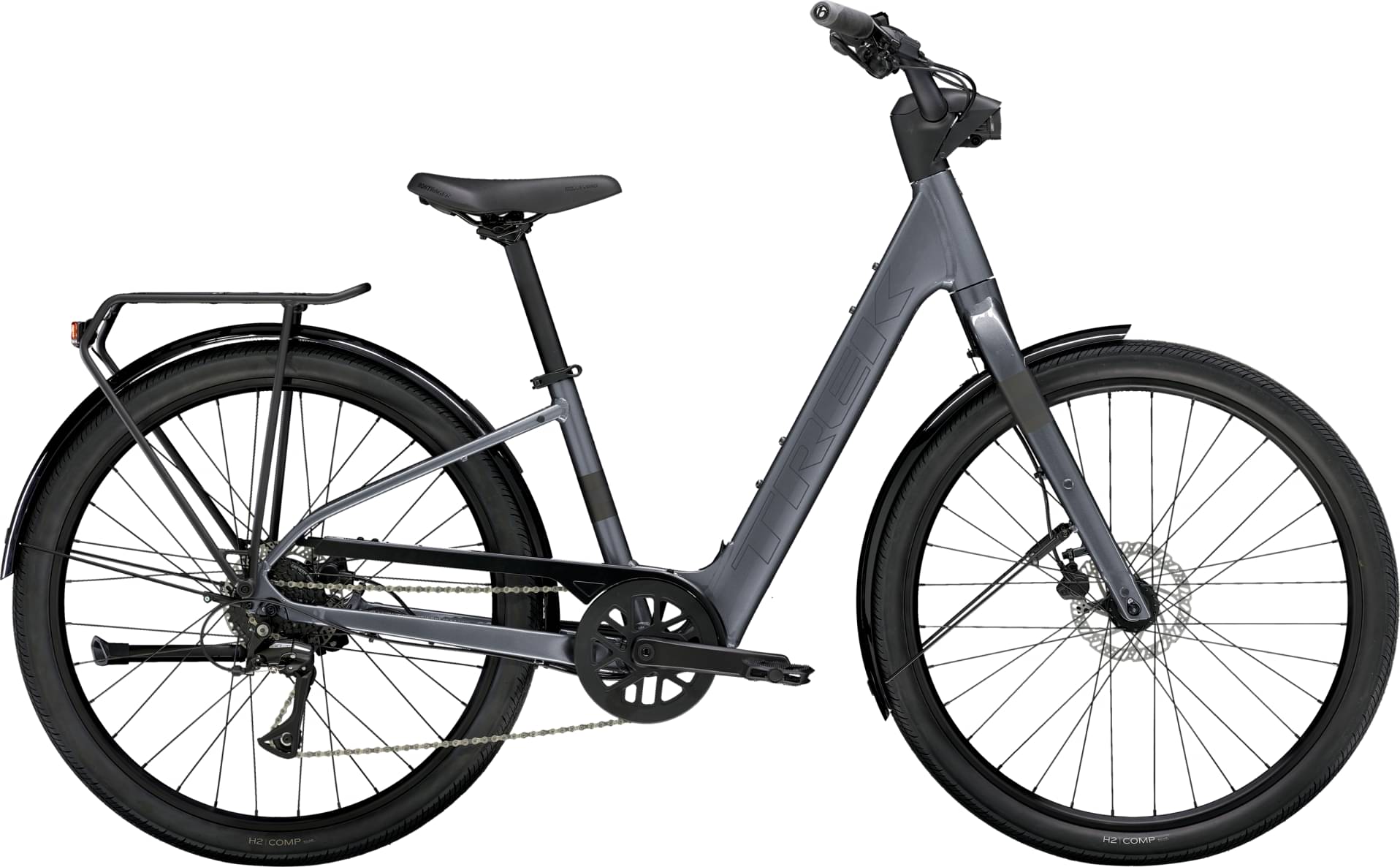

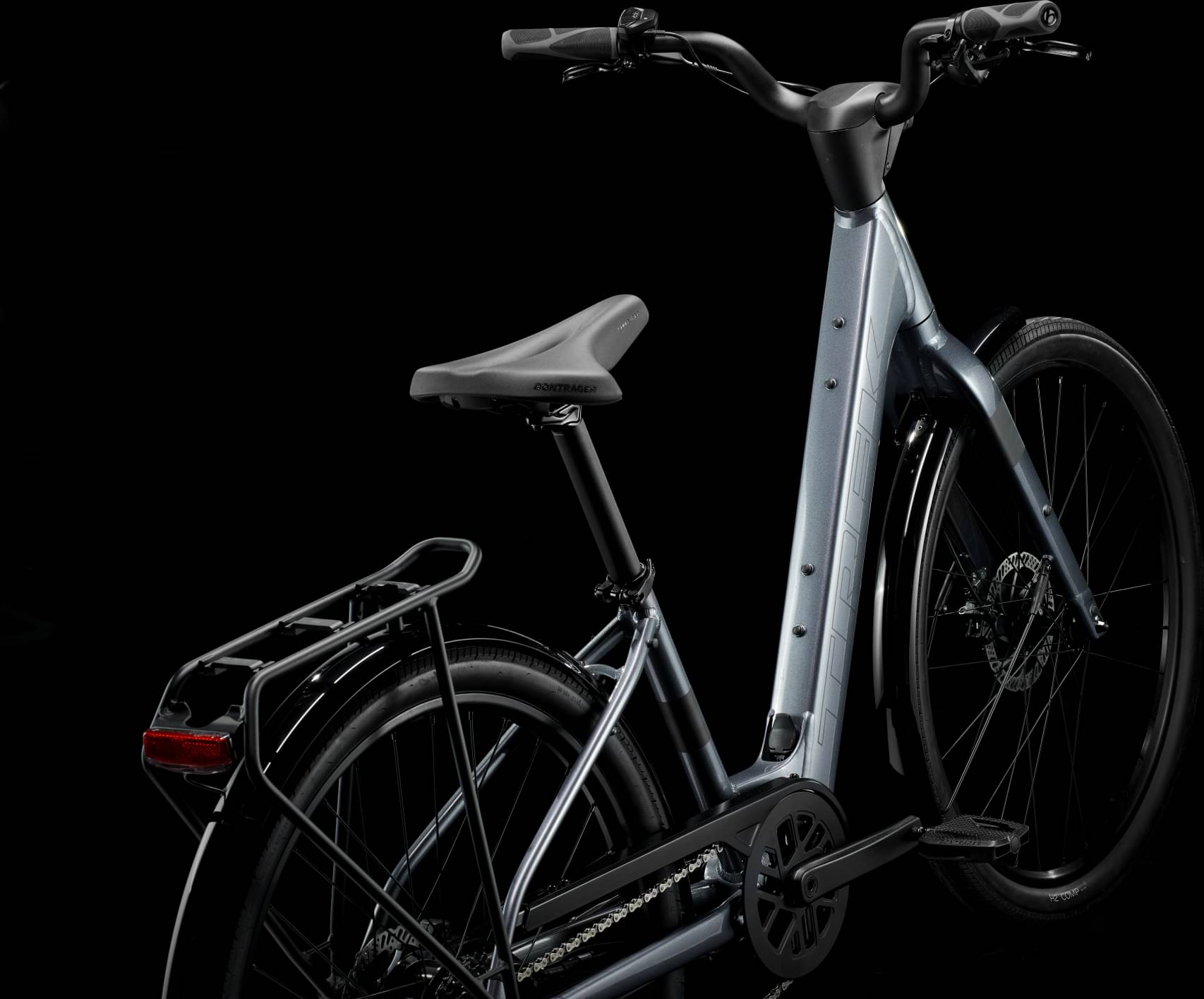

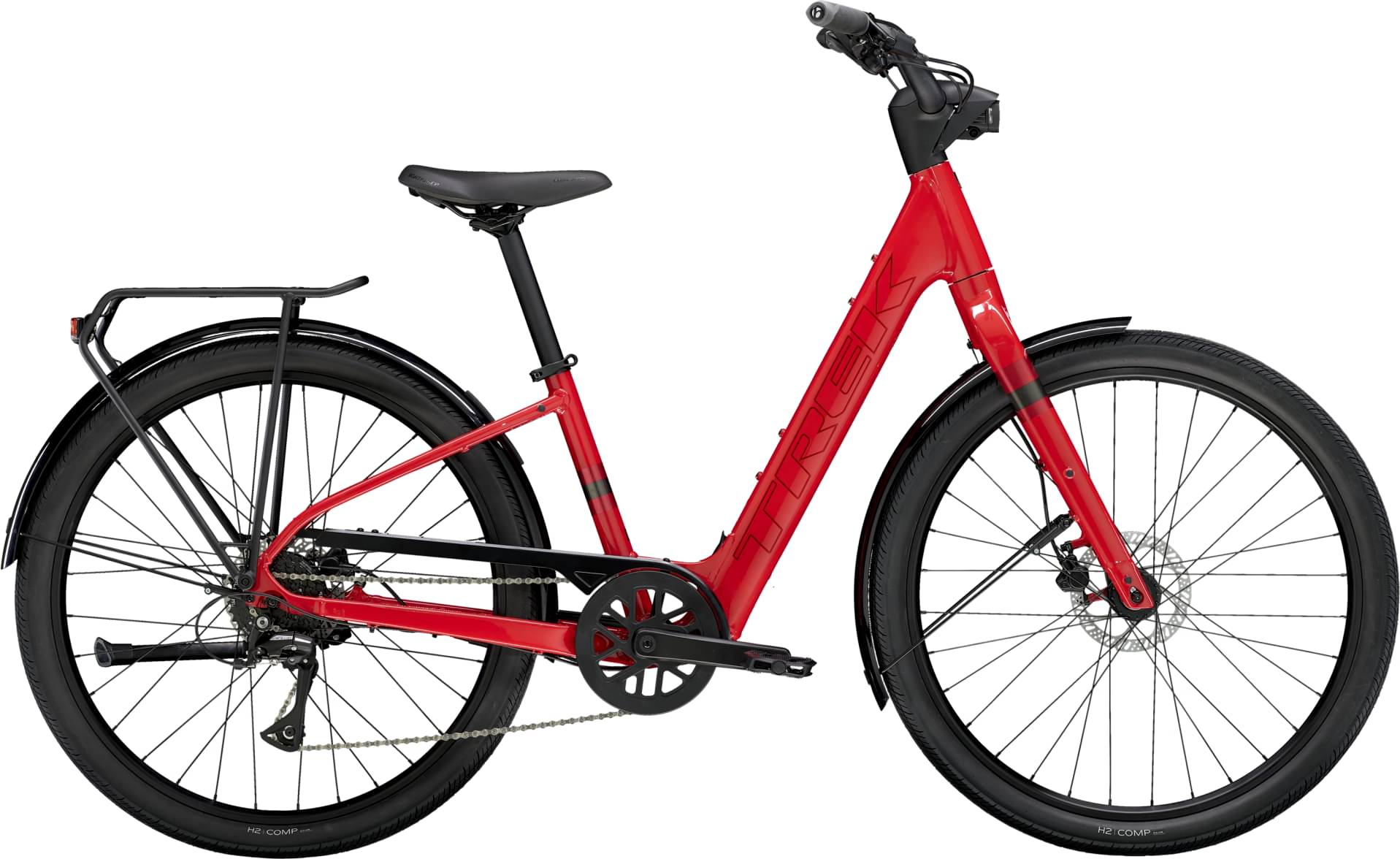

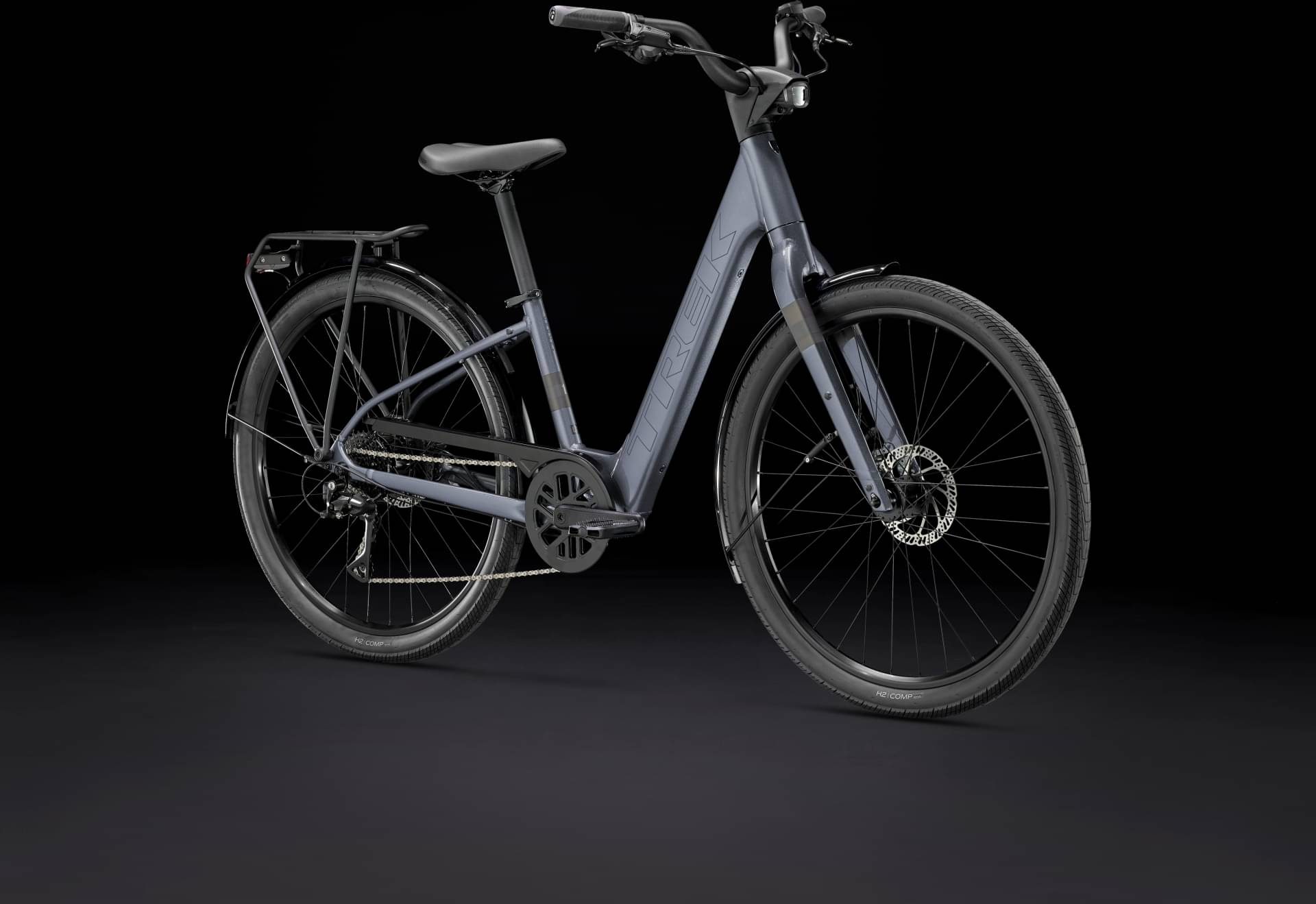

Trek Verve+ 1 LT Lowstep 2025
2025 E-bike
Estimate price |
2,326$
Weight | 18.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera -
Suspension Rigid -
Motor 250W 40Nm hub-drive -
Battery 250 Wh, integrated in down tube -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 161cm
MD
159cm - 181cm
LG
179cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

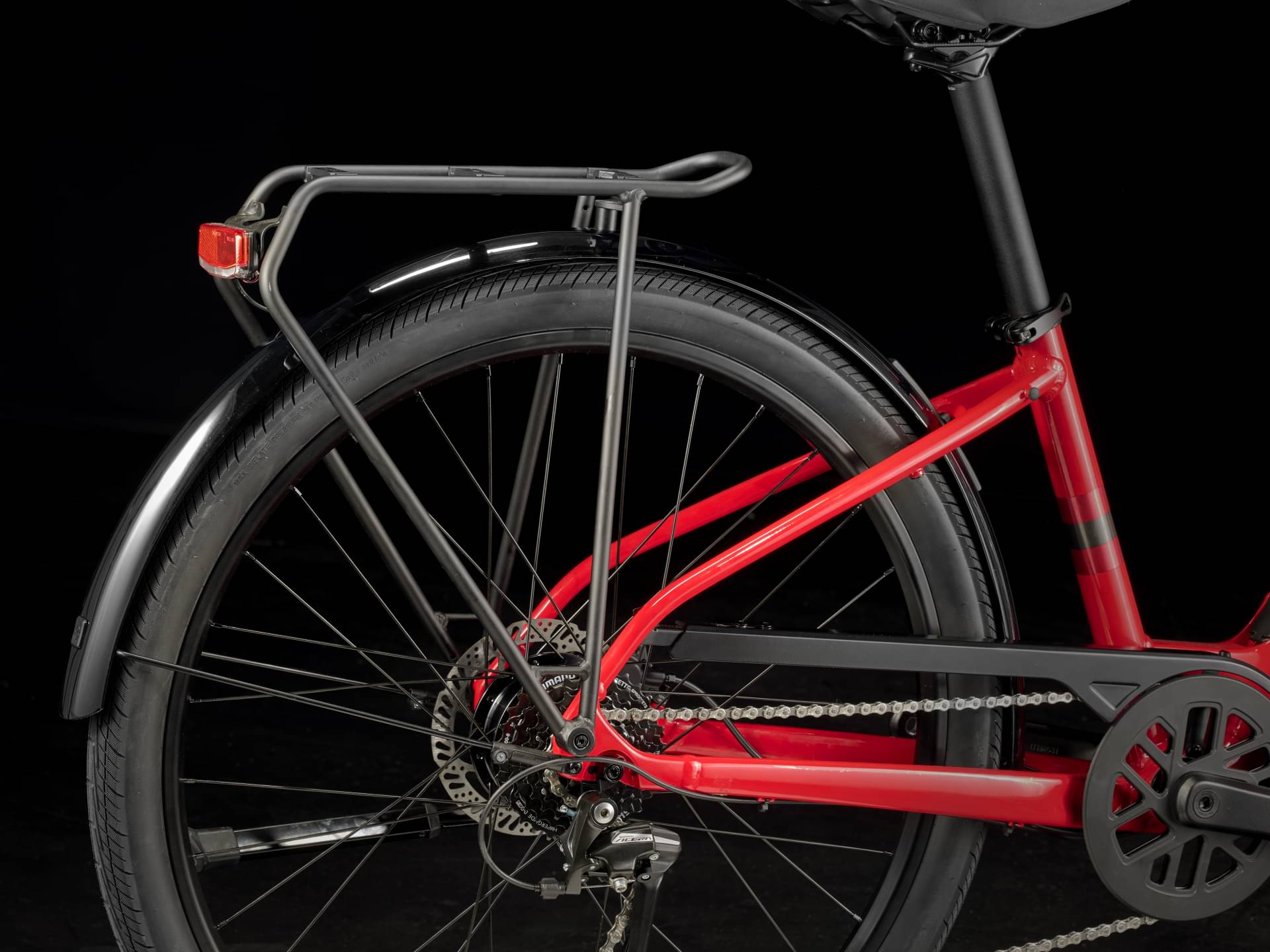

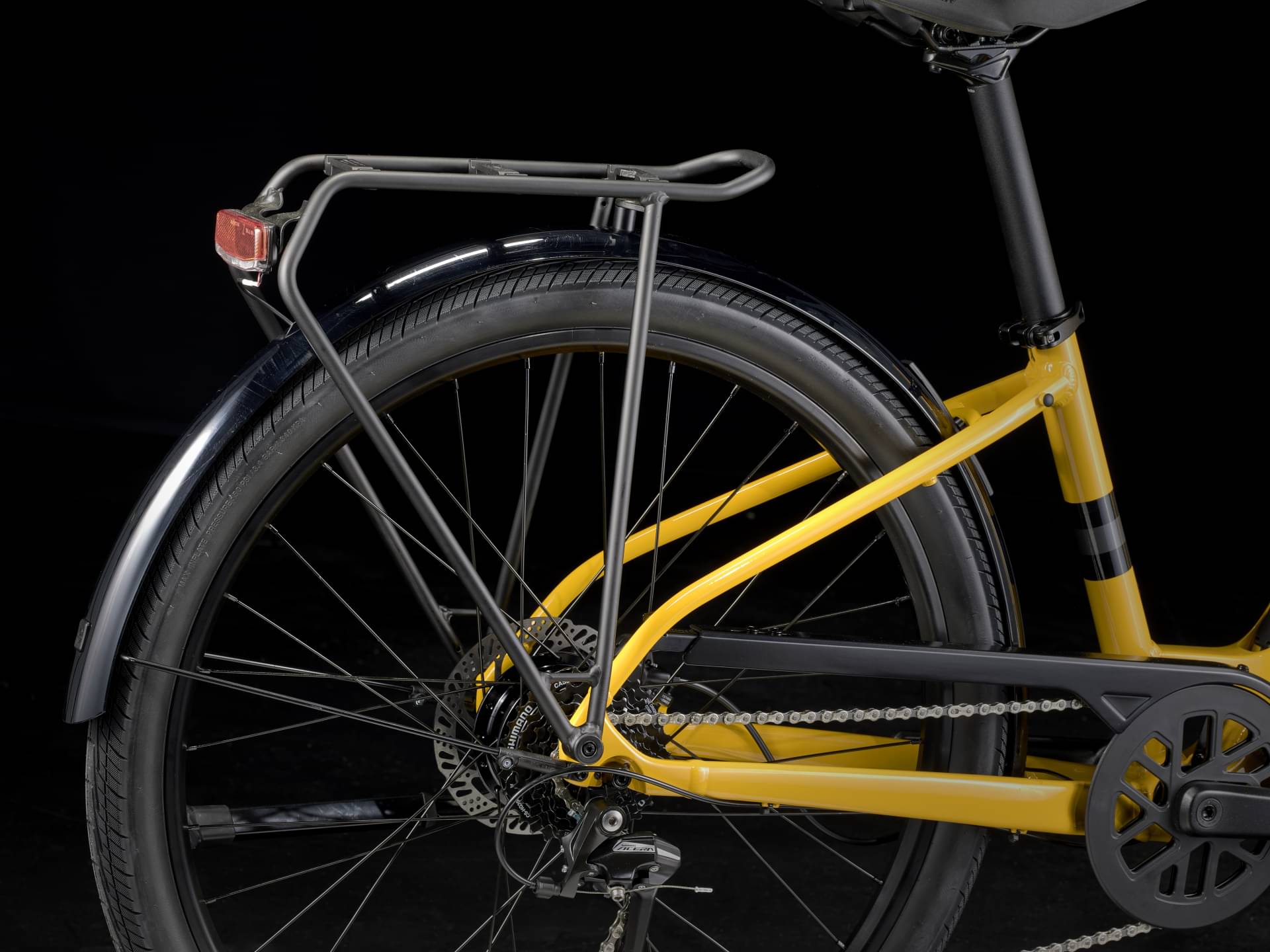

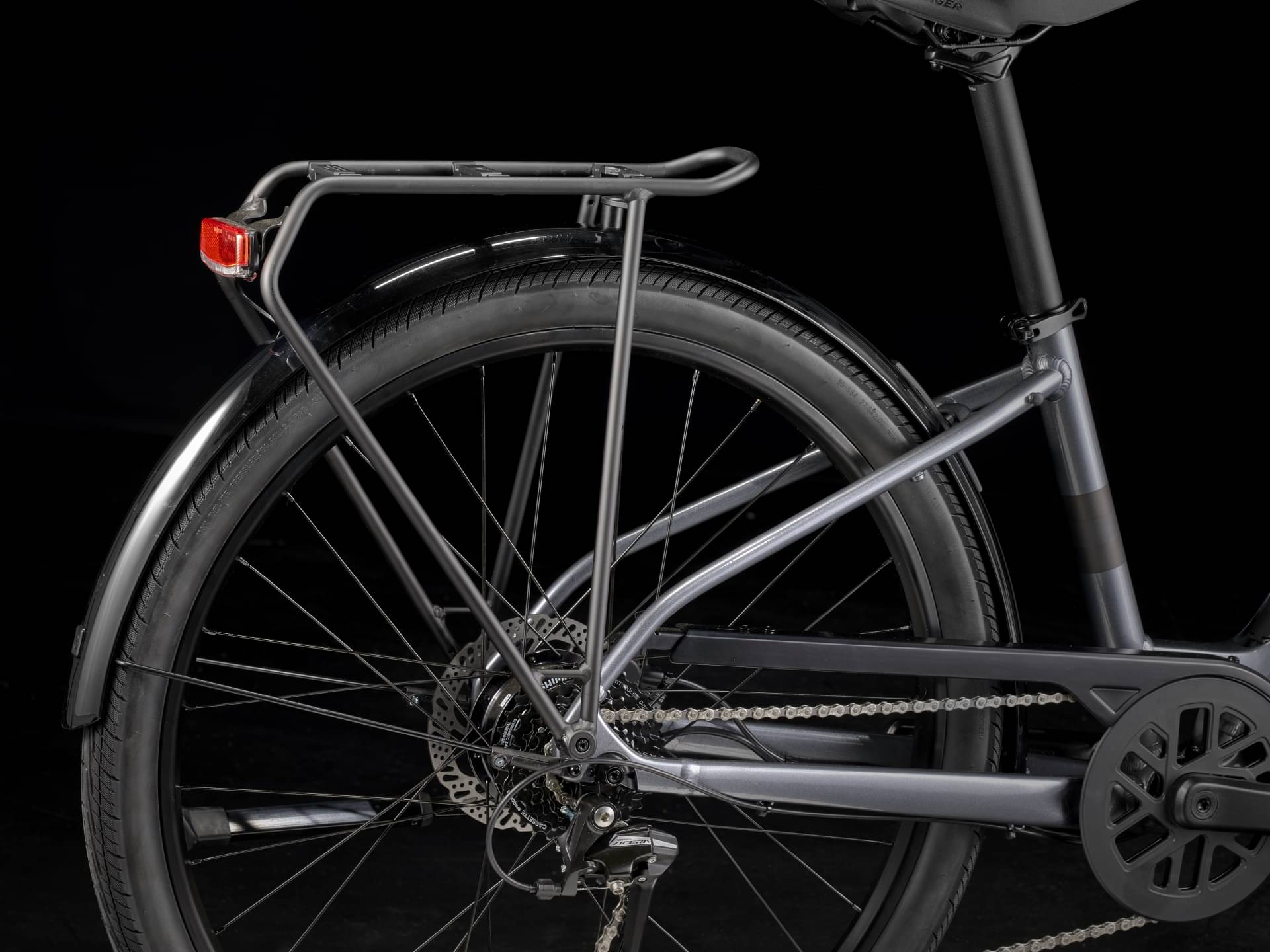

Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount
Suspension Fork
Verve+ LT alloy, threadless steel steerer, ThruSkew QR

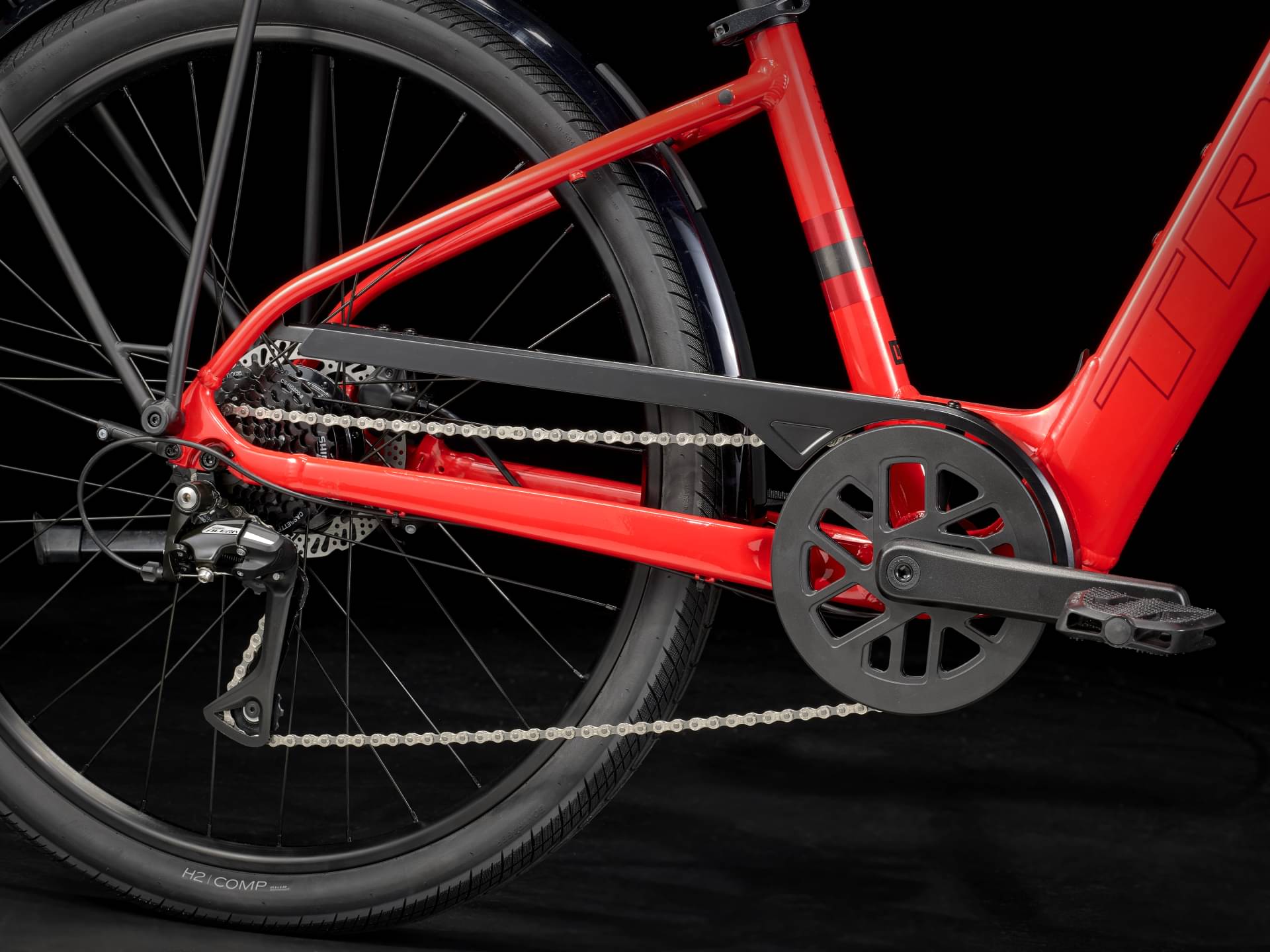

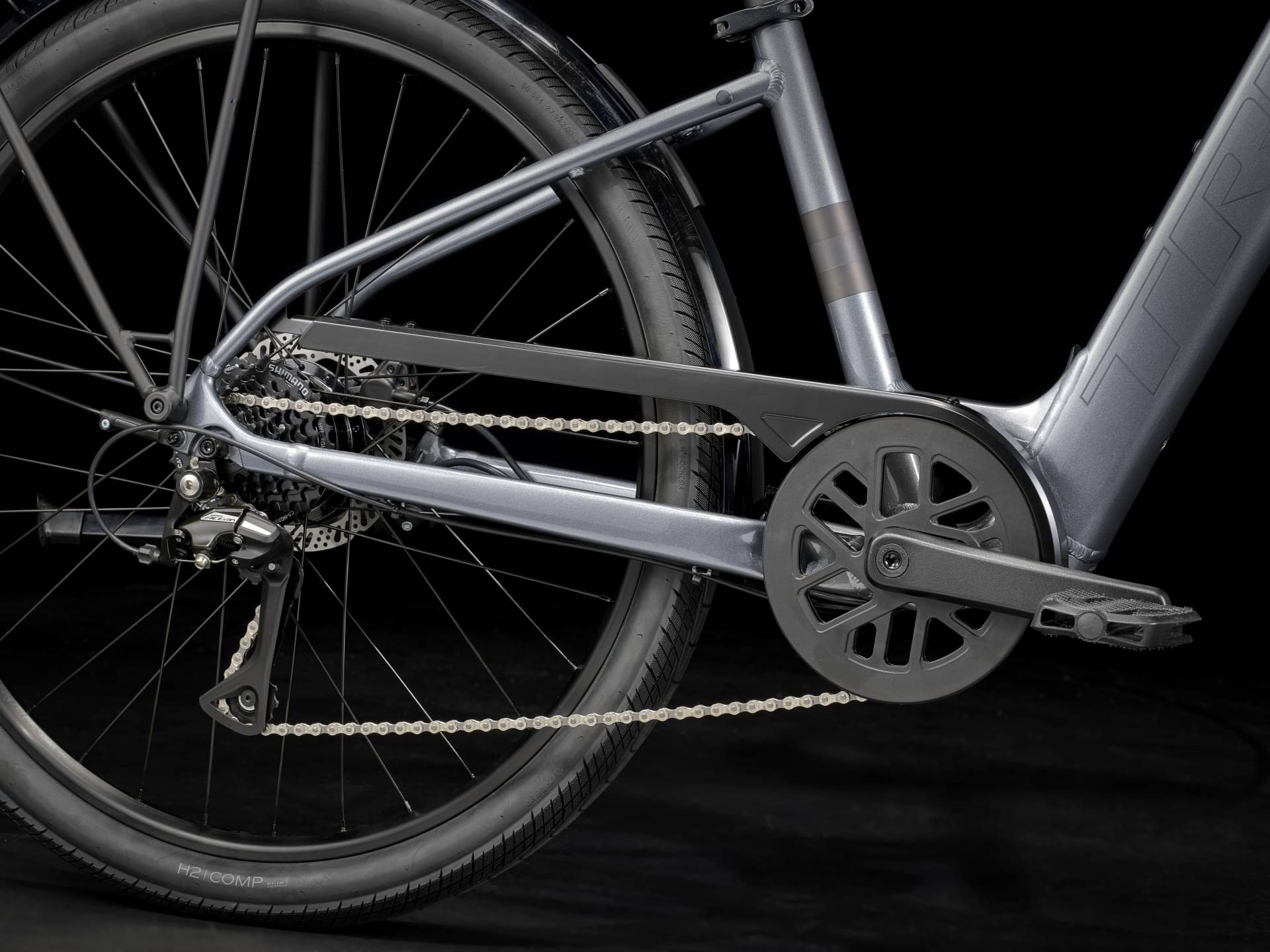

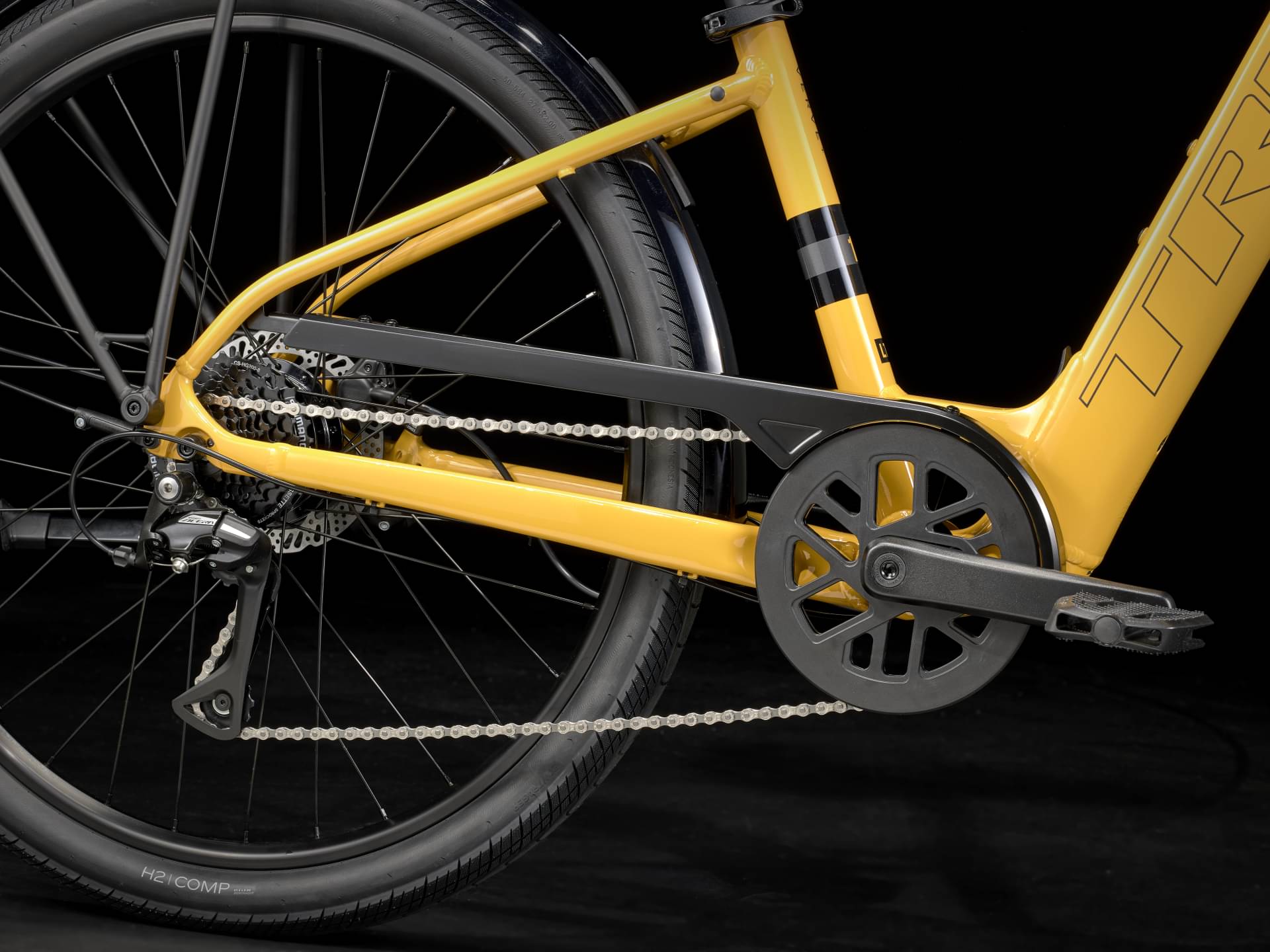

Drivetrain

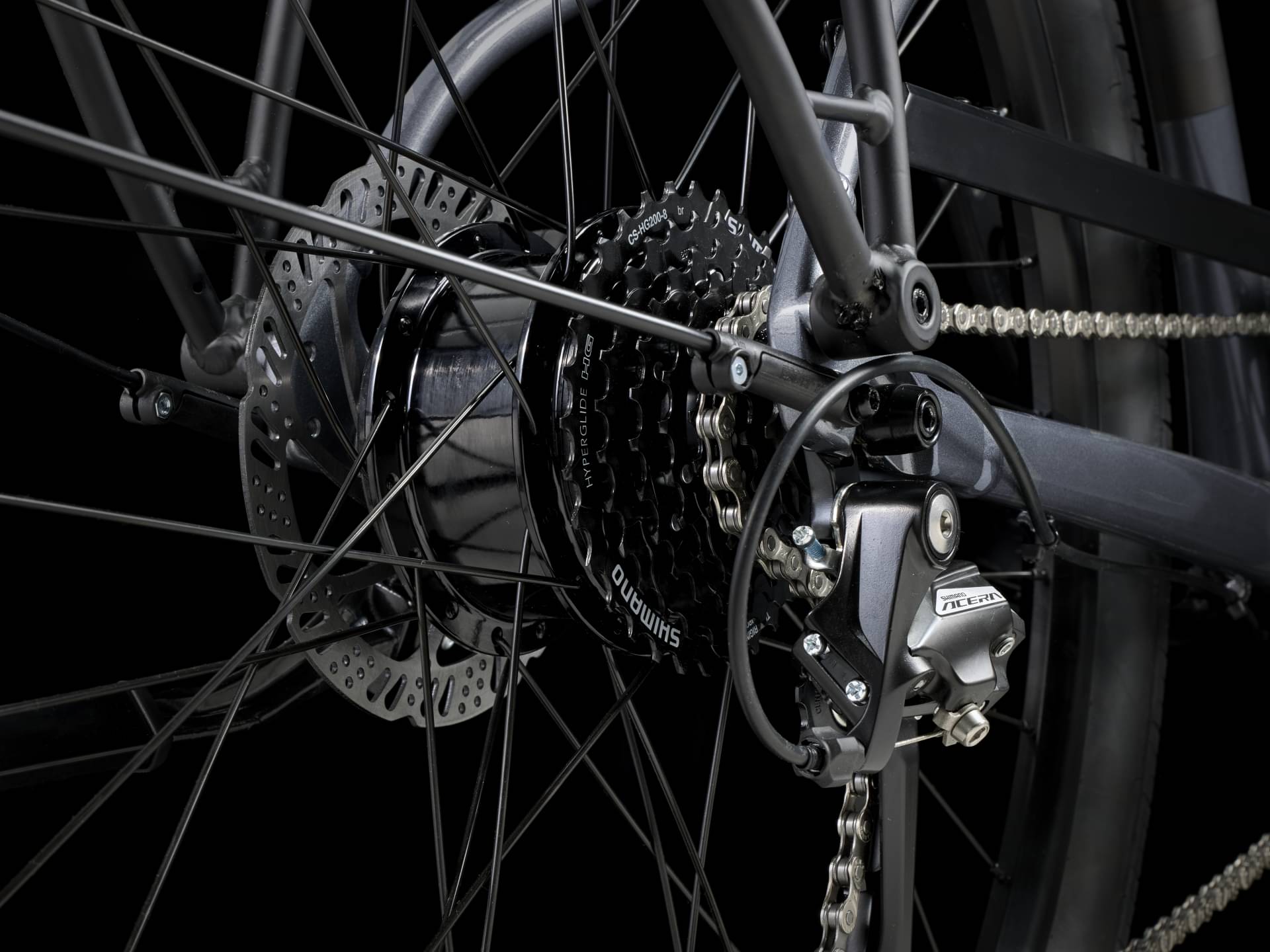

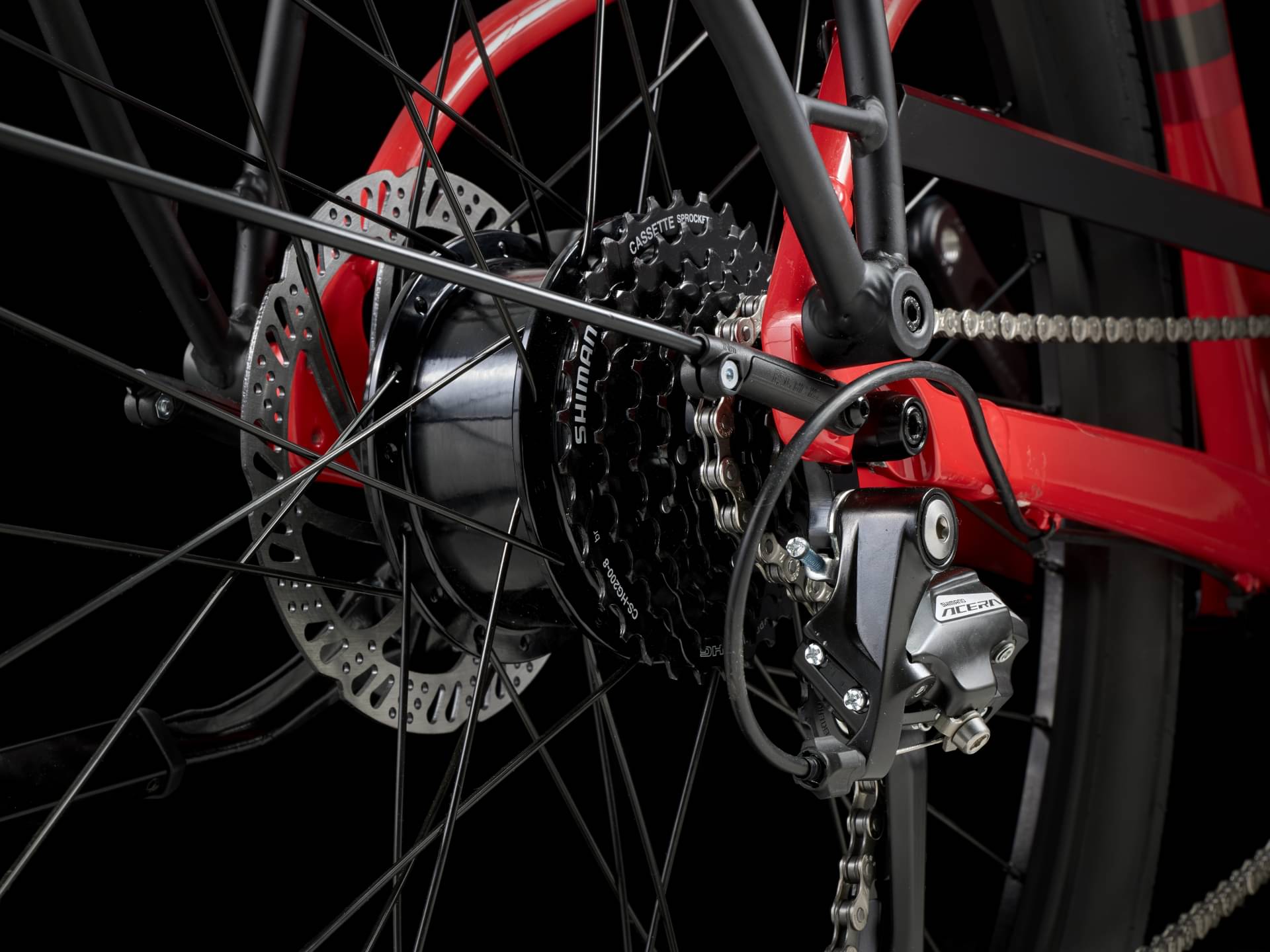

Rear Derailleur
Shimano Acera M3020-8, 40T max cog
Shift Levers
Shimano M315, 8-speed
Cassette
Shimano HG400, 11-40, 8-speed
Crank
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
Bottom Bracket
Torque sensor, threaded, 122.5 mm spindle
Chain
KMC Z8.3
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR

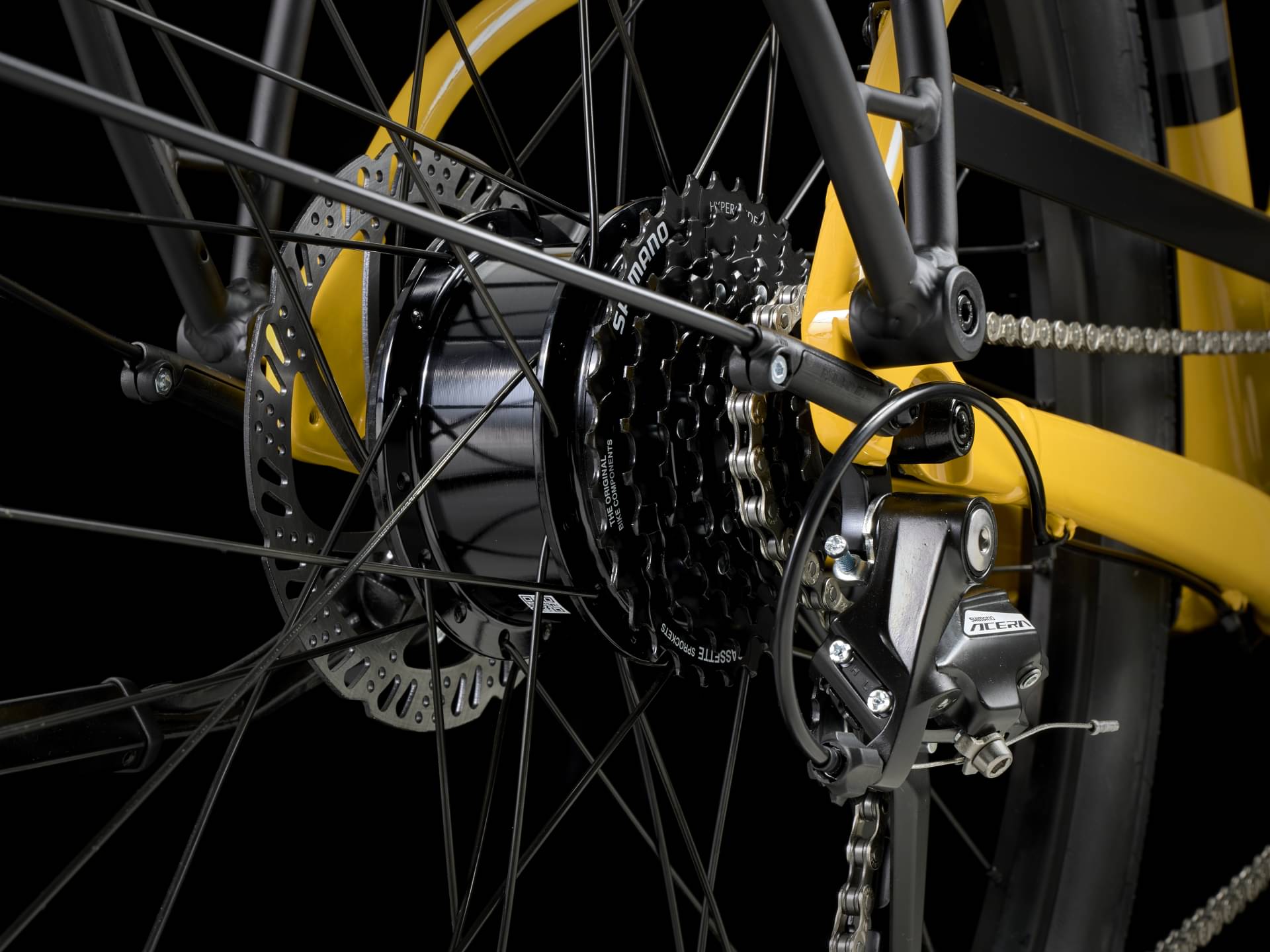

Rear Hub
Hyena hub drive motor, 40 Nm, 250 W
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00"
Brakes

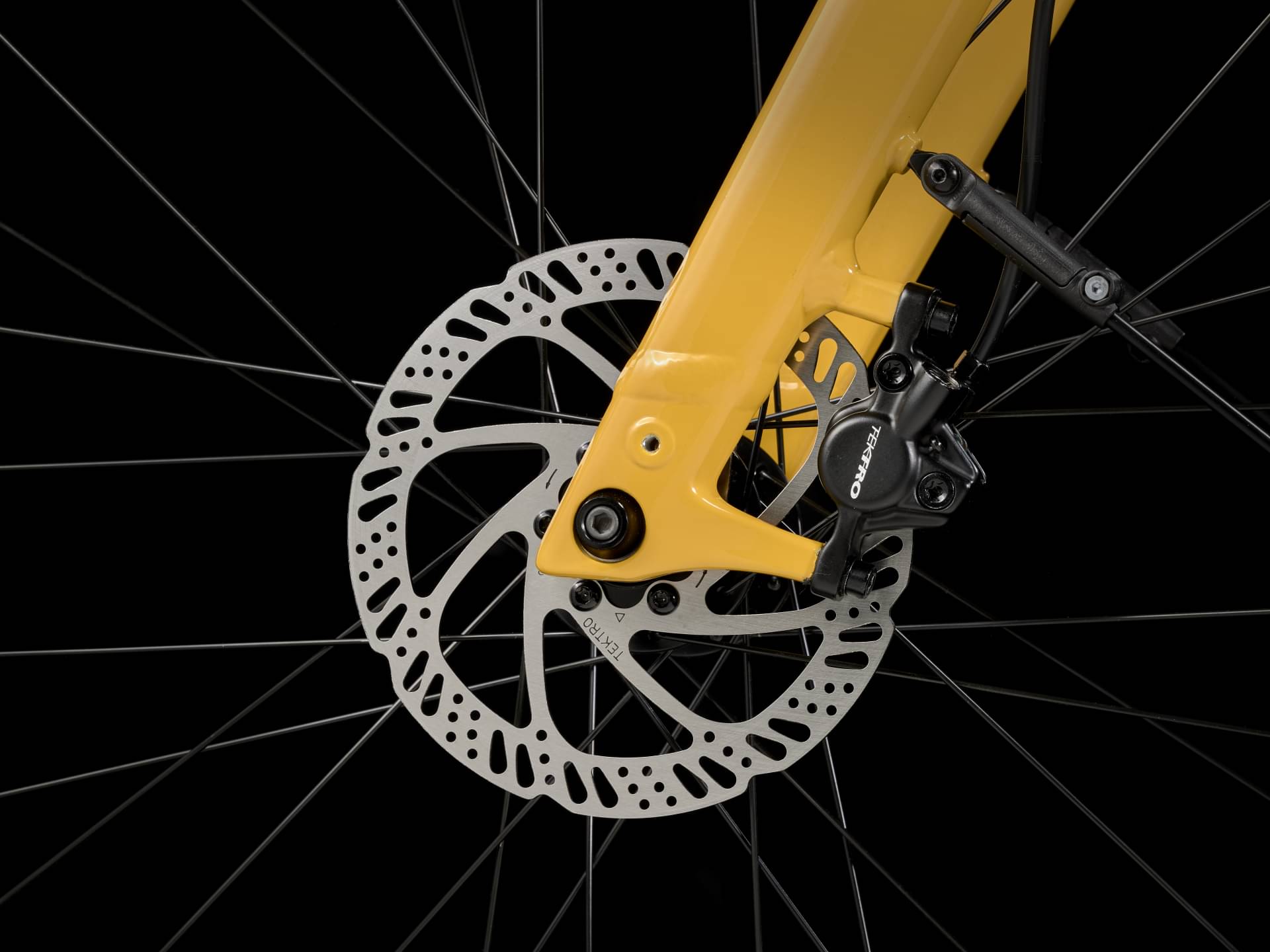

Brakes

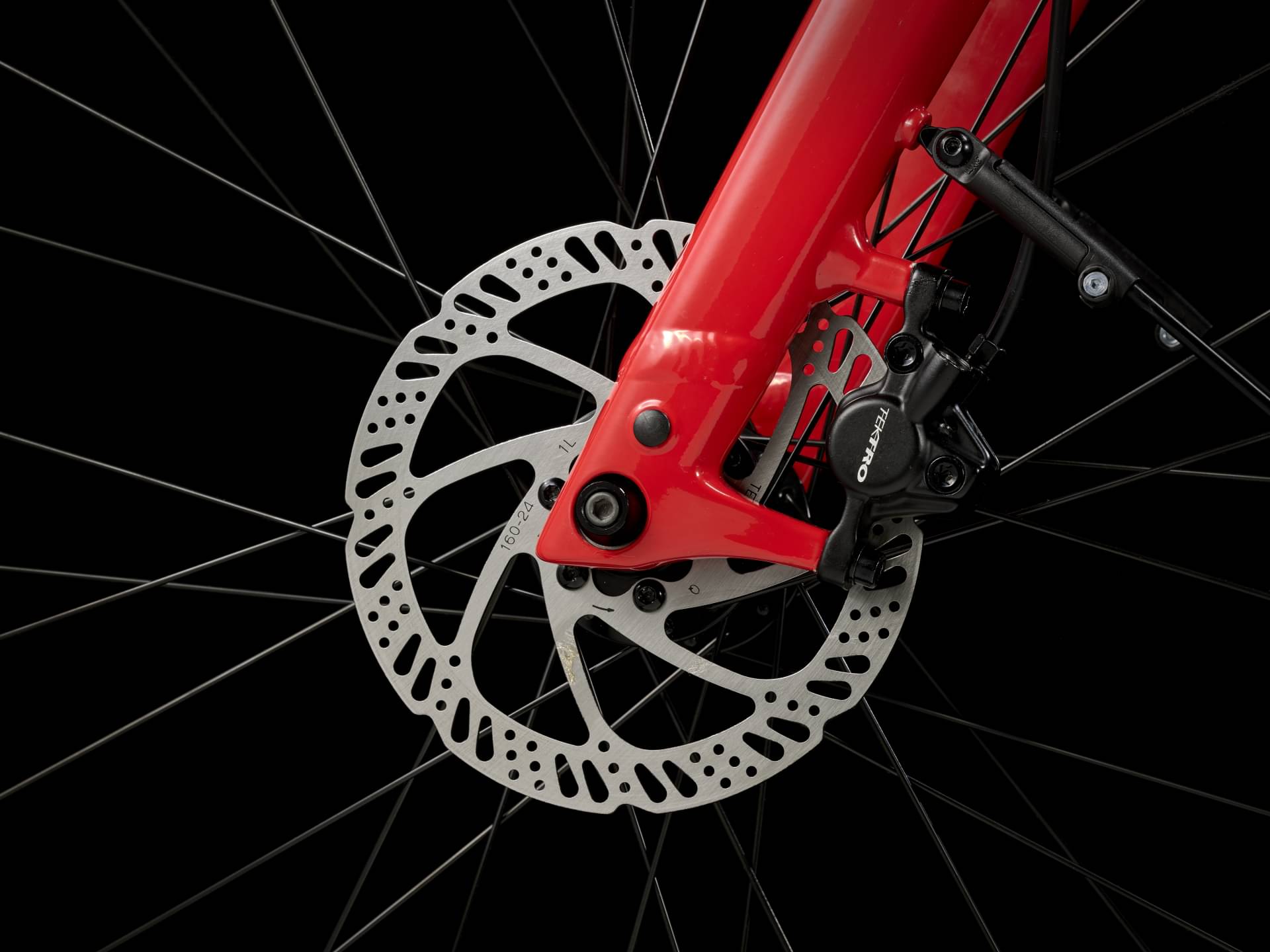

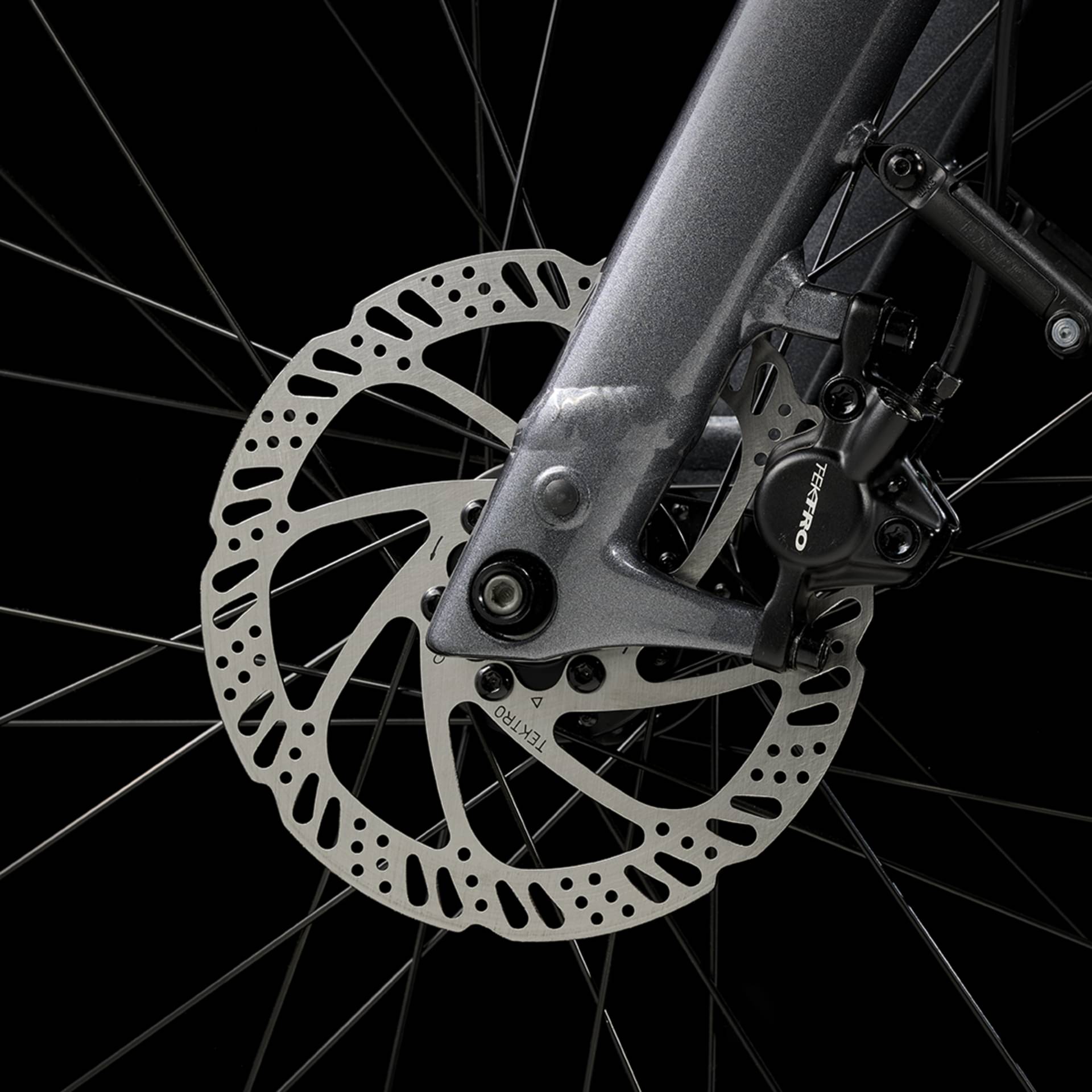

Tektro HD-M275 hydraulic disc
Cockpit
Stem
Integrated stem, 35 mm clamp

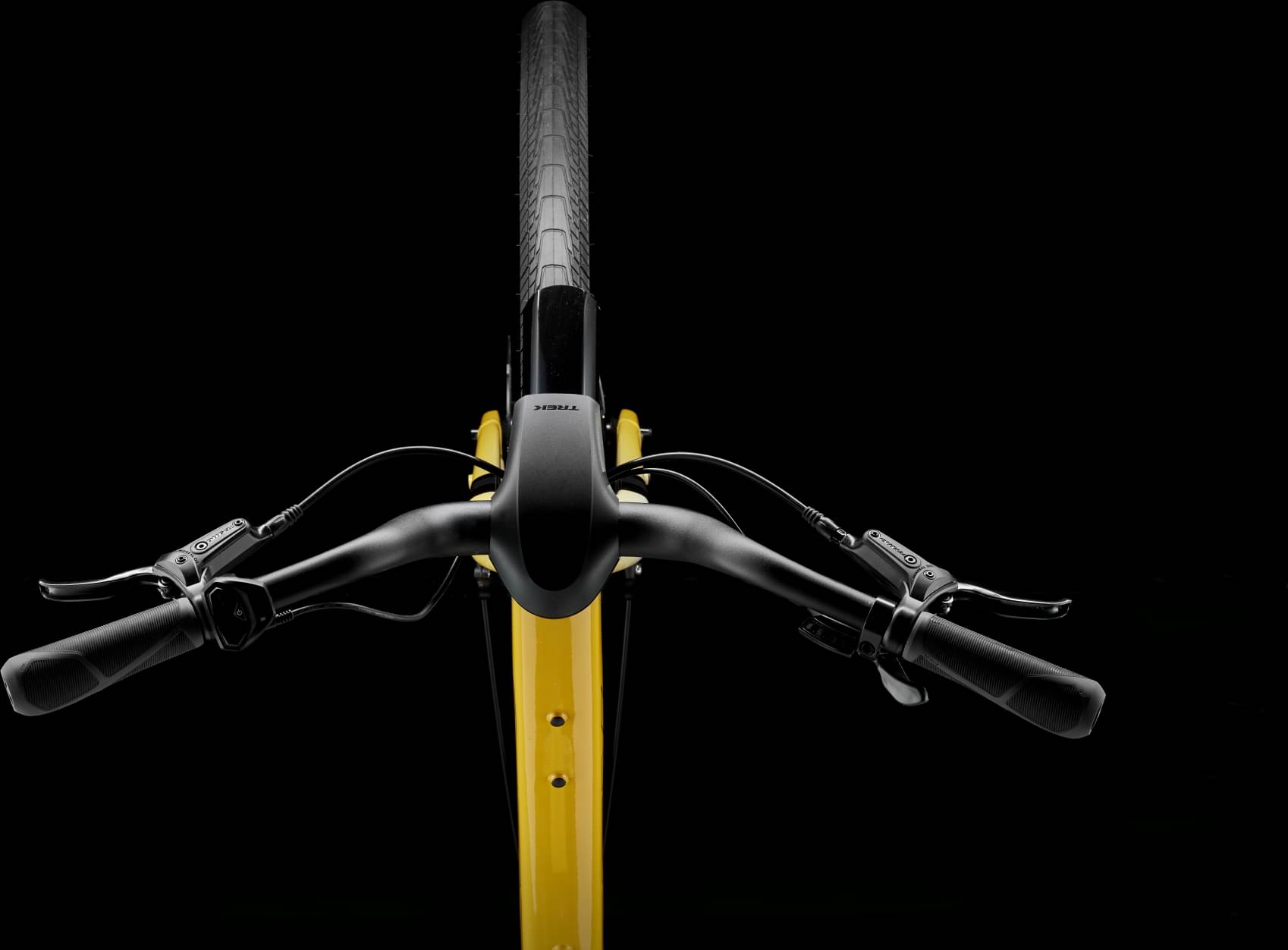

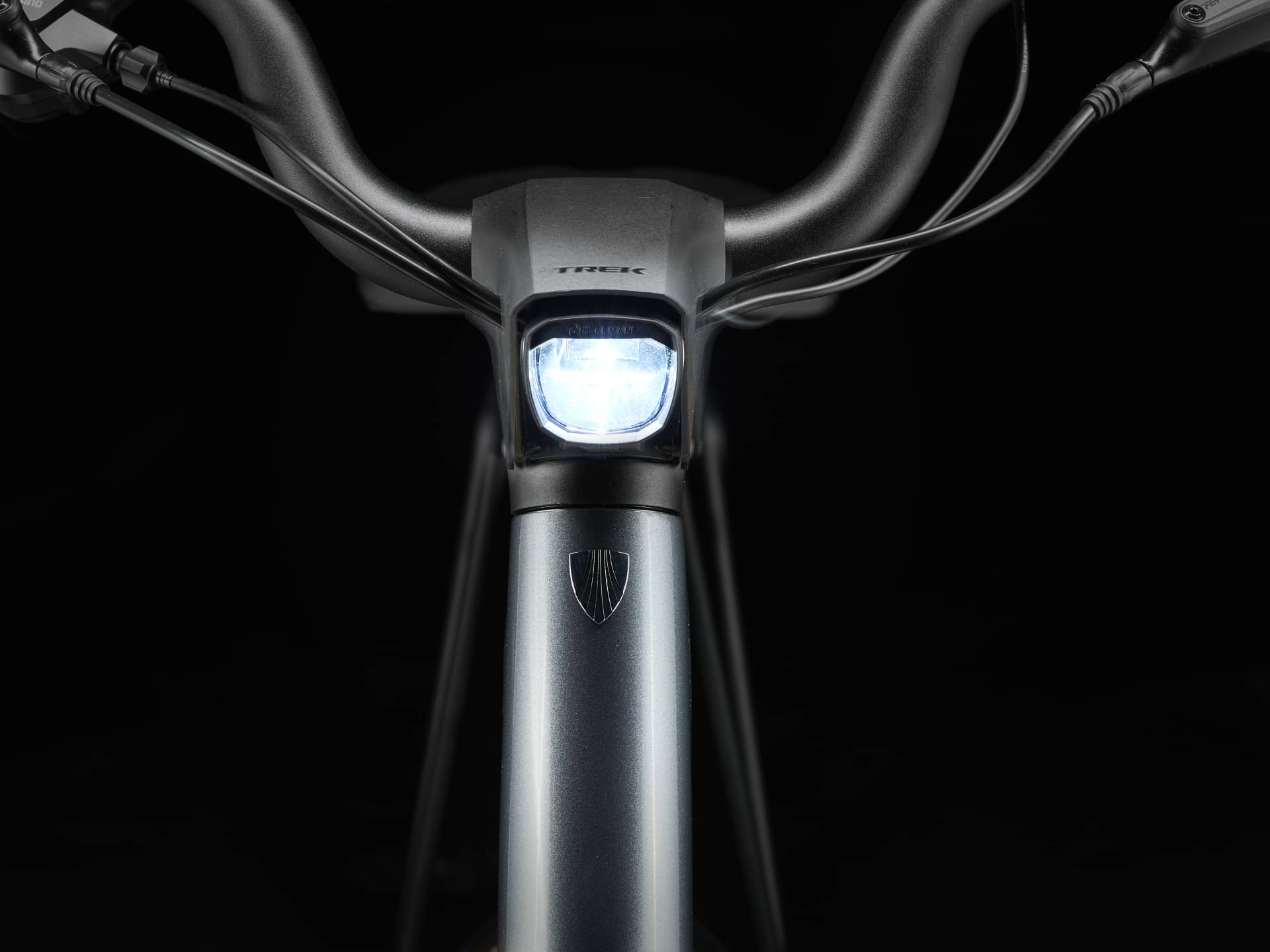

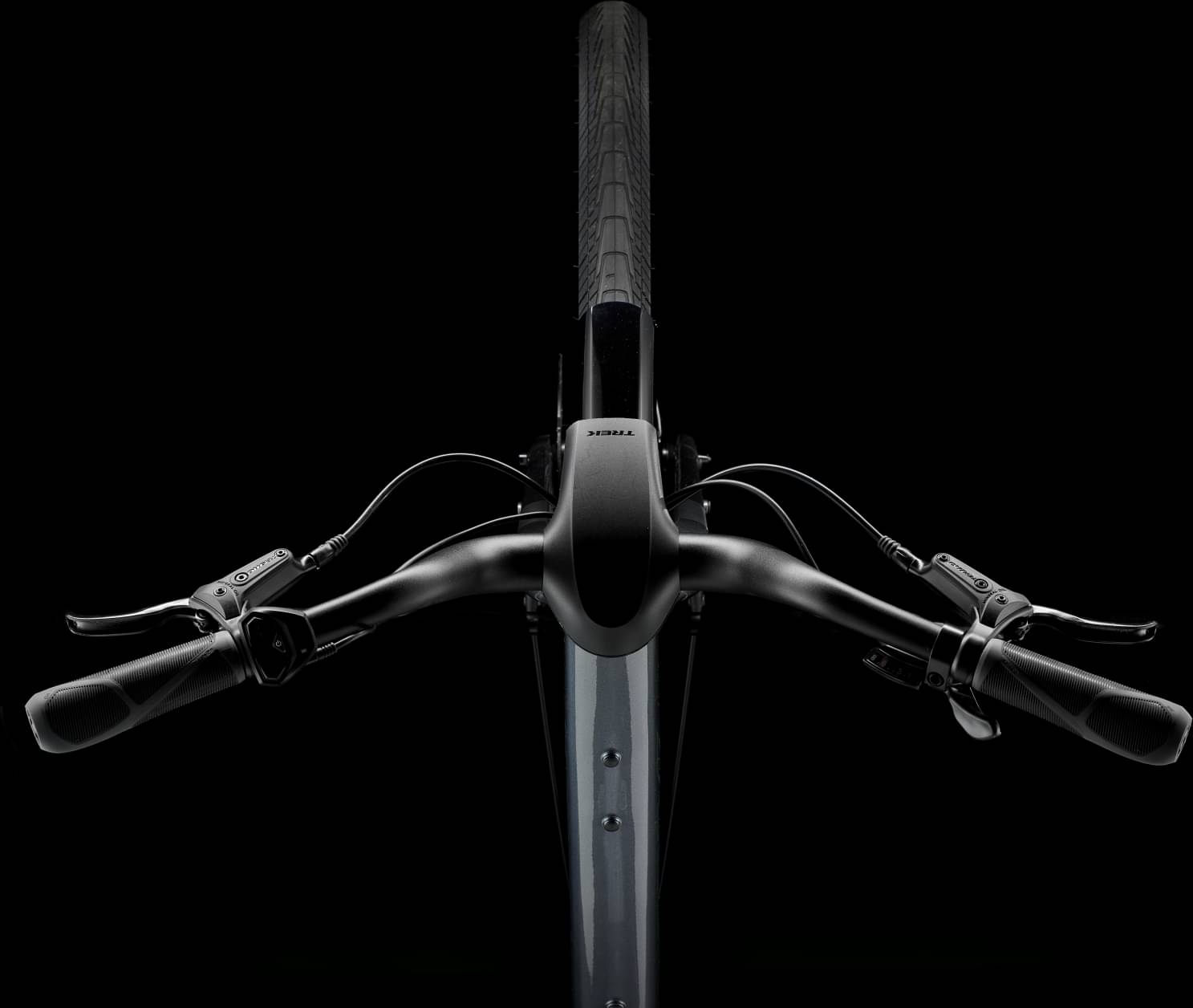

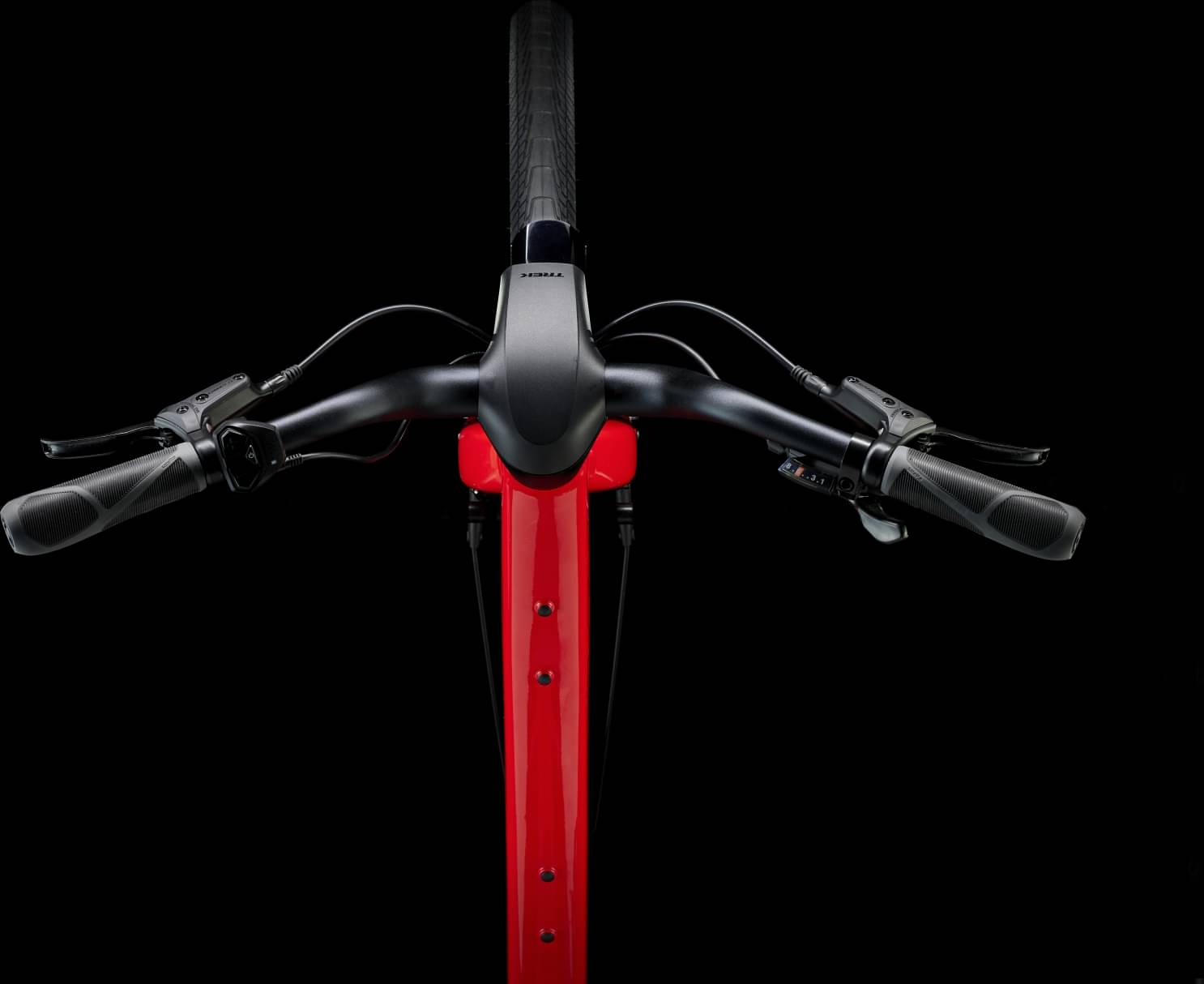

Handlebar

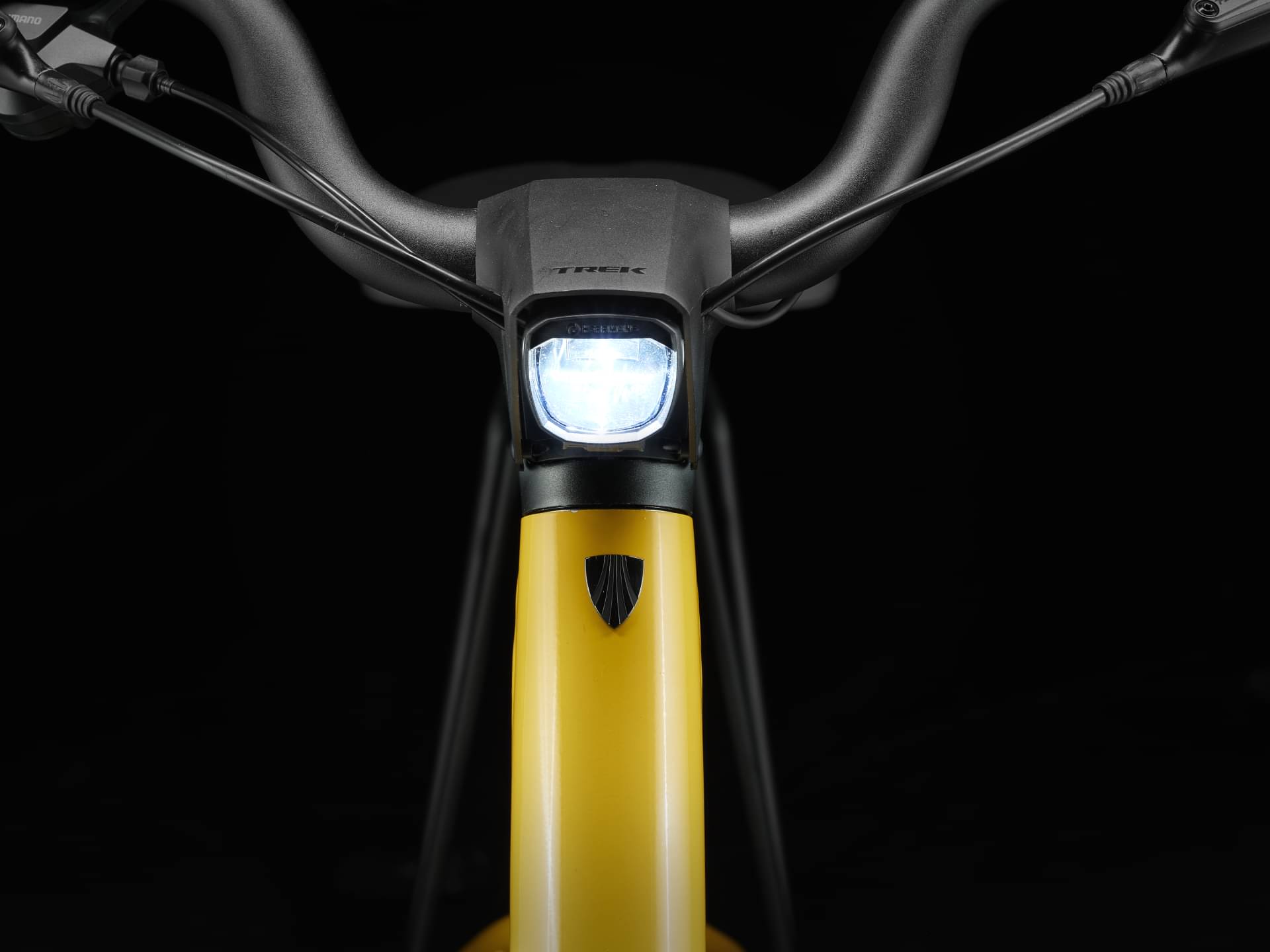

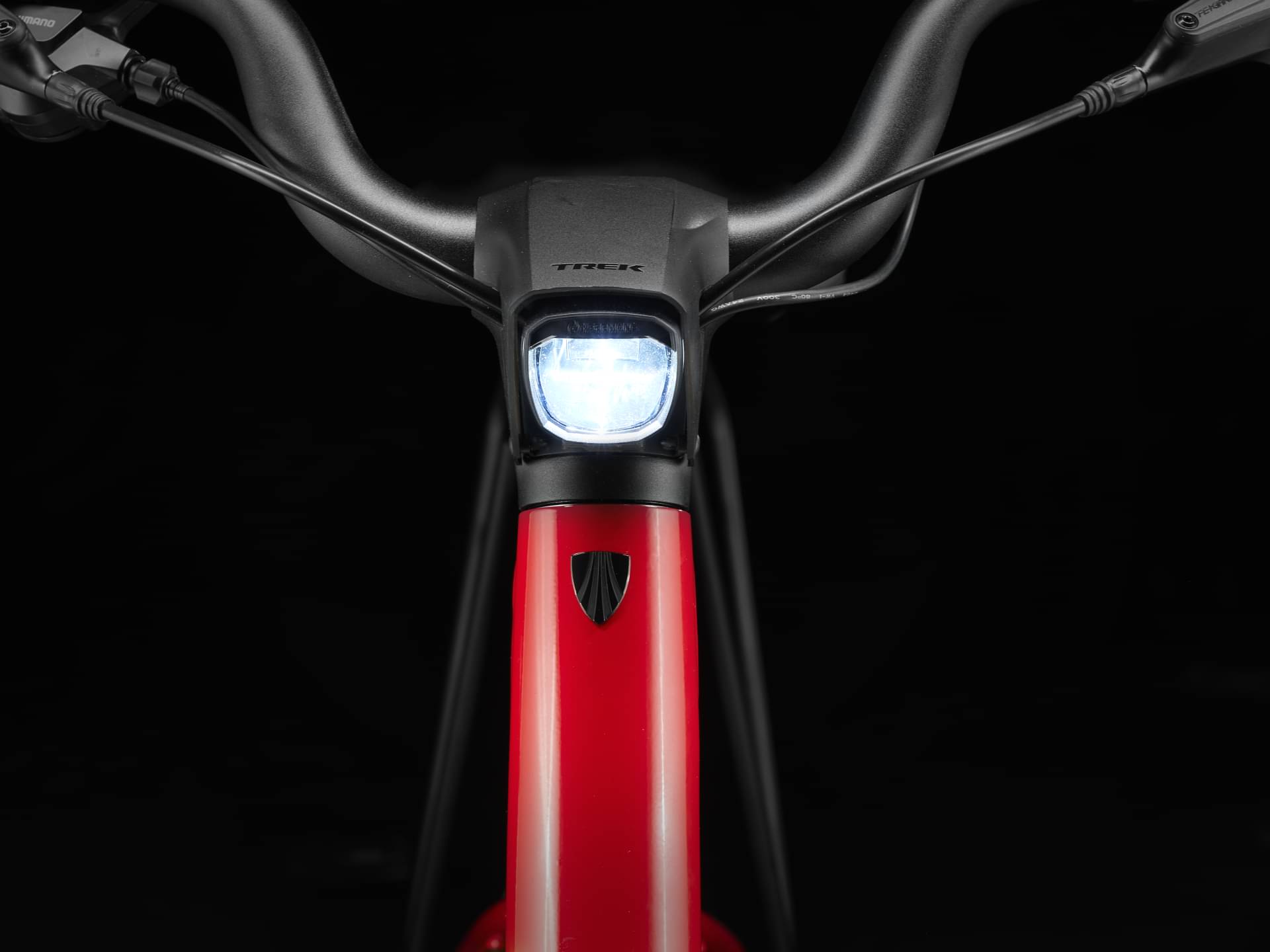

Bar/stem w/ light mount

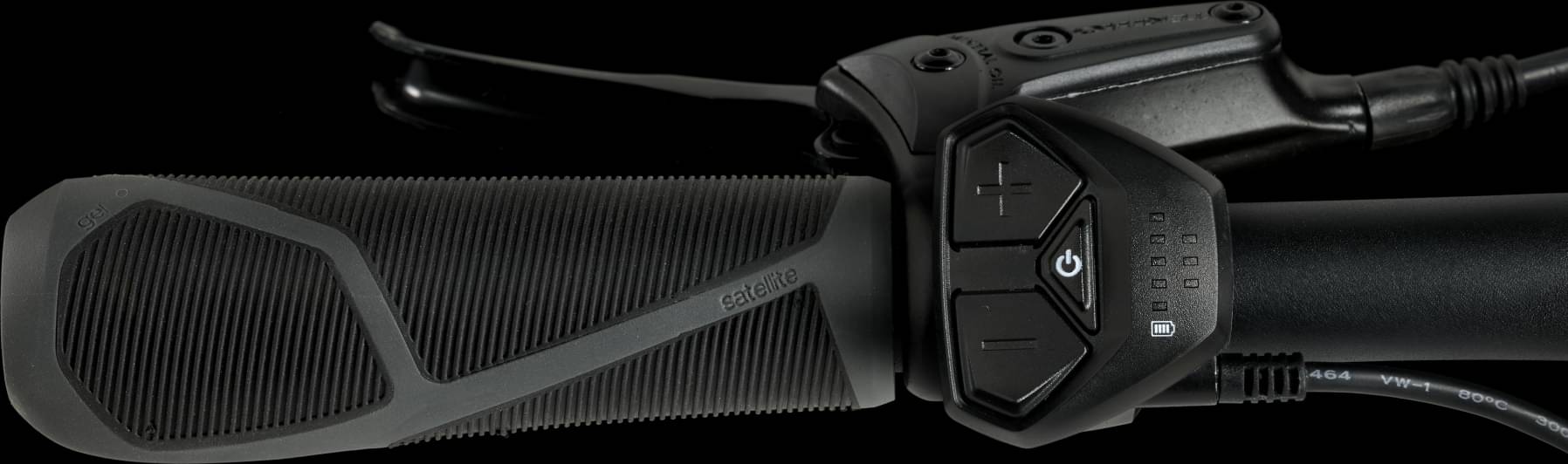

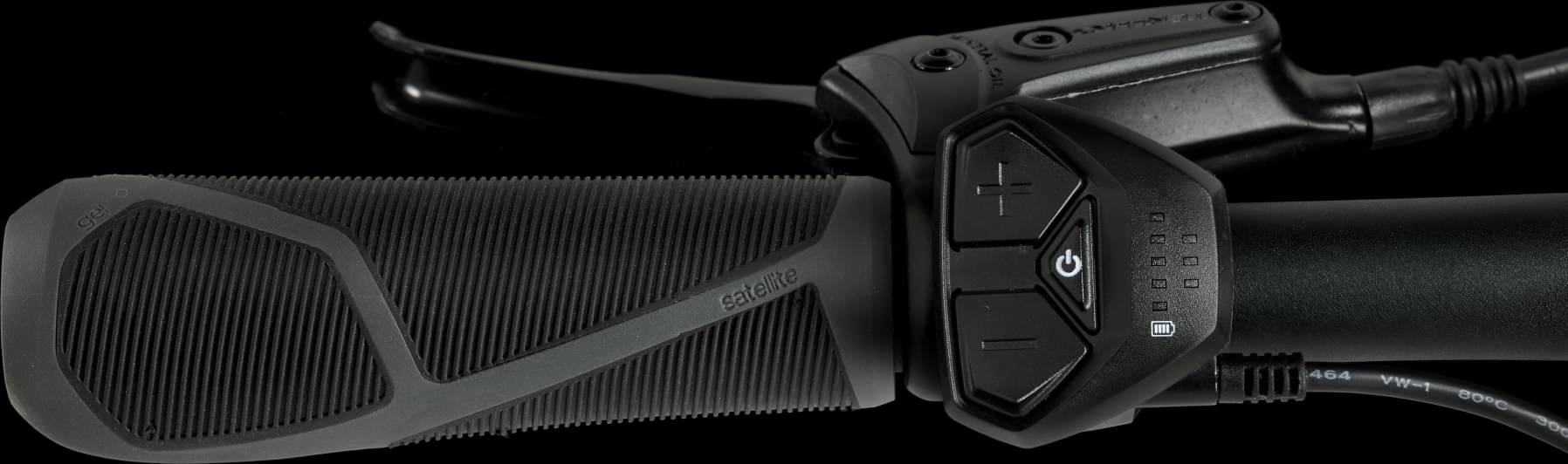

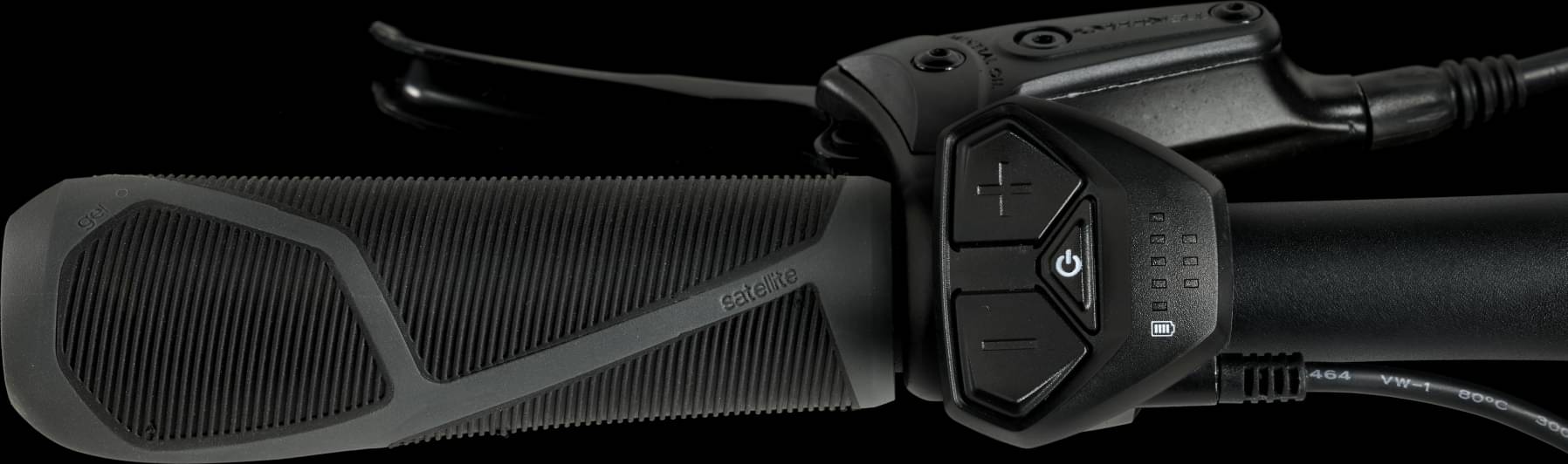

Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Selle Royal Nuvola
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor
Hyena hub drive motor, 40 Nm, 250 W

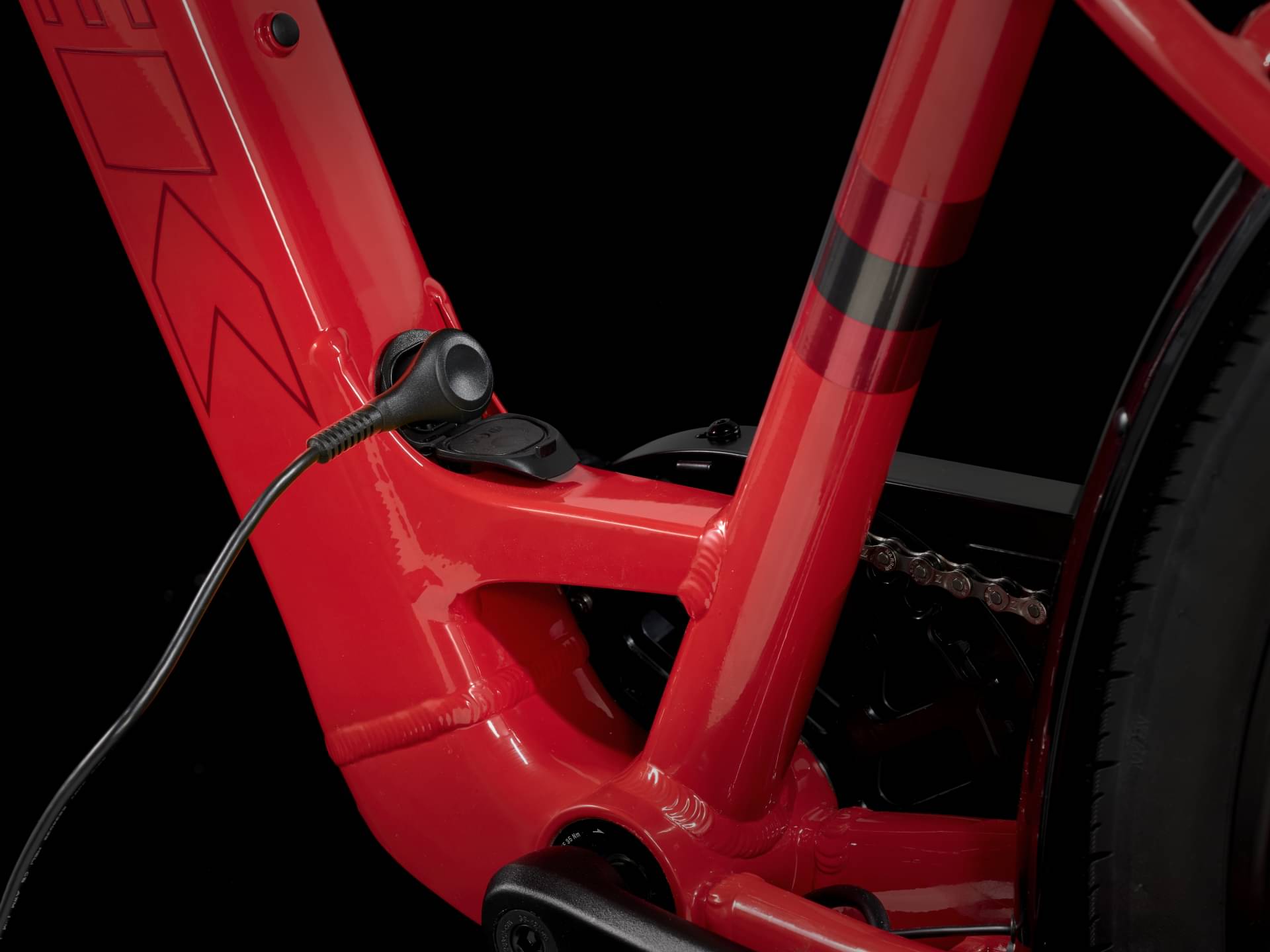

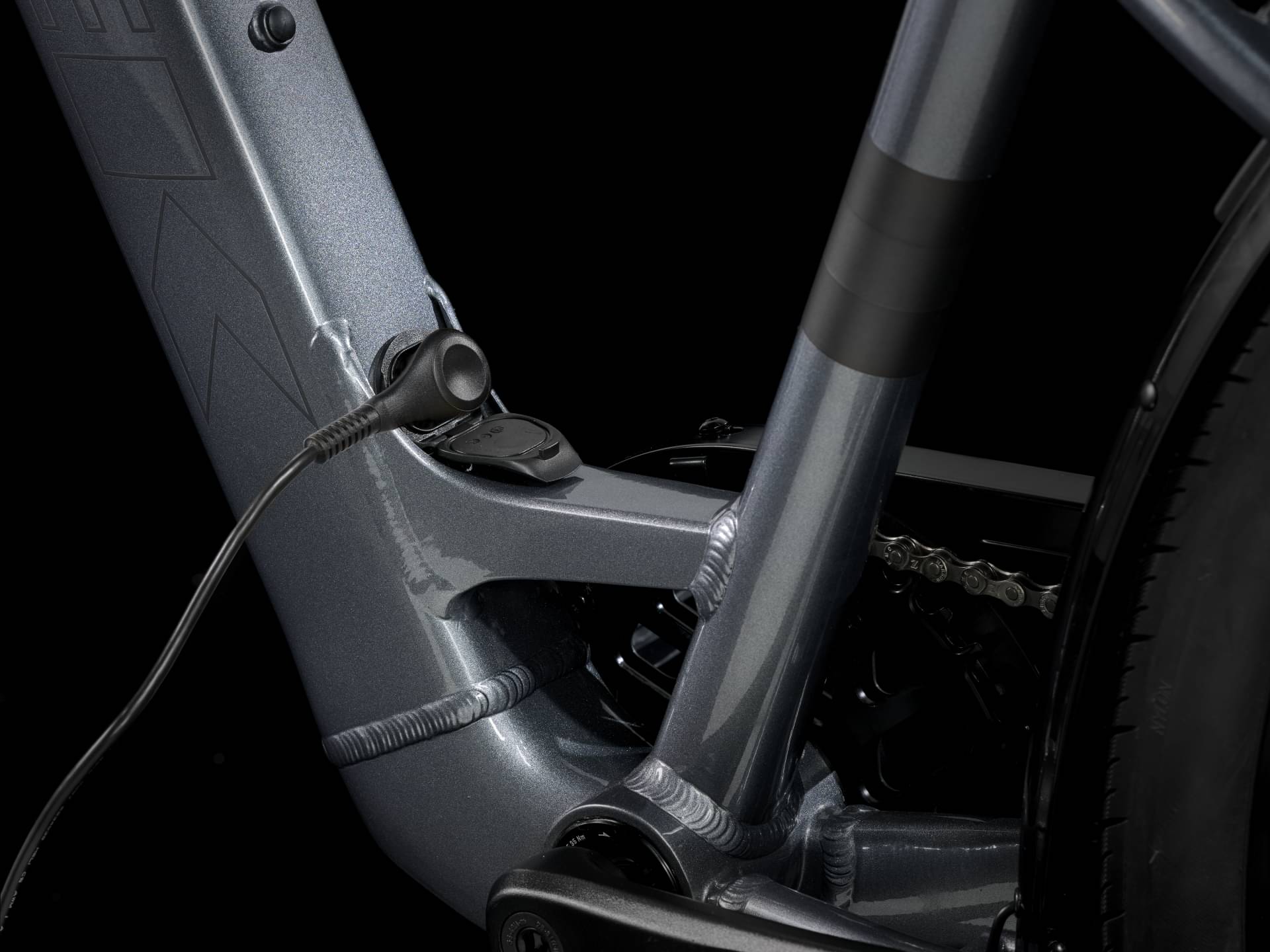

Battery
250 Wh, integrated in down tube

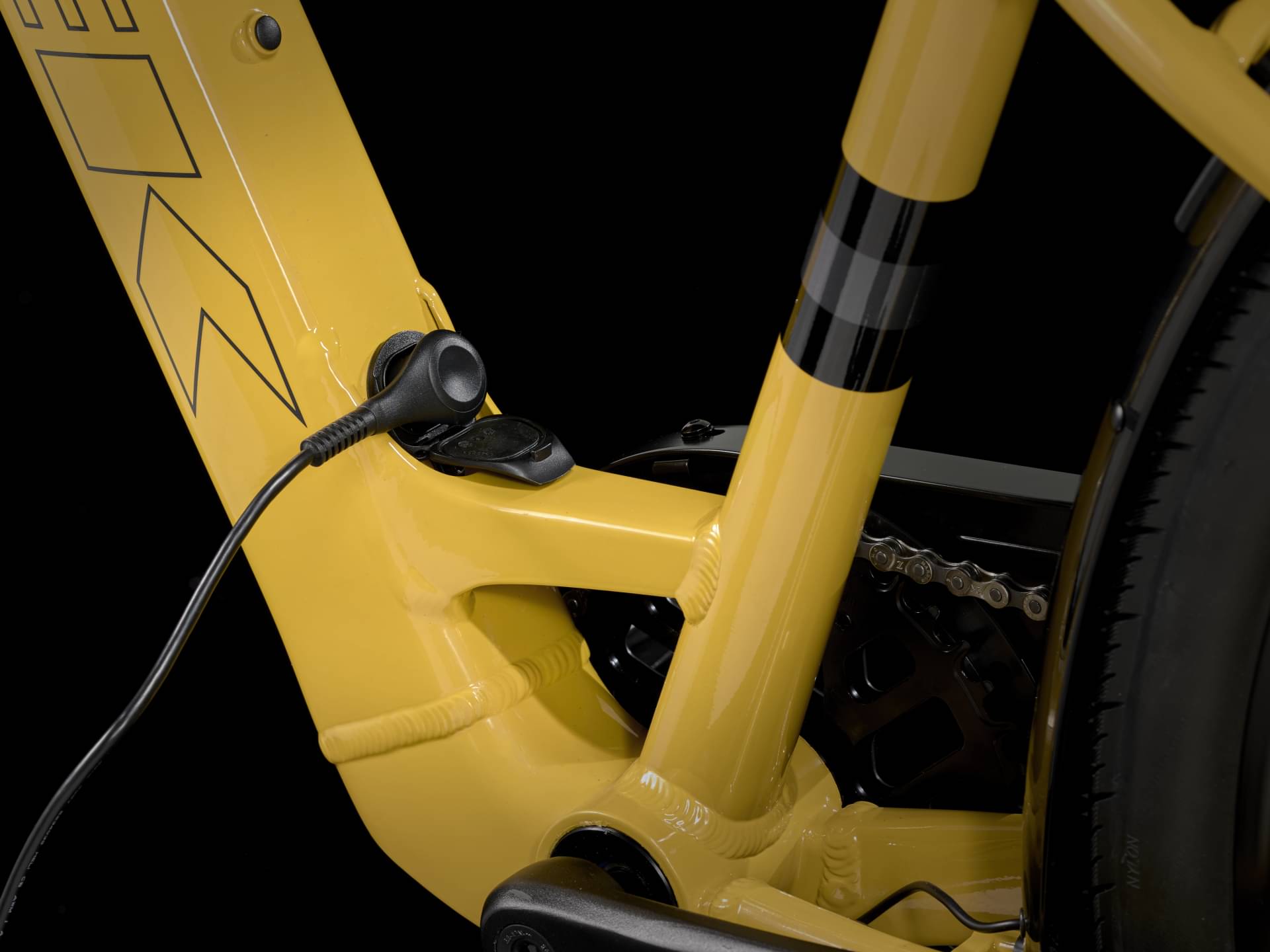

Charger
2A, 42V output, 100V–240V AC input
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.598 mm | 1.65 mm |
| Front Center | 637 mm | 668 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 84 mm | 78 mm |
| Stack | 618 mm | 639 mm | 693 mm |
| Reach | 370 mm | 400 mm | 420 mm |
| Top Tube Length | 571 mm | 620 mm | 672 mm |
| Seat Tube Angle | 72 ° | 71 ° | 70 ° |
| Seat Tube Length | 380 mm | 470 mm | 560 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 170 mm | 225 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1117 mm | 1149 mm | 1183 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 410 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 140 cm | 159 cm | 179 cm |
| Rider Max Height | 161 cm | 181 cm | 200 cm |
