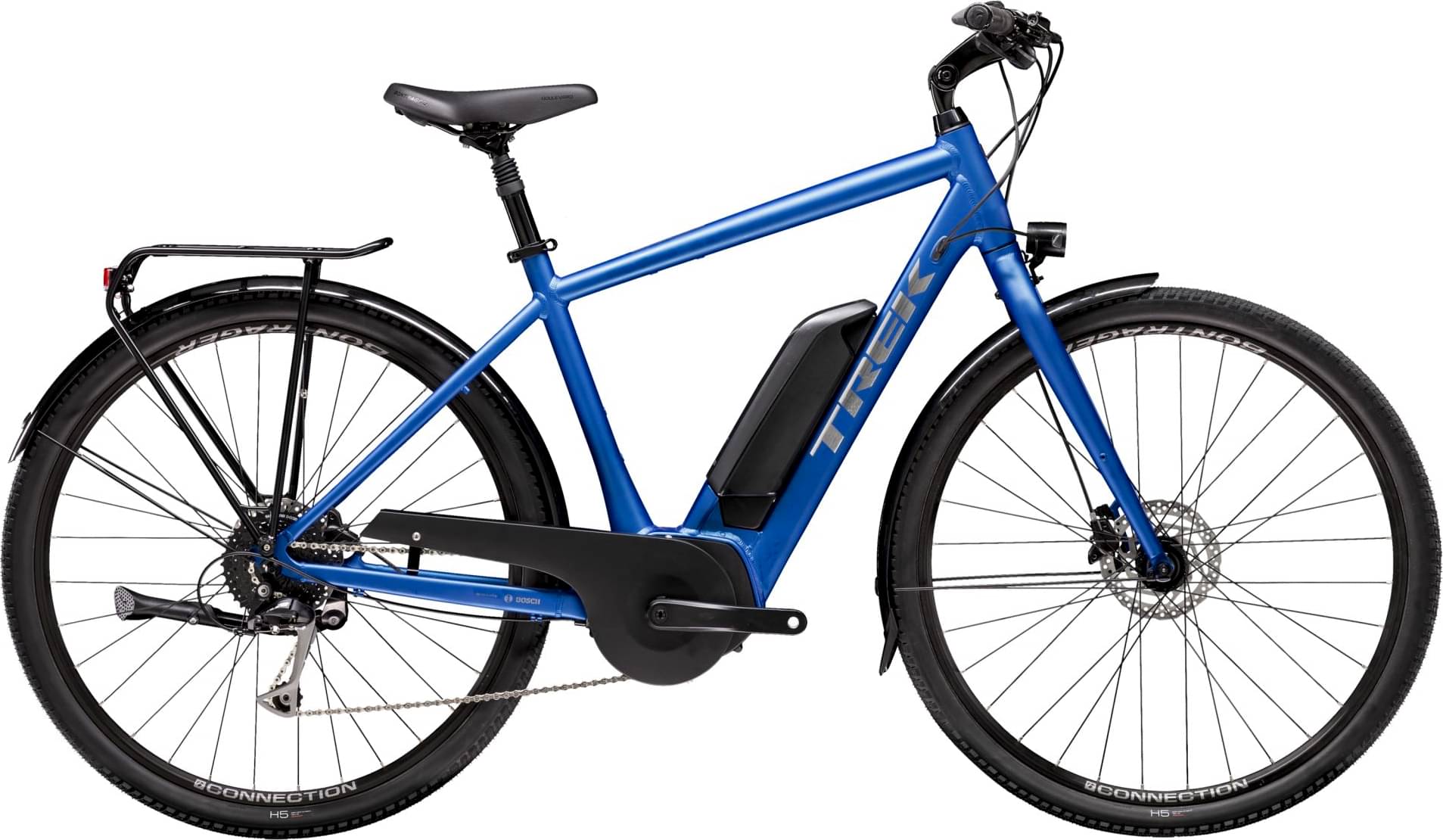

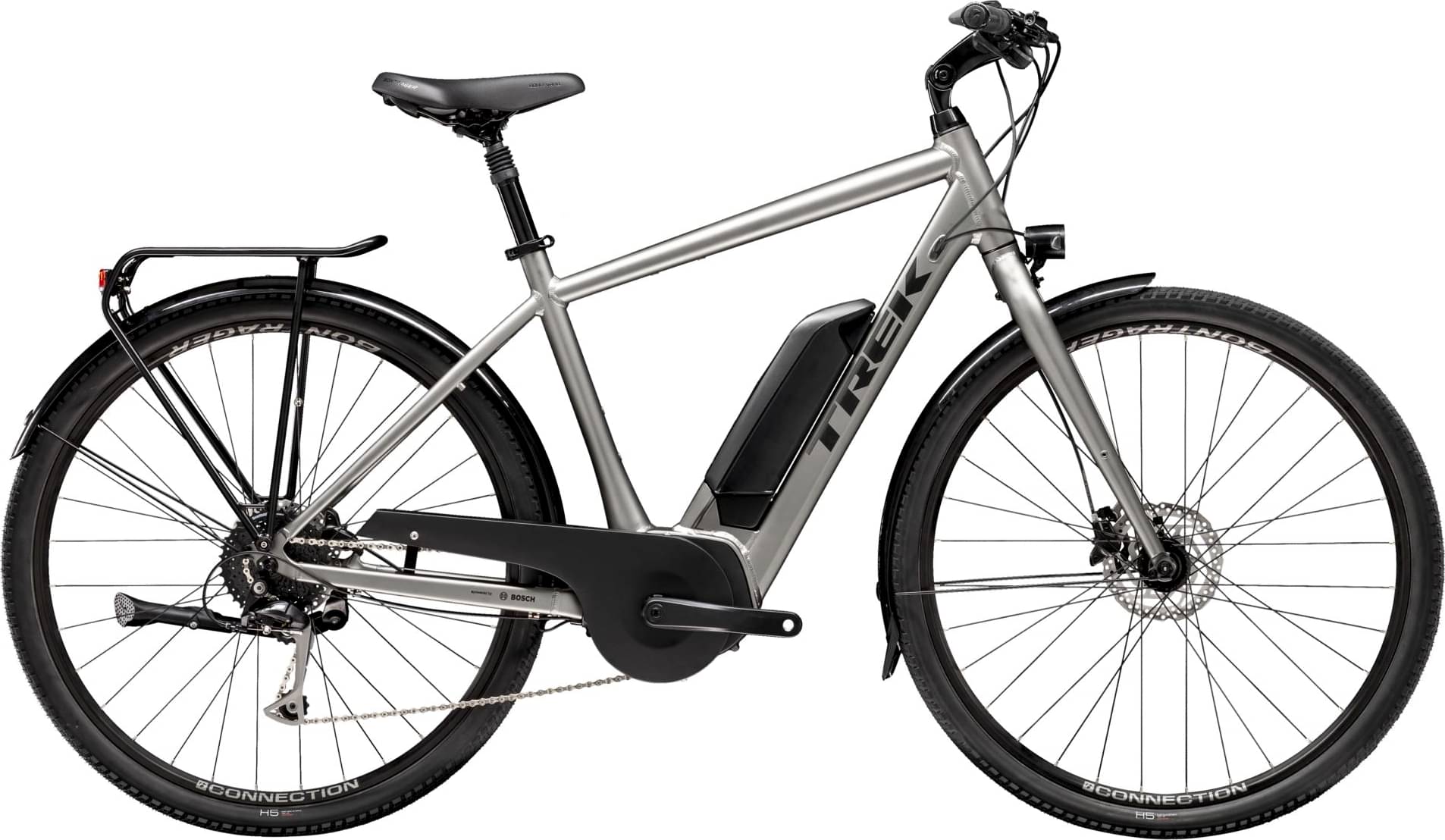

Trek Verve+ 2 Gen 2 2023
2023 E-bike
Estimate price |
2,849$
Weight | 23.36 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio -
Suspension Rigid -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

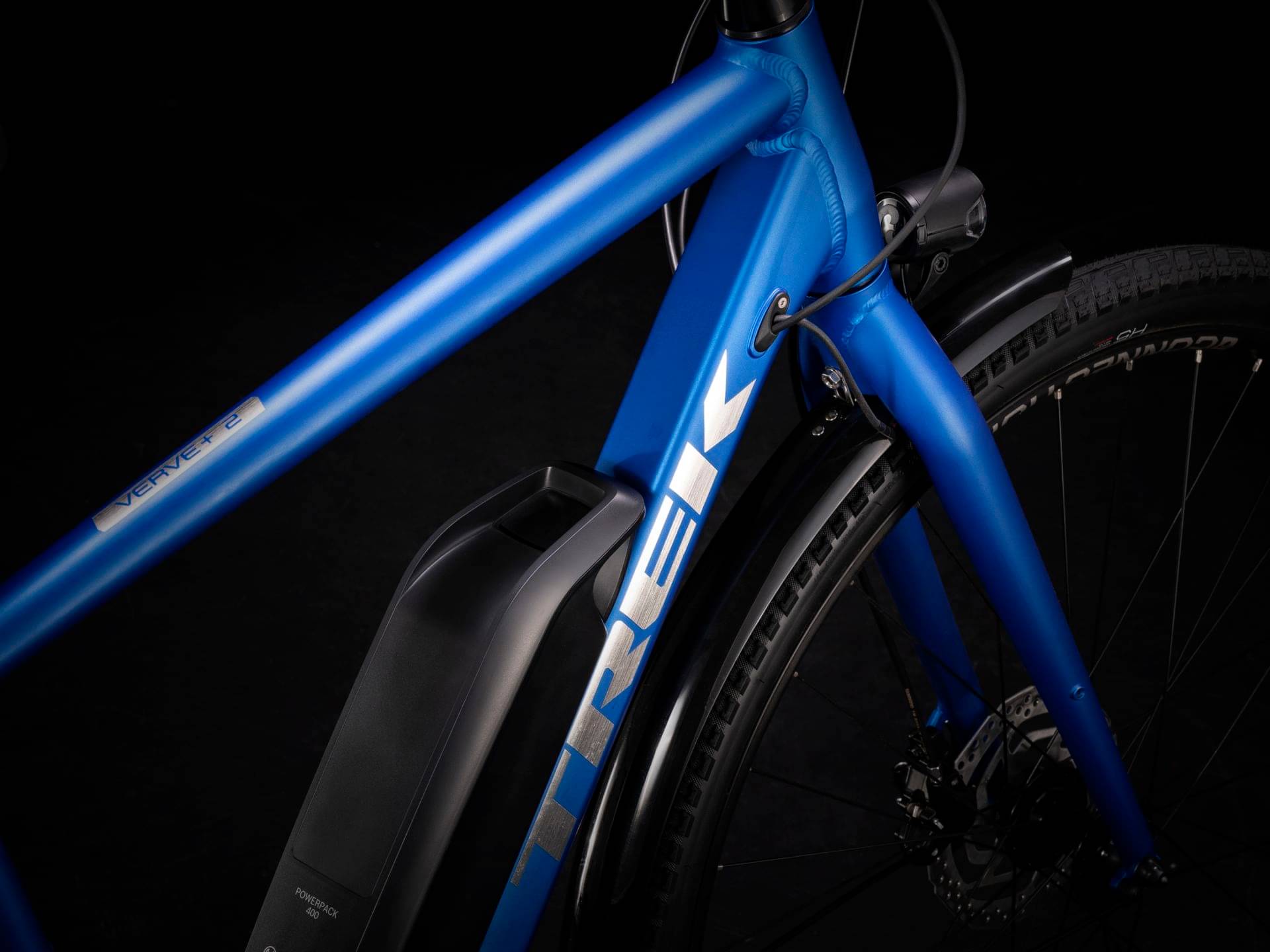

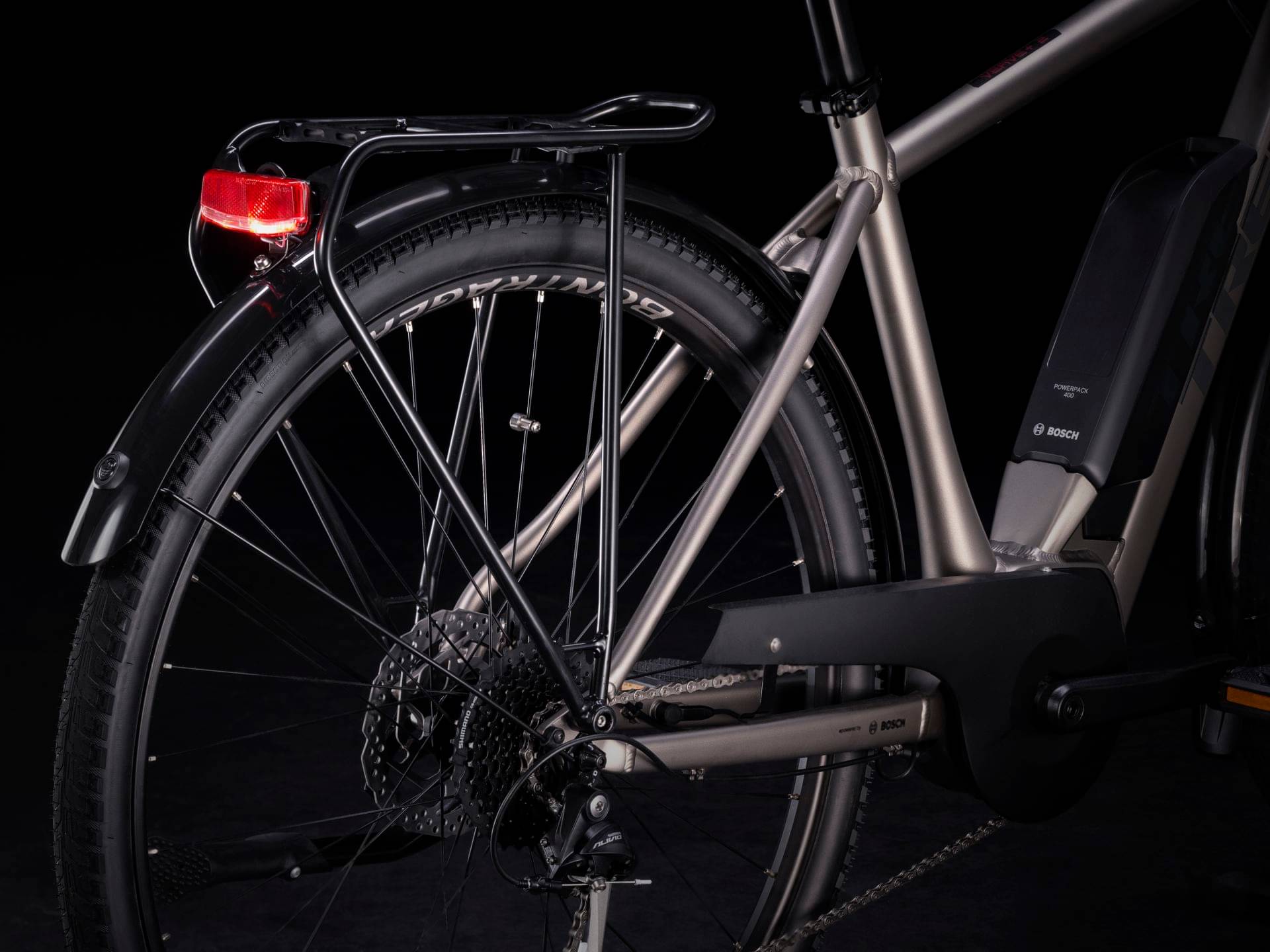

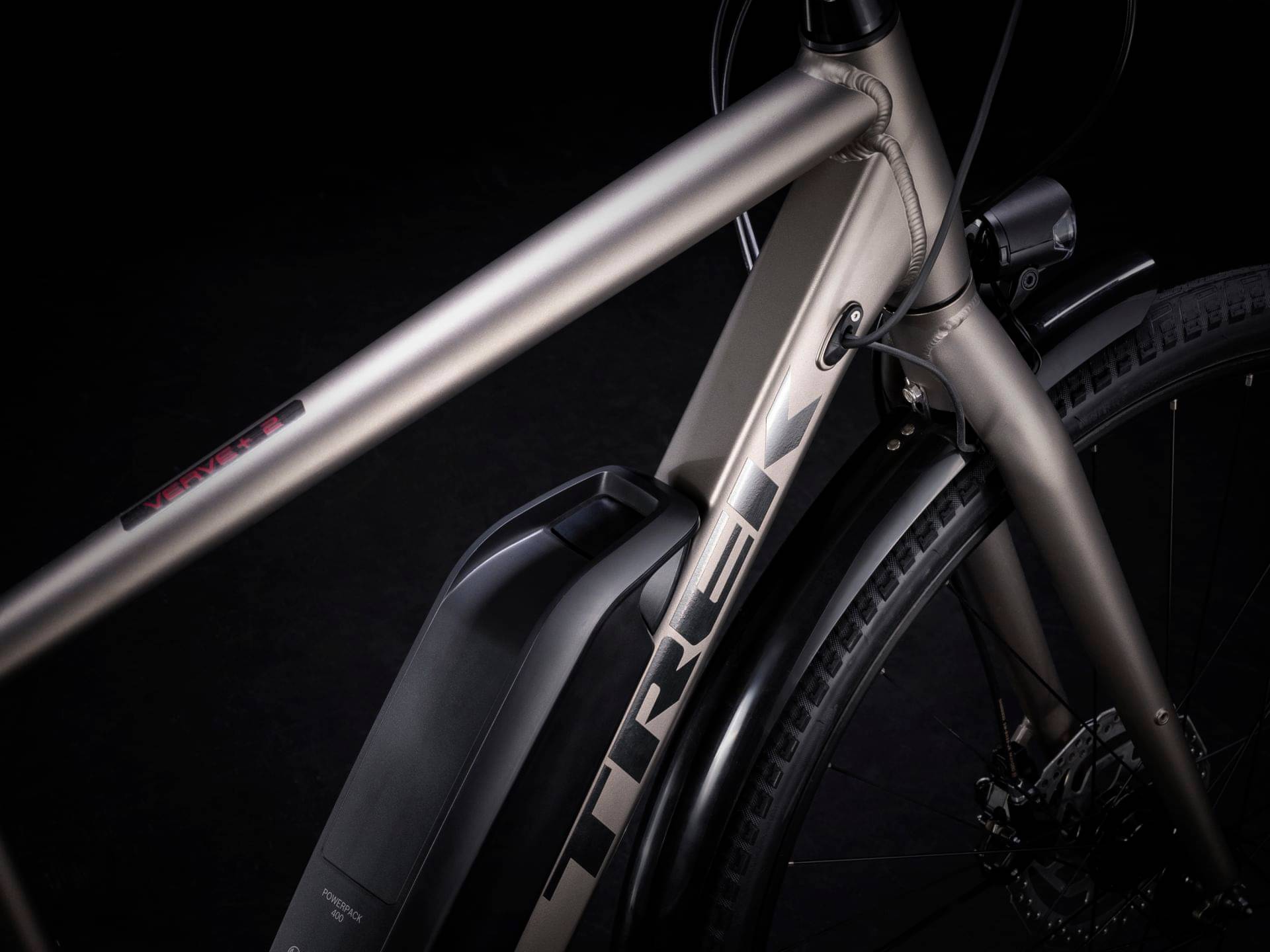

Alpha Gold Aluminum, rack & fender mounts, internal routing, kickstand mount, 135x5mm QR
Suspension Fork
Verve Steel, threaded steel steerer, IS disc mount, 460mm axle-to-crown, 100x5mm QR
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Shimano Alivio M3100, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
ProWheel alloy, 170mm length
Chain
KMC X9
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes
14g stainless steel, black
Tires
Bontrager H5 Hard-Case Ultimate, wire bead, 60 tpi, 700x45mm
Brakes
Brakes

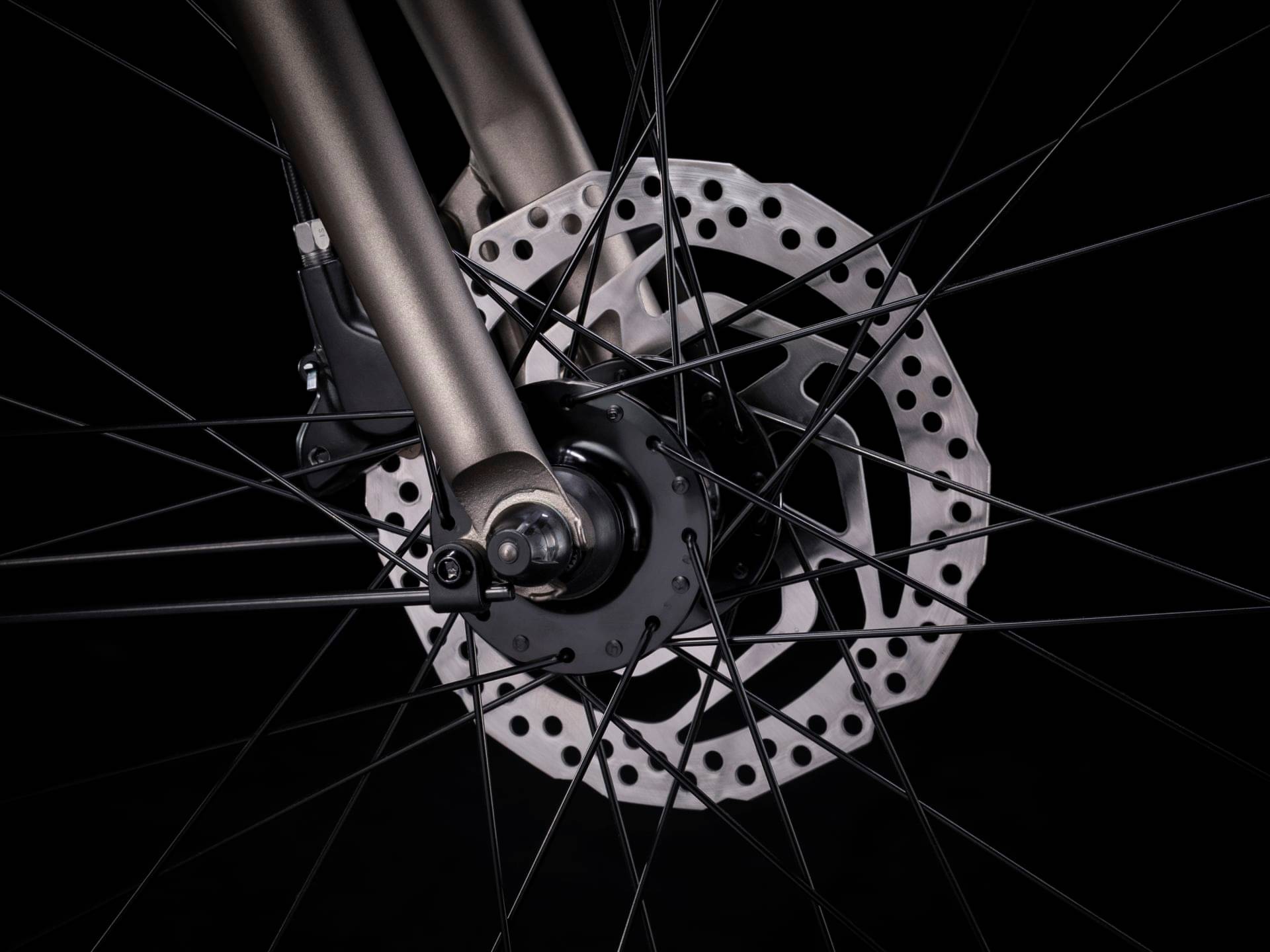

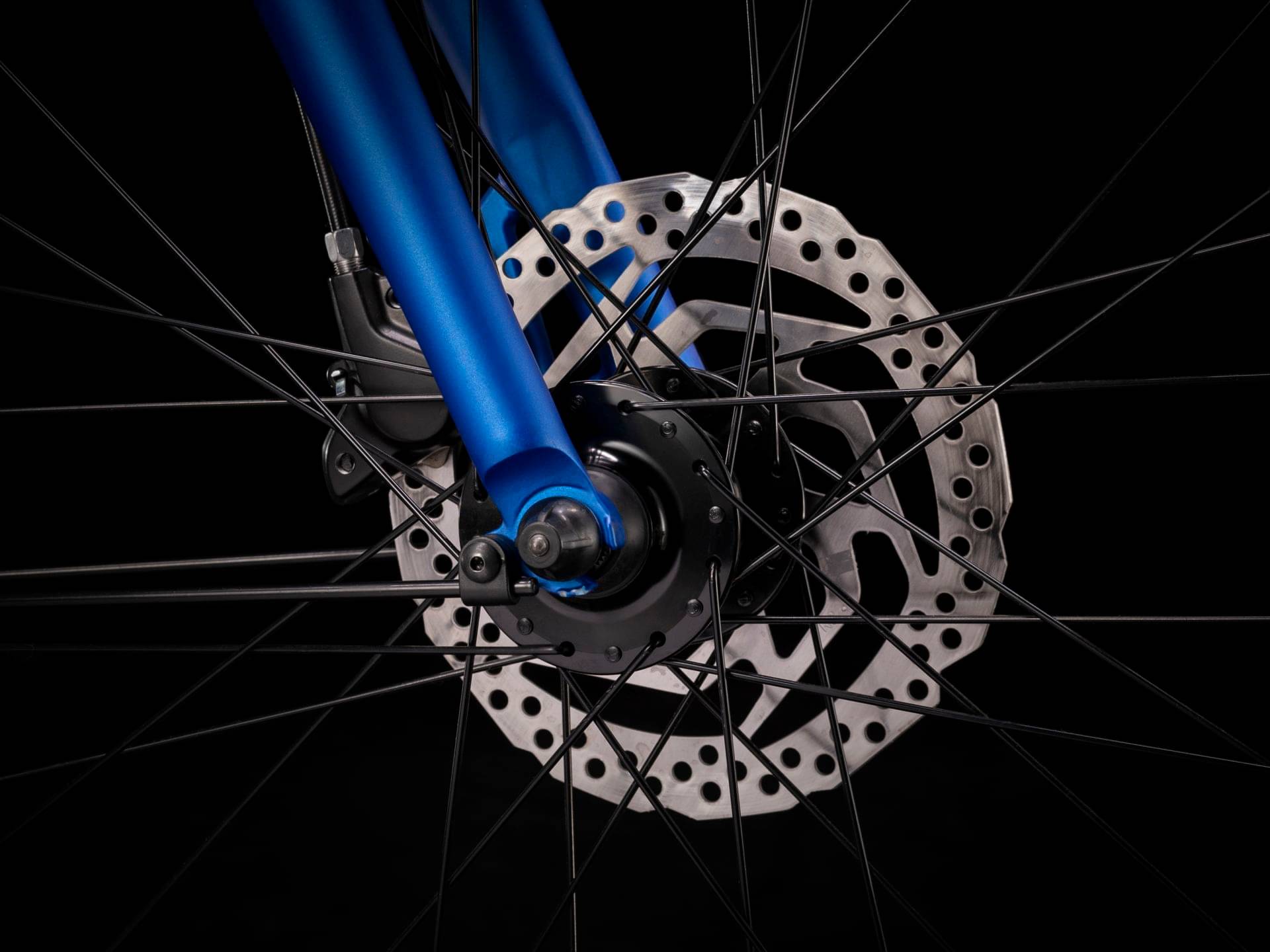

Shimano MT200 hydraulic disc
Cockpit
Stem
Size: M, L, Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length; Size: XL, Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length

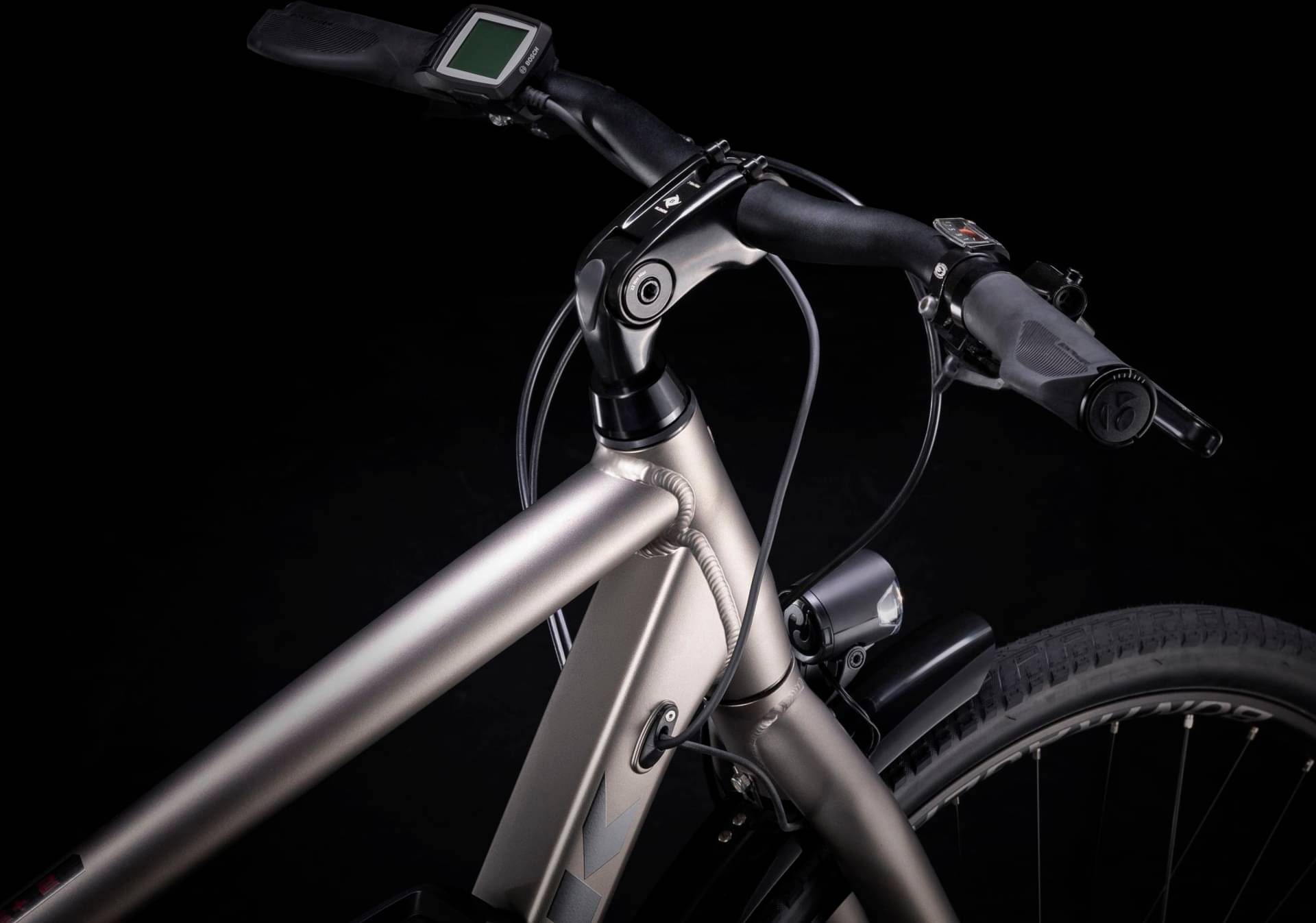

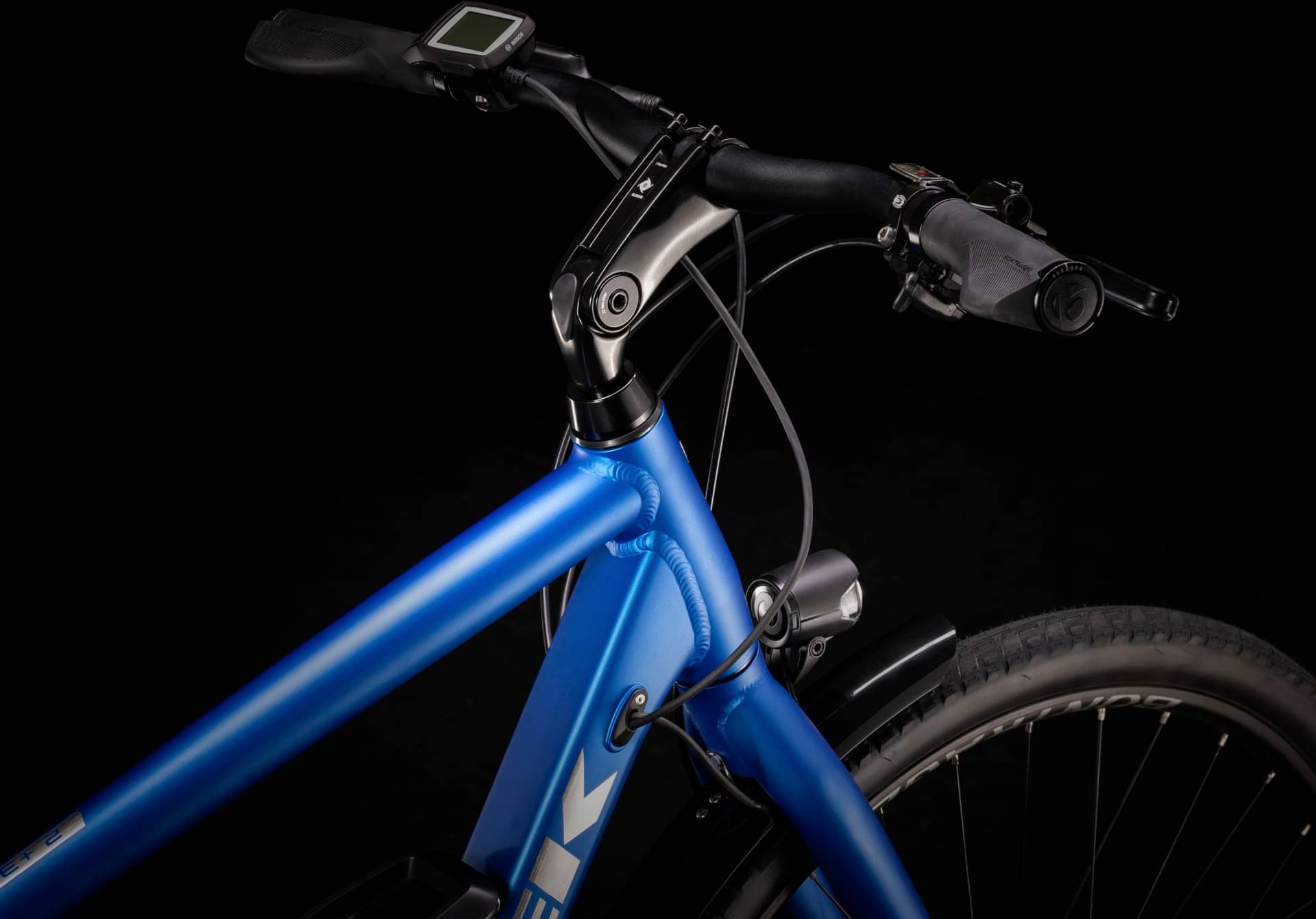

Handlebar
Size: M, Bontrager alloy, 31.8mm, comfort sweep, 620mm width; Size: L, XL, Bontrager alloy, 31.8mm, comfort sweep, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
VP sealed cartridge, 1-1/8'', threaded
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6mm, 300mm length
Motor & Battery
Motor

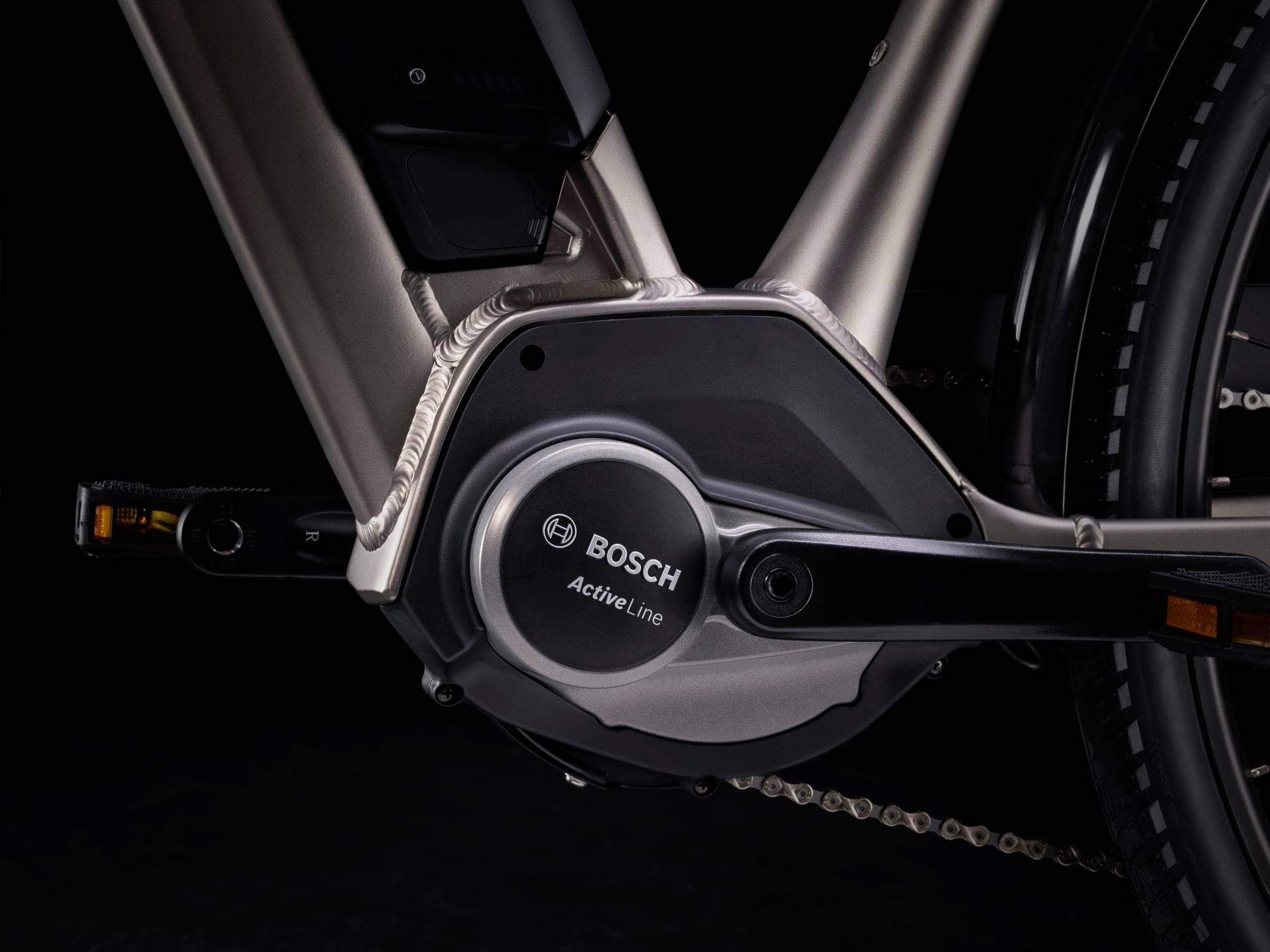

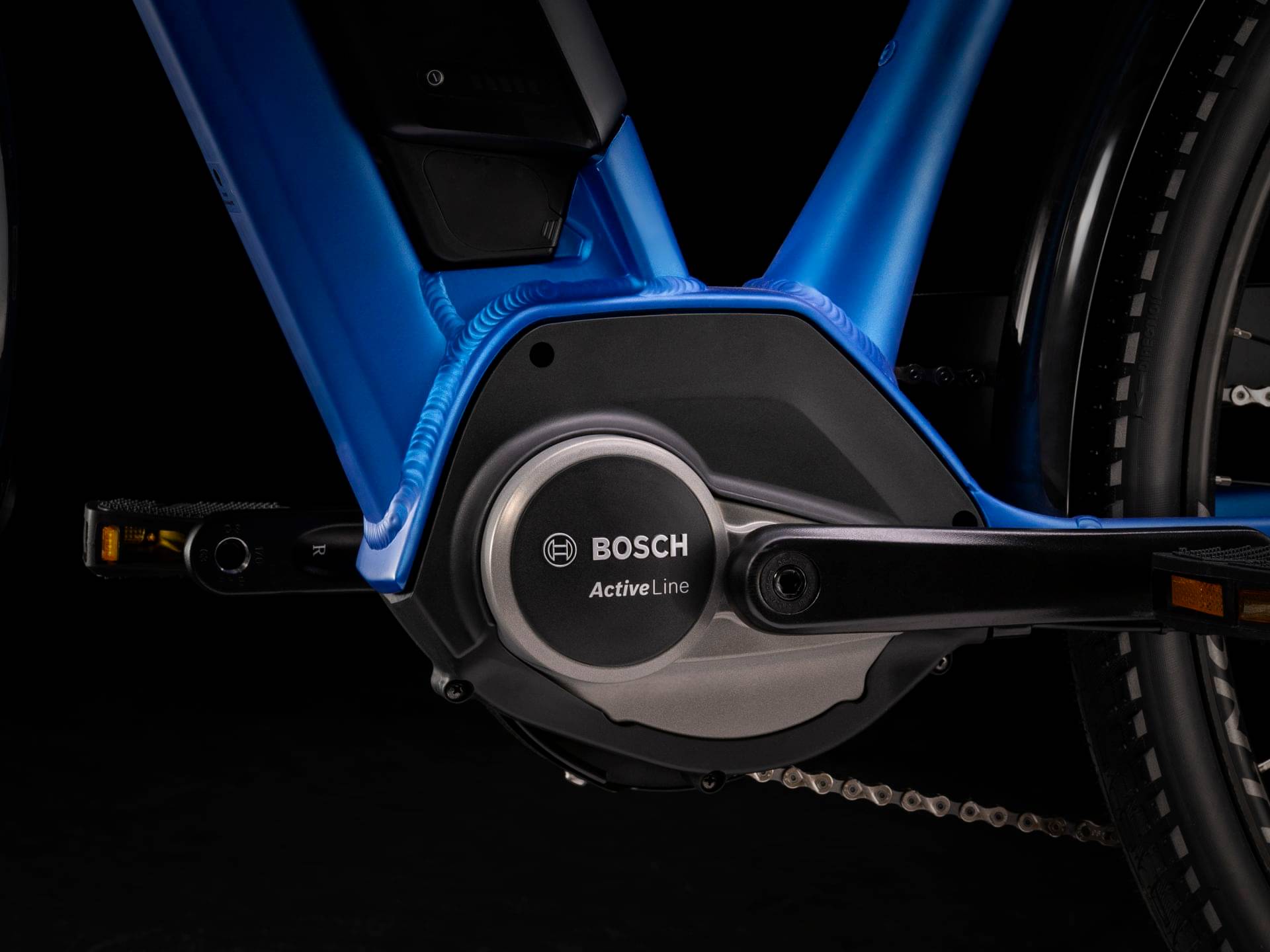

Bosch Active, 250 watt, 40 Nm, 20mph or 32km/h
Battery

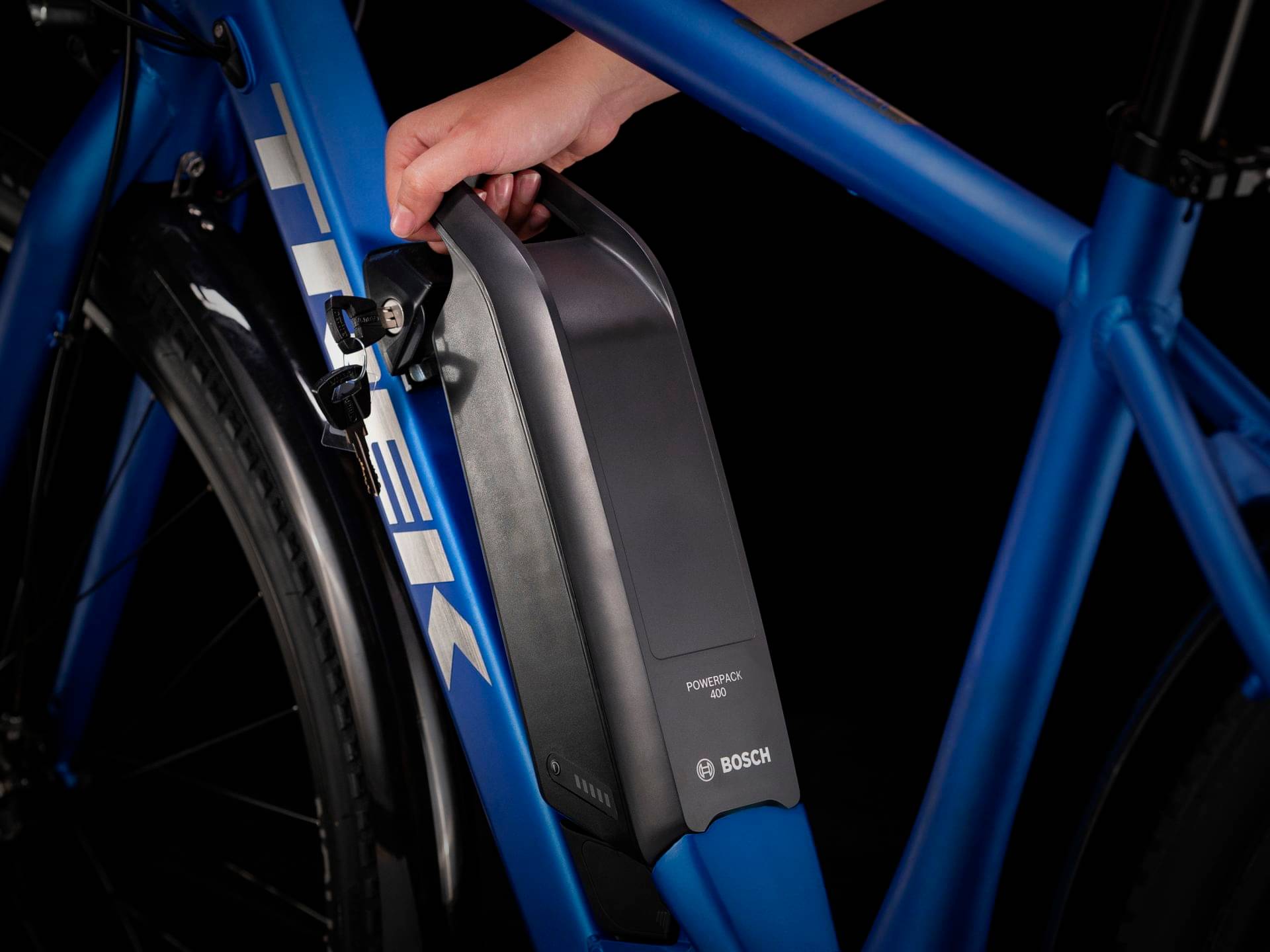

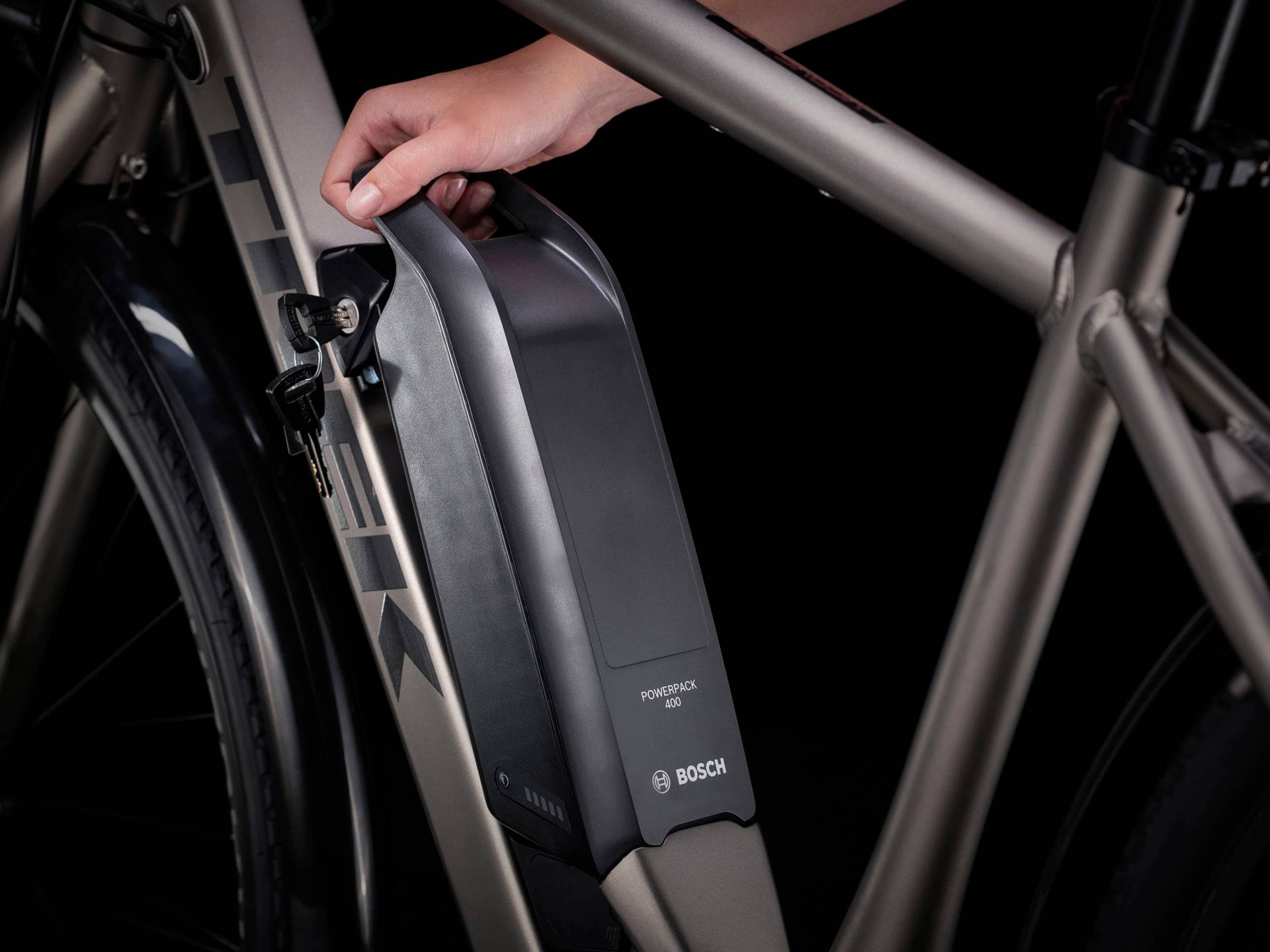

Bosch PowerPack 400Wh
Charger
Bosch compact 2A, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.608 mm | 1.608 mm | 1.637 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Front Center | 653 mm | 653 mm | 665 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 616 mm | 616 mm | 635 mm |
| Reach | 383 mm | 383 mm | 388 mm |
| Top Tube Length | 601 mm | 607 mm | 619 mm |
| Seat Tube Angle | 70.5 ° | 70 ° | 70 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 160 mm | 180 mm |
| Chainstay Length | 502 mm | 502 mm | 502 mm |
| Wheelbase | 1148 mm | 1148 mm | 1160 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 791 mm | 819 mm | 855 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
