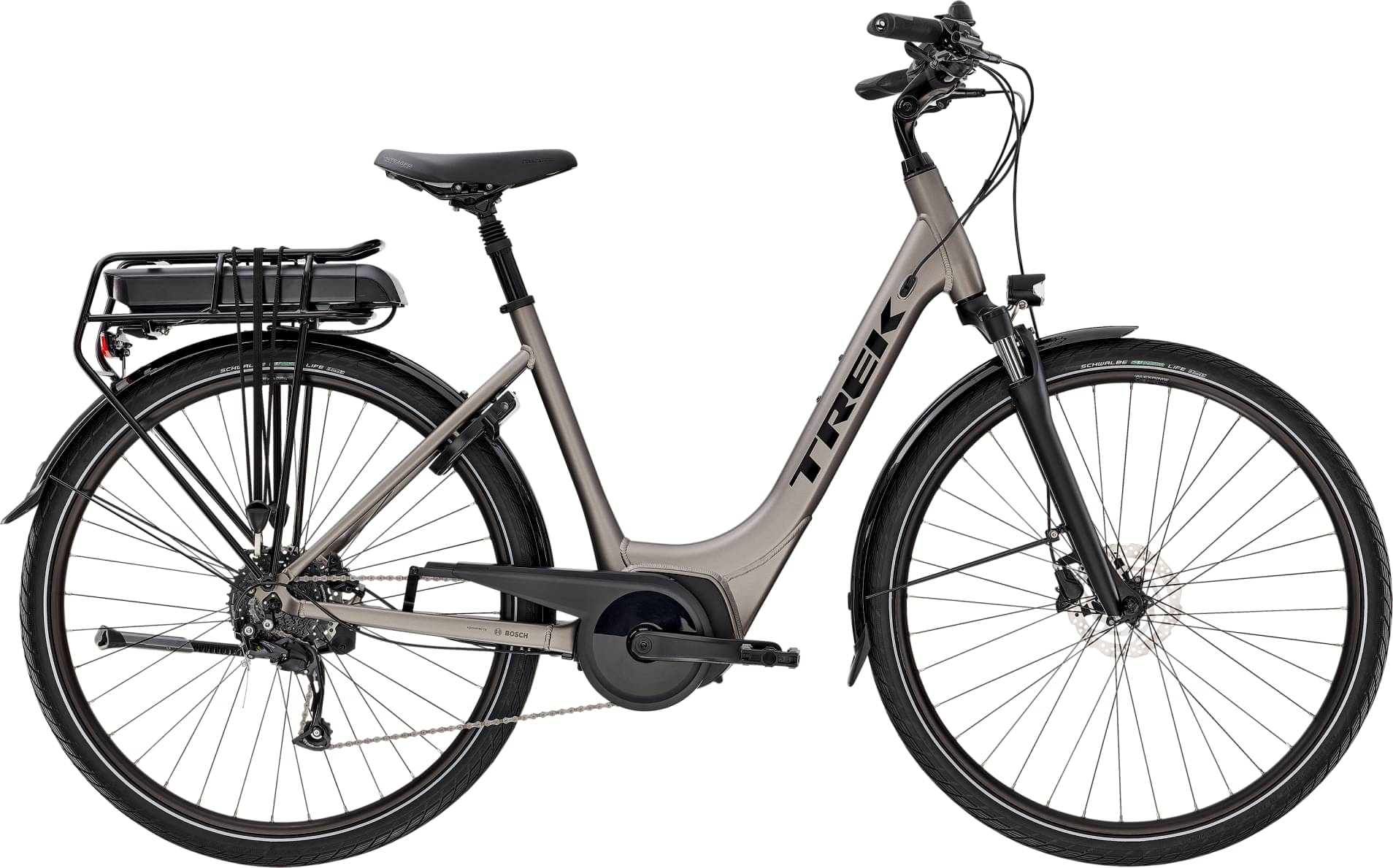

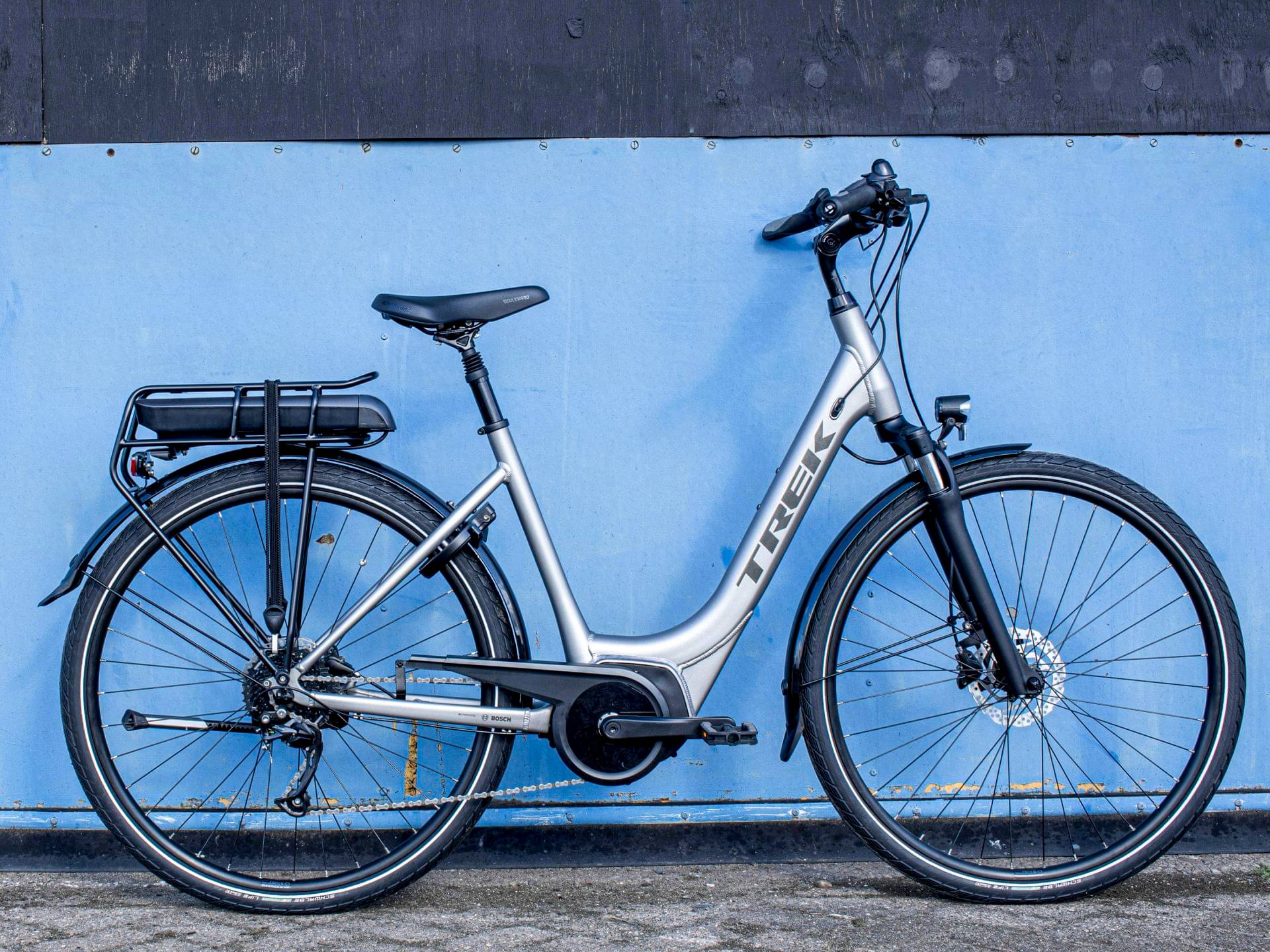

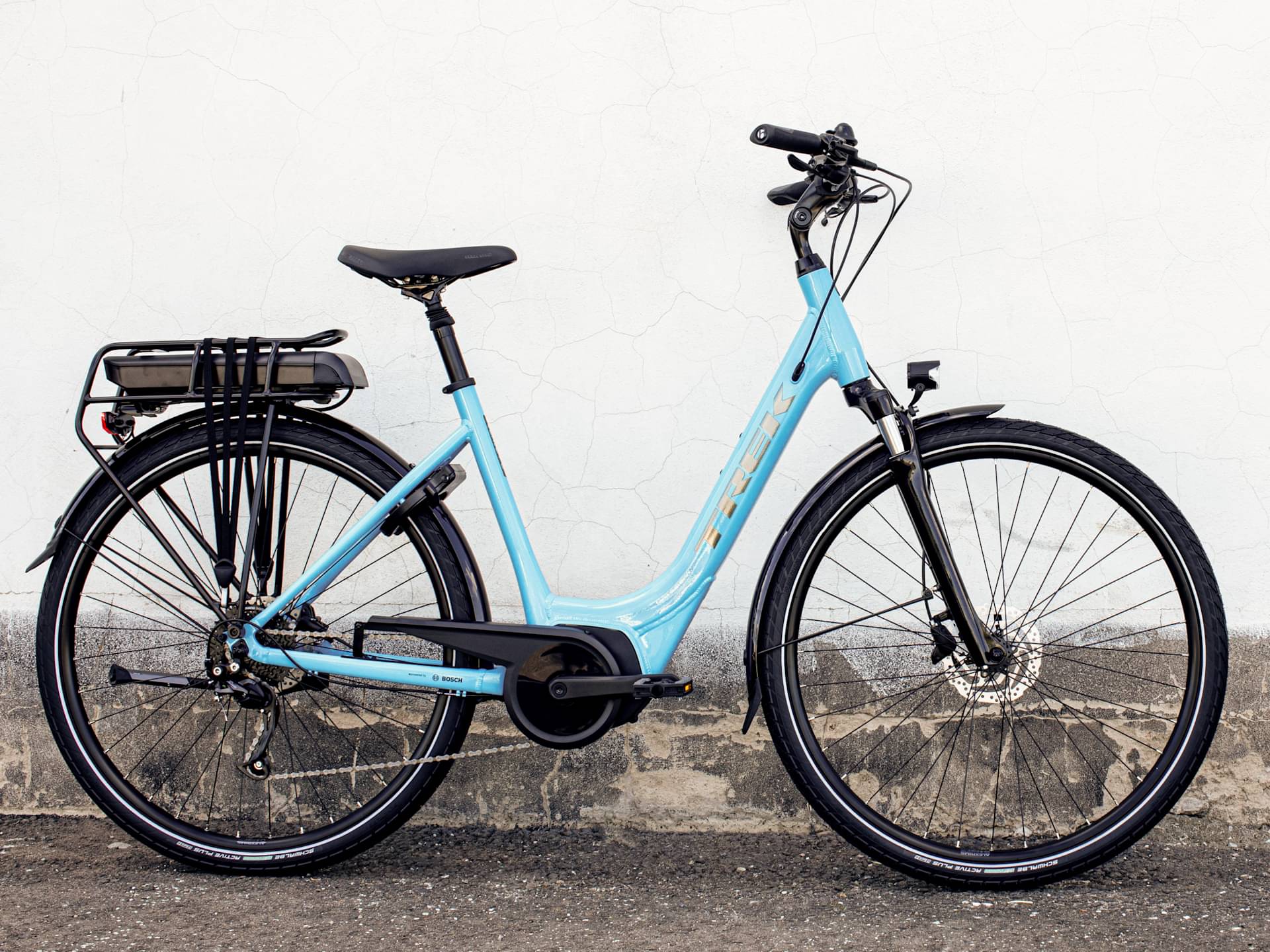

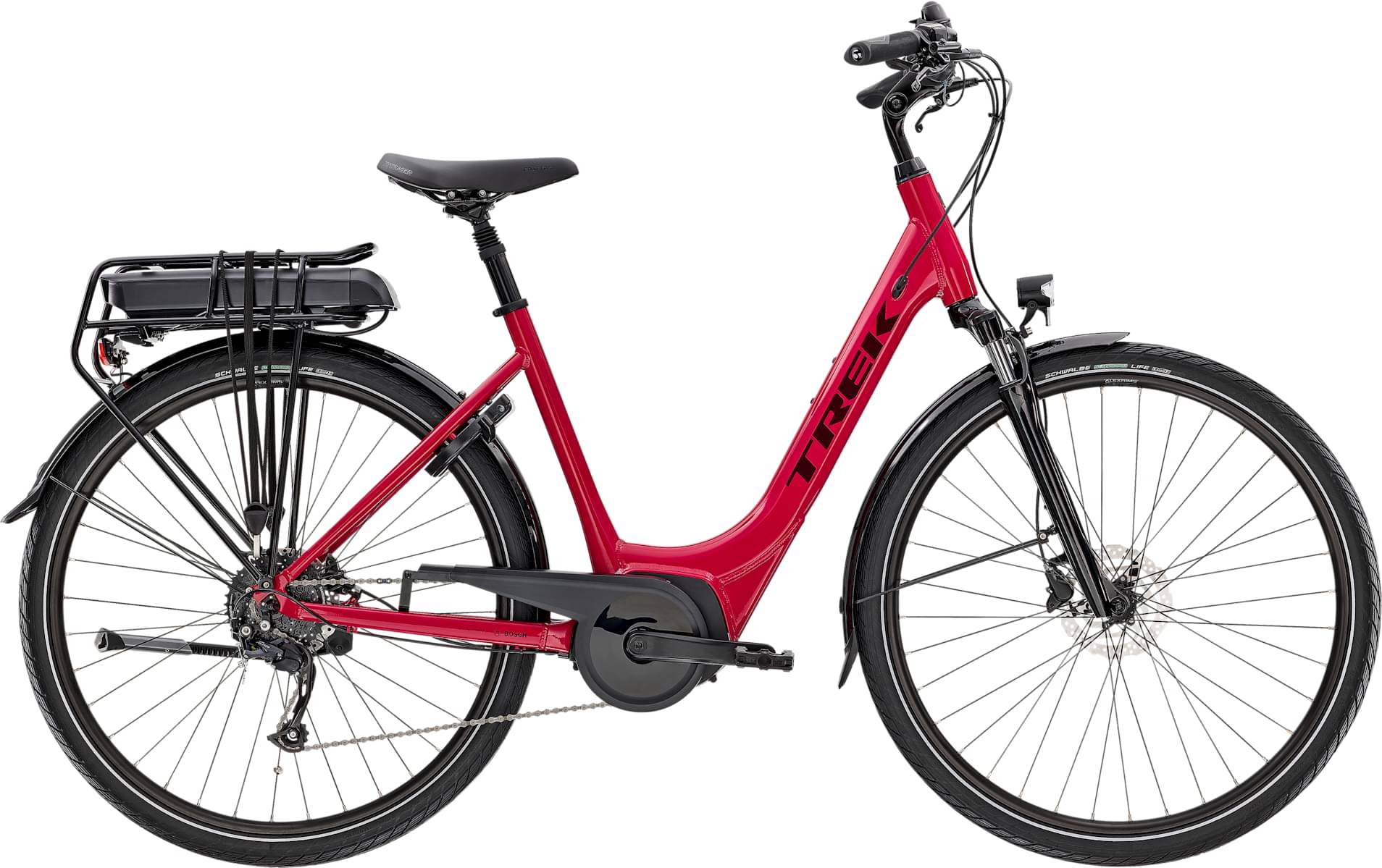

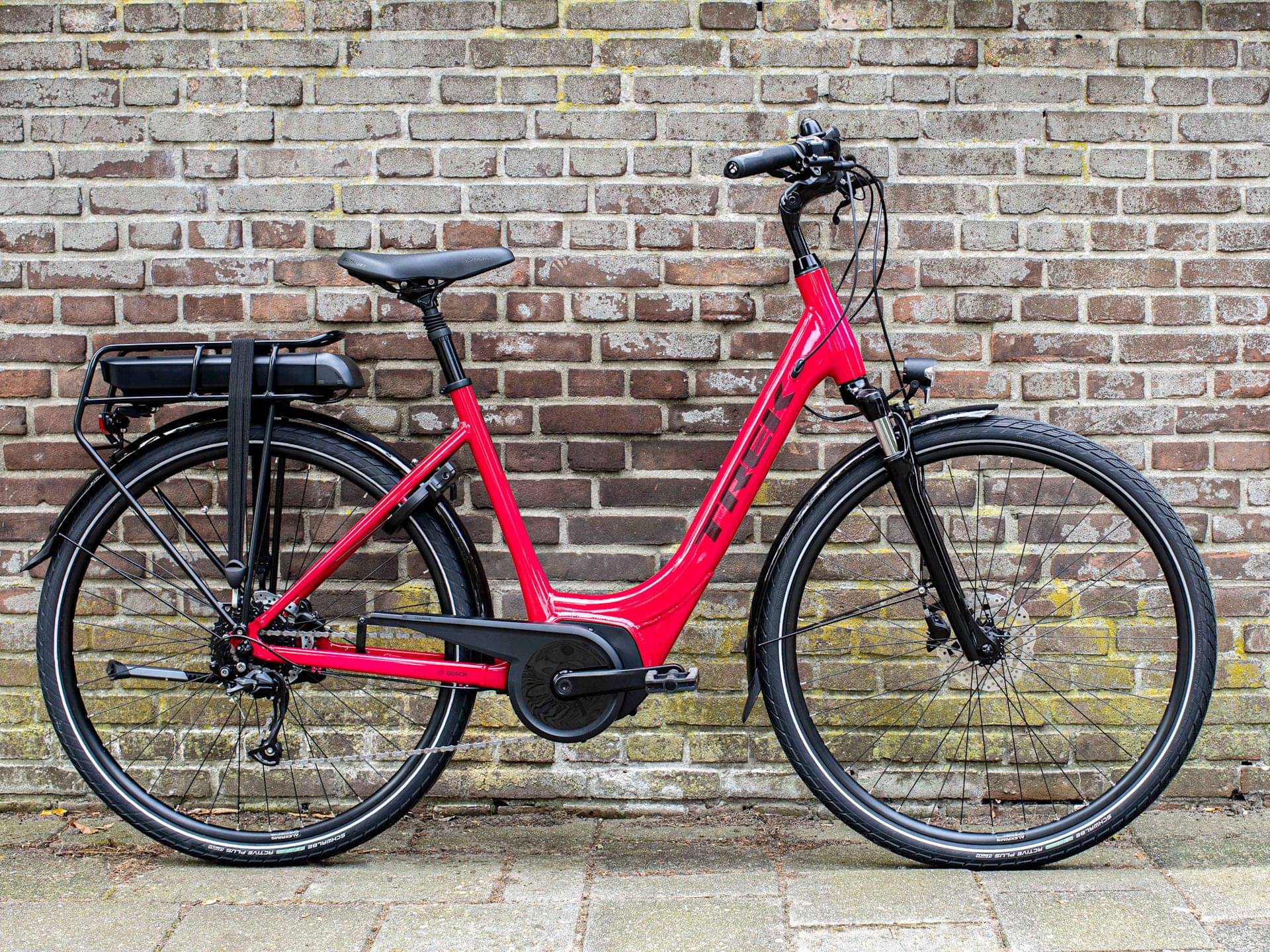

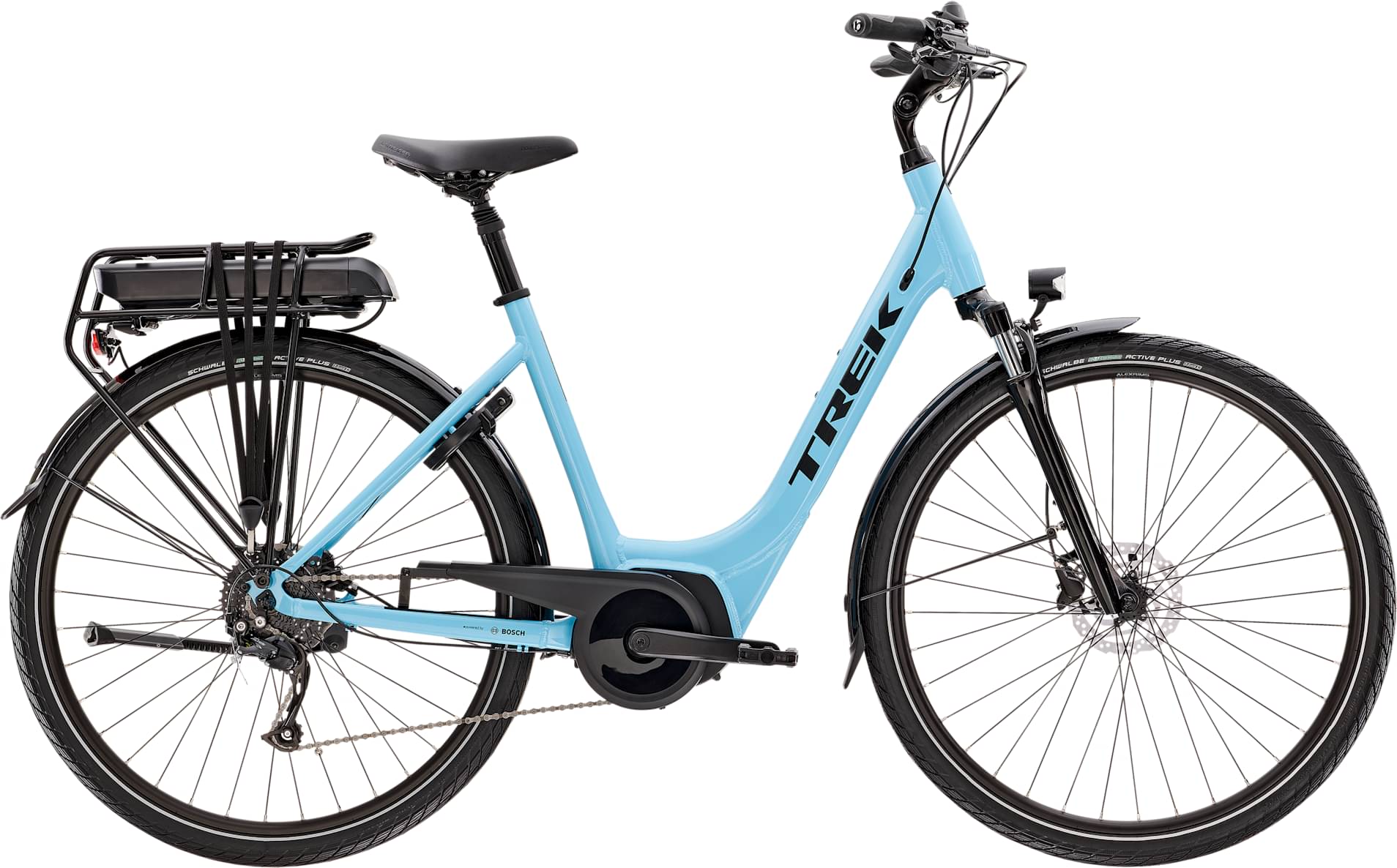

Trek Verve+ 2 Lowstep Gen 2 2021
2021 E-bike
Estimate price |
3,218$
Weight | 23.56 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe) -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 155cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

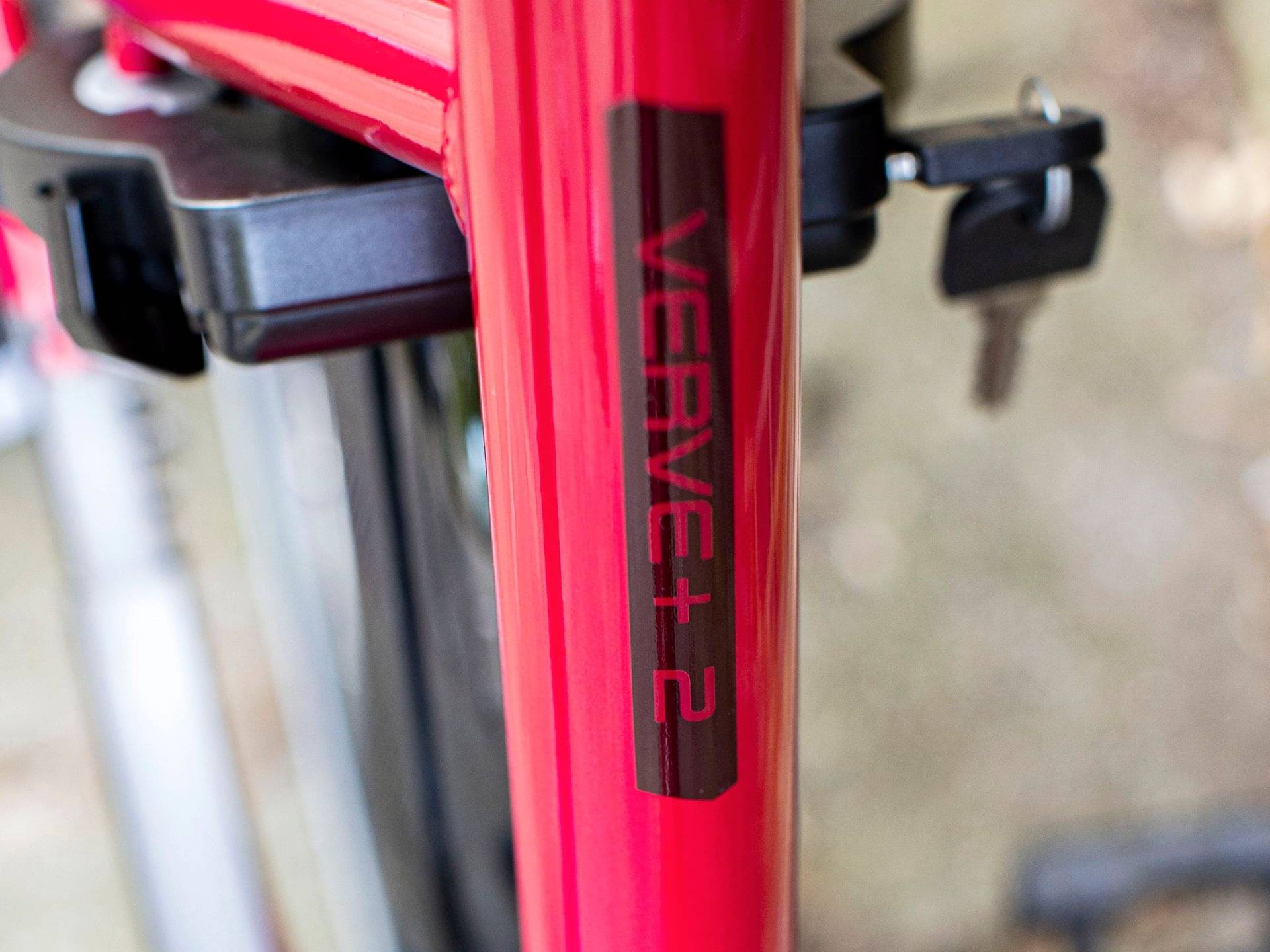

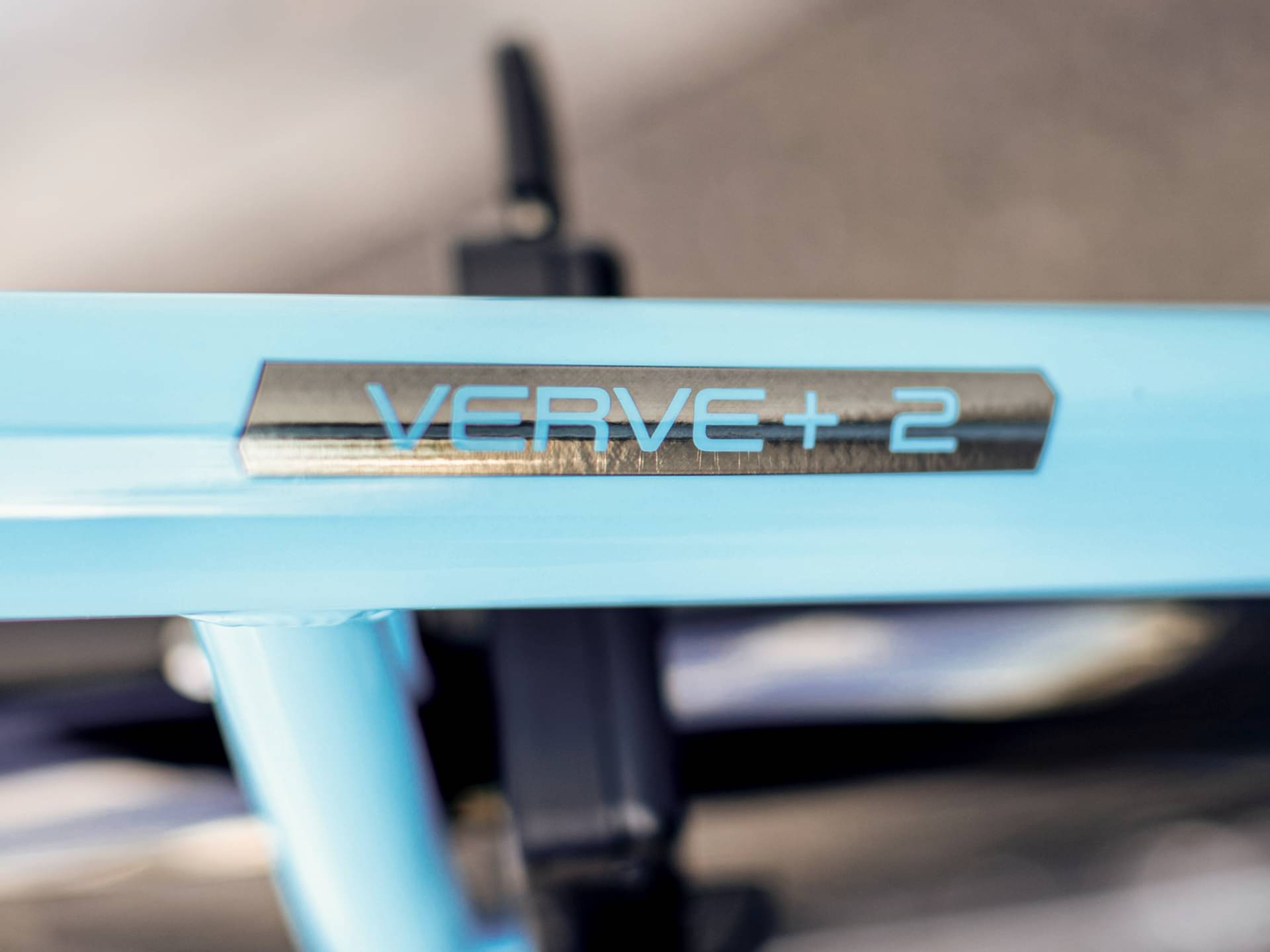

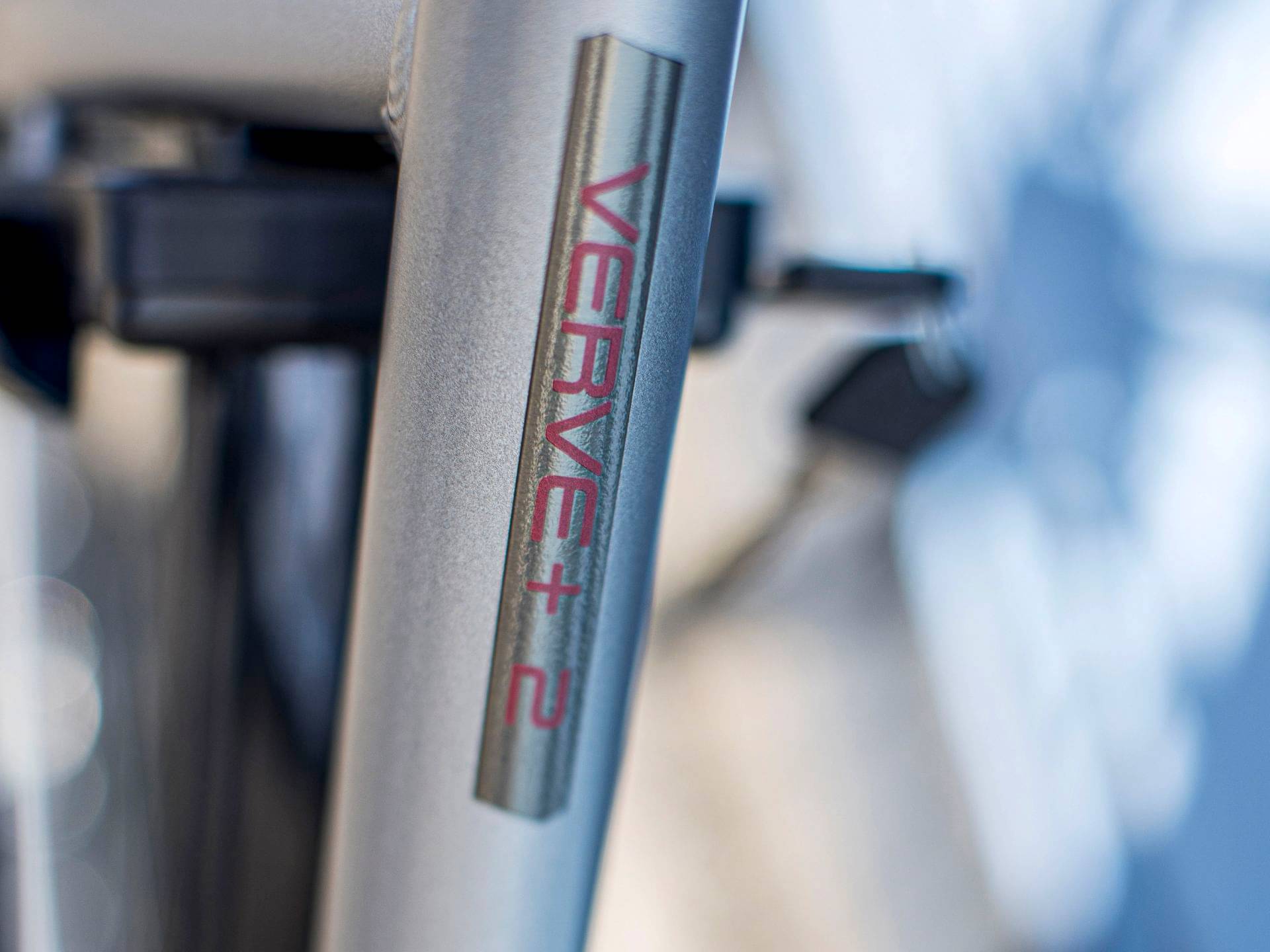

Frame
Size: XS, Alpha Aluminium with internal cable routing; Size: S, M, L, Alpha Gold Aluminium, smooth welds, rack and mudguard mounts, internal routing, kickstand mount, 135x5 mm QR

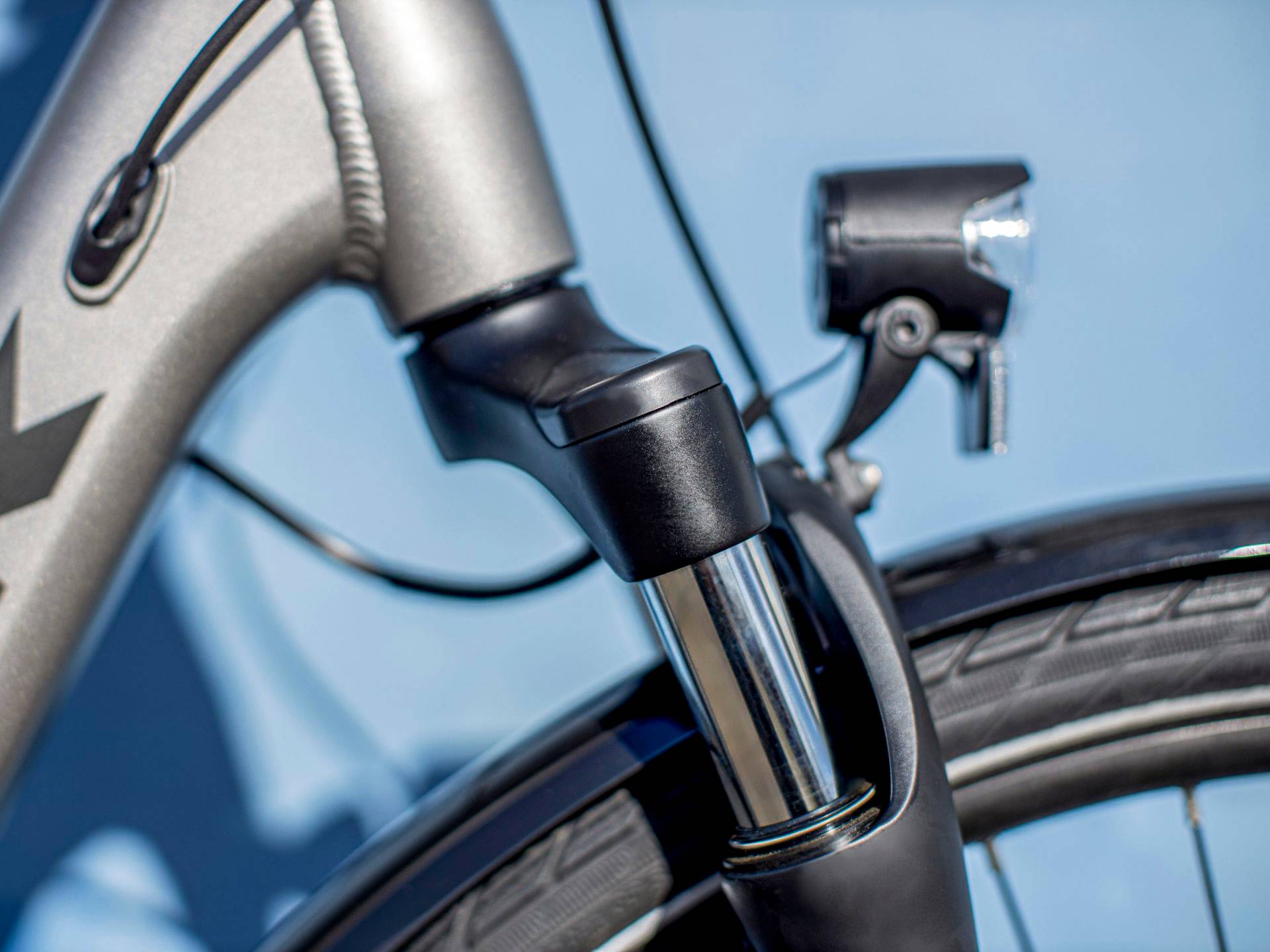

Suspension Fork
SR Suntour NEX, coil spring, preload, 50 mm travel, 100x5 mm QR

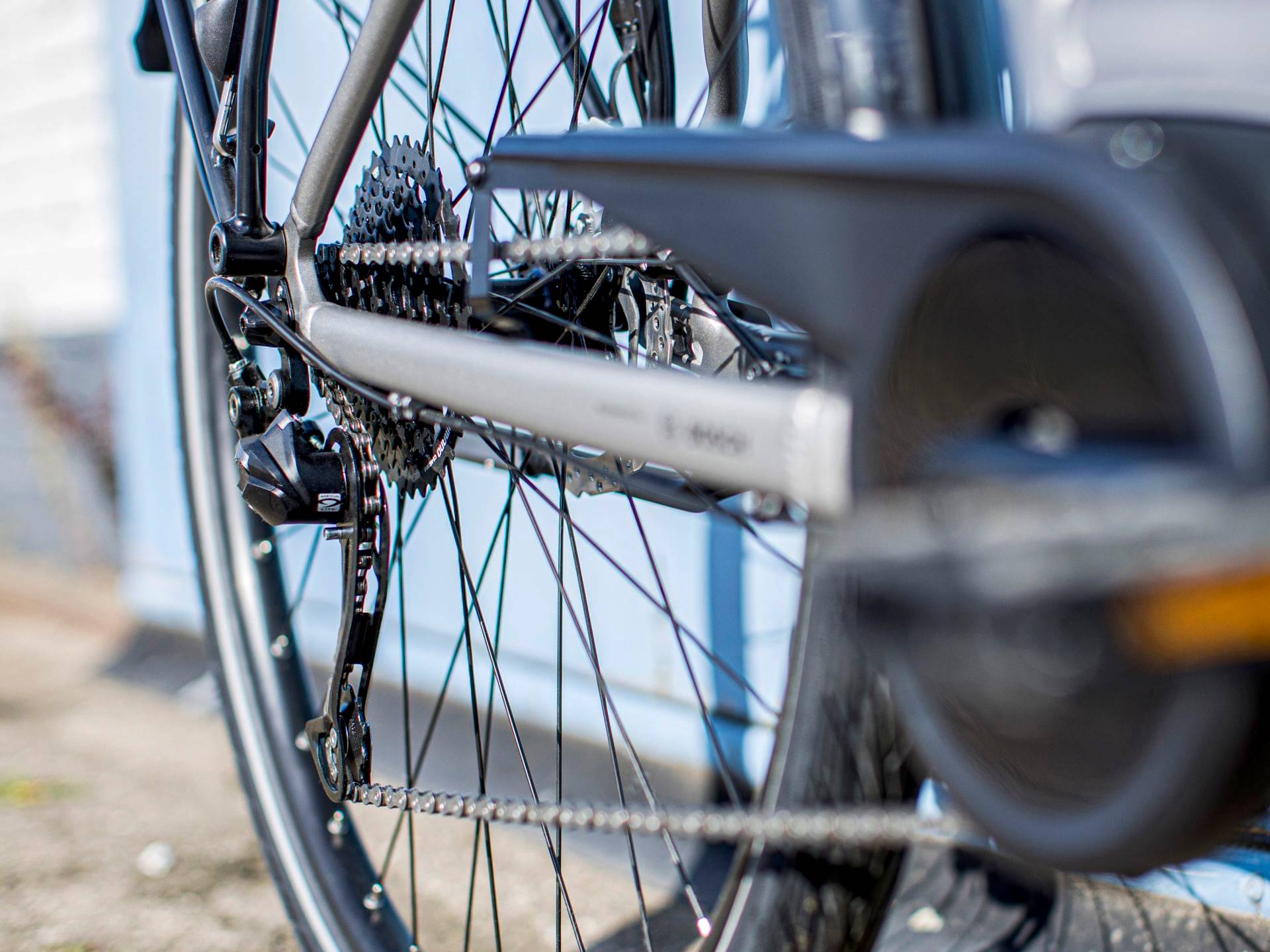

Drivetrain

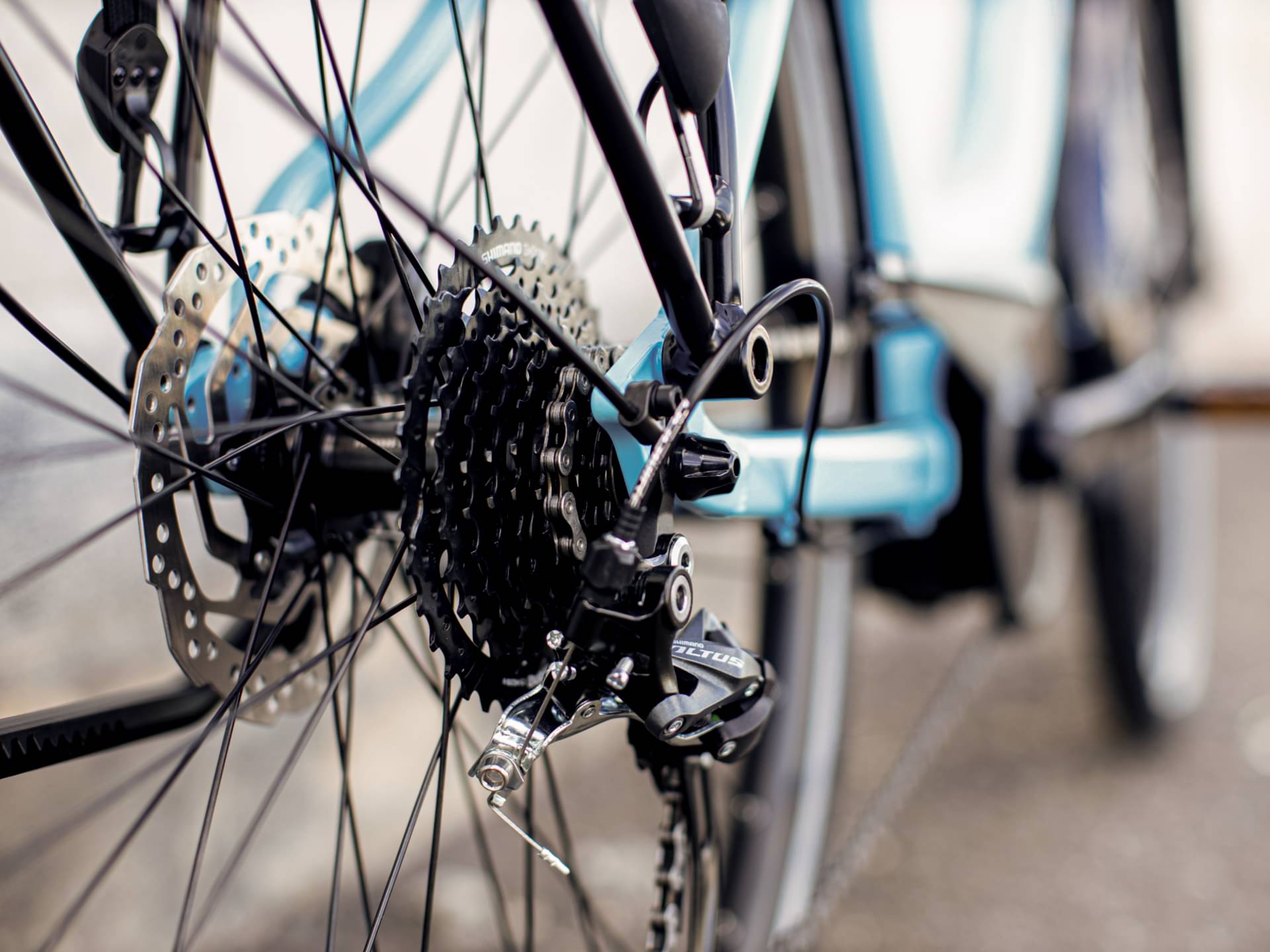

Rear Derailleur
Shimano Altus M2000, long cage
Shift Levers
Shimano Acera M3000, 9 speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
ProWheel alloy, 170 mm length
Chain
Shimano 9-speed
Pedals
VP-857
Wheels
Front Hub
Shimano TX505, CenterLock
Rear Hub
Shimano
Rims
Alex Rims DP23, alloy, 36-hole, Presta valve
Spokes
14 g stainless steel, black
Tires
Size: XS, Schwalbe Delta Cruiser Plus, puncture protect, reflective, 26x2.0" (50-559); Size: S, M, L, Schwalbe Energizer Active Plus, Puncture Guard, Twin Skin (50-622)
Brakes

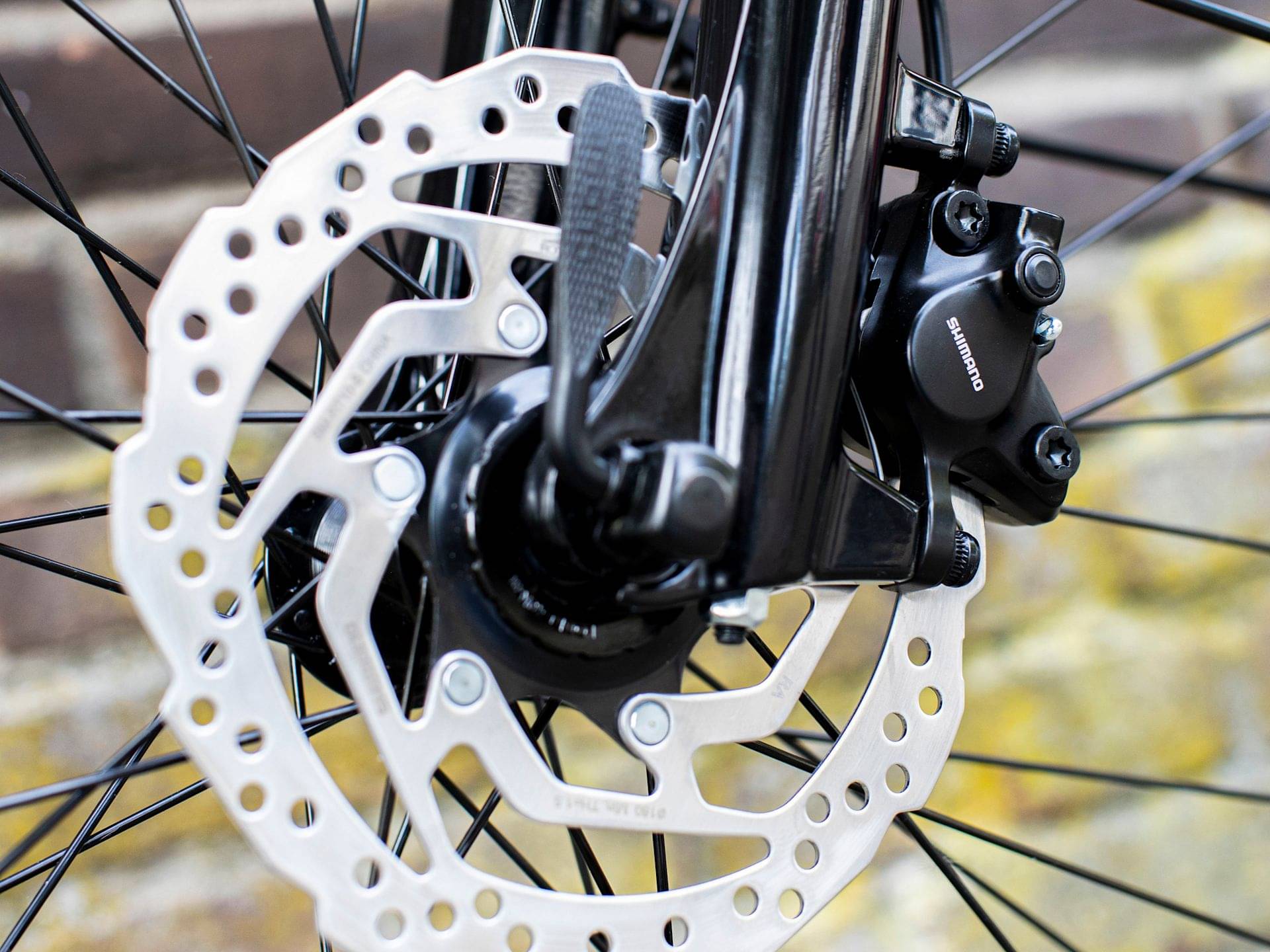

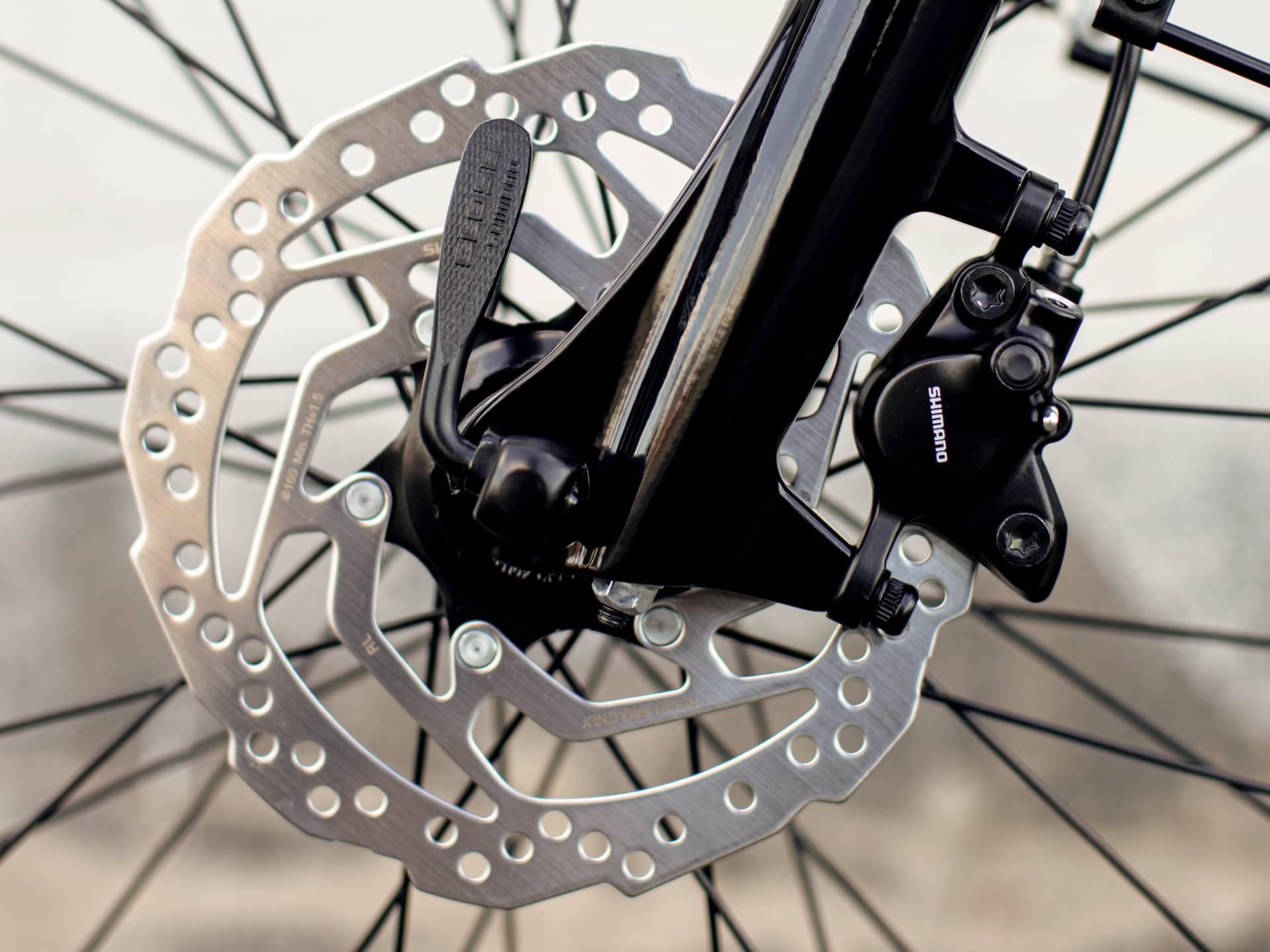

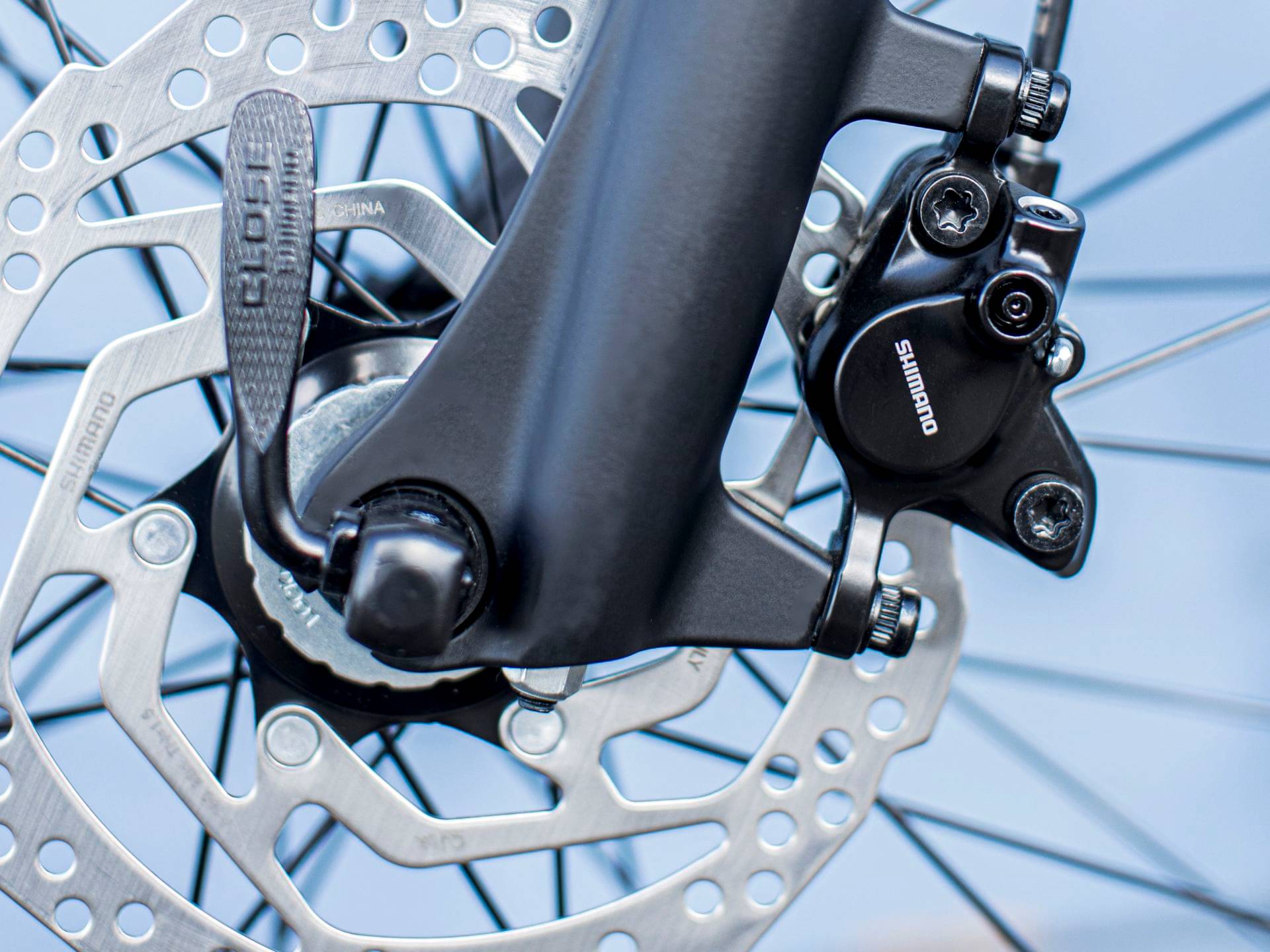

Brakes
Shimano MT200 hydraulic disc

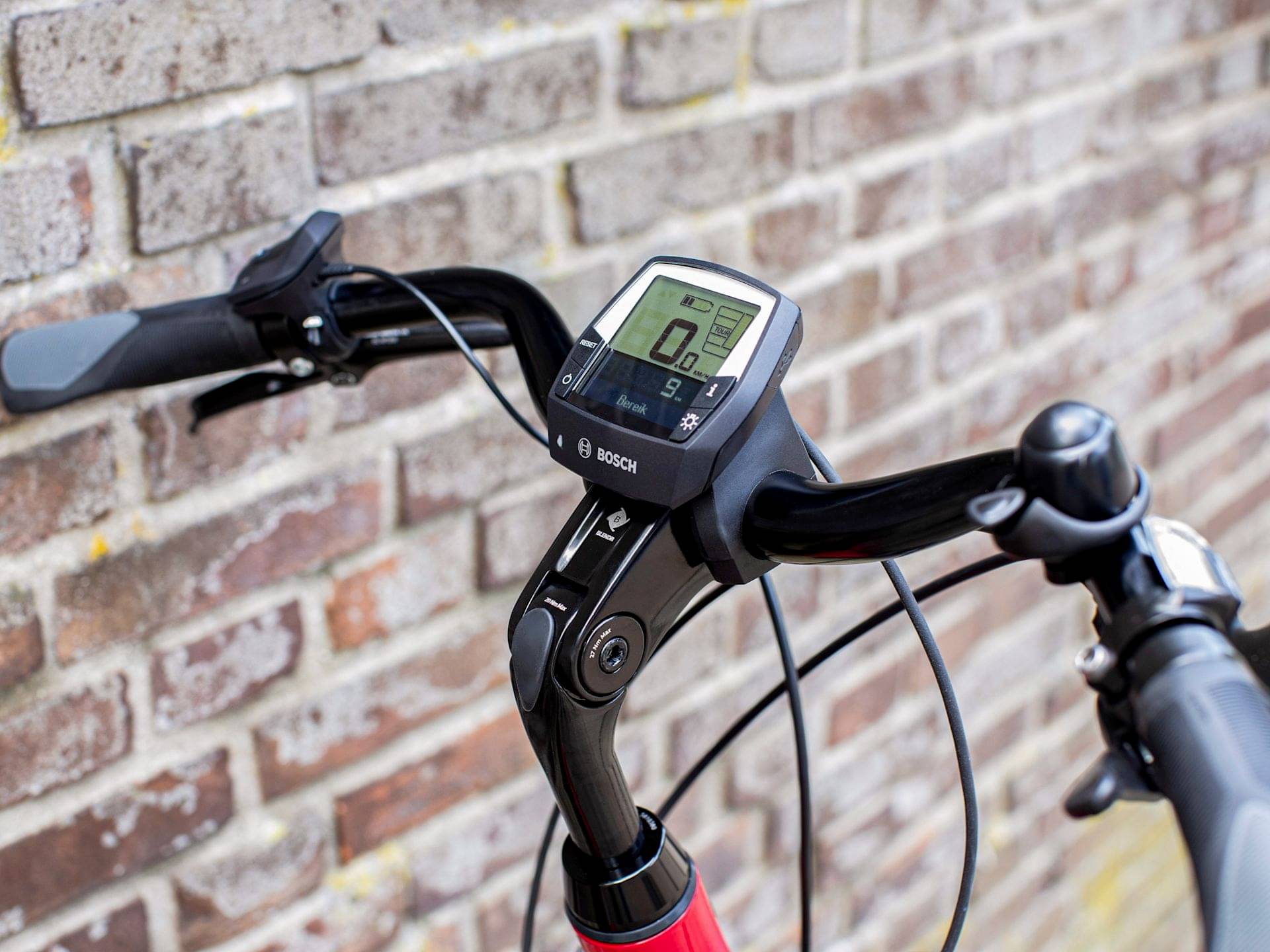

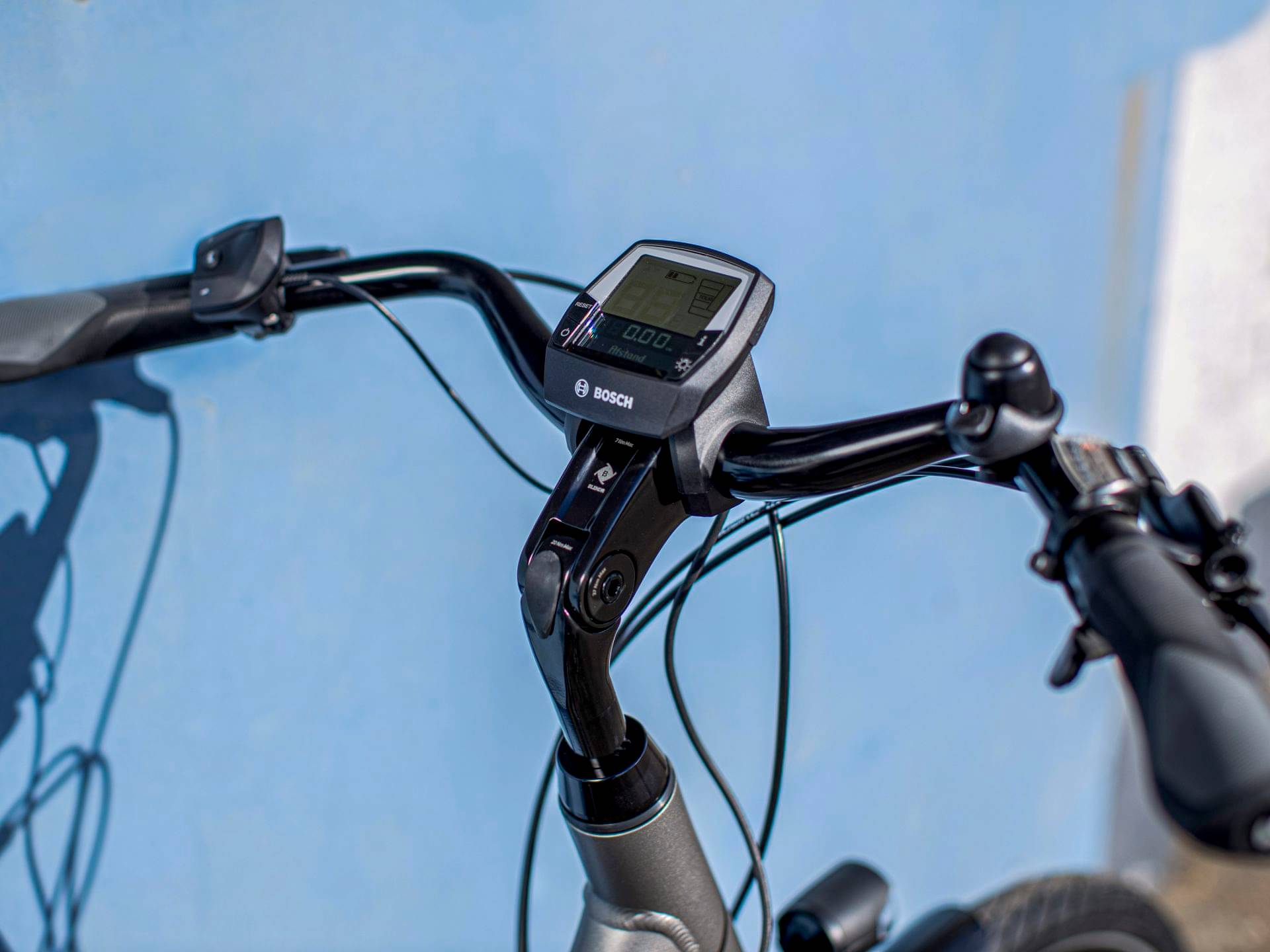

Cockpit
Stem
Size: XS, S, M, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length

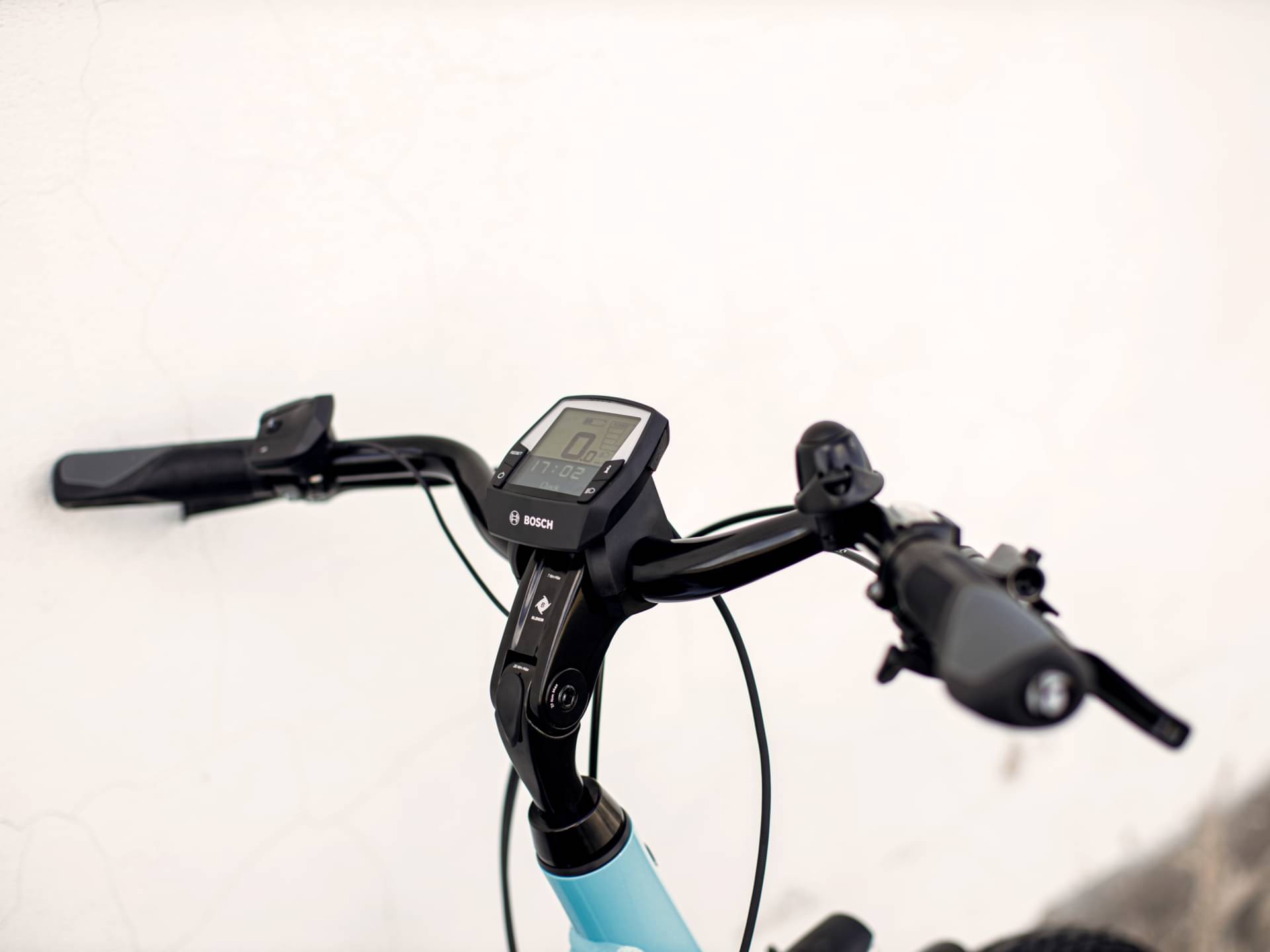

Handlebar
Size: XS, S, M, L, Bontrager aluminium touring, 31.8 mm clamp, 25 mm rise, 630 mm width; Size: XS, S, M, L, Bontrager aluminium touring

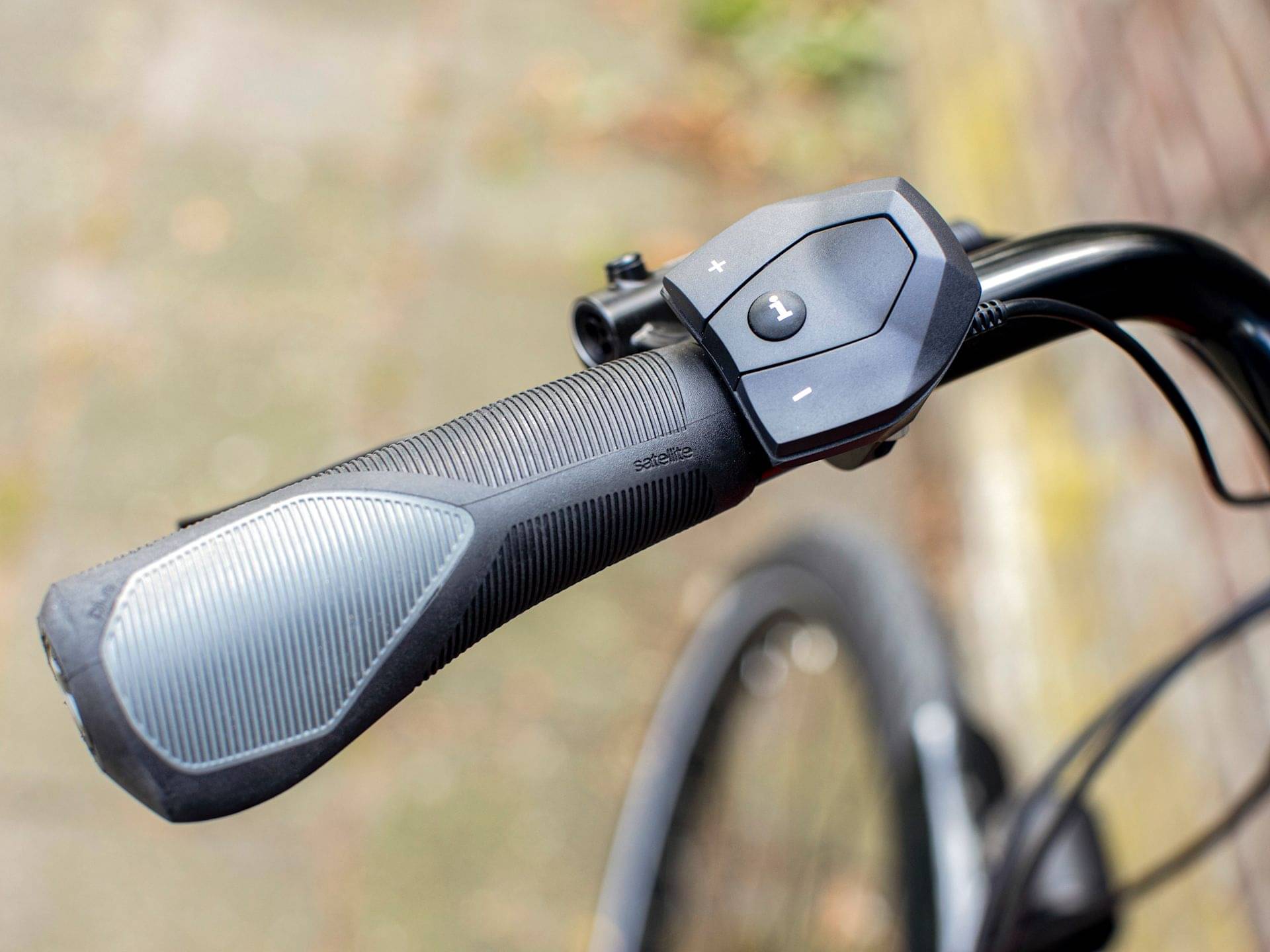

Grips
Bontrager Satellite Plus
Seat

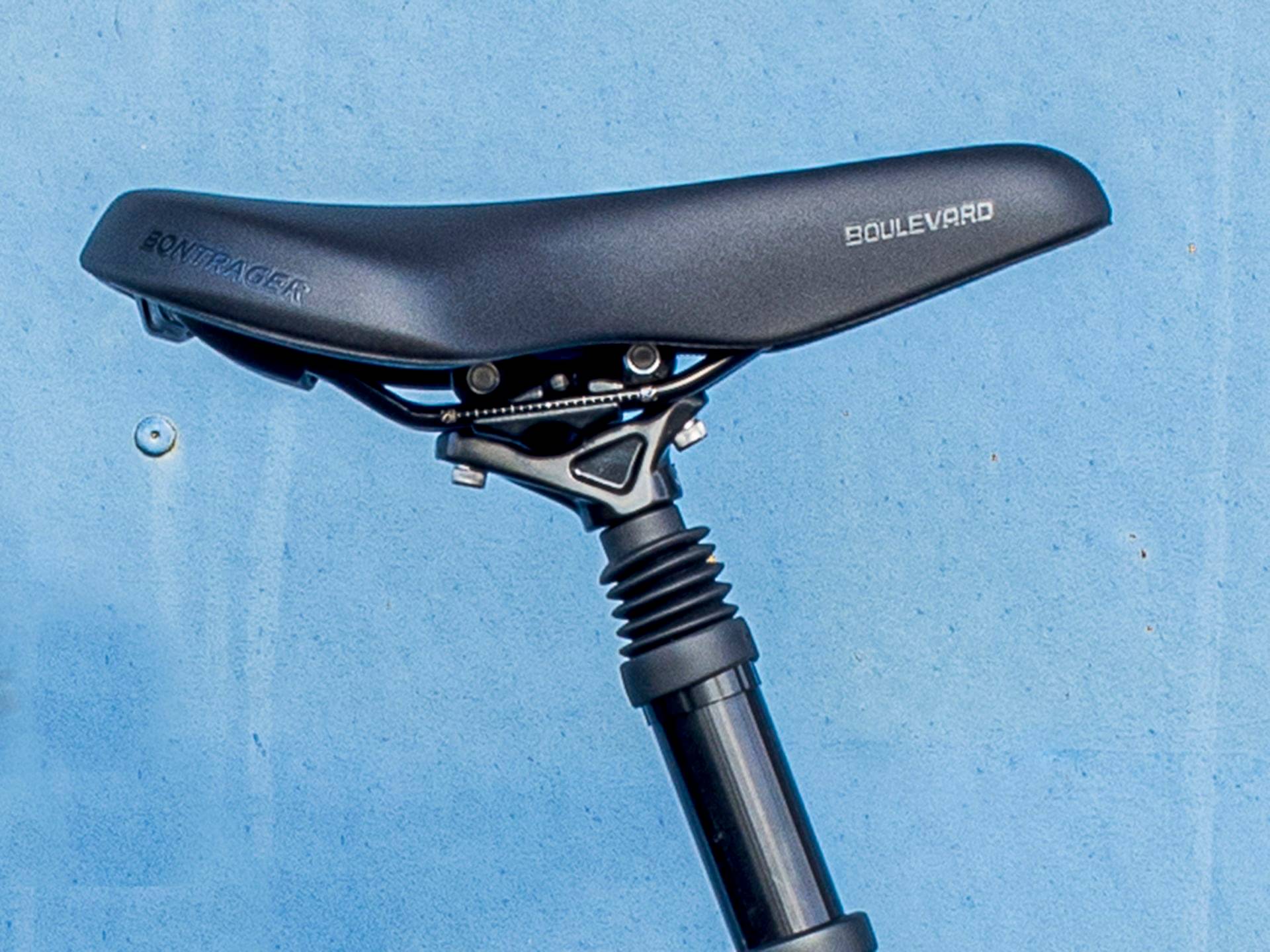

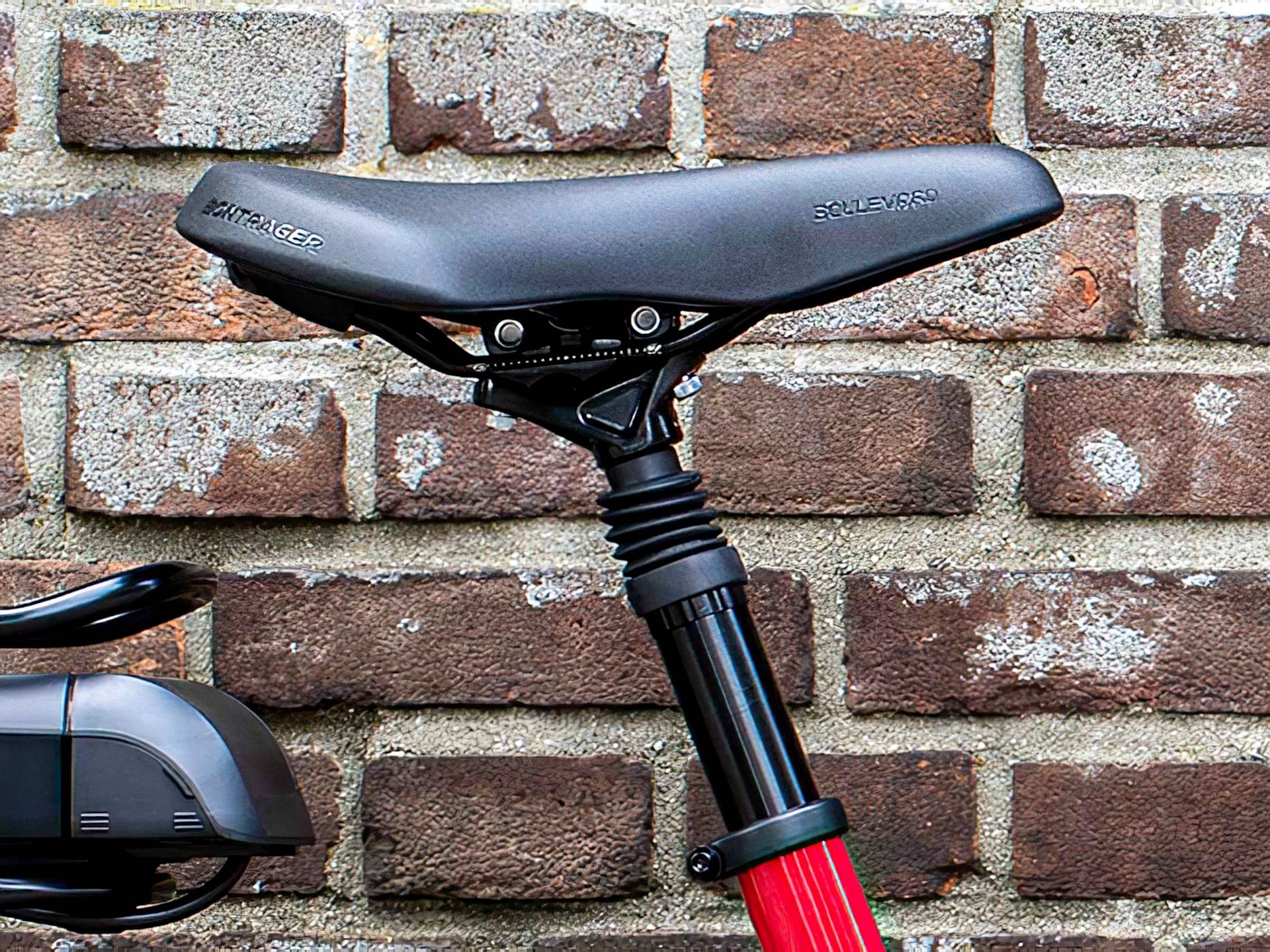

Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery

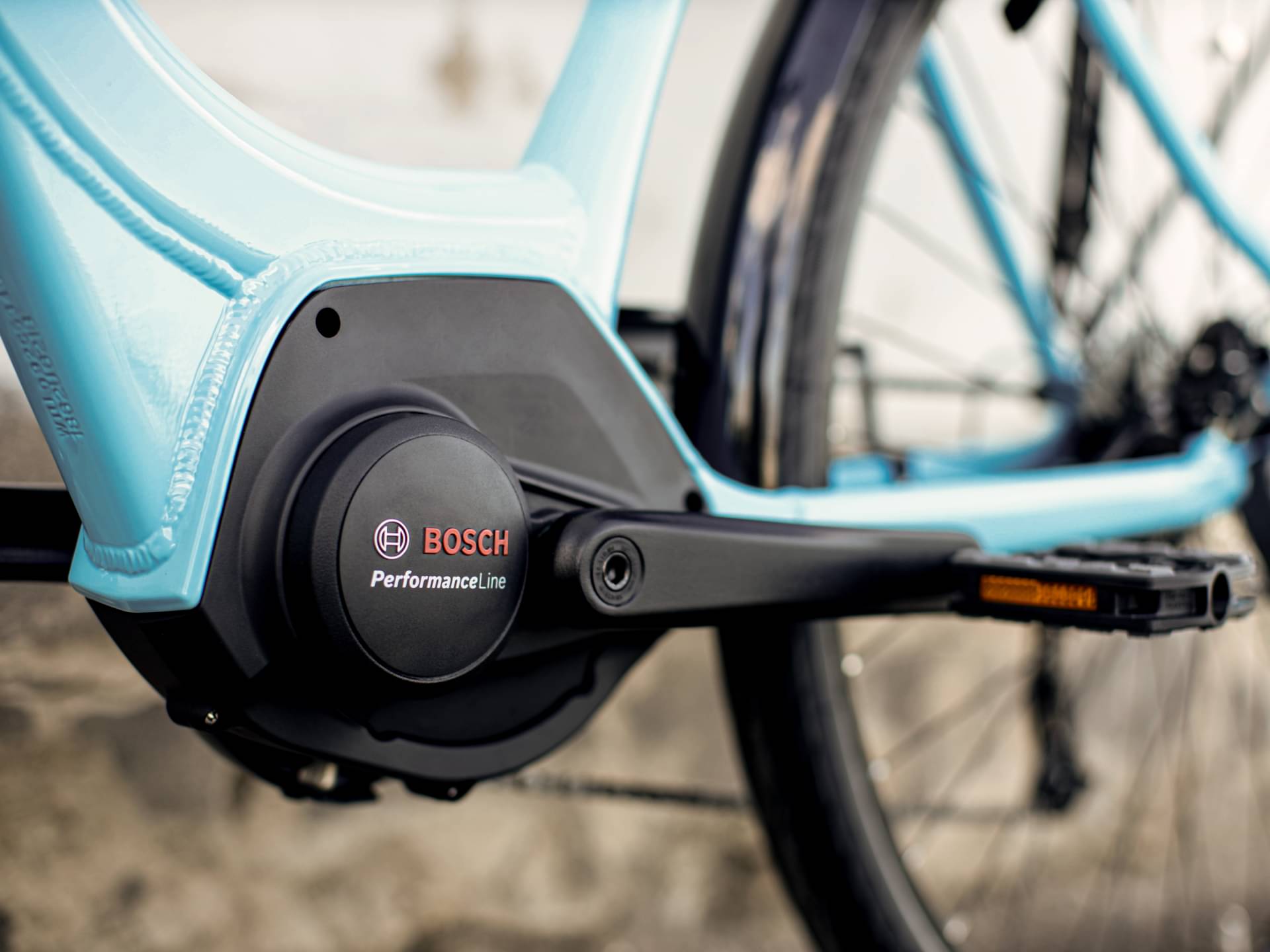

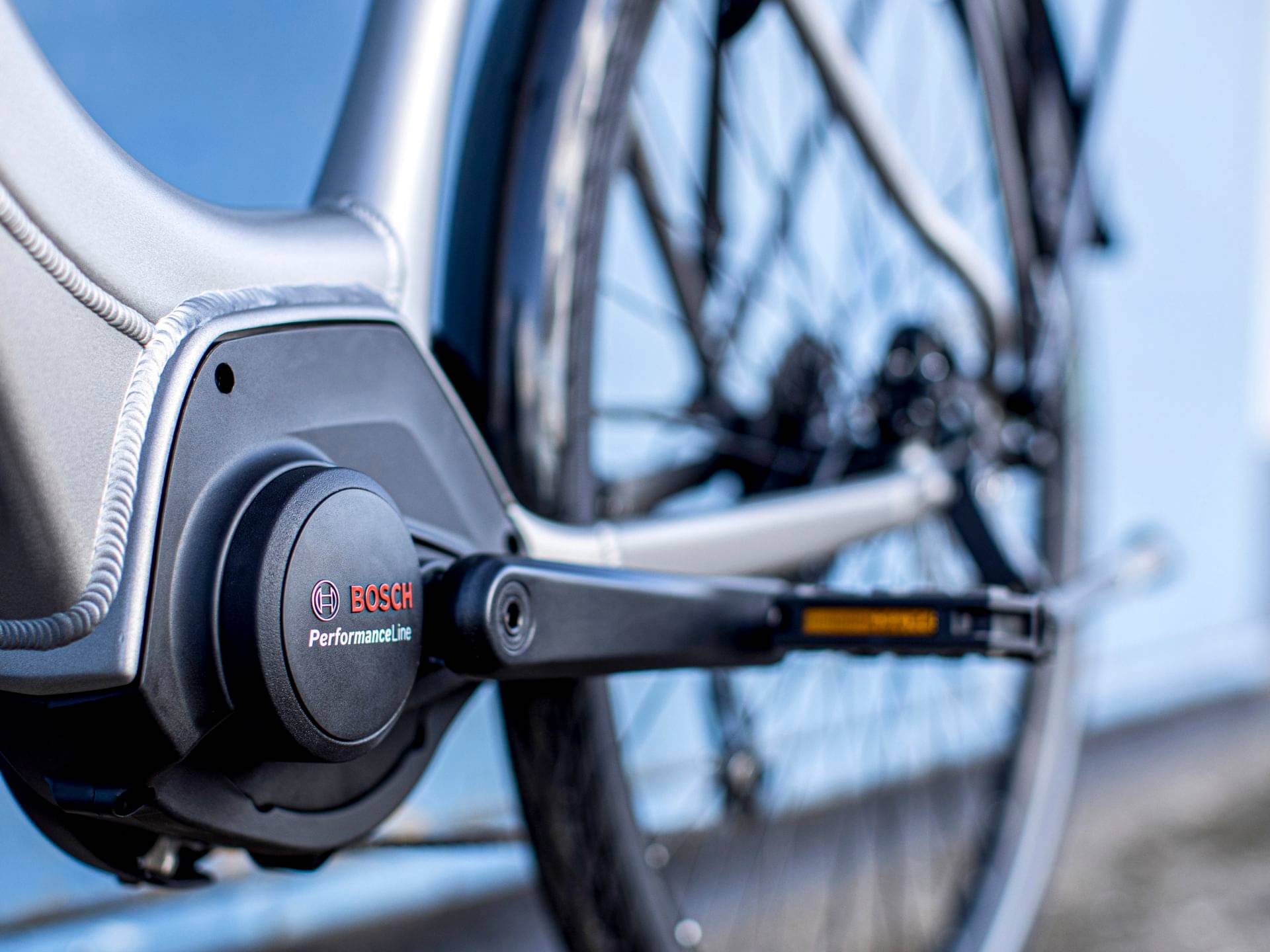

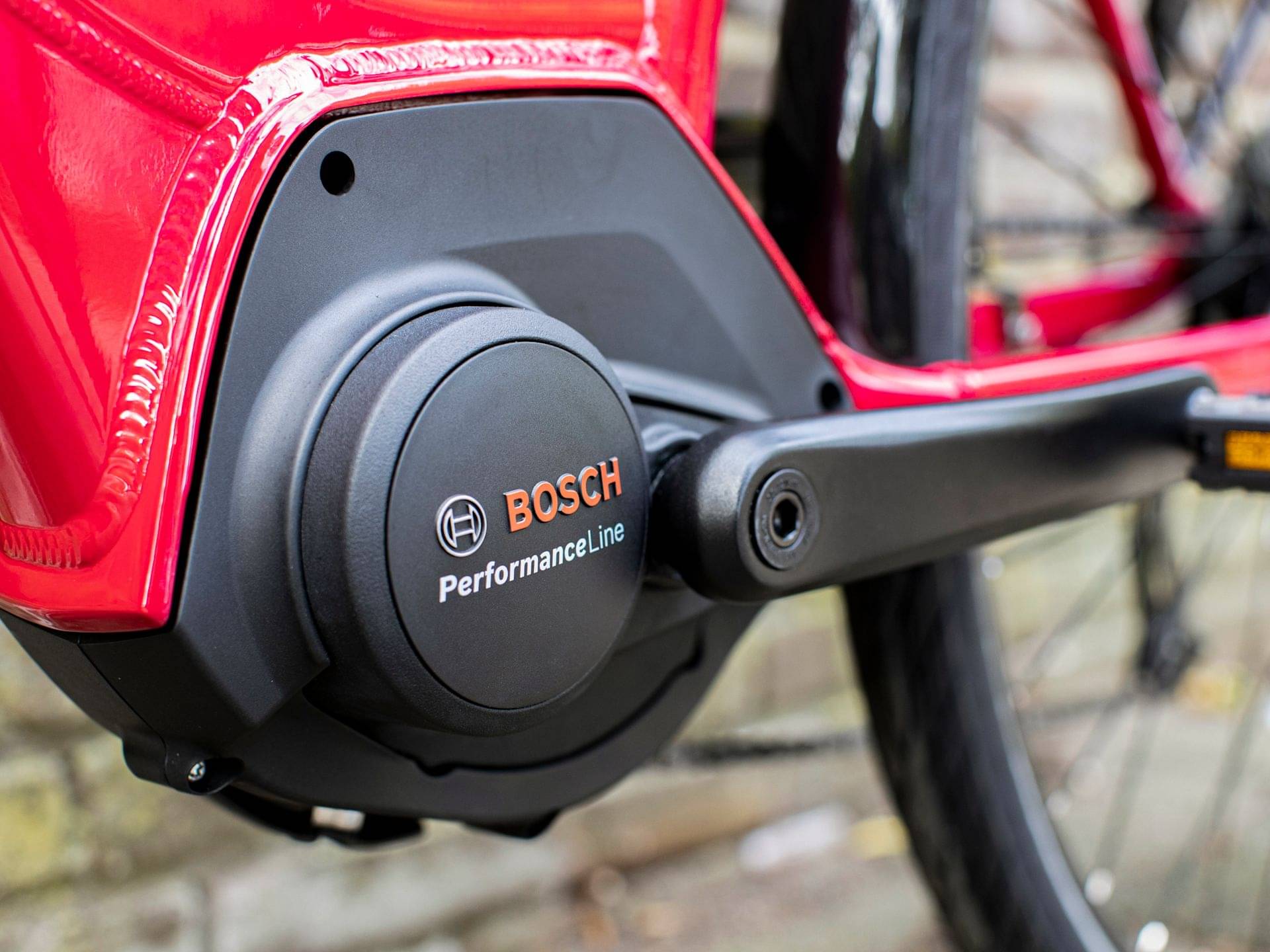

Motor
Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe)

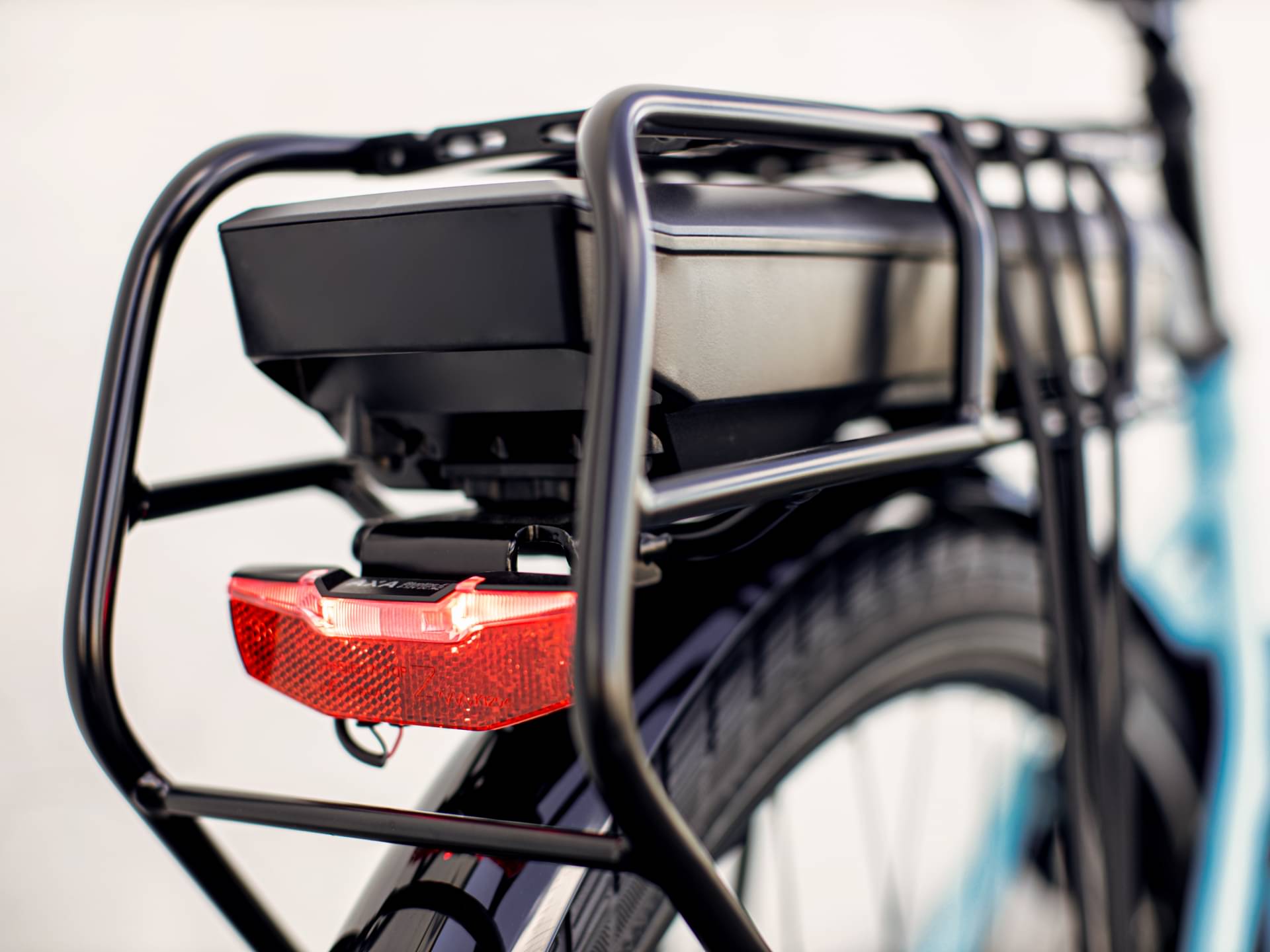

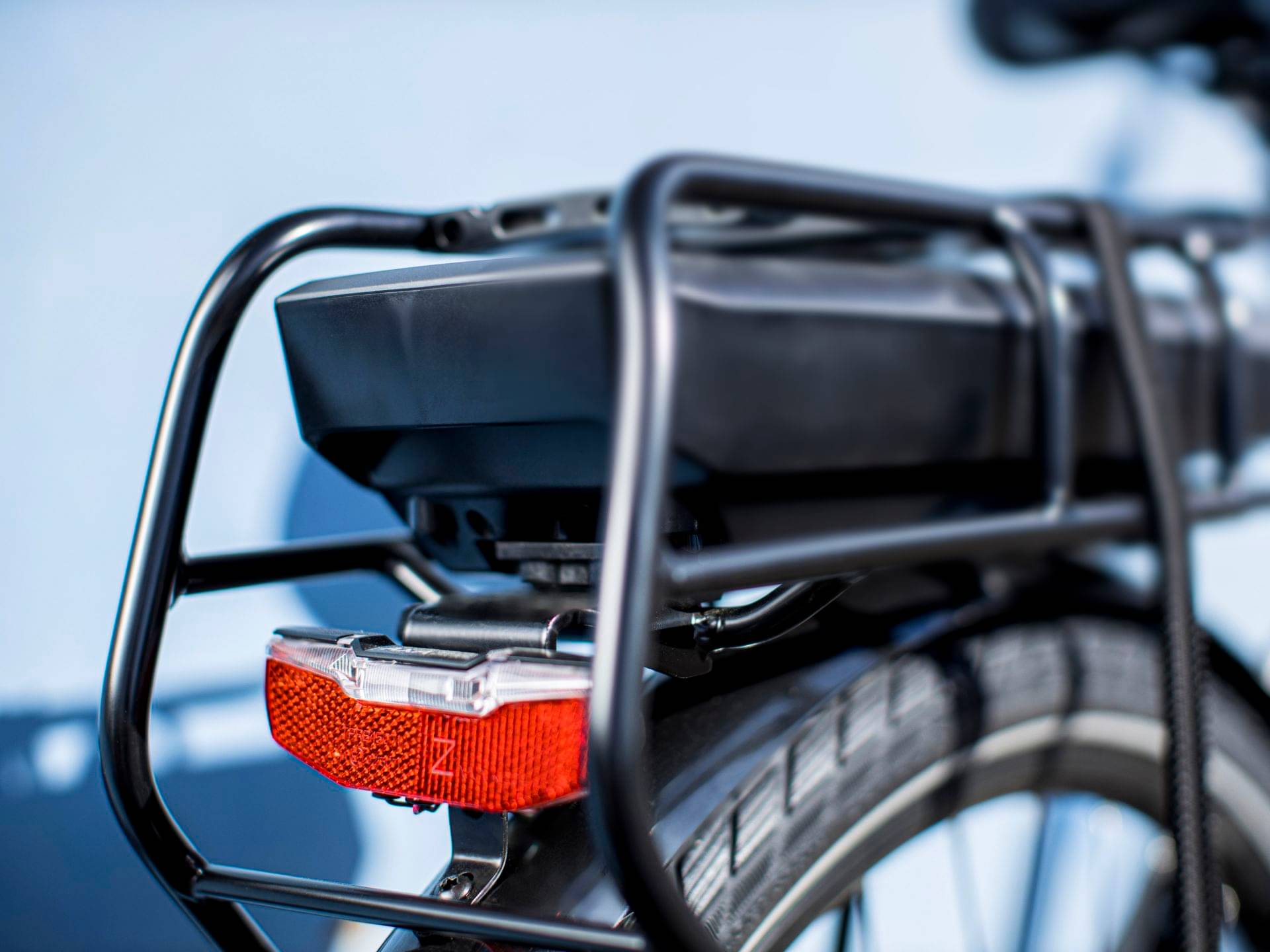

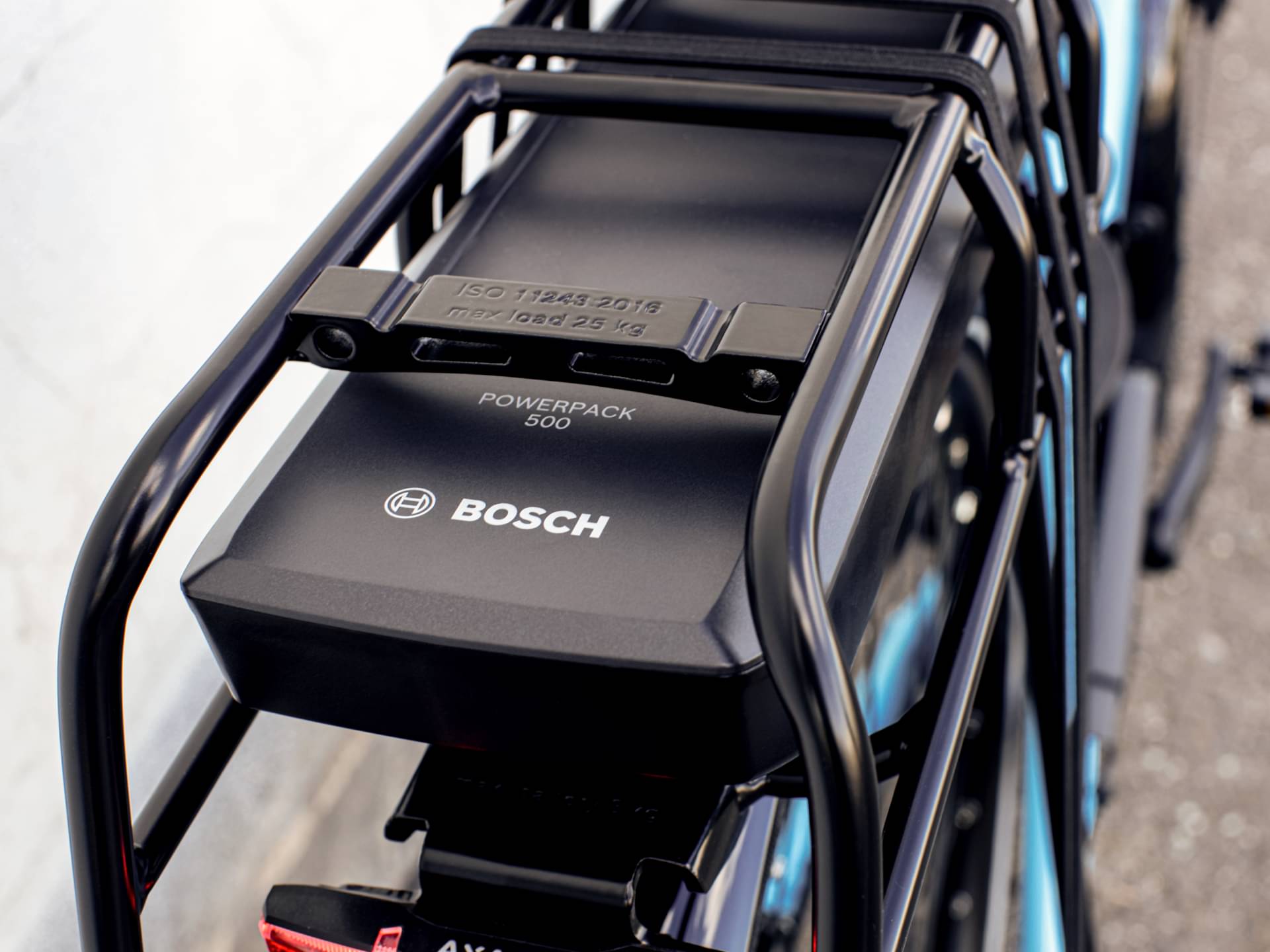

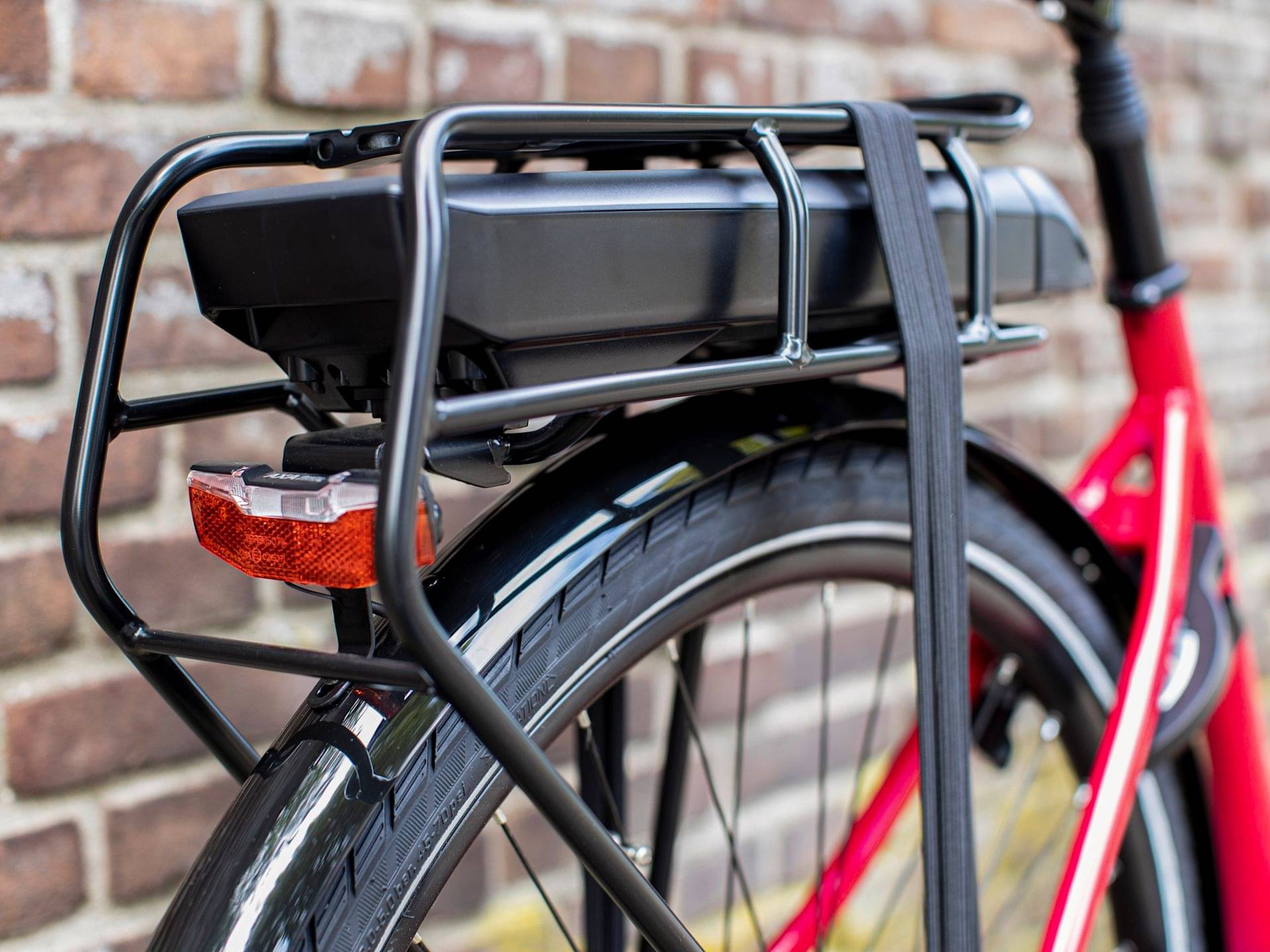

Battery
Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 220-240 V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.483 mm |
| Front Center | 642 mm |
| Rake | 45 mm |
| Trail | 82 mm |
| Stack | 571 mm |
| Reach | 385 mm |
| Top Tube Length | 582 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 390 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 160 mm |
| Chainstay Length | 477 mm |
| Wheelbase | 1115 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 421 mm |
| Wheels | 700 |
| Rider Min Height | 147 cm |
| Rider Max Height | 155 cm |
