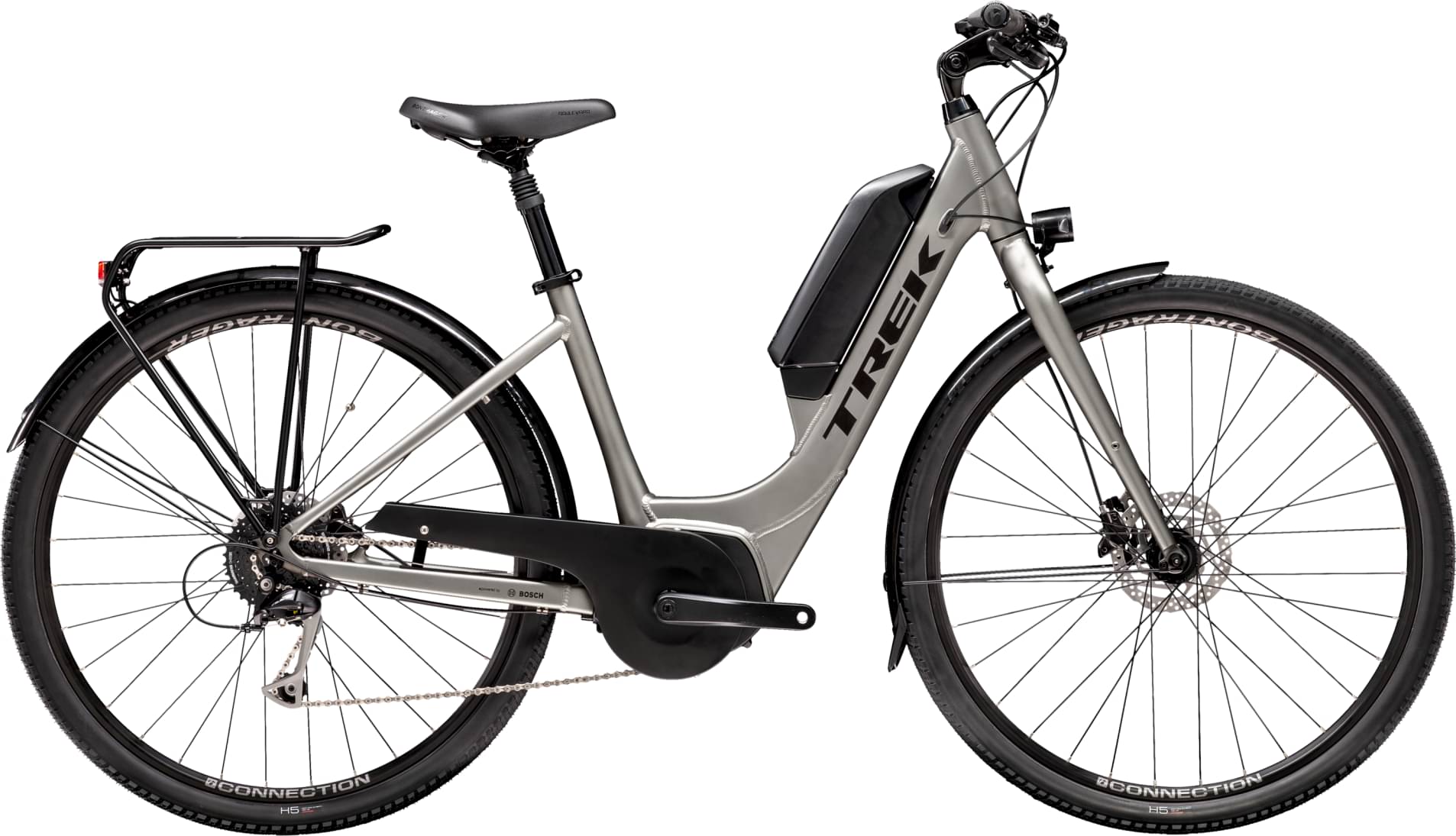

Trek Verve+ 2 Lowstep Gen 2 2022
2022 E-bike
Estimate price |
3,032$
Weight | 23.58 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio -
Suspension Rigid -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
LG
175cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, rack & mudguard mounts, internal routing, kickstand mount, 135x5 mm QR
Suspension Fork
Size: S, M, L, Verve Steel, threaded steel steerer, IS-disc mount, 460 mm axle-to-crown, 100x5 mm QR; Size: S, M, L, Alloy, IS disc, rack mounts, 415 mm axle-to-crown, 5x100 mm QR
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Size: S, M, L, Shimano Alivio M3100, 9-speed; Size: S, M, L, Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
ProWheel alloy, 170 mm length
Chain
KMC X9
Pedals
Size: S, M, L, Bontrager City pedals; Size: S, M, L, Wellgo C157, boron axle, plastic body
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Spokes
14 g stainless steel, black
Tires
Bontrager H5 Hard-Case Ultimate, wire bead, 60 tpi, 700x45 mm

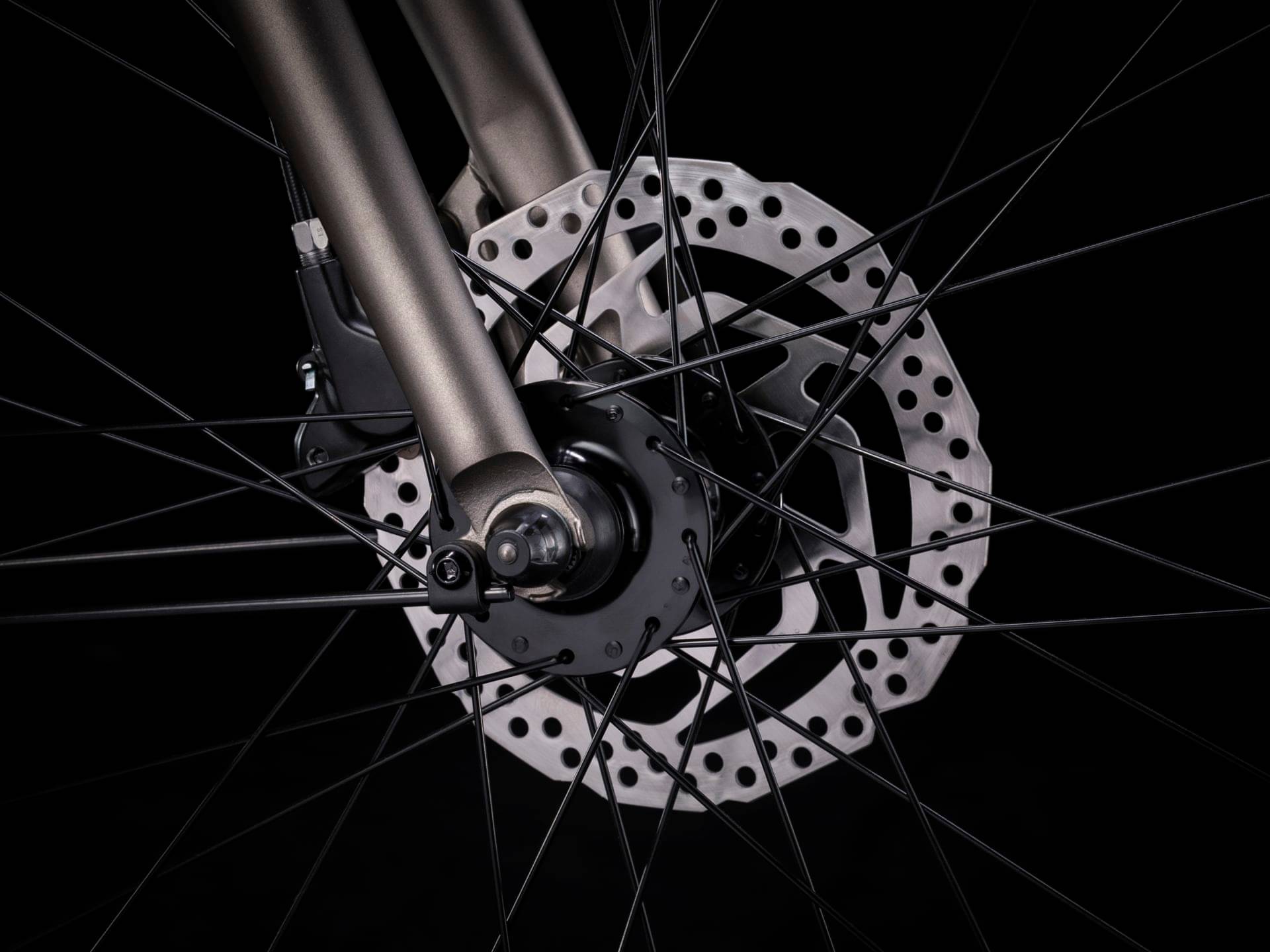

Brakes
Brakes
Size: S, M, L, Shimano MT200 hydraulic disc; Size: S, M, L, Tektro HD-M275 hydraulic disc, 160 mm rotor

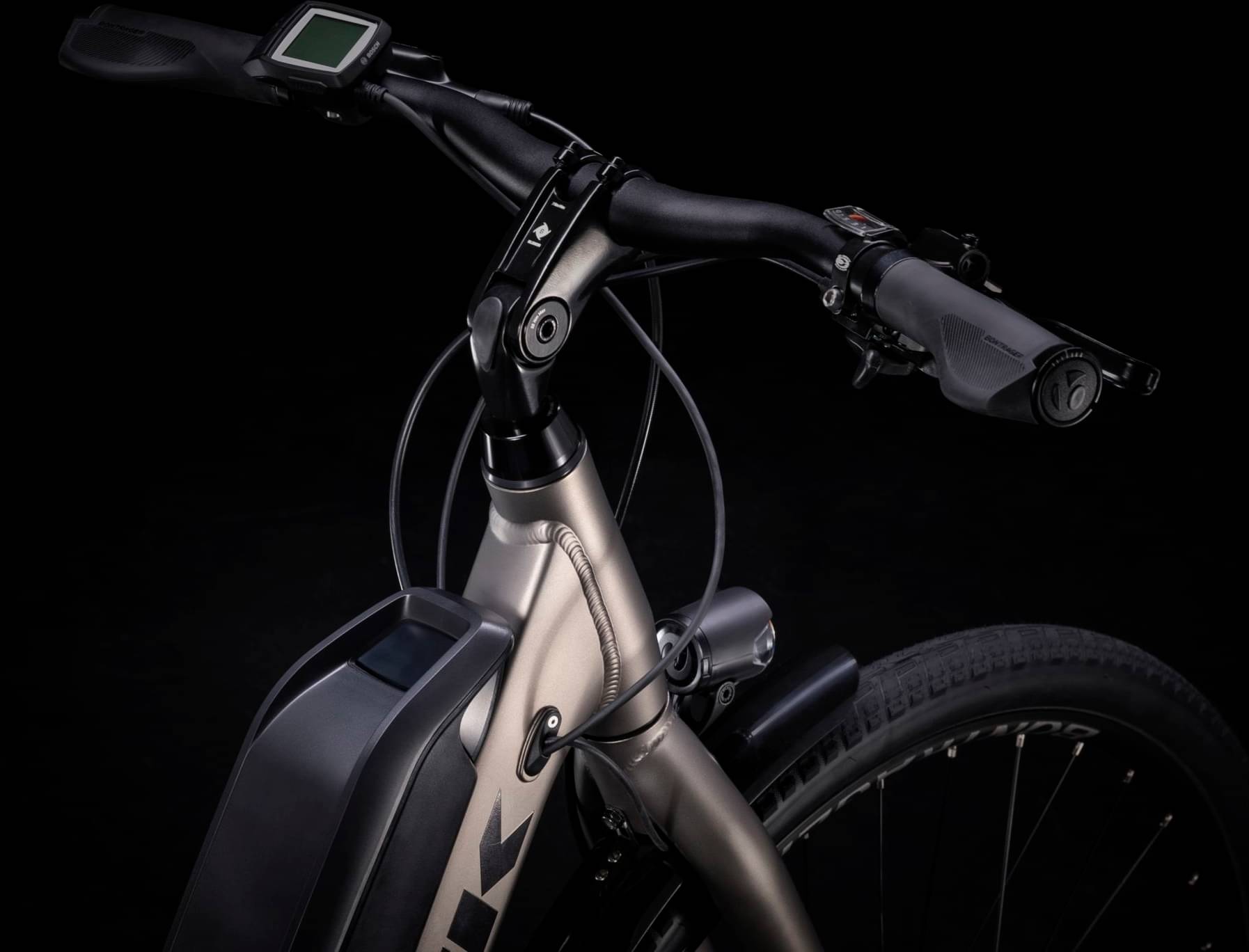

Cockpit
Stem
Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8 mm, comfort sweep, 620 mm width; Size: L, Bontrager alloy, 31.8 mm, comfort sweep, 660 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Size: S, M, L, Alloy, suspension, 31.6 mm, 300 mm length; Size: S, M, L, Alloy, adjustable suspension, 27.2 mm, 300 mm length
Motor & Battery

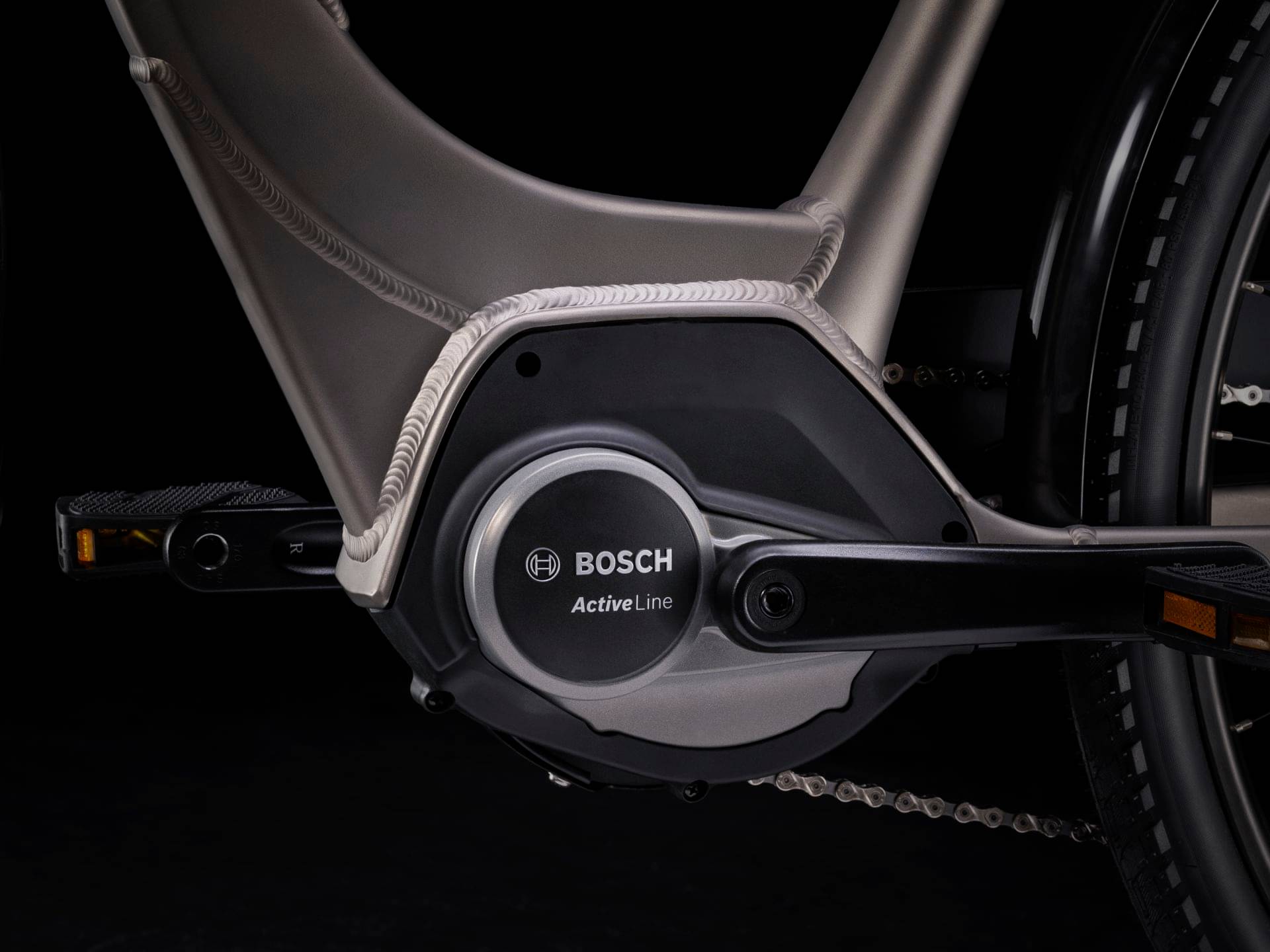

Motor
Bosch Active Line, 250 watt, 40 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand

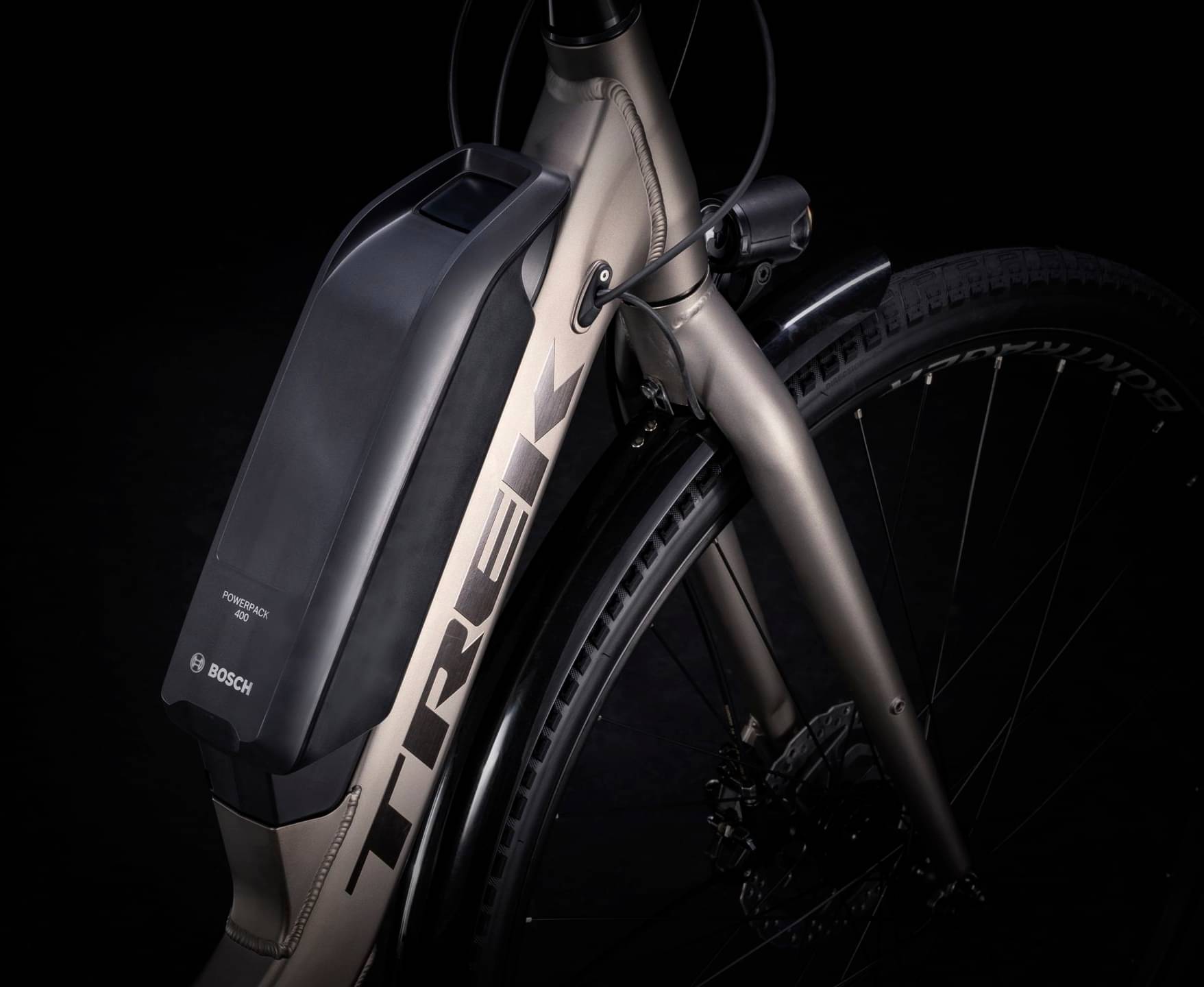

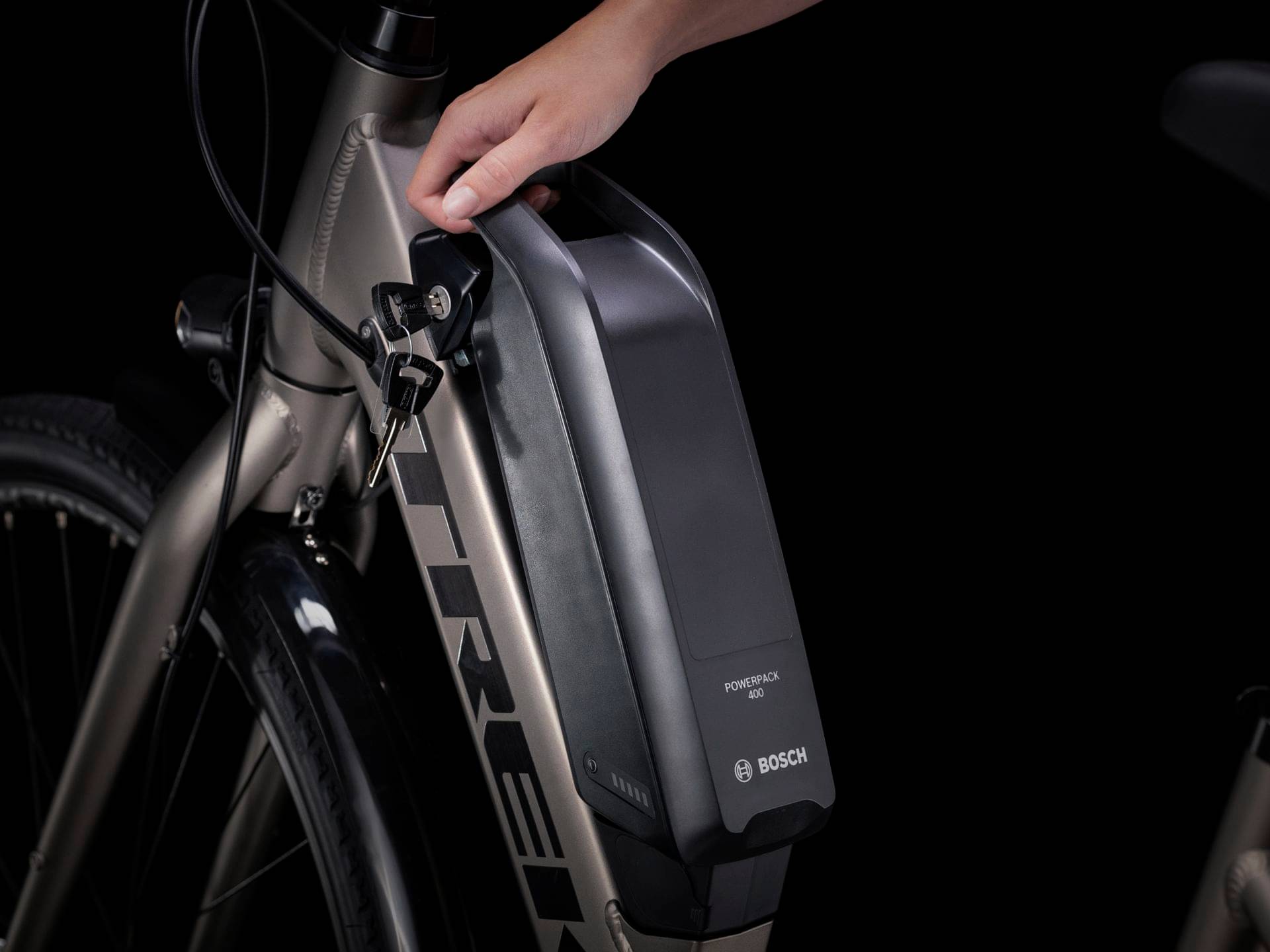

Battery
Bosch PowerPack 400 Wh
Charger
Bosch compact 2A, 100–240V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.638 mm | 1.616 mm |
| Bottom Bracket Height | 286 mm | 302 mm |
| Front Center | 646 mm | 670 mm |
| Rake | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm |
| Stack | 616 mm | 635 mm |
| Reach | 376 mm | 393 mm |
| Top Tube Length | 588 mm | 624 mm |
| Seat Tube Angle | 70 ° | 70 ° |
| Seat Tube Length | 440 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 180 mm |
| Chainstay Length | 502 mm | 502 mm |
| Wheelbase | 1141 mm | 1165 mm |
| Bottom Bracket Drop | 62 mm | 62 mm |
| Standover Height | 440 mm | 440 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 175 cm |
| Rider Max Height | 165 cm | 186 cm |
