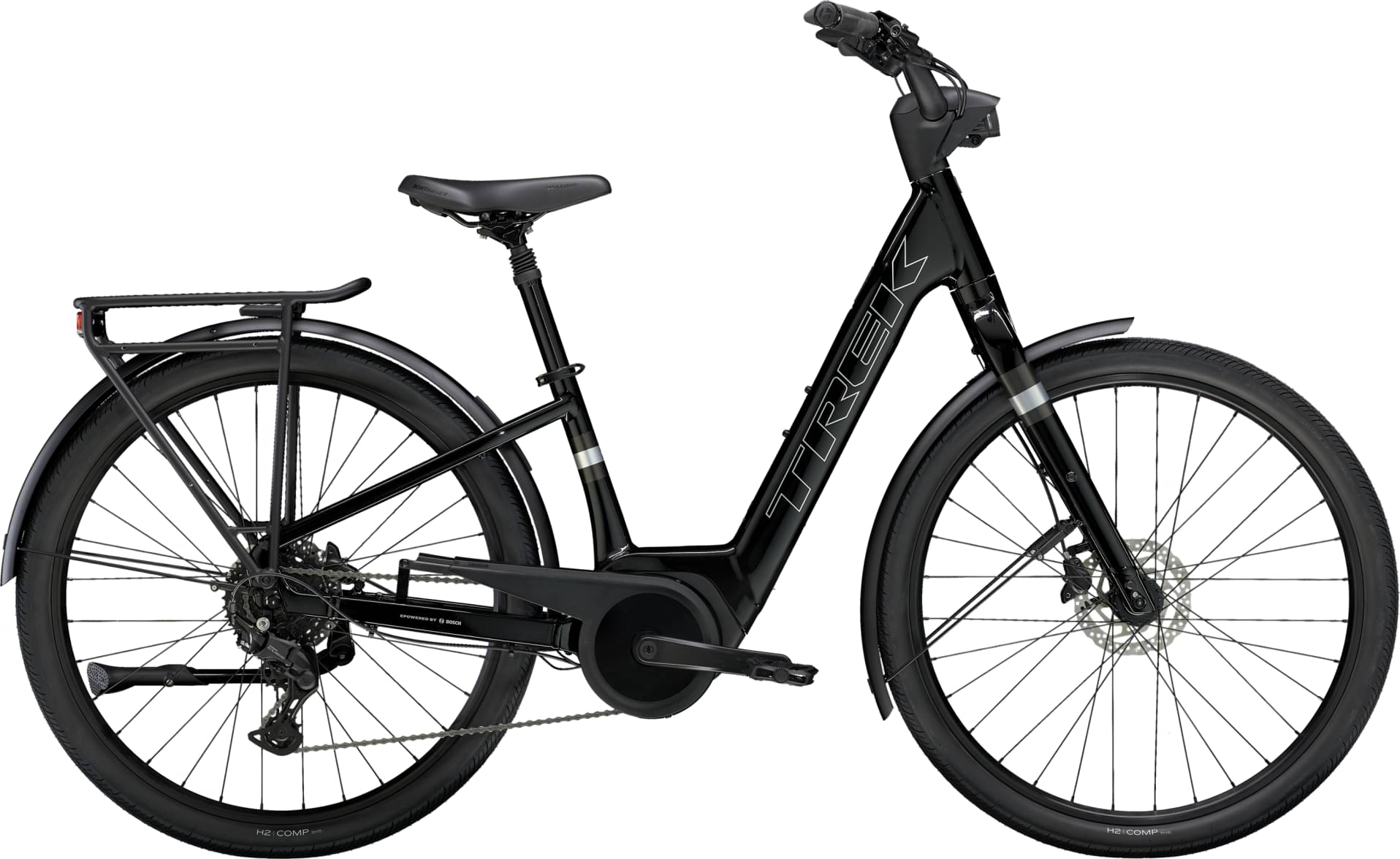

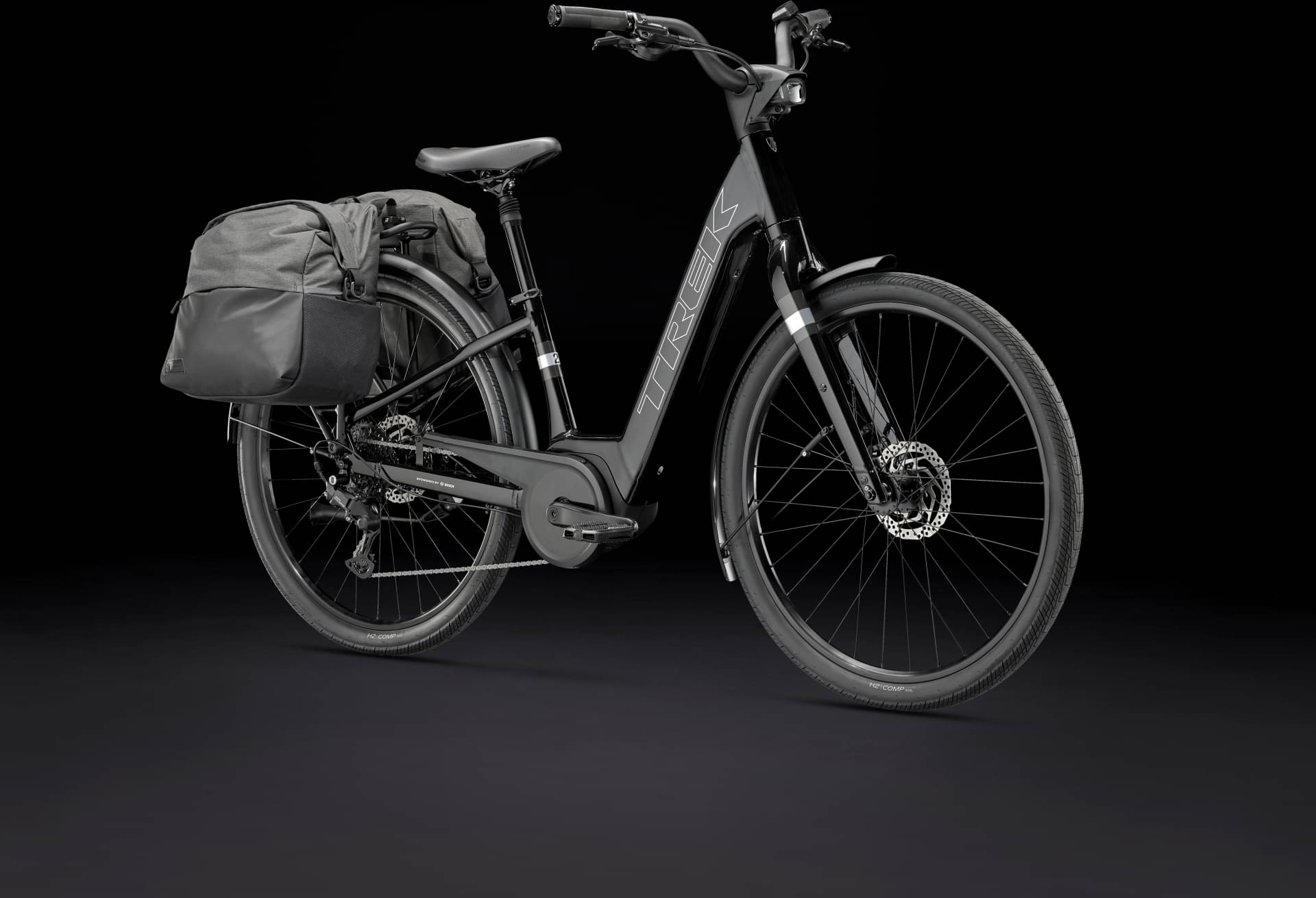

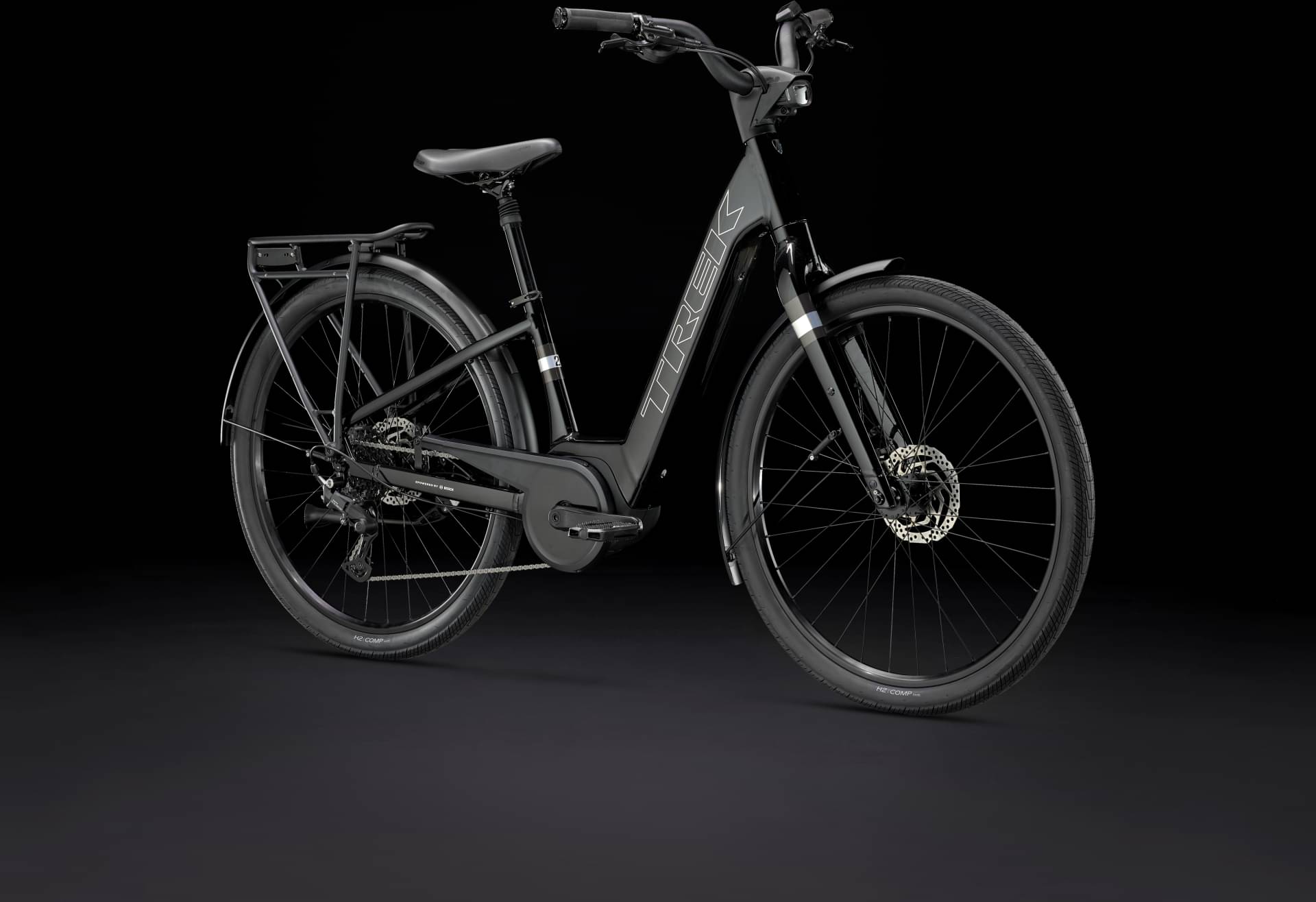

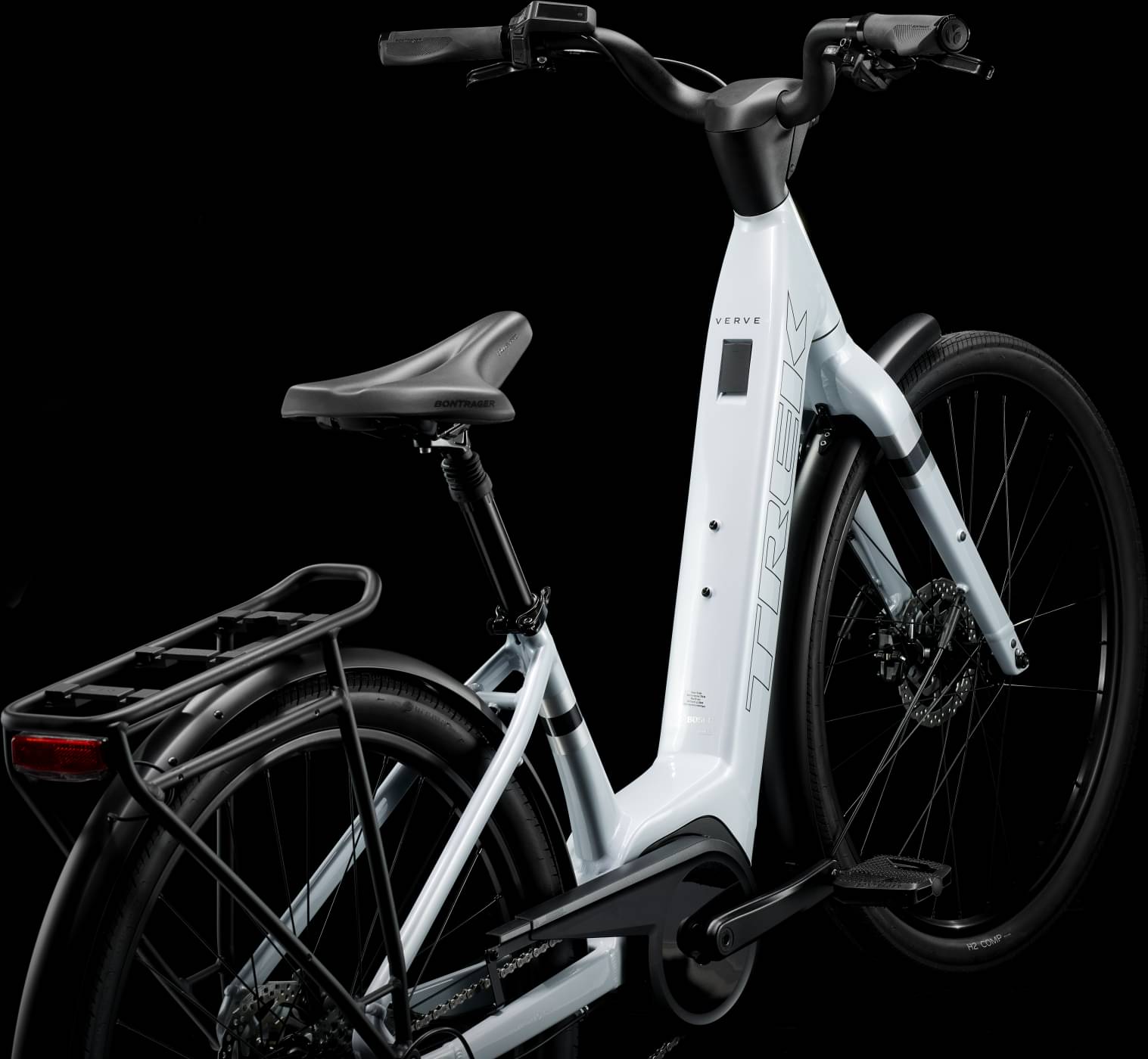

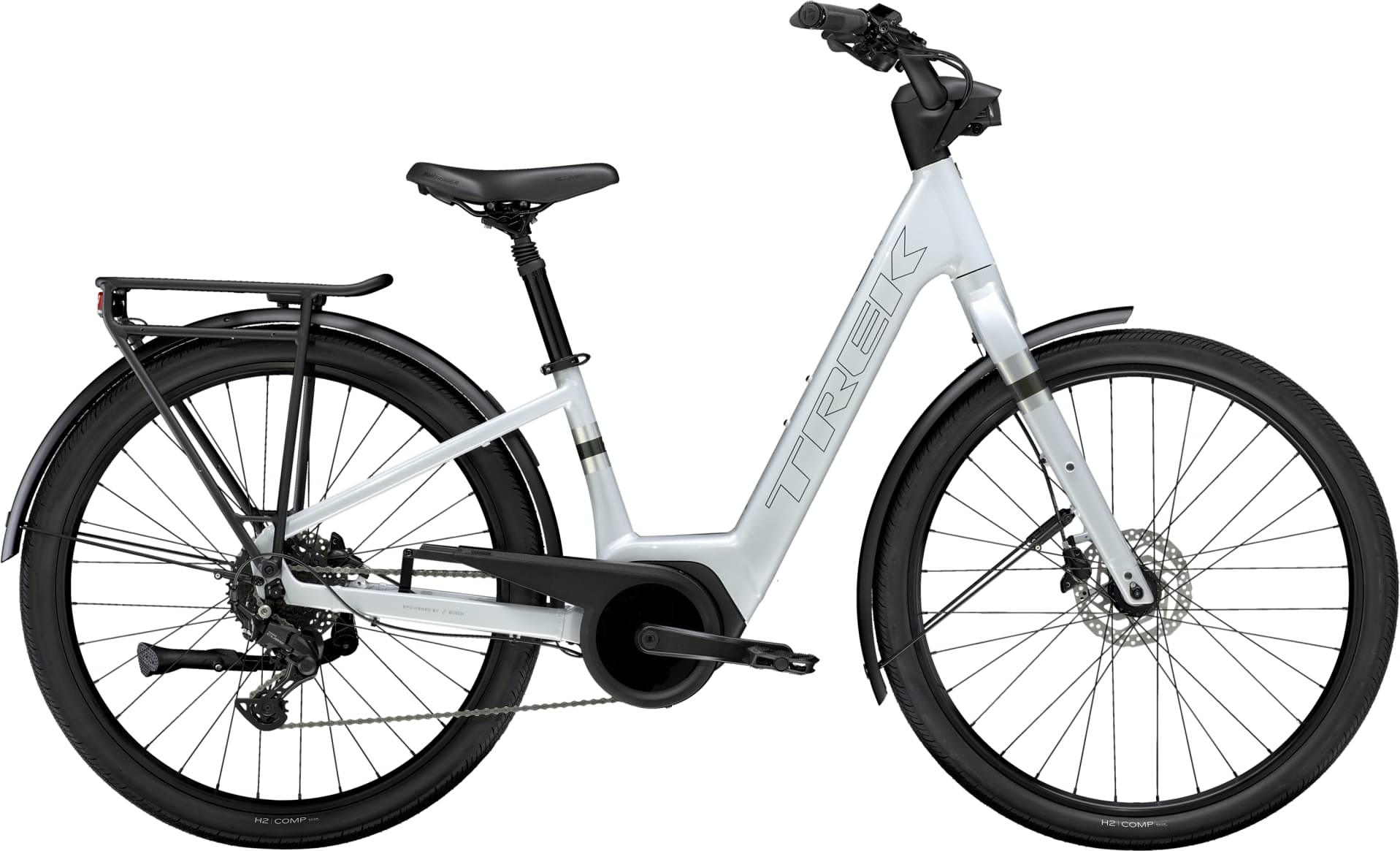

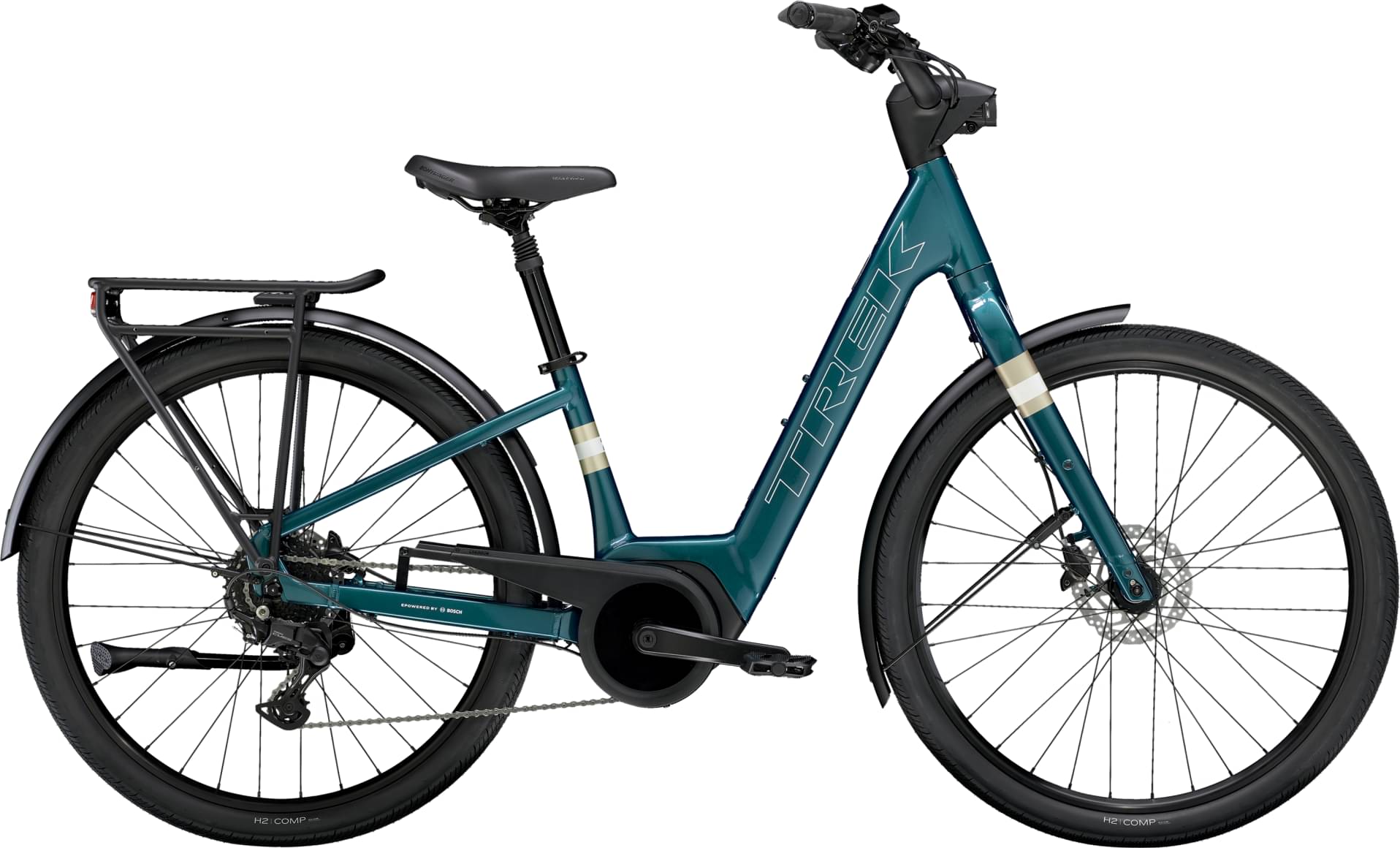

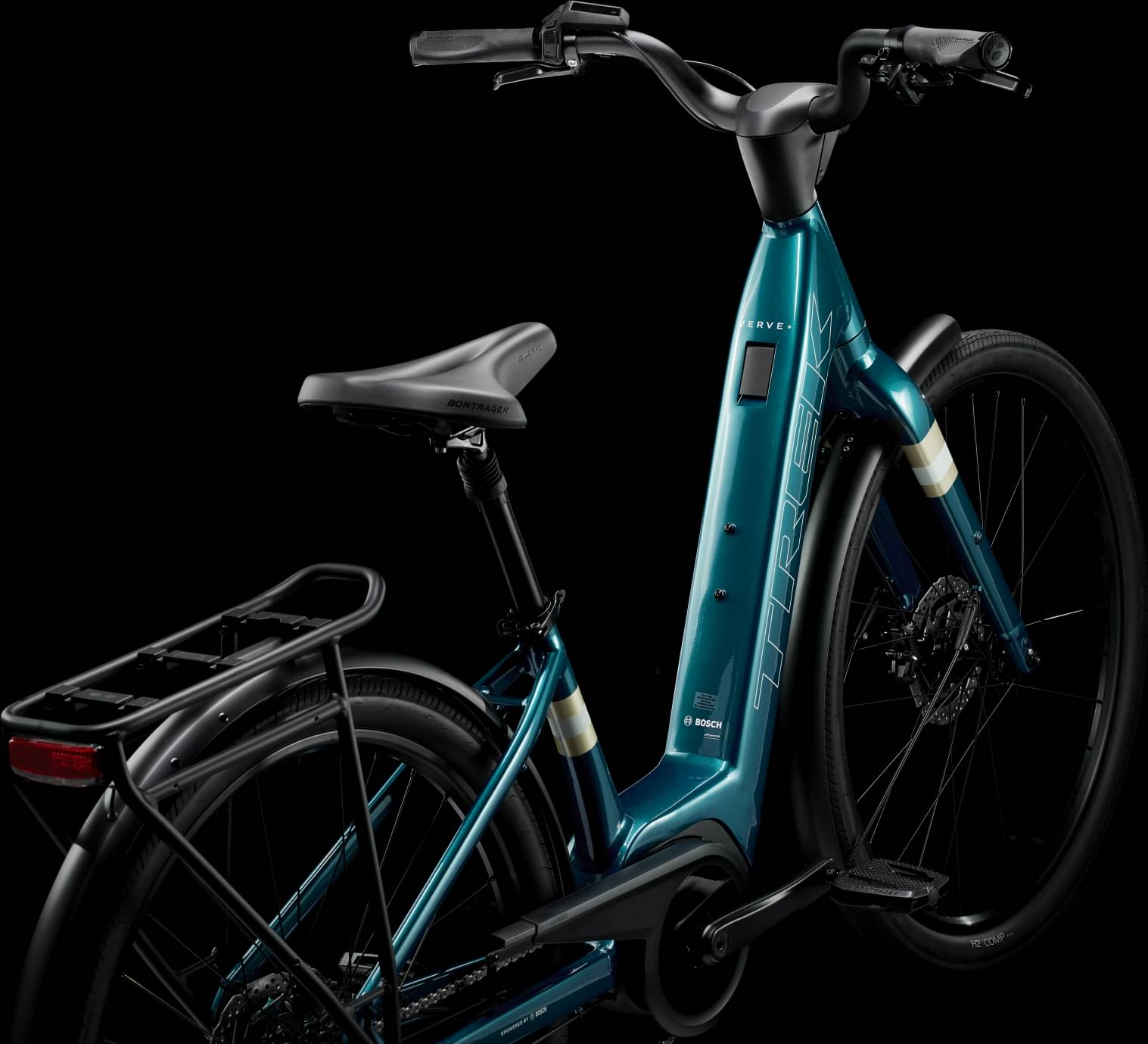

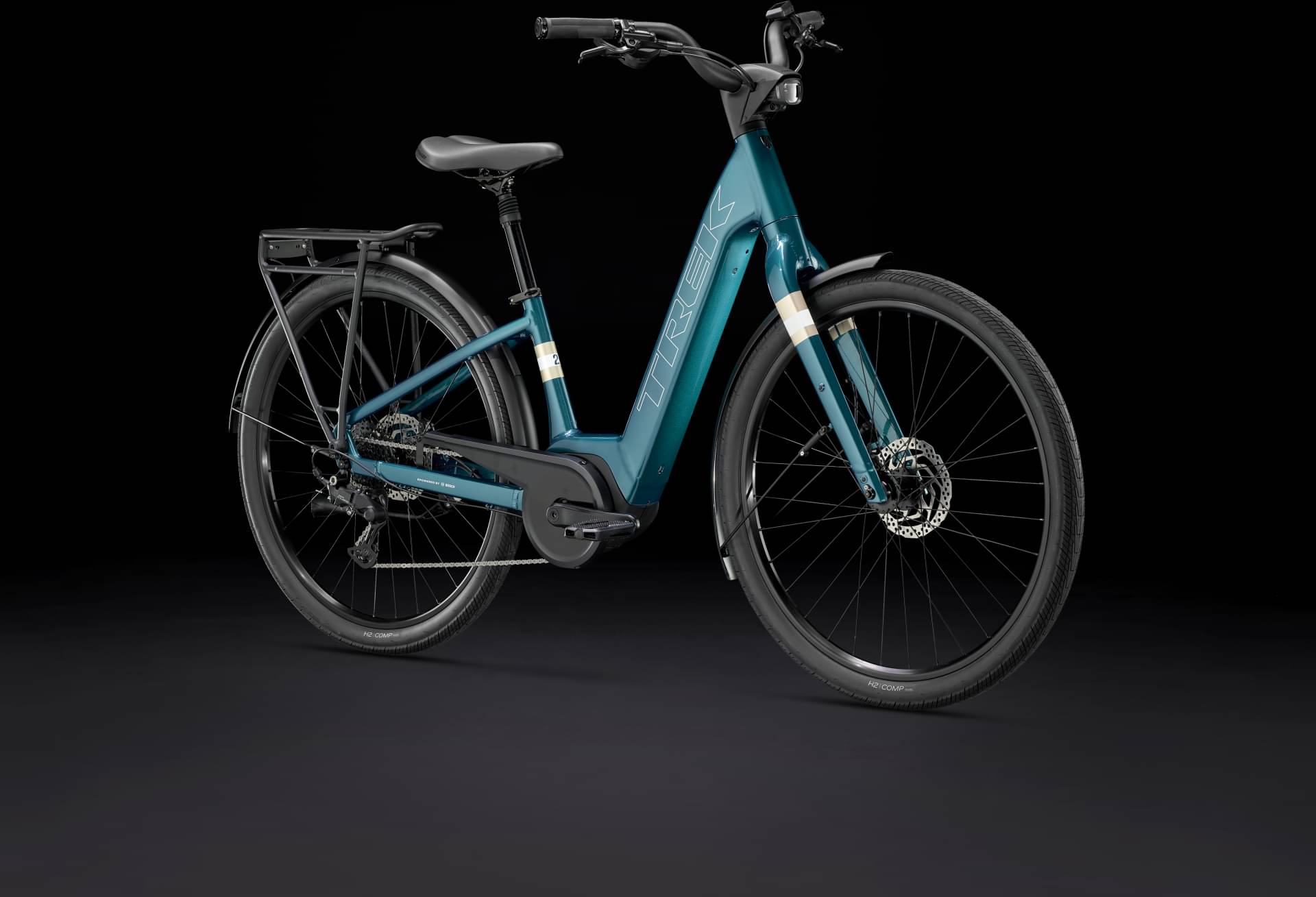

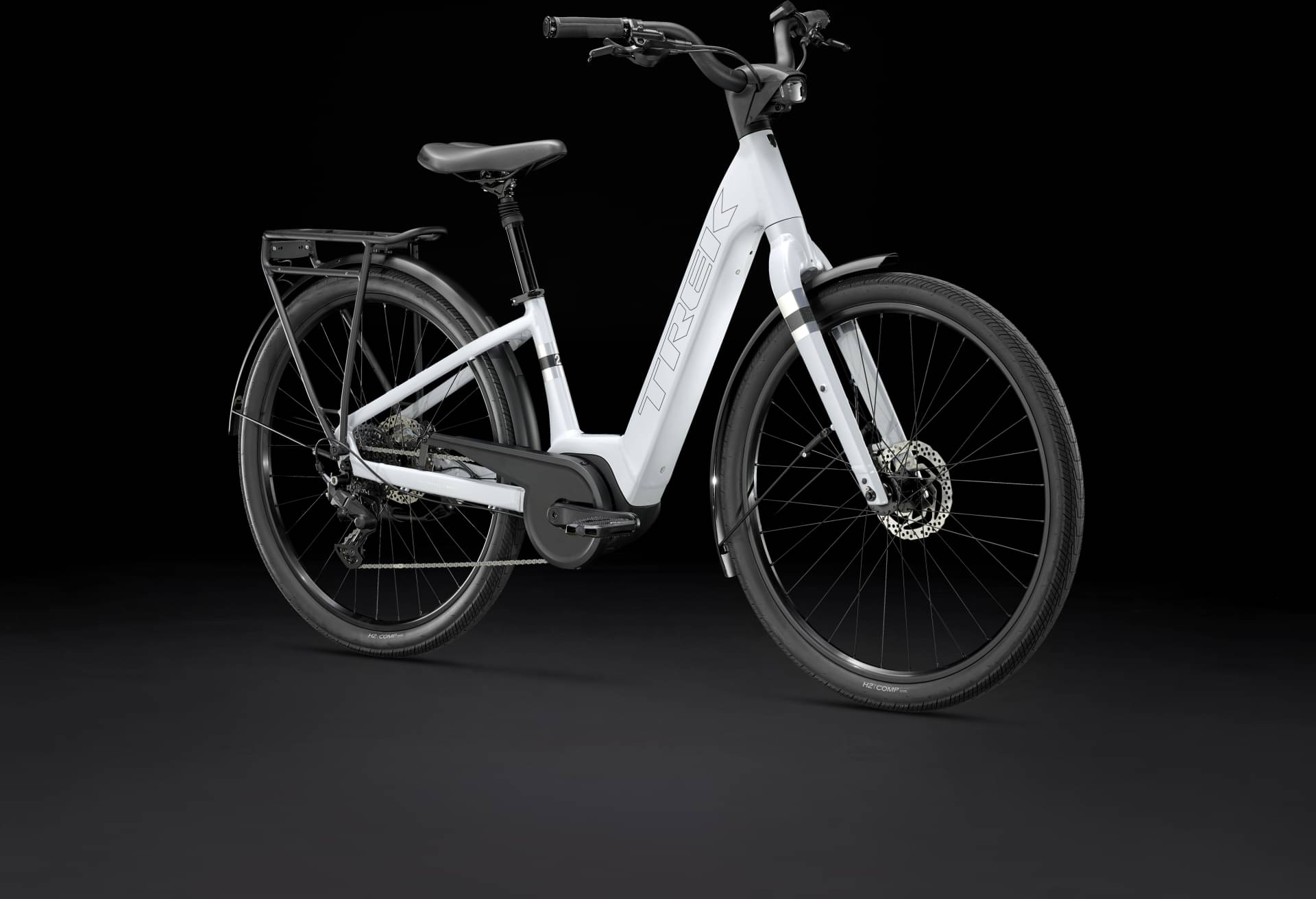

Trek Verve+ 2 Lowstep Gen 3 2025
2025 E-bike
Estimate price |
3,722$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch CompactTube 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, Bosch Compact PowerTube, internal cable routing, post-mount disc, 135X5mm QR
Suspension Fork
Verve alloy, threaded steel steerer, ThruSkew QR

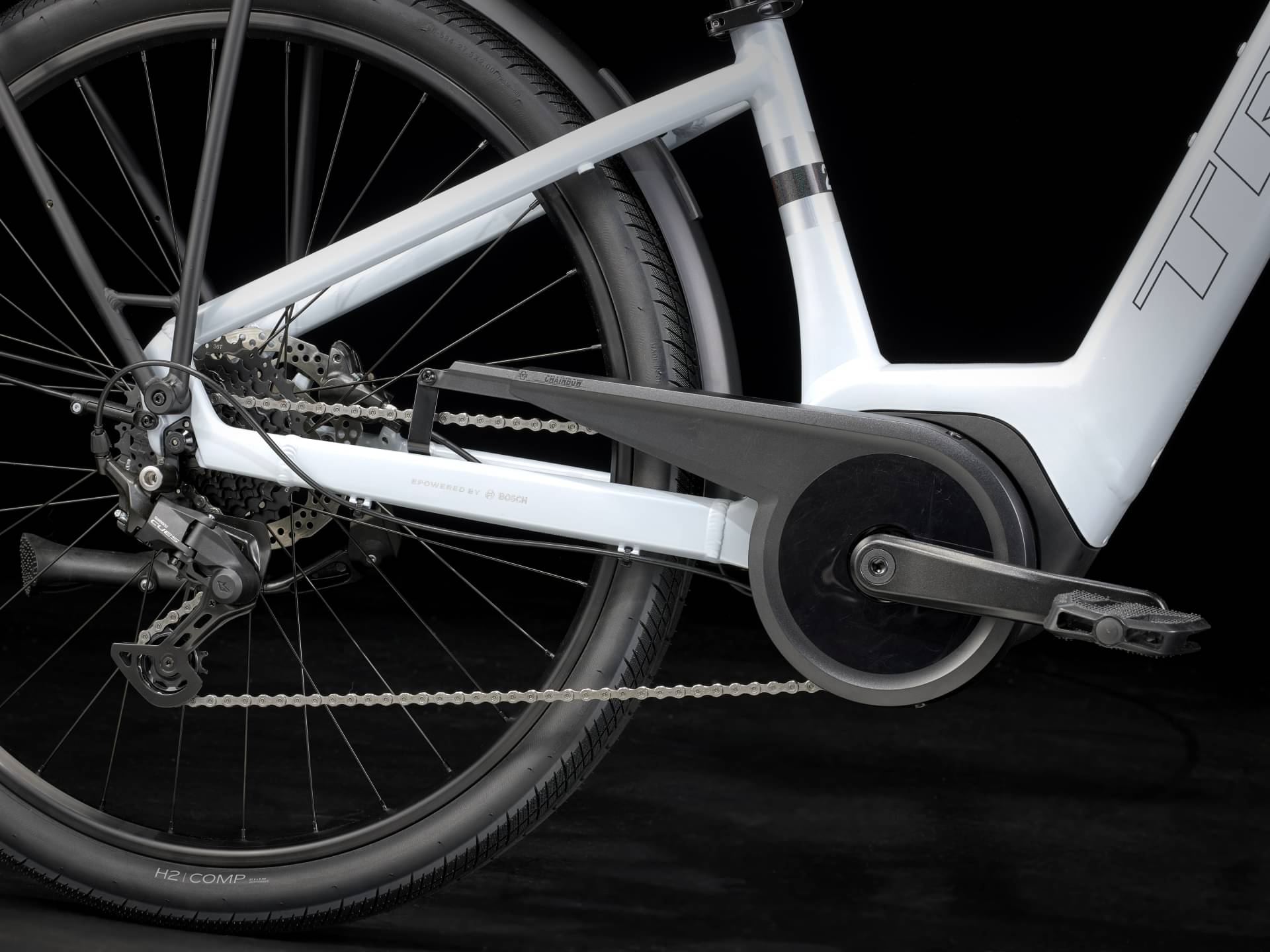

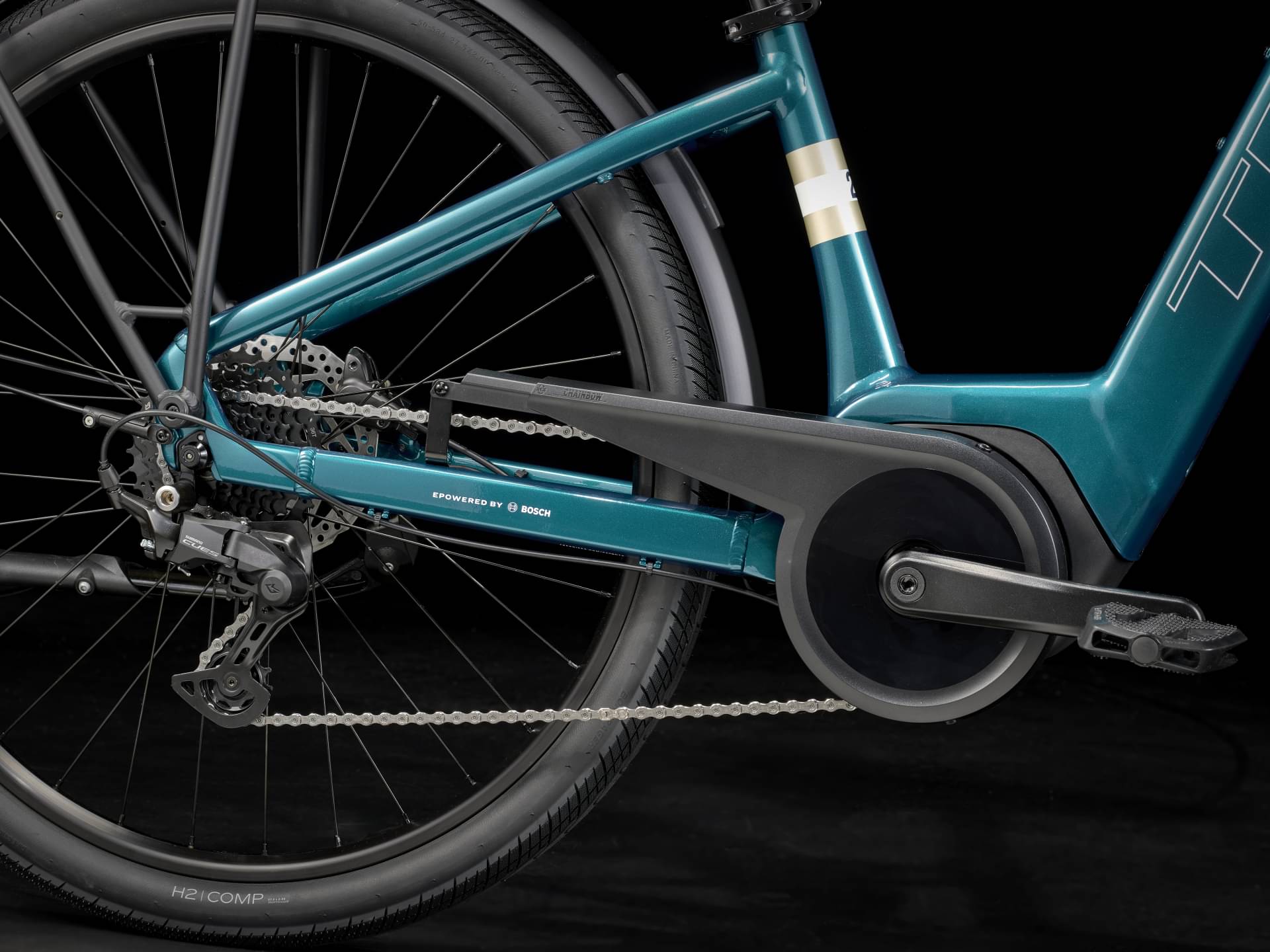

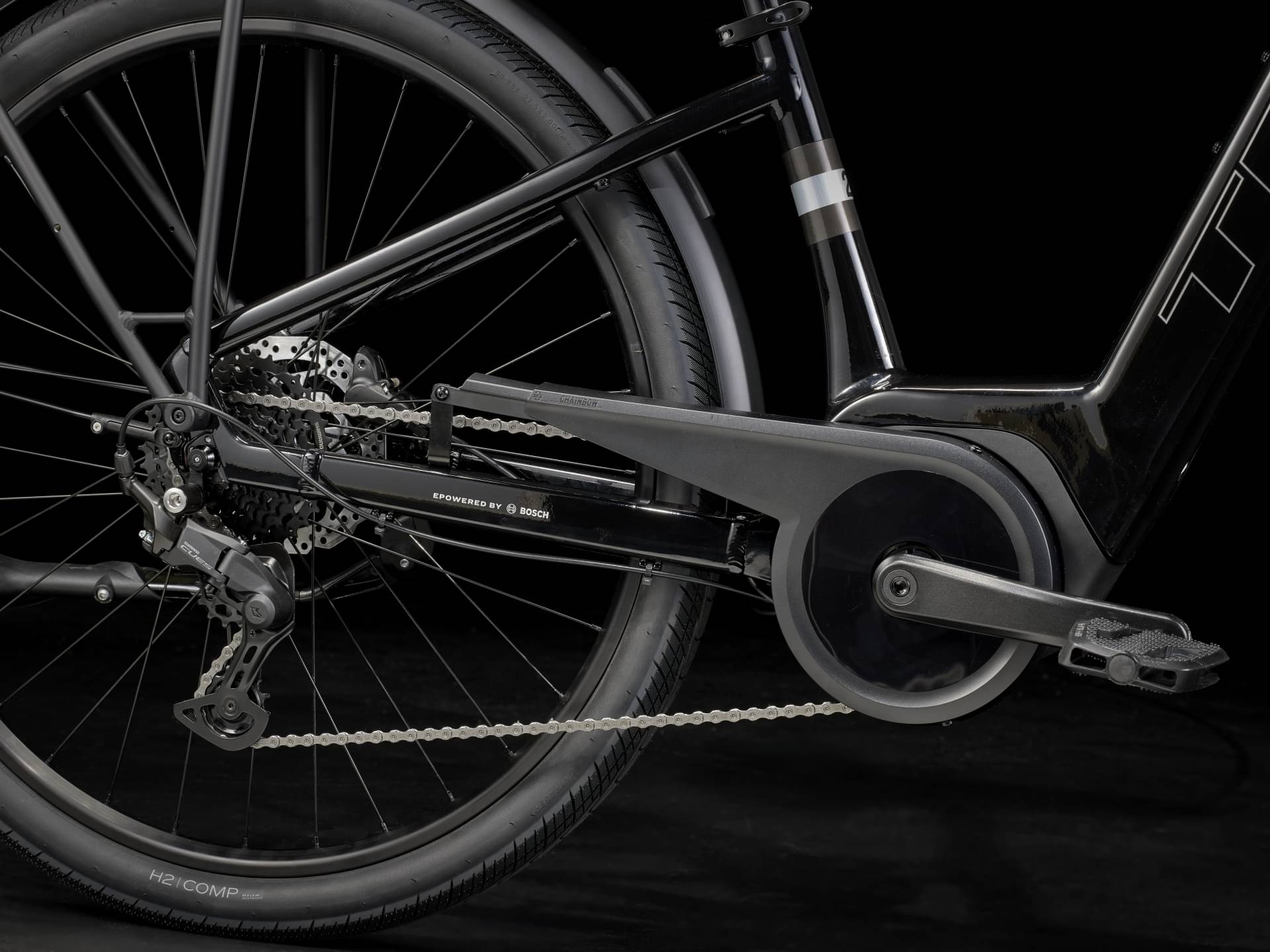

Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9 speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-36, 9 speed
Crank
ProWheel alloy, 170mm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel, black
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00''
Brakes

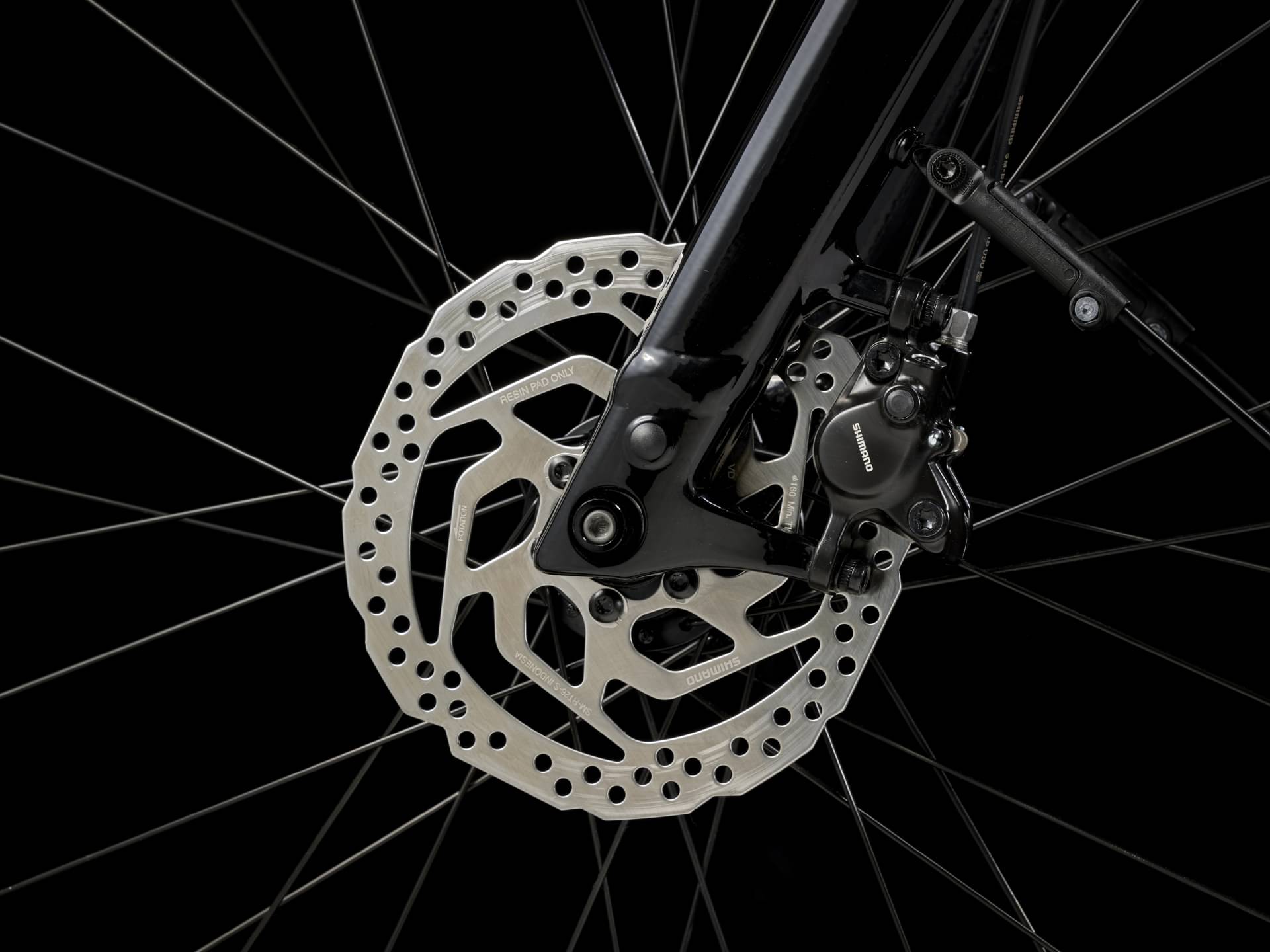

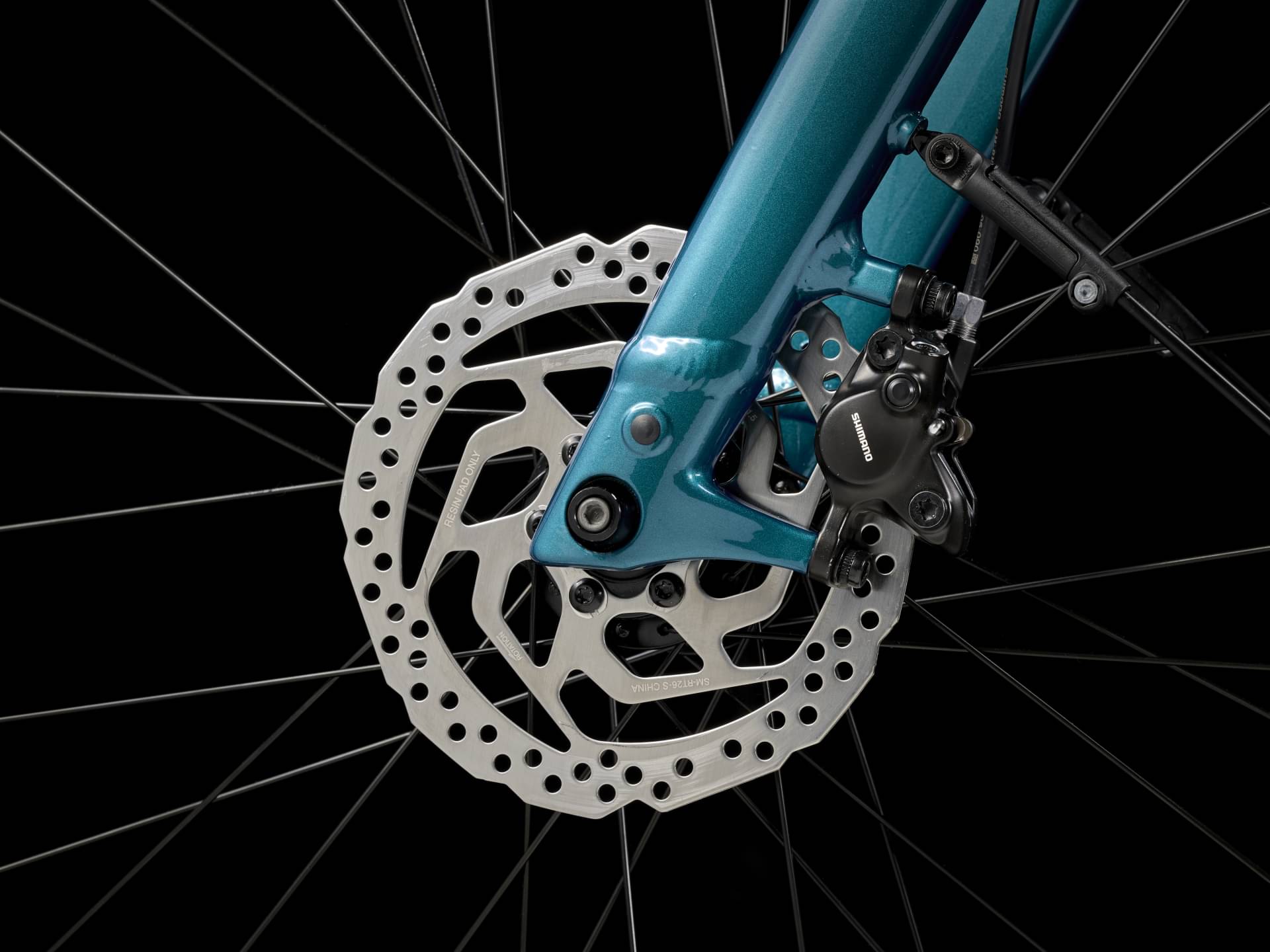

Brakes

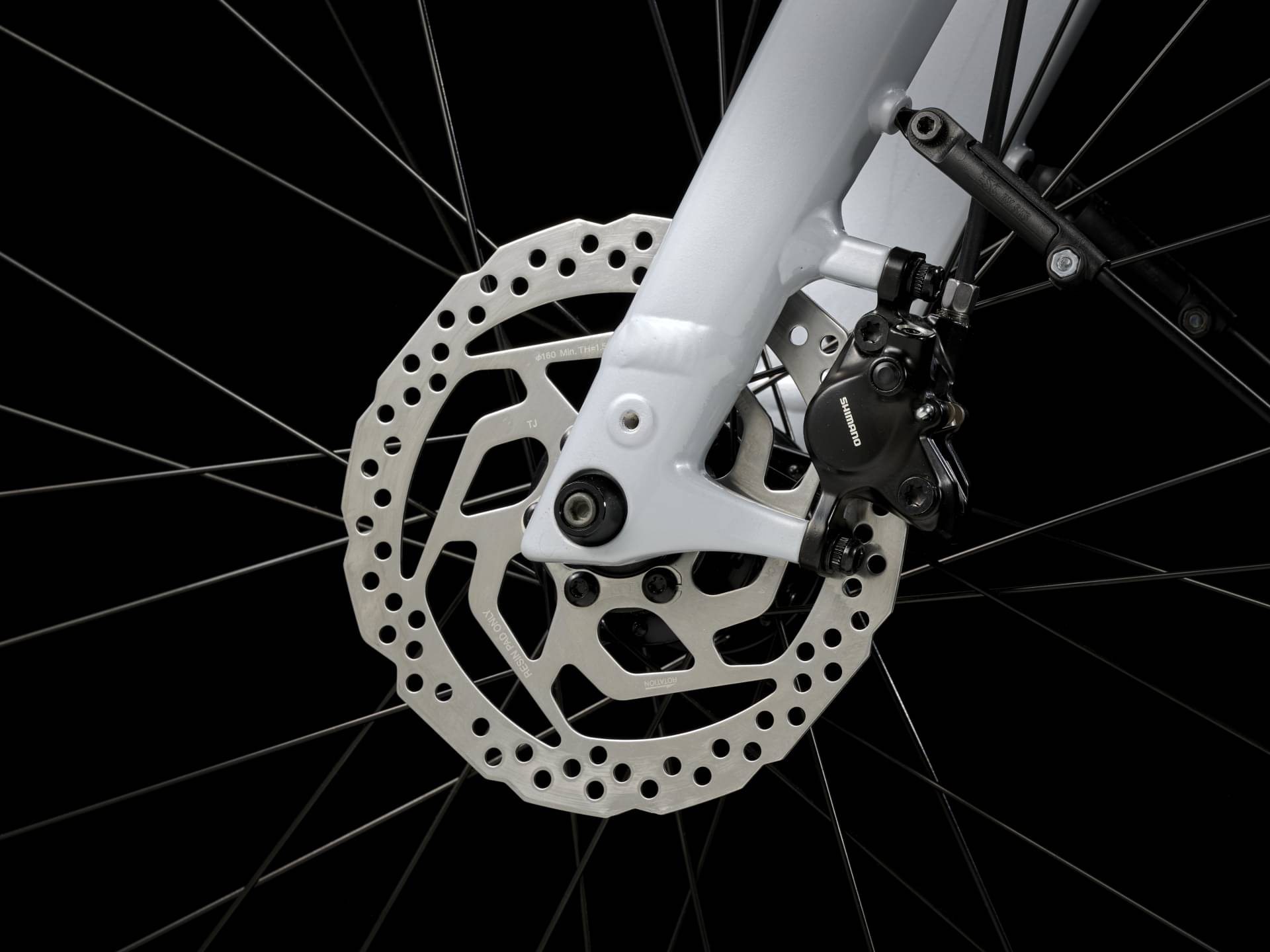

Shimano MT200 hydraulic disc
Cockpit
Stem

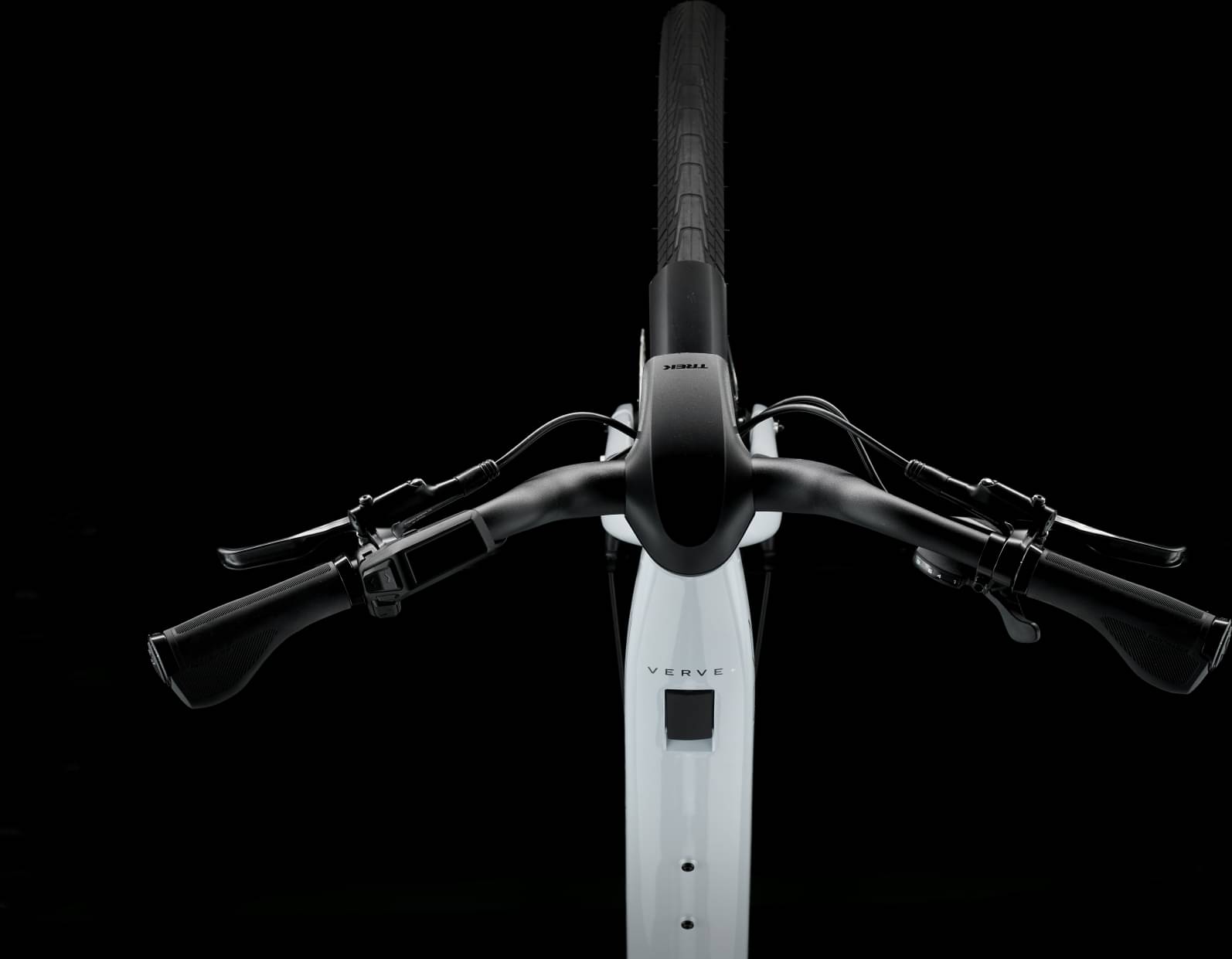

Integrated stem, 35mm clamp
Handlebar

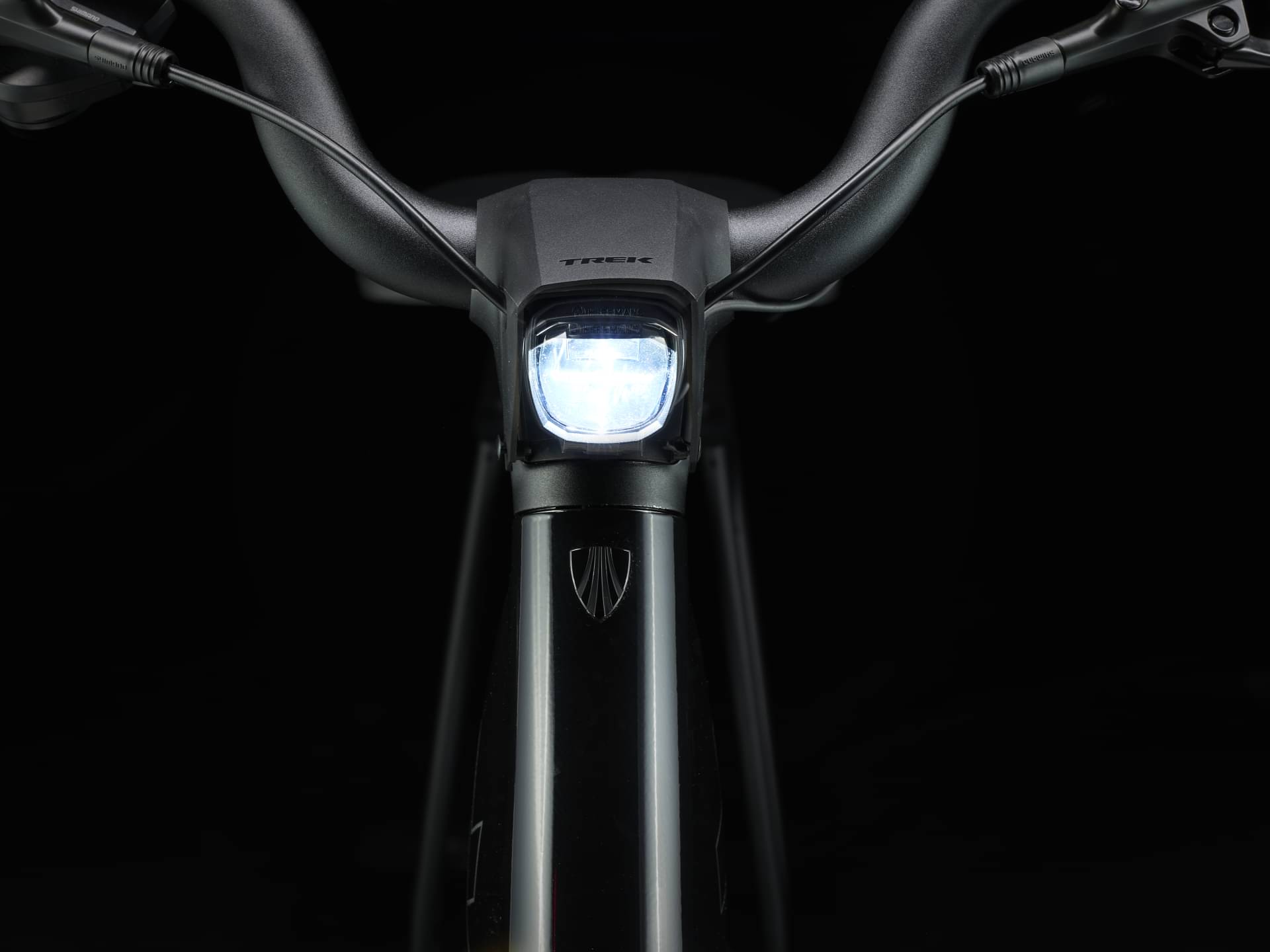

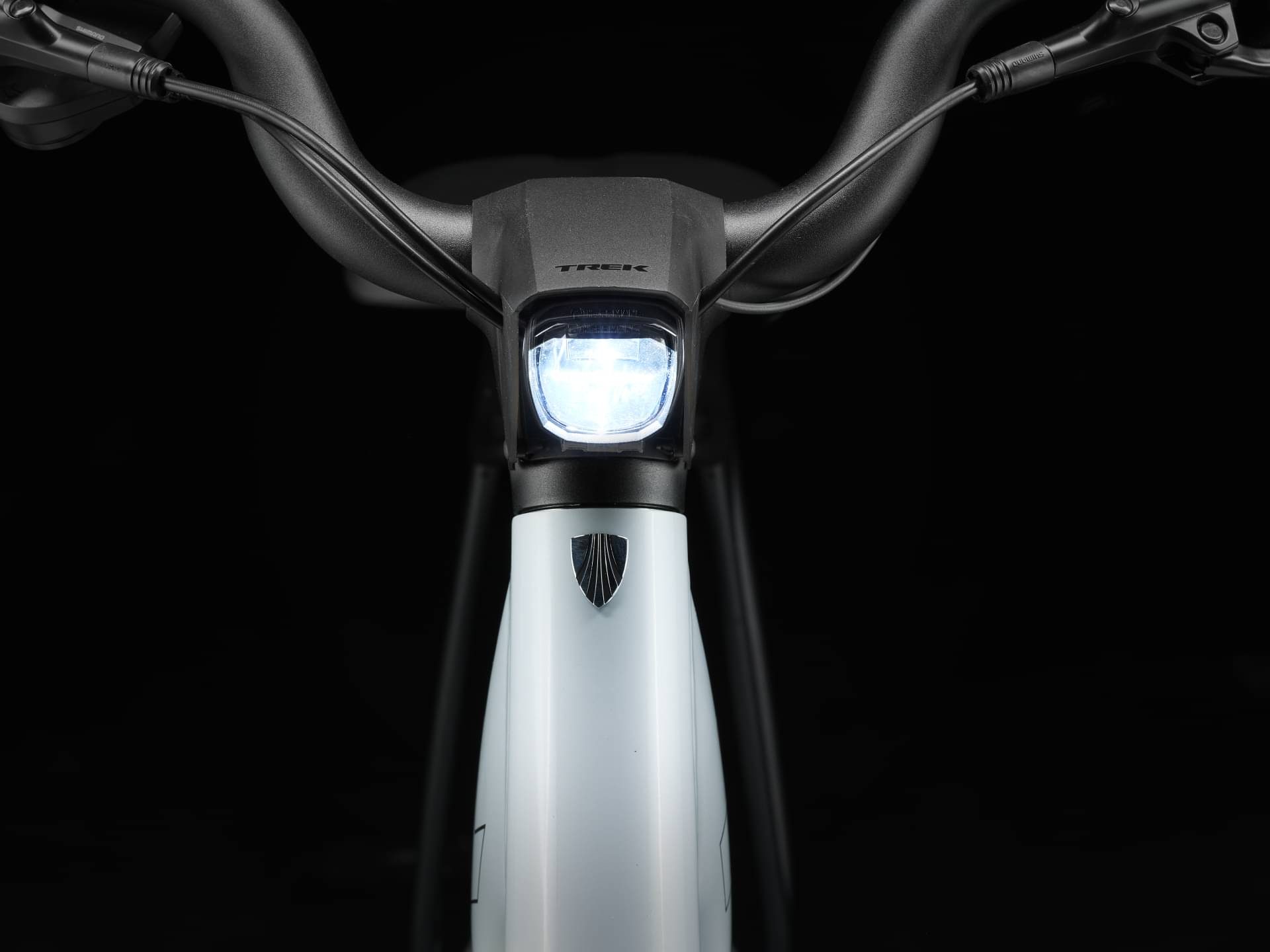

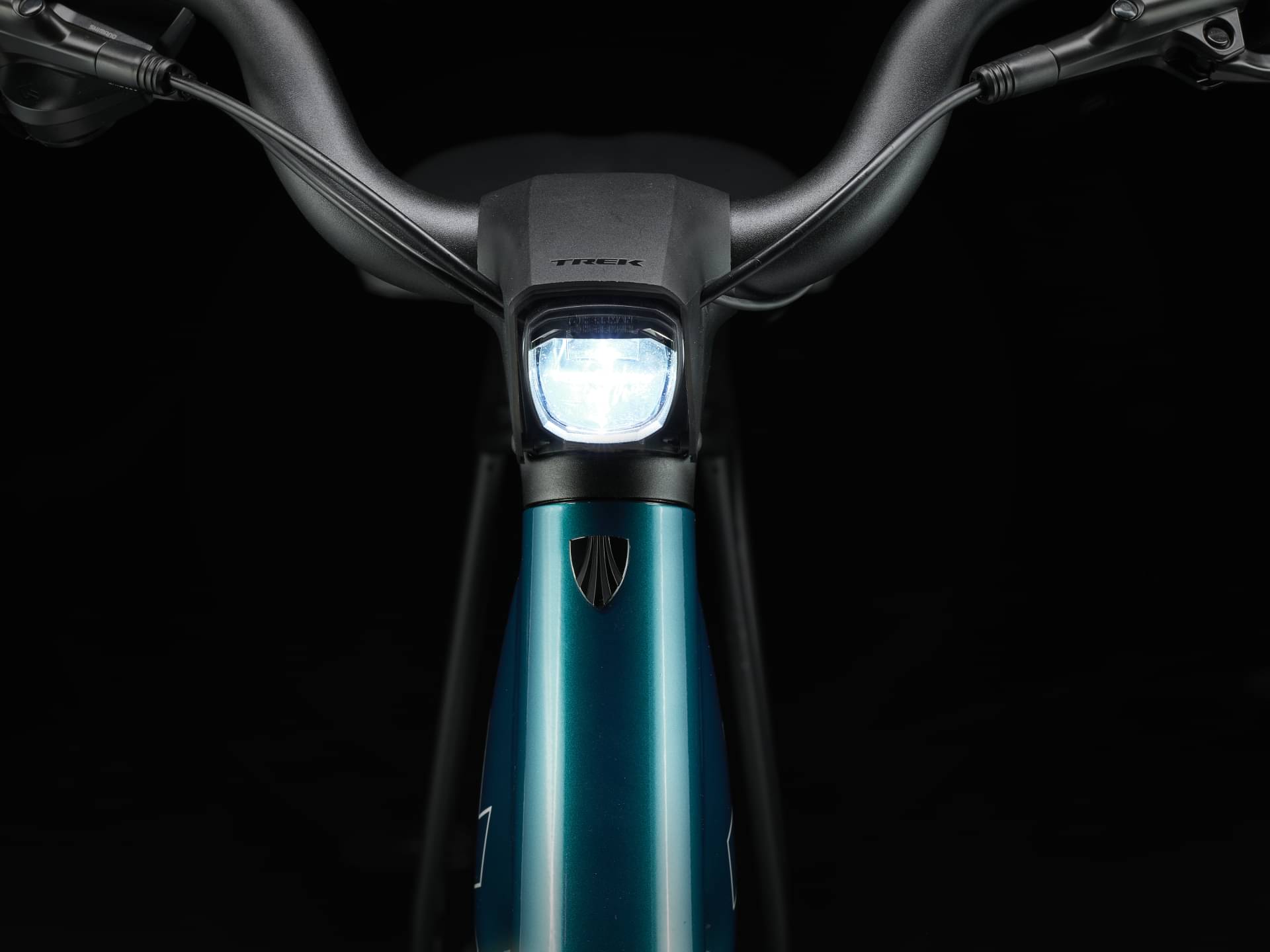

Bar/stem w/ light mount
Grips

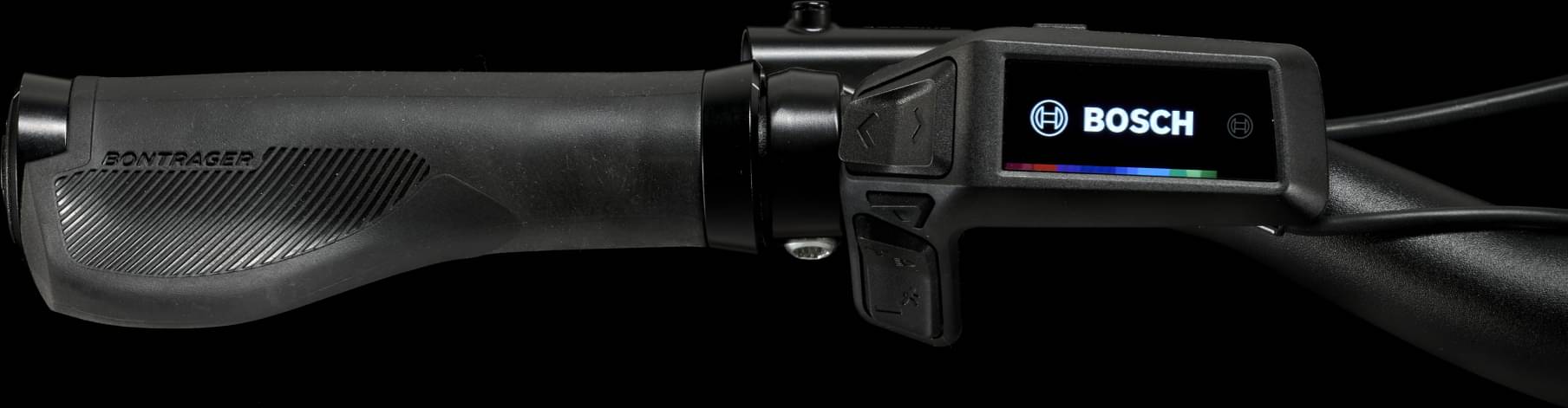

Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6mm, 300mm length
Motor & Battery

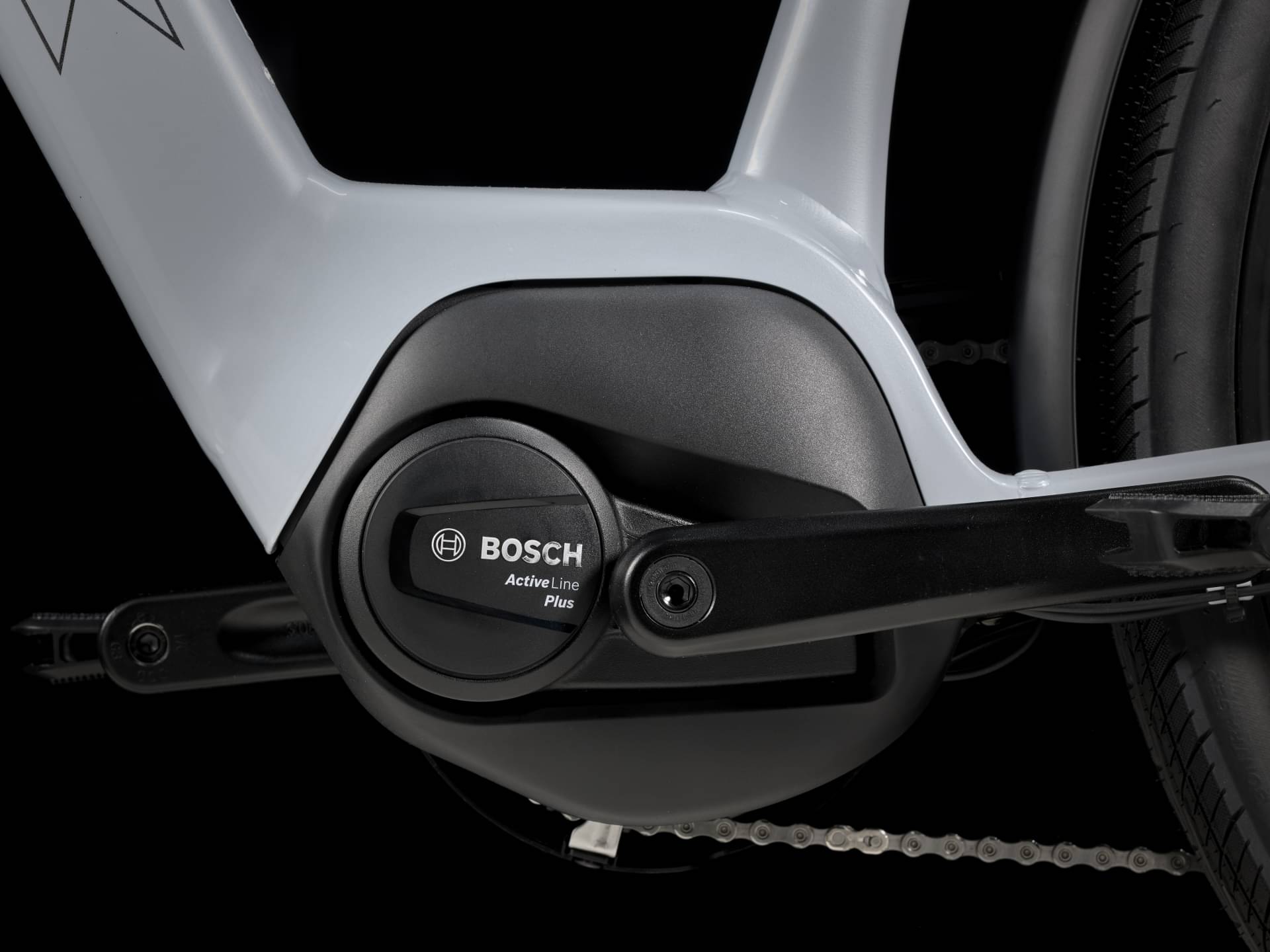

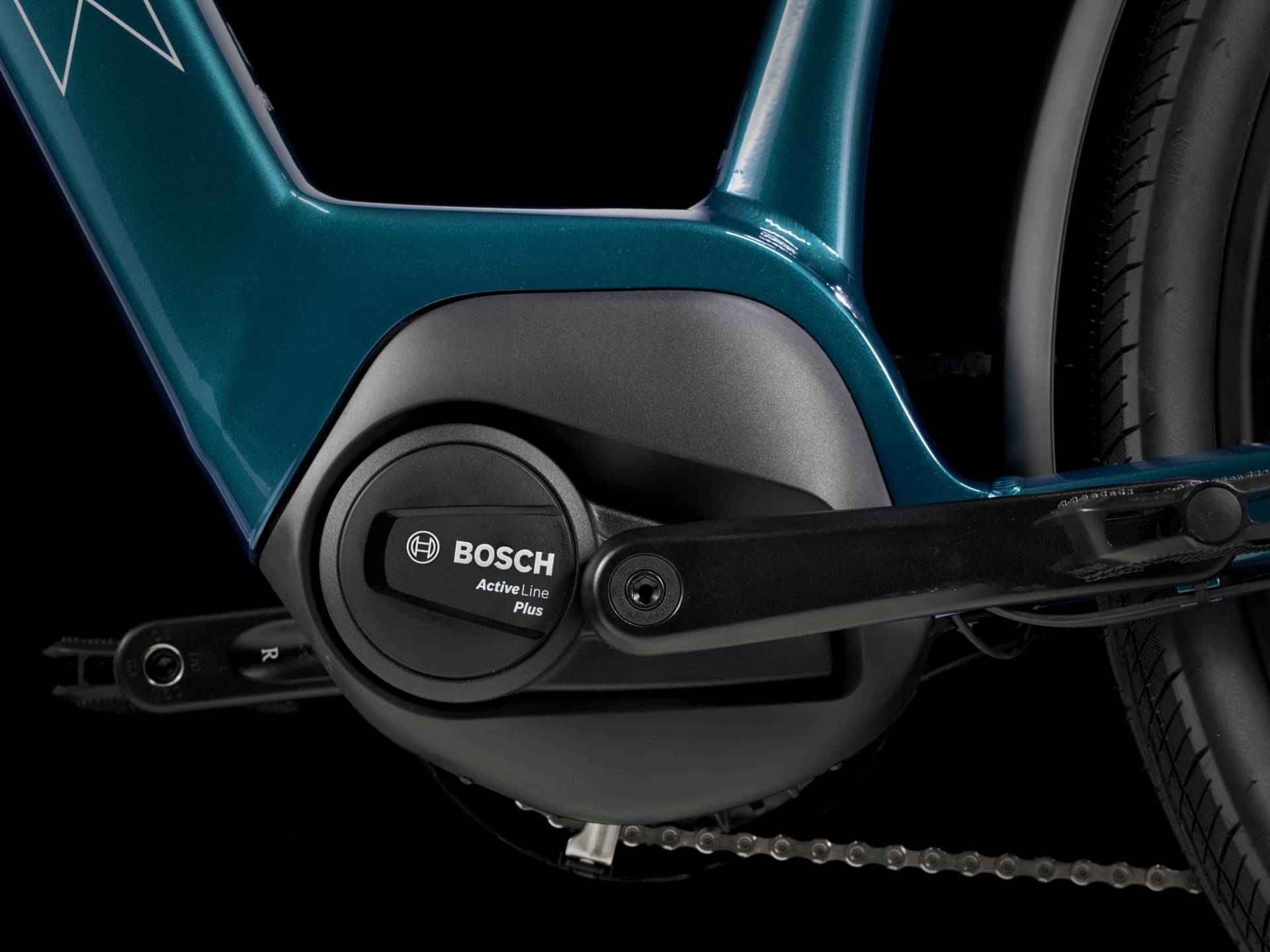

Motor

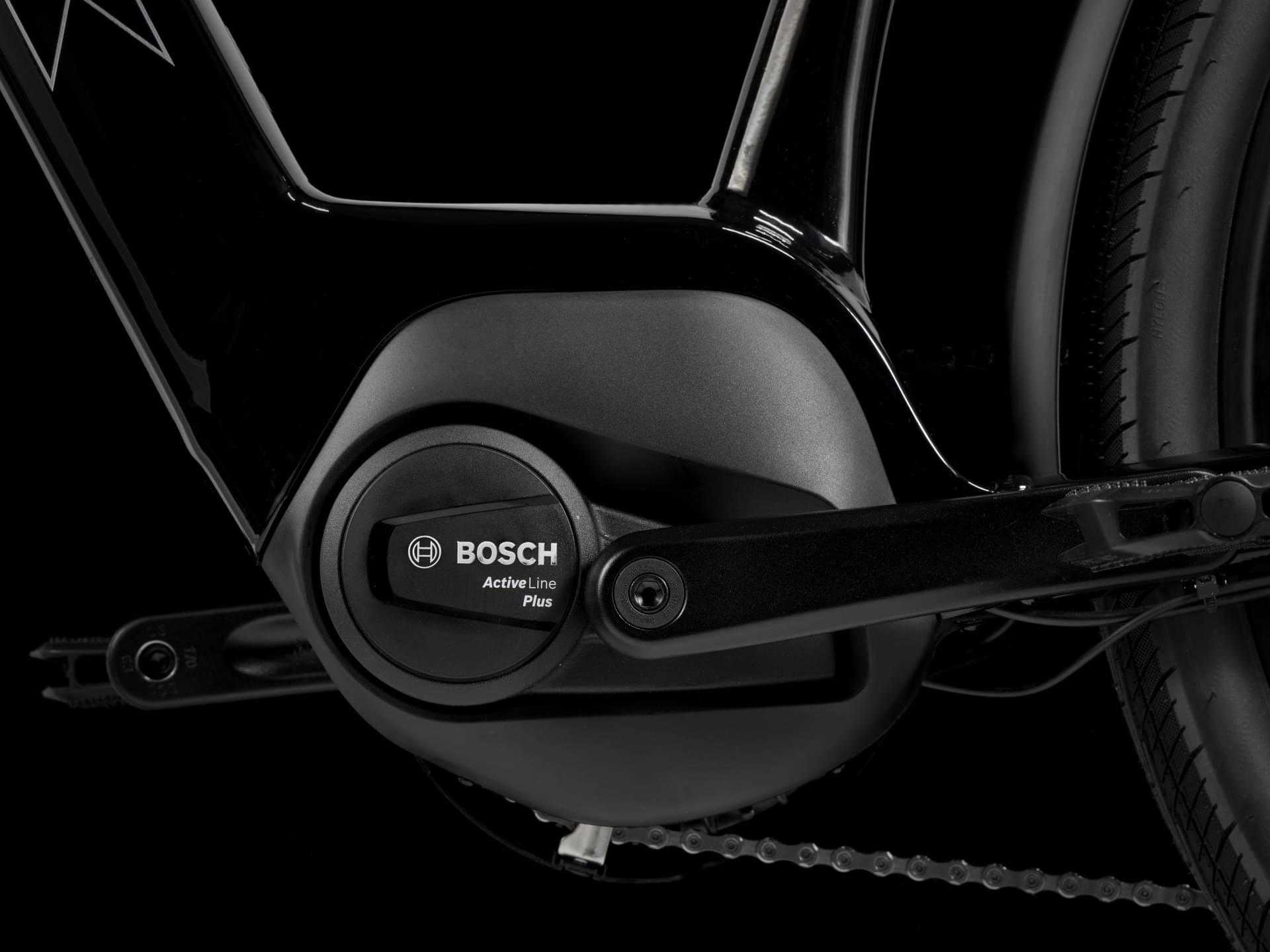

Bosch Active Line Plus
Battery
Bosch CompactTube 400Wh

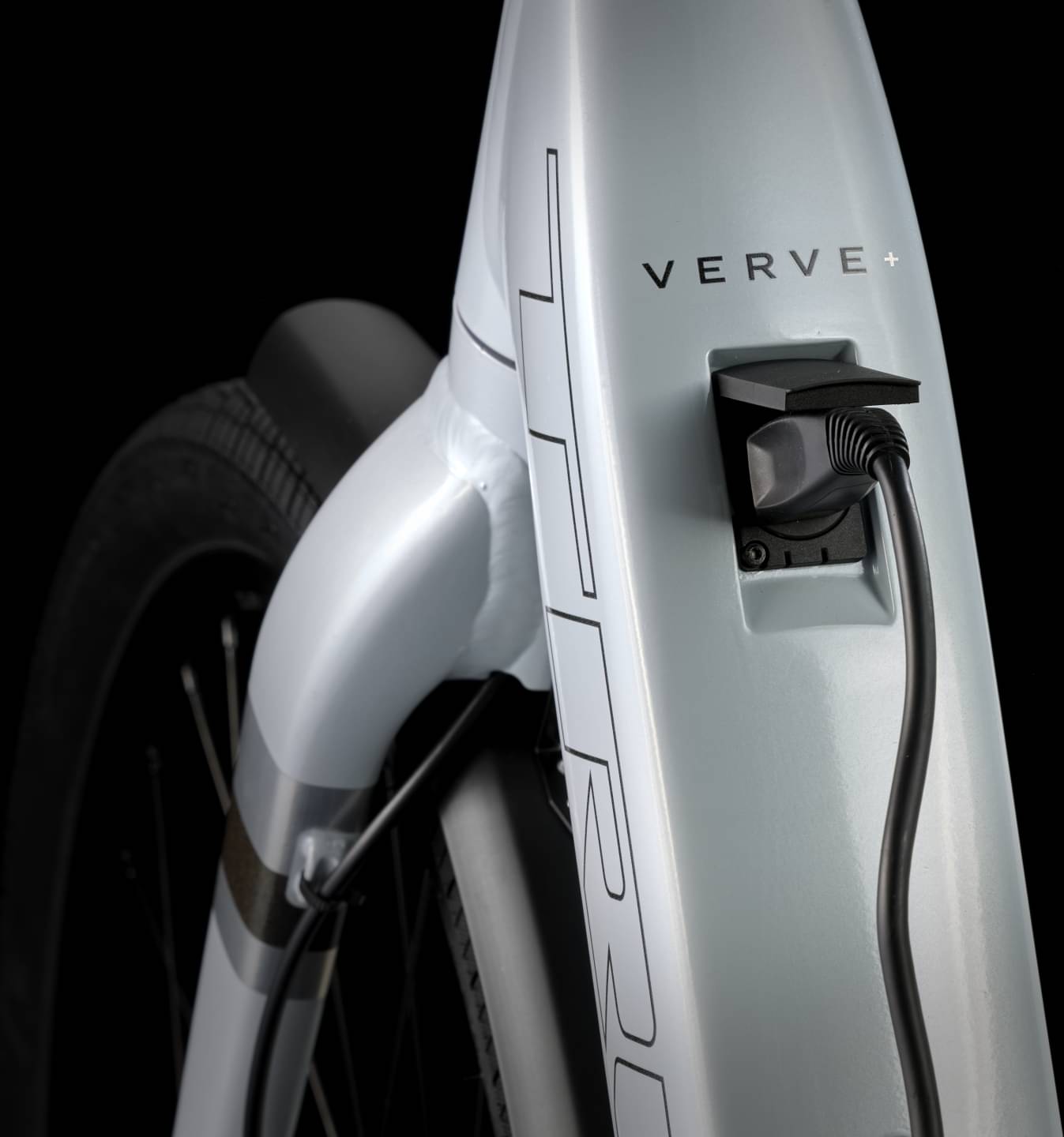

Charger
Bosch standard 2A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.598 mm | 1.65 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 637 mm | 668 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 84 mm | 78 mm |
| Stack | 618 mm | 639 mm | 693 mm |
| Reach | 370 mm | 400 mm | 420 mm |
| Top Tube Length | 571 mm | 620 mm | 672 mm |
| Seat Tube Angle | 72 ° | 71 ° | 70 ° |
| Seat Tube Length | 380 mm | 470 mm | 560 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 170 mm | 225 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1117 mm | 1149 mm | 1183 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 410 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
