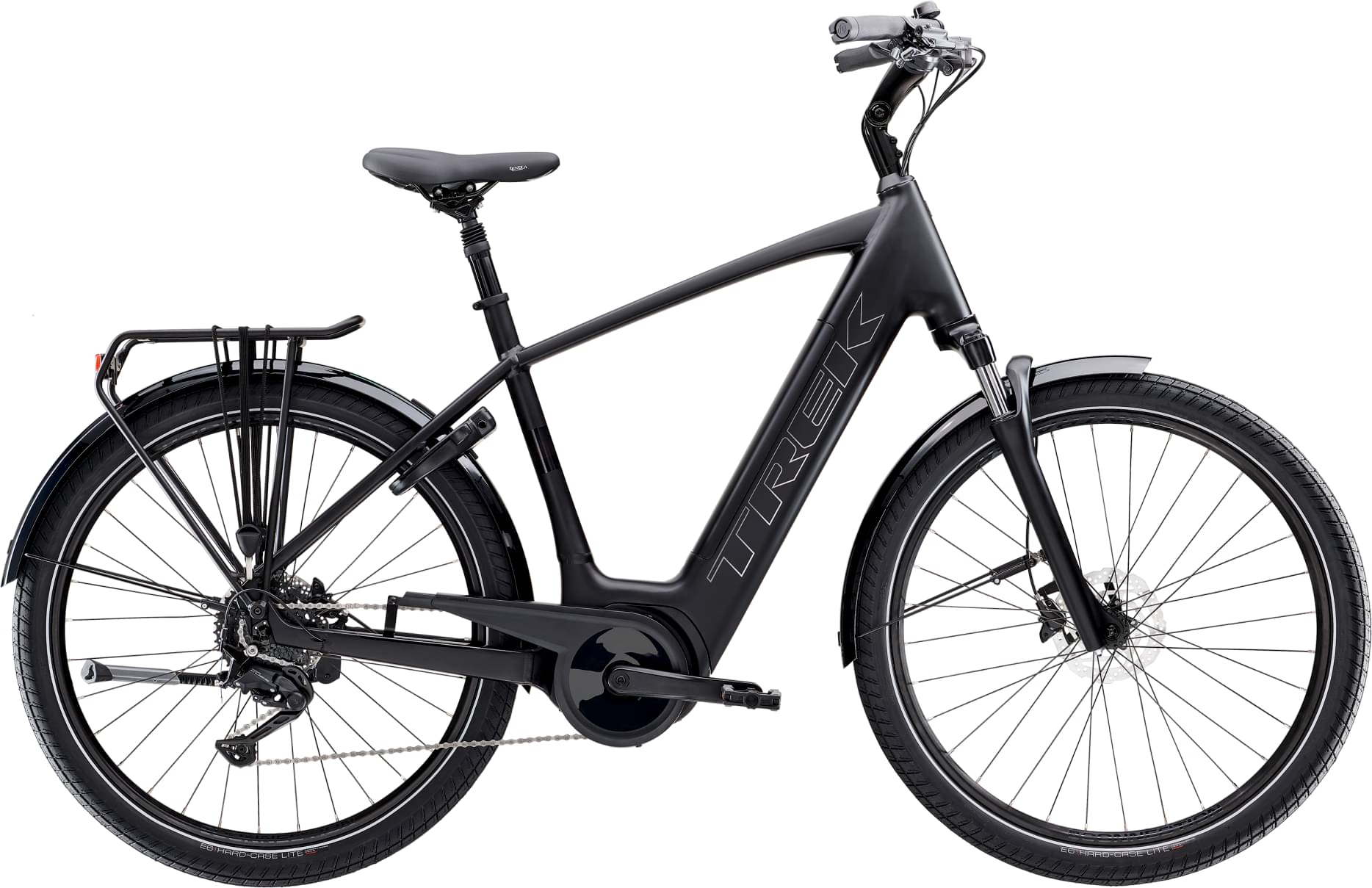

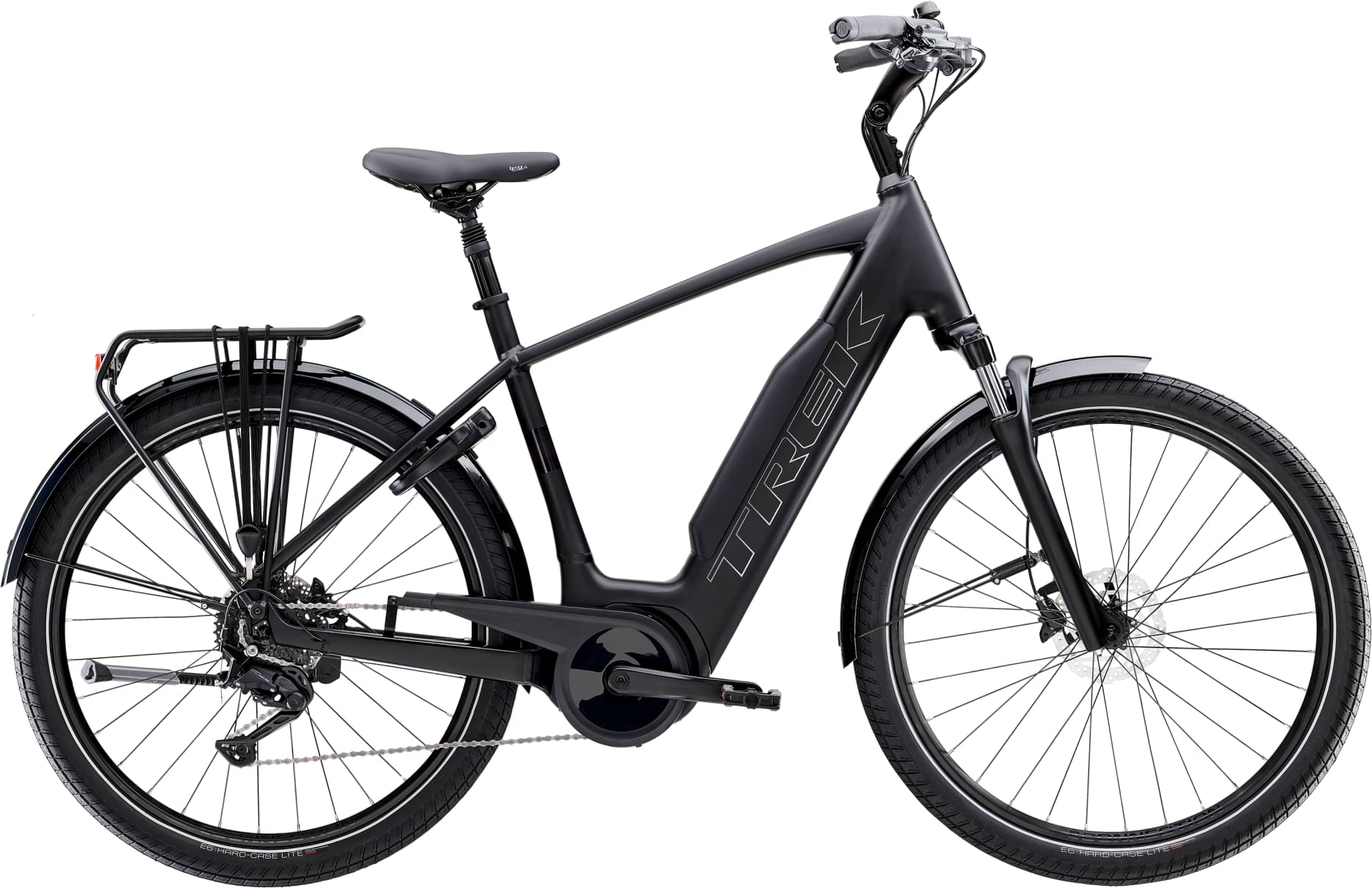

Trek Verve+ 3 Gen 3 2025
2025 E-bike
Estimate price |
4,268$
Weight | 27.29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
165cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 198cm
65cm
196cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: M, L, XL, Alpha Smooth Aluminium, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: XXL, High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc
Suspension Fork
SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-36, 9-speed
Crank
Size: M, ProWheel alloy, 170 mm length; Size: L, XL, XXL, ProWheel alloy, 175 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano Tourney HB-QC300, centerlock
Rear Hub
Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, XXL, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Bontrager aluminium touring
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Nuvola
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
Charger
Bosch standard 2A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm | 65cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.731 mm | 1.758 mm | 1.782 mm | 1.759 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 661 mm | 673 mm | 685 mm | 690 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 649 mm | 668 mm | 686 mm | 686 mm |
| Reach | 375 mm | 380 mm | 385 mm | 390 mm |
| Top Tube Length | 598 mm | 610 mm | 621 mm | 626 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm | 650 |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 180 mm | 200 mm | 220 mm | 220 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1140 mm | 1152 mm | 1165 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 818 mm | 853 mm | 887 mm | 911 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm | 196 cm |
| Rider Max Height | 176 cm | 187 cm | 198 cm | 203 cm |
