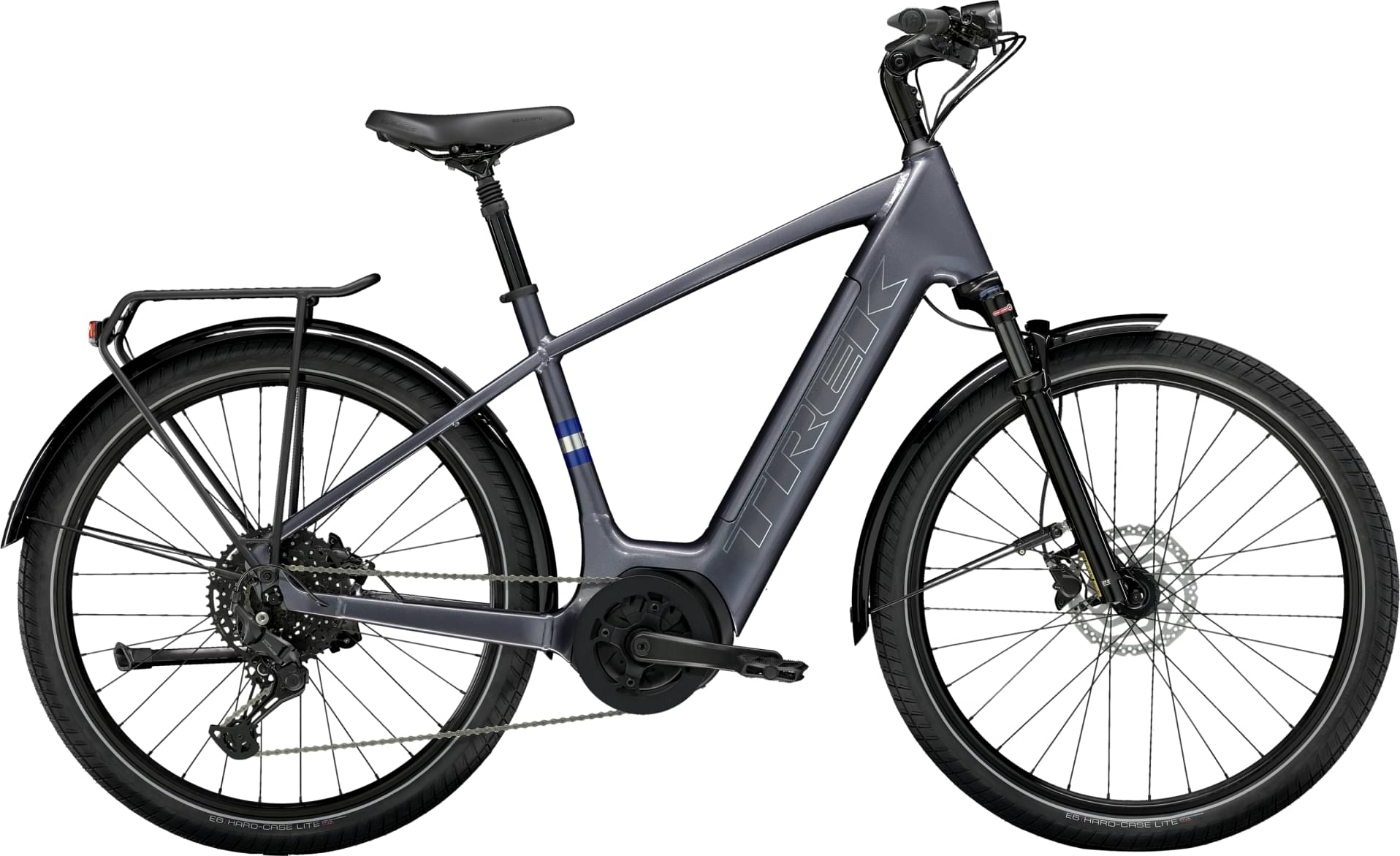

Trek Verve+ 4S Gen 3 2025
2025 E-bike
Estimate price |
3,999$
Weight | 26.74 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerPack 545Wh, smart system -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
50cm
165cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63mm travel

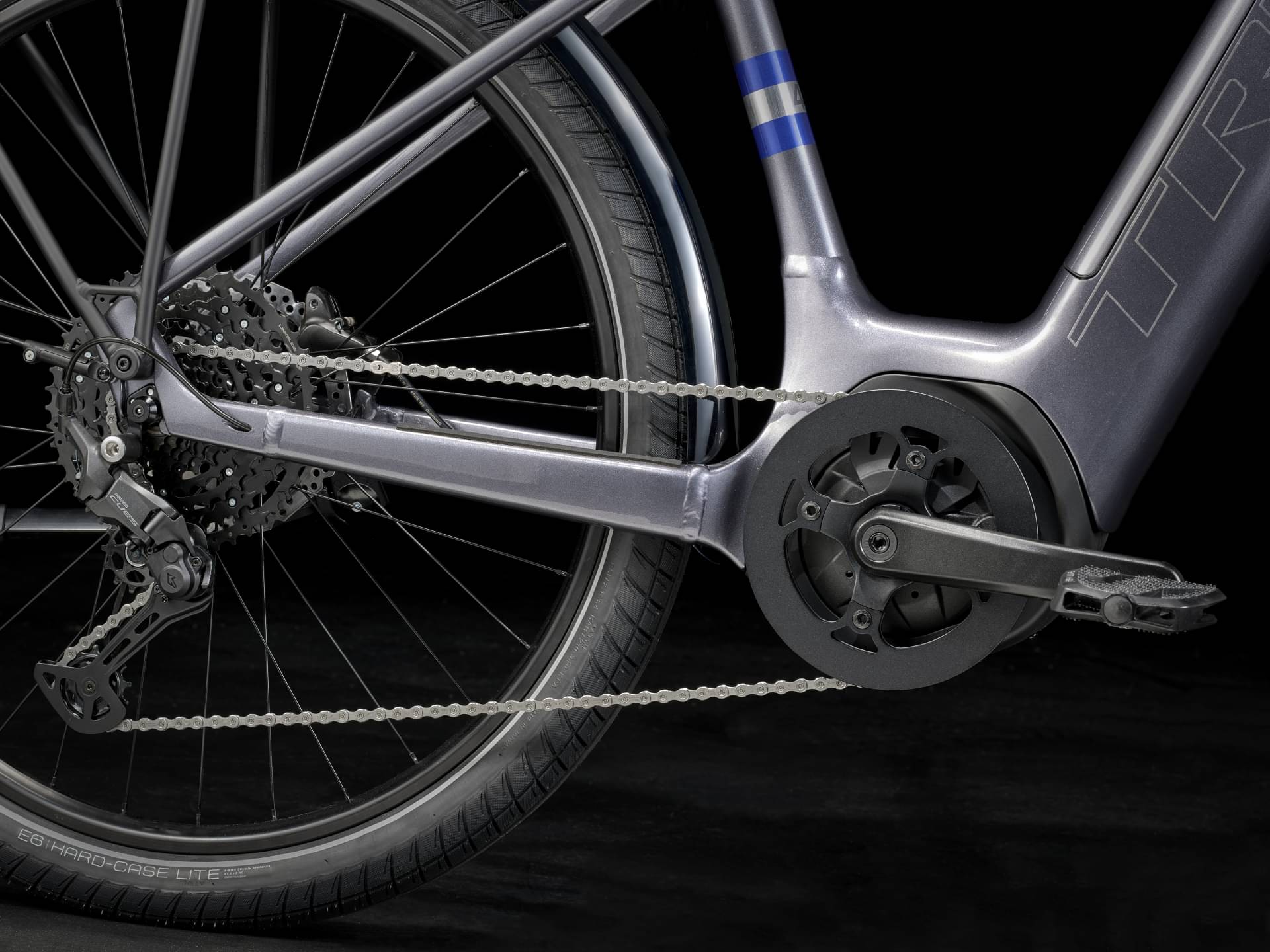

Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10 speed
Crank
ProWheel alloy, 170mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4"

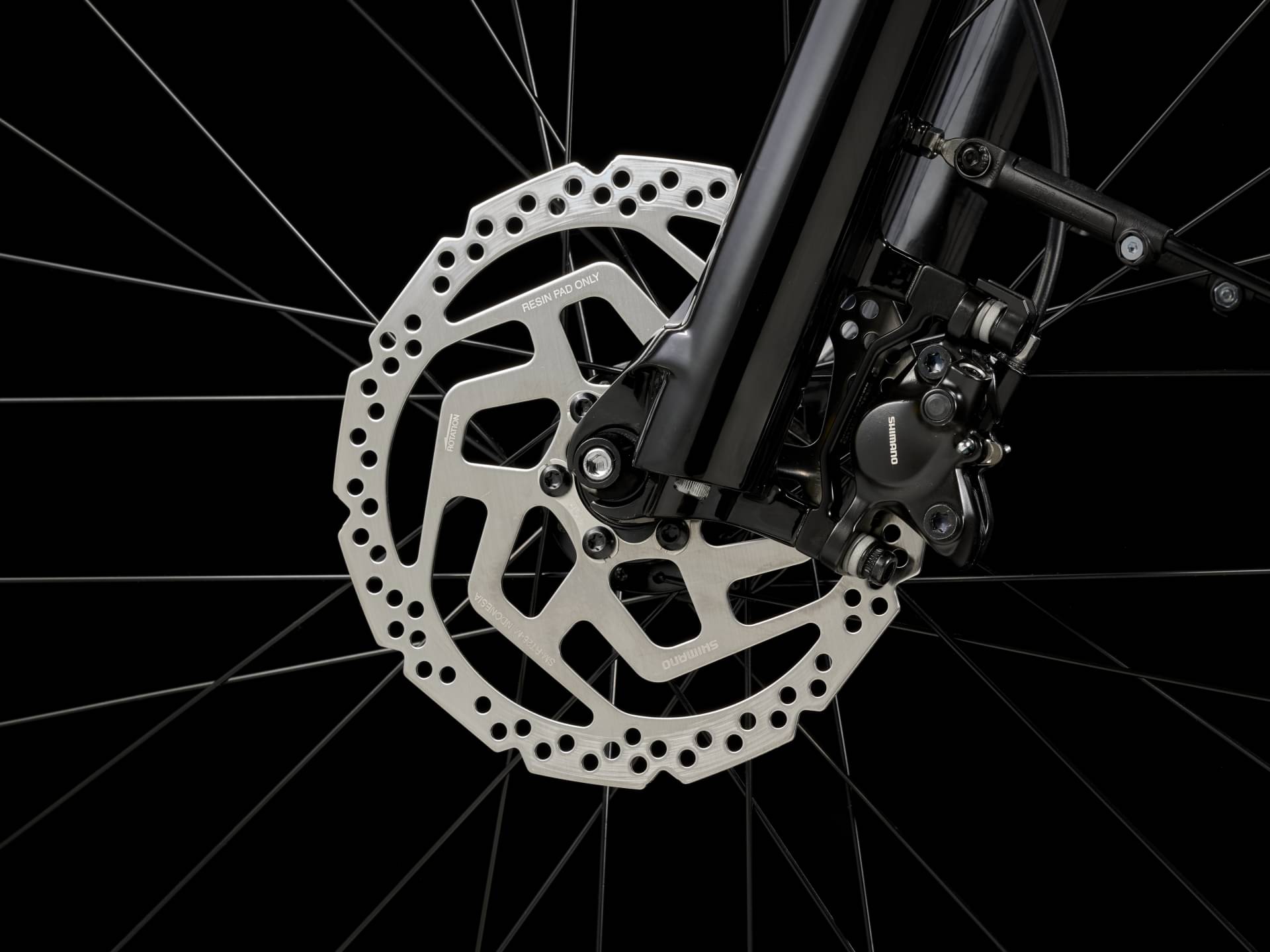

Brakes
Brakes
Shimano MT200 hydraulic disc

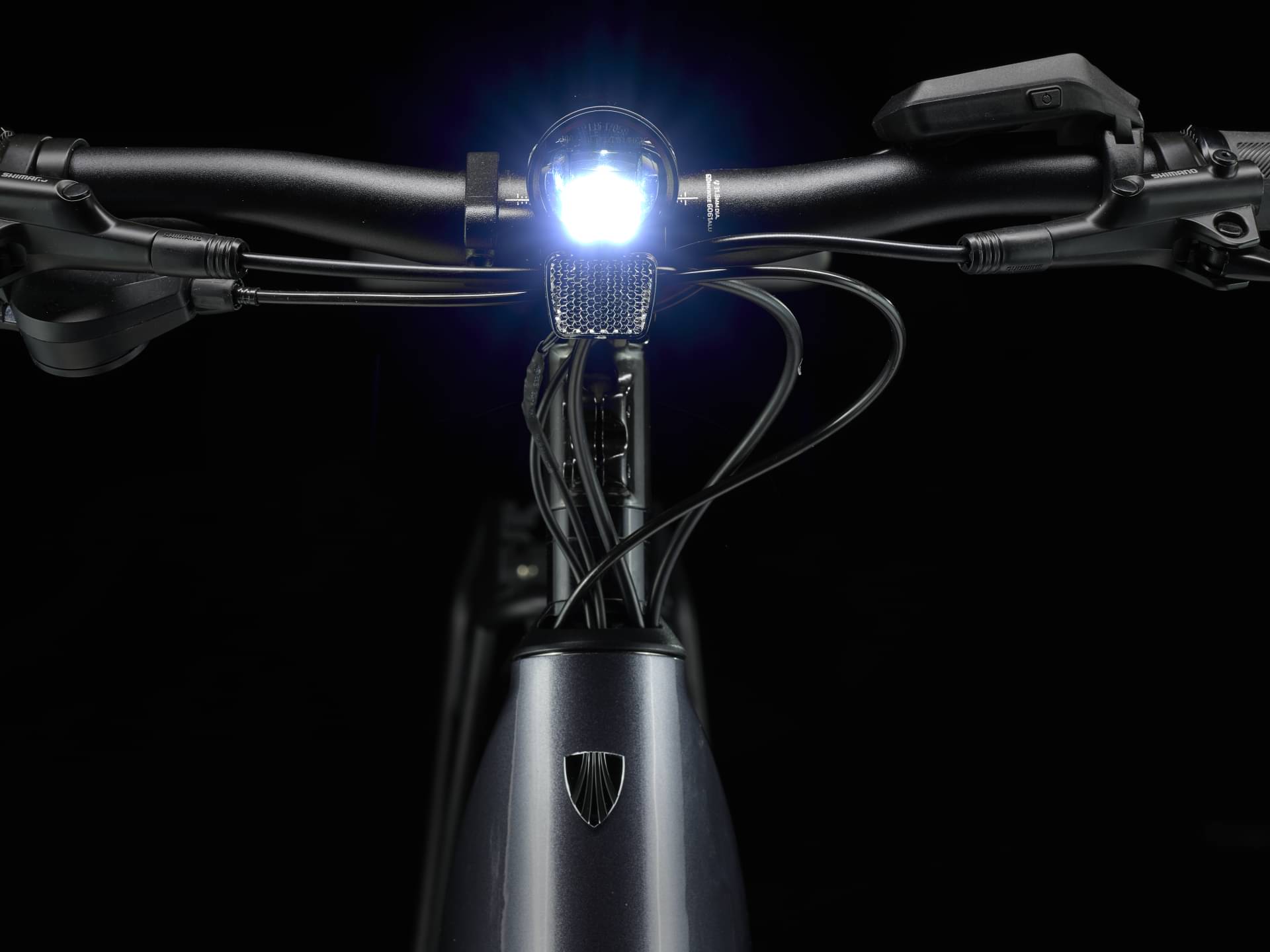

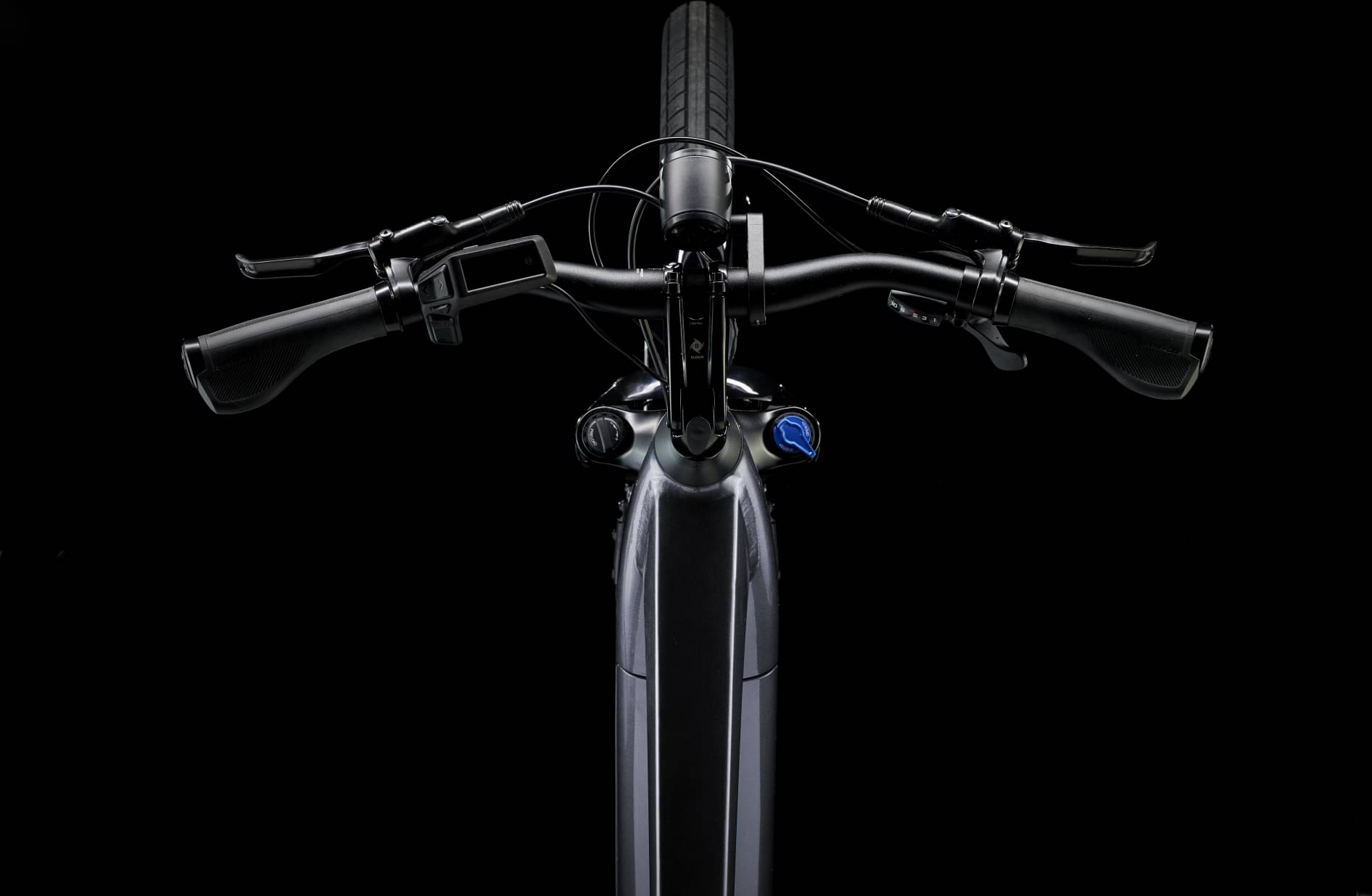

Cockpit
Stem
Size: M, Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length; Size: L, XL, Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length
Handlebar
Size: M, Bontrager alloy, 31.8mm, comfort sweep, 620mm width; Size: L, XL, Bontrager alloy, 31.8mm, comfort sweep, 660mm width

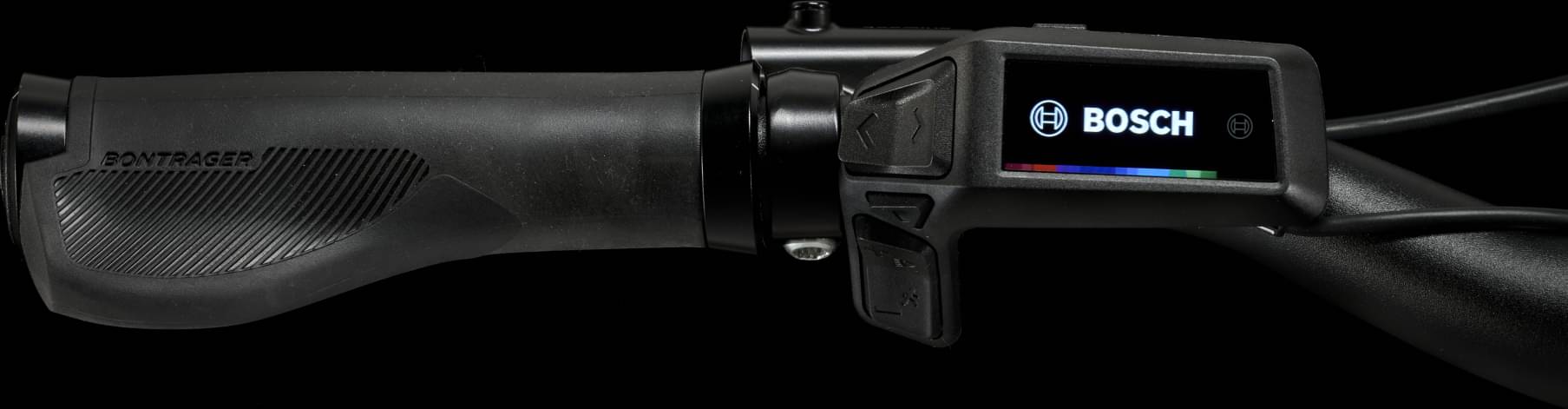

Grips
Trek Ergonomic Pro, lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6mm, 300mm length
Motor & Battery

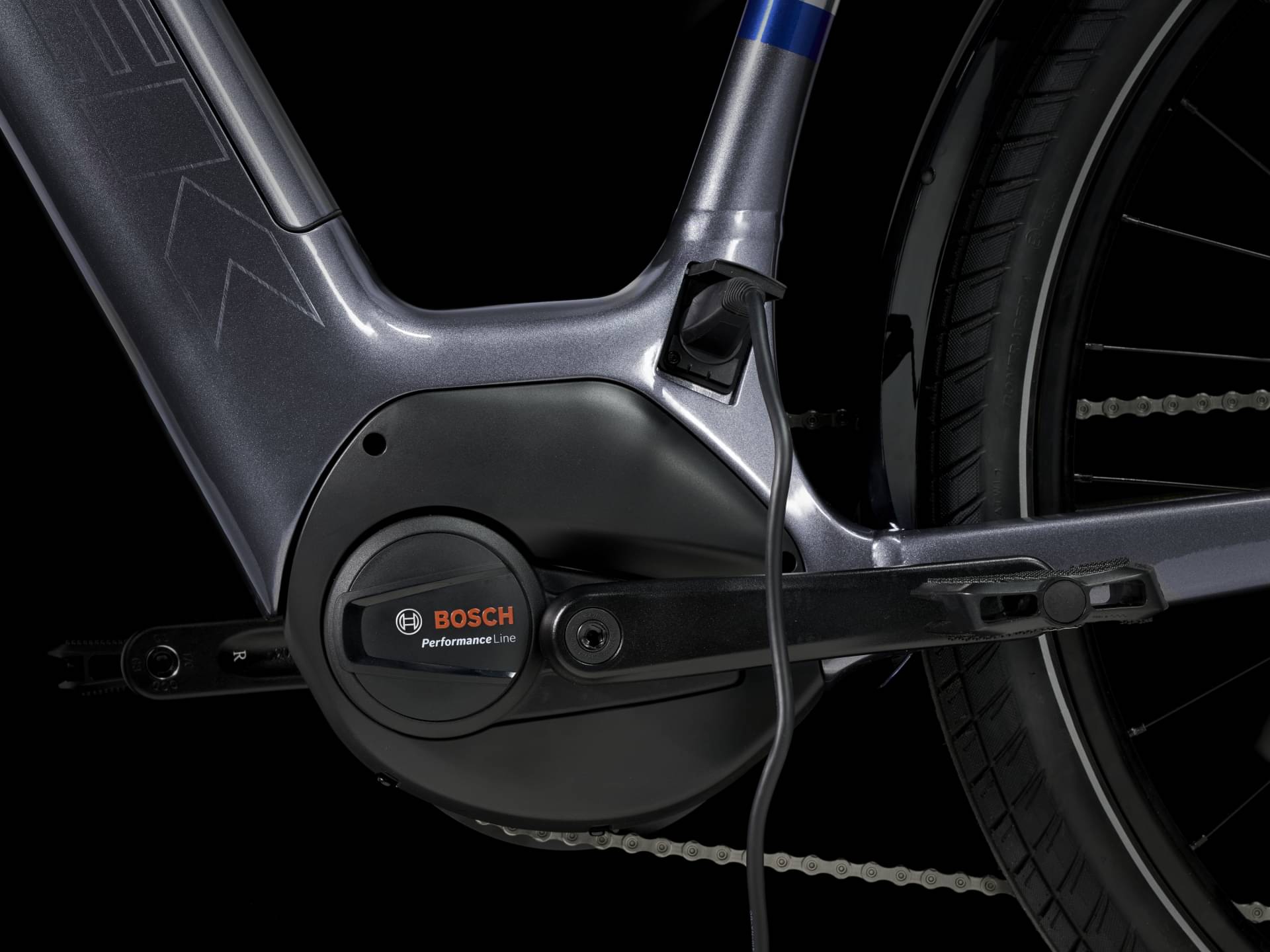

Motor
Bosch Performance Line Sport, smart system, 75Nm, 28 mph / 45k m/h (25 km/h max assist in EU and APAC)

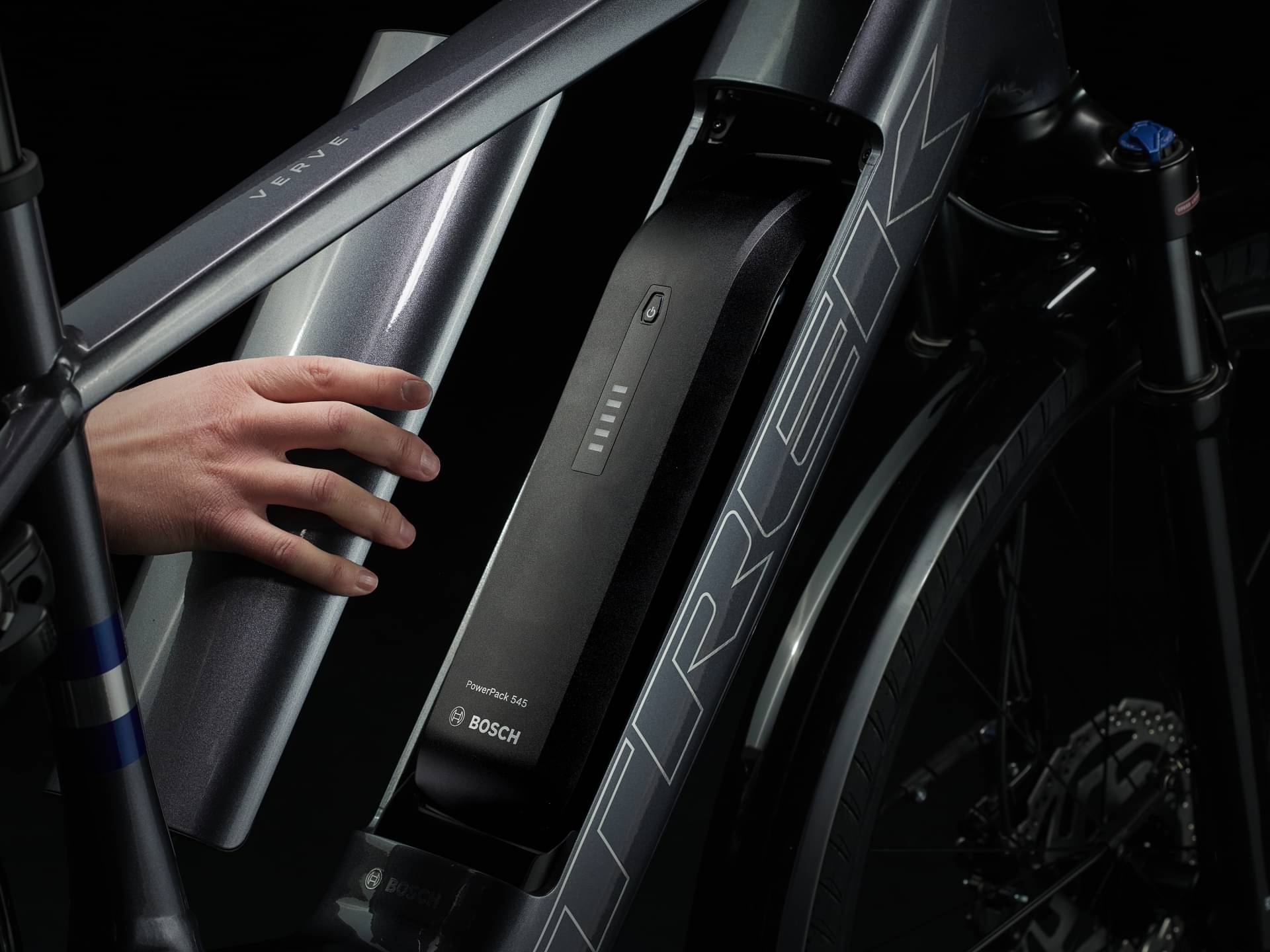

Battery
Bosch PowerPack 545Wh, smart system
Charger
Bosch standard 2A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.731 mm | 1.758 mm | 1.782 mm |
| Front Center | 661 mm | 673 mm | 685 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 649 mm | 668 mm | 686 mm |
| Reach | 375 mm | 380 mm | 385 mm |
| Top Tube Length | 598 mm | 610 mm | 621 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1140 mm | 1152 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 818 mm | 853 mm | 887 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
