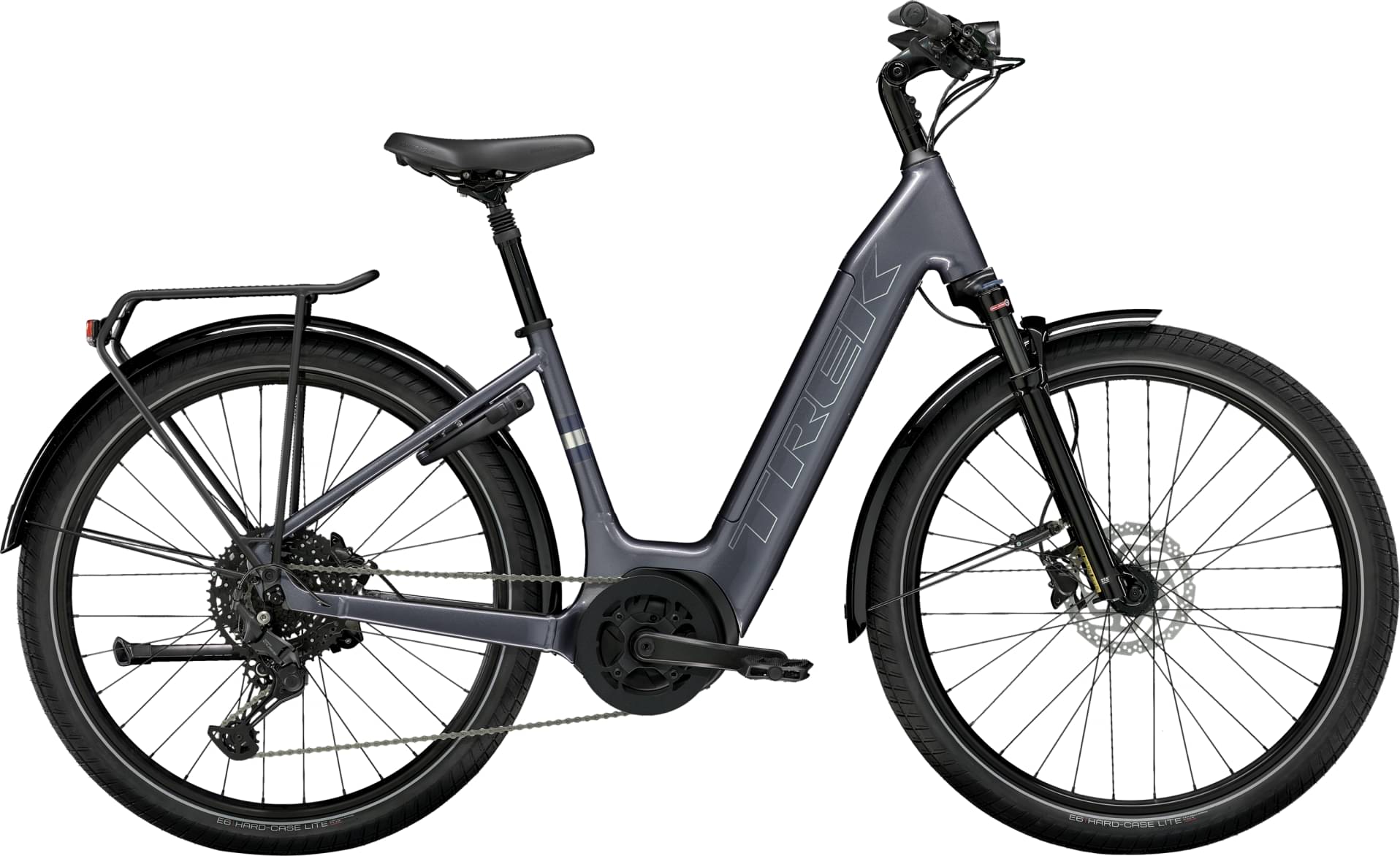

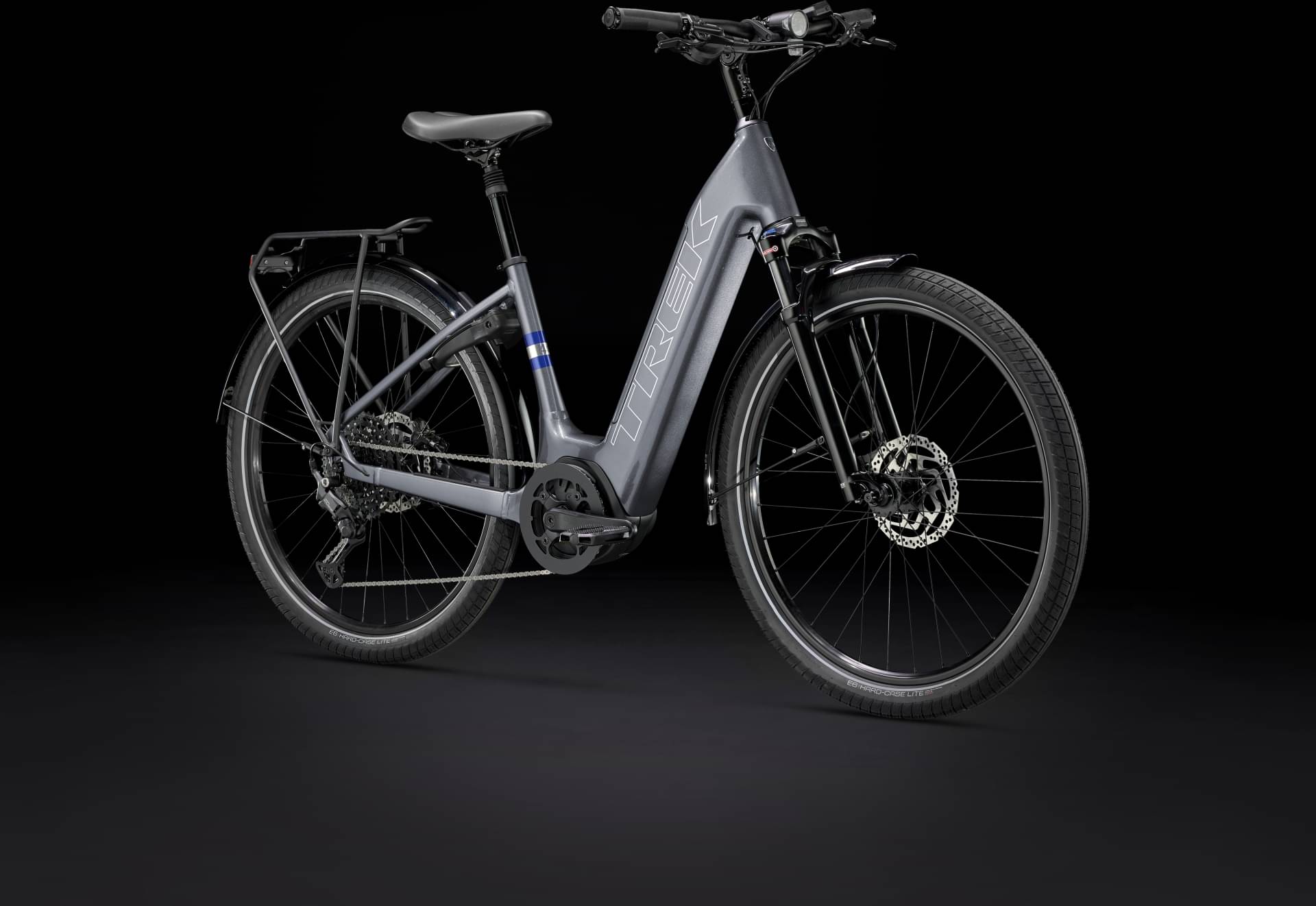

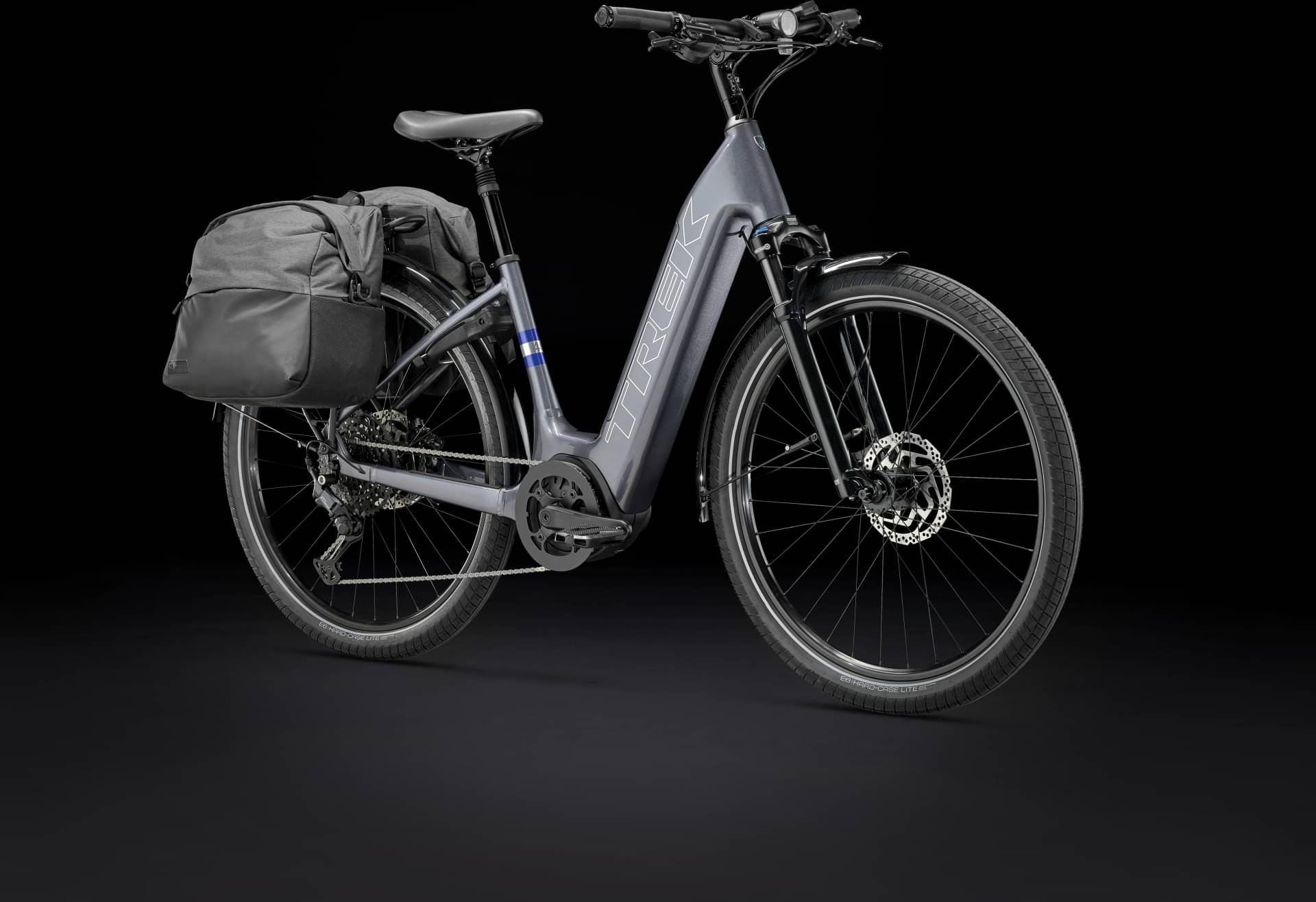

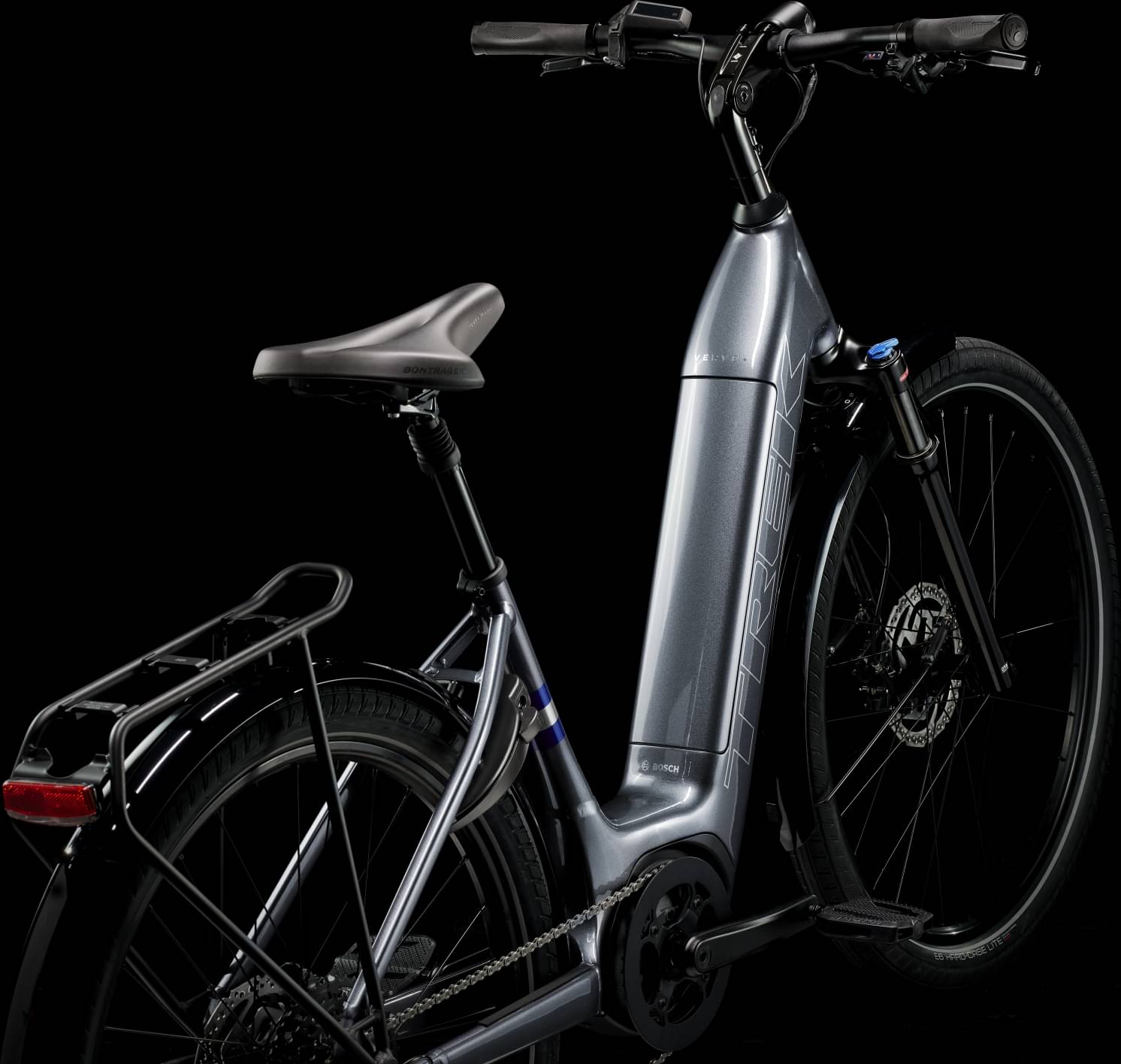

Trek Verve+ 4S Lowstep 2025
2025 E-bike
Estimate price |
4,090$
Weight | 23.05 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
40cm
147cm - 156cm
45cm
154cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

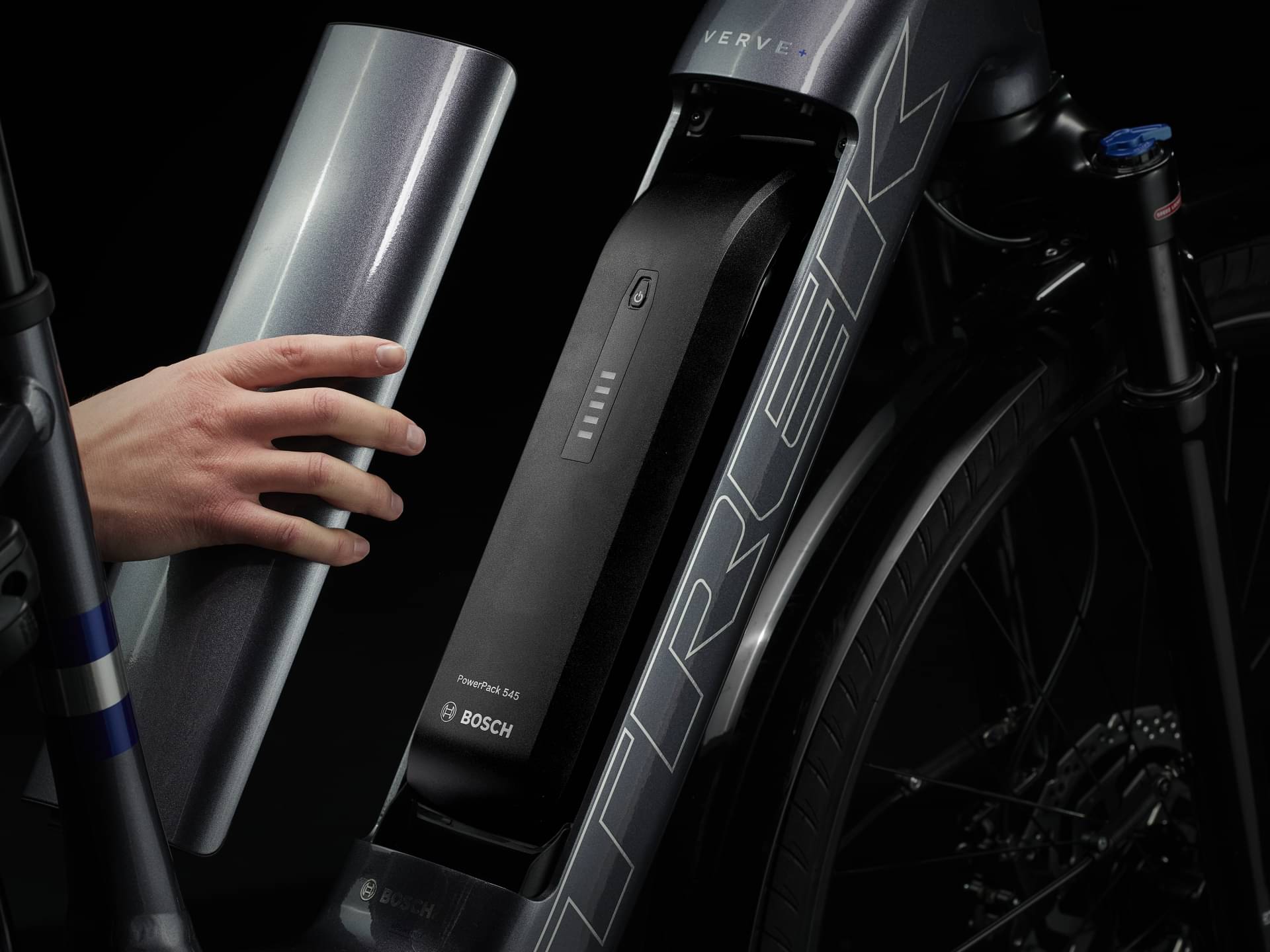

Alpha Smooth Aluminium, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel

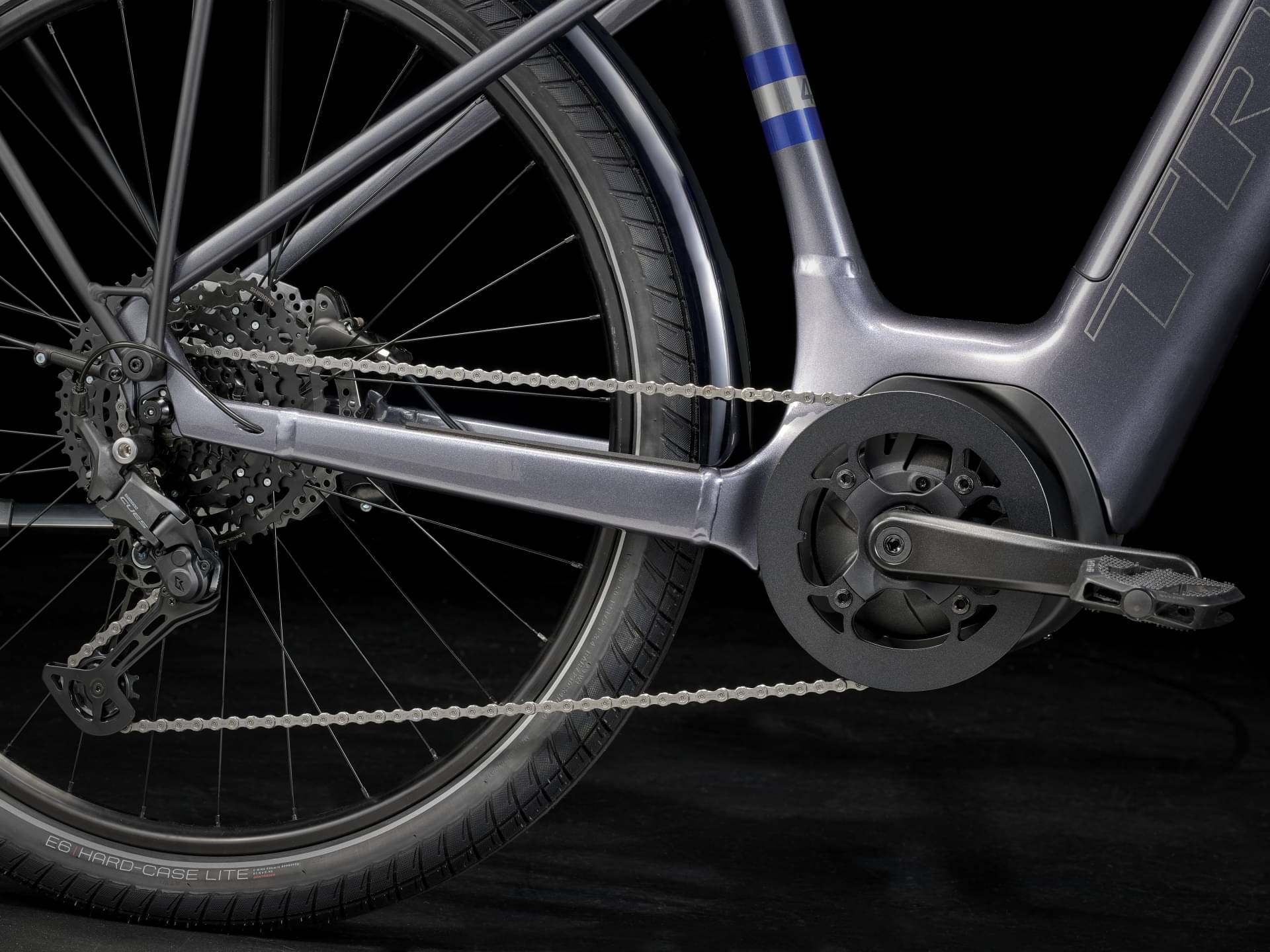

Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
ProWheel alloy, 170 mm length
Chain
Shimano LG500
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes
14 g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes

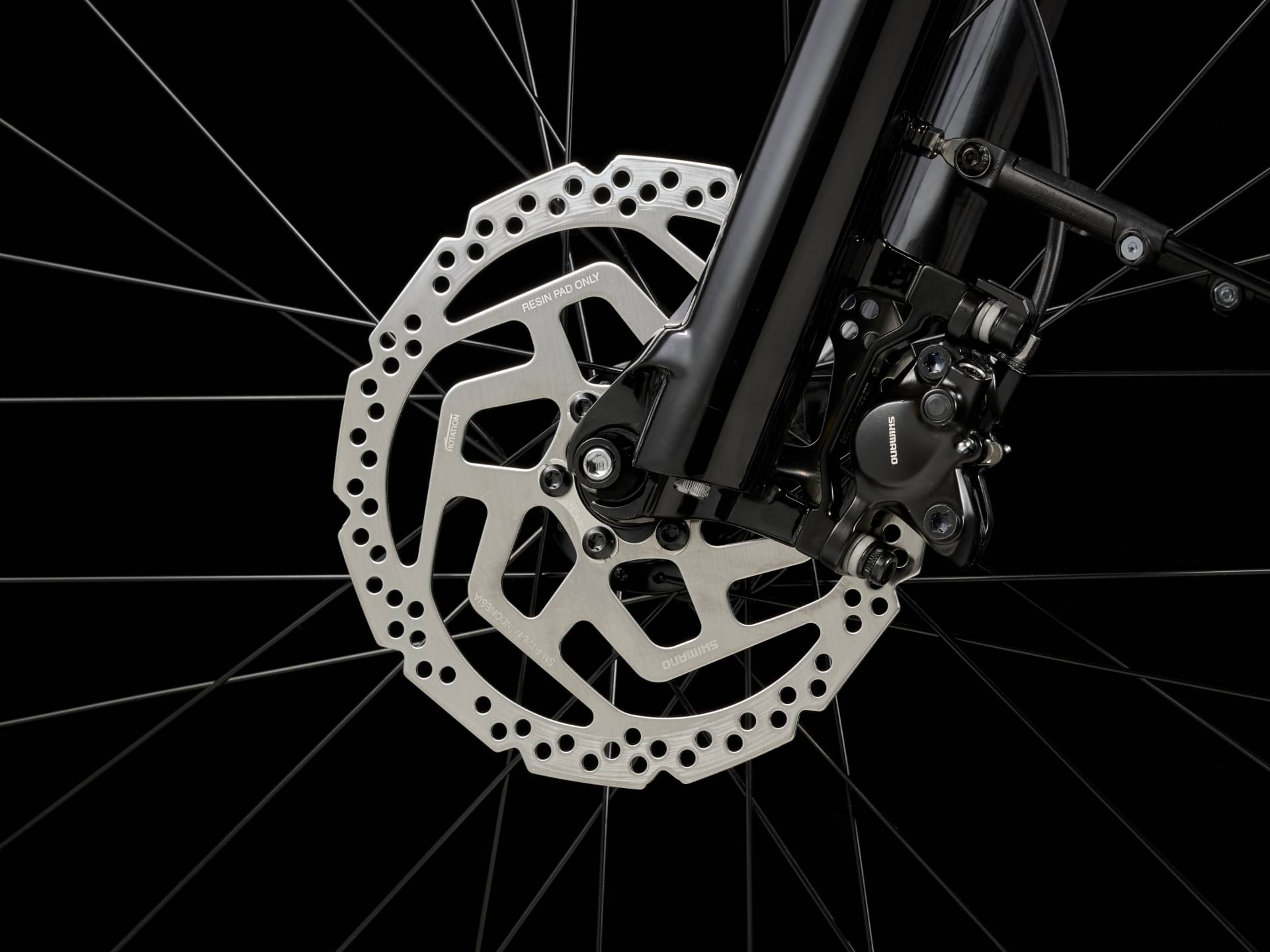

Shimano MT200 hydraulic disc
Cockpit
Stem
Size: XS, S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length

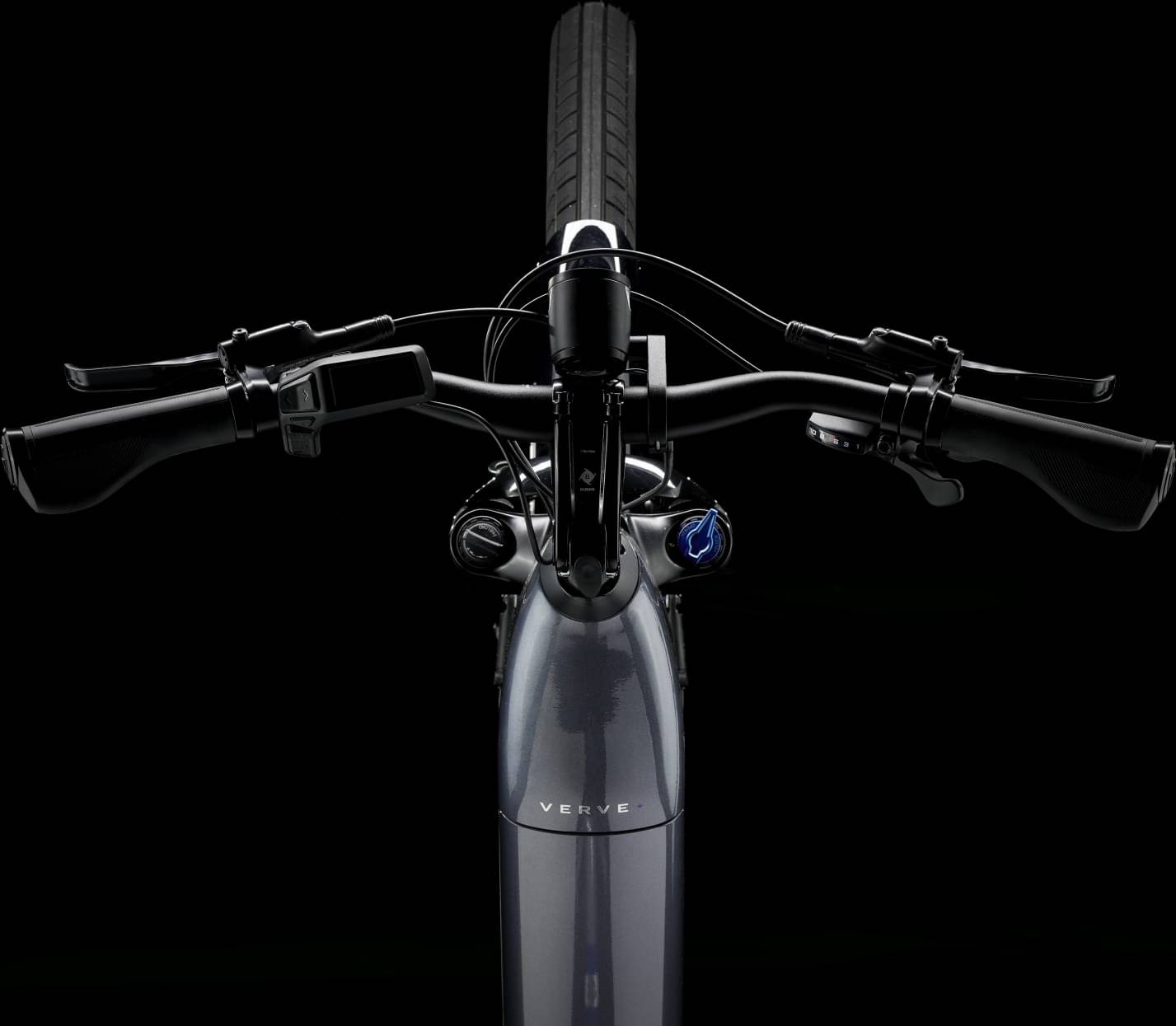

Handlebar
Size: XS, S, M, Bontrager alloy, 31.8 mm, comfort sweep, 620 mm width; Size: L, Bontrager alloy, 31.8 mm, comfort sweep, 660 mm width

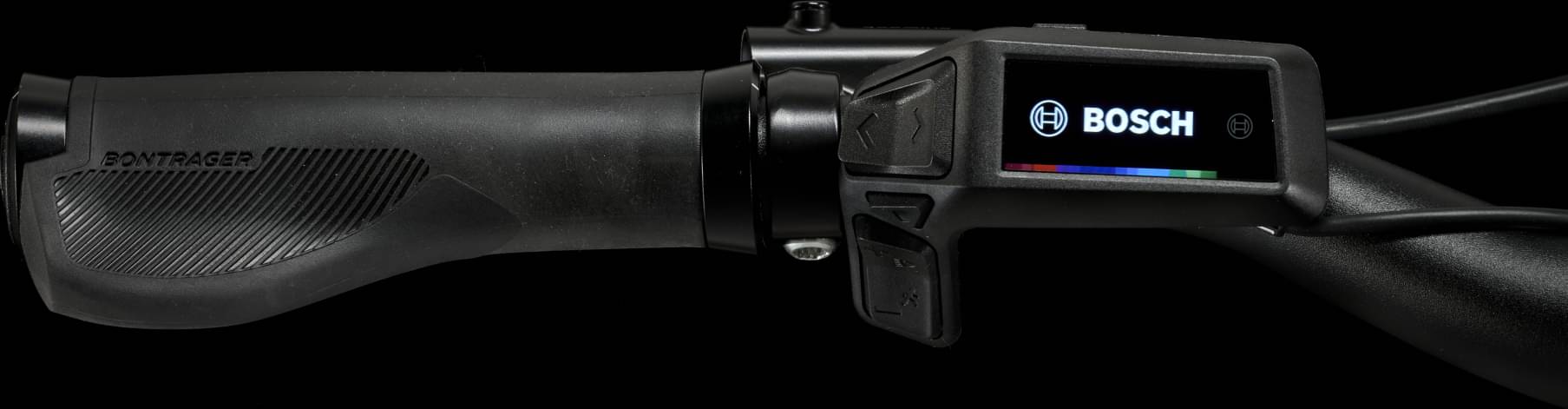

Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery

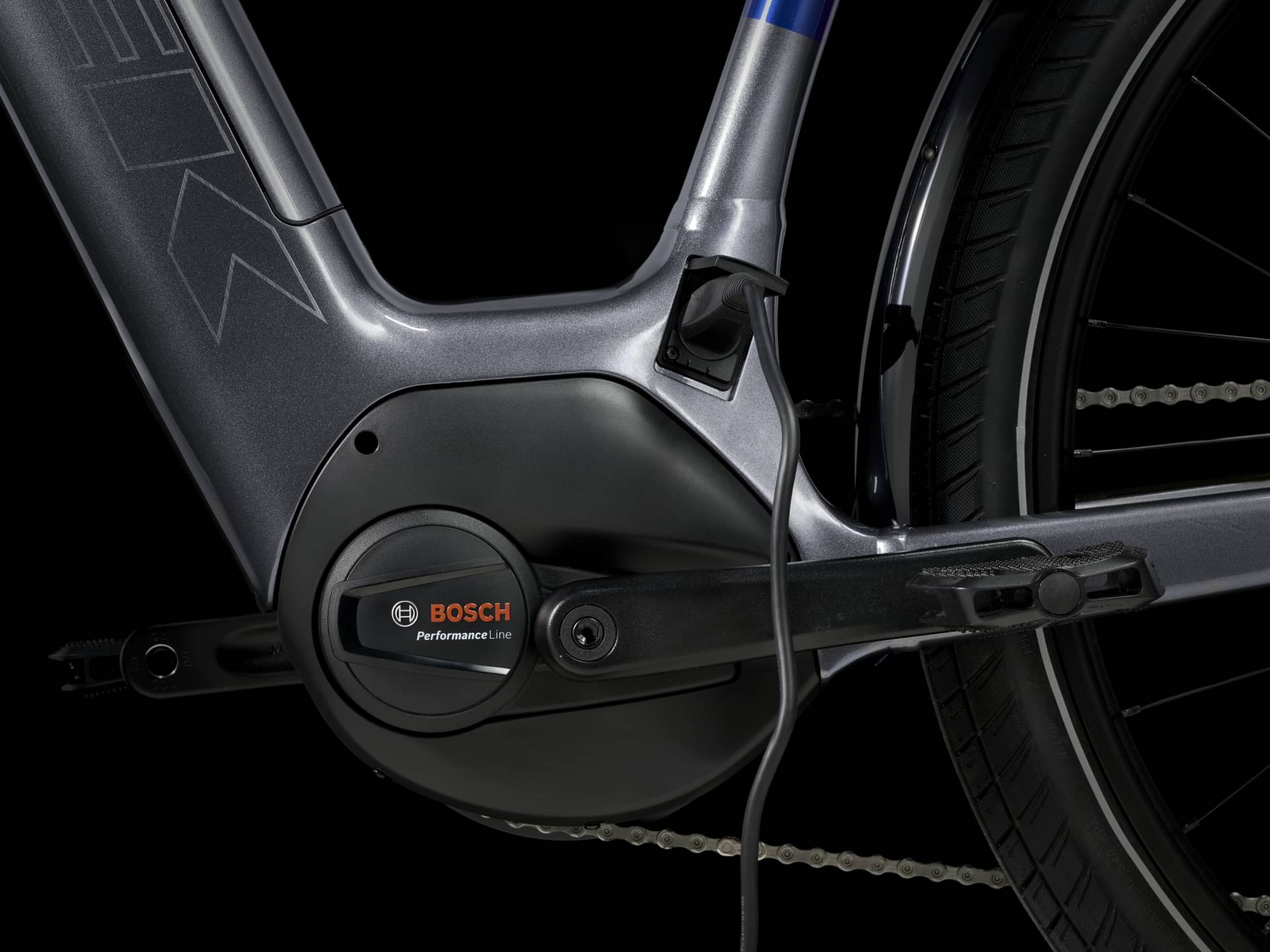

Motor
Bosch Performance Line Sport, smart system, 75 Nm, 28 mph/45 km/h (25 km/h max assist in EU and APAC)
Charger
Bosch standard 2A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 45cm | 50cm | 55cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.726 mm | 1.636 mm | 1.686 mm | 1.735 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 648 mm | 661 mm | 673 mm |
| Rake | 45 mm | 31 mm | 36 mm | 40 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 630 mm | 630 mm | 649 mm | 668 mm |
| Reach | 365 mm | 385 mm | 385 mm | 385 mm |
| Top Tube Length | 582 mm | 587 mm | 598 mm | 610 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 390 mm | 440 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 160 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1122 mm | 1127 mm | 1140 mm | 1152 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 186 cm |
