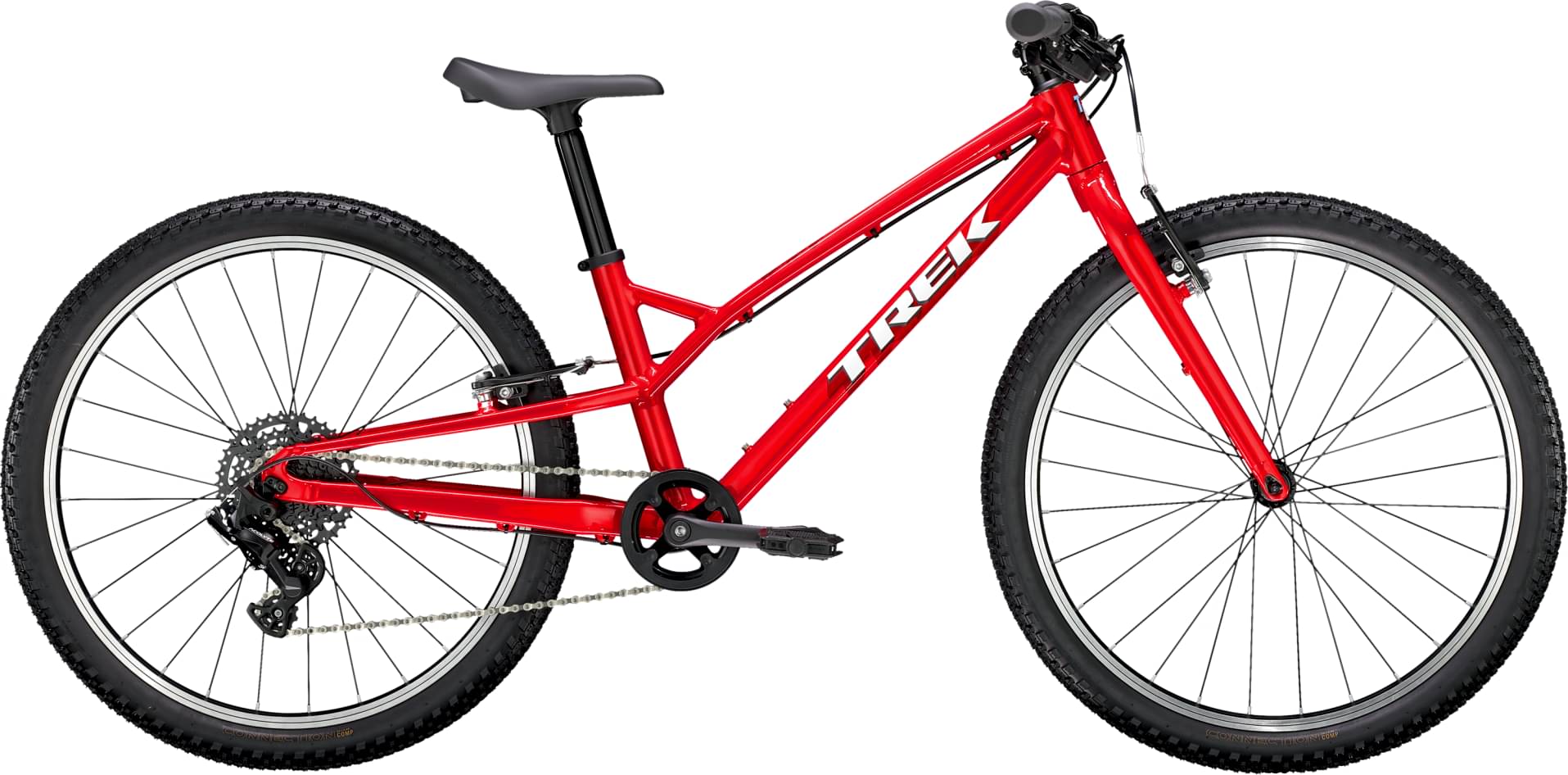

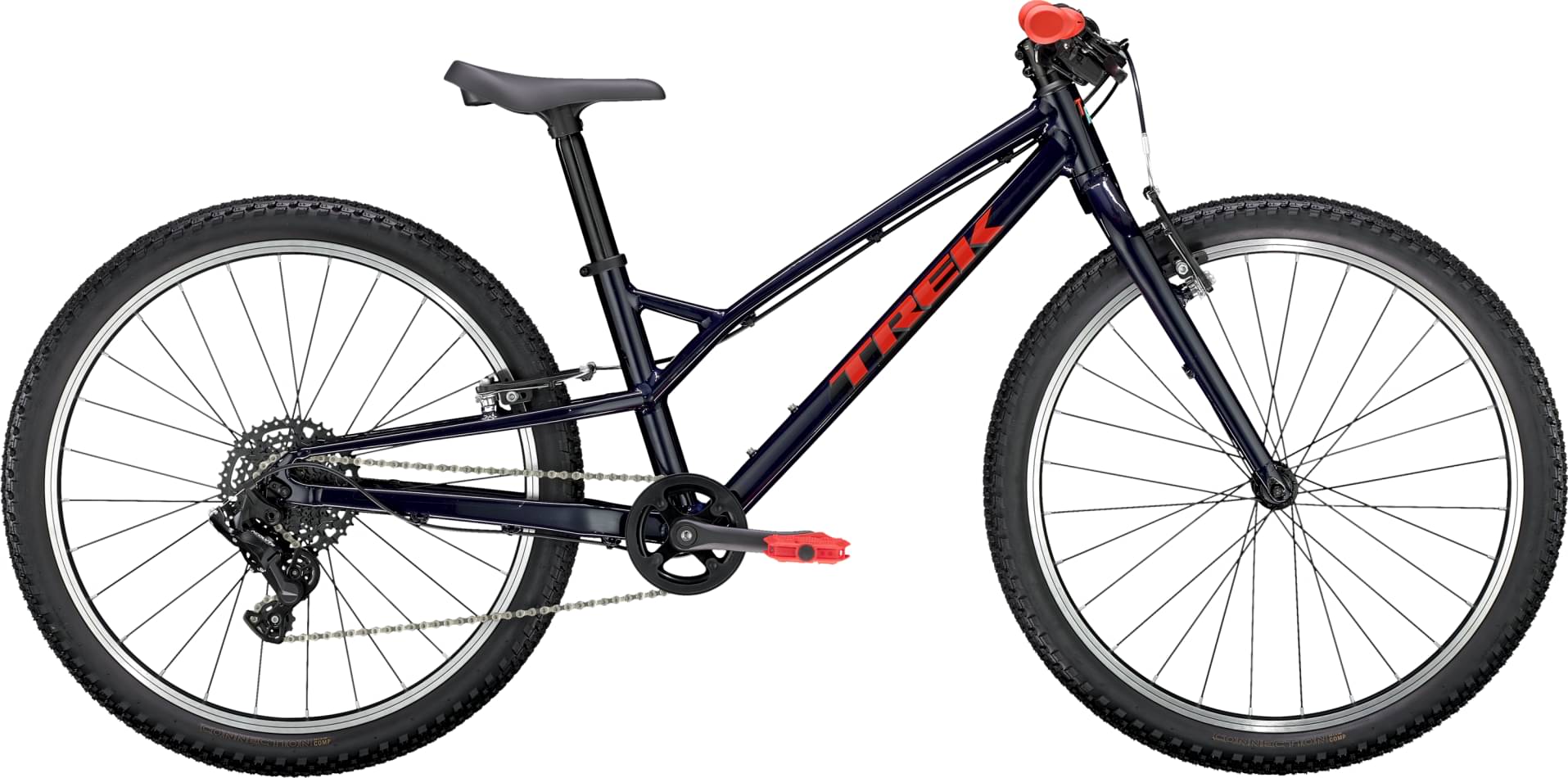

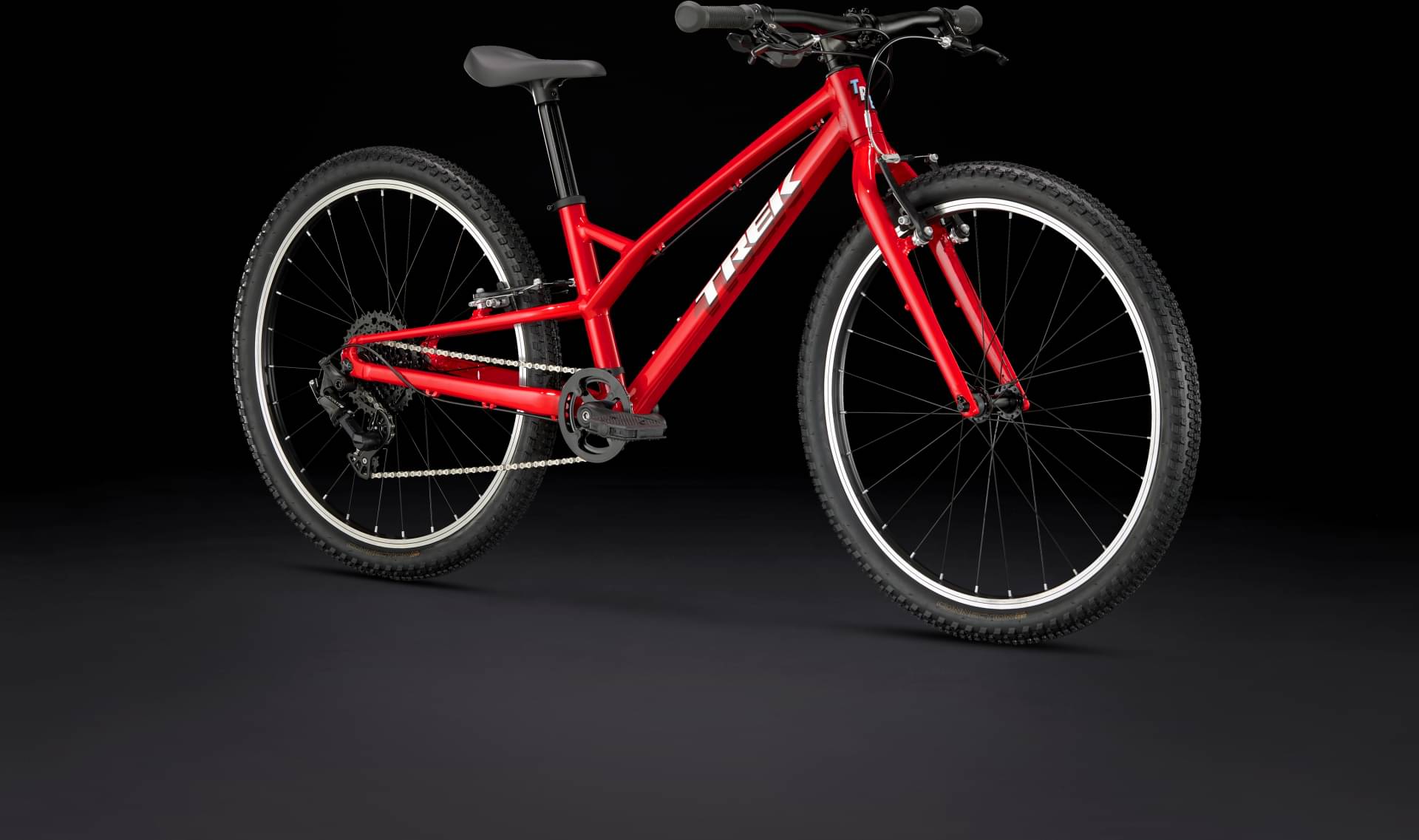

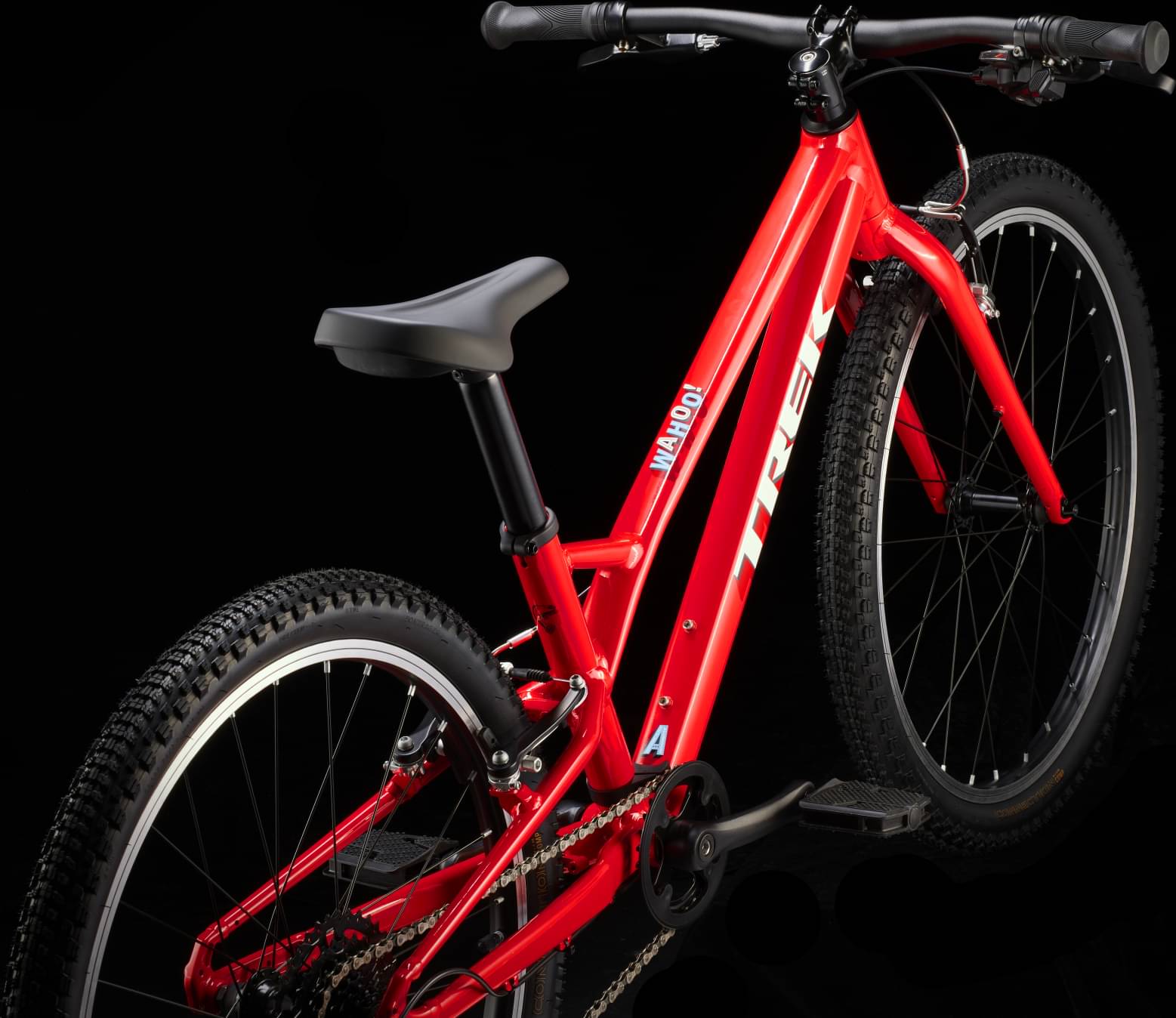

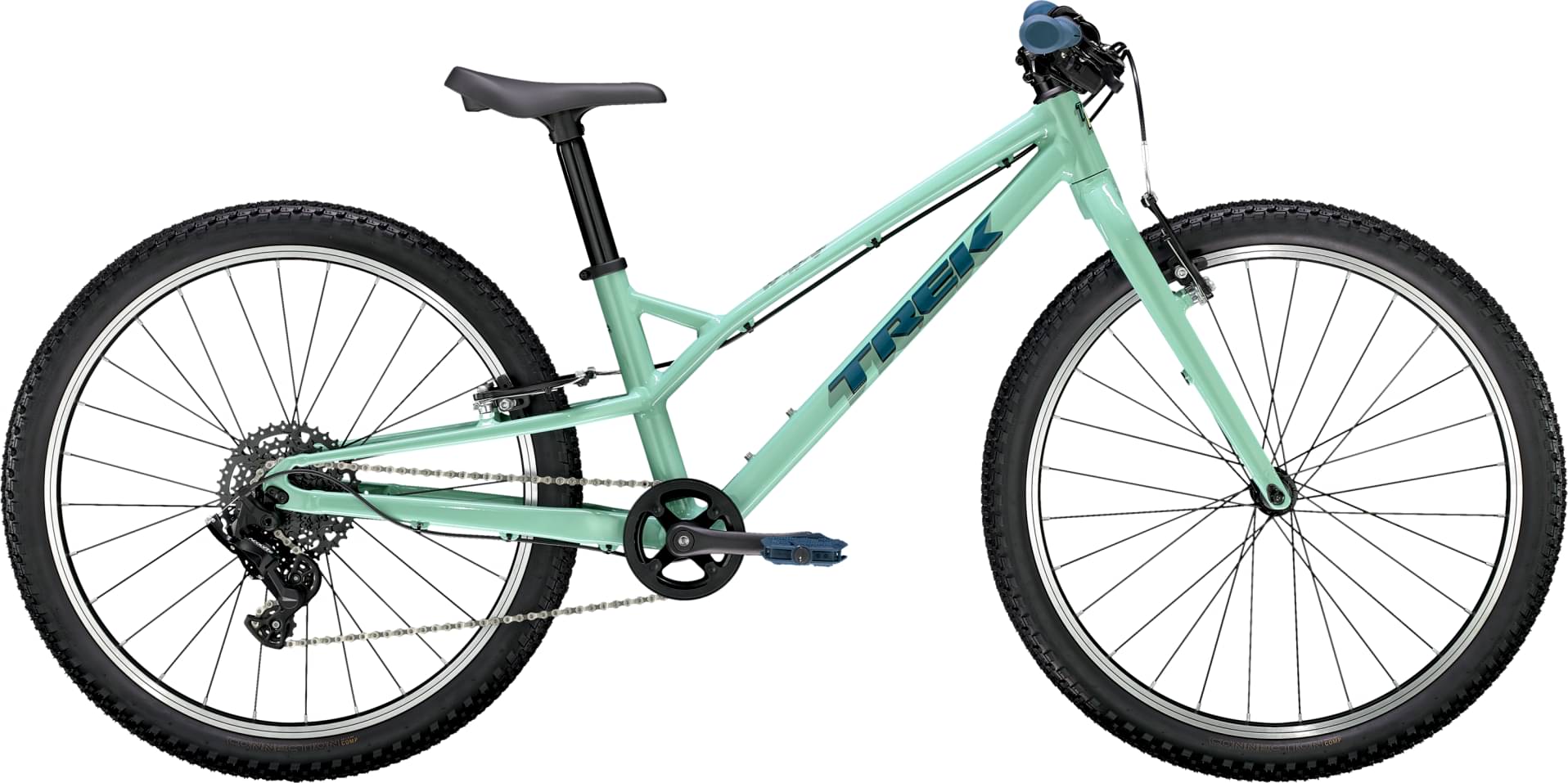

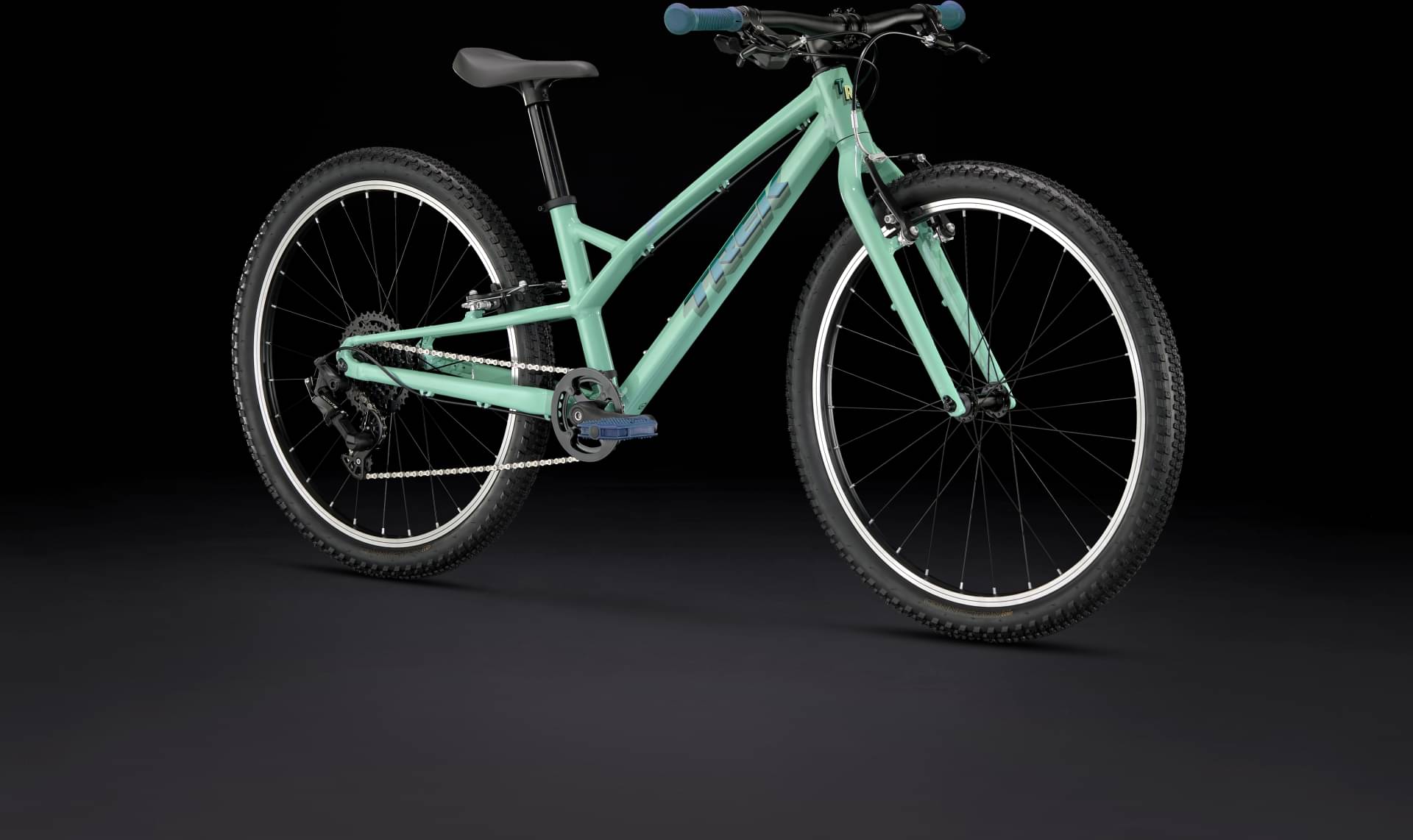

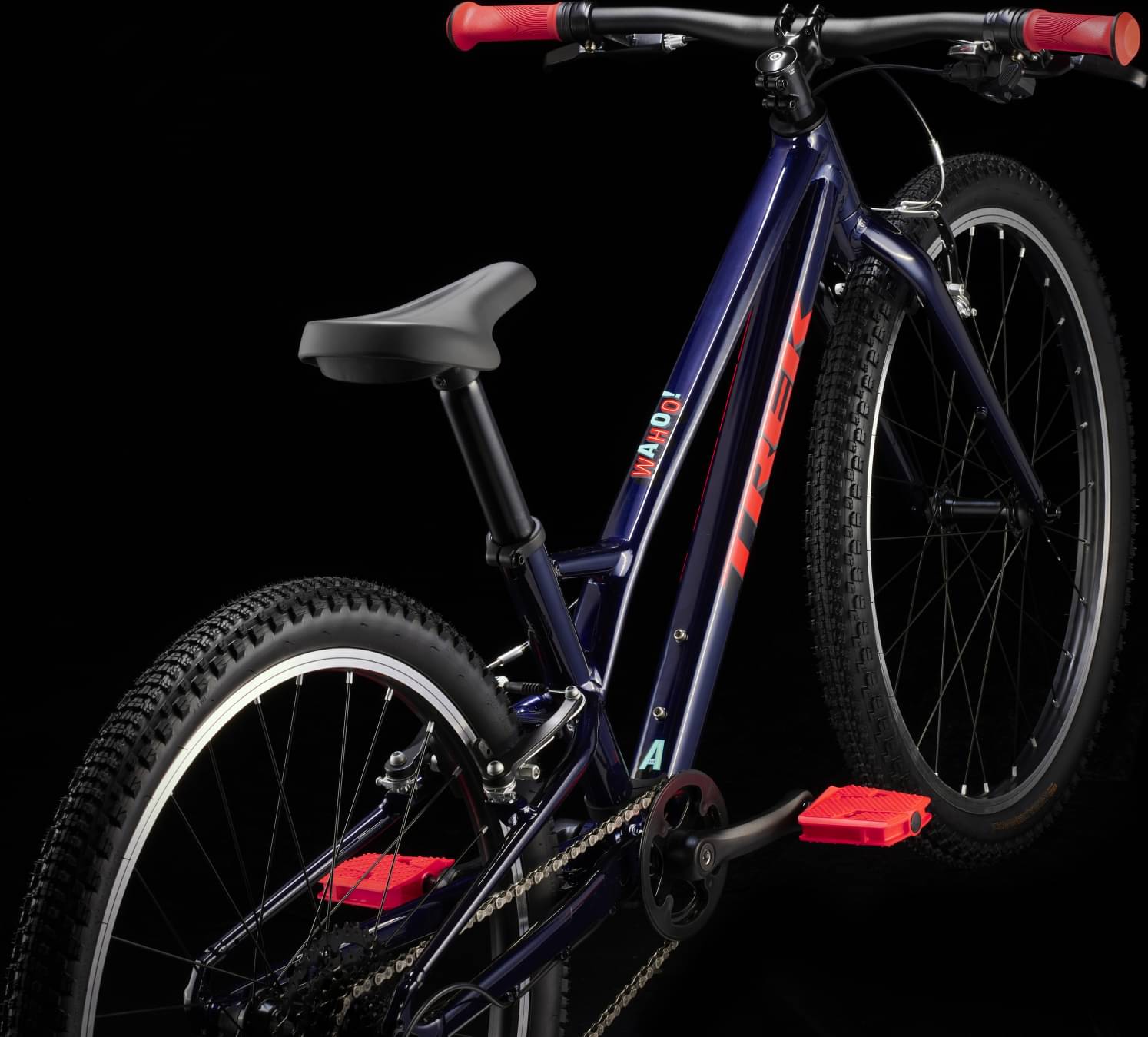

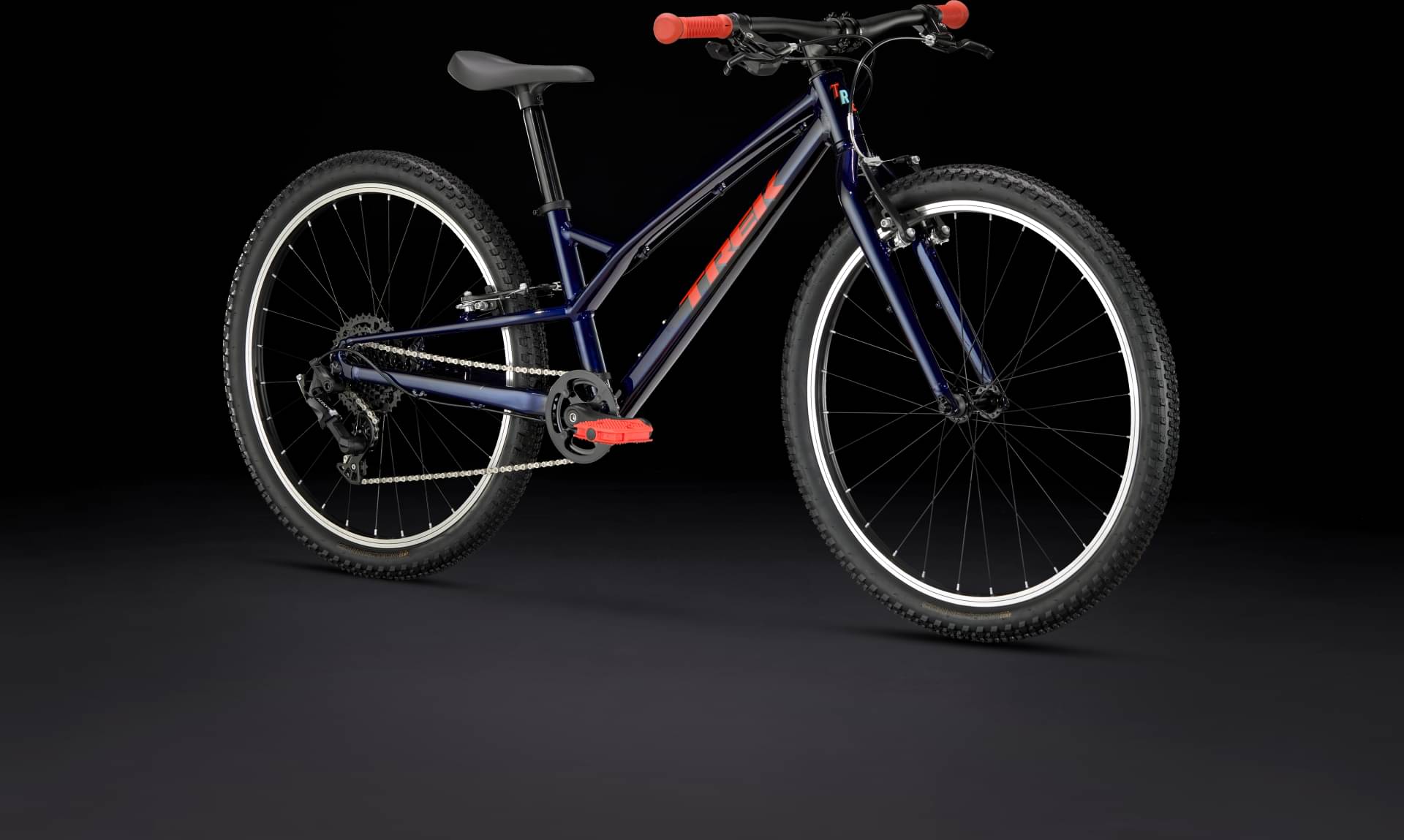

Trek Wahoo 24 Path 2025
2025 Youth
Estimate price |
581$
Weight | 9.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Acolyte -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Rim
Sizing
Recommended size guide.
24"
130cm - 150cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

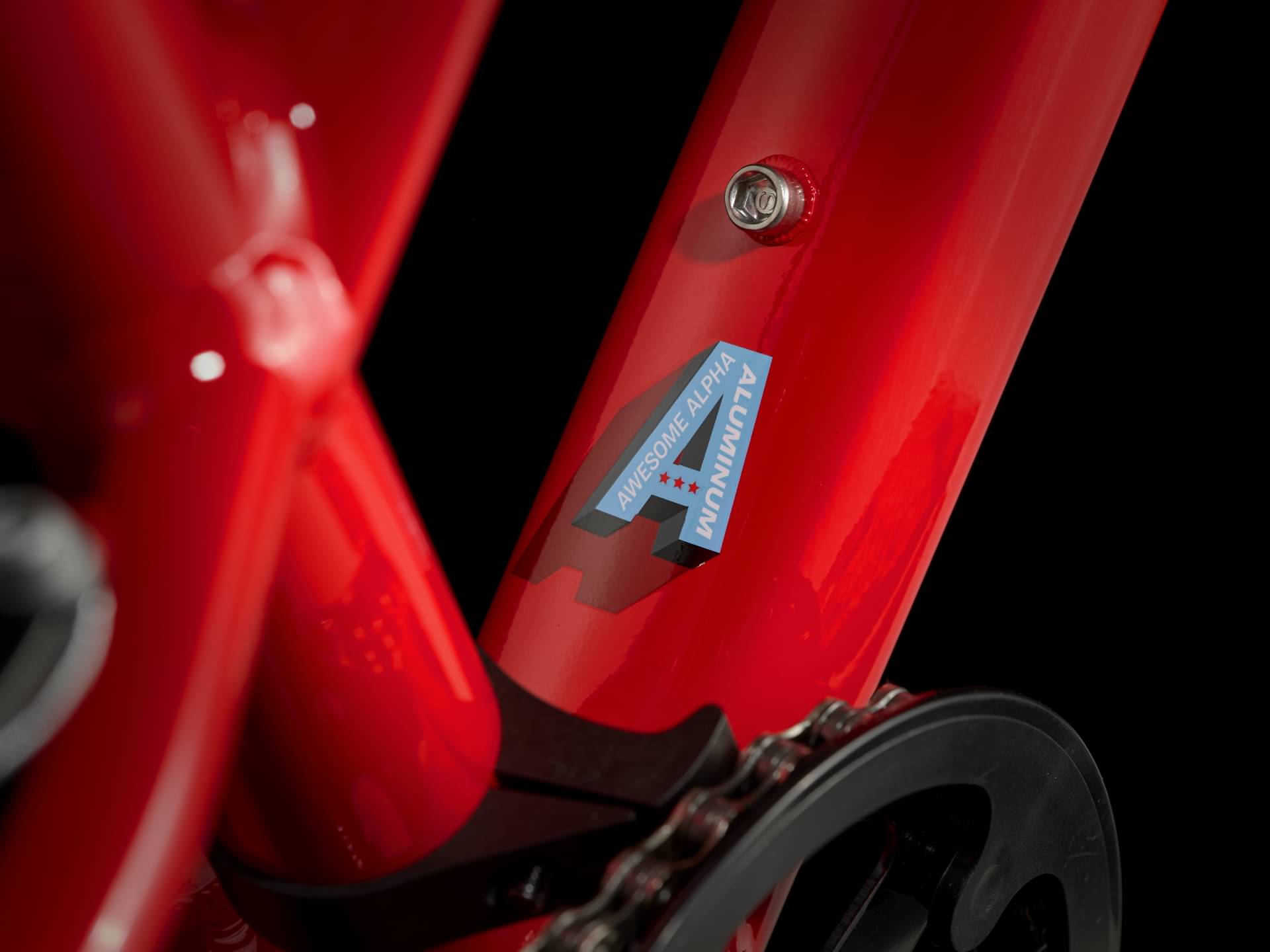

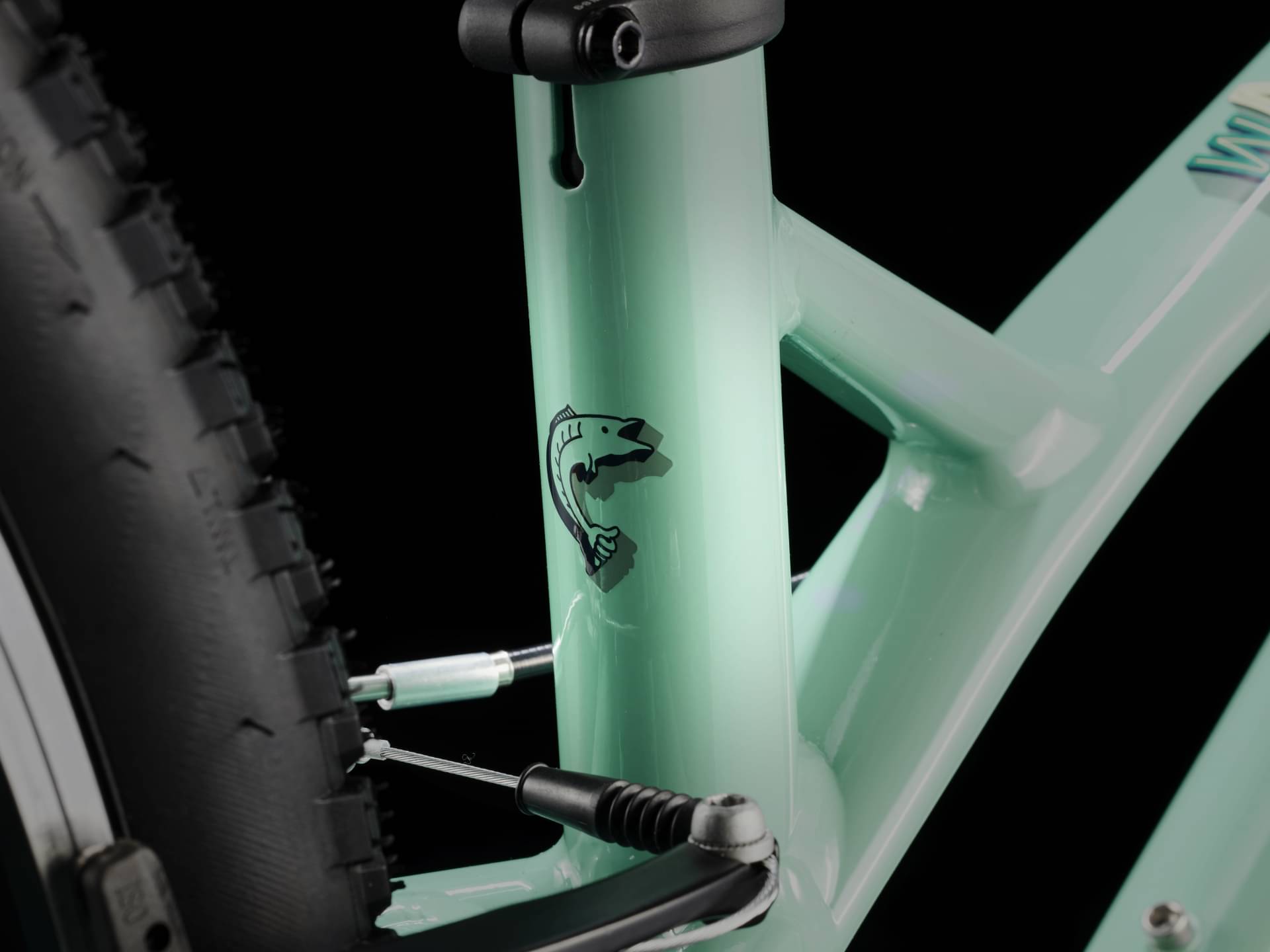

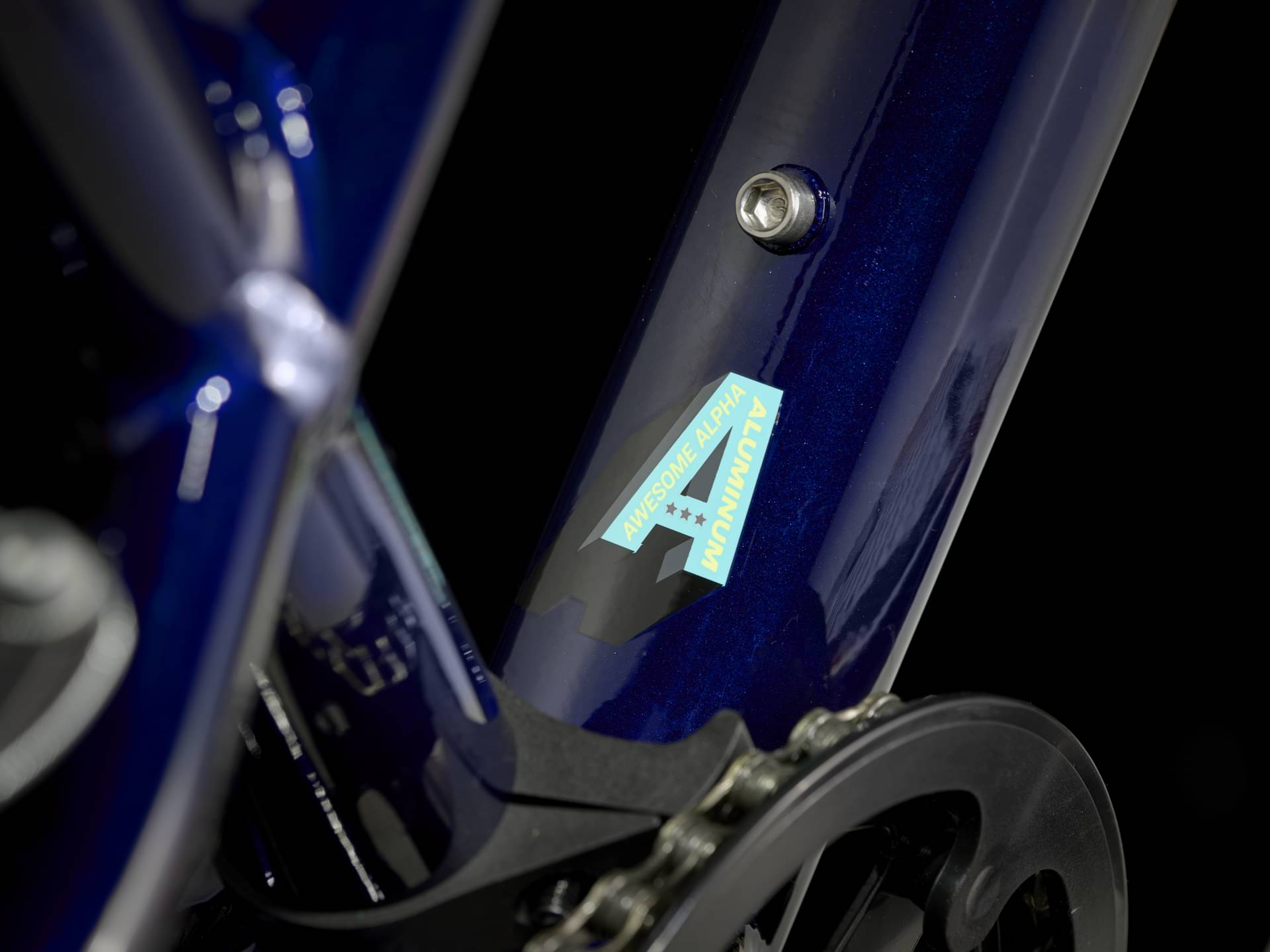

Frame

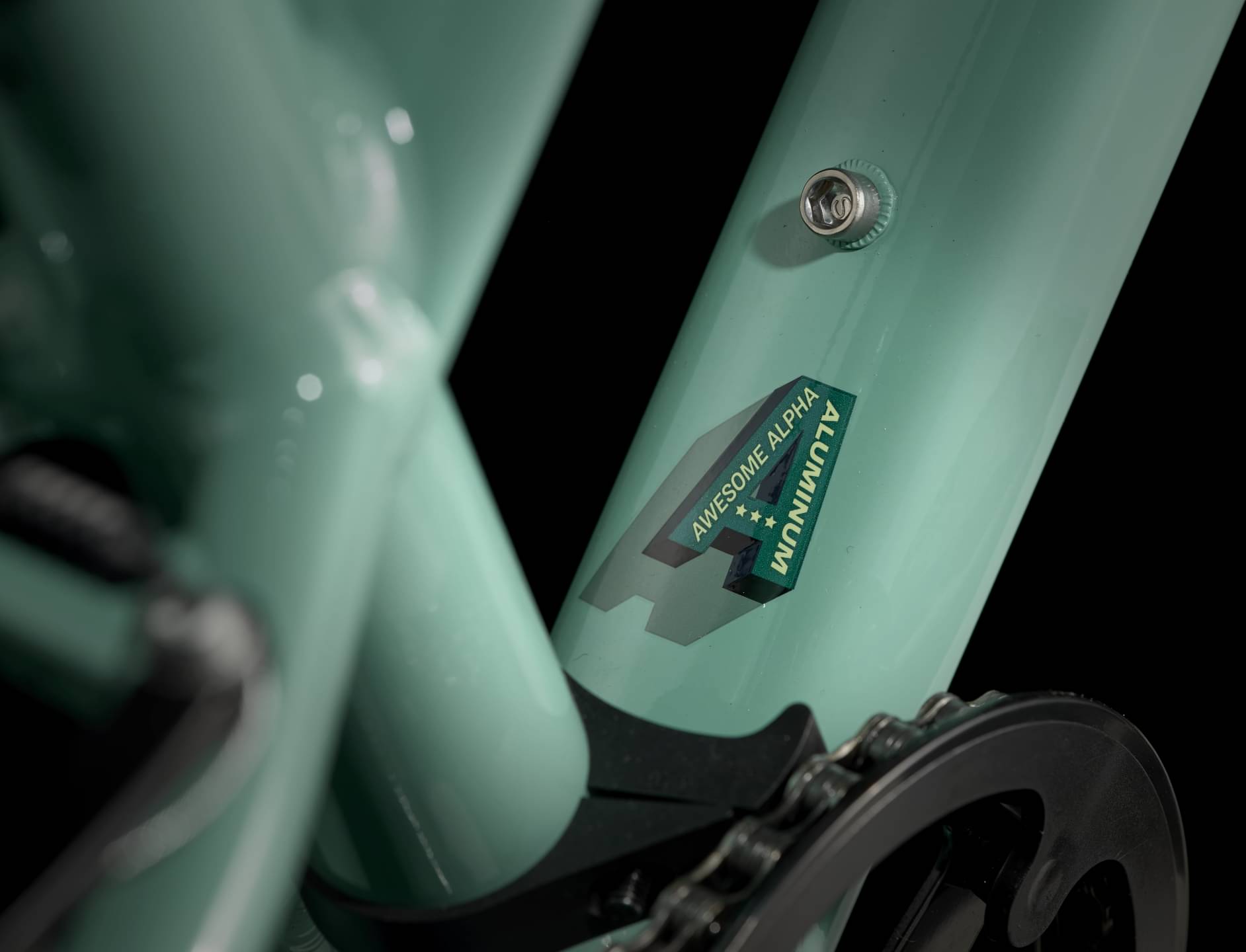

Alpha Silver Aluminum, 24''
Suspension Fork
Wahoo 24'' alloy, V-brake bosses, ThruSkew 5mm QR

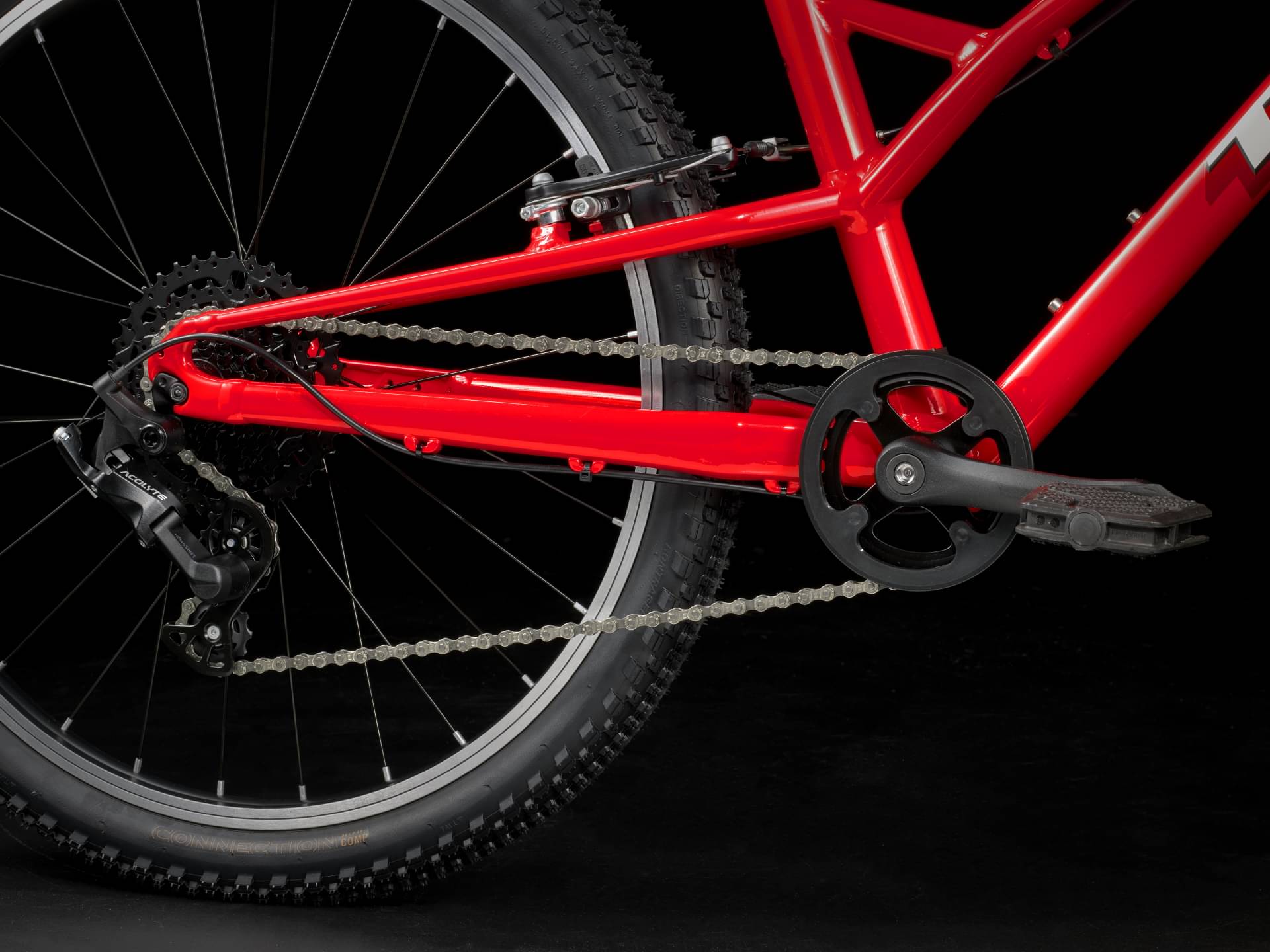

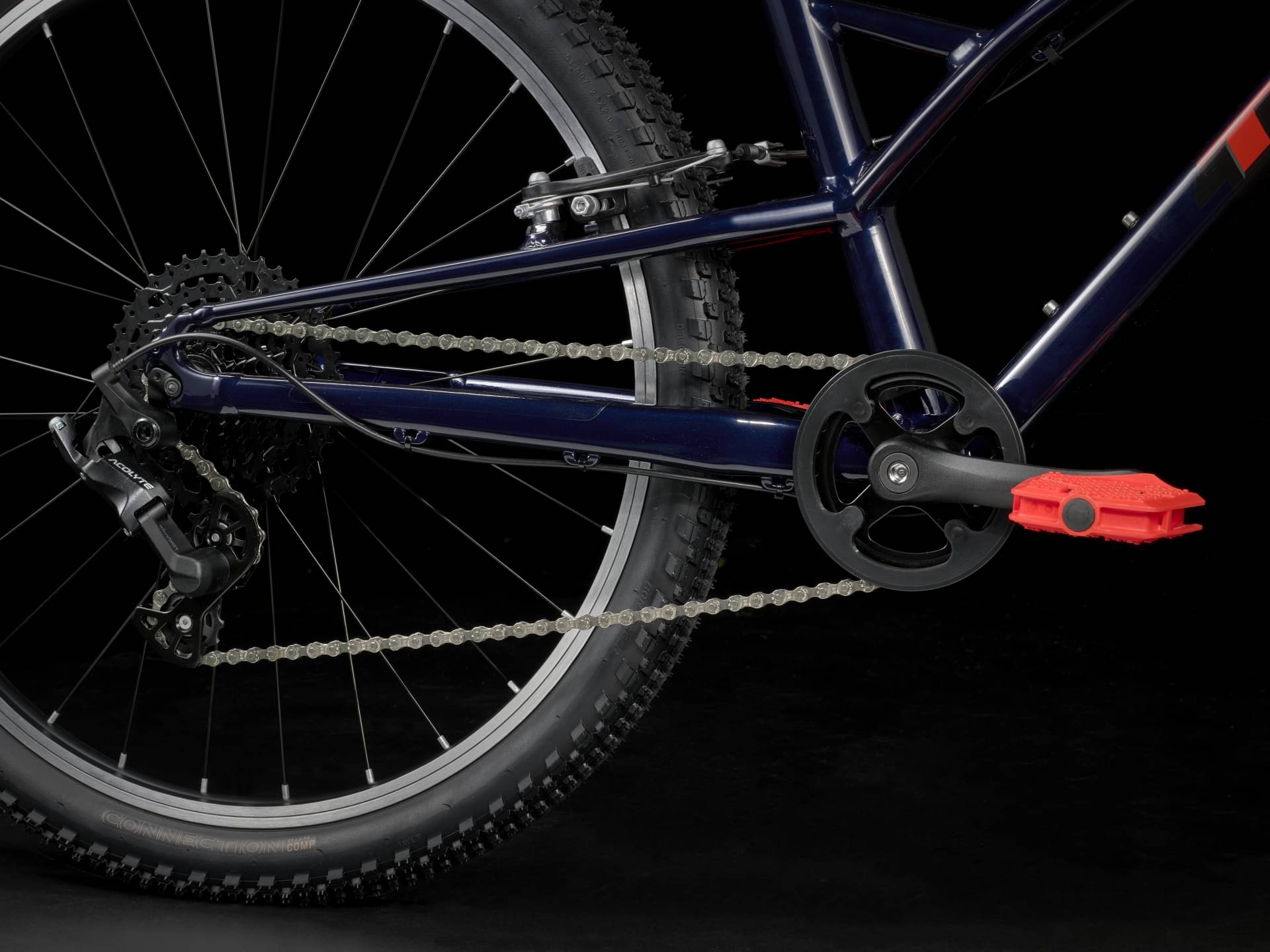

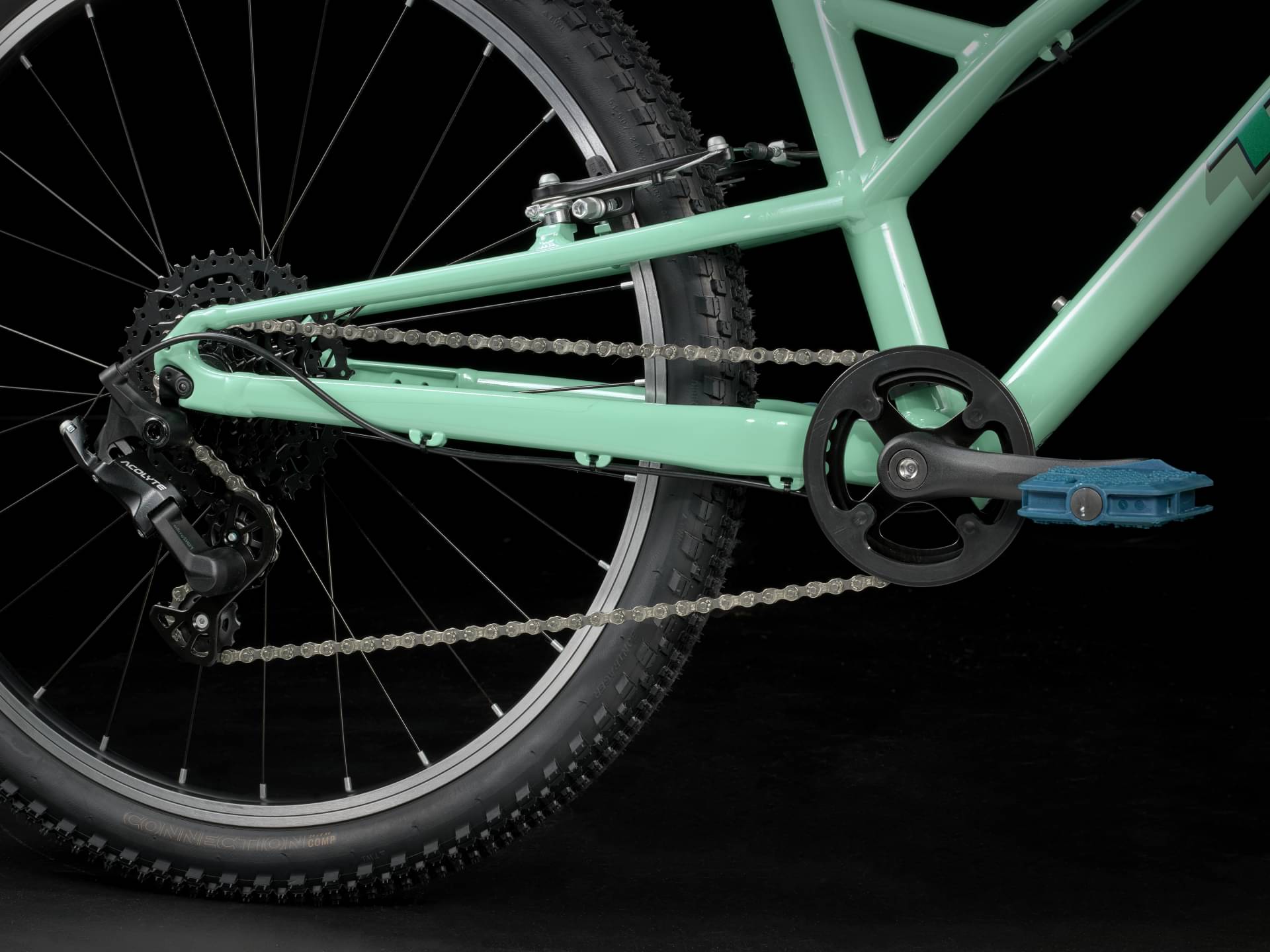

Drivetrain

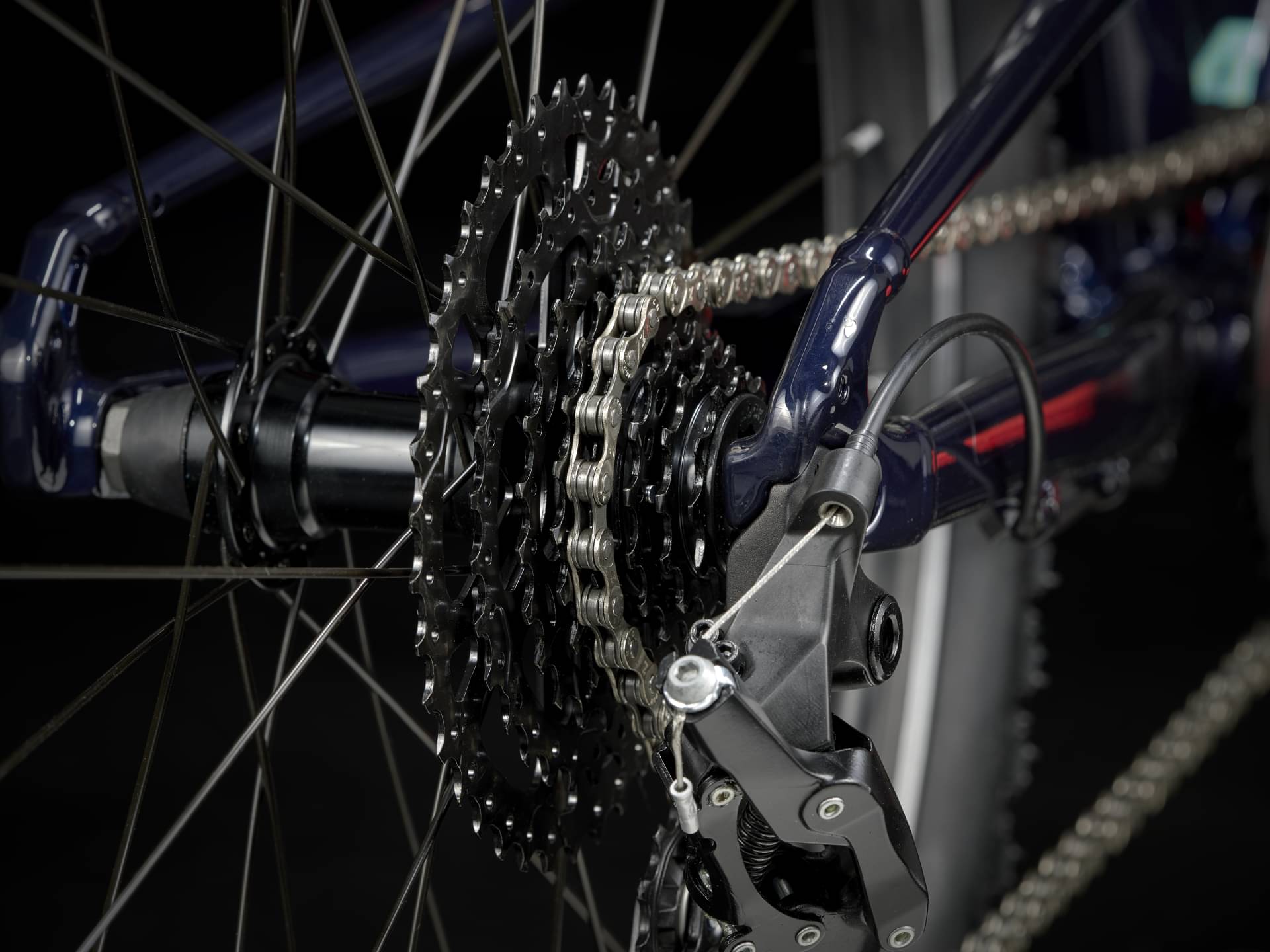

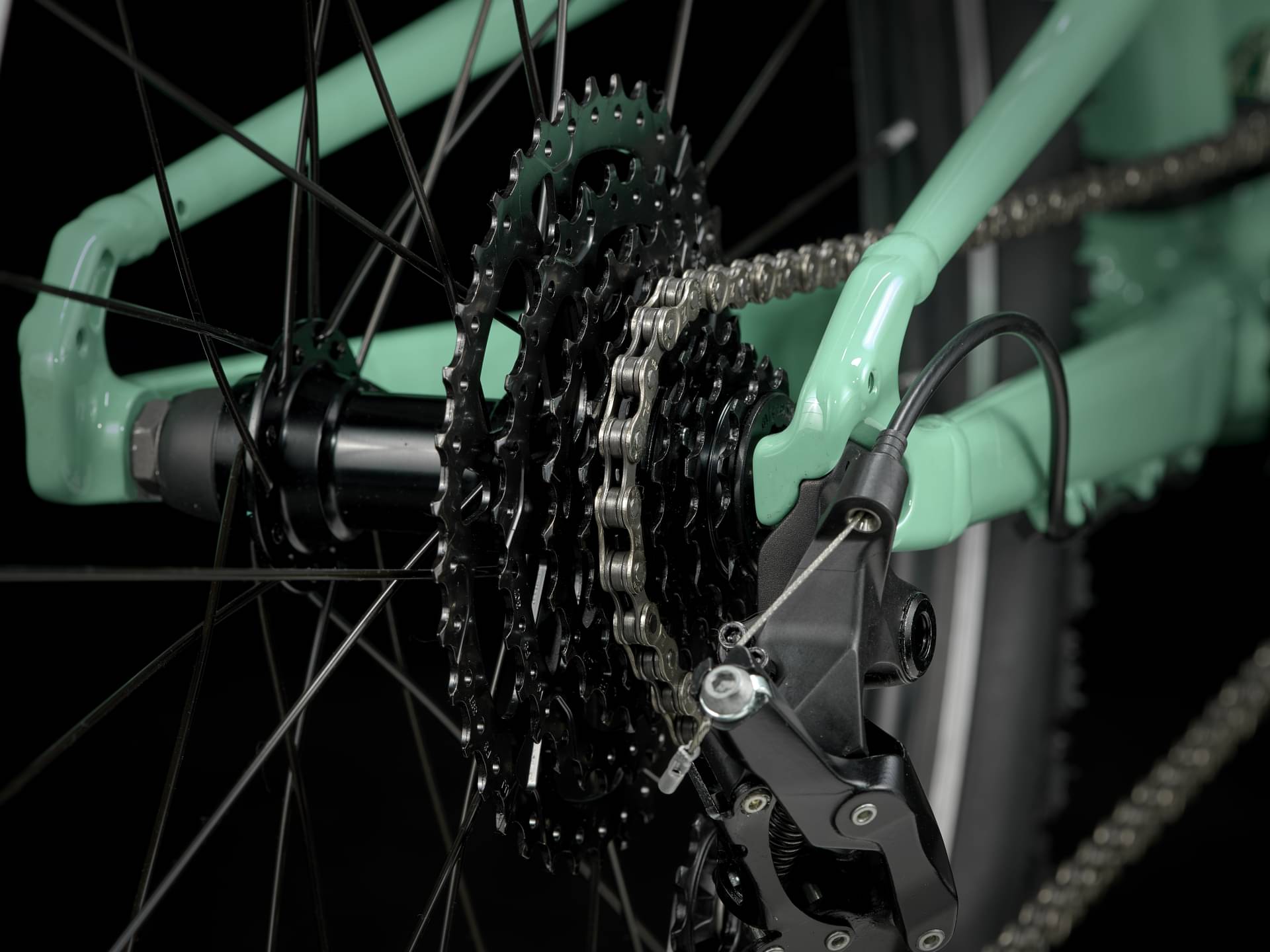

Rear Derailleur
microSHIFT Acolyte M5180S, 34-38T max cog
Shift Levers
microSHIFT Acolyte SL-M6285, 8 speed

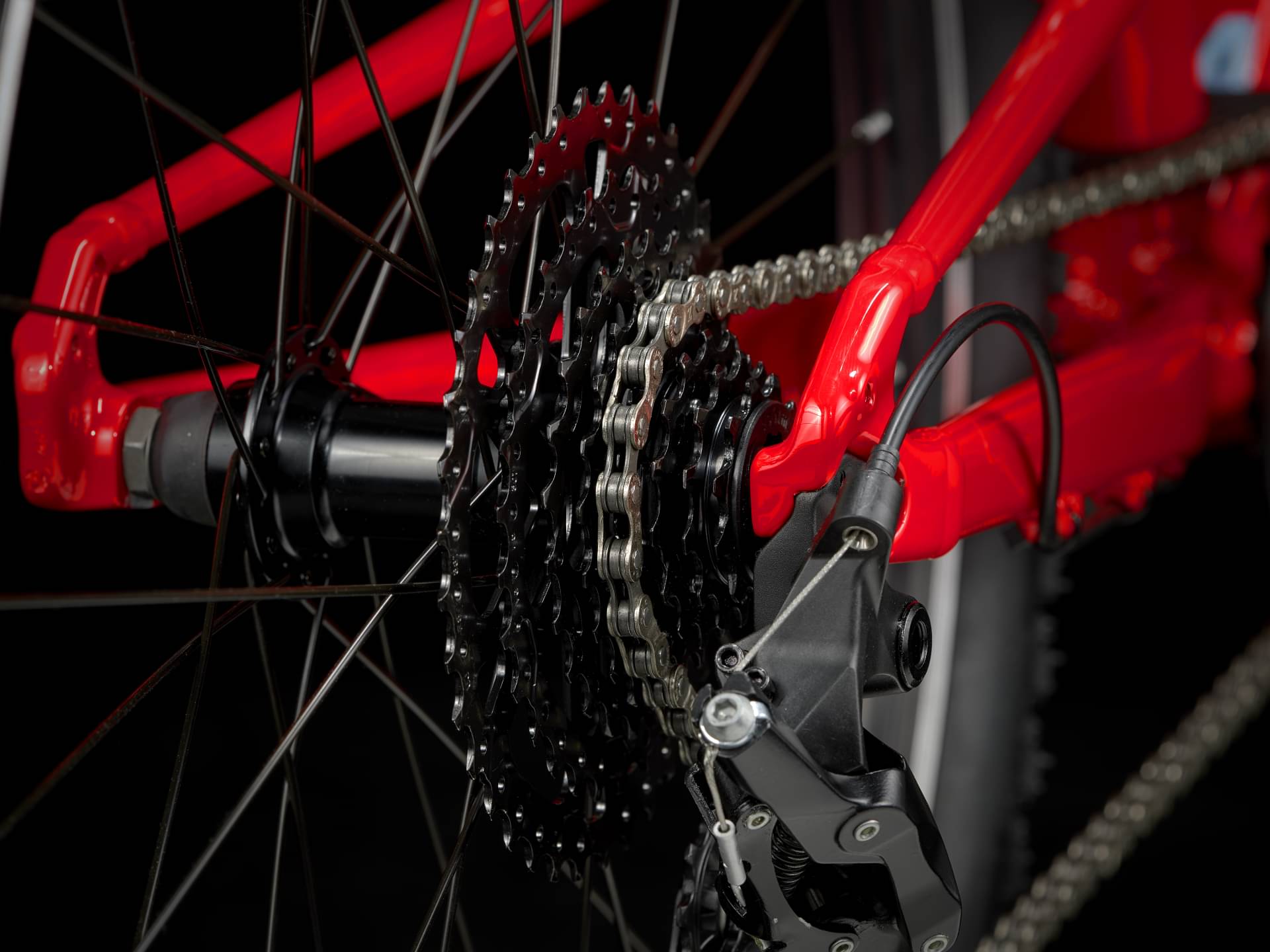

Cassette
microSHIFT Acolyte H083, 11-38, 8 speed
Crank
Alloy, 28T steel ring, chainguard, 127mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z8
Pedals
Kids' Satellite, 9/16 thread
Wheels
Front Hub
Formula alloy, 100mm ThruSkew
Rear Hub
Formula FM32 alloy, 135x5mm
Rims
Alloy 24'', 28h
Tires
Bontrager Connection Comp, wire bead, 30 tpi, 24x2.00''

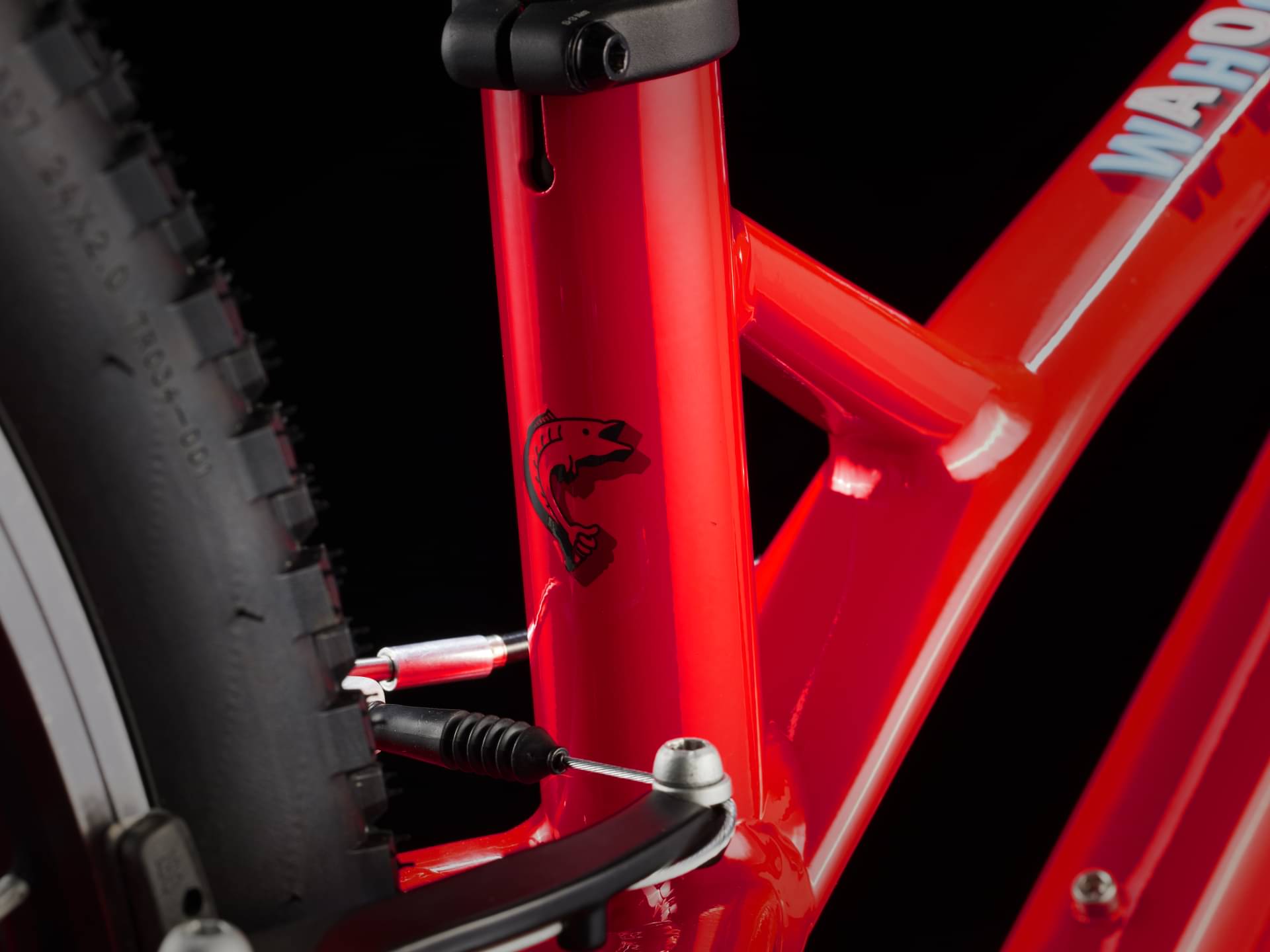

Brakes
Brakes
Alloy linear-pull
Brake Levers
Kids' alloy brake lever, black

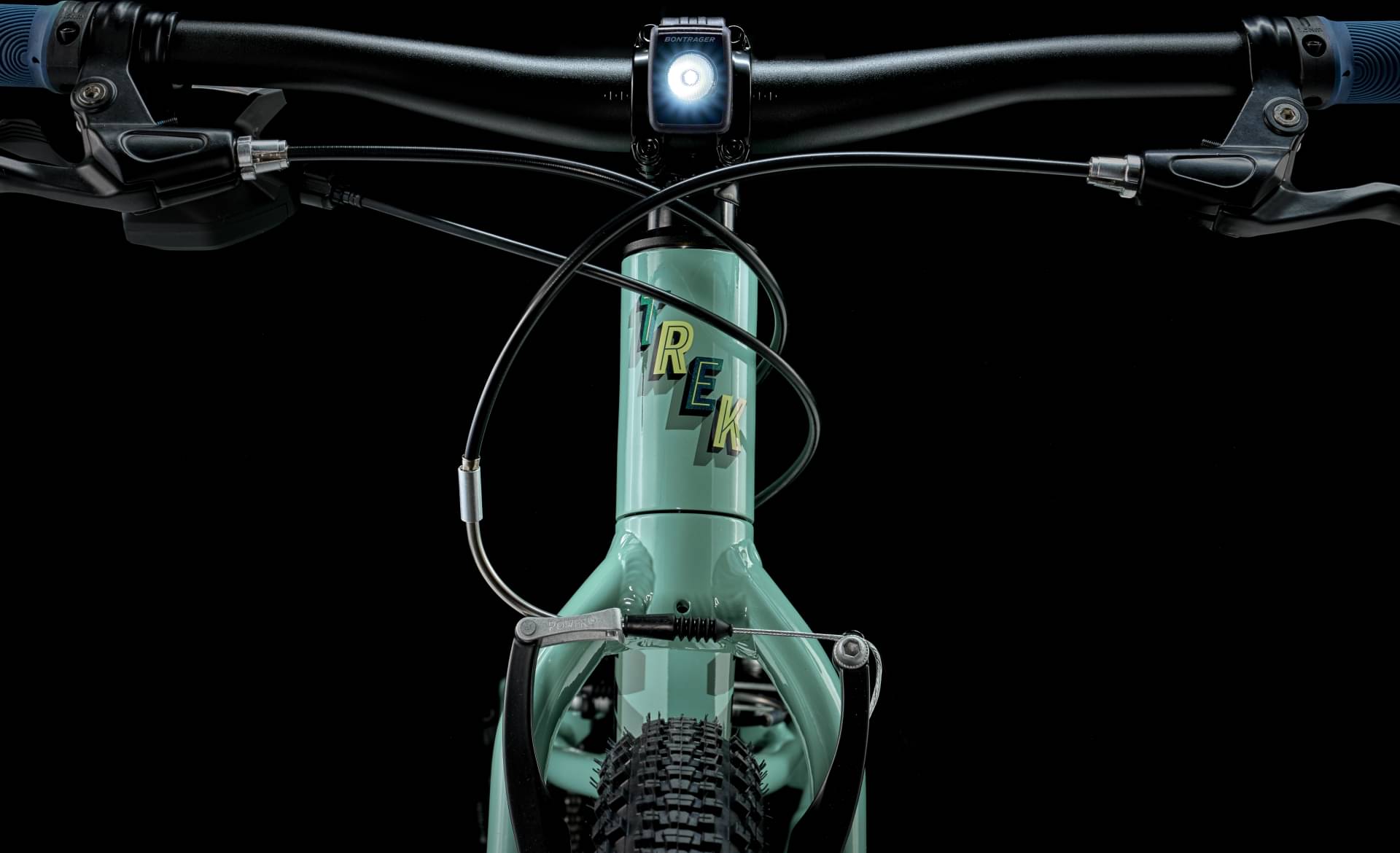

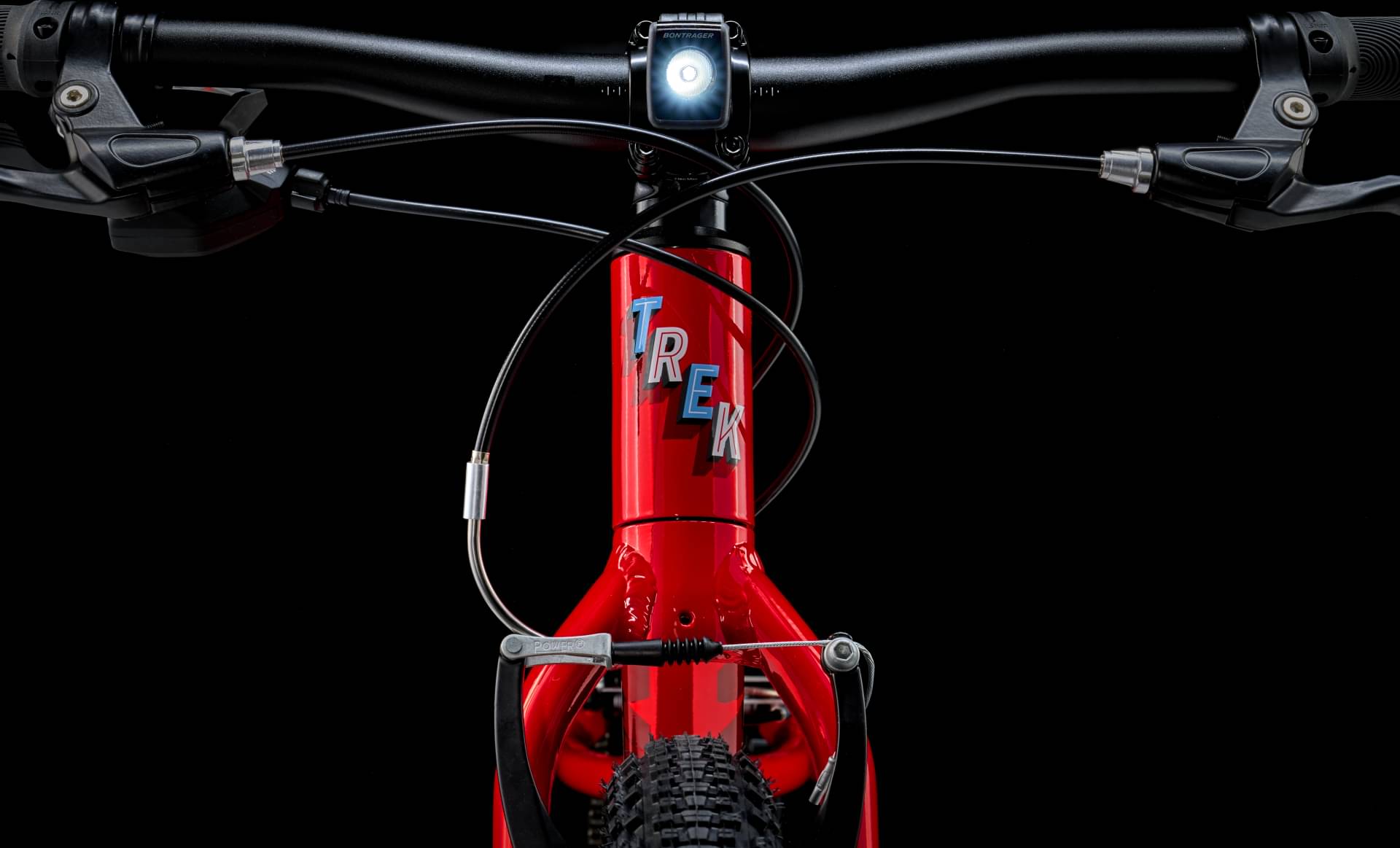

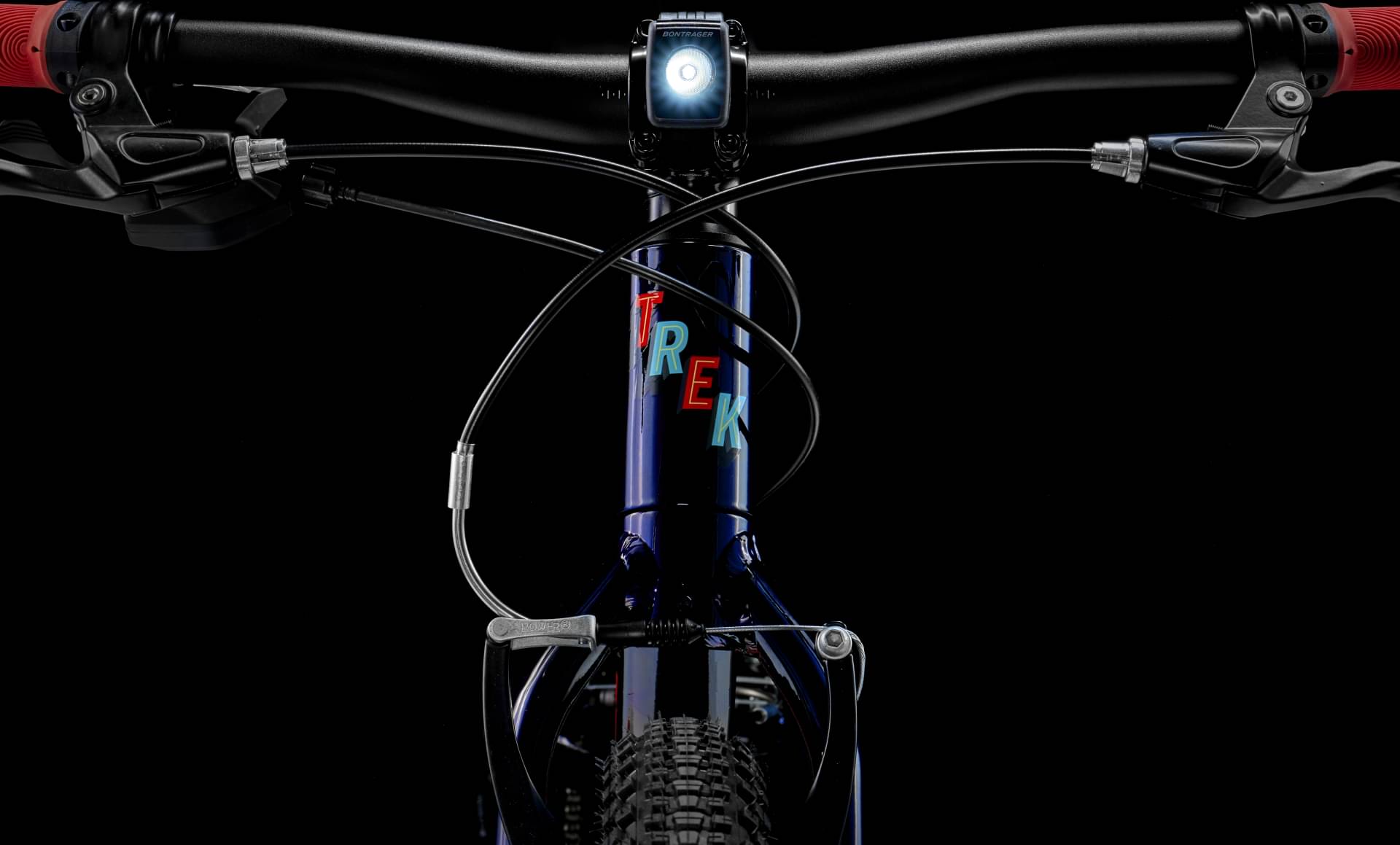

Cockpit
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 580mm width
Grips
Size: 24" wheel, Kids' grip, 108mm width, lock-on; Size: 24" wheel, Kids' grip, 110mm width; Size: 24" wheel, Kids' grip, 108mm width
Headset
Integrated, sealed cartridge bearings
Seat

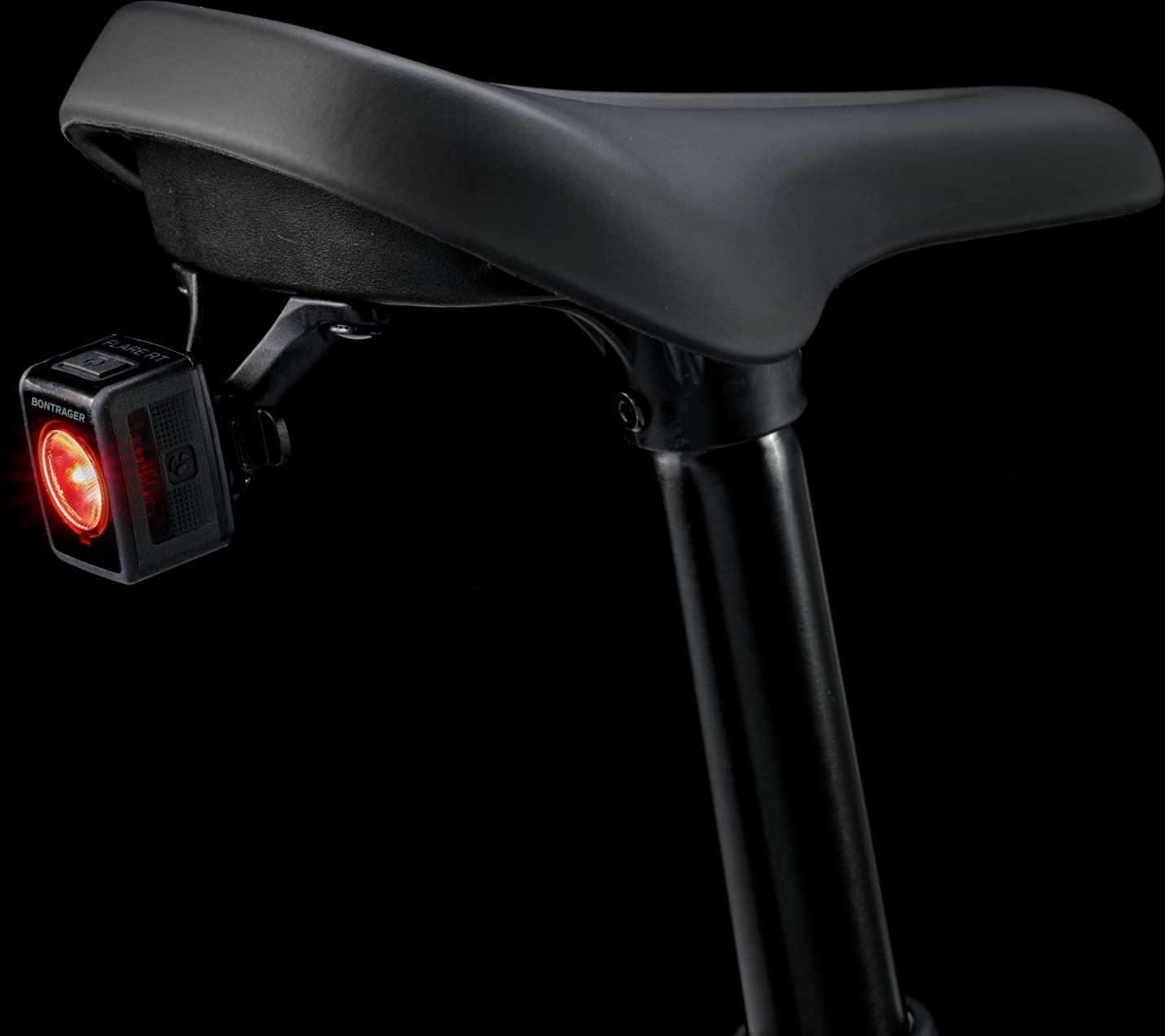

Saddle
Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.174 mm |
| Bottom Bracket Height | 274 mm |
| Front Center | 616 mm |
| Rake | 44 mm |
| Trail | 81 mm |
| Stack | 458 mm |
| Reach | 390 mm |
| Top Tube Length | 530 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 67 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 420 mm |
| Wheelbase | 1032 mm |
| Bottom Bracket Drop | 43 mm |
| Standover Height | 530 mm |
| Wheels | 24" |
| Rider Min Height | 130 cm |
| Rider Max Height | 150 cm |
