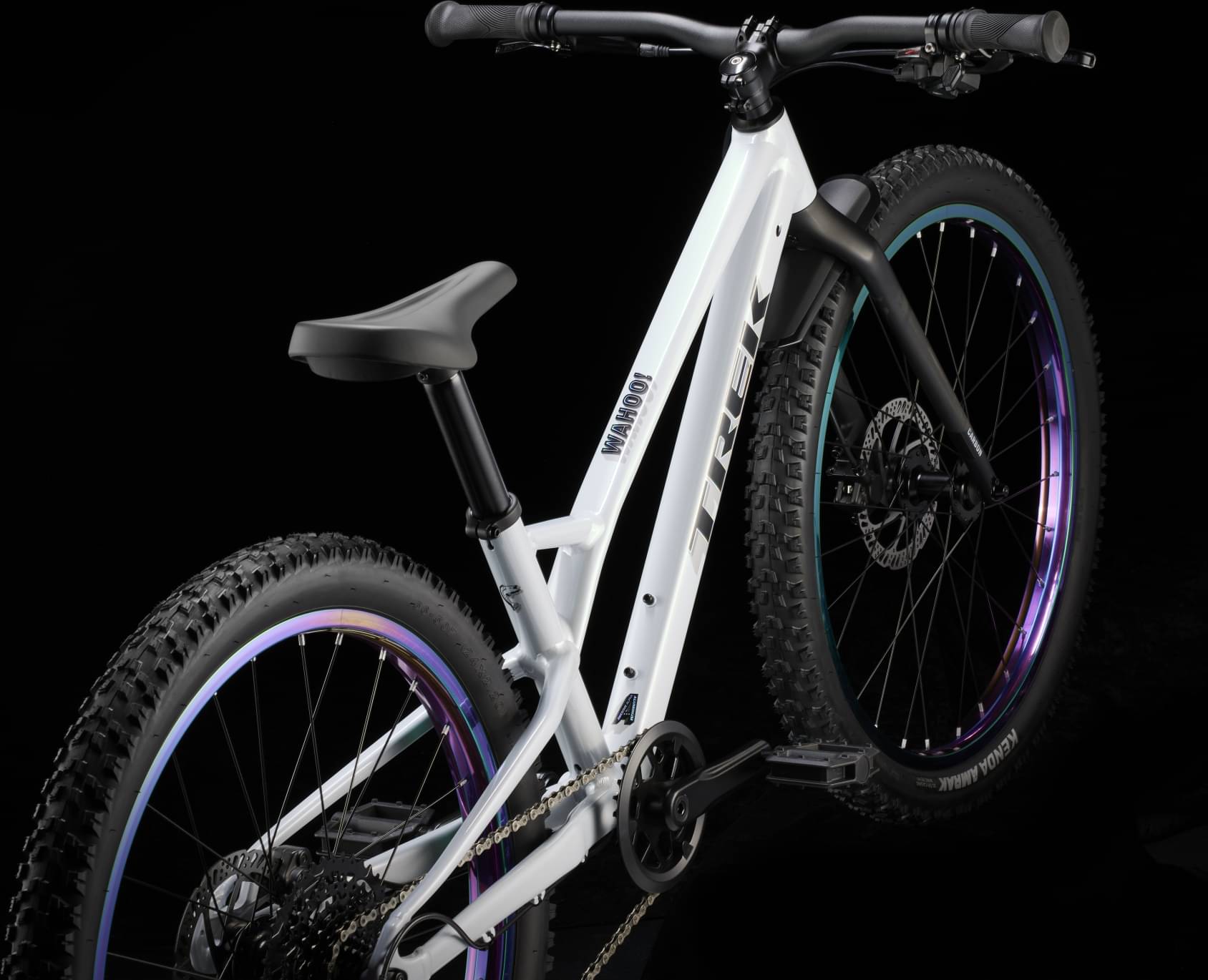

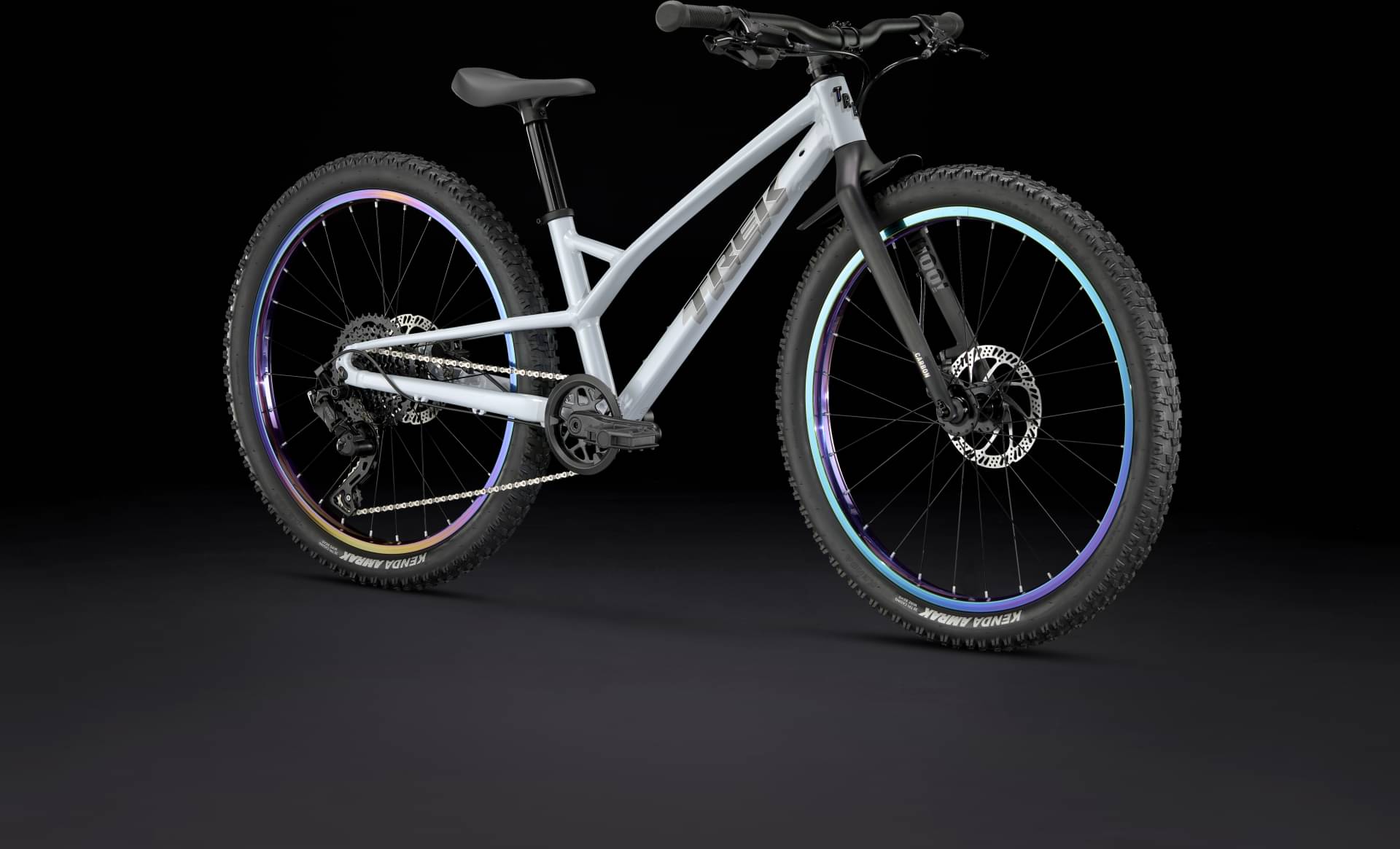

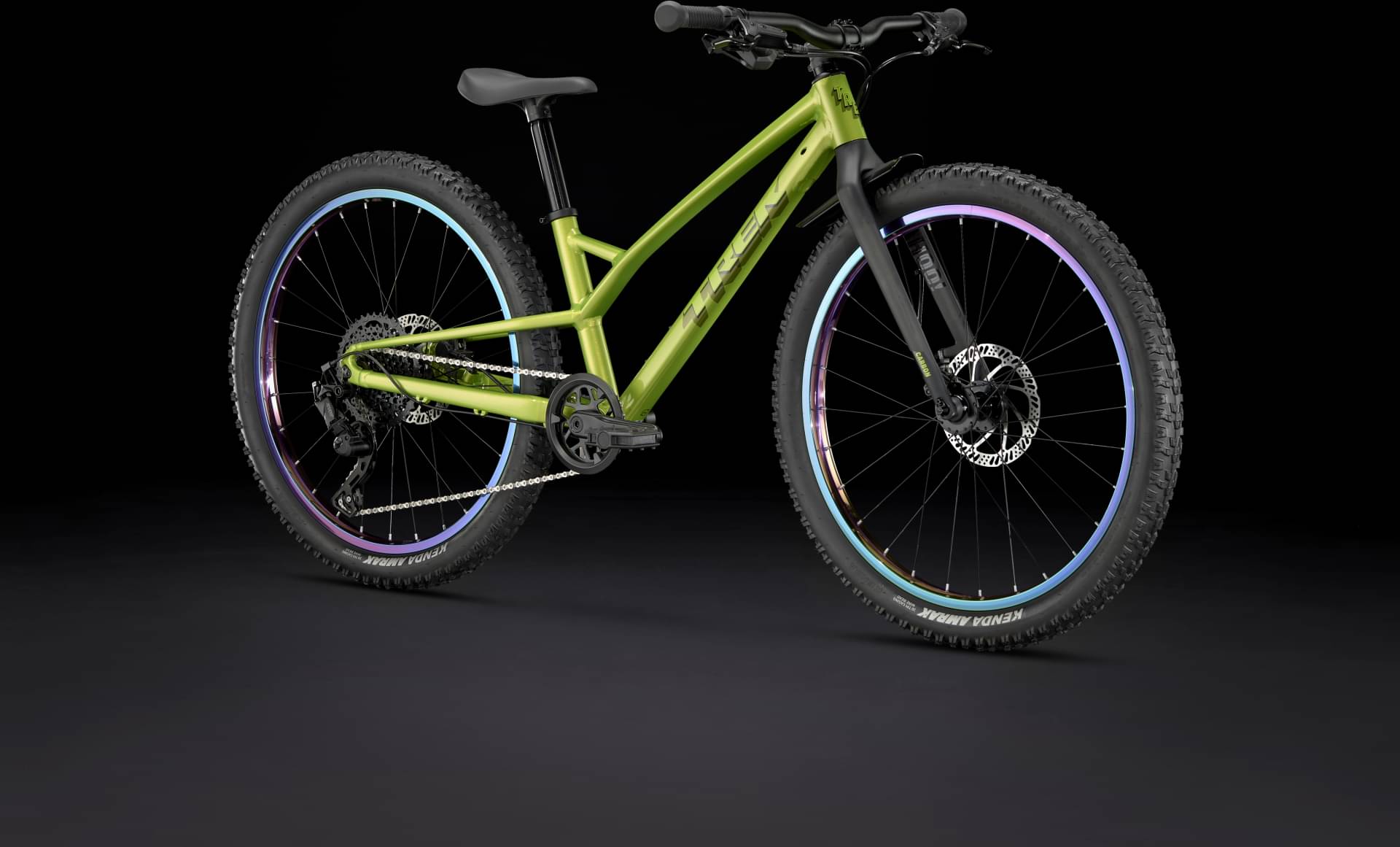

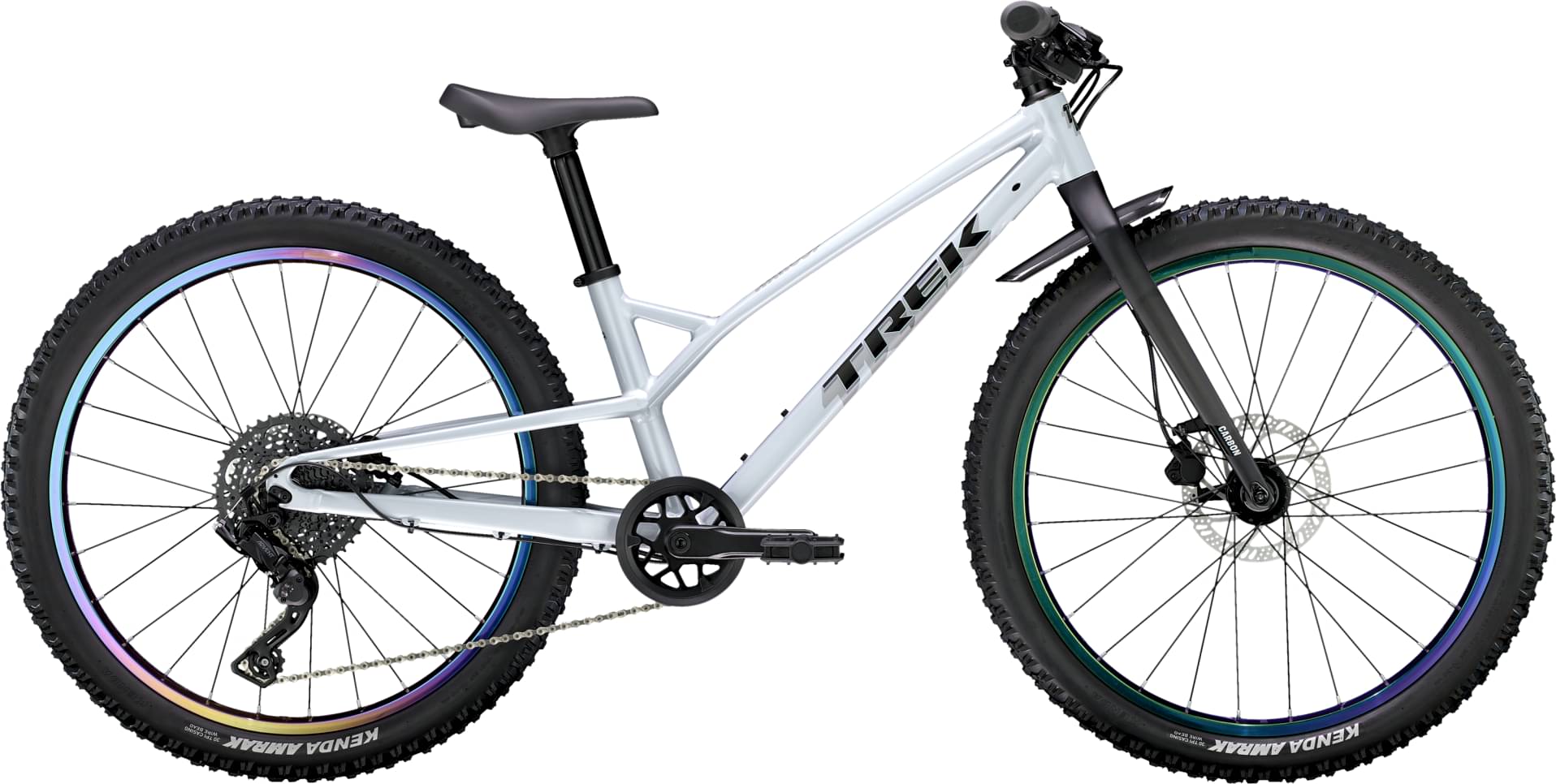

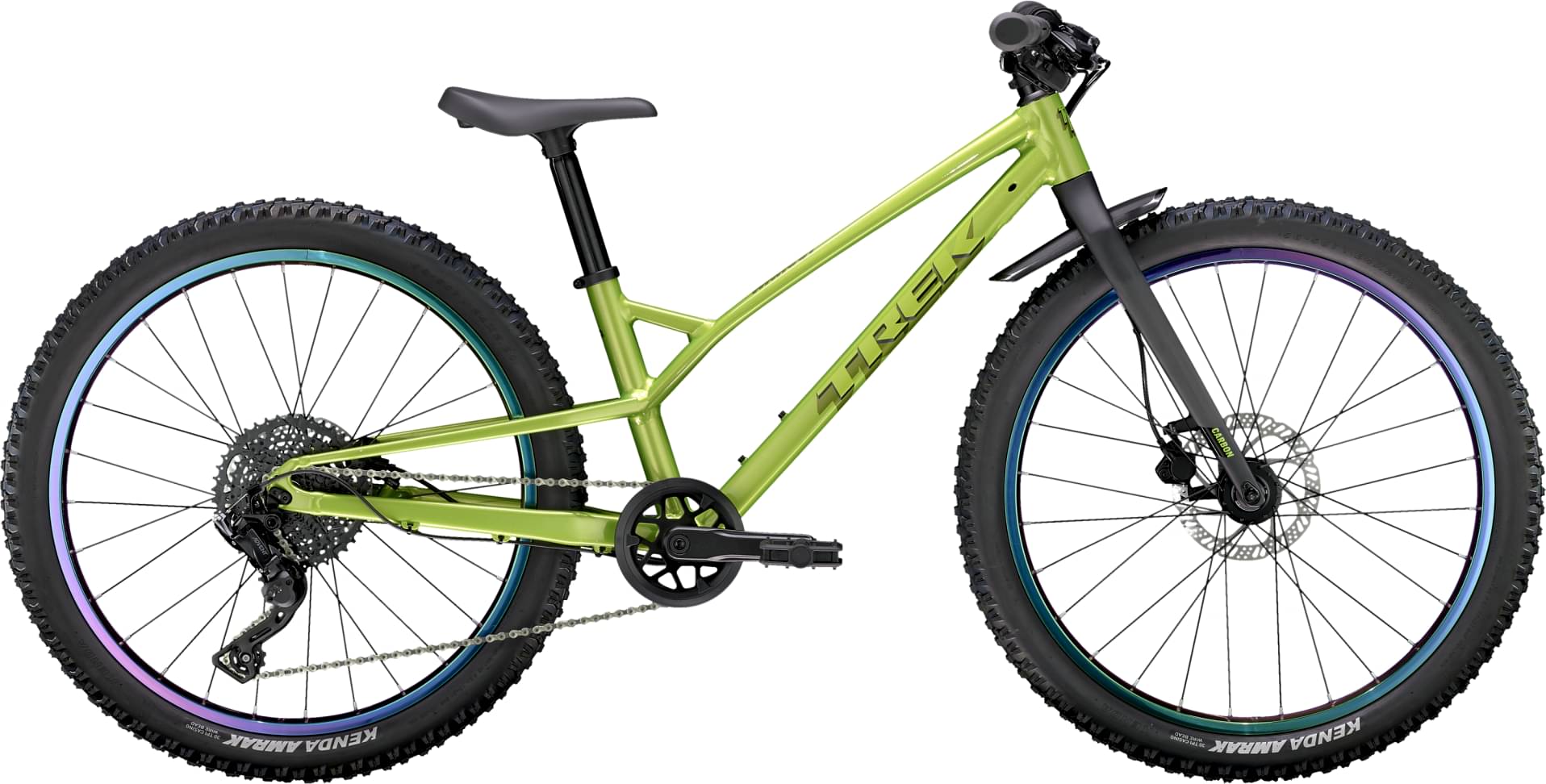

Trek Wahoo 24 Trail 2025
2025 Youth
Estimate price |
871$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
130cm - 150cm
Parts list
Components
Main components, grouped by system.
Bike components

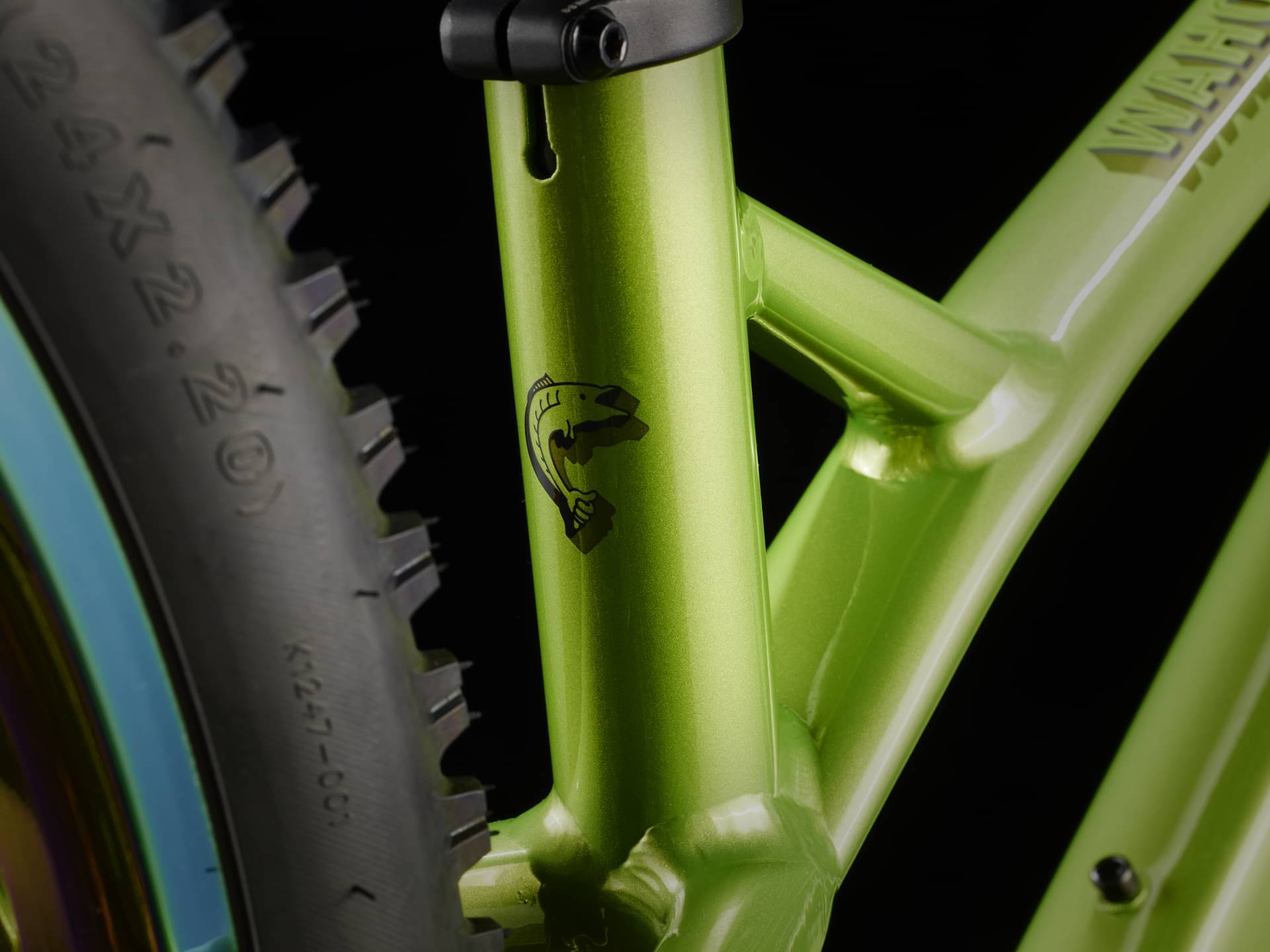

Frame

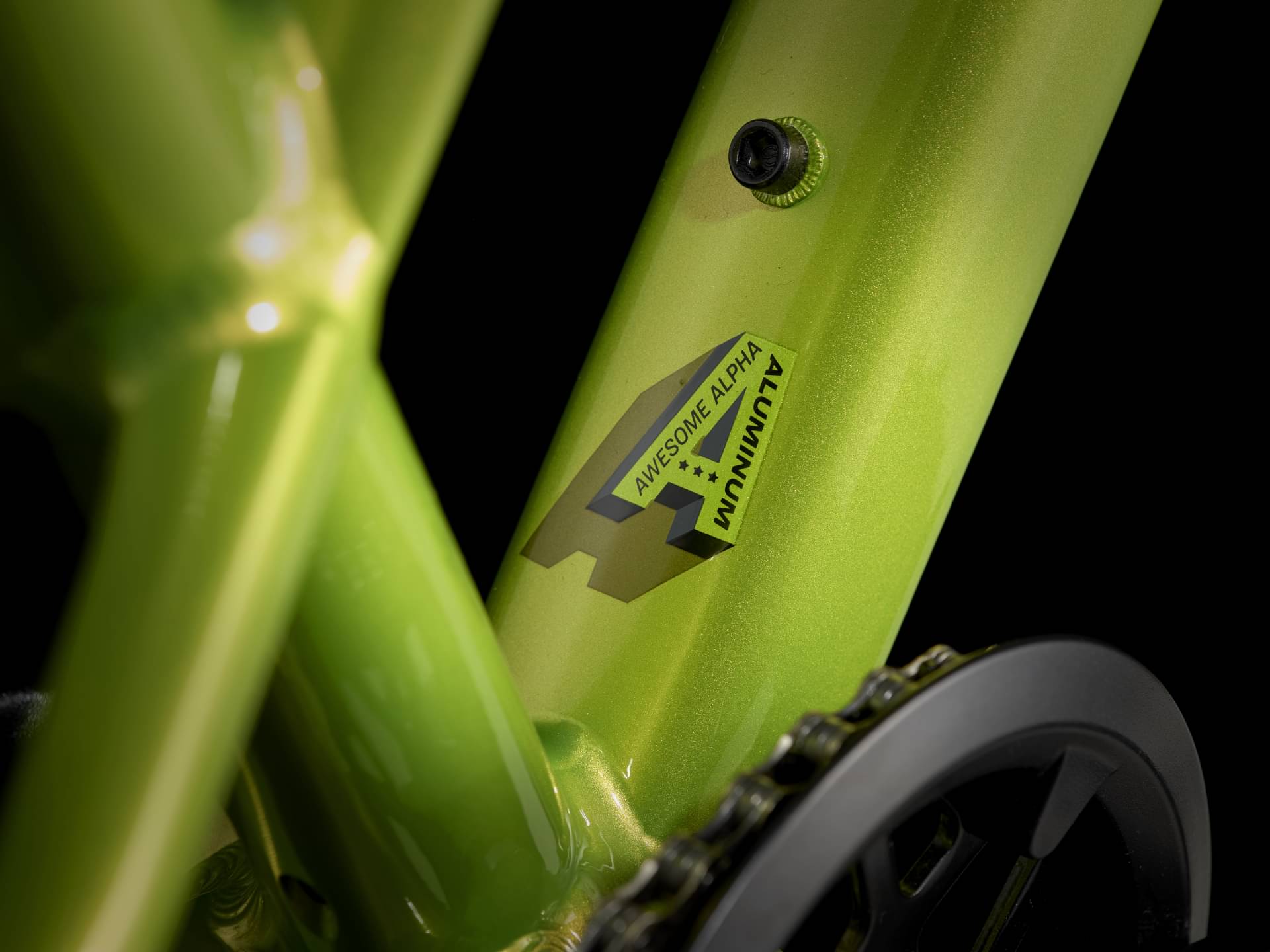

Frame

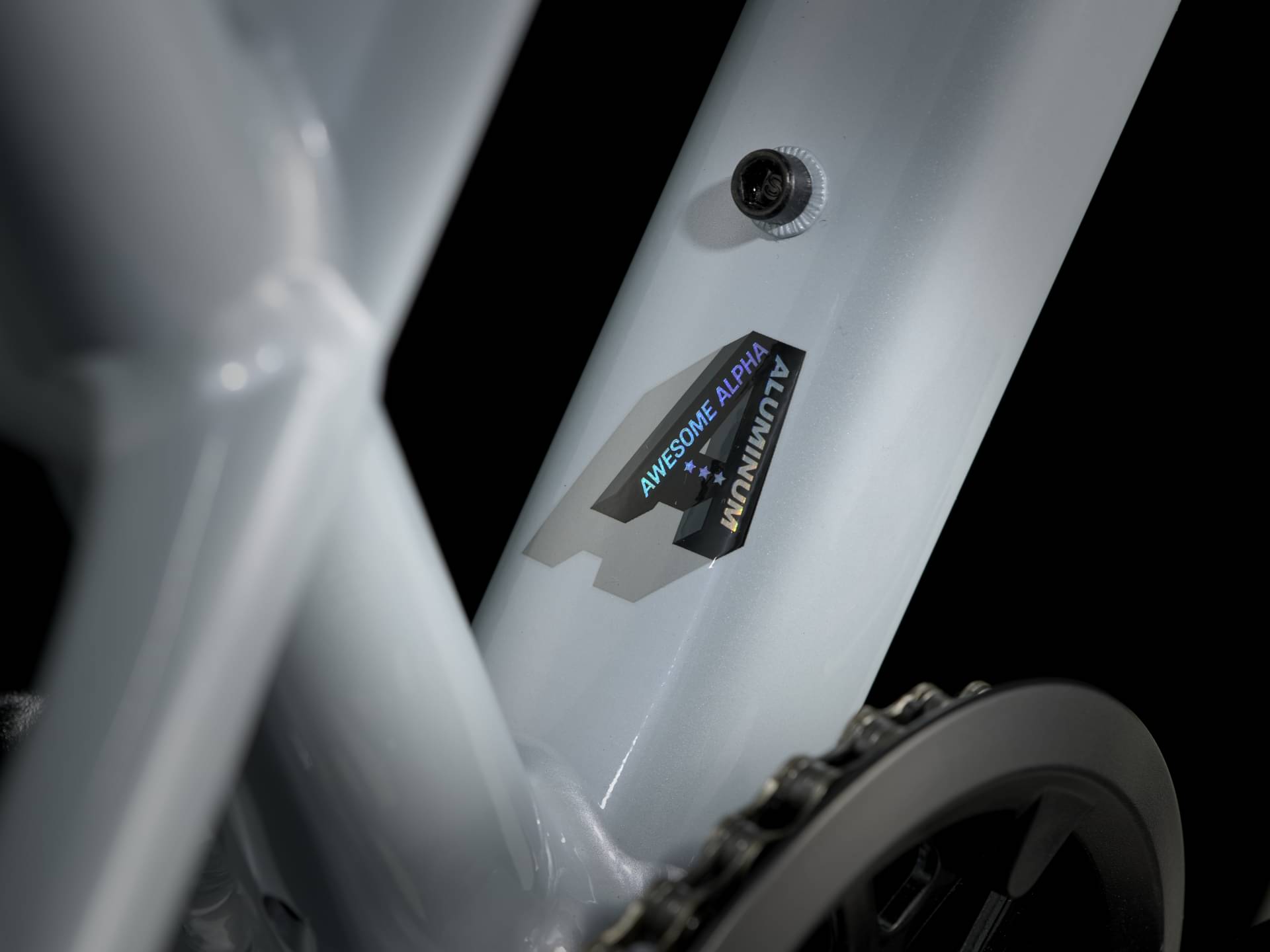

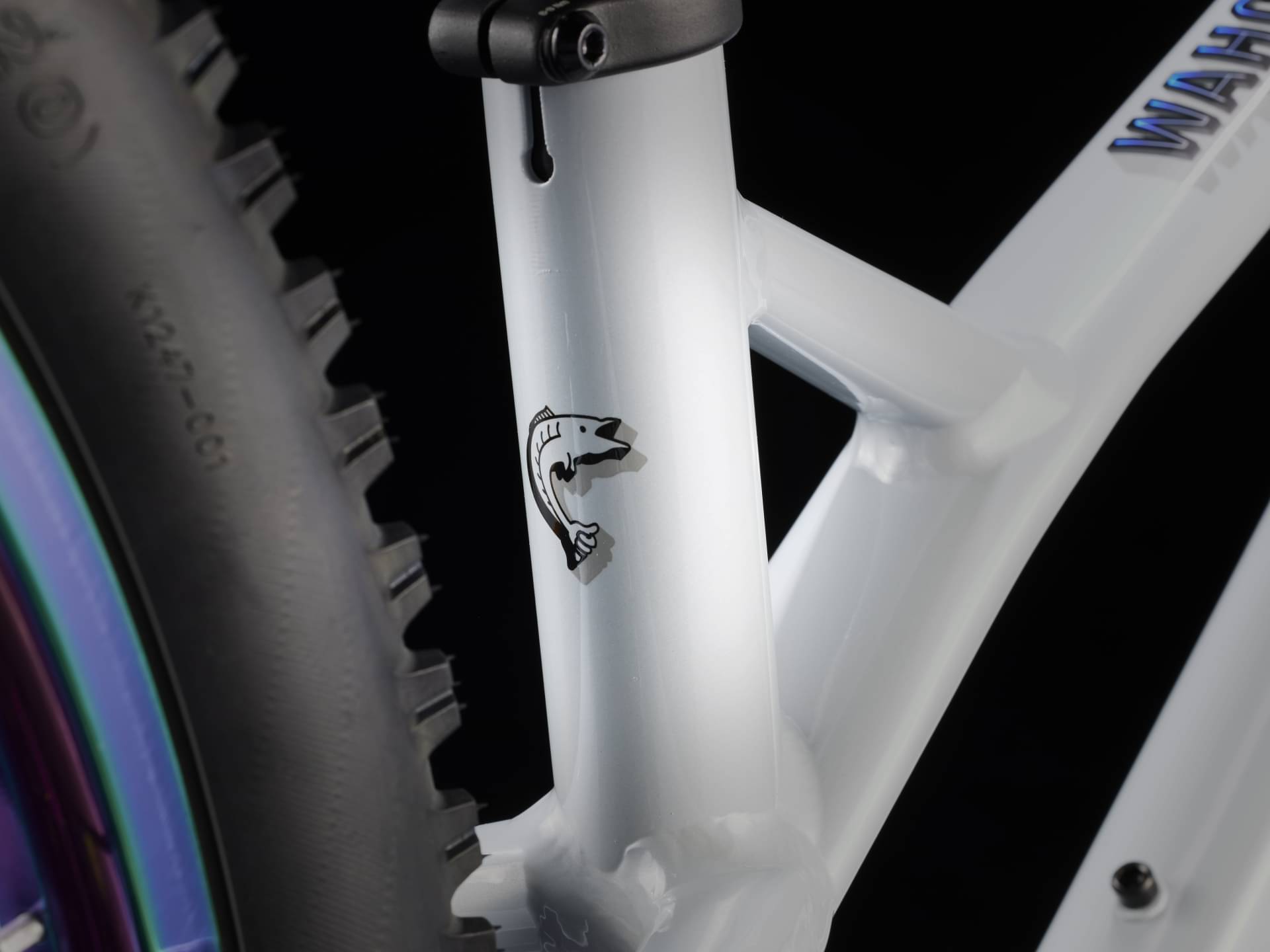

Alpha Silver Aluminum, 24''

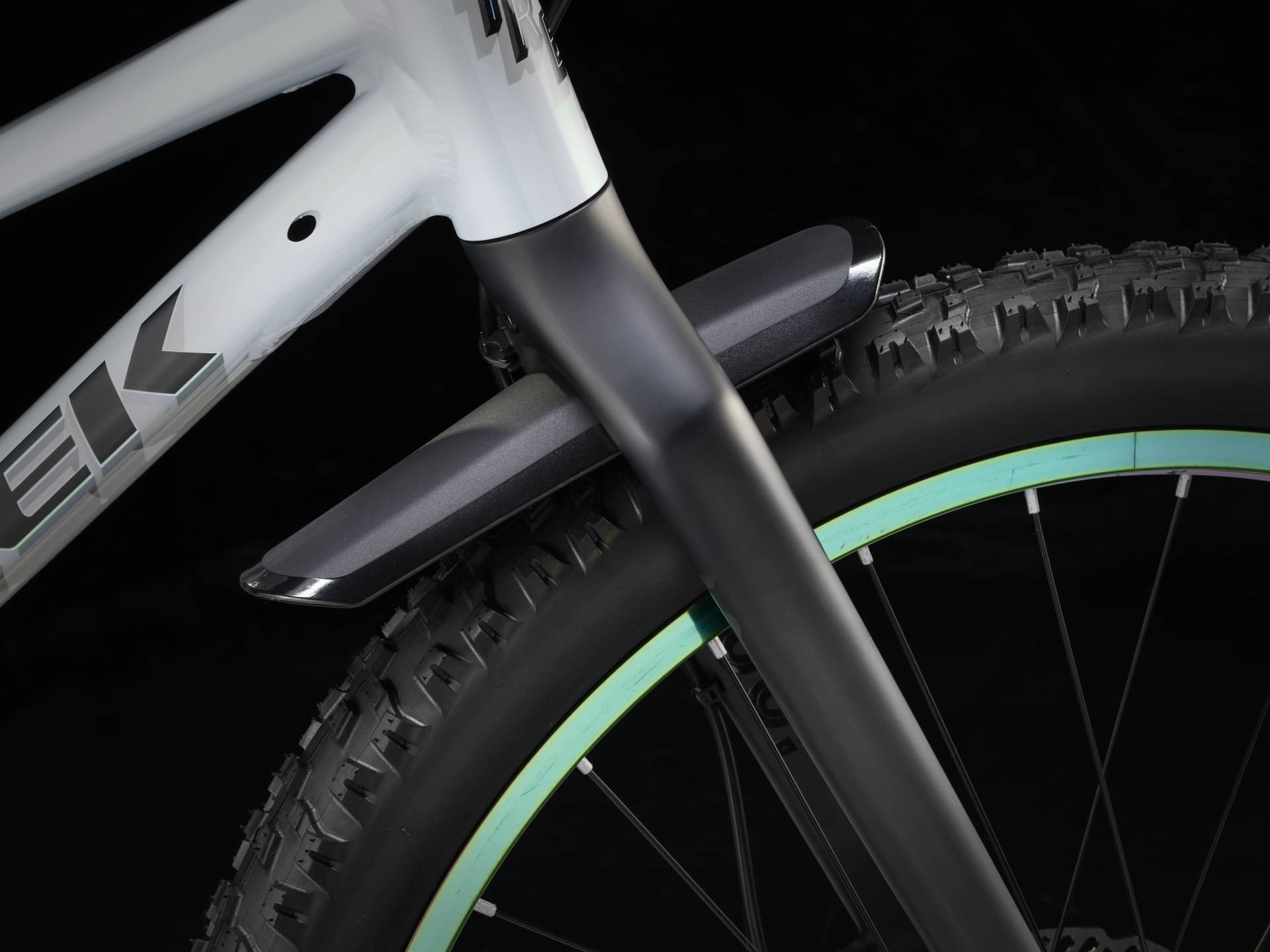

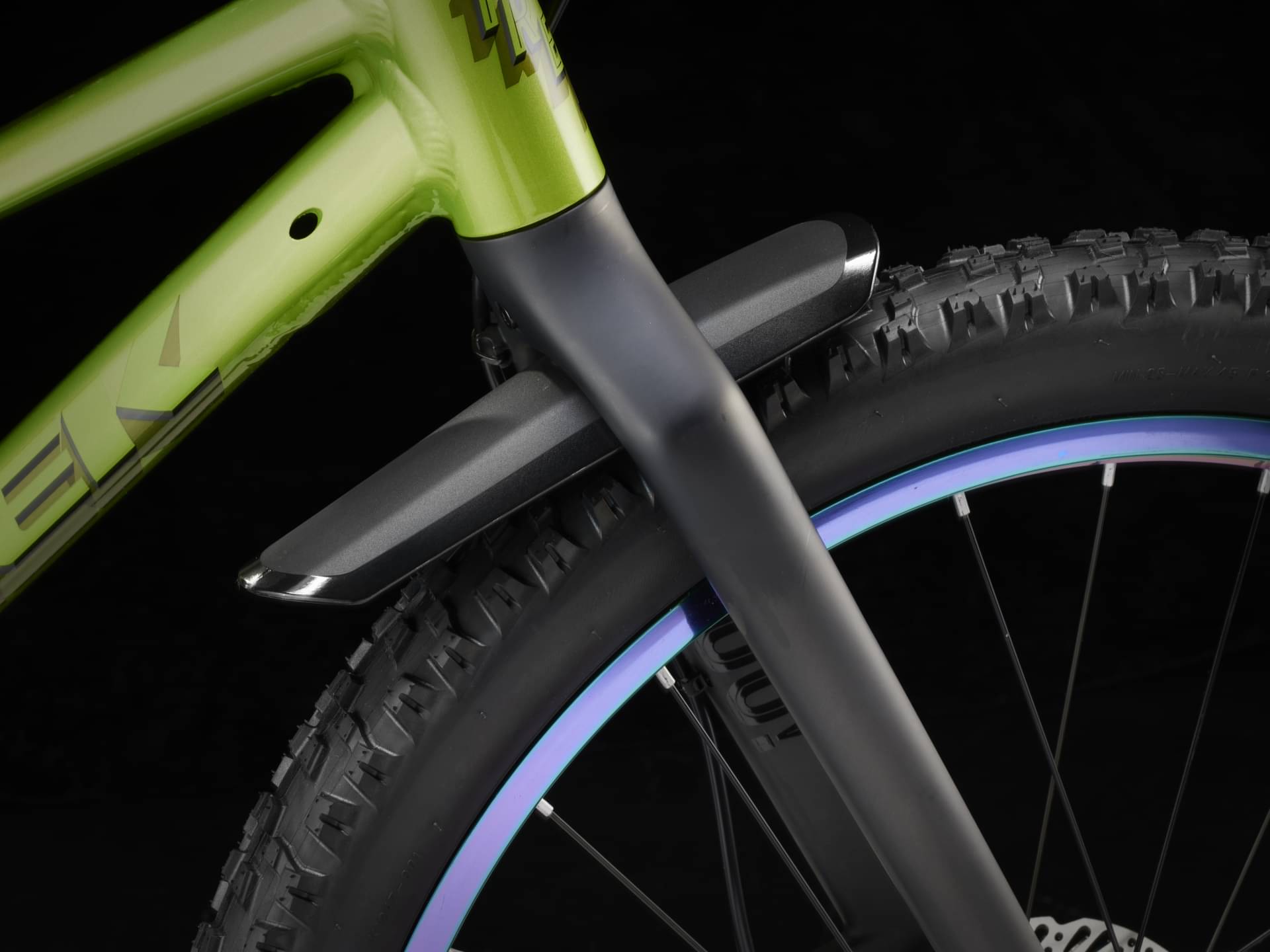

Suspension Fork
Wahoo 24'' carbon, post mount disc brake, ThruSkew 5mm QR

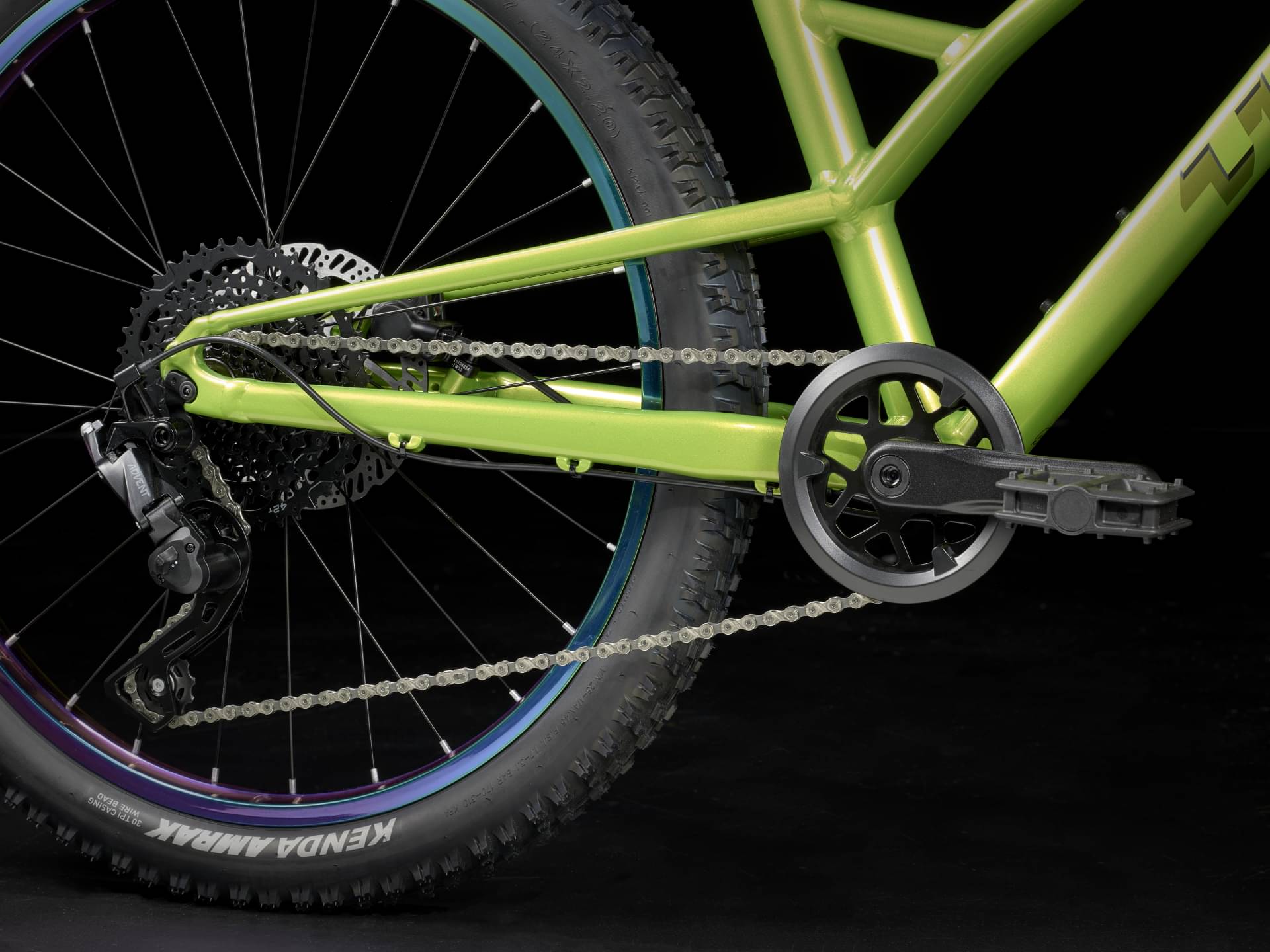

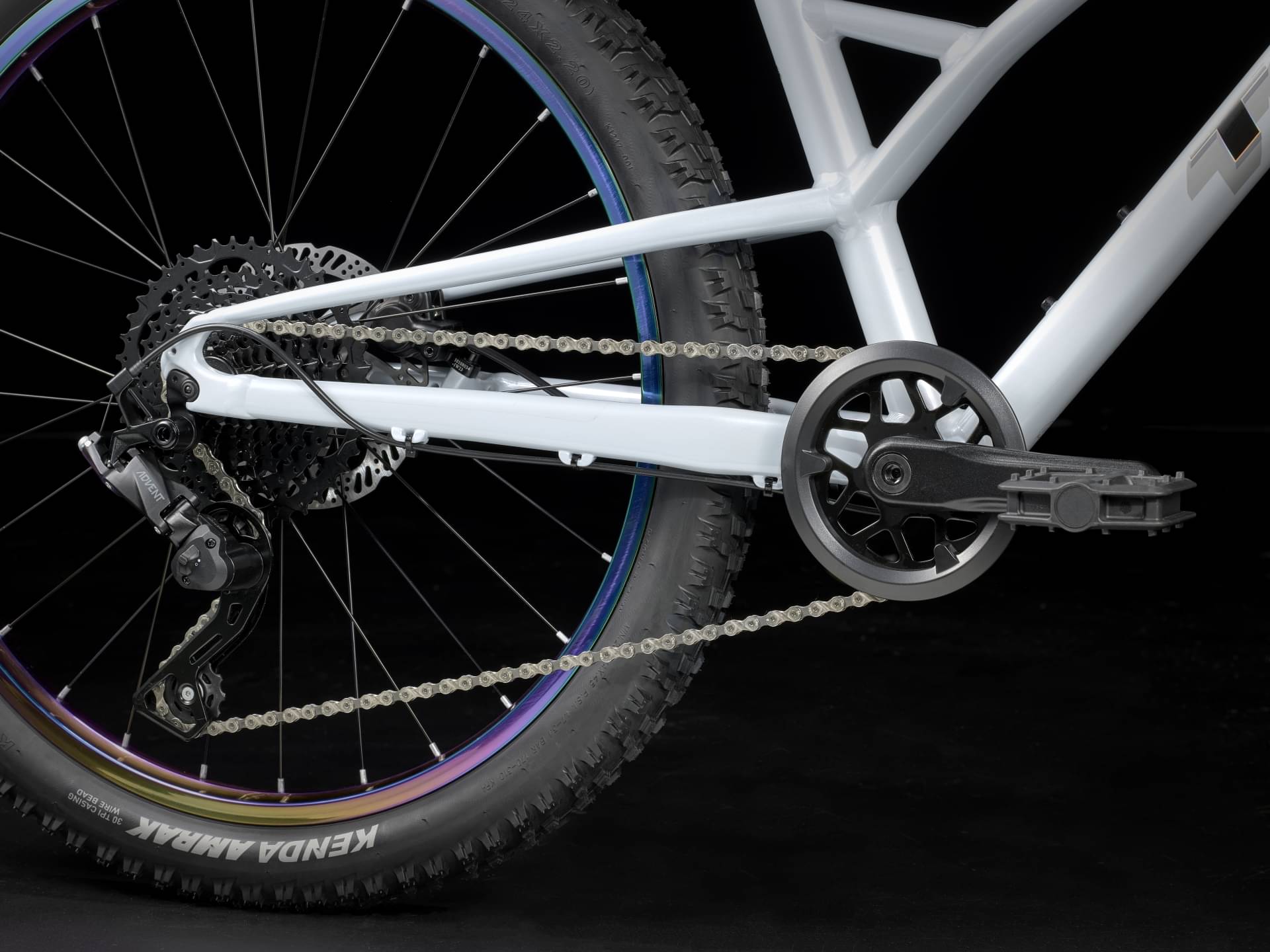

Drivetrain

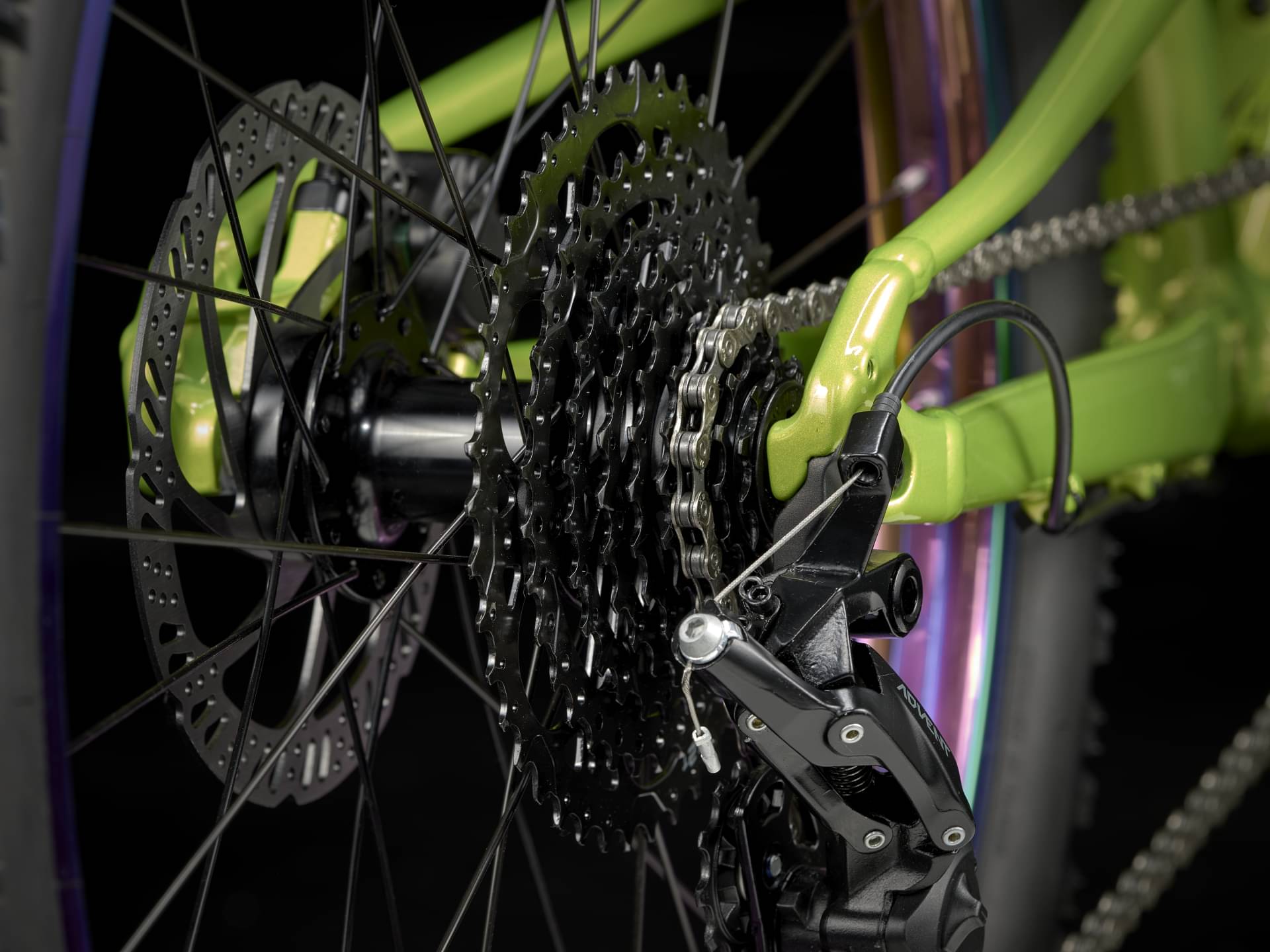

Rear Derailleur
microSHIFT Advent RD-M6195M, 40-46T max cog
Shift Levers
microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed

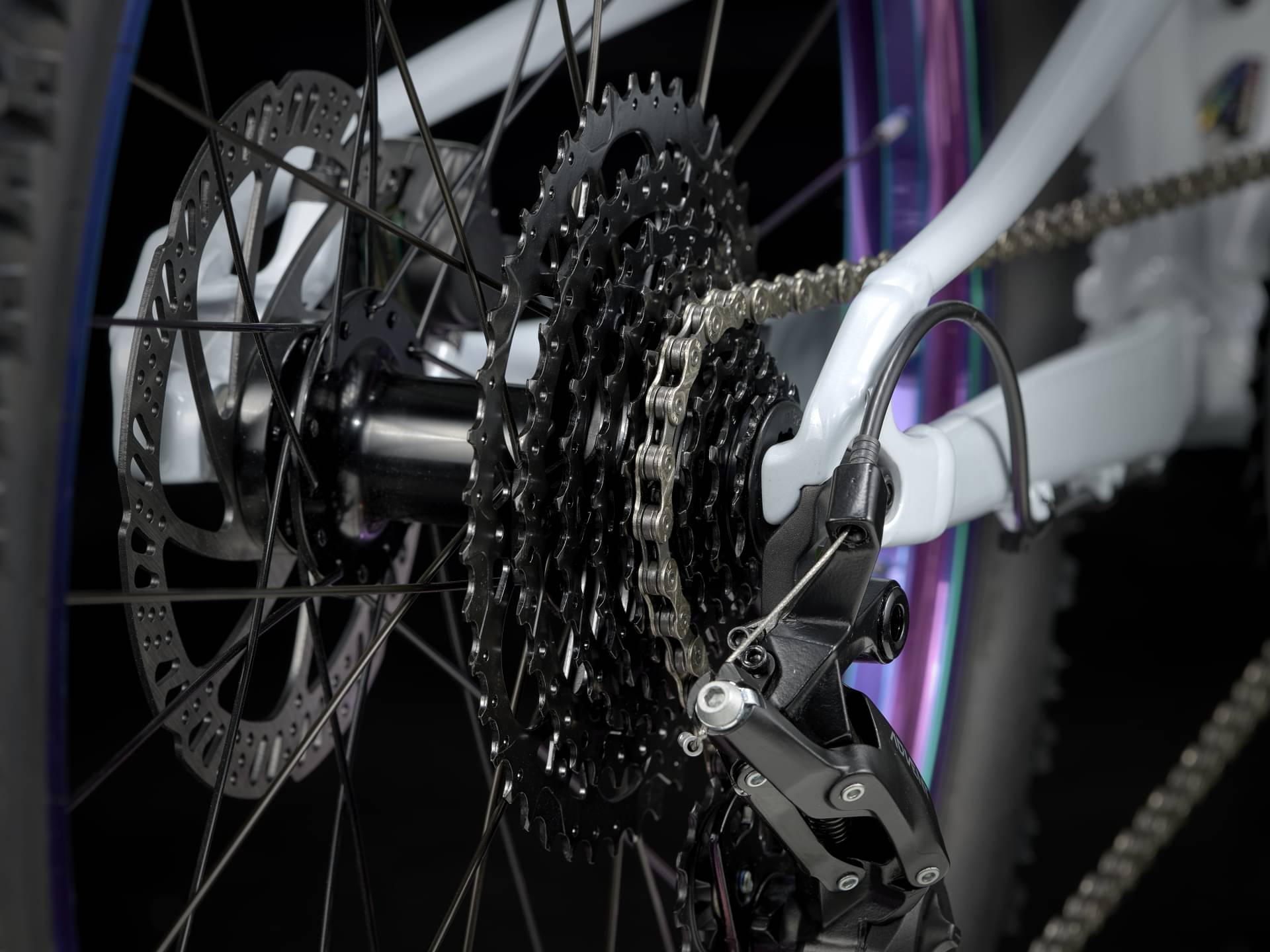

Cassette
microSHIFT Advent H093, 11-42, 9 speed
Crank
Alloy, 30T steel chain ring w/ guard. 127mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC X9
Pedals
VP-225 nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Alloy 24'', 28h
Spokes
14g stainless steel, black

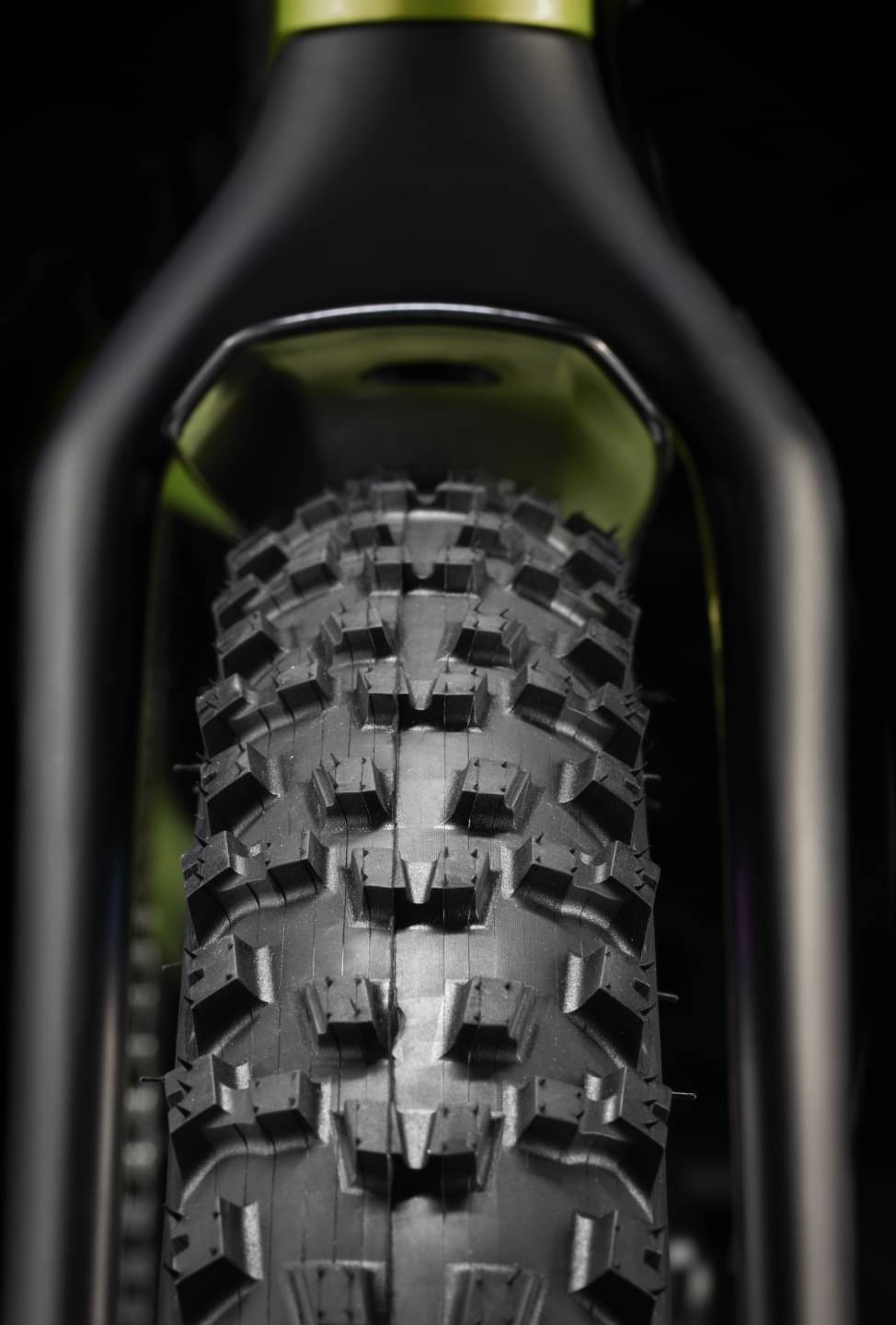

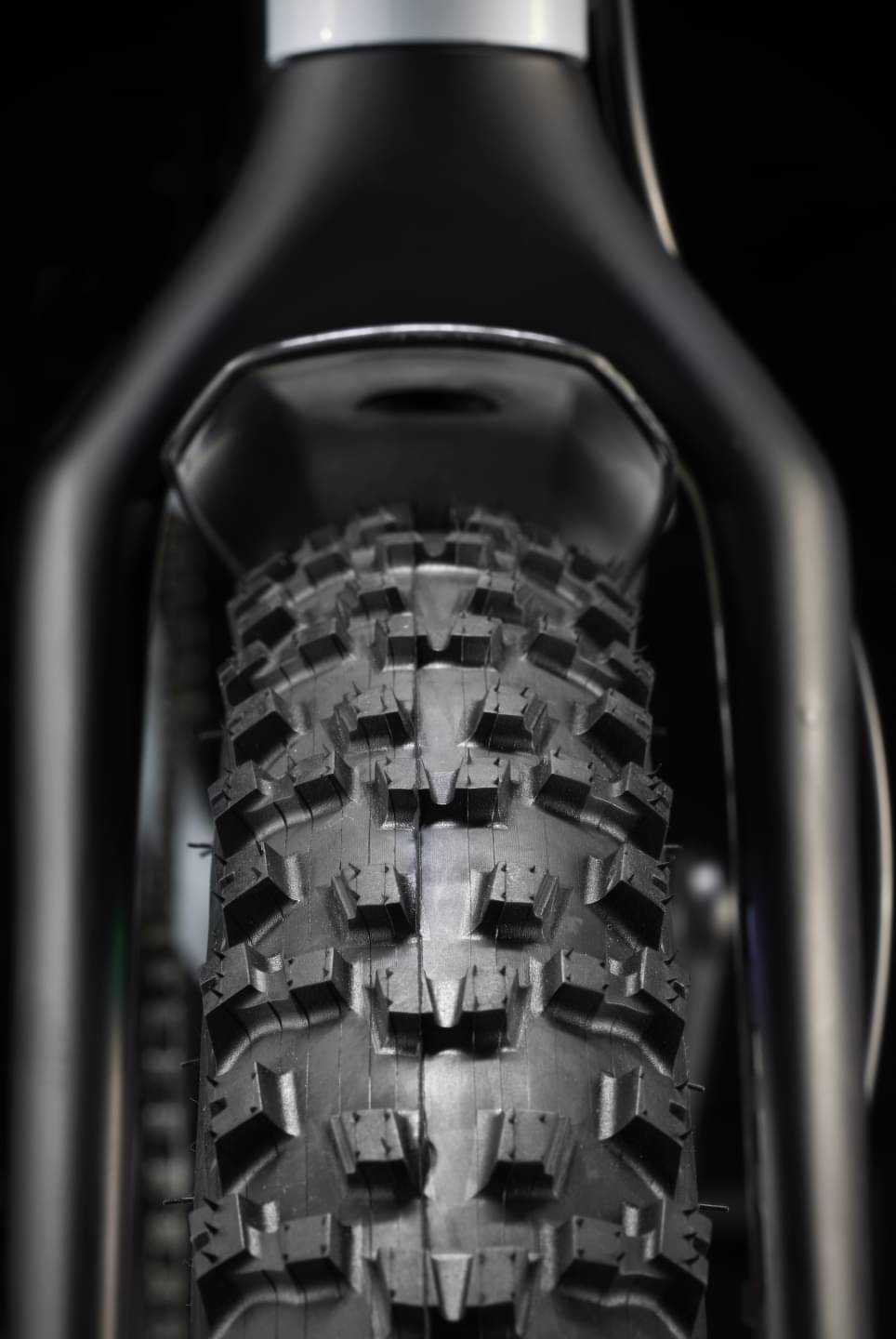

Tires
Kenda Amrak, 30 tpi, 24x2.20''
Brakes
Brakes

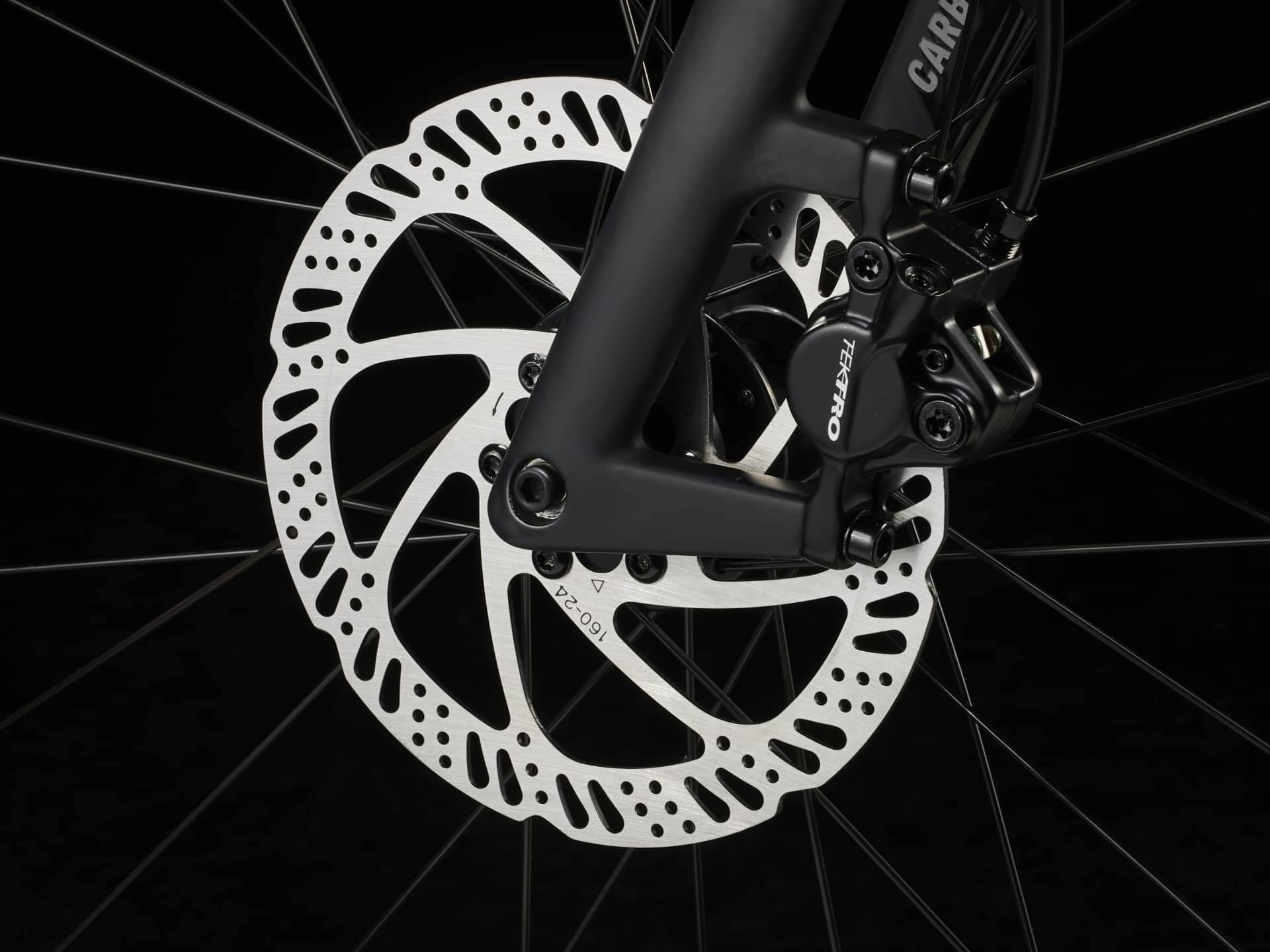

Tektro HD-J285 hydraulic disc, short reach
Cockpit
Stem
Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length

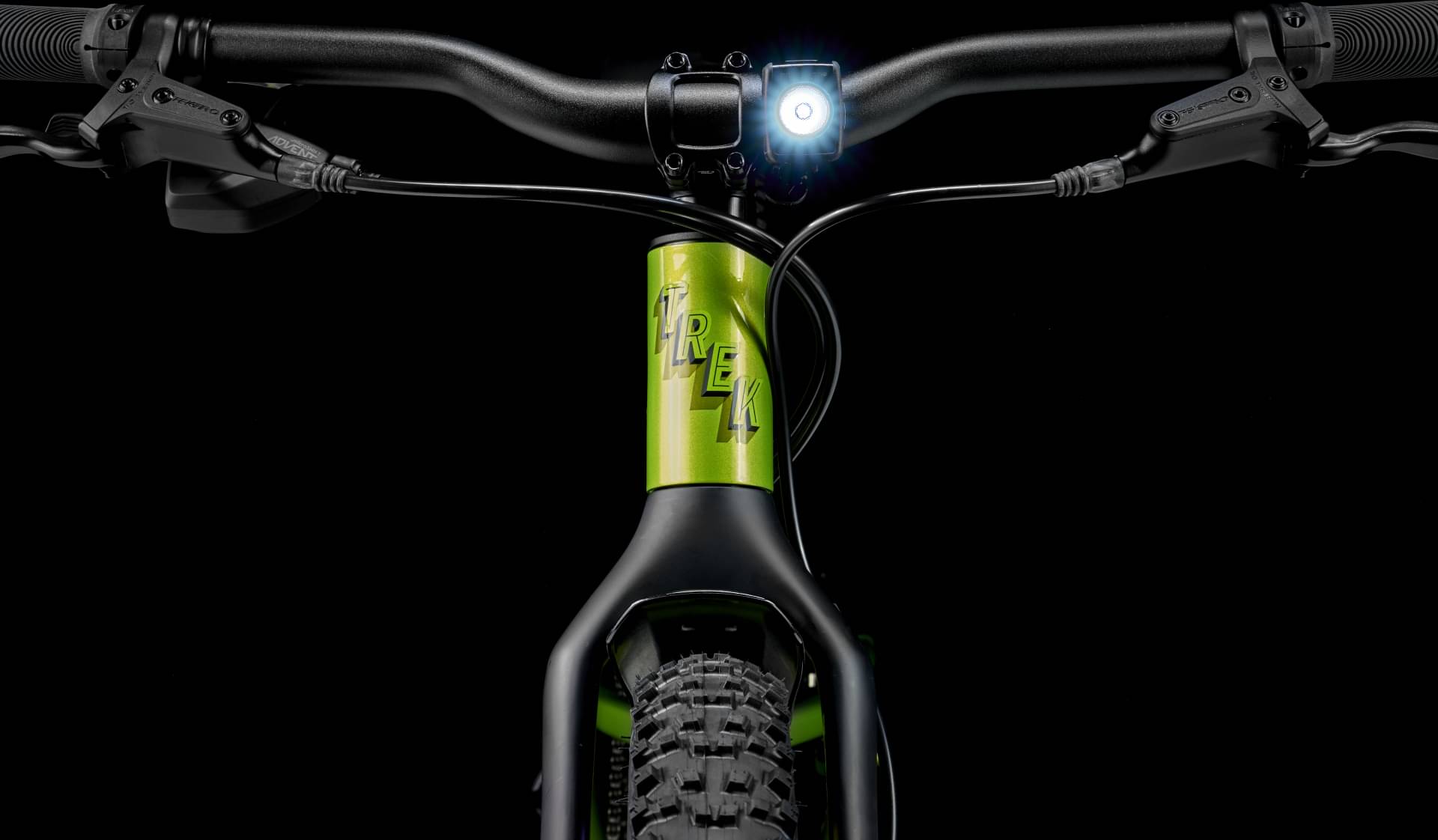

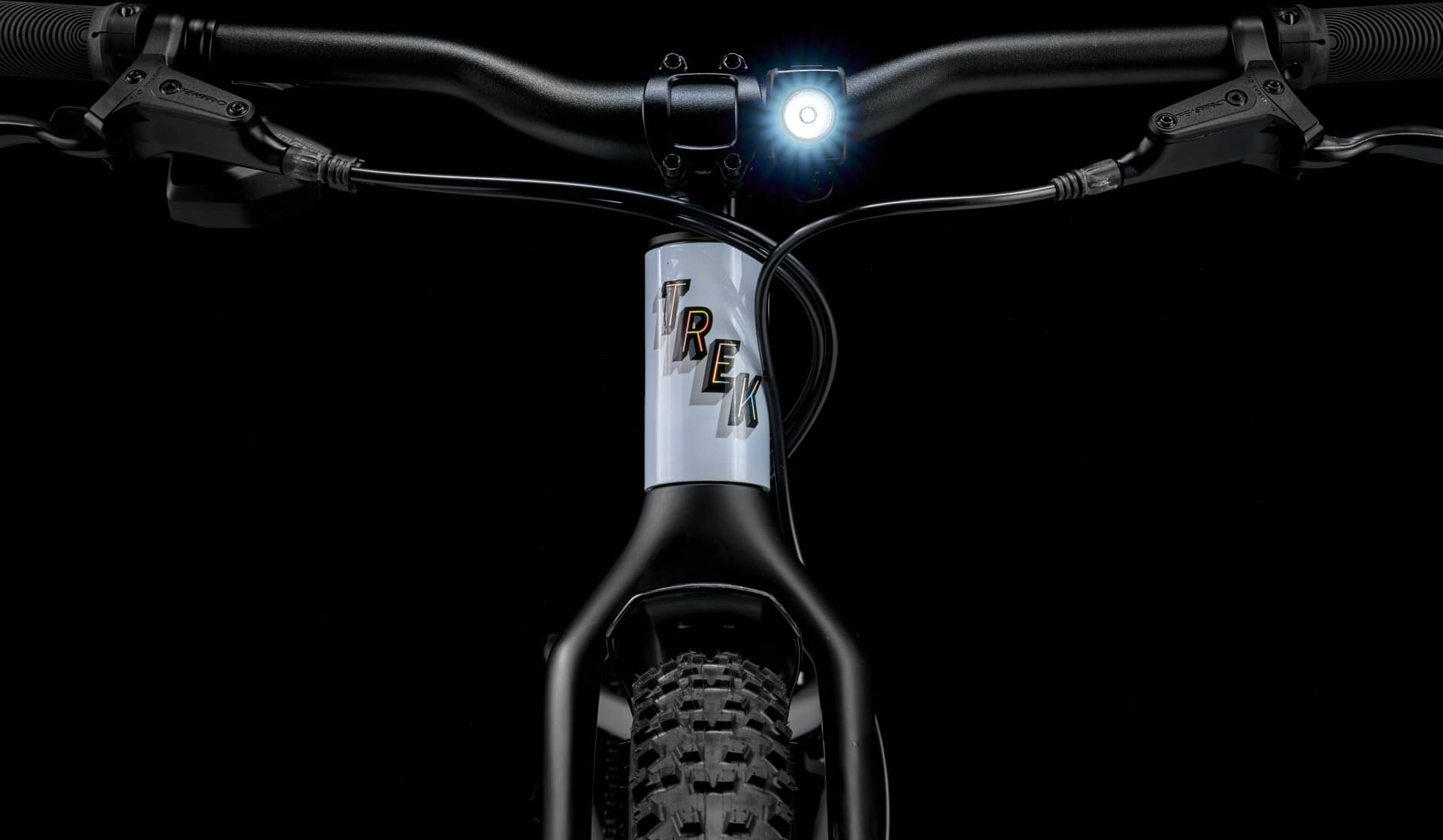

Handlebar
Bontrager alloy, 31.8mm clamp, 20mm rise, 600mm width
Grips
Kids' grip, 110mm width
Headset
Integrated, sealed cartridge bearings
Seat

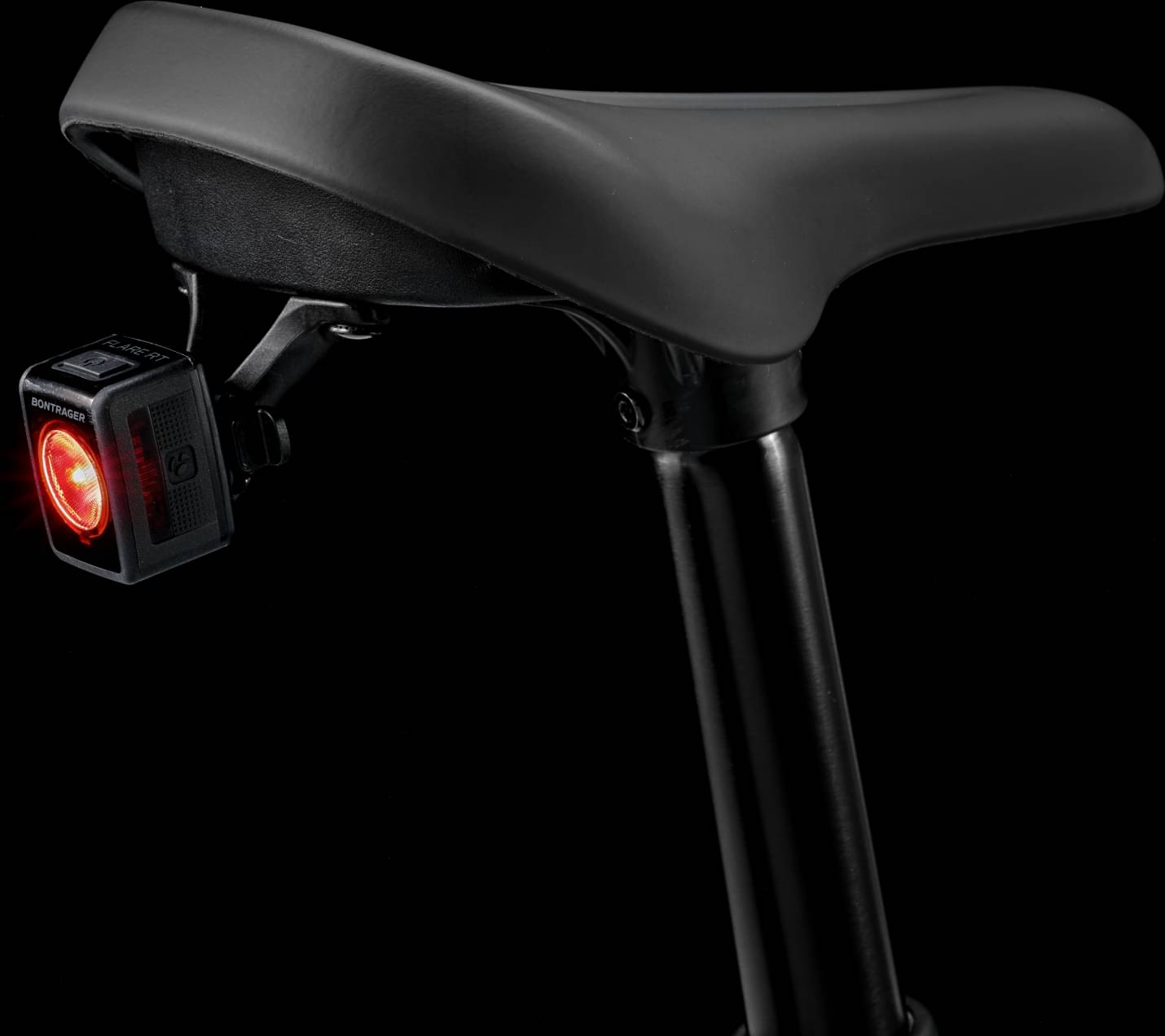

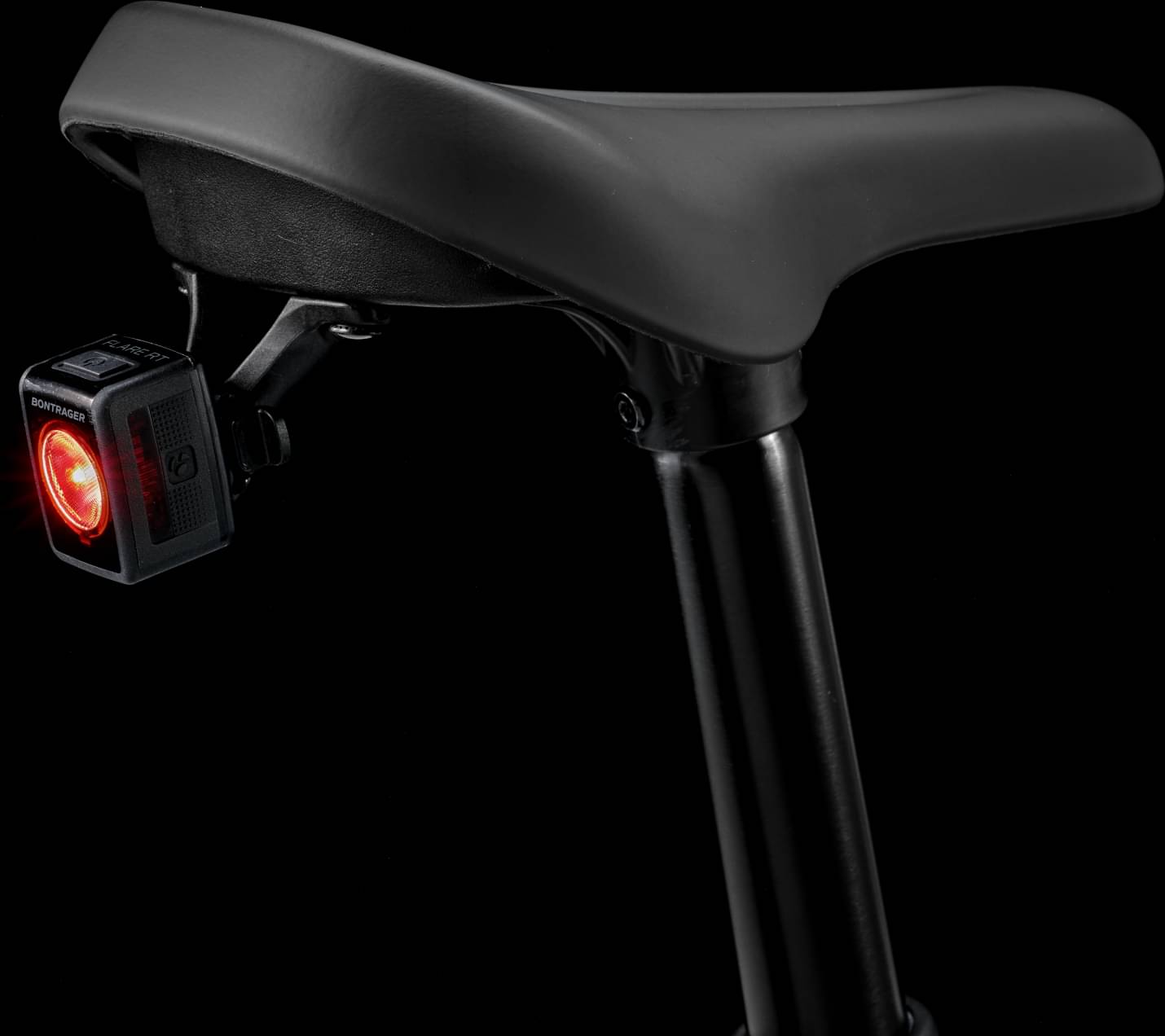

Saddle
Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.174 mm |
| Bottom Bracket Height | 274 mm |
| Front Center | 616 mm |
| Rake | 44 mm |
| Trail | 81 mm |
| Stack | 458 mm |
| Reach | 390 mm |
| Top Tube Length | 530 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 67 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 420 mm |
| Wheelbase | 1032 mm |
| Bottom Bracket Drop | 43 mm |
| Standover Height | 530 mm |
| Wheels | 24" |
| Rider Min Height | 130 cm |
| Rider Max Height | 150 cm |
