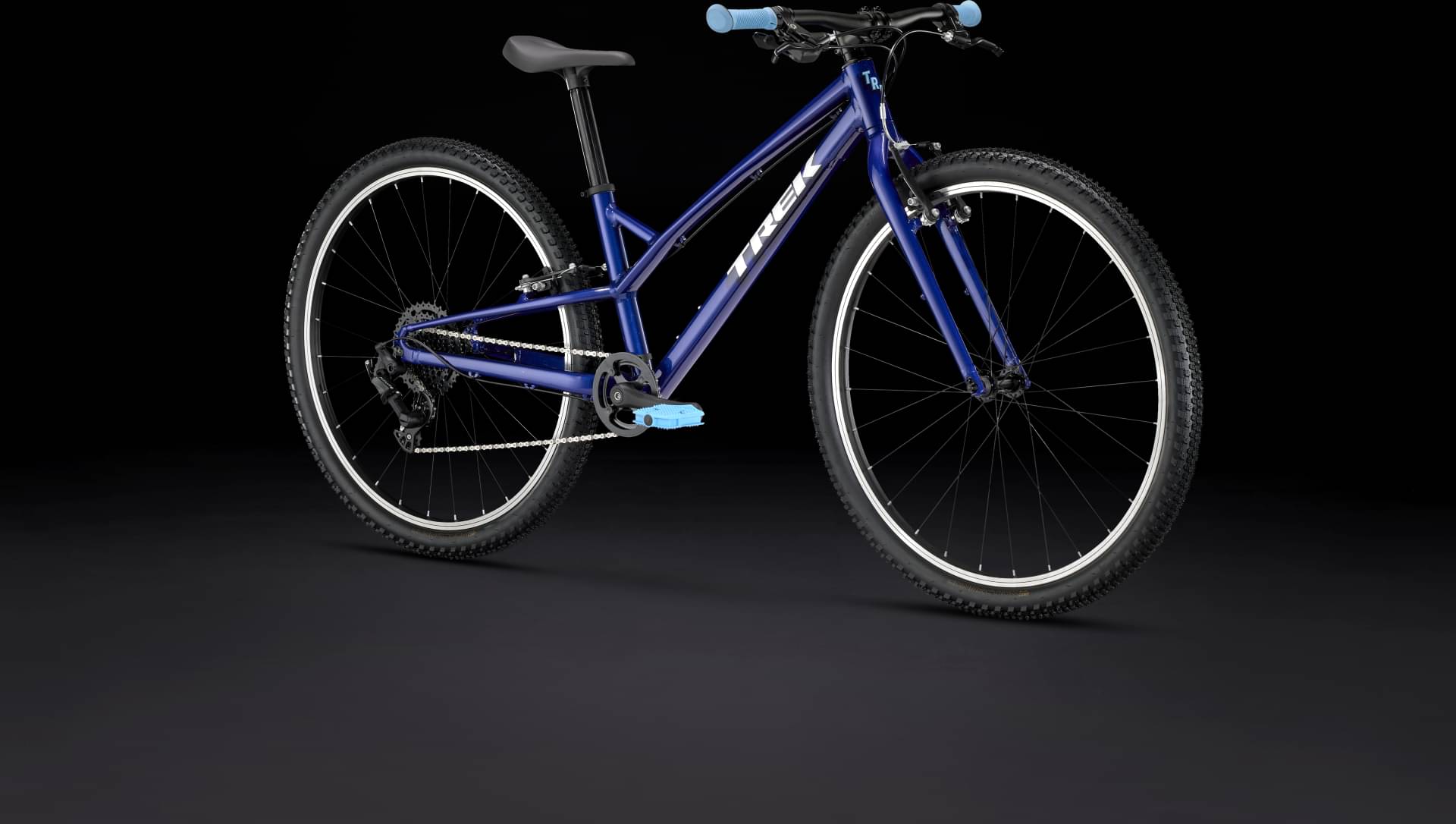

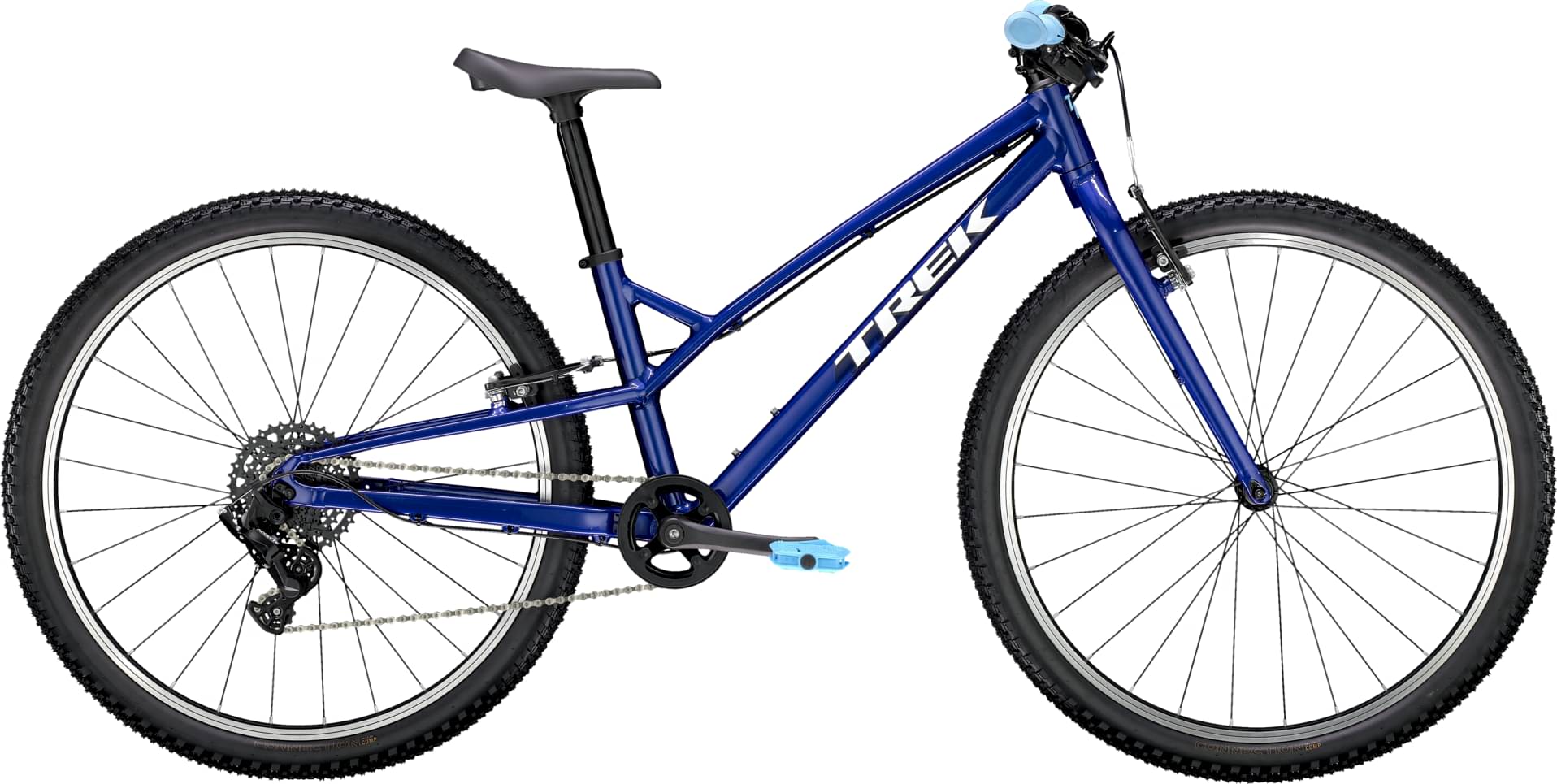

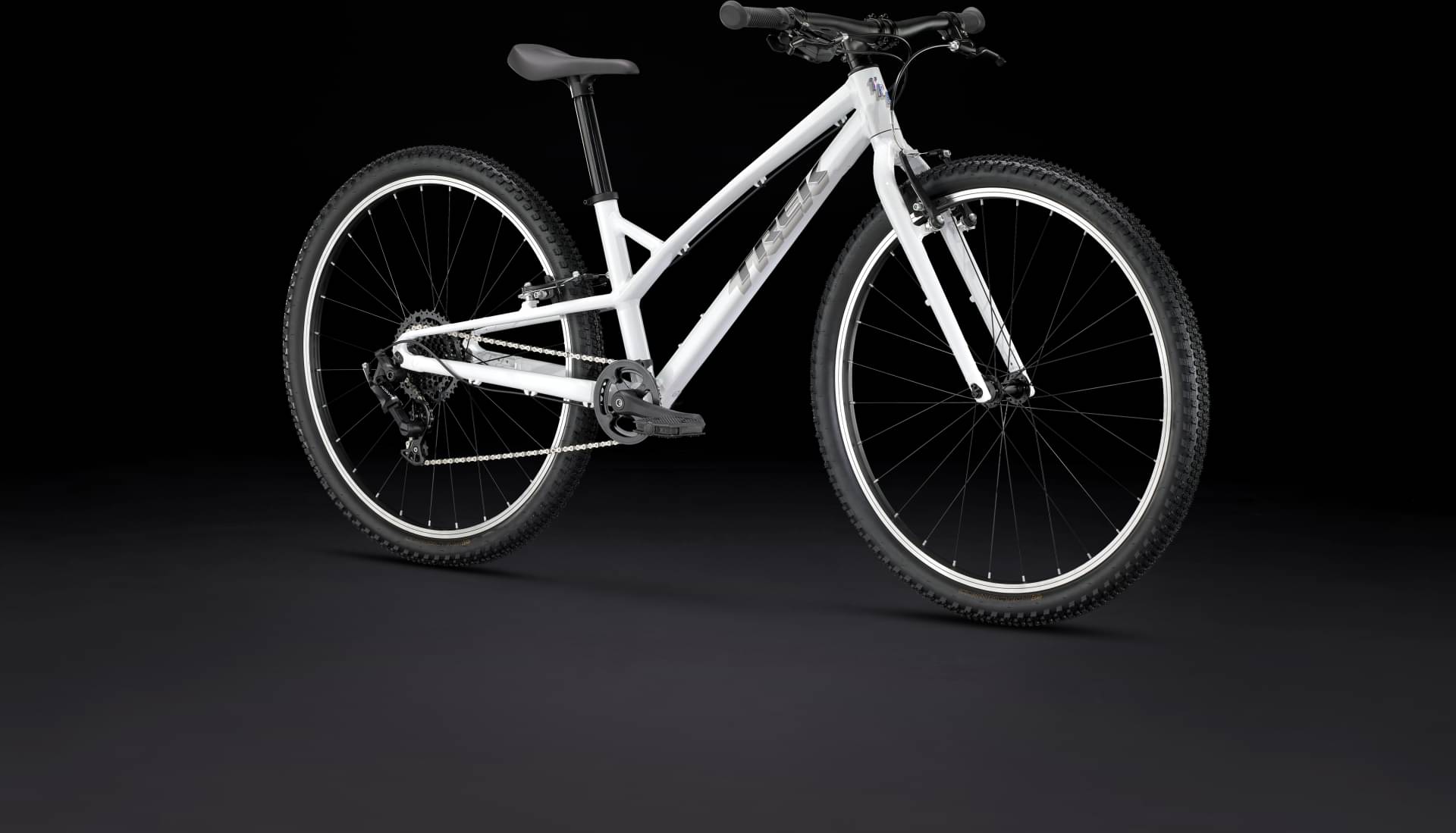

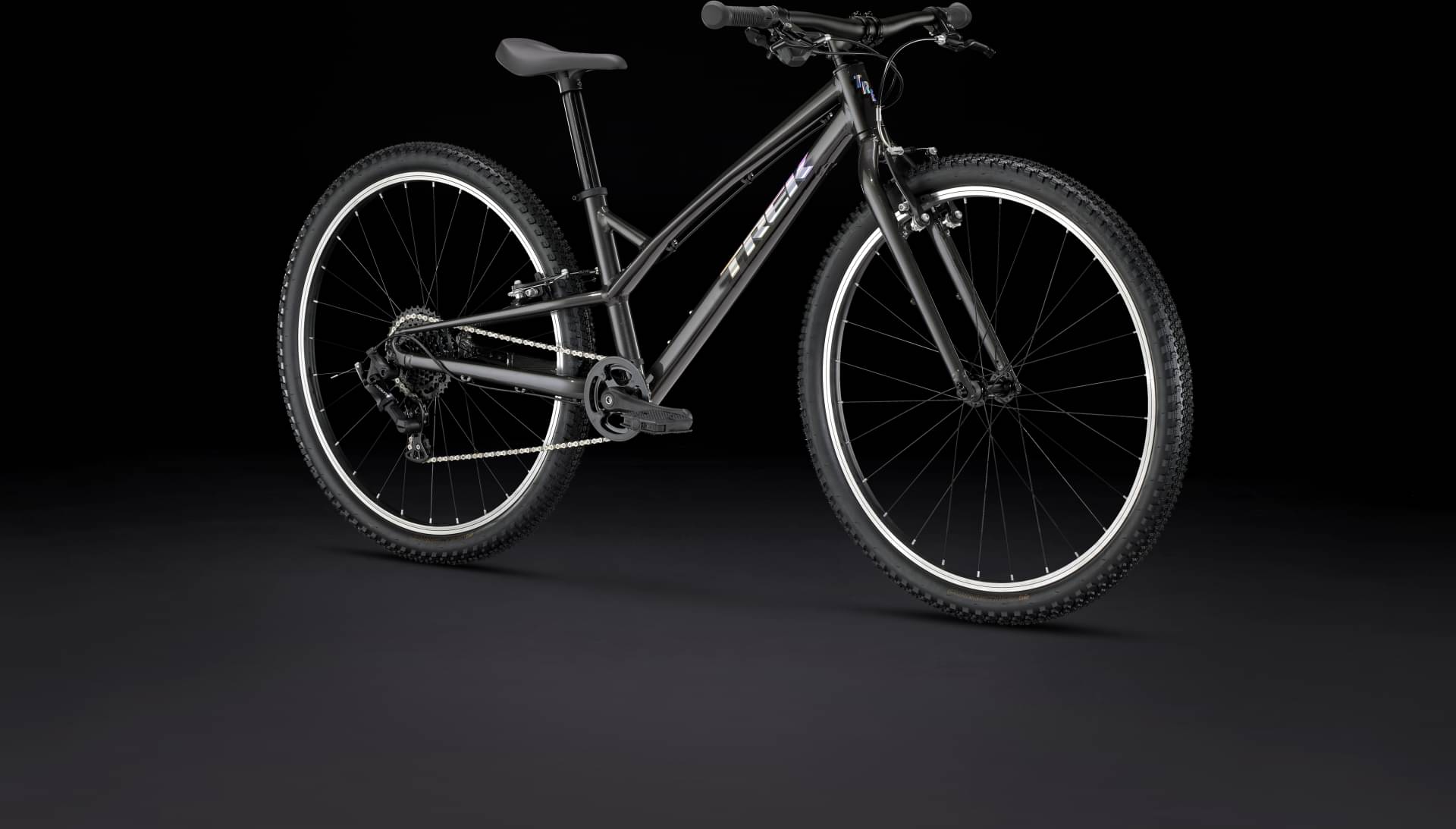

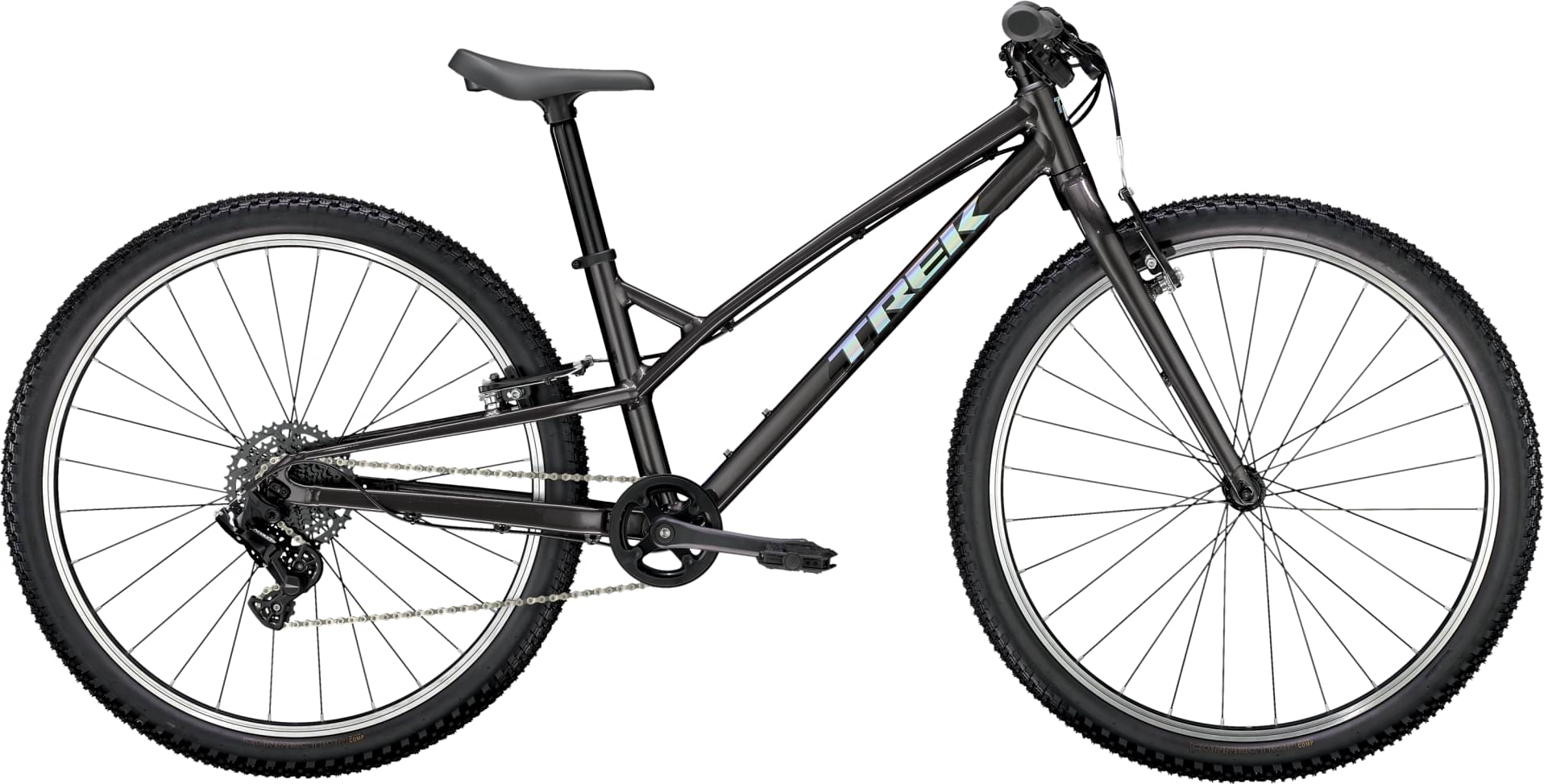

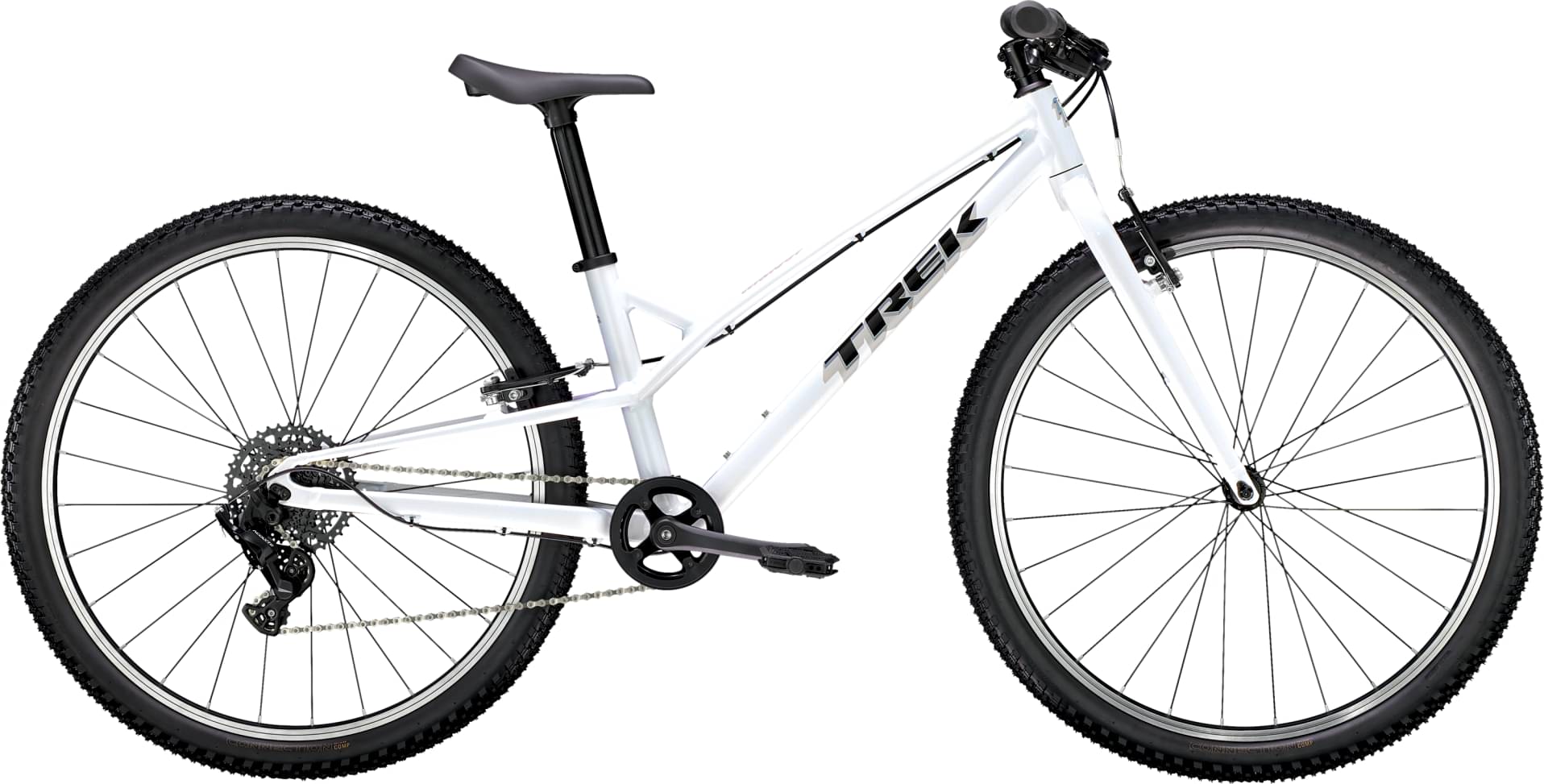

Trek Wahoo 26 Path 2025
2025 Youth
Estimate price |
615$
Weight | 10.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Acolyte -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Rim
Sizing
Recommended size guide.
26"
146cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

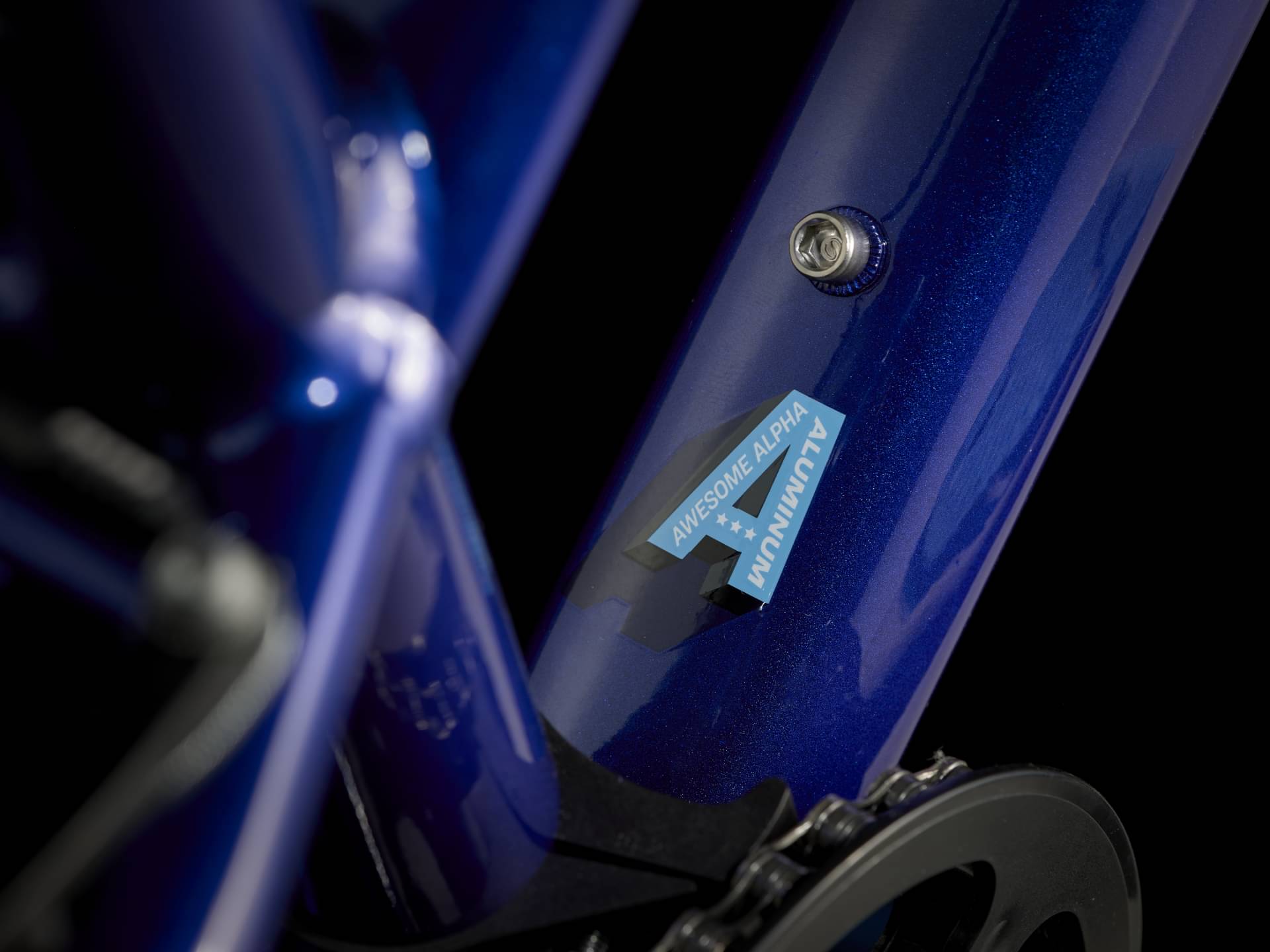

Frame

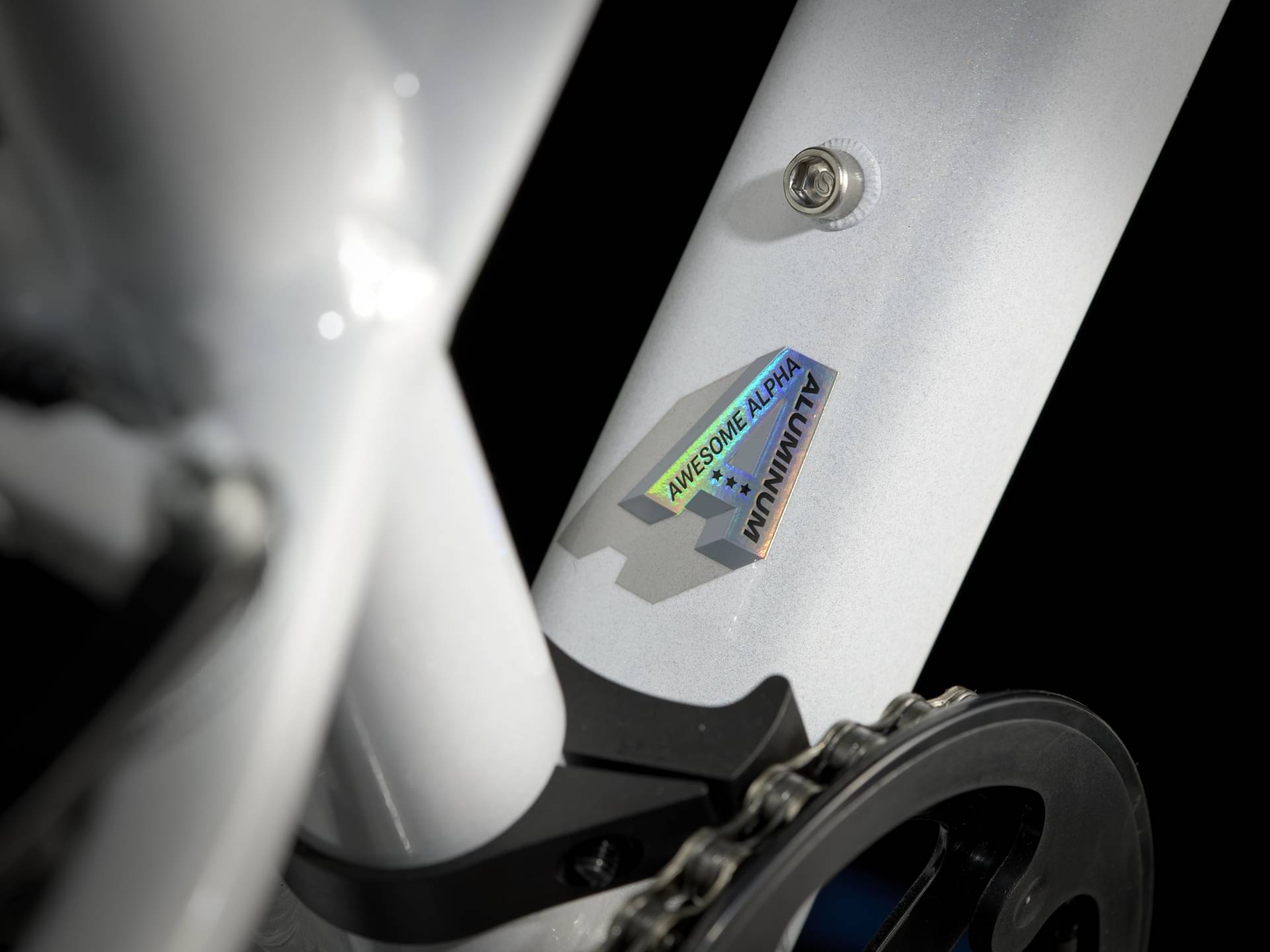

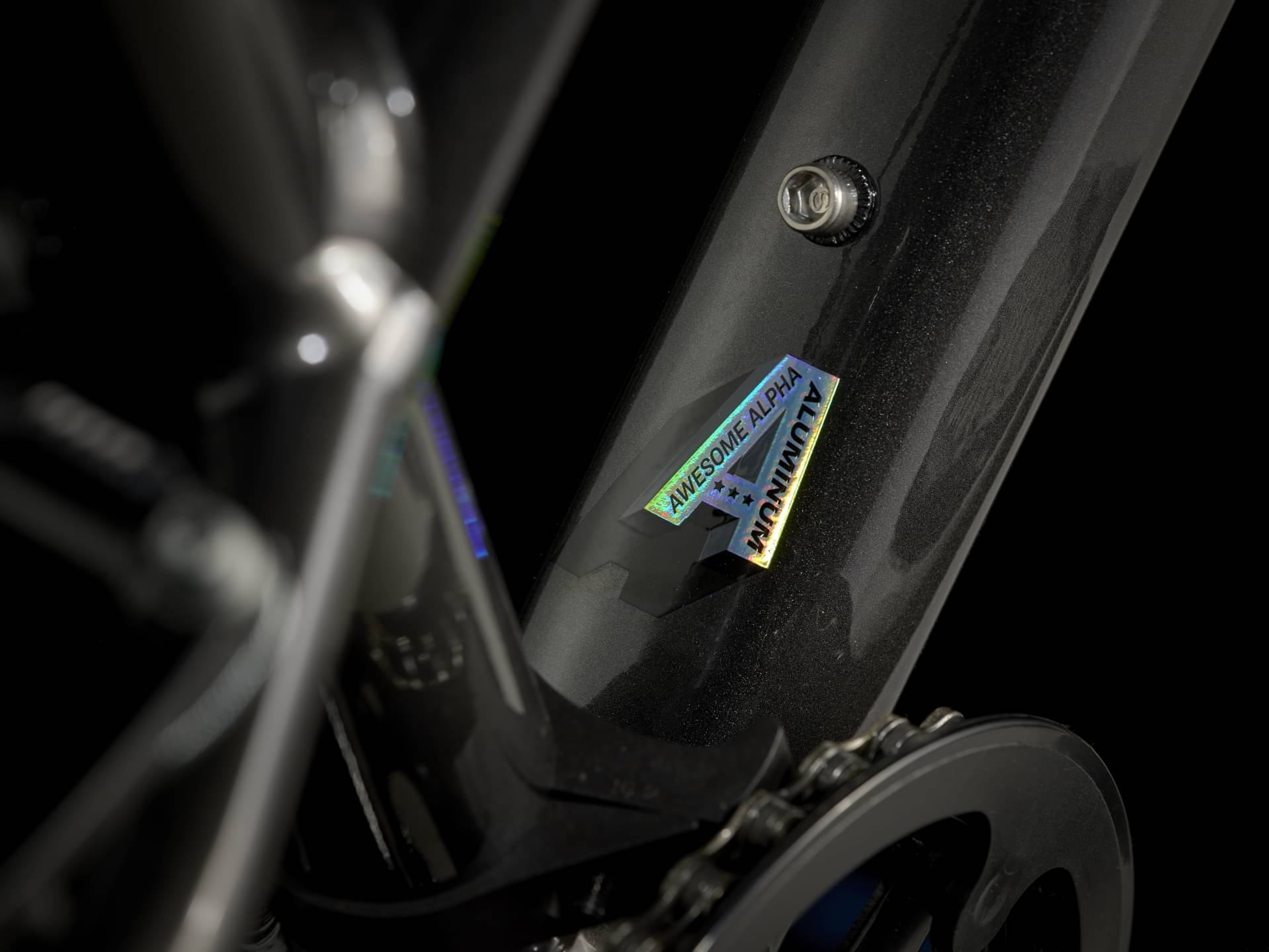

Alpha Silver Aluminum, 26''
Suspension Fork
Wahoo 26'' alloy with ThruSkew 5mm QR

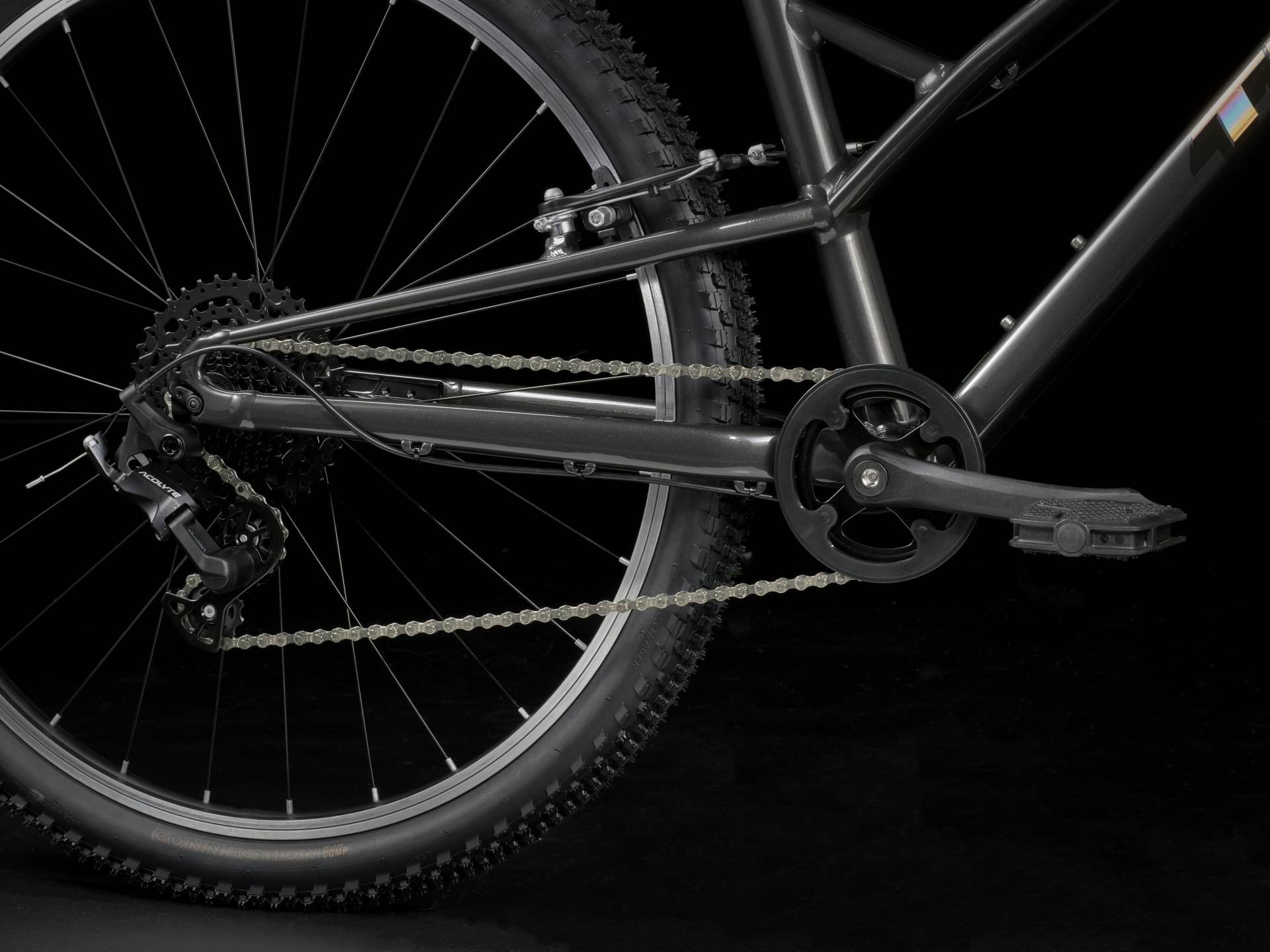

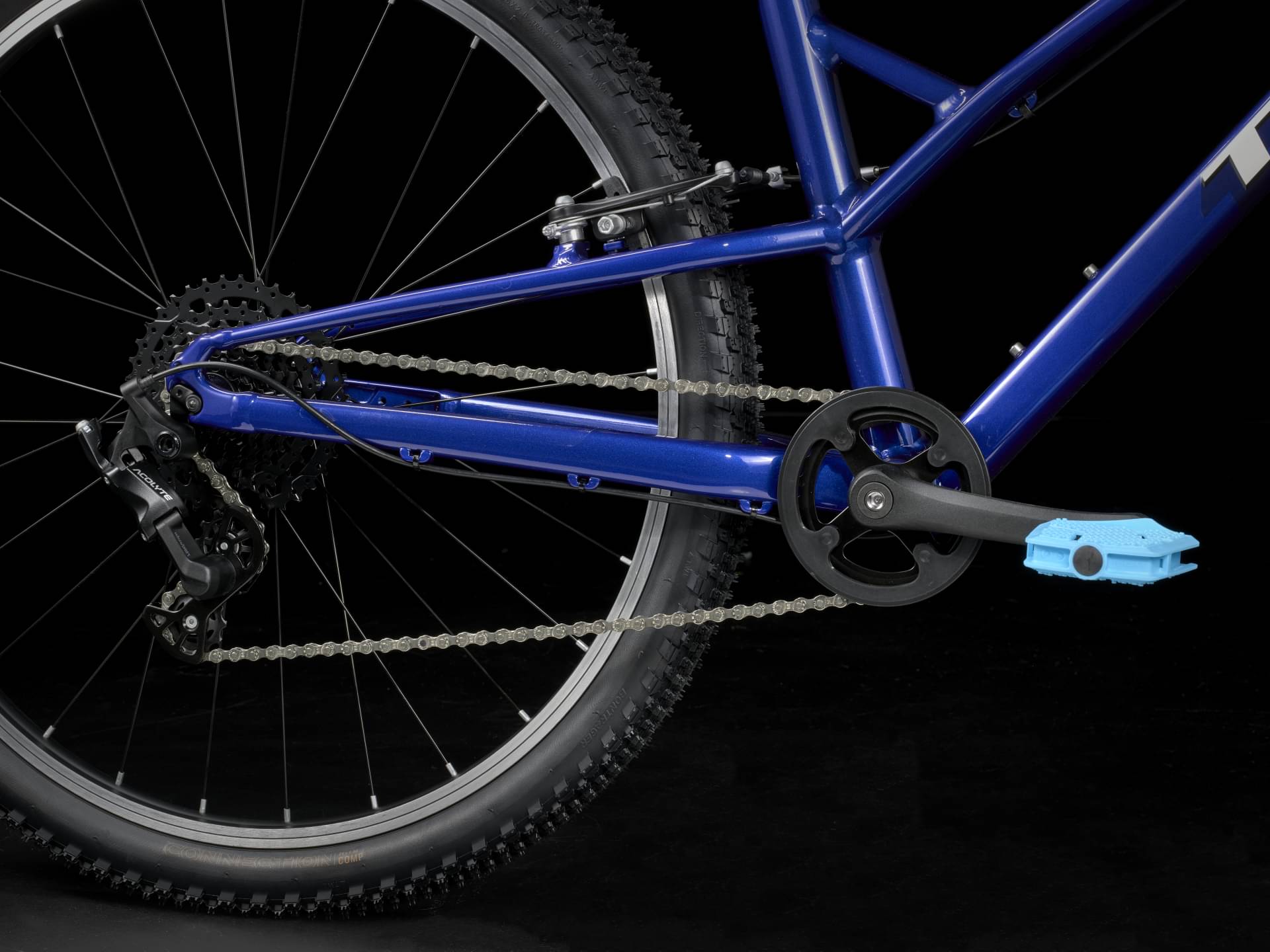

Drivetrain
Rear Derailleur

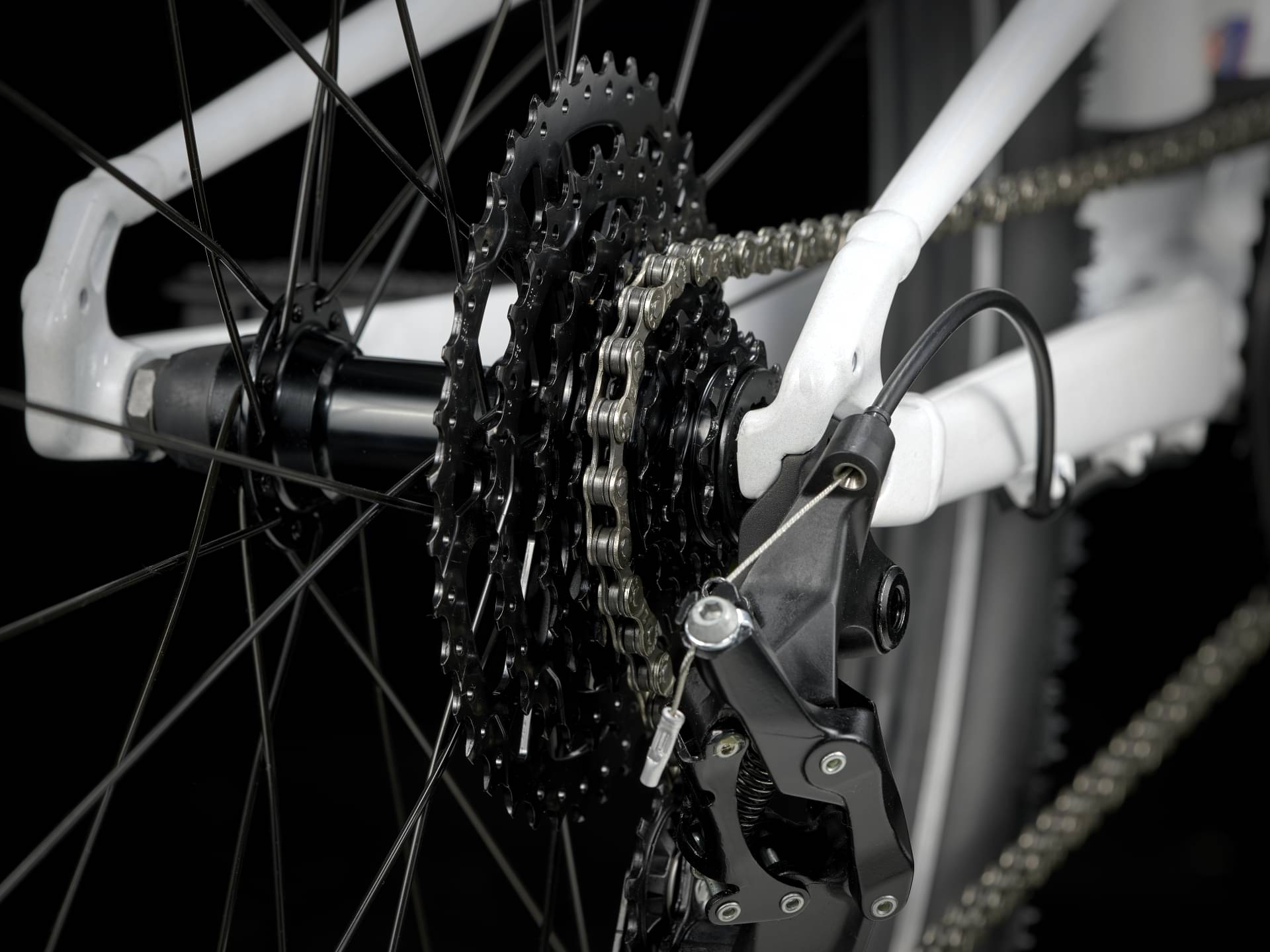

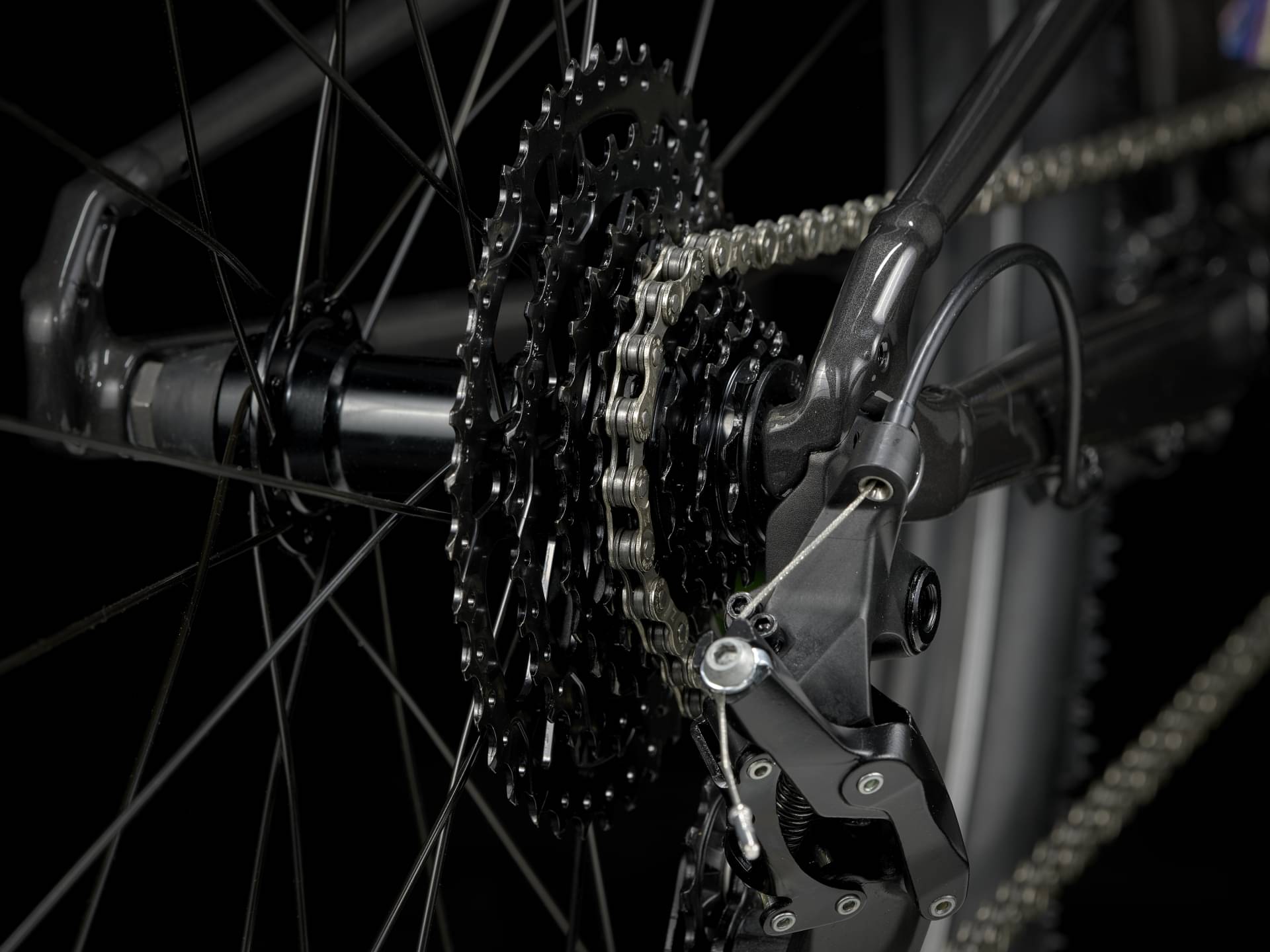

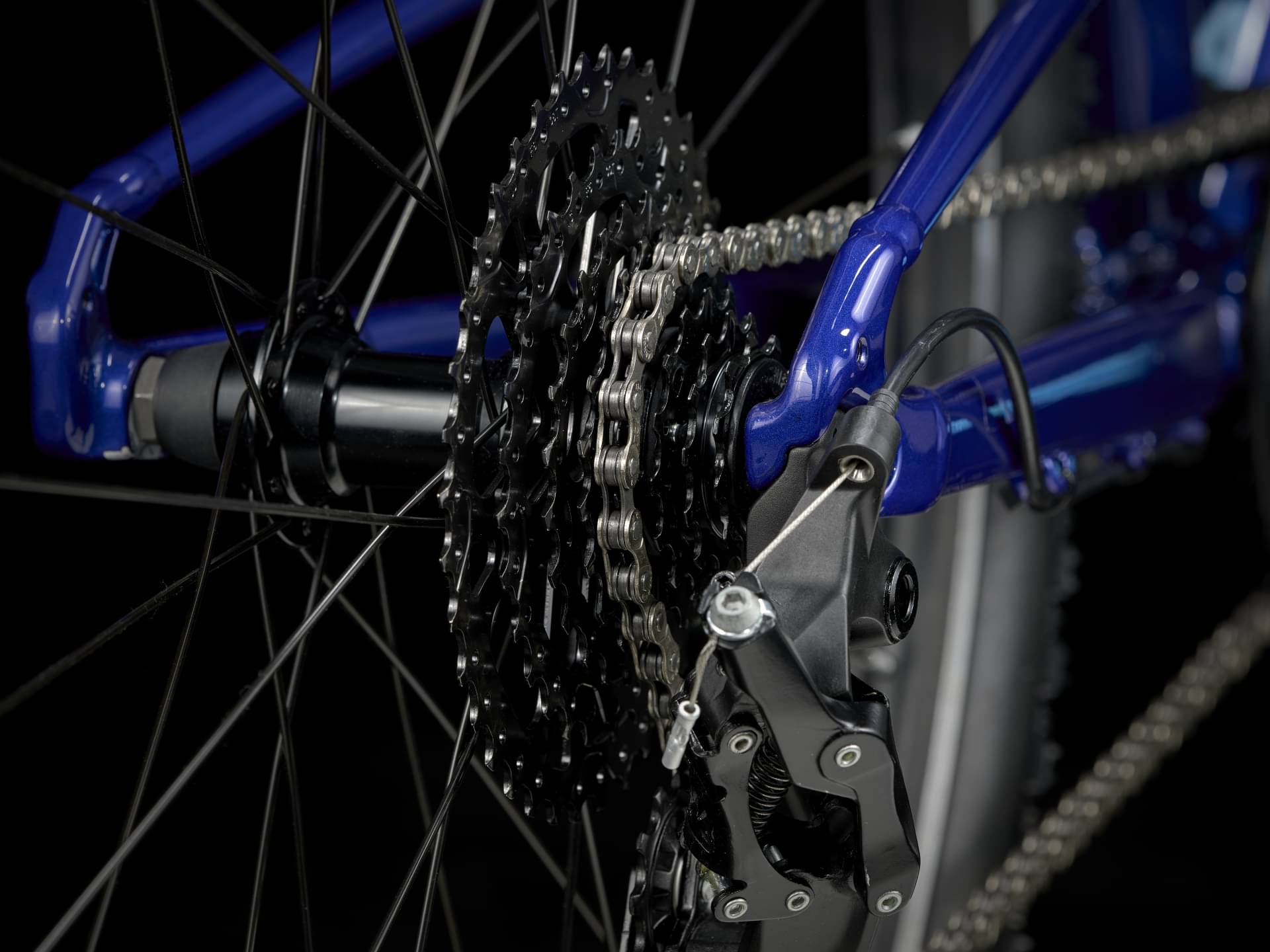

microSHIFT Acolyte M5180S, 34-38T max cog
Shift Levers
microSHIFT Acolyte SL-M6285, 8 speed
Cassette
microSHIFT Acolyte H083, 11-38, 8 speed
Crank

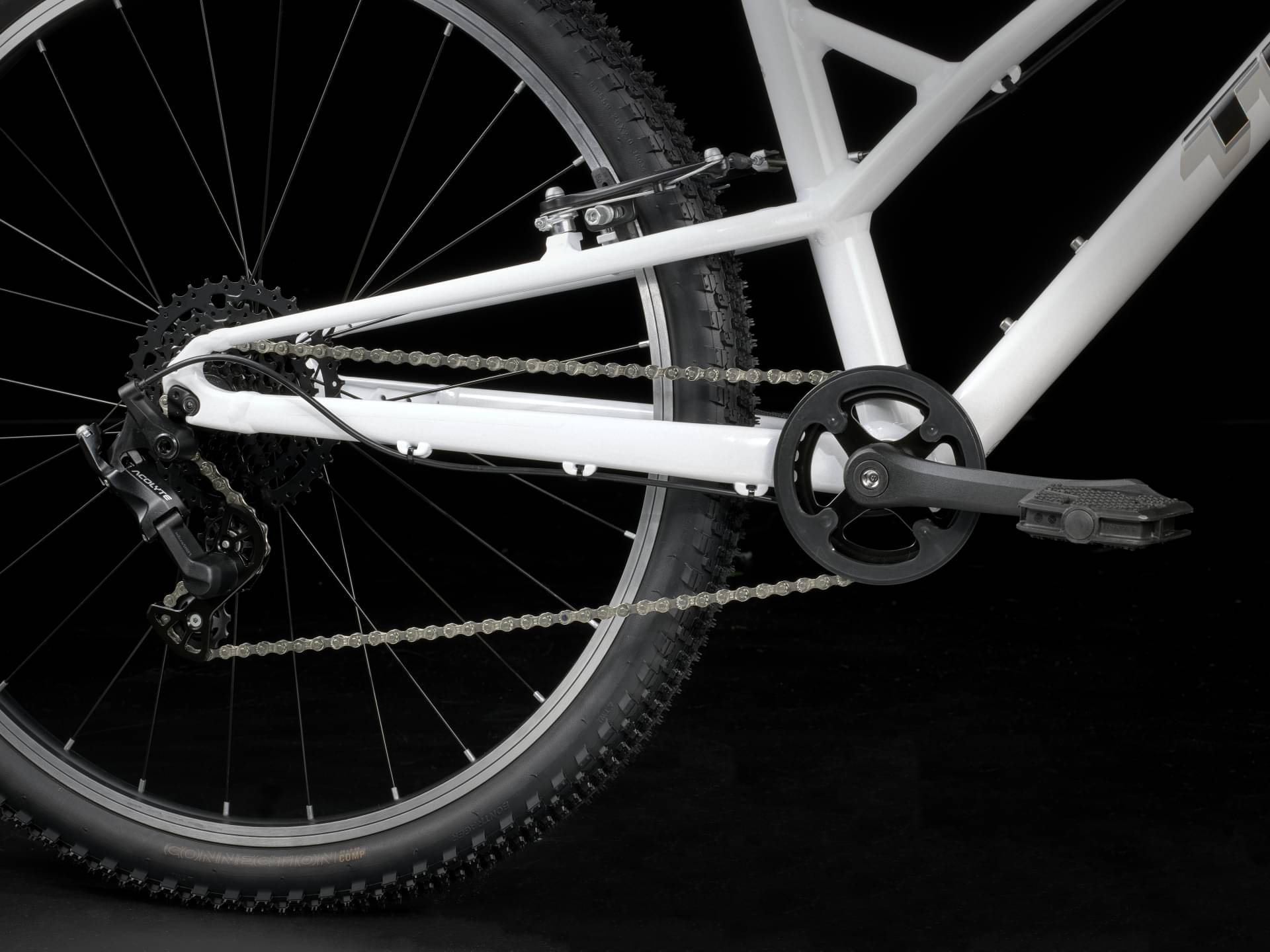

Alloy, 28T steel ring, chainguard, 152mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z8
Pedals
Kids' Satellite, 9/16 thread
Wheels
Front Hub
Formula alloy, 100mm ThruSkew
Rear Hub
Formula FM32 alloy, 135x5mm
Rims
Alloy 26'', 28h
Tires
Bontrager Connection Comp, wire bead, 30 tpi, 26x2.00''
Brakes
Brakes
Alloy linear-pull
Brake Levers
Kids' alloy brake lever, black

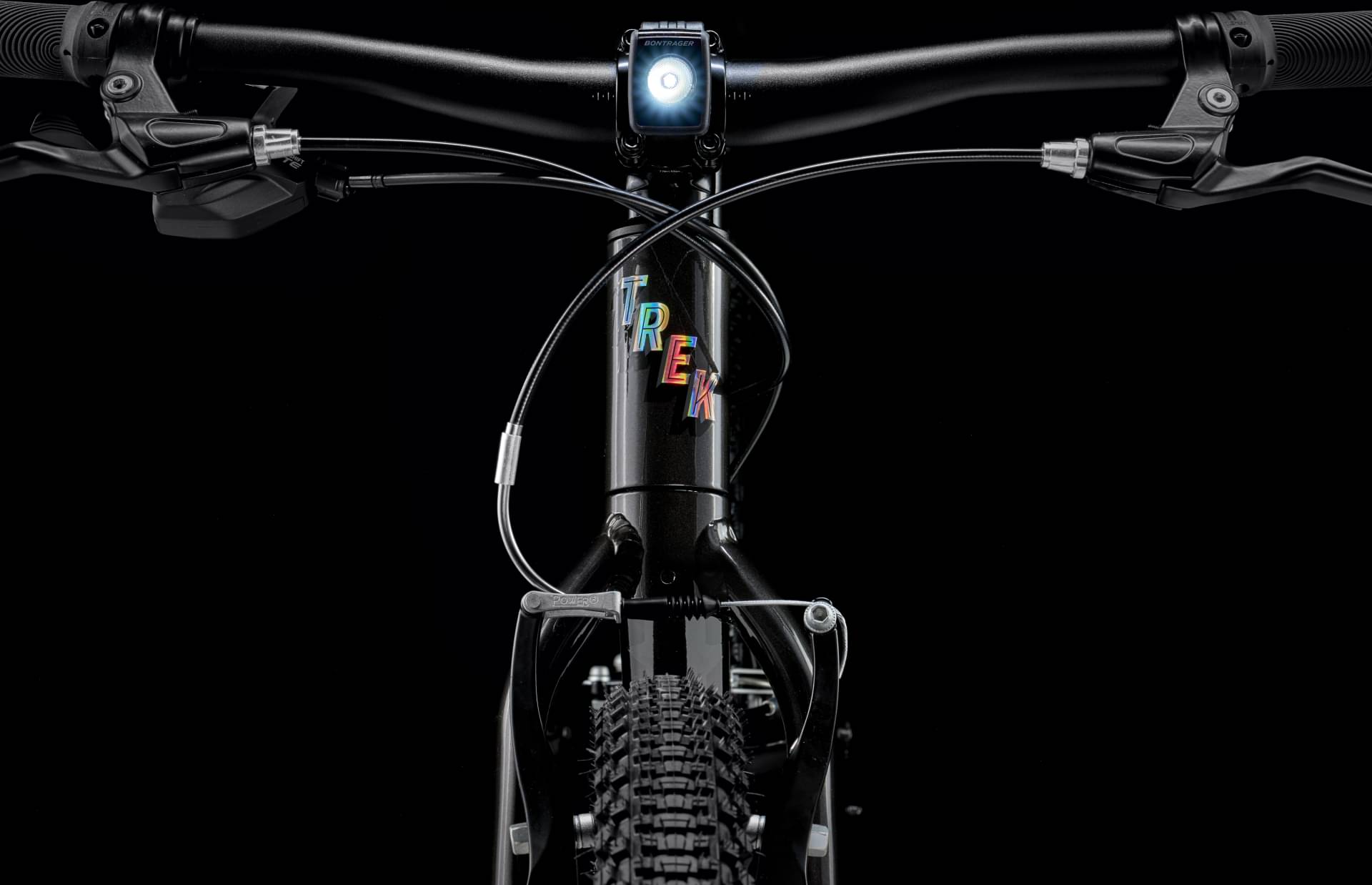

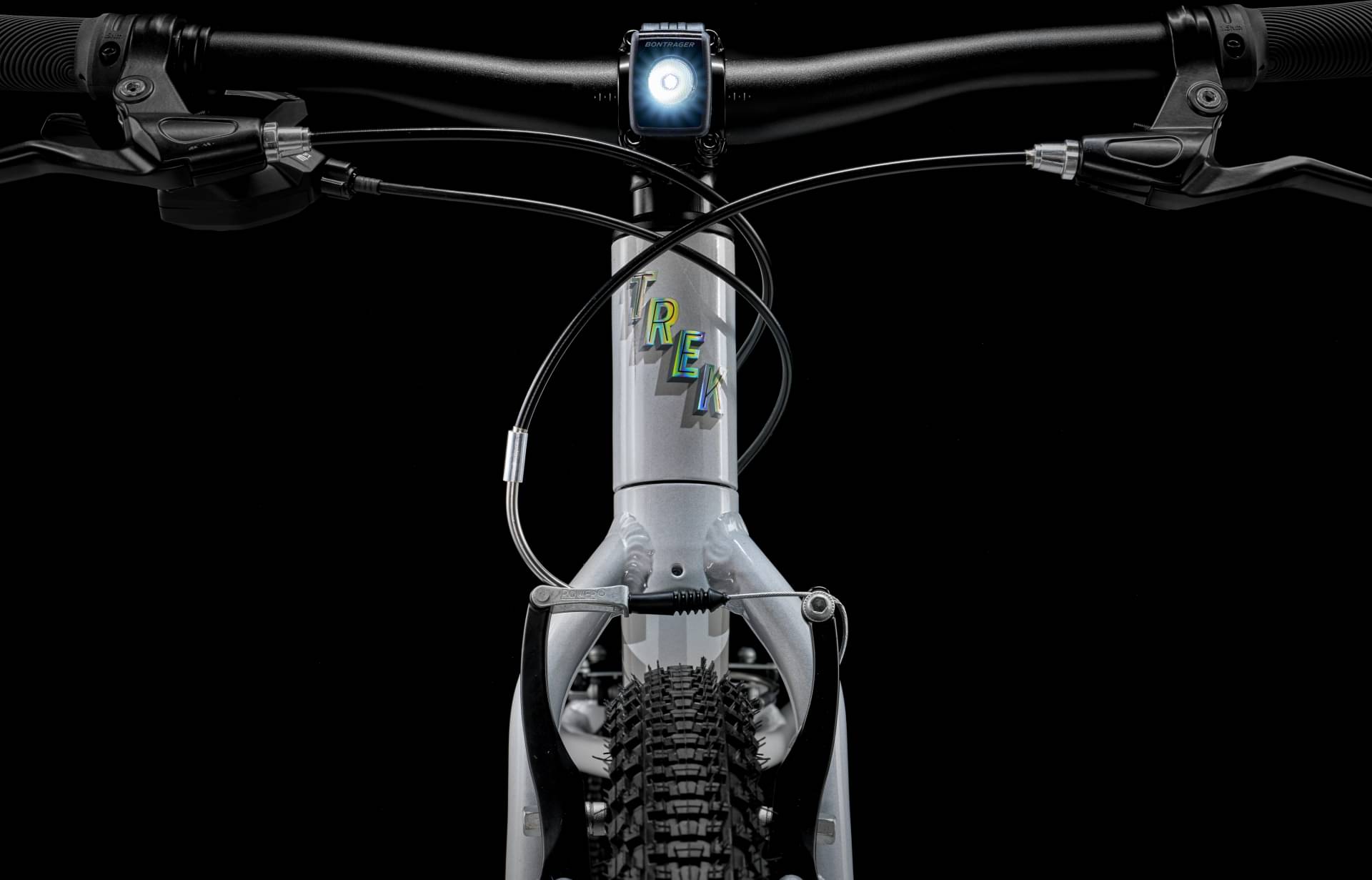

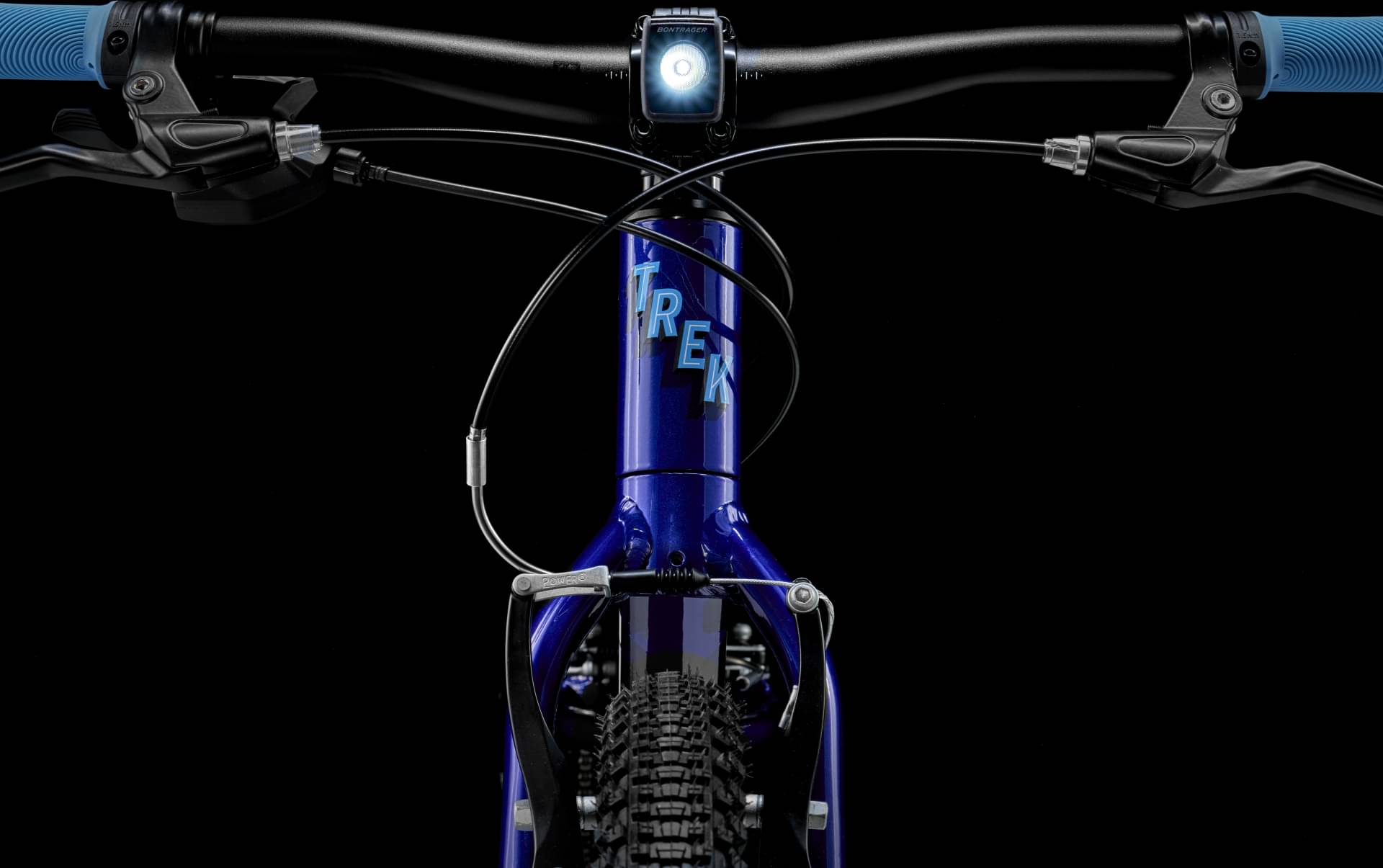

Cockpit
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 580mm width
Grips
Size: 26" wheel, Kids' grip, 110mm width; Size: 26" wheel, Kids' grip, 108mm width
Headset
Integrated, sealed cartridge bearings
Seat

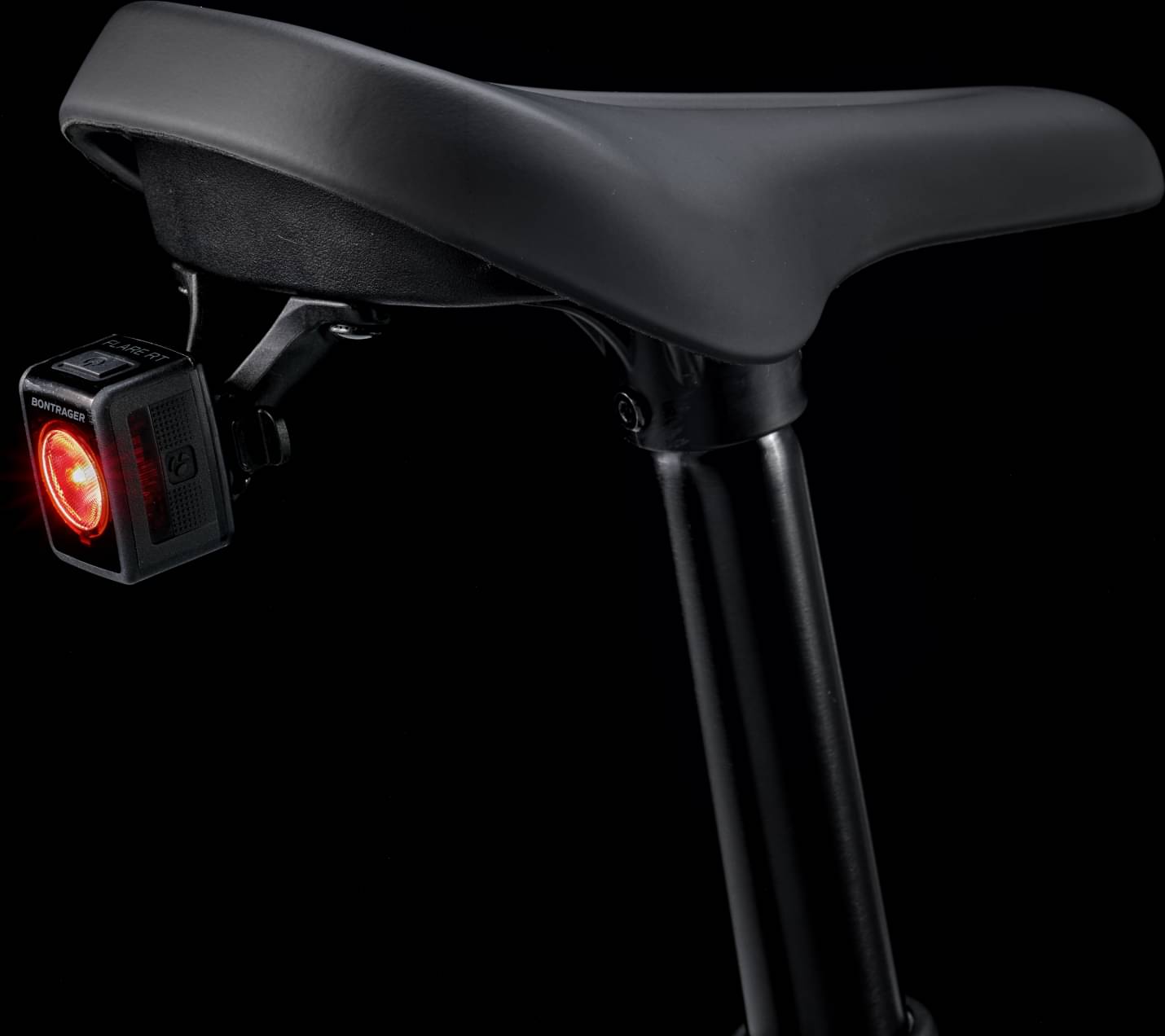

Saddle

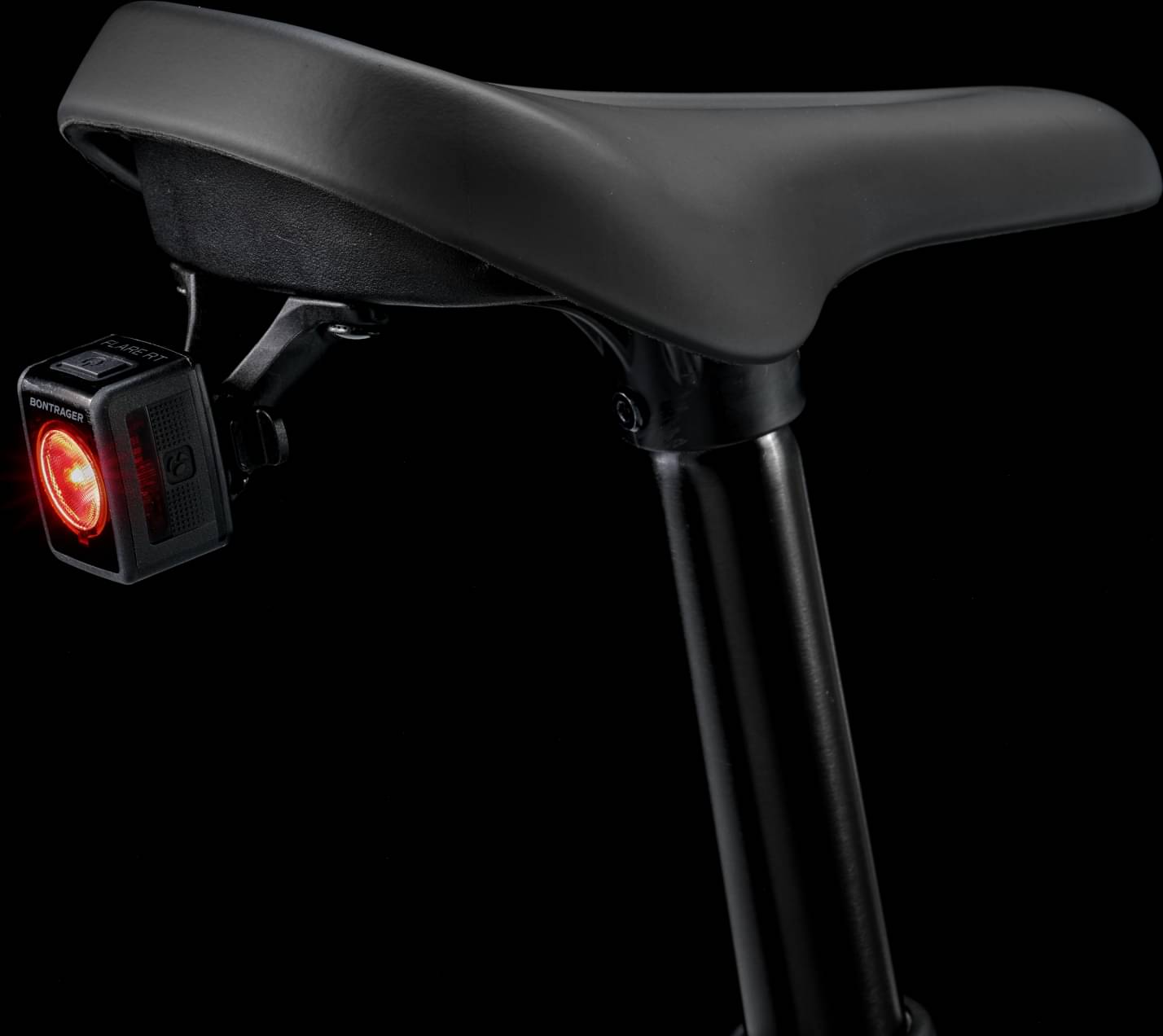

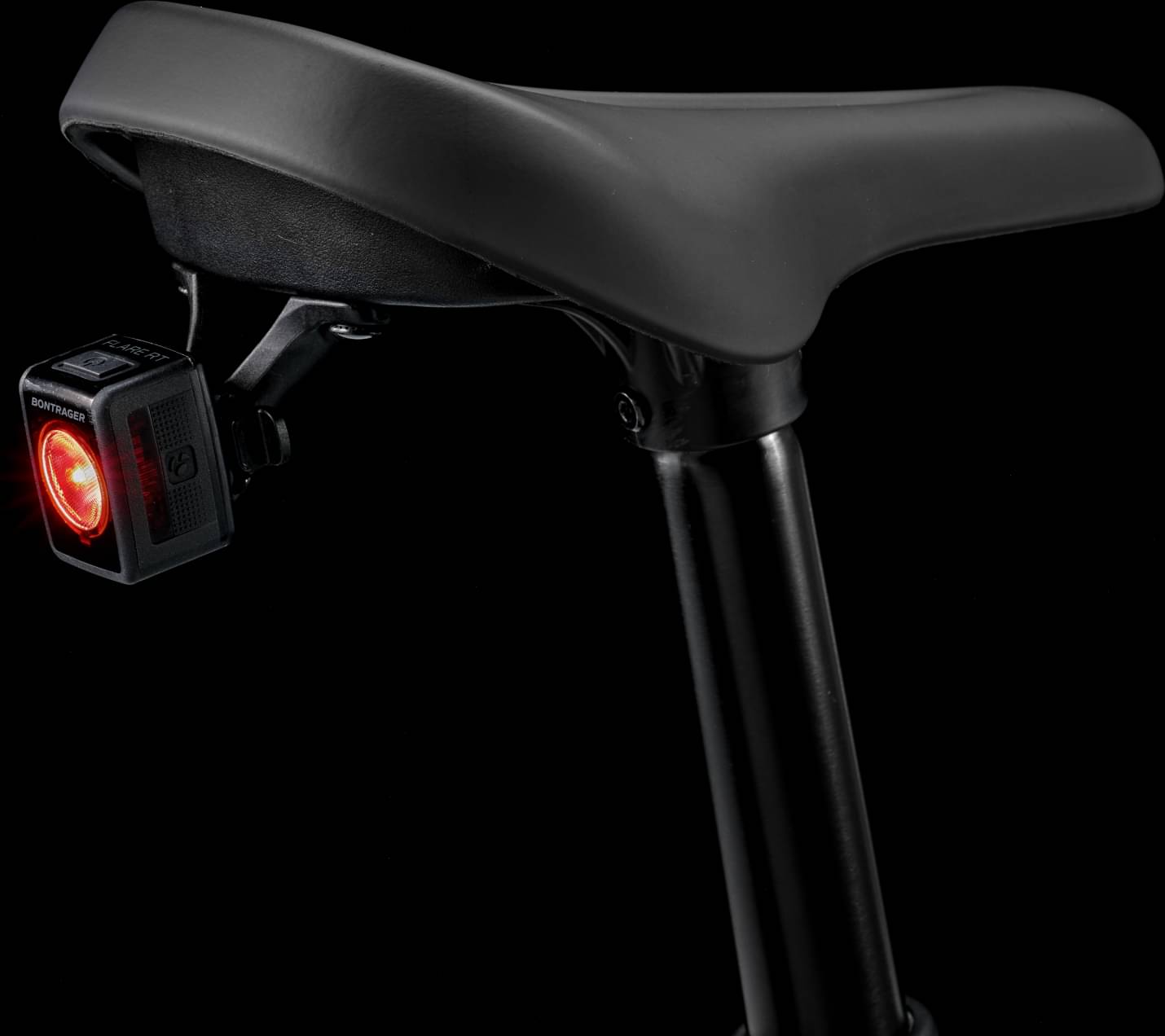

Kids' padded, integrated seatpost, Blendr light mount, 31.6x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 26" |
|---|---|
| Stack Reach Ratio | 1.178 mm |
| Bottom Bracket Height | 292 mm |
| Front Center | 653 mm |
| Rake | 44 mm |
| Trail | 89 mm |
| Stack | 489 mm |
| Reach | 415 mm |
| Top Tube Length | 550 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 320 mm |
| Head Tube Angle | 67 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1079 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 588 mm |
| Wheels | 26" |
| Rider Min Height | 146 cm |
| Rider Max Height | 160 cm |
