Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Altus -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
XXL
196cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Alpha Super Smooth Aluminium, DuoTrap compatible
Suspension Fork
Rigid Aluminium
Drivetrain
Rear Derailleur
Shimano Deore 9-speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano Acera
Cassette
Shimano 9-speed
Crank
Shimano Acera 48/36/26T
Bottom Bracket
Shimano 9-speed
Chain
Shimano HG53, 9 speed
Pedals
Wellgo Black with reflectors
Wheels
Front Hub
Shimano Alivio Dynamo hub
Rear Hub
Shimano
Rims
Bontrager Connection
Tires
Schwalbe Marathon Supreme V-Guard, 700x37 c
Brakes
Brakes
Shimano hydraulic disc brake
Cockpit
Stem
Bontrager adjustable Blendr
Handlebar
Bontrager aluminium
Grips
Bontrager Satellite Elite Ergonomic, lock-on
Seat
Saddle
Bontrager Nebula
Seatpost
Bontrager
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.65 mm | 1.67 mm | 1.62 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 632 mm | 644 mm | 662 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 79 mm | 76 mm | 73 mm | 73 mm |
| Stack | 621 mm | 647 mm | 678 mm | 678 mm |
| Reach | 383 mm | 392 mm | 405 mm | 419 mm |
| Top Tube Length | 574 mm | 590 mm | 613 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm | 650 |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm | 205 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1078 mm | 1096 mm | 1109 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 799 mm | 836 mm | 875 mm | 905 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm | 196 cm |
| Rider Max Height | 176 cm | 187 cm | 198 cm | 203 cm |
About this model

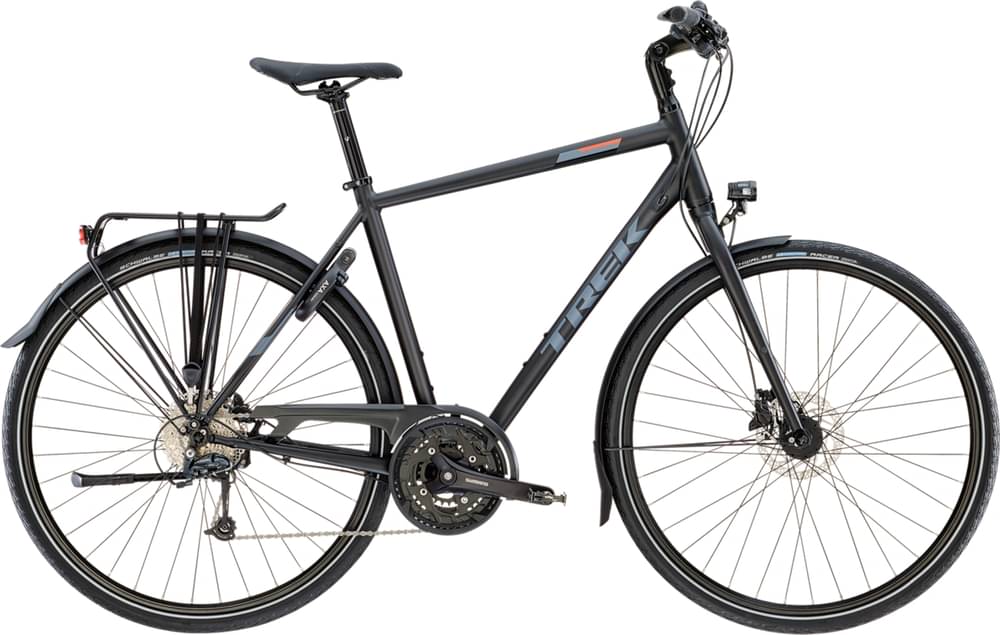

X500 is a Trek X500 model. Trek released 16 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2020, its price was 573$. Comparing this to the average Gravel bike price, we see that the price is 329.67% smaller.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 15.1 kg (33.29 lbs), the X500 model is much heavier than average. To sum up, it’s 85.73% heavier than the average weight of Gravel bikes.
X500 components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Trek X500 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The X500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Trek X500 bike has 4 sizes, in the range of 165 cm – 203 cm (5.41 ft – 6.66 ft). In short, you can easily find one that suits you.
