Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 35mm -
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powerpack Performance, 400wH, frame mount -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, designed for Bosch e-bike system with rack & fender mounts
Suspension Fork
Bontrager SPA integrated front suspension, 35mm travel
Drivetrain
Rear Derailleur
Shimano SLX, M7000 Shadow Plus
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
Miranda Delta, 20T
Bottom Bracket
Bosch Performance Speed, 350watt, 28mph
Chain
Shimano Deore
Pedals
Wellgo track-style alloy
Wheels
Front Hub
Shimano Deore centerlock
Rear Hub
Shimano Deore centerlock
Rims
Alloy disc 36-hole
Tires
Schwalbe Energizer Pro, Speed e-bike, 700x38c
Brakes
Brakes
Shimano M425, hydraulic disc
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Urban alloy, 31.8mm
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8? threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Motor & Battery
Motor
Bosch Speed Performance, 350 watt, 63Nm, 28 mph
Battery
Bosch Powerpack Performance, 400wH, frame mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.64 mm | 1.66 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm |
| Front Center | 635 mm | 647 mm | 665 mm |
| Rake | 42 mm | 41 mm | 42 mm |
| Trail | 79 mm | 76 mm | 73 mm |
| Stack | 621 mm | 648 mm | 678 mm |
| Reach | 386 mm | 395 mm | 408 mm |
| Top Tube Length | 574 mm | 590 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1101 mm | 1113 mm | 1131 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 798 mm | 835 mm | 875 mm |
| Wheels | 700 | 700 | 700 |
About this model

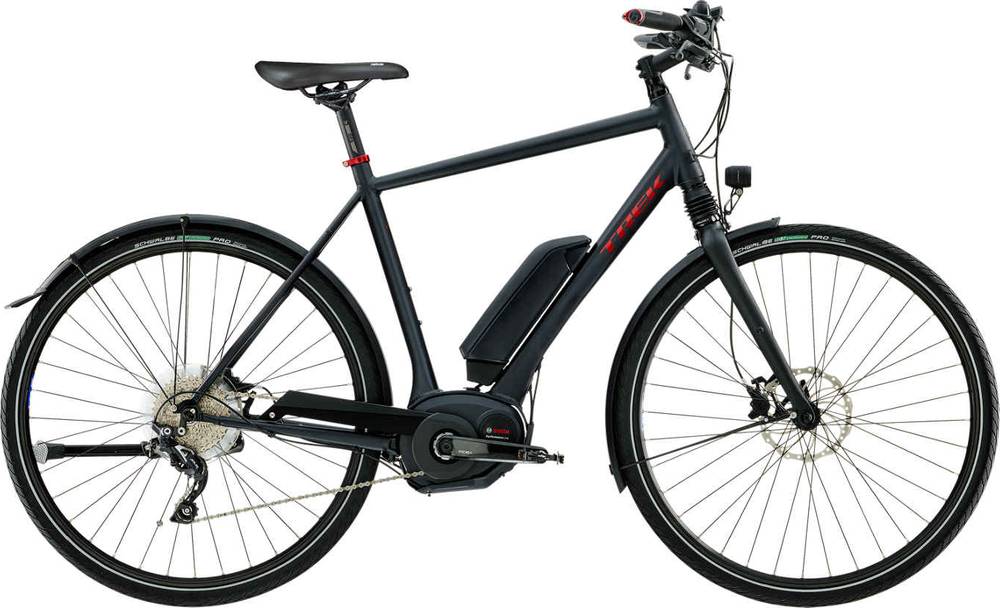

XM700+ is part of the Trek E Xm700 model. 2 e-bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek XM700+ price was 3499$. Doing a quick comparison, we notice that XM700+ price is 66.78% more expensive than the average cost of a General Urban e-bike.
Overview of components
Wheels
When leaving the production line, the XM700+ model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The XM700+ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
