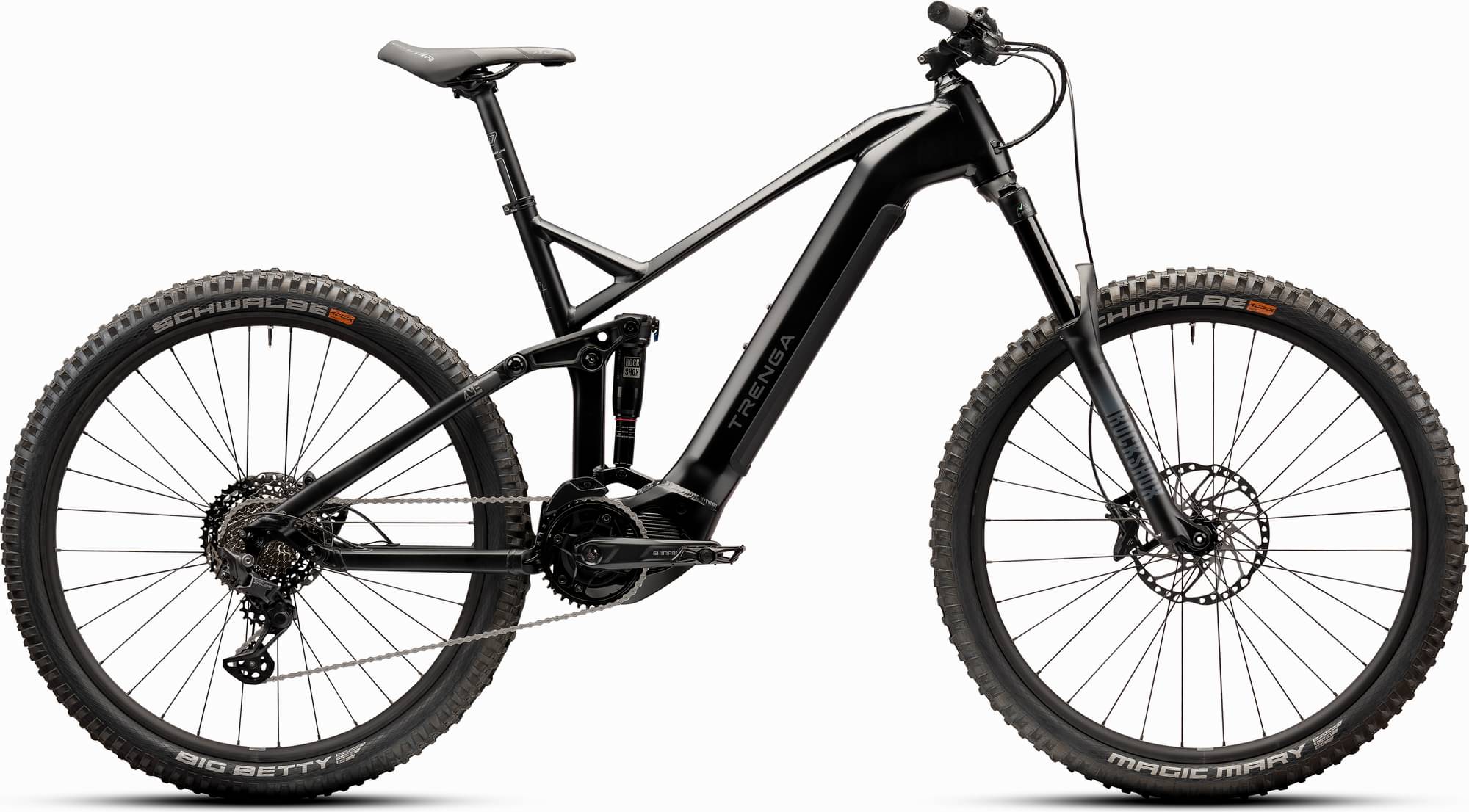

trenga AME 5.0 2024
2024 E-bike
Estimate price |
6,307$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano Intube battery, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano Steps, Cable routing: partially integrated, Hub mount: thru axle 12x148 mm, Tire clearance: 75 mm
Suspension Fork
RockShox 35 Gold RL, Stiff 35 mm stanchions, Axle mount: 15x110 mm thru axle, Steerer tube: 1 1/8" to 1.5", Travel: 160 mm, Suspension: DebonAir air spring, Damping: MotionControl with lockout, Max. tire width: 81 mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS, especially for LINKGLIDE systems, smooth and reliable shifting performance, stabilizer reduces chain slap, largest pinion max. 43 teeth
Shift Levers
Shimano SL-M5130, Rapidfire Plus, Fast and easy shifting, Variable I-SPEC EV assembly, 2-way release allows shifting with thumb or index finger
Cassette
Shimano CS-LG600-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance
Crank
Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG601, HG-X 11-speed, optimized shifting behavior, dirt-repellent design, SIL-TEC coating for longer durability
Chain Guide
Shimano Steps SM-CDE80, For 53 mm and 56.5 mm chain line, Precise adjustment of the guide, Compatible chainrings: 38, 36, 34 teeth
Pedals
TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Rival 30 Disc, robust, lightweight MTB rim, especially for wide tires, tubeless ready, 32 holes, ETRTO: 30-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black
Tires
Schwalbe Magic Mary Evo, ETRTO: 65-622, Top downhill and enduro all-rounder, Maximum braking traction and cornering grip, Good damping and easy rolling thanks to ADDIX Soft Compound, Tubeless easy
Brakes
Brakes
Shimano Deore M6100 / M6120 hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame size, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm, angle: ± 5°
Handlebar
TRENGA, width: 760 mm, handlebar clamp Ø: 31.8 mm, backsweep: 11°
Seat
Saddle
Selle Italia X3 E-Bike Climb Control, ultra-flat profile, low weight, surface made of easy-care microfiber
Seatpost
TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Shimano STEPS EP-8, Max. torque: 85 Nm, Rated continuous power: 250 W, 20% longer range, Lower heat generation, Lighter, quieter and more compact, Configurable via E-TUBE-PROJECT app
Battery
Shimano Intube battery, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg
Remote
Shimano STEPS EW-SW300, compact on/off switch, partially integrated in the frame
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
