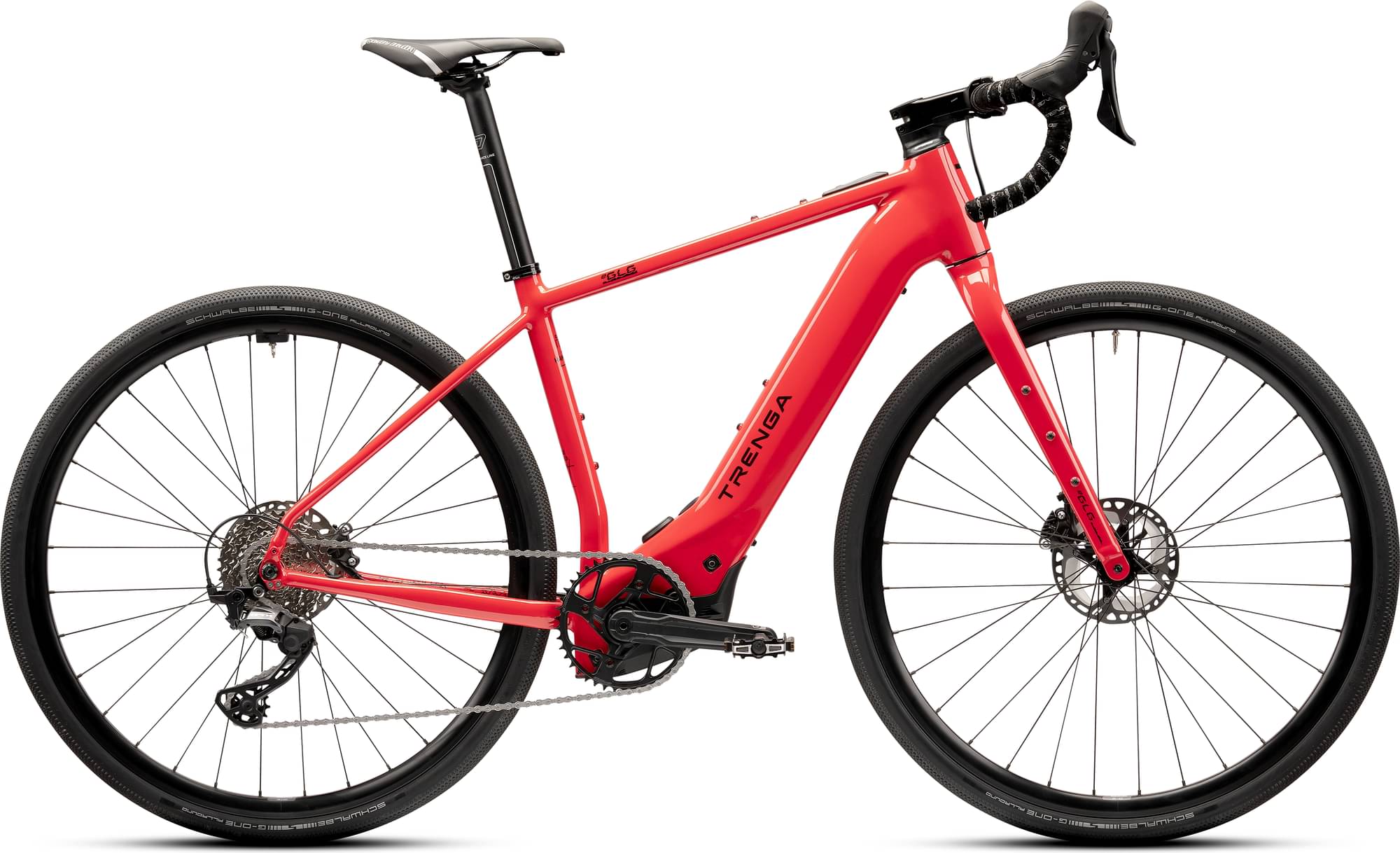

trenga E-GLG 6.0 2024
2024 E-bike
Estimate price |
4,472$
Weight | 16.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Rear 50mm -
Groupset GRX 800, GRX 600 -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch Compacttube, 36V, 11.1 Ah, 400 Wh, Lightweight battery for sporty e-bikes, Completely integrated in the frame, Voltage: 36V, Capacity 11.1 Ah, Energy content: approx. 400 Wh, Weight: approx. 2 kg -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Bosch SX, Cable routing: integrated, Hub mount: thru axle 12x142 mm, Brake: Flatmount Disc 160, Tire clearance: 40 mm with plates / 50 mm without, Mudguard and luggage rack eyelets
Suspension Fork
Aluminium TDE 4.5, Tapered, 1 1/8 x 1.5, thru axle, axle mount: 12x100 mm thru axle, steerer tube: 1 1/8" to 1.5", disc brake mount: Flatmount, lowrider eyelets, max. tire width: 35 mm with mudguards/40 mm without
Drivetrain
Rear Derailleur
Shimano GRX RD-RX820, Shadow RD Plus design for optimal chain guidance, smooth, precise and quiet shifting, adjustable chain stabilizer for different terrain, largest pinion max. 42 teeth
Shift Levers
Shimano GRX ST-RX610, Dual Control function, Light, responsive shifting, Gravel-optimized ergonomics for more control, Non-slip lever coating, Grip width and pressure point adjustment
Cassette
Shimano CS-HG710-12, 12-speed HYPERGLIDE, gradation: 11-12-13-14-15-17-19-21-24-28-32-36
Crank
FSA CK-762, crank length: 170 mm, material: forged 6061/T6 aluminum, finish: black anodized, Q-factor: 177 mm
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100, 12-speed HYPERGLIDE+, SIL-TEC coating for longer durability
Pedals
TRENGA HPL Platform, non-slip tread for more safety, aluminum pedal body, reflectors
Wheels
Rims
Ryde Zac 25, versatile and durable all-round rim, 32 holes, tubeless ready, ETRTO: 25-622
Spokes
Sapim Race, Material: Stainless steel, Diameter: 2.0 / 1.8 mm, Color: Black
Tires
Schwalbe G-One Allround Black, ETRTO: 40-622, Smooth-running and low-vibration gravel tire, Versatile profile with secure grip off the asphalt, RaceGuard puncture protection, Very durable ADDIX compound, Tubeless easy
Brakes
Brakes
Shimano GRX 610 hydraulic disc brake, reach and pressure point adjustment, brake lever front: BL-RX610, brake lever rear: ST-RX610 Dual-Control, brake calipers: BR-RX400 2-piston, brake pads: K05S-RX
Cockpit
Stem
FSA NS SMR integrated, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: - 6°, internally routed shift cables and brake lines
Handlebar
TRENGA, width: 420 mm, handlebar clamp Ø: 31.8 mm, reach: 87.6 mm
Seat
Saddle
Selle Italia X3 Boost, ultra-flat profile, low weight, surface made of easy-care microfiber
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
Motor & Battery
Motor
Bosch Performance Line SX, light, compact and minimalist, max. torque: 55 Newton meters, rated continuous power: 250 W, max. power at 70 rpm: 400 W, support increases with cadence - for sporty eGravel and eUrban rides
Battery
Bosch Compacttube, 36V, 11.1 Ah, 400 Wh, Lightweight battery for sporty e-bikes, Completely integrated in the frame, Voltage: 36V, Capacity 11.1 Ah, Energy content: approx. 400 Wh, Weight: approx. 2 kg
Remote
Bosch System Controller, Compact control unit for sporty e-bikes, Robustly installed in the top tube, Optimally readable LED display for charging status, Effective two-button control, Interface for software updates
Charger
Bosch 4A Charger, charging current (max.): 4 A, battery charging voltage: 36 V, size: 200 x 90 x 53 mm, weight: including cable approx. 700 grams, charging time: 4.5 h for PowerTube 500, approx. 4.9 h for PowerTube 625, approx. 3.5 h for PowerPack 400
