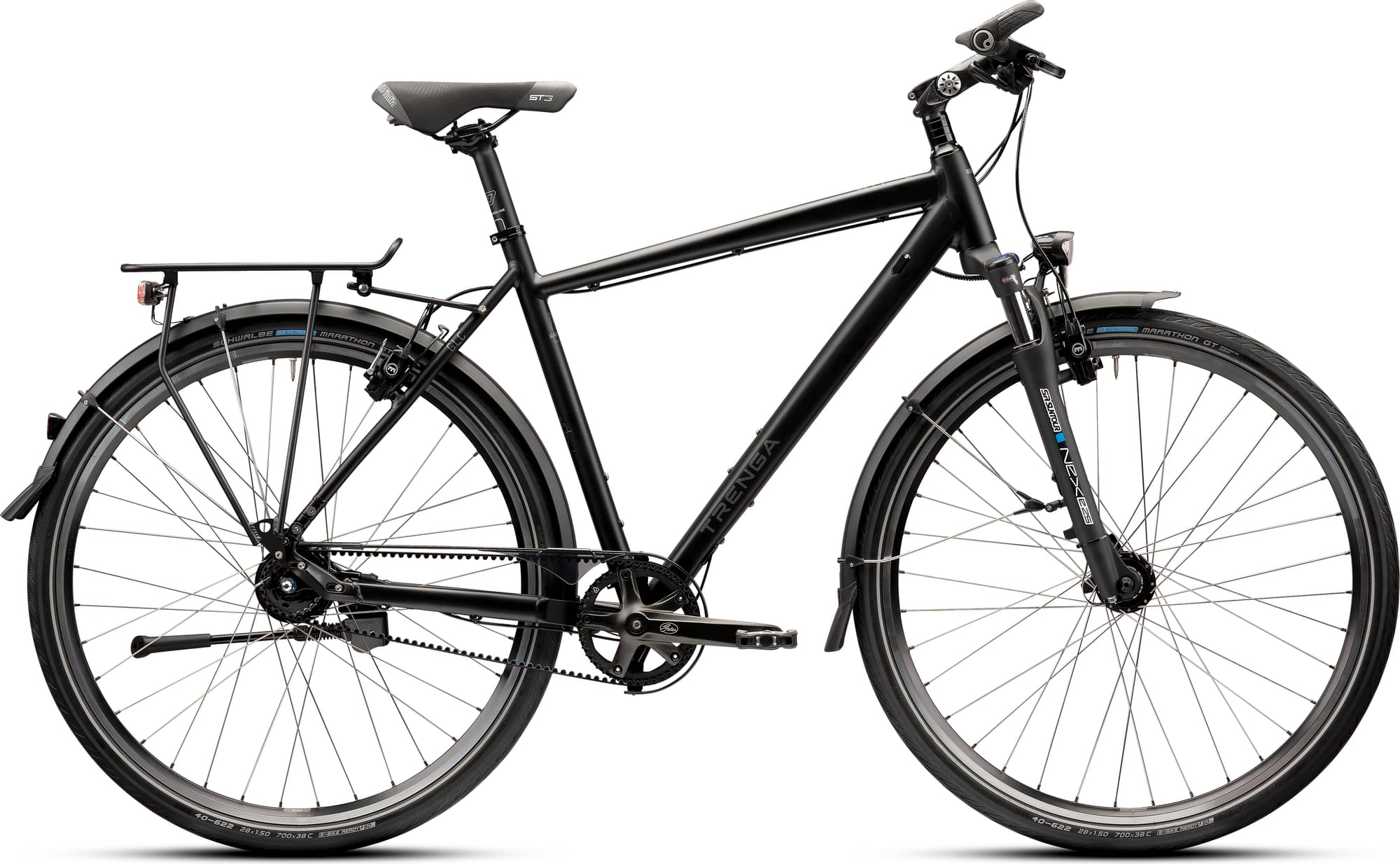

trenga GLC 9.0 2024
2024 Urban
Estimate price |
1,719$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Gates CDN, Alfine -
Suspension Hardtail -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura HS22 Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, bottom bracket: BSA 68 mm, axle mount I: 9 mm quick release, axle mount II: 135 mm hub gear, cable routing: partially integrated, tire clearance: 50 mm, mudguard and luggage carrier eyelets, brake: disc or rim
Suspension Fork
Suntour NEX E25 LO, axle mount: 9 mm quick release, steerer tube: 1 1/8" to 1.5", travel: 63 mm, lockout, max. tire width: 55 mm
Drivetrain
Shift Levers
Shimano Alfine SL-S7000, Rapidfire Plus - smooth, fast shifting, optical gear display, 2-way release allows shifting with thumb or index finger
Crank
Gates S150 Center Track CDN, 46 teeth, crank length: 170 mm or 175 mm, depending on frame height, square taper, mud ports for trouble-free operation, durable pulley made of high-tech plastic, Center Track prevents the belt from running off
Bottom Bracket
Shimano BB-UN101, shaft length: 122.5 mm, square cone, BSA thread (BC 1.37)
Chain Guide
Hebie Chainbar 394 Aluminium, Elegant and discreet, Material: Aluminium, Optimal for hub gears
Pedals
TDE HPL Comfort, Alloy, Non-slip, rubberized tread, aluminum pedal body, reflectors, ideal for city and tour
Wheels
Rims
Ryde Zac 2000, lightweight trekking and touring rim, for rim brakes, 36 holes, ETRTO: 19-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Silver
Tires
Schwalbe Marathon, size: 40-622, ADDIX Performance Compound with very good rolling properties, very good puncture protection thanks to GREEN GUARD, reflective strips
Brakes
Brakes
Magura HS22, hydraulic rim brake, strong braking power and best controllability, brake lever material: Carbotecture, comfortable 3-finger brake lever, Magura standard brake pad
Cockpit
Stem
TRENGA Aluminium Angle adjustable, length: depending on frame height, fork stem clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm
Seat
Saddle
Selle Italia ST-3, Designed with a focus on comfort, perfect for everyday riders, Large SUPERFLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminum rigid, diameter: 31.6 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
