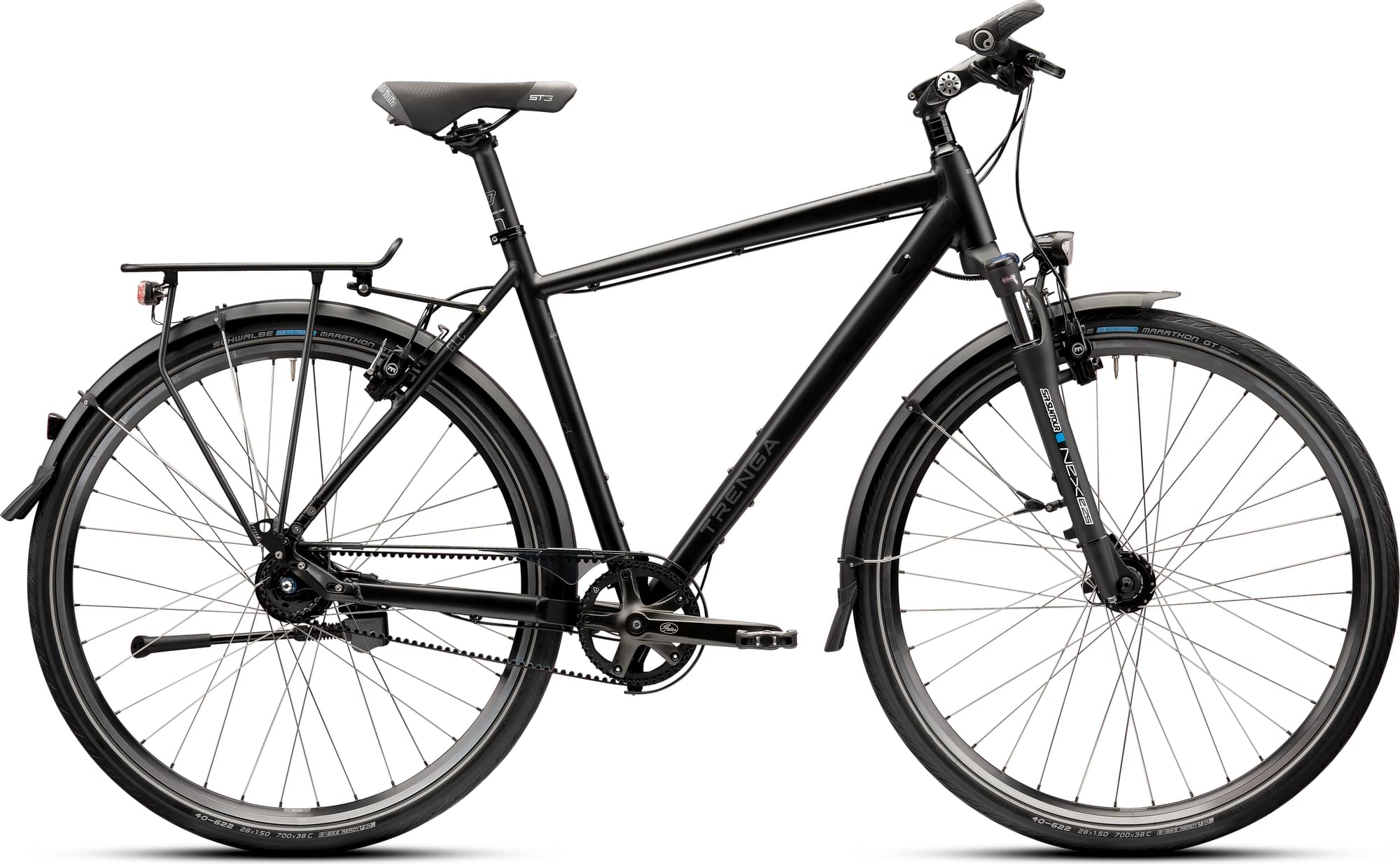

trenga GLC 9.0 Gates 2024
2024 Urban
Estimate price |
1,719$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Gates CDN, Alfine -
Suspension Hardtail -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour NEX E25 LO, 63 mm, Lockout, Axle mount: 9 mm quick release, Steerer tube: 1 1/8" to 1.5", Travel: 63 mm, Lockout, Max. tire width: 55 mm
Drivetrain
Shift Levers
Shimano Alfine SL-S7000, Rapidfire Plus, smooth and fast shifting, optical gear display, 2-way release allows shifting with thumb or index finger
Crank
Gates S150 Center Track CDN, 46 teeth, crank length: 170 mm or 175 mm, depending on frame height, square cone, mudports for trouble-free operation, durable pulley made of high-tech plastic, central guide groove prevents the belt from running off
Chain Guide
Hebie Chainbar 394 Aluminium, Elegant and discreet, Material: Aluminium, Optimal for hub gears
Pedals
TDE HPL Comfort, Alloy, Non-slip, rubberized tread, aluminum pedal body, reflectors, ideal for city and tour
Wheels
Rims
Ryde Zac 2000, lightweight trekking and touring rim, for rim brakes, 36 holes, ETRTO: 19-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Silver
Tires
Schwalbe Marathon, ETRTO: 40-622, ADDIX Performance Compound with very good rolling properties, Very good puncture protection thanks to GREEN GUARD, Durable anti-aging sidewall, Reflective strips
Brakes
Brakes
Magura HS22 hydraulic rim brake, strong braking power and best controllability, brake handle material: Carbotecture, comfortable 3-finger brake lever, Magura standard brake pad
Cockpit
Stem
TRENGA Aluminium Angle adjustable, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm
Seat
Saddle
Selle Italia ST-3, Designed with a focus on comfort, perfect for everyday riders, Large SUPERFLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
