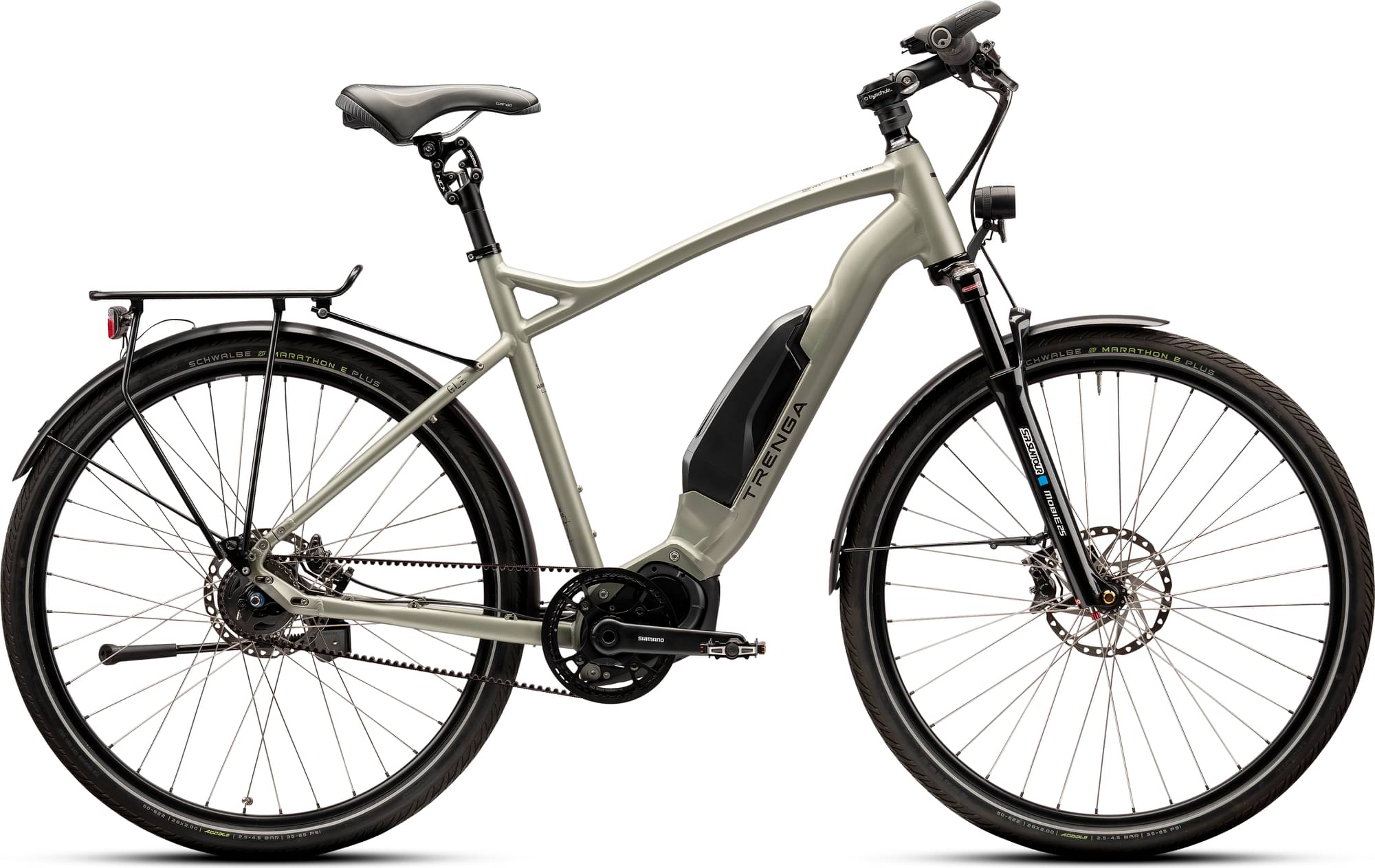

trenga GLE 10.2 Gates 2024
2024 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST PULSE
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum TDE 6.6 triple butted Shimano
Suspension Fork
RST Pulse 29-15 TnL-R 80mm, lockout, 15x100 TA
Drivetrain
Shift Levers
Shimano Nexus SL-C7000 5-speed
Crank
Shimano Steps FC-E6100
Bottom Bracket
STEPS, press-fit
Pedals
TRENGA HPL Platform
Wheels
Rims
Ryde Andra 321 Black
Spokes
Sapim Leader
Tires
Schwalbe Marathon E-Plus Reflex
Brakes
Brakes
Shimano Deore XT BR-T8000 hydr. disc
Cockpit
Stem
Speedlifter Stem Twist Pro
Seat
Saddle
Selle Italia Garda Gel
Motor & Battery
Motor
Shimano Deore XT DU-E6100
Fit data

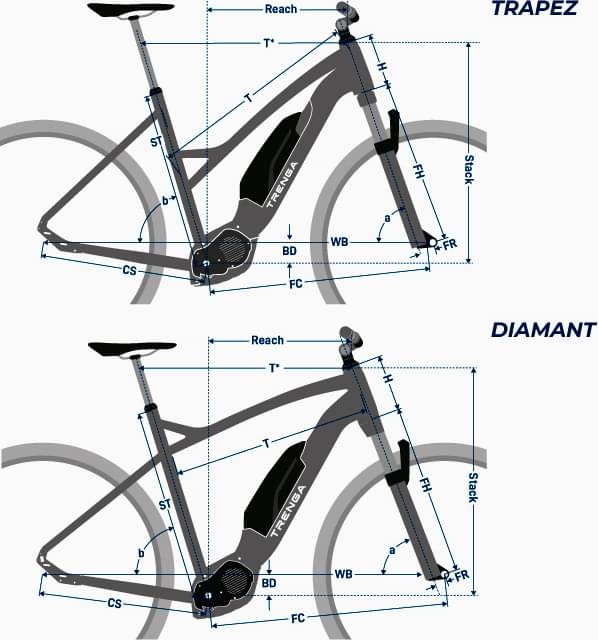

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 46cm | 51cm | 55cm | 56cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.598 mm | 1.64 mm | 1.583 mm | 1.614 mm | 1.56 mm |
| Front Center | 648 mm | 659 mm | 654 mm | 659 mm | 669 mm | 679 mm |
| Stack | 641 mm | 644 mm | 656 mm | 646 mm | 665 mm | 660 mm |
| Reach | 399 mm | 403 mm | 400 mm | 408 mm | 412 mm | 423 mm |
| Top Tube Length | 595 mm | 600 mm | 600 mm | 605 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 460 mm | 510 mm | 550 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 70.3 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 155 mm | 160 mm | 170 mm | 160 mm | 180 mm | 175 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1122 mm | 1133 mm | 1127 mm | 1132 mm | 1142 mm | 1153 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
