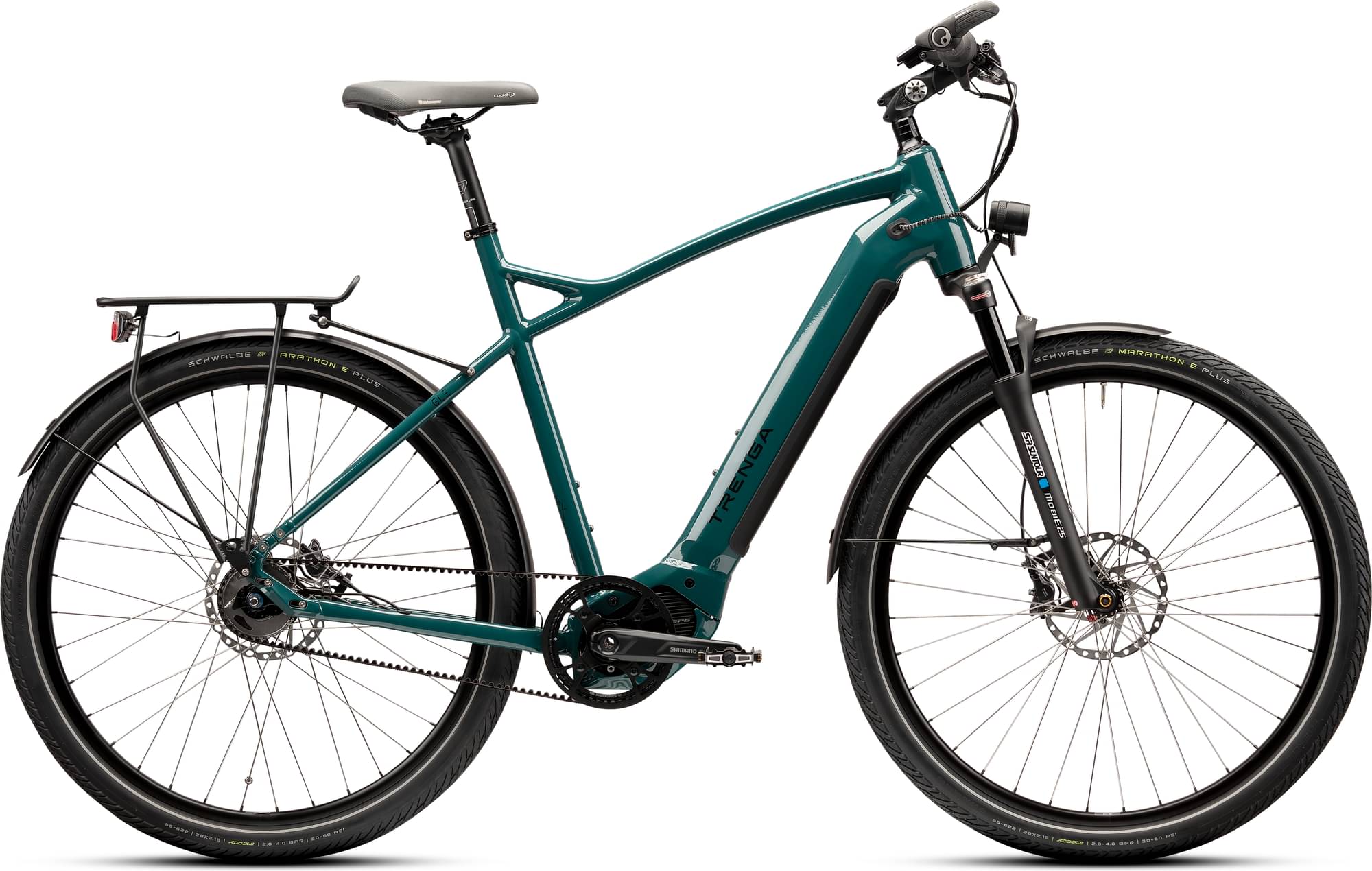

trenga GLE 10.2i Gates 2024
2024 E-bike
Estimate price |
5,160$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Axle mount I: thru axle 12x142 mm, Axle mount II: hub gear 135 mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour Mobie E25 LO, axle mount: thru axle 15x100 mm, steerer tube: 1 1/8" to 1.5", travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount
Drivetrain
Shift Levers
Shimano Nexus SL-C7000 5-speed, ergonomic twist grip shift lever, easy-to-read optical gear display, smooth and easy operation
Crank
Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle
Bottom Bracket
STEPS, press-fit
Pedals
TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Silver
Tires
Schwalbe Marathon E-Plus Reflex, Size: 55-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano Deore XT BR-T8100, hydraulic disc brake, high braking power with very good controllability, compatible with ICE-Tech pads, brake lever: BL-T8100 3-finger, brake calliper: BR-M8100 2-piston, brake pad: G05A-RX Resin
Cockpit
Stem
TRENGA Aluminium Angle adjustable, length: depending on frame height, fork stem clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm
Seat
Saddle
Selle Royal Lookin EVO Moderate, Sustainably produced all-rounder for commuting and touring, Highly comfortable Royalgel padding, Saddle frame made of 100% recycled plastic
Seatpost
TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Shimano STEPS EP600, Max. torque: 85 Nm, Rated continuous power: 250 W, Light, quiet and compact, Configurable via E-TUBE-PROJECT app
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
