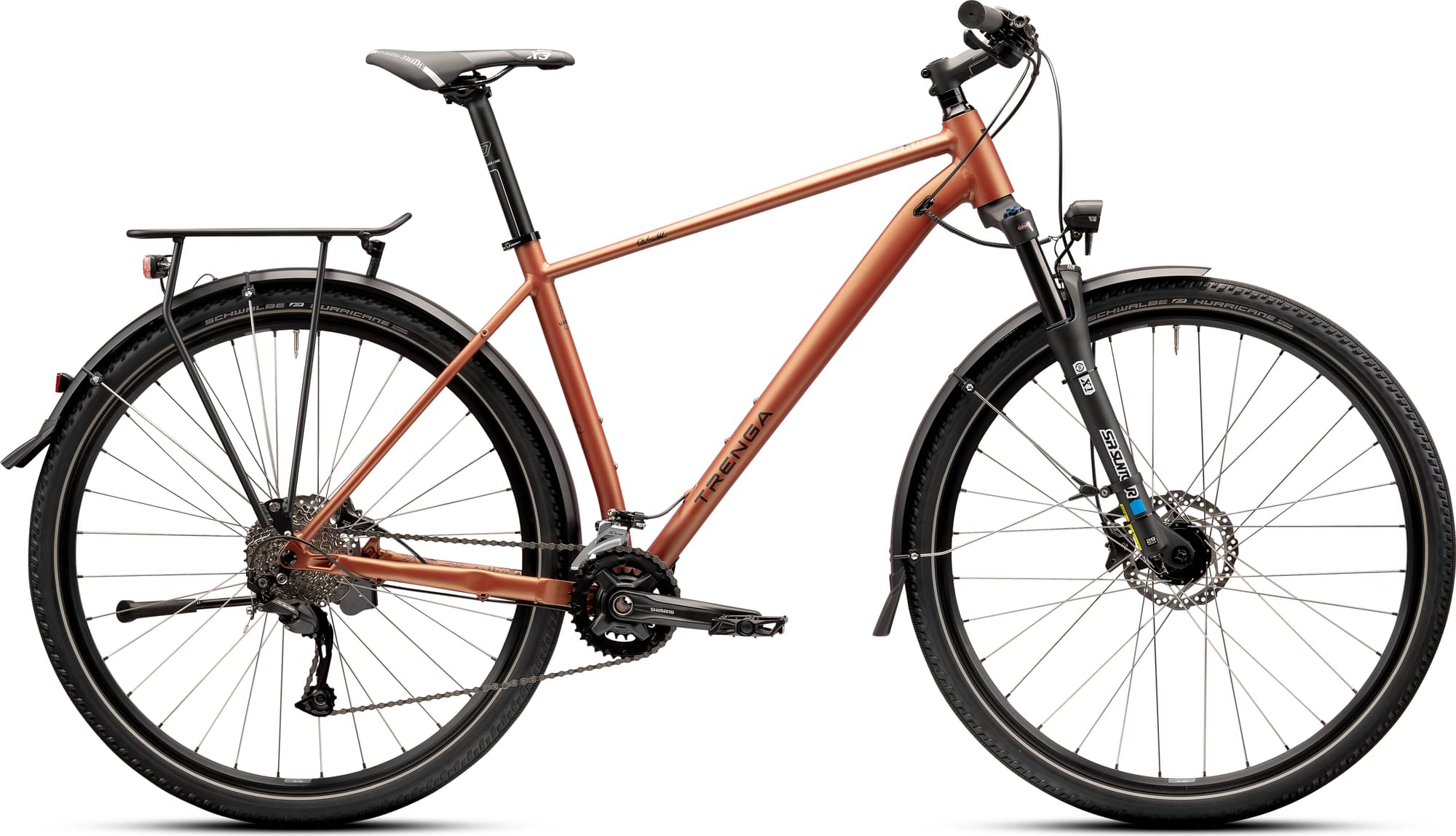

trenga GLM 2.0 AT 2024
2024 Urban
Estimate price |
1,375$
Weight | 16.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW
Suspension Fork
Suntour X1, axle mount: 9 mm quick release, steerer tube: 1 1/8", travel: 100 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 57 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 Shadow SGS, Shadow RD design for better chain guidance, largest pinion max. 36 teeth
Front Derailleur
Shimano Alivio FD-M3120, clamp 34.9 mm, chain stay angle: 64-69°, chain line: 51.8 mm, largest chainring: 36 teeth
Shift Levers
Shimano Alivio SL-M3000, Rapidfire Plus, Fast and smooth operation with two fingers, Optical gear display
Cassette
Shimano CS-HG400, 9-speed HYPERGLIDE, gradation: 11-13-15-17-20-23-26-30-34
Crank
Shimano FC-MT210, 36-22 teeth, crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 176 mm, HYPERDRIVE for easy and precise shifting
Chain
Shimano CN-HG53, 9-speed, HYPERGLIDE
Pedals
TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Taurus 21 Disc, lightweight, modern MTB rim, 32 holes, ETRTO: 21-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Silver
Tires
Schwalbe Hurricane Performance, ETRTO: 50-622, smooth center bar for easy, quiet running, shoulder studs for grip on gravel and forest paths, GreenGuard puncture protection, reflective strips
Brakes
Brakes
Shimano BR-MT402, hydraulic disc brake, reliable brake control, brake lever: BL-MT402 3-finger, brake calliper: BR-MT410 2-piston, brake pad: B05S-RX Resin
Cockpit
Stem
TRENGA aluminium rigid, length: depending on frame size, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 25.4 mm, angle: ± 6°
Handlebar
TRENGA, width: 630 mm, handlebar clamp Ø: 25.4 mm, backsweep: 9°, rise: 20 mm
Seat
Saddle
Selle Italia X3 XP, lightweight and comfortable, easy-care microfiber surface
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
