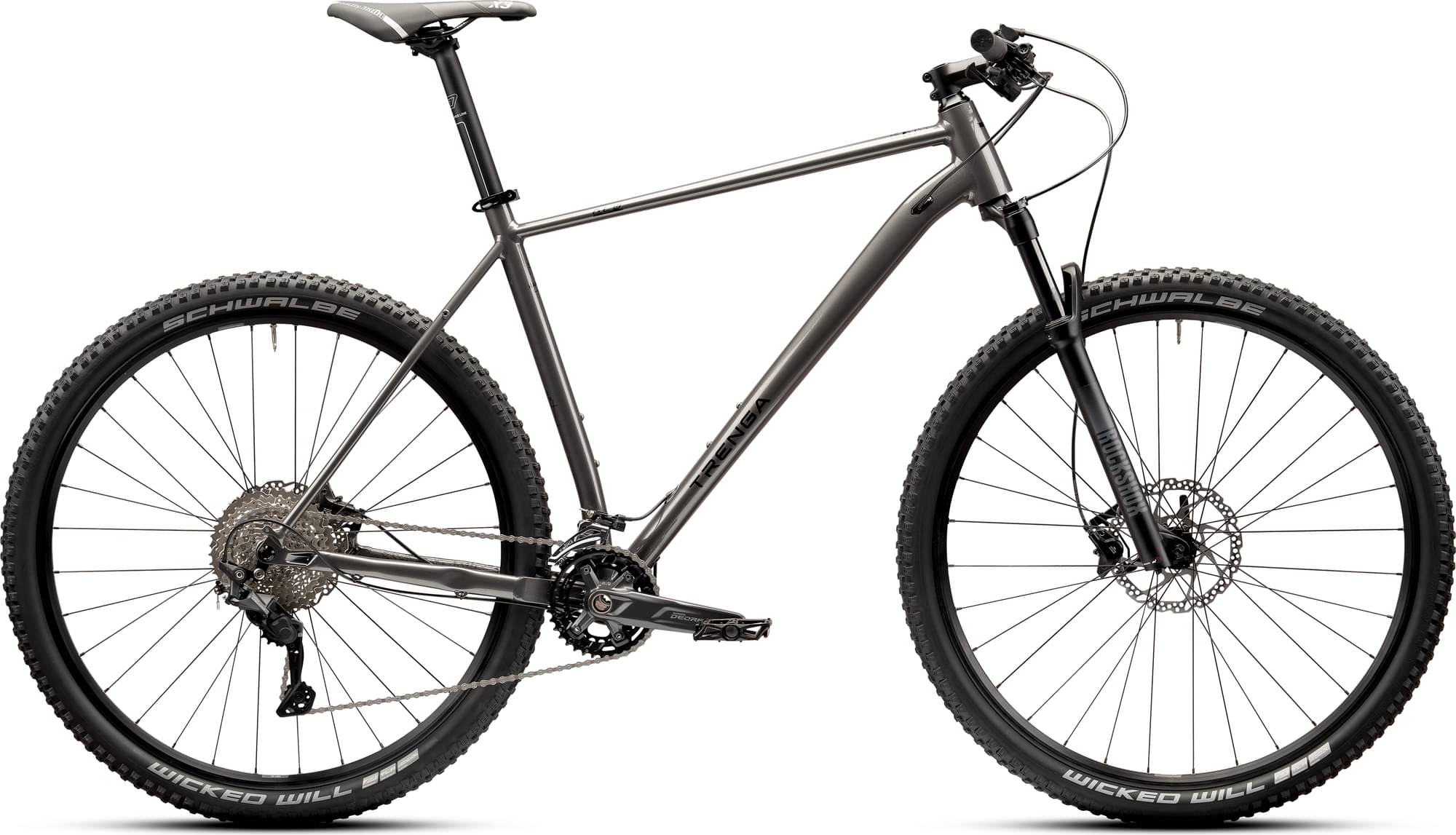

trenga GLM 4.0 2024
2024 Urban
Estimate price |
1,490$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW
Suspension Fork
Rock Shox Judy RL, axle mount: 9 mm quick release, steerer tube: 1 1/8" to 1.5", travel: 100 mm, suspension: steel spring, damping: TurnKey, damping adjustment: remote lockout, max. tire width: 61 mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120 SGS, Shadow RD Plus for optimal chain guidance, rear derailleur stabilizer reduces chain slapping and improves chain stability, largest pinion max. 42 teeth
Front Derailleur
Shimano Deore FD-M4100, side-swing design for easy, more effective shifting, clamp 34.9 mm, chainstay angle: 66-69°, chain line: 51.8 mm, largest chainring: 36 teeth
Shift Levers
Shimano Deore SL-M4100, Rapidfire Plus 10-speed, smooth and quick operation, larger adjustment range for better adaptation (I-SPEC EV), 2-way release allows shifting with thumb or index finger
Cassette
Shimano CS-M4100-10, 10-speed HYPERGLIDE, gradation: 11-13-15-18-21-24-28-32-37-42
Crank
Shimano Deore FC-M4100, 36-26 teeth, crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 178.5 mm, bolt circle 96 / 64 mm
Chain
Shimano CN-HG54, HG-X 10-speed, optimized shifting behavior, dirt-repellent design
Pedals
TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Taurus 21 Disc, lightweight, modern MTB rim, 32 holes, ETRTO: 21-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black
Tires
Schwalbe Wicked Will Performance, ETRTO: 57-622, all-rounder with a wide range, fast-rolling middle section, non-slip shoulder knobs for cornering grip
Brakes
Brakes
Shimano BR-M4100, hydraulic disc brake, hydraulic disc brake, intuitive braking with high braking power, variable adjustment through I-SPEC EV, brake lever: BL-M4100 2-finger, brake calliper: BR-MT410 2-piston, brake pad: B05S-RX Resin
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame size, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 6°
Handlebar
TRENGA, width: 680 mm, handlebar clamp Ø: 31.8 mm, backsweep: 9°
Seat
Saddle
Selle Italia X3 XP, lightweight and comfortable, easy-care microfiber surface
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
