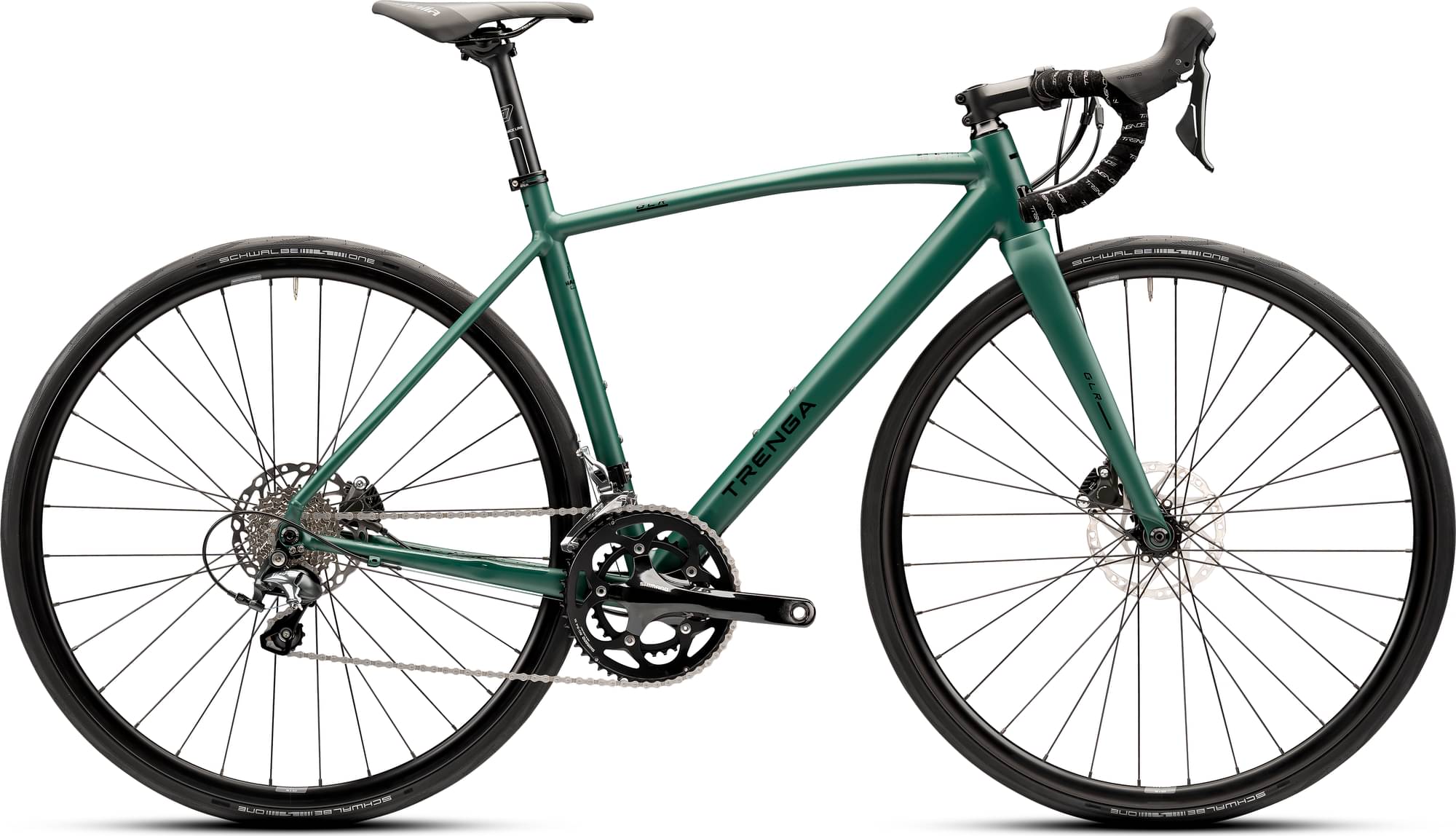

trenga GLR 4.0 Disc 2024
2024 Road
Estimate price |
1,605$
Weight | 9.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, bottom bracket: press-fit 89 mm, hub mount: thru axle 12x142 mm, cable routing: partially integrated, tire clearance: 30 mm, derailleur mount: clamp, brake: flat mount
Suspension Fork
Aluminium TDE 4.5, axle mount: 12x100 mm thru axle, steerer tube: 1 1/8" to 1.5", disc brake mount: Flatmount, max. tire width: 30 mm
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700 SS, smooth shifting, largest pinion max. 28 teeth
Front Derailleur
Shimano FD-4700, stable and smooth shifting, direct mount, chainstay angle: 61-66°, chain line: 43.5 mm, largest chainring: 46-52 teeth
Shift Levers
Shimano Tiagra ST-R4720, Dual Control function, fast, intuitive shifting comfort, grip width adjustment
Cassette
Shimano 105 CS-5700, 10-speed, gradation: 11-12-13-14-15-17-19-21-24-28, HYPERGLIDE for fast, precise shifting
Crank
Shimano FC-RS400, 50-34 teeth, crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 150 mm
Chain
Shimano CN-HG54, HG-X 10-speed, optimized shifting behavior, dirt-repellent design
Wheels
Rims
Ryde DP19 Disc, light and robust racing and gravel rim, 32 holes, ETRTO: 19-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black
Tires
Schwalbe One Performance, ETRTO: 25-622, Fast and agile all-rounder, ADDIX compound for super grip and very high durability, Race Guard puncture protection for more safety
Brakes
Brakes
Shimano R4700 hydraulic disc brake, optimized ergonomics, grip width adjustment, brake lever: ST-4720 Dual Control, brake calliper: BR-4770 2-piston, brake pad: K05S-RX Resin
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame size, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 6°
Handlebar
TRENGA, width: 400 mm, handlebar clamp Ø: 31.8 mm, reach: 87.6 mm
Seat
Saddle
Selle Italia X3 Boost, ultra-flat profile, low weight, surface made of easy-care microfiber
Seatpost
TRENGA aluminium rigid, diameter: 27.2 mm, length: 350 mm, clamping: 2-way, offset: 10 mm
