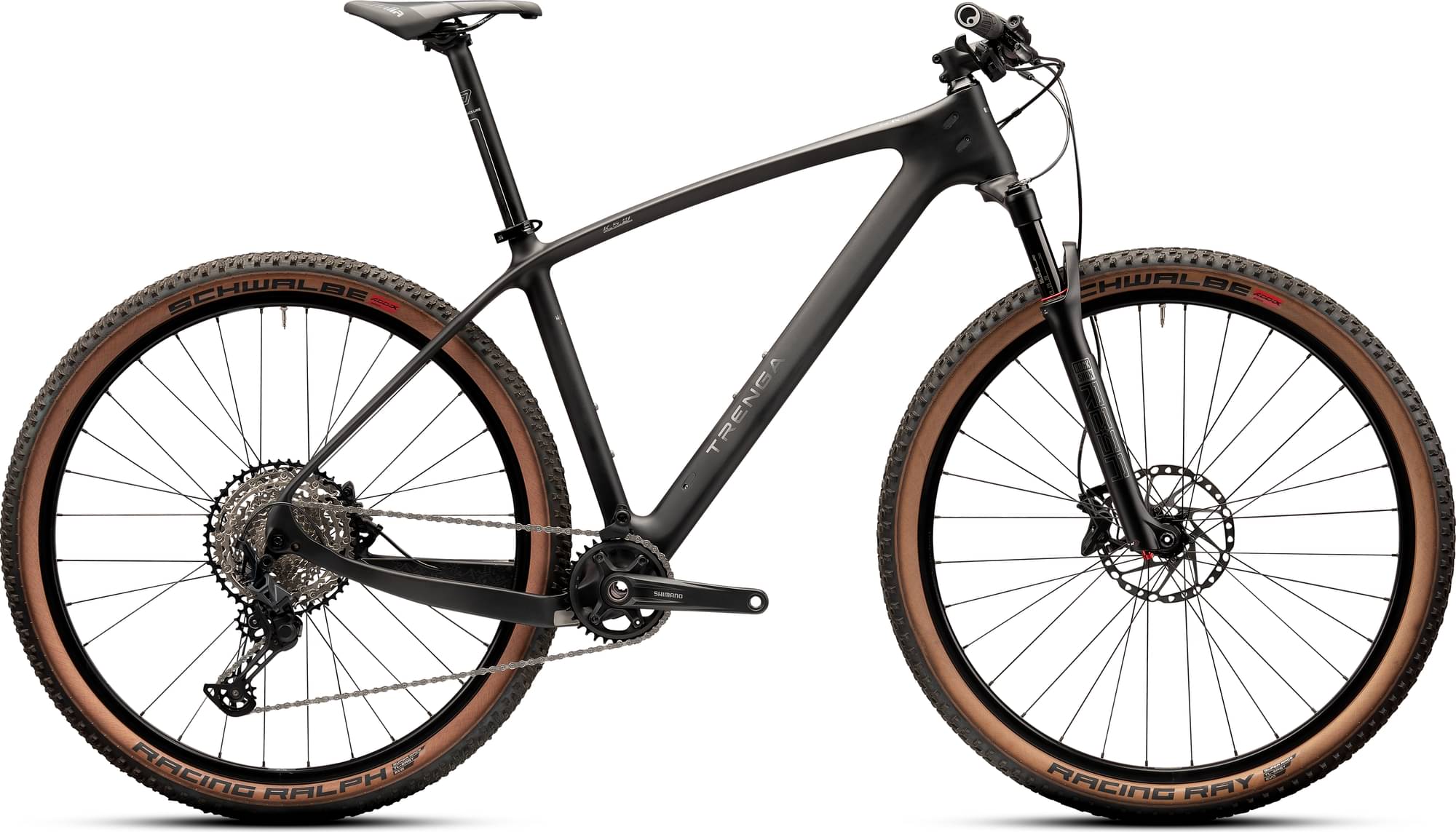

trenga KSM 5.9 2024
2024 Mountain
Estimate price |
2,522$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 92mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon monocoque, bottom bracket: press-fit 92 mm, hub mount: thru axle 12x148 mm, tire clearance: 60 mm, cable routing: partially integrated, brake: post mount 160 mm
Suspension Fork
Rock Shox Recon RL Boost, Achsaufnahme: 15x110 mm Steckachse, Gabelschaft: 1 1/8" auf 1,5", Federweg: 100 mm, Federung: DebonAir Luftfederung, Dämpfung: MotionControl, Dämpfungseinstellung: Externe Zugstufe und Remote Lockout
Drivetrain
Rear Derailleur
Shimano SLX RD-M7100 Shadow Plus SGS, Shadow RD Plus for optimal chain guidance, fast, smooth shifting, quiet drive in every gear position, largest pinion max. 51 teeth
Shift Levers
Shimano SLX SL-M7100, Rapidfire Plus, smooth and fast shifting, variable I-SPEC EV mounting, INSTANT release for fastest shifting function
Cassette
Shimano Deore CS-M6100, 12-speed HYPERGLIDE +, Gradation: 10-12-14-16-18-21-24-28-33-39-45-51, Lightweight BEAM SPIDER design, For MICRO SPLINE freewheel
Crank
Shimano Deore FC-MT510-1, 34 teeth, crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 177 mm, light and stiff HOLLOW TECH II design, Dynamic Chain Engagement for better chain running in off-road conditions
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano CN-M7100, 12-speed HYPERGLIDE+, SIL-TEC coating for longer durability
Chain Guide
Shimano SM-CD800, Improved chain retention on the front chainring, Optimized for new generation chains, Easy adjustment with screw, Lightweight
Wheels
Rims
Ryde Rival 23 Disc, modern and versatile MTB rim, 32 holes, tubeless ready, ETRTO: 23-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black
Tires
Schwalbe Racing Ray 57-622 Classic Skin, ETRTO: 57-622, XC-optimized, offset center lugs for precise steering and high braking performance, ADDIX Speed Compound for best smooth running, excellent rolling resistance and cornering grip, tubeless easy
Brakes
Brakes
Shimano Deore M6100 / M6120 hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame size, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 6°
Handlebar
TRENGA, width: 760 mm, handlebar clamp Ø: 31.8 mm, backsweep: 11°
Seat
Saddle
Selle Italia X3 Boost, ultra-flat profile, low weight, surface made of easy-care microfiber
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
