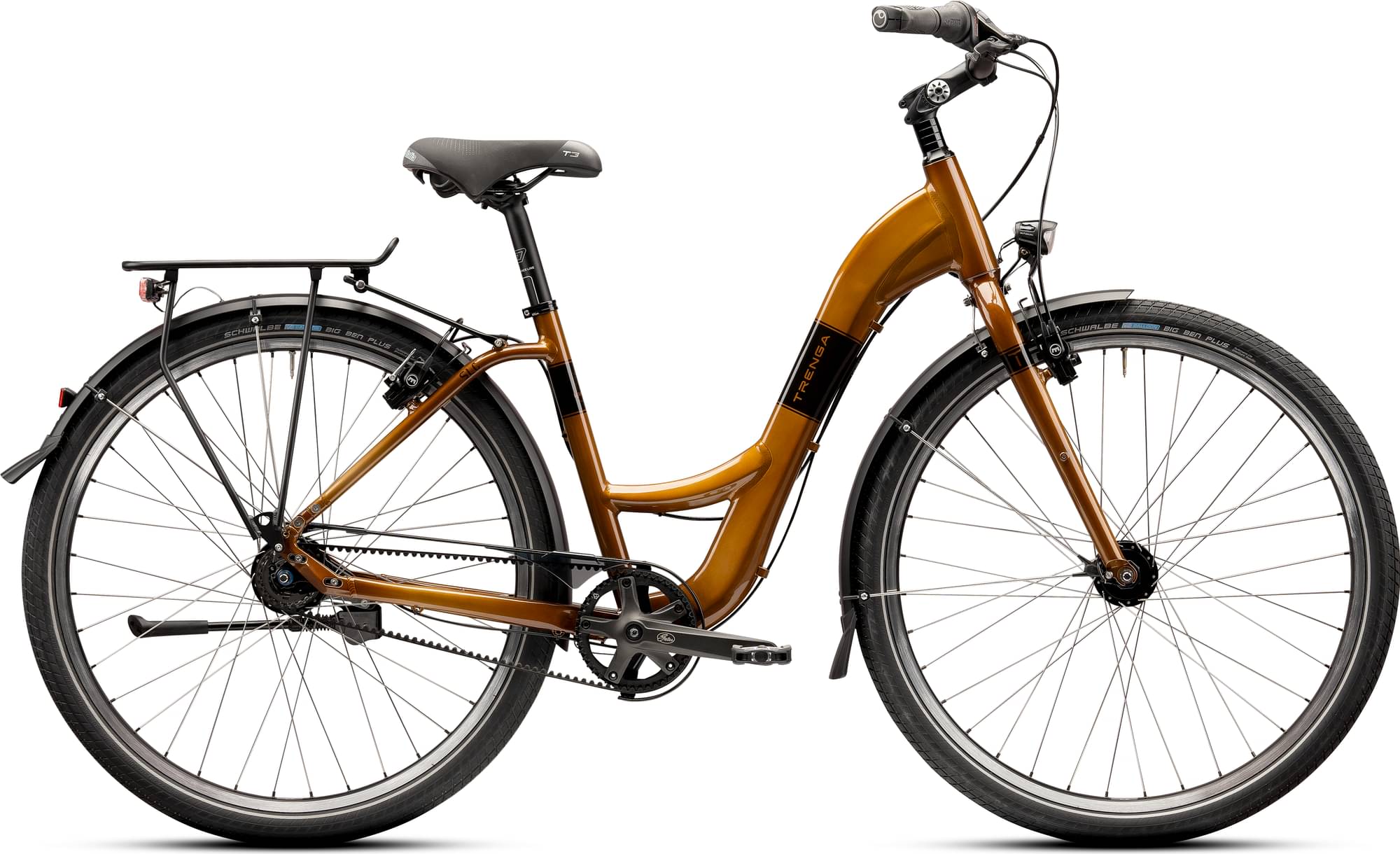

trenga SLC 9.0 XXL Gates 2024
2024 Urban
Estimate price |
1,719$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDN, Nexus -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, bottom bracket: BSA 68 mm, hub mount I: 9 mm quick release, hub mount II: 135 mm hub gear, cable routing: partially integrated, tire clearance: 50 mm, mudguard and luggage carrier eyelets, brake: disc or rim
Suspension Fork
Aluminium rigid fork TDE 5.5, tapered, axle mount: 9 mm quick release, steerer tube: 1 1/8" to 1.5", with canti sockets, lowrider eyelets, max. tire width: 50 mm with mudguards/55 mm without
Drivetrain
Shift Levers
Shimano Nexus SL-C6000 Revo 8-speed, optical gear display, smooth twist grip shifting, precise shifting feel
Crank
Gates S150 Center Track CDN, 46 teeth, crank length: 170 mm or 175 mm, depending on frame height, square cone, mudports for trouble-free operation, durable pulley made of high-tech plastic, central guide groove prevents the belt from running off
Bottom Bracket
BSA, 68mm, threaded
Chain Guide
Hebie Chainbar 394 Aluminium, Elegant and discreet, Material: Aluminium, Optimal for hub gears
Pedals
TDE HPL Comfort, Alloy, Non-slip, rubberized tread, aluminum pedal body, reflectors, ideal for city and tour
Wheels
Rims
Ryde Sputnik, robust and durable rim, for rim brakes, 36 holes, ETRTO: 19-622
Tires
Schwalbe Big Ben Plus, ETRTO: 50-622, Comfortable and durable urban tire, Green Guard puncture protection and reinforced sidewall, Perfect for e-bikes and cargo bikes, Reflective strips
Brakes
Brakes
Magura HS22 hydraulic rim brake, strong braking power and best controllability, brake handle material: Carbotecture, comfortable 3-finger brake lever, Magura standard brake pad
Cockpit
Stem
TRENGA Aluminium Angle adjustable, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, rise: 40 mm
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
