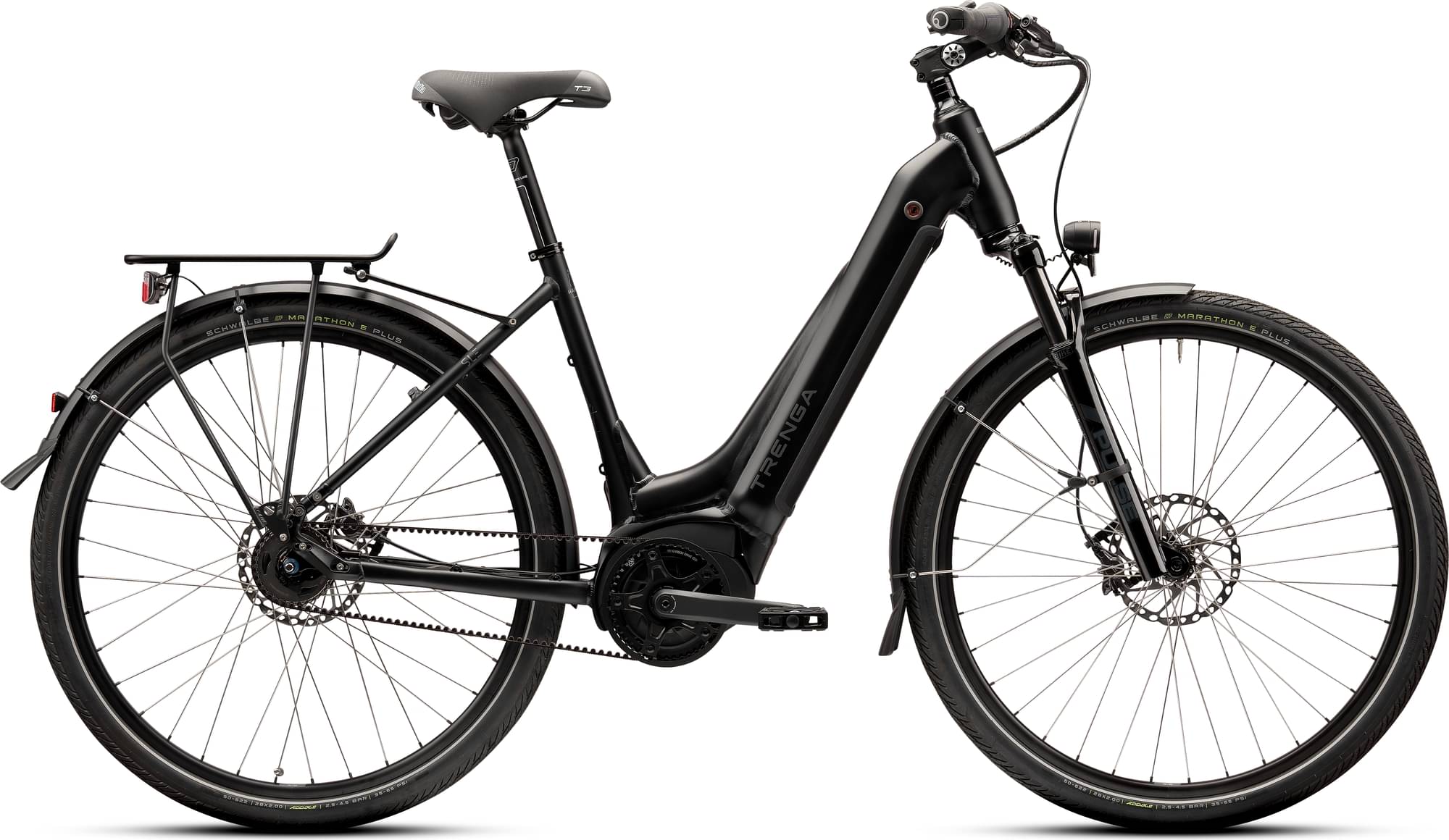

trenga SLE 10.0i Gates Disc 2024
2024 E-bike
Estimate price |
5,275$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Bosch, Cable routing: partially integrated, Hub mount I: thru axle 12x142 mm, Hub mount II: hub gear 135mm, Brake: Postmount Disc, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour Mobie E25, axle mount: 15x100 mm thru axle, steerer tube: 1 1/8" to 1.5", travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount
Drivetrain
Shift Levers
Shimano Nexus SL-C7000 5-speed, ergonomic twist grip shift lever, easy-to-read optical gear display, smooth and easy operation
Crank
FSA CK-602, crank length: 170 mm, material: forged 6061/T6 aluminum, finish: black anodized, Q-factor: 187 mm
Bottom Bracket
Bosch, press-fit
Pedals
TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Spokes
Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Silver
Tires
Schwalbe Marathon E-Plus Reflex, ETRTO: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano Deore XT BR-T8100, hydraulic disc brake, high braking power with very good controllability, compatible with ICE-Tech pads, brake lever: BL-T8100 3-finger, brake calliper: BR-M8100 2-piston, brake pad: G05A-RX Resin
Cockpit
Stem
TRENGA Aluminium Angle adjustable, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.6 mm
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, backsweep: 25°
Seat
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
Motor & Battery
Motor
Bosch Performance Line Cruise, Almost silent, Max. torque: 75 Newton meters, Rated continuous power: 250 W, Max. power at 70 rpm: 550 W, Automatic adjustment of support
Charger
Bosch 4A Charger, charging current (max.): 4 A, battery charging voltage: 36 V, size: 200 x 90 x 53 mm, weight: including cable approx. 700 grams, charging time: 4.5 h for PowerTube 500, approx. 4.9 h for PowerTube 625, approx. 3.5 h for PowerPack 400
