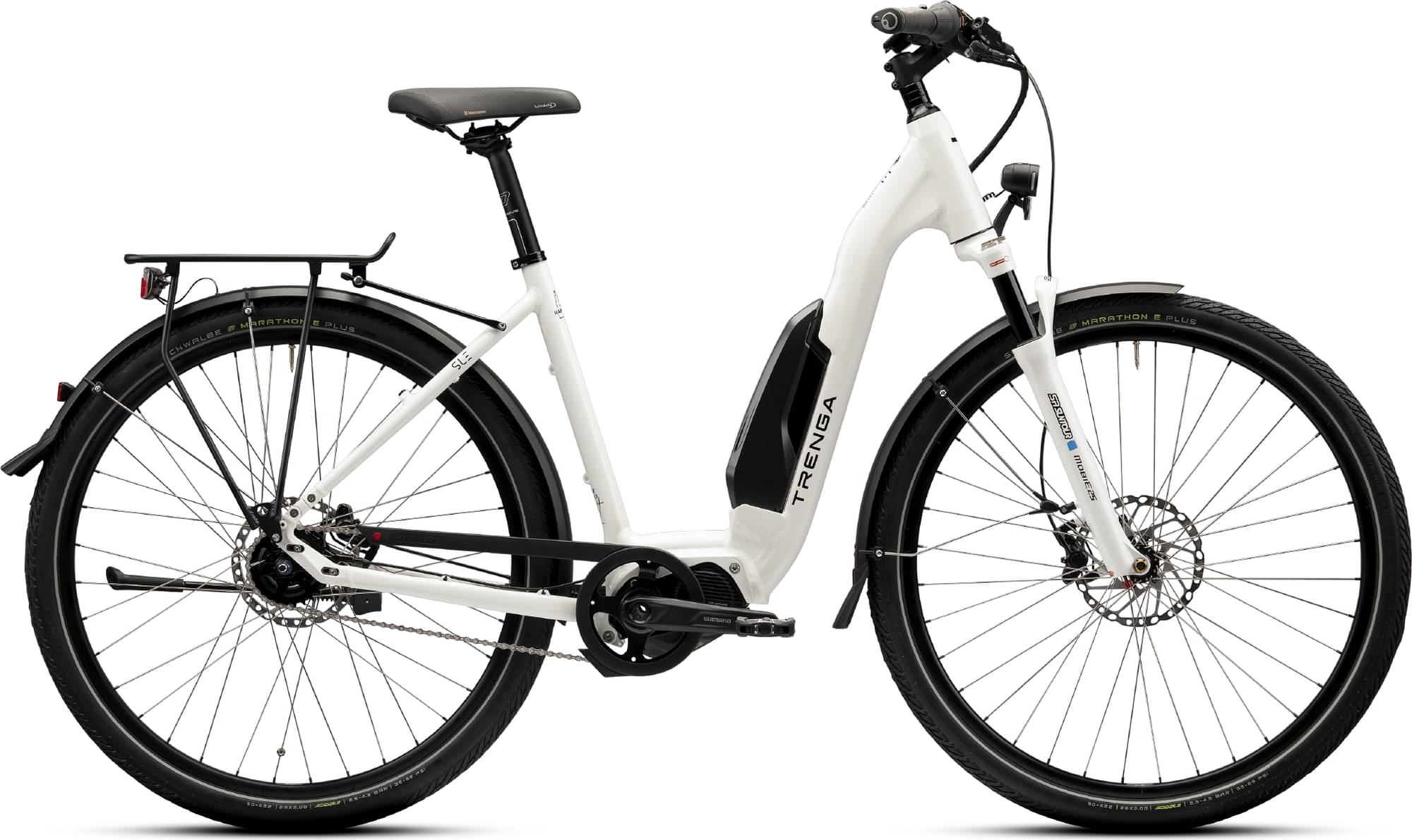

trenga SLE 10.2 2024
2024 E-bike
Estimate price |
3,898$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano down tube battery, integrated on the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.6 kg -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Hub mount I: thru axle 12x142 mm, Hub mount II: hub gear 135mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour Mobie E25, axle mount: 15x100 mm thru axle, steerer tube: 1 1/8" to 1.5", travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount
Drivetrain
Shift Levers
Shimano Nexus SL-C7000 5-speed, ergonomic twist grip shift lever, easy-to-read optical gear display, smooth and easy operation
Crank
Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG71, 6,7,8-speed compatible, E-Bike compatible, HYPERGLIDE for optimal shifting behavior
Chain Guide
Chain guard Hebie Chainglider Open 38Z. s, Elegant and discreet, Ideal for hub gears, Prevents the chain from jumping off
Pedals
TDE HPL Comfort, Alloy, Non-slip, rubberized tread, aluminum pedal body, reflectors, ideal for city and tour
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Tires
Schwalbe Marathon E-Plus Reflex, ETRTO: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano Deore BR-T6000, hydraulic disc brake, powerful, predictable braking performance, compatible with ICE-Tech pads, brake lever: BL-T6000 3-finger, brake calliper: BR-M6000 2-piston, brake pad: G05A-RX Resin
Cockpit
Stem
TRENGA aluminium rigid, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, backsweep: 25°
Seat
Saddle
Selle Royal Lookin EVO Moderate Ladies, all-rounder for commuting and touring, anatomically adapted ladies saddle, extremely comfortable Royalgel padding, saddle frame made of 100% recycled plastic
Seatpost
TRENGA aluminium rigid, diameter: 31.6 mm, length: depending on frame size: 300/400 mm, clamping: 2-fold, offset: 10 mm
Motor & Battery
Motor
Shimano STEPS EP-6, Max. torque: 85 Nm, Rated continuous power: 250 W, Light, quiet and compact, Configurable via E-TUBE-PROJECT app
Battery
Shimano down tube battery, integrated on the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.6 kg
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
