Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST PULSE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Powertube 500 BES3 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW
Suspension Fork
RST Pulse 29-15 TnL-R 80mm, lockout, 15x100 TA
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS
Shift Levers
Shimano SL-M5130
Cassette
Shimano CS-LG400-10
Crank
FSA-CK-602
Chain
Shimano CN-E8000
Pedals
TRENGA HPL Platform
Wheels
Rims
Ryde Andra 321
Spokes
Sapim Strong
Tires
Schwalbe Marathon E-Plus
Brakes
Brakes
Shimano Deore BR-T6000, hydraulic disc brake
Cockpit
Stem
TRENGA Aluminium rigid
Handlebar
TRENGA
Seat
Saddle
Selle Italia T-3 Flow City
Seatpost
TRENGA Aluminium rigid
Motor & Battery
Motor
Bosch Performance Line Cruise
Battery
Bosch Powertube 500 BES3
Charger
Bosch 4A Charger
Fit data

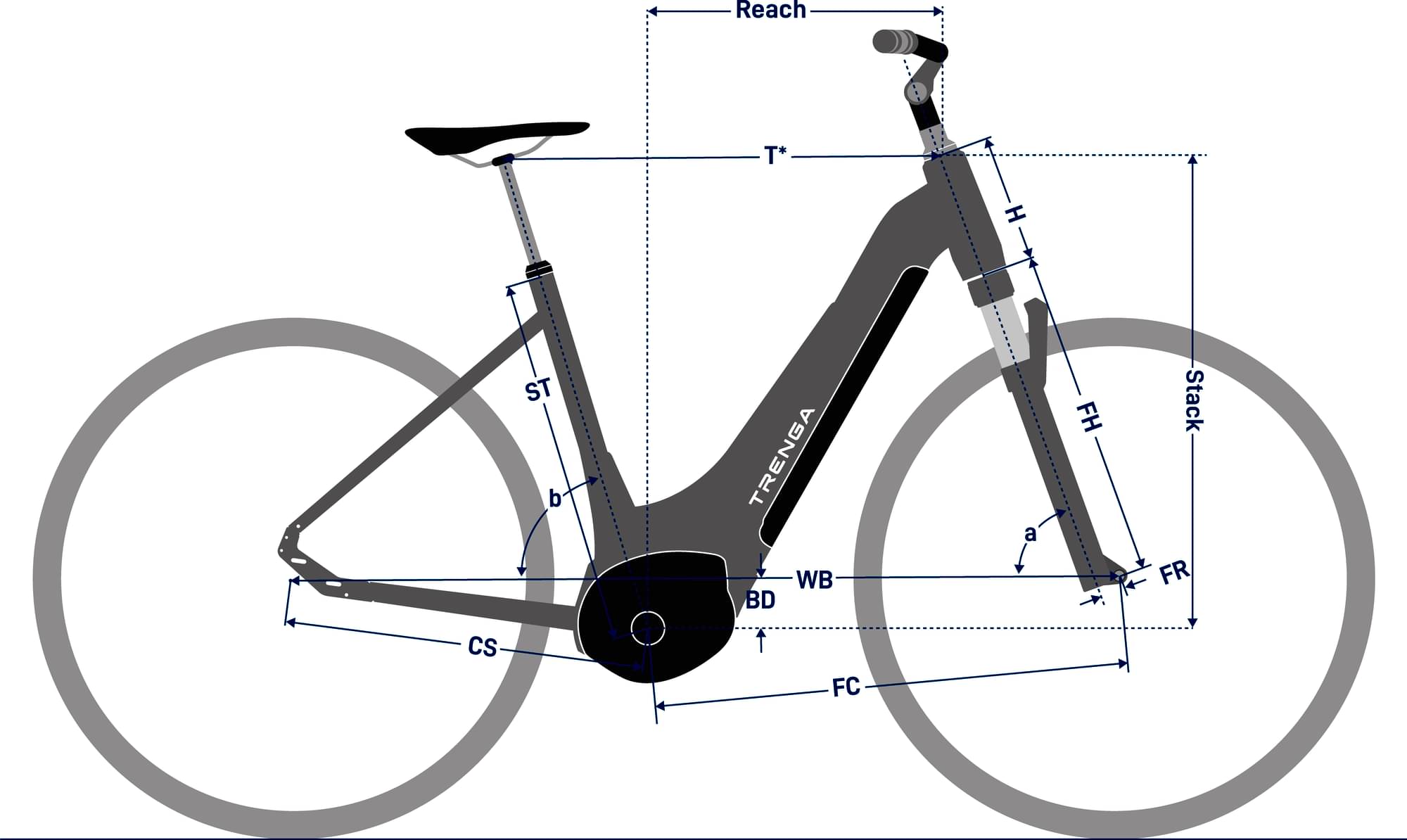

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.575 mm | 1.605 mm | 1.64 mm |
| Front Center | 658 mm | 659 mm | 670 mm |
| Stack | 633 mm | 642 mm | 661 mm |
| Reach | 402 mm | 400 mm | 403 mm |
| Top Tube Length | 595 mm | 595 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1141 mm | 1141 mm | 1152 mm |
| Wheels | 700 | 700 | 700 |
