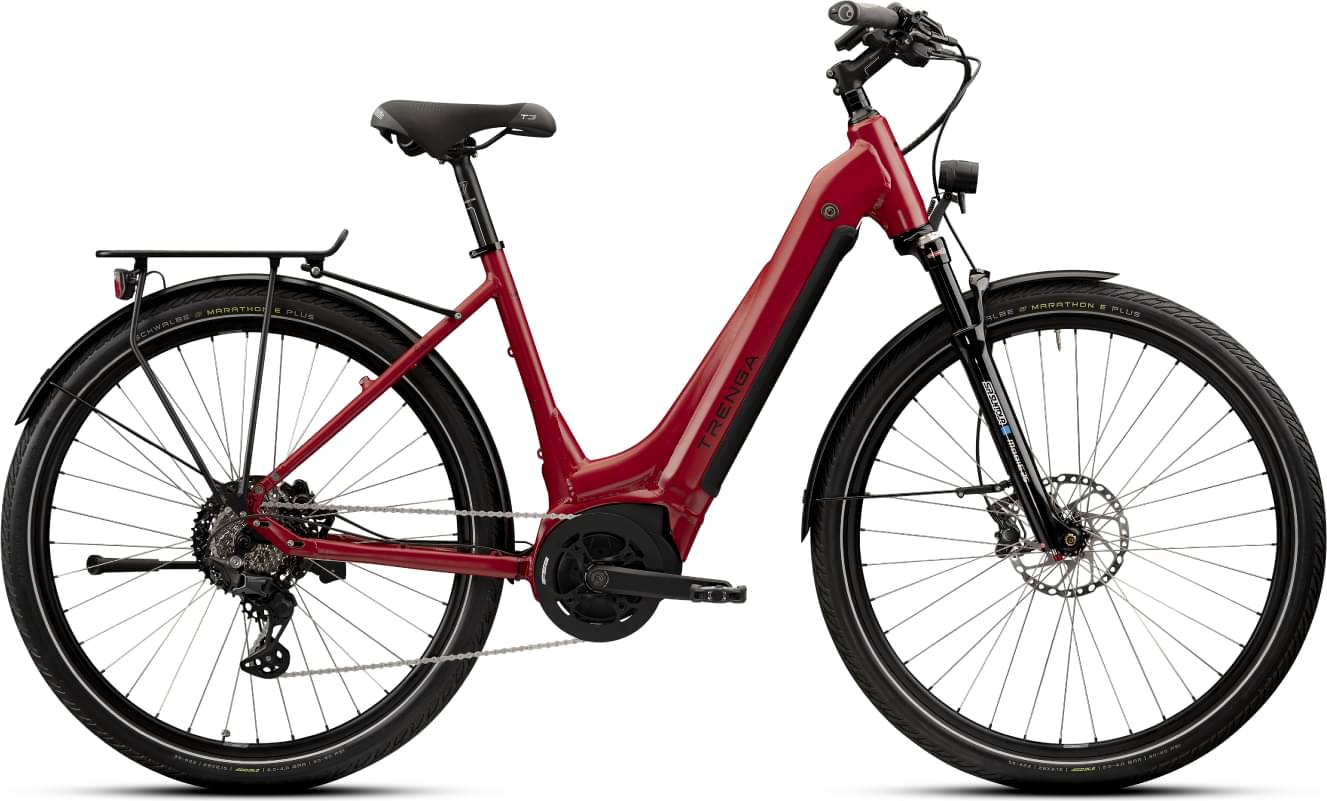

trenga SLE 11.0i 2024
2024 E-bike
Estimate price |
4,931$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork RST PULSE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powertube 500 BES3, protected integrated in the down tube, voltage: 36V, capacity: 13.4 Ah, energy content: approx. 500Wh, weight: approx. 3 kg -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Bosch, Cable routing: partially integrated, Hub mount I: thru axle 12x142 mm, Hub mount II: hub gear 135mm, Brake: Postmount Disc, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
RST Pulse 29-15 TNL, axle mount: 15x100 mm thru axle, steerer tube: 1 1/8" to 1.5", travel: 50mm, lockout, disc brake mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS, especially for LINKGLIDE systems, smooth and reliable shifting performance, stabilizer reduces chain slap, largest pinion max. 43 teeth
Shift Levers
Shimano SL-M5130, Rapidfire Plus, Fast and easy shifting, Variable I-SPEC EV assembly, 2-way release allows shifting with thumb or index finger
Cassette
Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance
Crank
FSA CK-602, crank length: 170 mm, material: forged 6061/T6 aluminum, finish: black anodized, Q-factor: 187 mm
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-E8000, HG-X 11-speed for e-bikes, optimized shifting behavior, dirt-repellent design, SIL-TEC treatment for better durability
Pedals
TRENGA HPL Platform, non-slip tread for more safety, aluminum pedal body, reflectors
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Tires
Schwalbe Marathon E-Plus Reflex, ETRTO: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano Deore BR-T6000, hydraulic disc brake, powerful, predictable braking performance, compatible with ICE-Tech pads, brake lever: BL-T6000 3-finger, brake calliper: BR-M6000 2-piston, brake pad: G05A-RX Resin
Cockpit
Stem
TRENGA aluminium rigid, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, backsweep: 25°
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminium rigid, diameter: 29.8 mm, length: 350 mm, clamping: 2-way, offset: 0 mm
Motor & Battery
Motor
Bosch Performance Line Cruise, Almost silent, Max. torque: 75 Newton meters, Rated continuous power: 250 W, Max. power at 70 rpm: 550 W, Automatic adjustment of support
Battery
Bosch Powertube 500 BES3, protected integrated in the down tube, voltage: 36V, capacity: 13.4 Ah, energy content: approx. 500Wh, weight: approx. 3 kg
Charger
Bosch 4A Charger, charging current (max.): 4 A, battery charging voltage: 36 V, size: 200 x 90 x 53 mm, weight: including cable approx. 700 grams, charging time: 4.5 h for PowerTube 500, approx. 4.9 h for PowerTube 625, approx. 3.5 h for PowerPack 400
