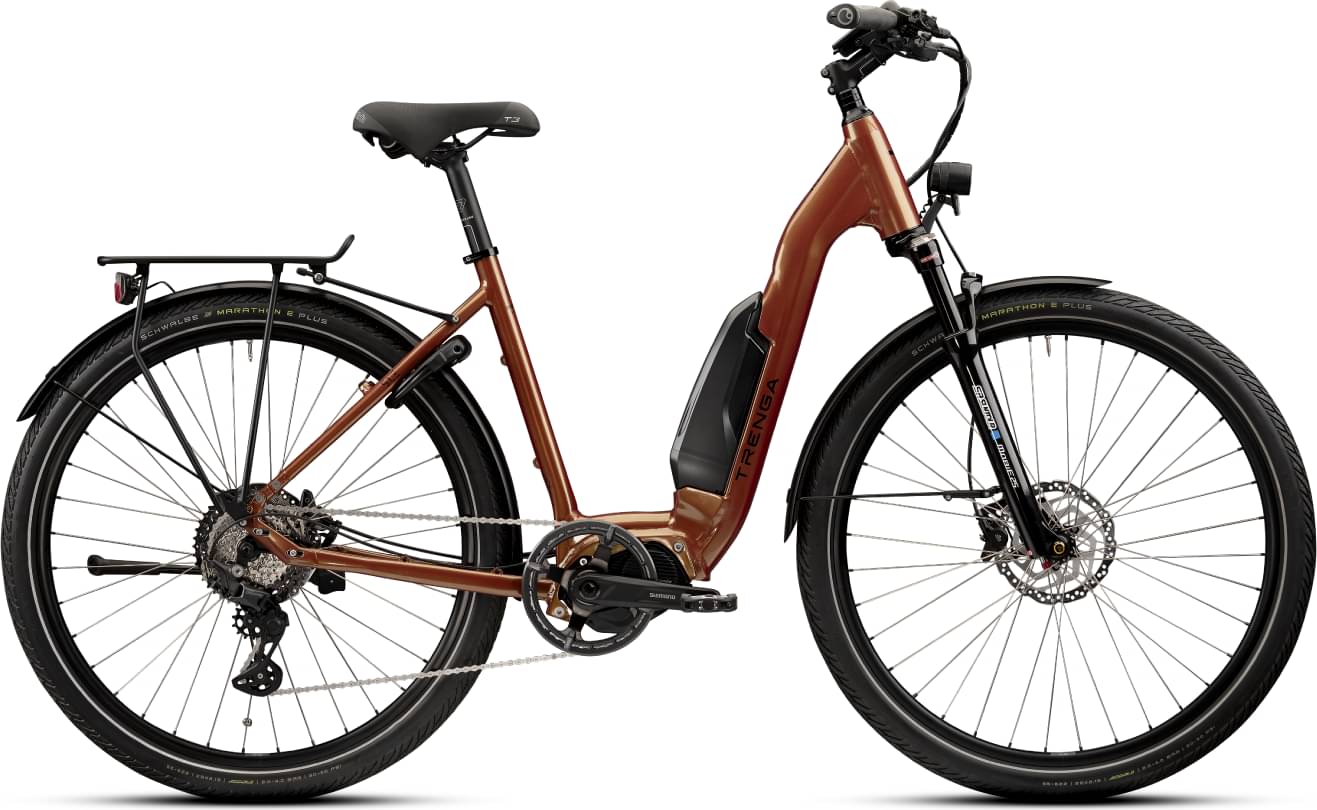

trenga SLE 11.2 2024
2024 E-bike
Estimate price |
4,357$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano down tube battery, integrated on the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.6 kg -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Hub mount I: thru axle 12x142 mm, Hub mount II: hub gear 135mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour Mobie E25, axle mount: 15x100 mm thru axle, steerer tube: 1 1/8" to 1.5", travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS, especially for LINKGLIDE systems, smooth and reliable shifting performance, stabilizer reduces chain slap, largest pinion max. 43 teeth
Shift Levers
Shimano SL-M5130, Rapidfire Plus, Fast and easy shifting, Variable I-SPEC EV assembly, 2-way release allows shifting with thumb or index finger
Cassette
Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance
Crank
Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-E8000, HG-X 11-speed for e-bikes, optimized shifting behavior, dirt-repellent design, SIL-TEC treatment for better durability
Pedals
TRENGA HPL Platform, non-slip tread for more safety, aluminum pedal body, reflectors
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Tires
Schwalbe Marathon E-Plus Reflex, ETRTO: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano BR-MT402, hydraulic disc brake, reliable brake control, brake lever: BL-MT402 3-finger, brake calliper: BR-MT410 2-piston, brake pad: B05S-RX Resin
Cockpit
Stem
TRENGA aluminium rigid, length: depending on frame size, fork tube clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, backsweep: 25°
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Shimano STEPS EP-6, Max. torque: 85 Nm, Rated continuous power: 250 W, Light, quiet and compact, Configurable via E-TUBE-PROJECT app
Battery
Shimano down tube battery, integrated on the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.6 kg
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
