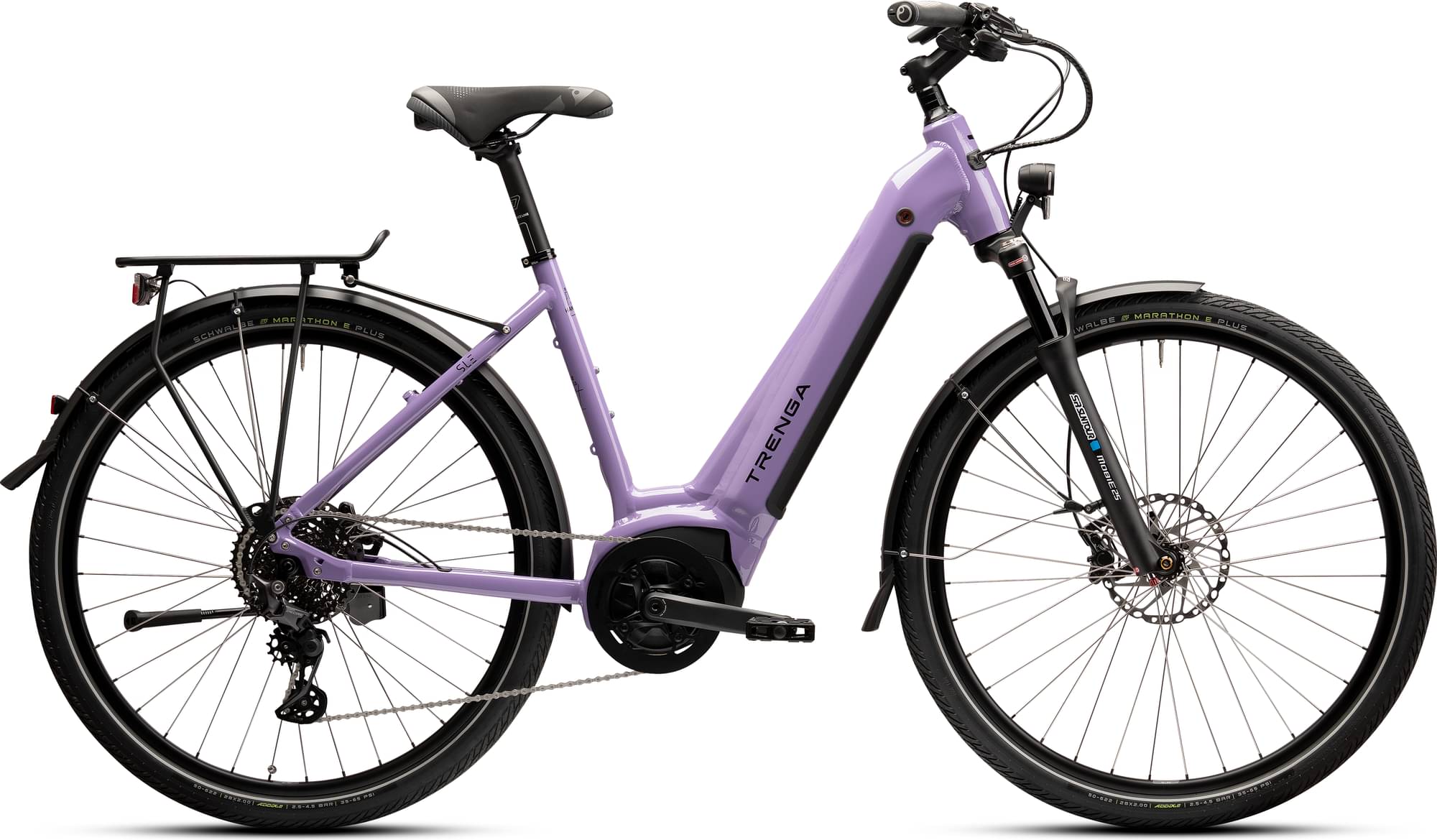

trenga SLE 7.0i c 2024
2024 E-bike
Estimate price |
4,931$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch Powertube 500 BES3, protected integrated in the down tube, voltage: 36V, capacity: 13.4 Ah, energy content: approx. 500Wh, weight: approx. 3 kg -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Bosch, Cable routing: partially integrated, Axle mount I: thru axle 12x142 mm, Axle mount II: hub gear 135 mm, Brake: Postmount Disc, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour Mobie E25 LO, axle mount: thru axle 15x100 mm, steerer tube: 1 1/8" to 1.5", travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Stabilizer reduces chain slap, Largest pinion max. 43 teeth
Shift Levers
Shimano Deore SL-M5130, Rapidfire Plus - smooth, fast shifting, variable I-SPEC EV mounting, optical gear display, 2-way release allows shifting with thumb or index finger
Cassette
Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance
Crank
FSA CK-602, crank length: 172.5 mm, material: forged 6061/T6 aluminum, finish: black anodized, Q-factor: 187 mm
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-E8000, HG-X for E-Bike, Optimized shifting behavior, Dirt-repellent design, SIL-TEC treatment for better durability
Pedals
TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622
Tires
Schwalbe Marathon E-Plus Reflex, Size: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Shimano Deore BR-T6000, hydraulic disc brake, powerful, predictable braking performance, compatible with ICE-Tech pads, brake lever: BL-T6000 3-finger, brake calliper: BR-M6000 2-piston, brake pad: G05A-RX Resin
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, backsweep: 25°
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminum rigid, diameter: 31.6 mm, length: 300 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Bosch Performance Line Cruise, Virtually silent, Max. torque: 75 Newton meters, Max. power: 600 W, Rated continuous power: 250 W
Battery
Bosch Powertube 500 BES3, protected integrated in the down tube, voltage: 36V, capacity: 13.4 Ah, energy content: approx. 500Wh, weight: approx. 3 kg
Charger
Bosch 4A Charger, charging current (max.): 4 A, battery charging voltage: 36 V, size: 200 x 90 x 53 mm, weight: including cable approx. 700 grams, charging time: 4.5 h for PowerTube 500, approx. 4.9 h for PowerTube 625, approx. 3.5 h for PowerPack 400
