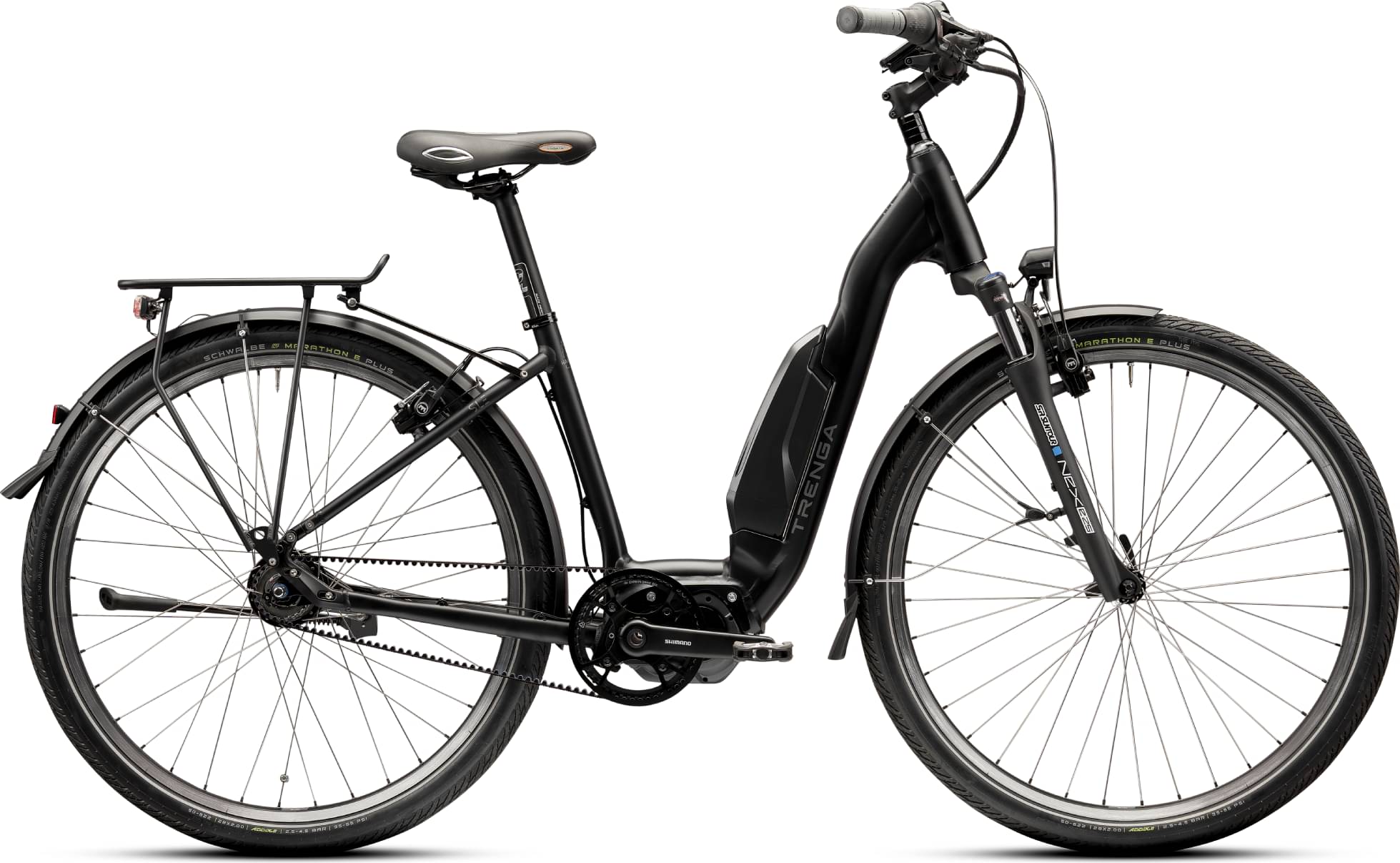

trenga SLE 7.2 2024
2024 E-bike
Estimate price |
3,210$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano down tube battery, 36V, 11.6Ah, 418 Wh -
Drivetrain Internally Geared Hub -
Brakes Magura HS22 Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Axle mount I: thru axle 12x142 mm, Axle mount II: hub gear 135 mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour NEX E25 LO, axle mount: 9 mm quick release, steerer tube: 1 1/8" to 1.5", travel: 63 mm, lockout, max. tire width: 55 mm
Drivetrain
Shift Levers
Shimano Nexus SL-C6000 Revo 8-speed, optical gear display, smooth twist grip shifting, precise shifting feel
Crank
Shimano Steps FC-E6100, Specially developed for e-bikes, Crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 180 mm
Bottom Bracket
STEPS, press-fit
Pedals
TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Sputnik, robust and durable rim, for rim brakes, 36 holes, ETRTO: 19-622
Tires
Schwalbe Marathon E-Plus Reflex, Size: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Magura HS22, hydraulic rim brake, strong braking power and best controllability, brake lever material: Carbotecture, comfortable 3-finger brake lever, Magura standard brake pad
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, rise: 40 mm
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminum rigid, diameter: 31.6 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Shimano Steps DU-E6110, Max. torque: 60 Nm, Rated continuous power: 250 W, Longer range through efficient battery use, Compact and lightweight, With coaster brake function, Configurable via E-TUBE-PROJECT app
Battery
Shimano down tube battery, 36V, 11.6Ah, 418 Wh
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
