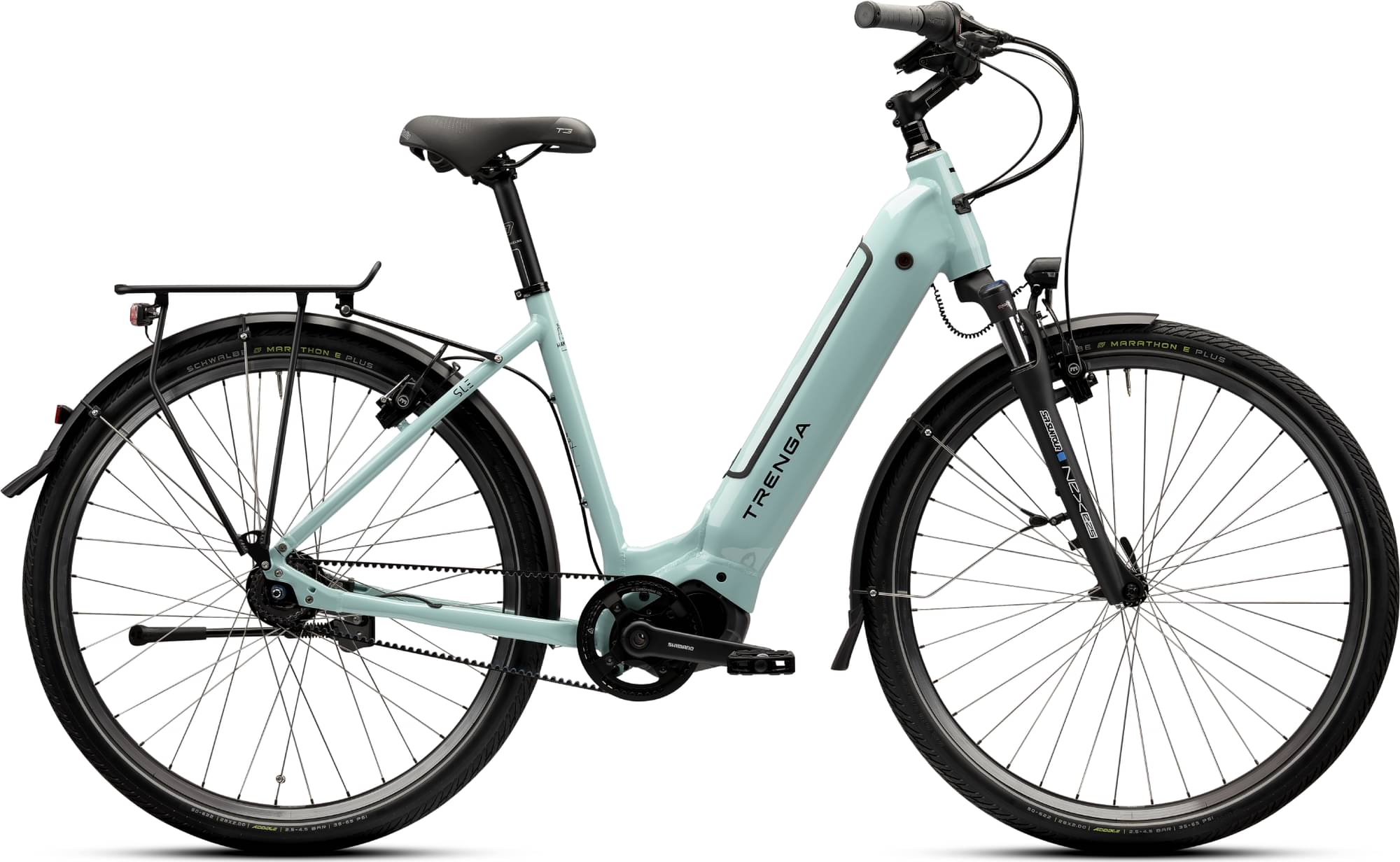

trenga SLE 8.2i 2024
2024 E-bike
Estimate price |
3,898$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano Shimano BT-E8035-L, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg -
Drivetrain Internally Geared Hub -
Brakes Magura HS22 Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Axle mount I: thru axle 12x142 mm, Axle mount II: hub gear 135 mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets
Suspension Fork
Suntour NEX E25 LO, axle mount: 9 mm quick release, steerer tube: 1 1/8" to 1.5", travel: 63 mm, lockout, max. tire width: 55 mm
Drivetrain
Shift Levers
Shimano Nexus SL-C6000 Revo 8-speed, optical gear display, smooth twist grip shifting, precise shifting feel
Crank
Shimano Steps FC-E6100, Specially developed for e-bikes, Crank length: 170 mm or 175 mm, depending on frame height, Q-factor: 180 mm
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG71, 6,7,8-speed compatible, HYPERGLIDE, e-bike compatible
Chain Guide
SKS Chainblade-E Shimano, Material: plastic, Stable and lightweight, Designed for hub gears
Pedals
TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors
Wheels
Rims
Ryde Sputnik, robust and durable rim, for rim brakes, 36 holes, ETRTO: 19-622
Tires
Schwalbe Marathon E-Plus Reflex, Size: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips
Brakes
Brakes
Magura HS22, hydraulic rim brake, strong braking power and best controllability, brake lever material: Carbotecture, comfortable 3-finger brake lever, Magura standard brake pad
Cockpit
Stem
TRENGA aluminum rigid, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: ± 17°
Handlebar
TRENGA, width: 620 mm, handlebar clamp Ø: 31.8 mm, rise: 40 mm
Seat
Saddle
Selle Italia T-3 Flow City, Comfortable, wide city and touring saddle, Large FLOW opening relieves the perineal area, Gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark
Seatpost
TRENGA aluminum rigid, diameter: 31.6 mm, length: 400 mm, clamping: 2-way, offset: 10 mm
Motor & Battery
Motor
Shimano Steps DU-E6110, Max. torque: 60 Nm, Rated continuous power: 250 W, Longer range through efficient battery use, Compact and lightweight, With coaster brake function, Configurable via E-TUBE-PROJECT app
Battery
Shimano Shimano BT-E8035-L, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg
Charger
STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery
