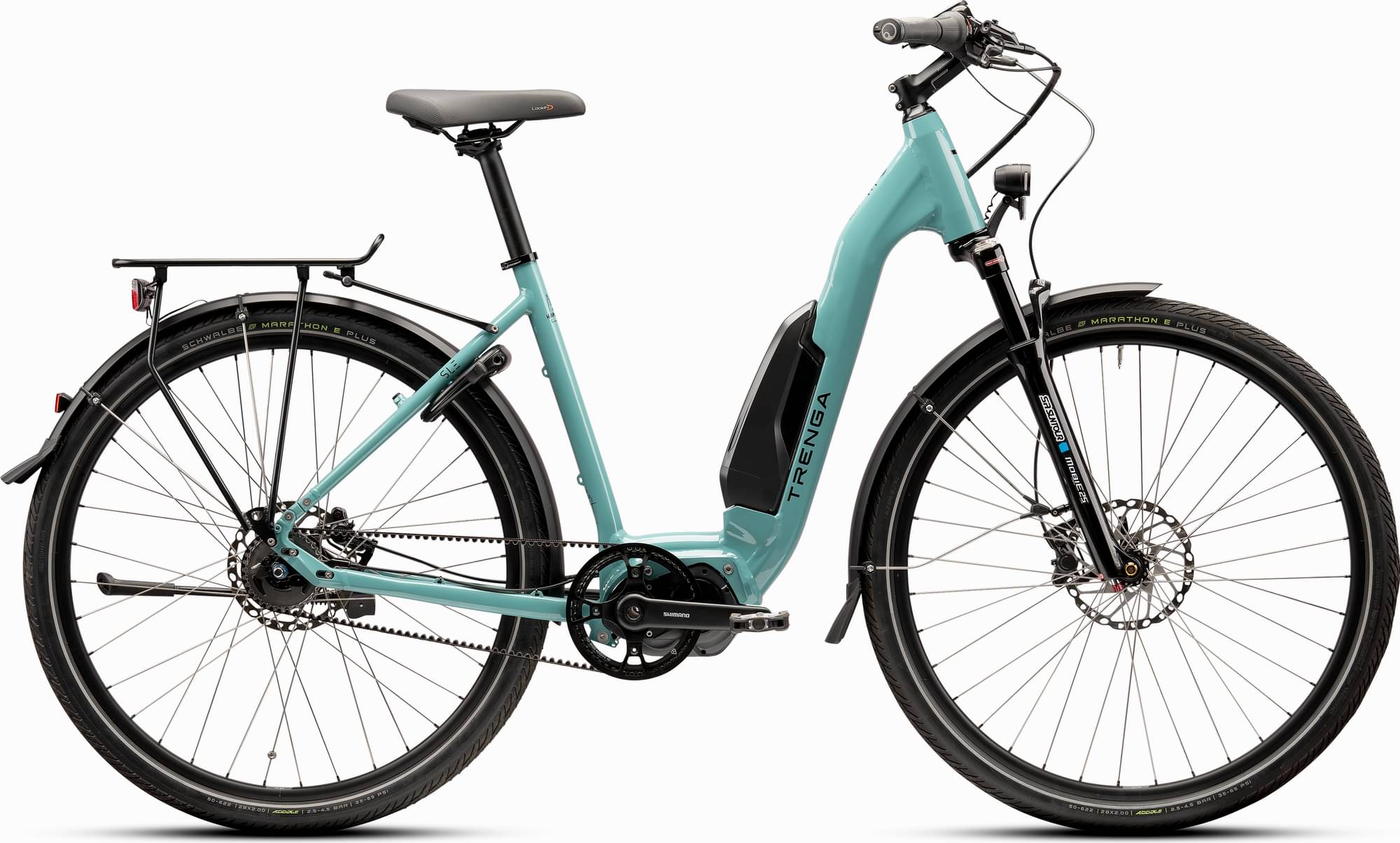

trenga SLE 9.2 Gates 2024
2024 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW
Suspension Fork
Suntour Mobie E25
Drivetrain
Shift Levers
Shimano Nexus SL-C7000 5-speed
Crank
Shimano Steps FC-E6100
Bottom Bracket
STEPS, press-fit
Pedals
TDE HPL Comfort, Alloy
Wheels
Rims
Ryde Andra 321
Tires
Schwalbe Marathon E-Plus Reflex
Brakes
Brakes
Shimano Deore BR-T6000, hydraulic disc brake
Cockpit
Stem
TRENGA Aluminium rigid
Handlebar
TRENGA
Seat
Saddle
Selle Royal Lookin EVO Moderate Women
Seatpost
TRENGA Aluminium rigid
Motor & Battery
Motor
Shimano Deore XT DU-E6100
Battery
Shimano 504Wh
Charger
STEPS Charger Shi EC-E8004
Fit data

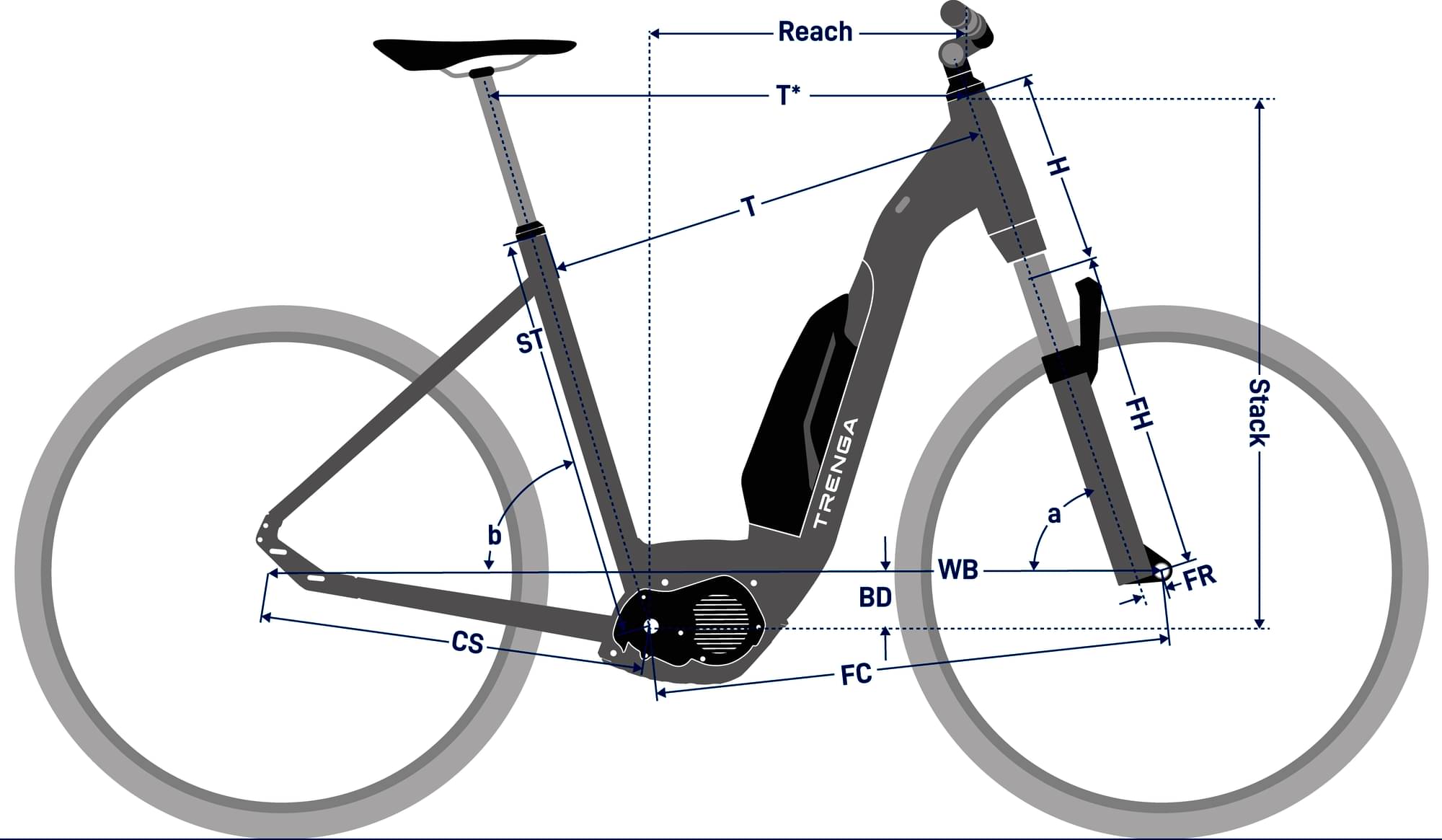

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.677 mm | 1.674 mm | 1.654 mm |
| Front Center | 640 mm | 650 | 672 mm |
| Stack | 644 mm | 653 mm | 670 mm |
| Reach | 384 mm | 390 mm | 405 mm |
| Top Tube Length | 575 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1108 mm | 1117 mm | 1138 mm |
| Wheels | 700 | 700 | 700 |
