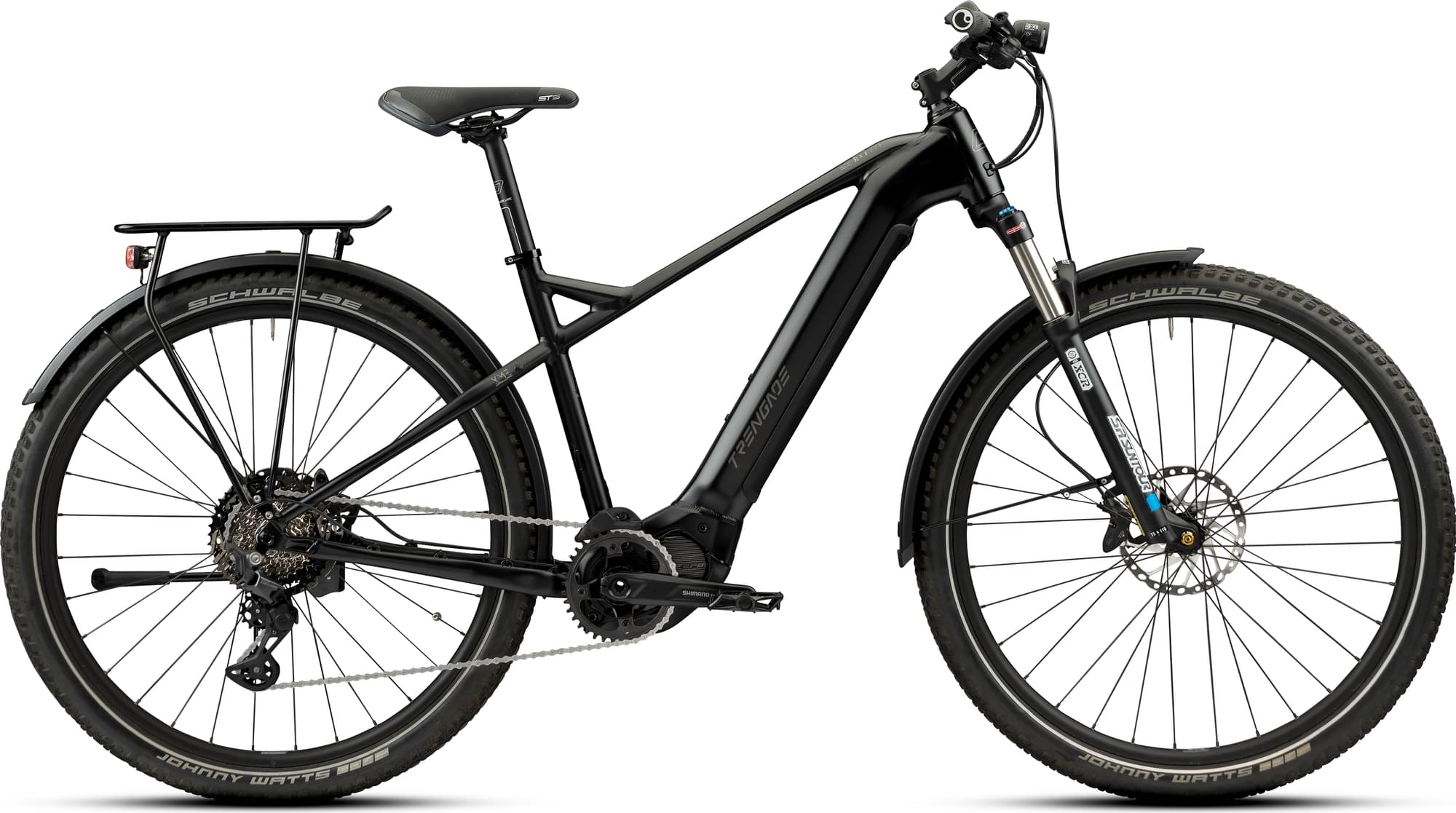

trenga XME 5.0 AT 2024
2024 E-bike
Estimate price |
4,816$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano Intube battery -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TFW
Suspension Fork
Suntour XCR 34 LO, 1.5", lockout/100 mm, 15x110 thru axle
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 SGS
Shift Levers
Shimano SL-M5130 10-speed
Cassette
Shimano CS-LG600-10
Crank
Shimano Steps FC-EM600
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG601
Chain Guide
Shimano SM-CDE80
Pedals
TDE Alloy MTB Platform HPL
Wheels
Rims
Ryde Rival 26 Disc
Spokes
Sapim Leader
Tires
Schwalbe Jonny Watts 365
Brakes
Brakes
Shimano Deore M6100 / M6120 Hydraulic disc brake
Cockpit
Stem
TRENGA Aluminium rigid
Handlebar
TRENGA
Seat
Saddle
Selle Italia ST-5 Flow
Seatpost
TRENGA Aluminium rigid
Motor & Battery
Motor
Shimano STEPS EP-8
Battery
Shimano Intube battery
Remote
STEPS switch on/off Shimano EW-SW 300
Charger
STEPS Charger Shi EC-E8004
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.581 mm | 1.501 mm | 1.483 mm |
| Front Center | 706 mm | 717 mm | 746 mm | 763 mm |
| Stack | 658 mm | 661 mm | 668 mm | 679 mm |
| Reach | 403 mm | 418 mm | 445 mm | 458 mm |
| Top Tube Length | 604 mm | 620 mm | 649 mm | 665 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67.3 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1199 mm | 1209 mm | 1239 mm | 1256 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
