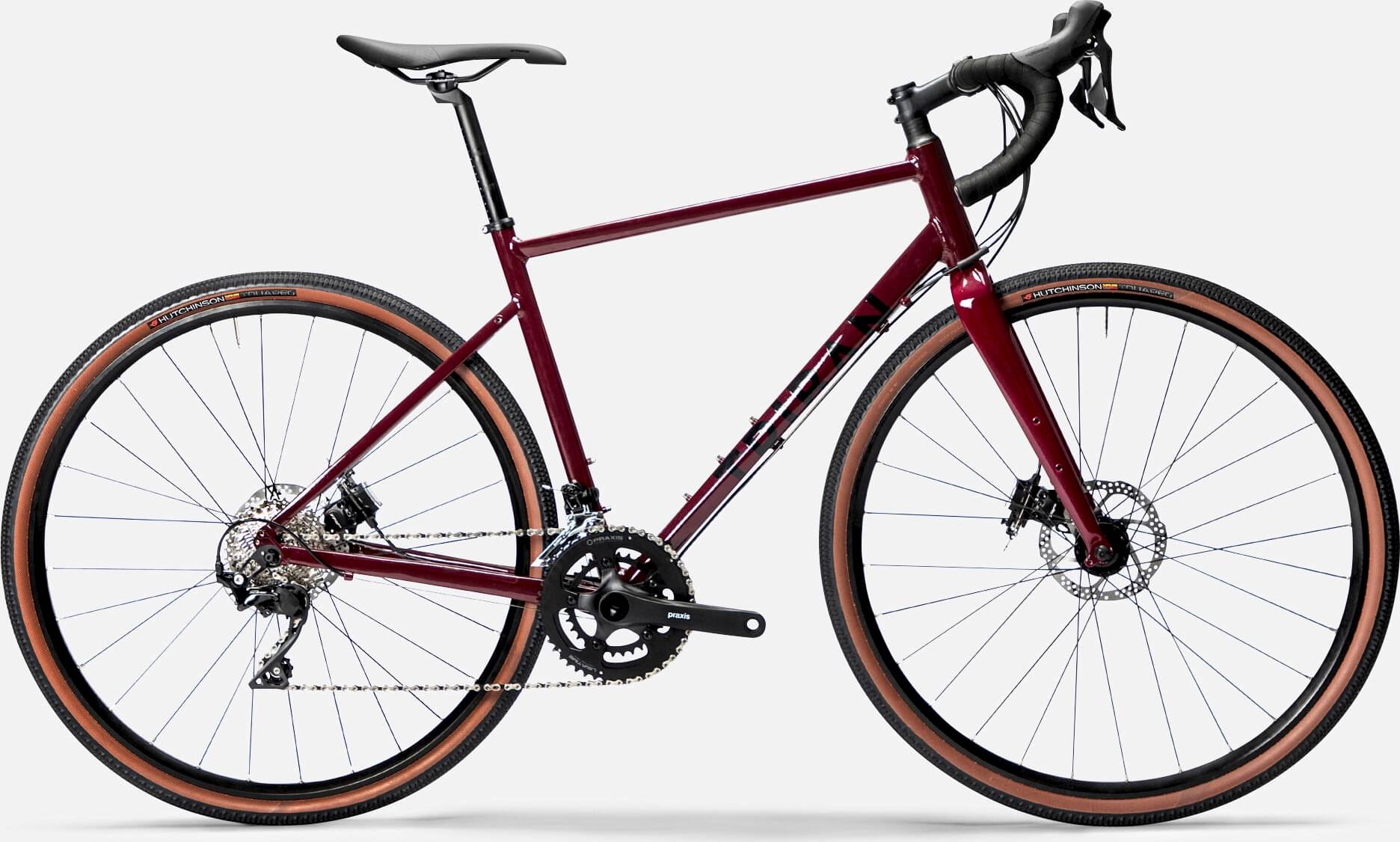

Triban Men’s Gravel Bike GRVL 520 Subcompact 2024
2024 Road
Estimate price |
1,605$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

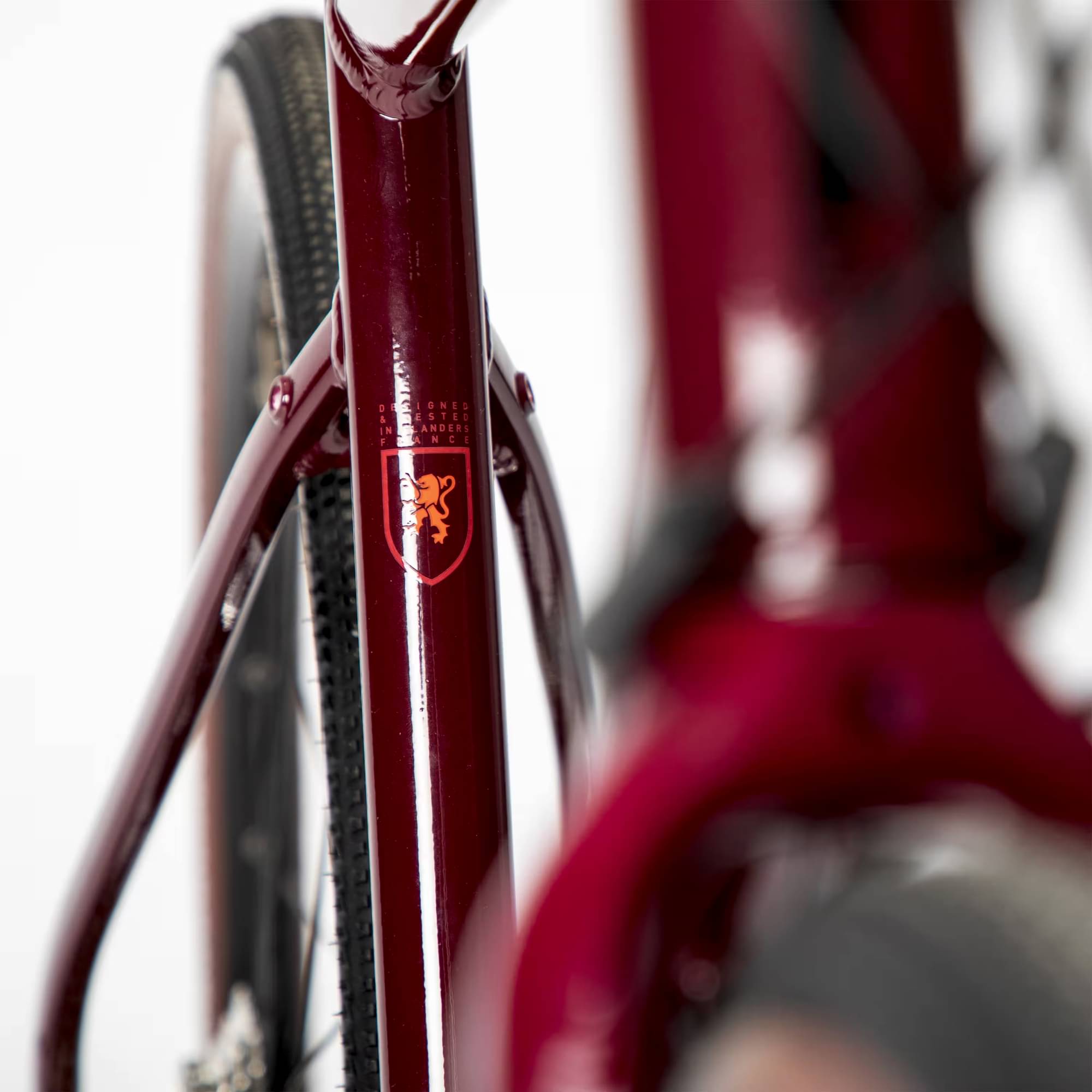

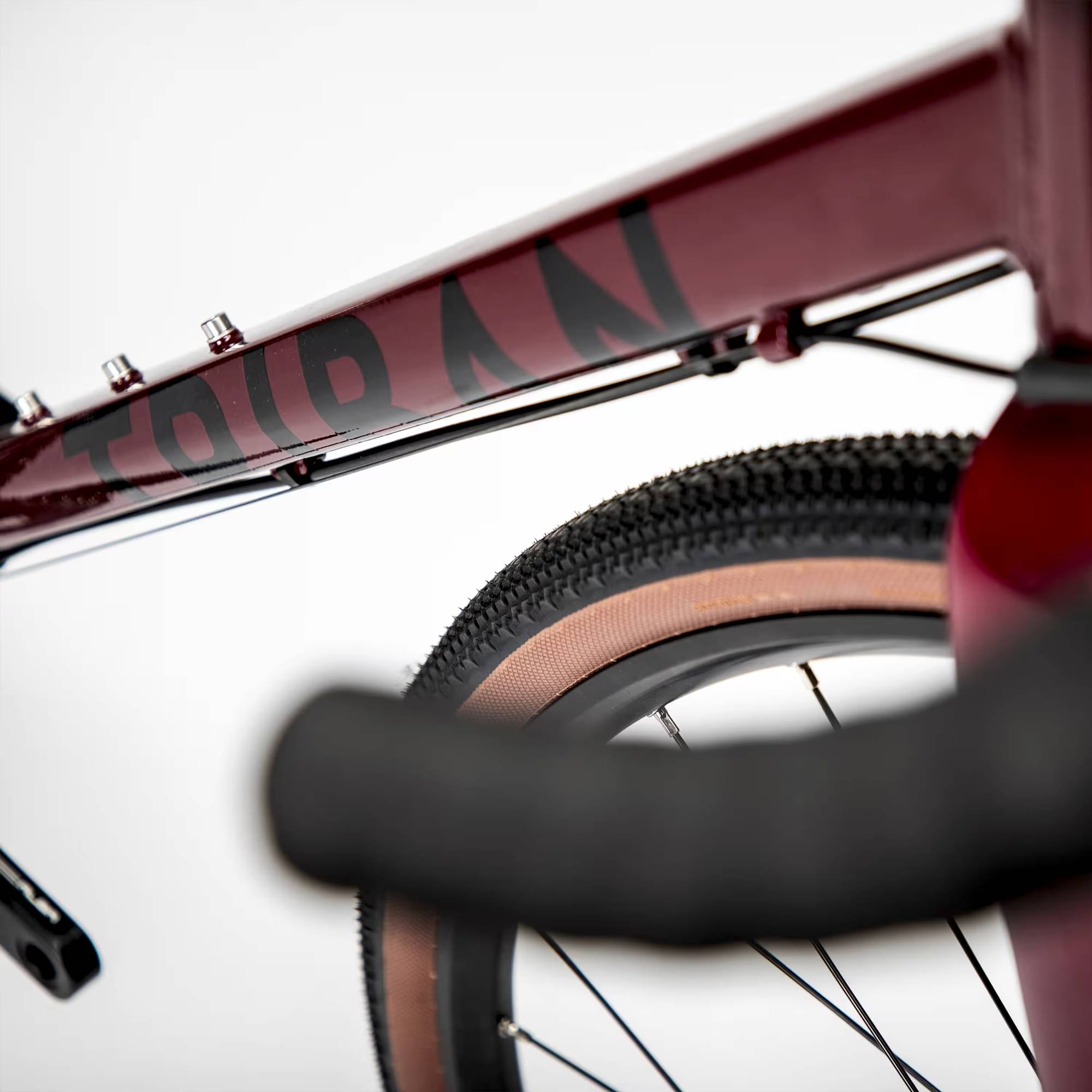

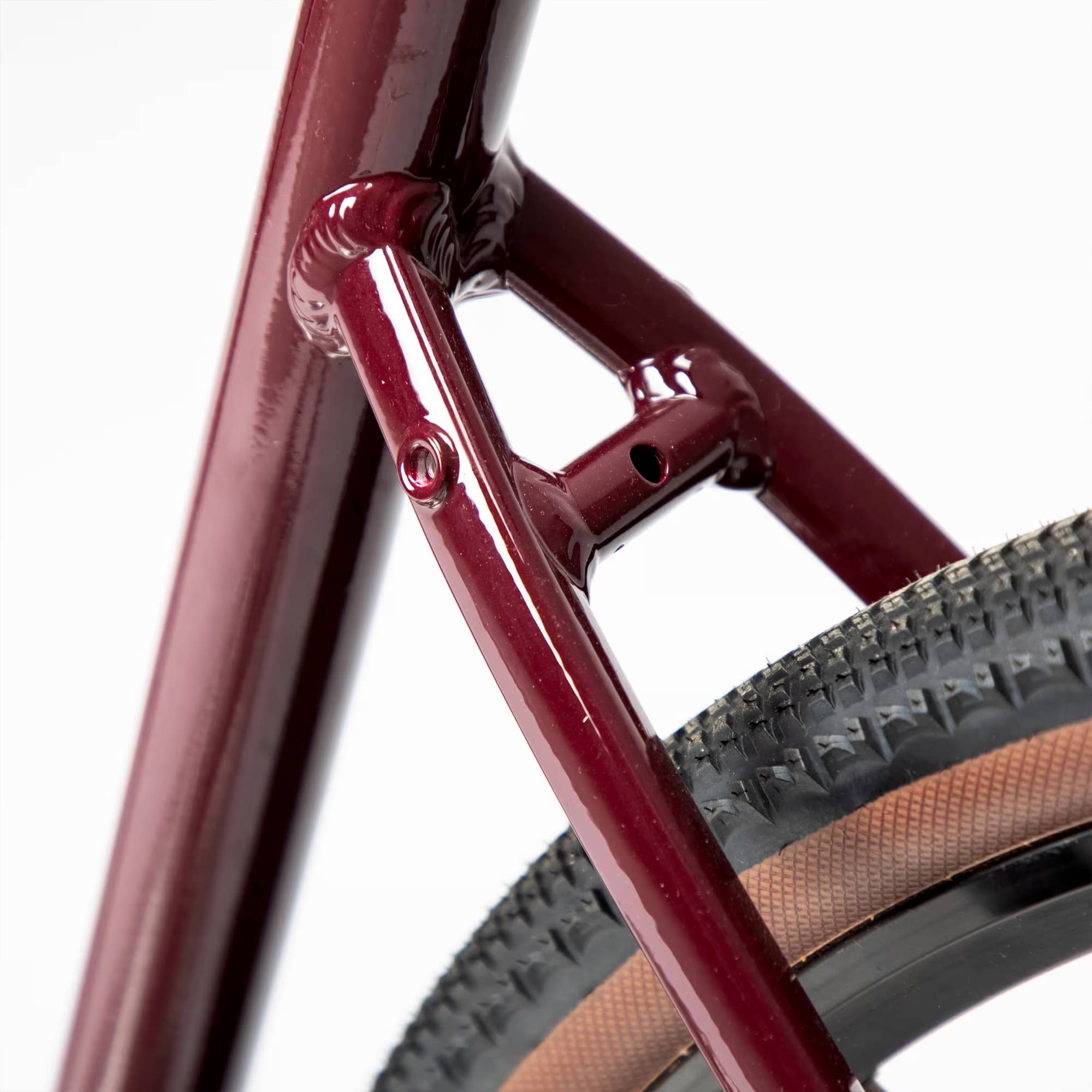

New Triban EvoG frame made from aluminium 6061 T6, with its new Triban GRVL gravel-specific geometry for a better balance between comfort and steering. Strong, versatile frame: can accommodate a mudguard and pannier rack Weight: 1750 g in size M.9x135 axle spacing for a Quick Release QR axle / Flat mount brake calliper Normative compatibility with tyre cross-sections up to 700.42 and 650.47
Suspension Fork

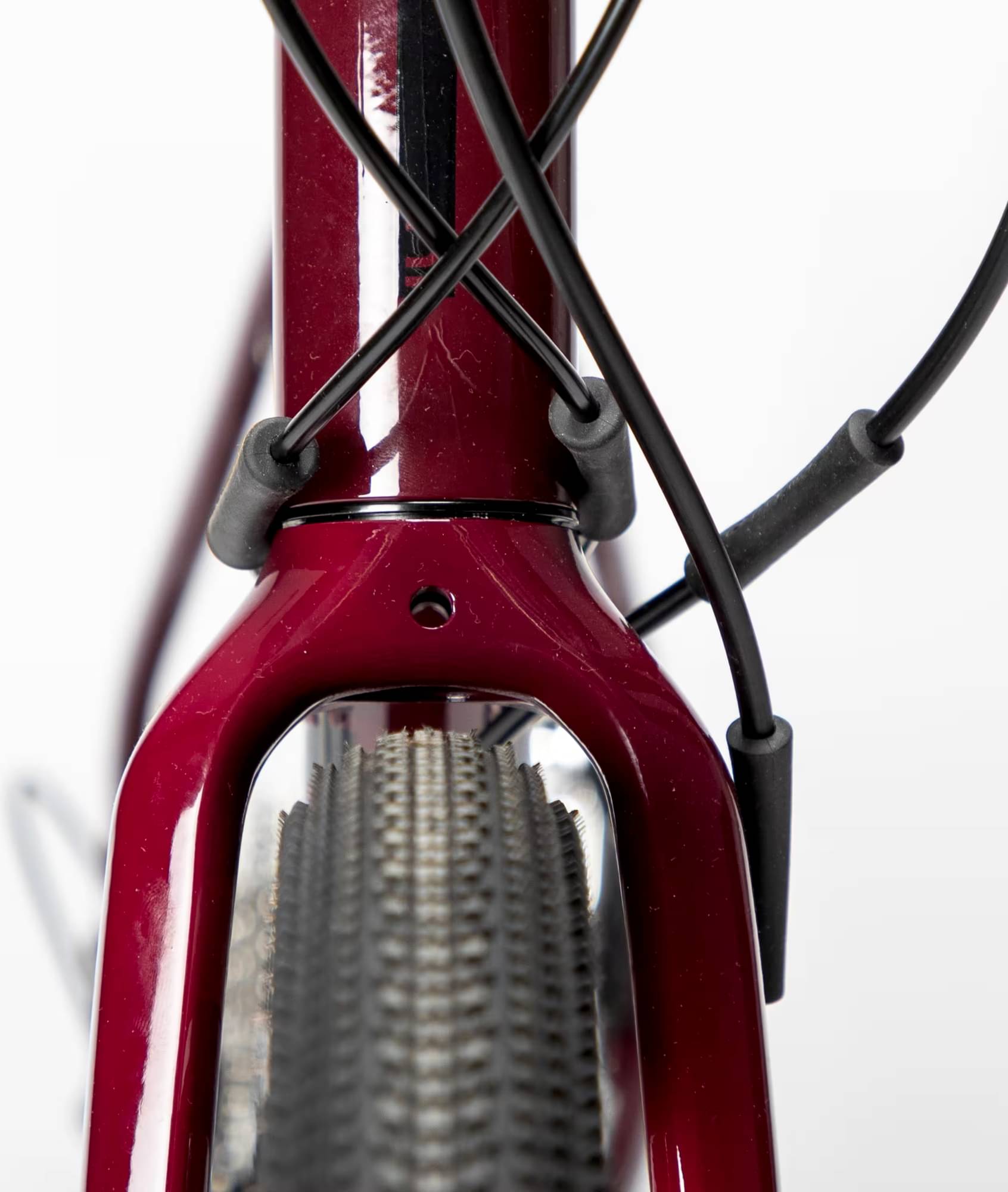

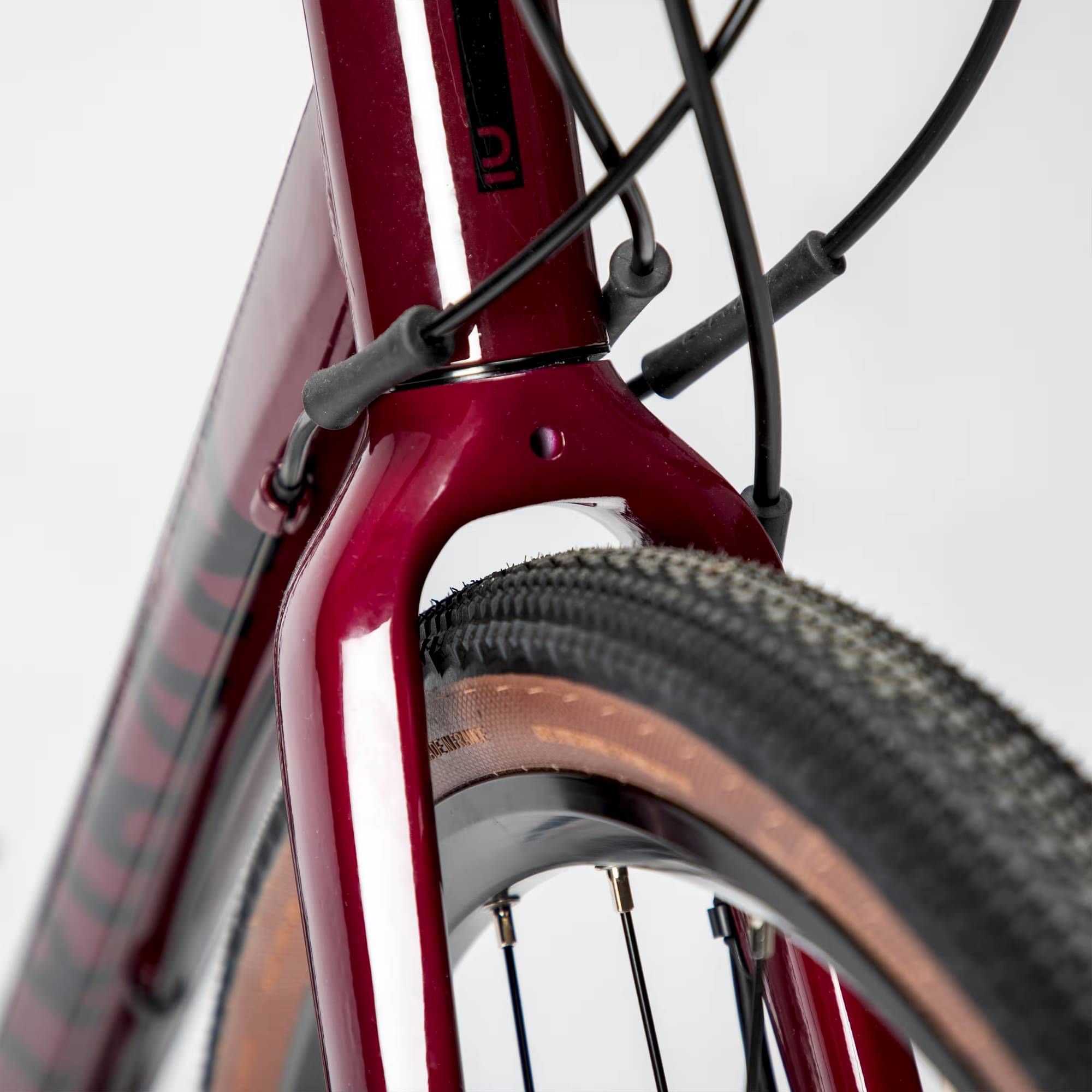

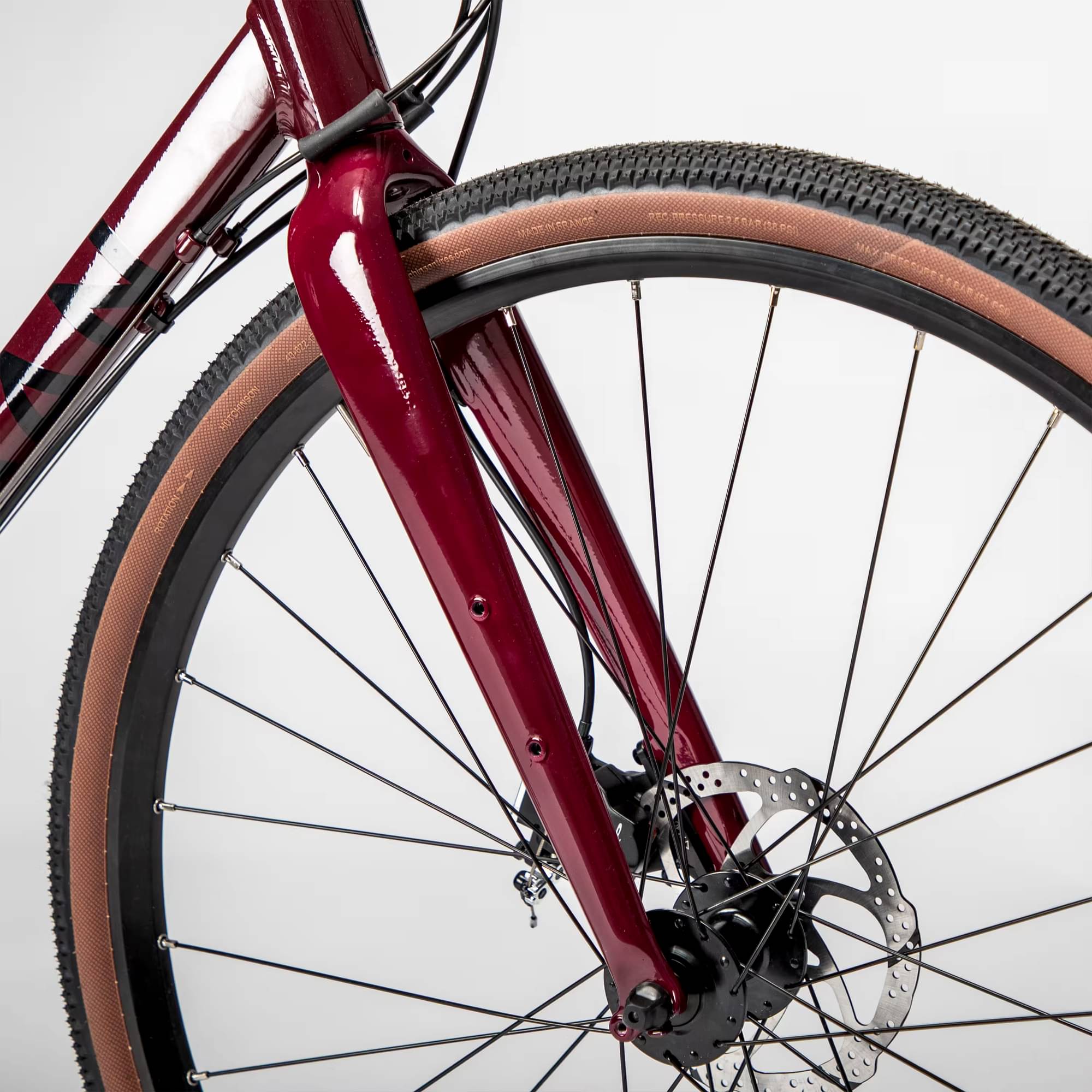

New Triban EvoG fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight, and precision. The carbon has been designed for good lateral rigidity and good filtering of frontal vibrations. Flat mount calliper. 2 inserts on each blade for installing a front pannier rack or a bottle cage. Maximum load on the fork: 10 kg Compatible with tyres up to 700.42 / 650.47
Drivetrain
Cassette

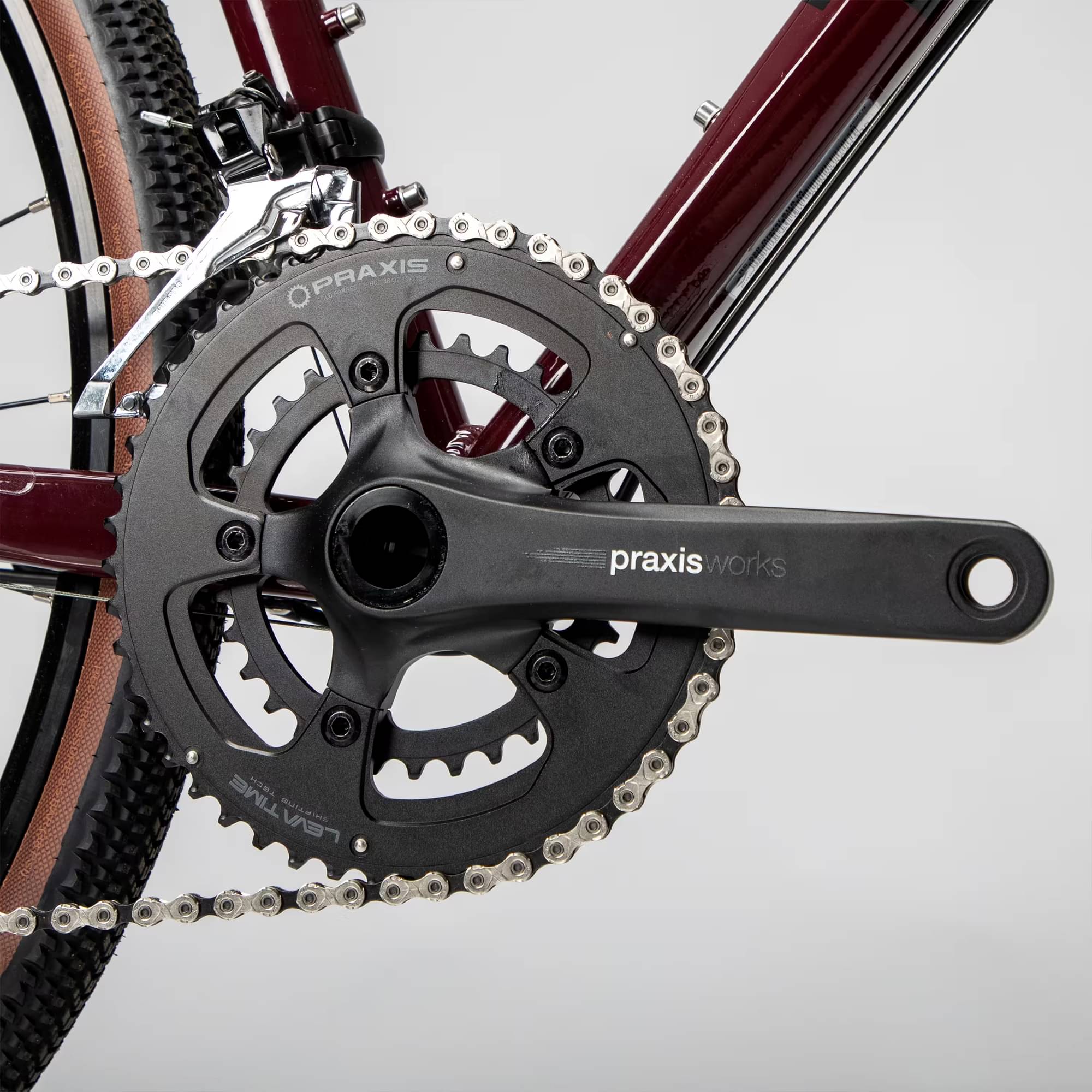

MICROSHIFT CS-H110 11S 11/34 cassette (11/12/13/14/15/17/19/21/24/28/34). FC PRAXIS ALBA M30 48-32T bottom bracket. Crank length varies according to size of bike: XS, S: 170mm.M: 172,5mm. L, XL : 175 mm. KMC X11-1 + CL555 11S / 112 chain
Crank
double chainring
Pedals
Platform pedals included with the bike. We recommend either platform or SPD pedals
Wheels
Rims
Triban Gravel 7000x23c Tubeless Ready wheels for effective performance and comfort on rolling trails 6063 T66 aluminium. ETRTO dimensions: 622x 23 C. Height: 19 mm Crossed steel spokes (28 front and 28 rear). Sealed cartridge bearings. 9x100 front, 9x135 rear QR axle Weight per pair (without cassette and QR): 2.15 kg TESA TLR* rim strip *For converting to tubeless, add 2 tubeless valves (product ref: 8551979) + tubeless anti-puncture liquid sealant (product ref: 836339)
Tires
Hutchinson Touareg 700x40, Tubeless Ready tyres with hardskin puncture protection 490 g per tyre Skinwall dual-rubber flex bead 127 TPI carcass Dimensions: ETRTO 40-622 / 700x40c Min inner tube pressure: 2.5 bar / 38psi Max inner tube pressure: 3.5 bar / 51 psi Tubeless pressure: 2.5 to 3 bars (85kg rider) This bike can be equipped with tyres up to 700.42 or 650.47 Minimum compatibility requirements: 23c wheels and tyres with a cross-section of 37
Brakes

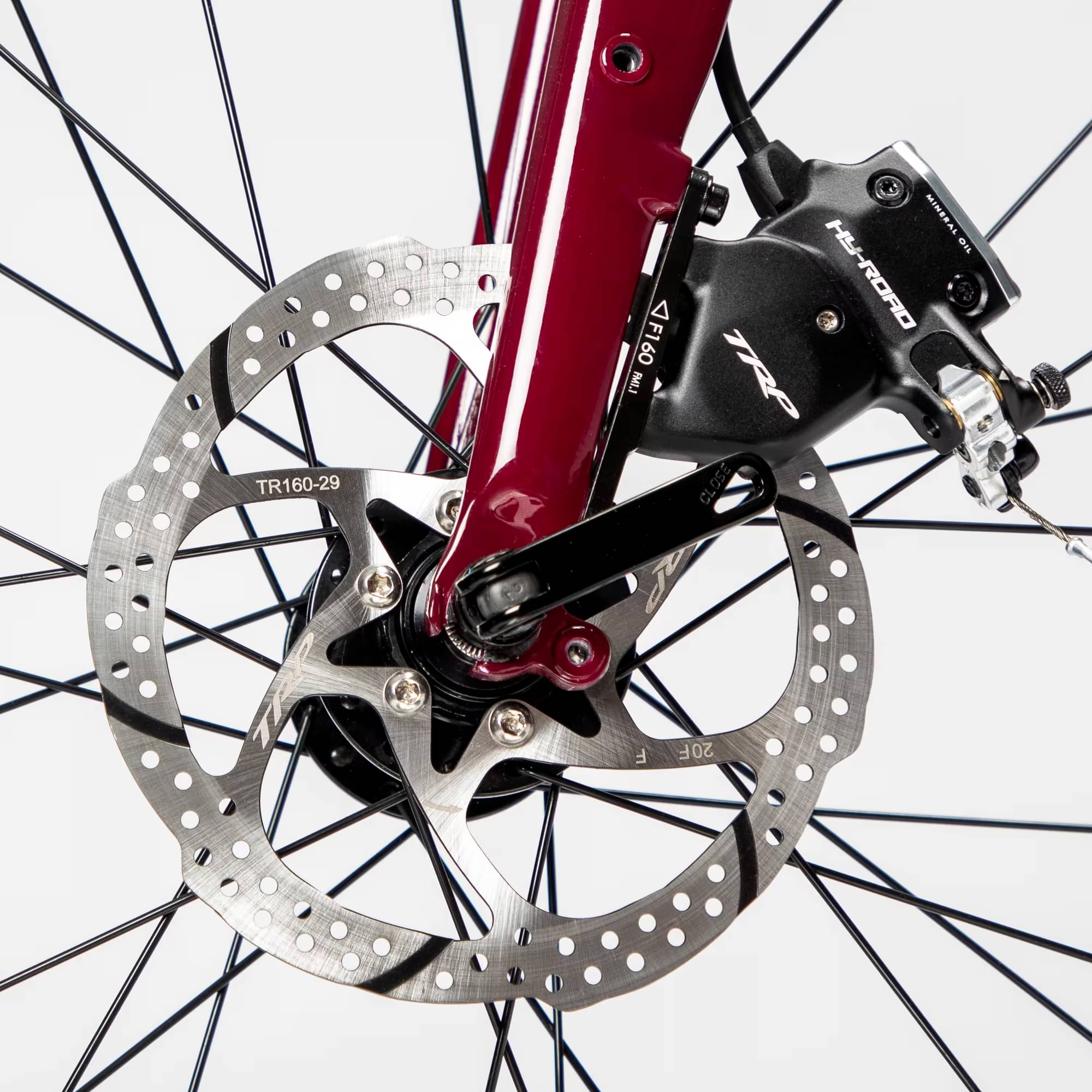

Brakes
hydro-mechanical disc brakes
Fit data

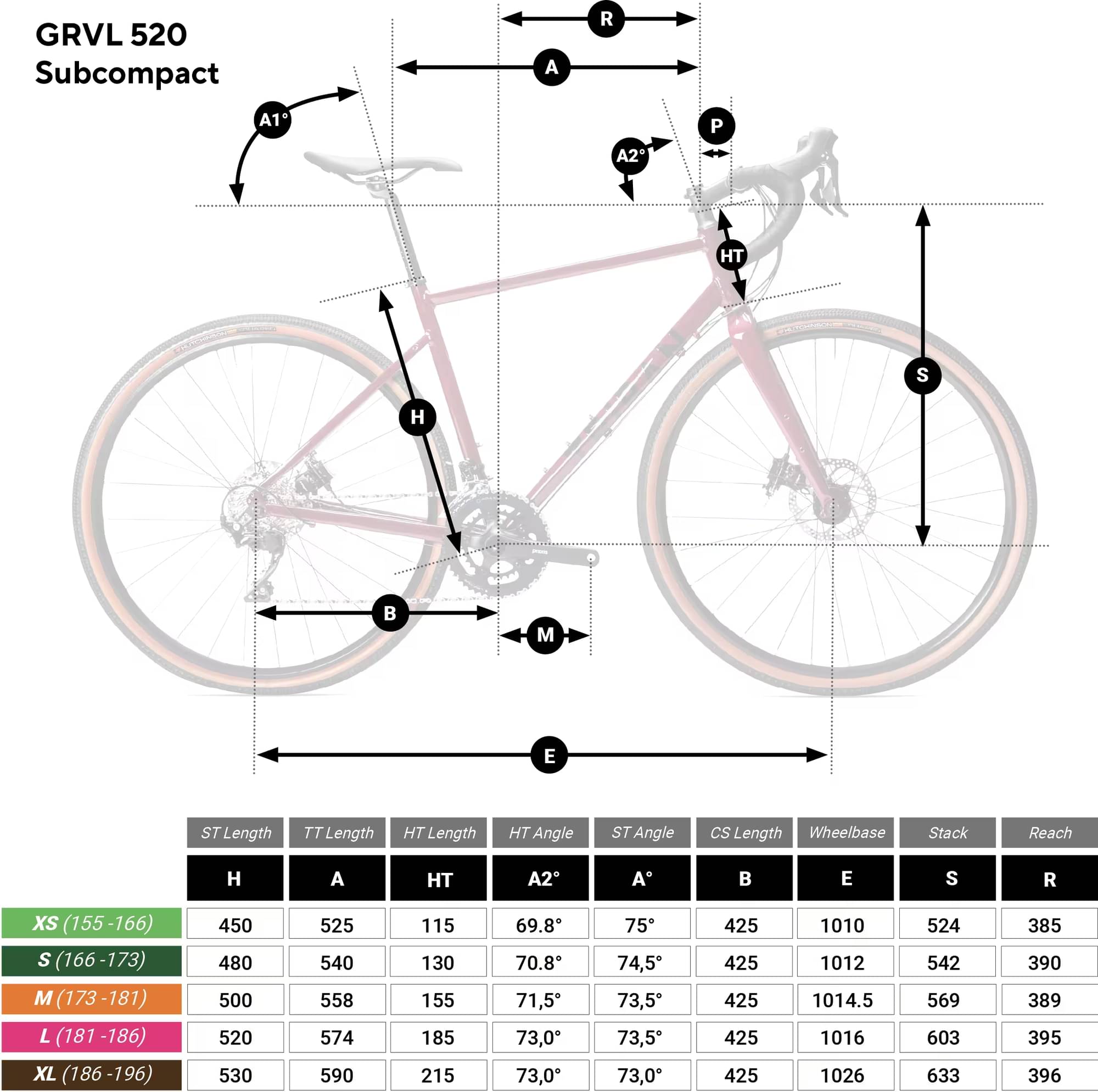

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
