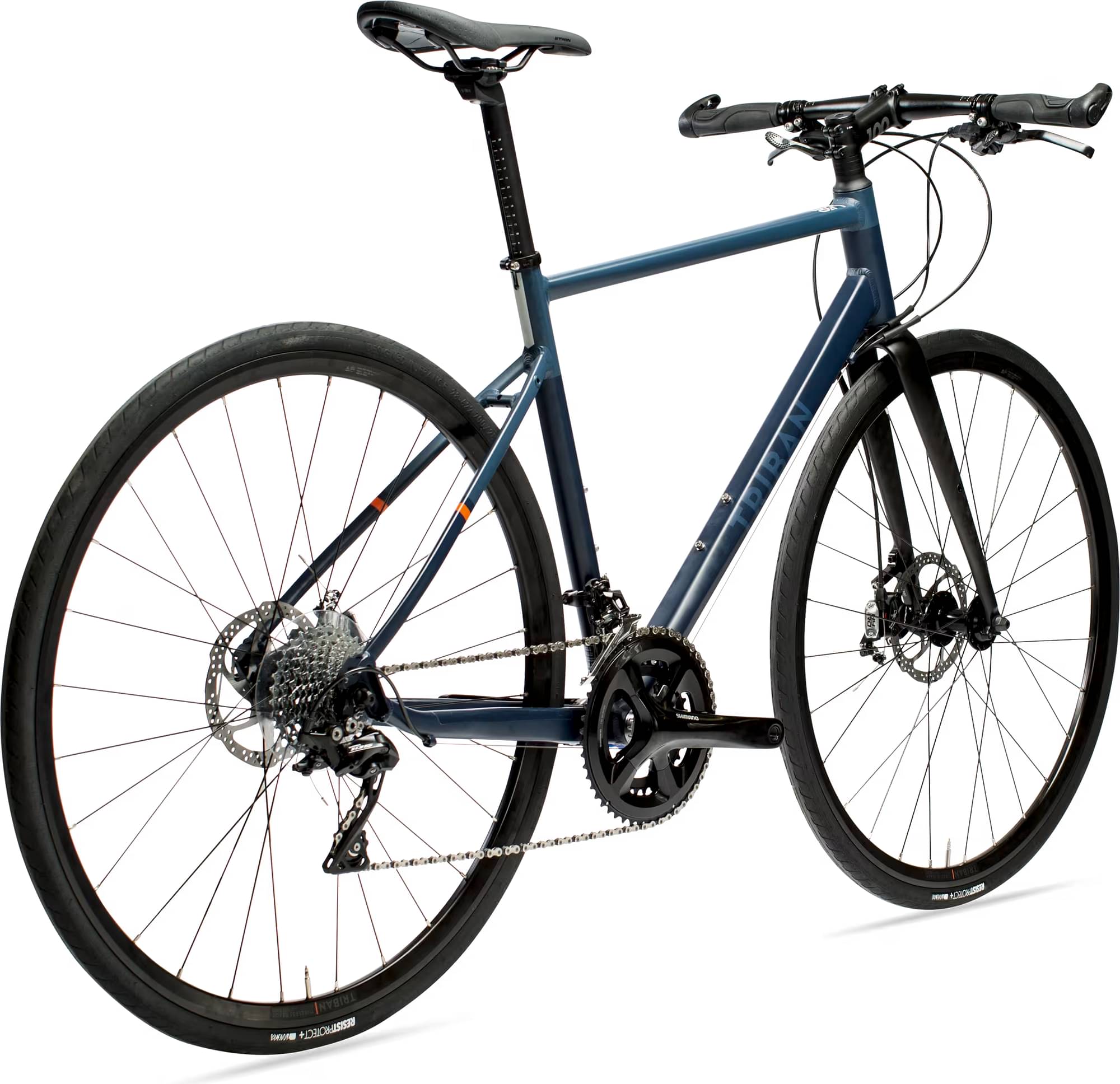

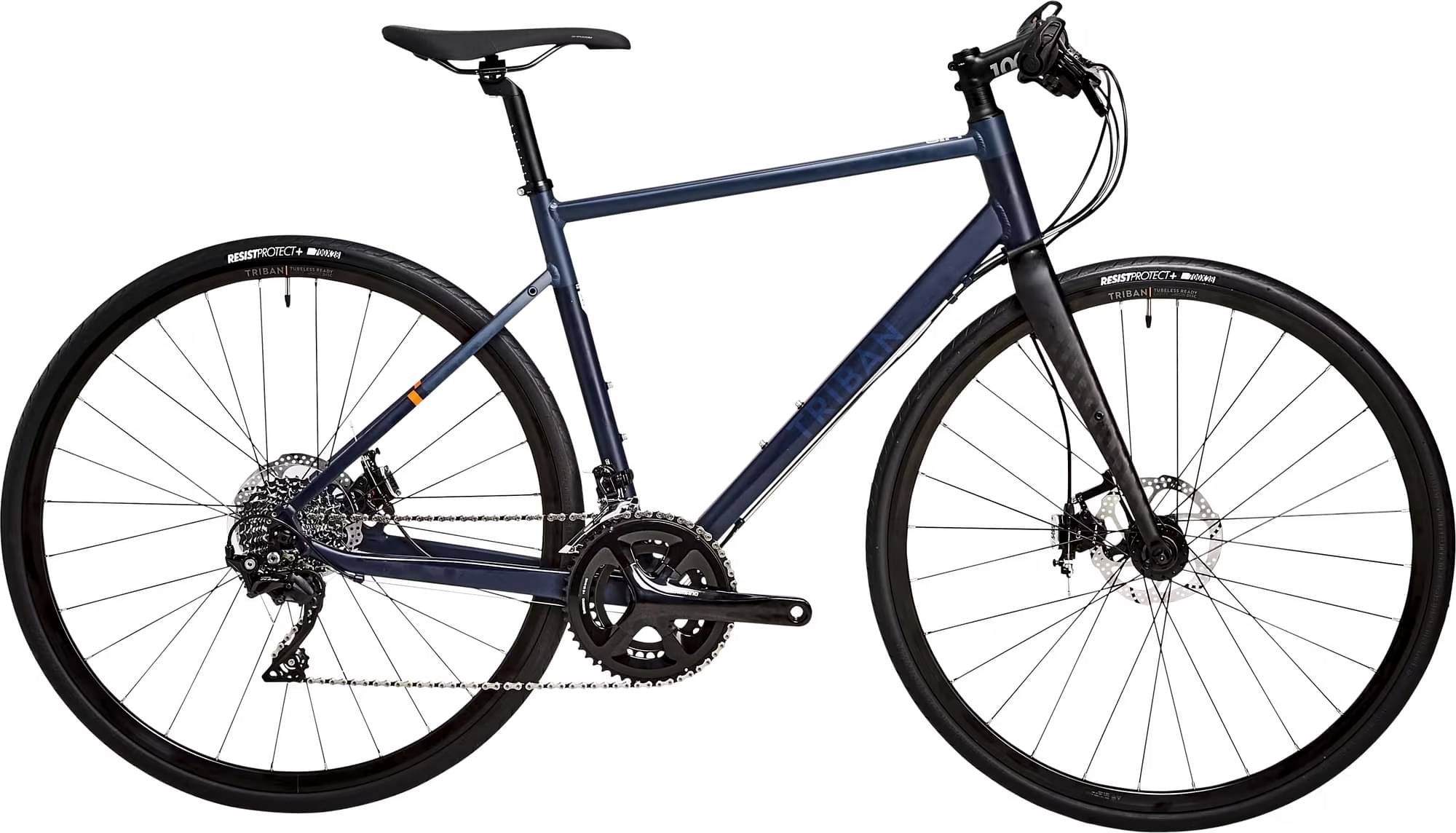

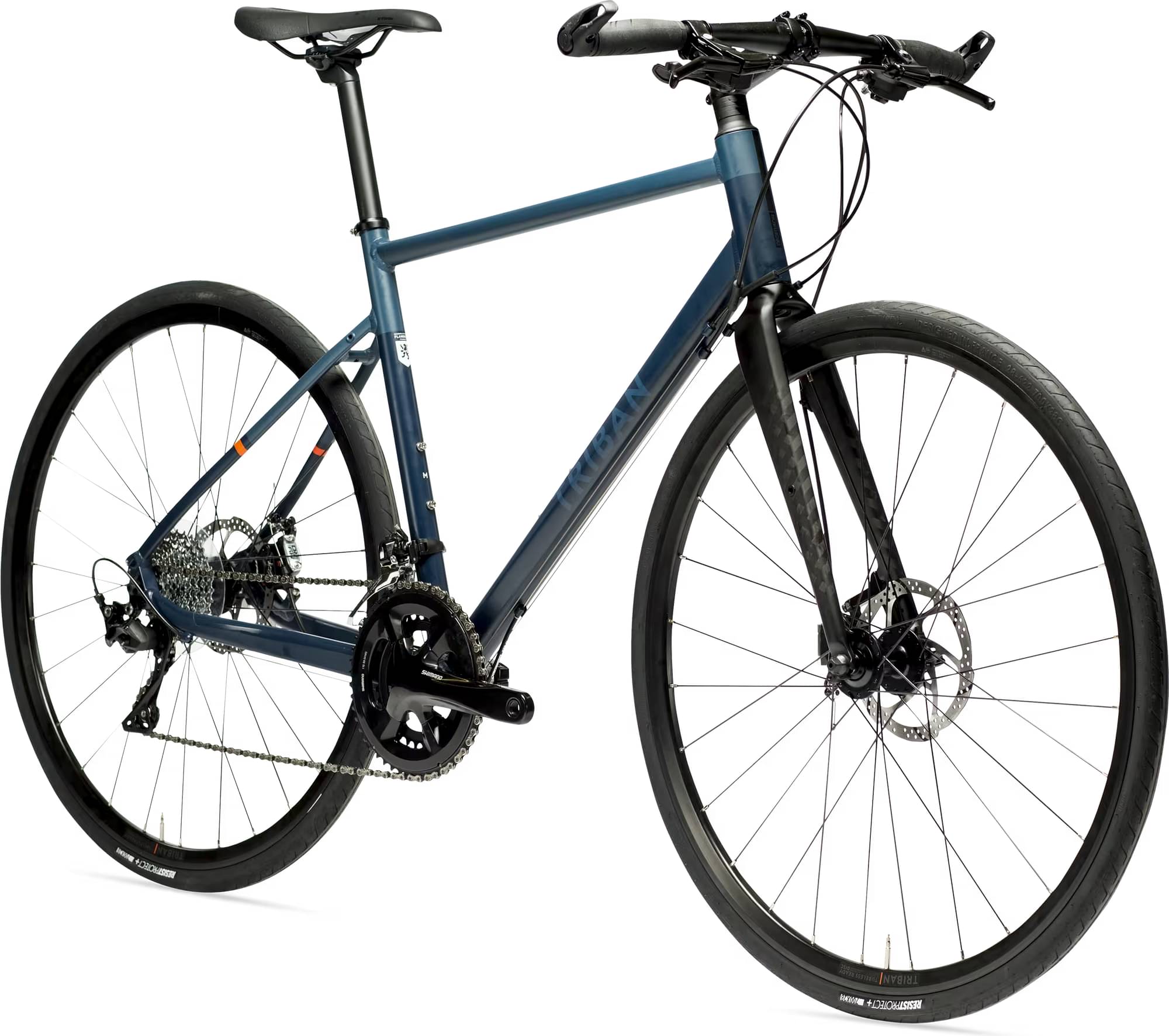

Triban Road bike Flat Bar RC 520 Disc Brake 2024
2024 Urban
Estimate price |
1,136$
Weight | 10.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Triban Evo frame in 6061 T6 aluminium, comfort-oriented geometry with adapted sloping Weight: 1780 g in size M.Strong, versatile frame: can be fitted with a mudguard and pannier rack Compatible with tyres up to 700x36 or 650x40
Suspension Fork
New Triban Evo fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight (680g), and precision. The carbon has been machined to provide good lateral rigidity and good filtering of frontal vibrations. Inserts on blades for mounting a front pannier rack. Maximum load on the fork: 9kg, Holes on the wheel axle for attaching a mudguard Compatible with tyres up to 700x36 or 650x40
Drivetrain

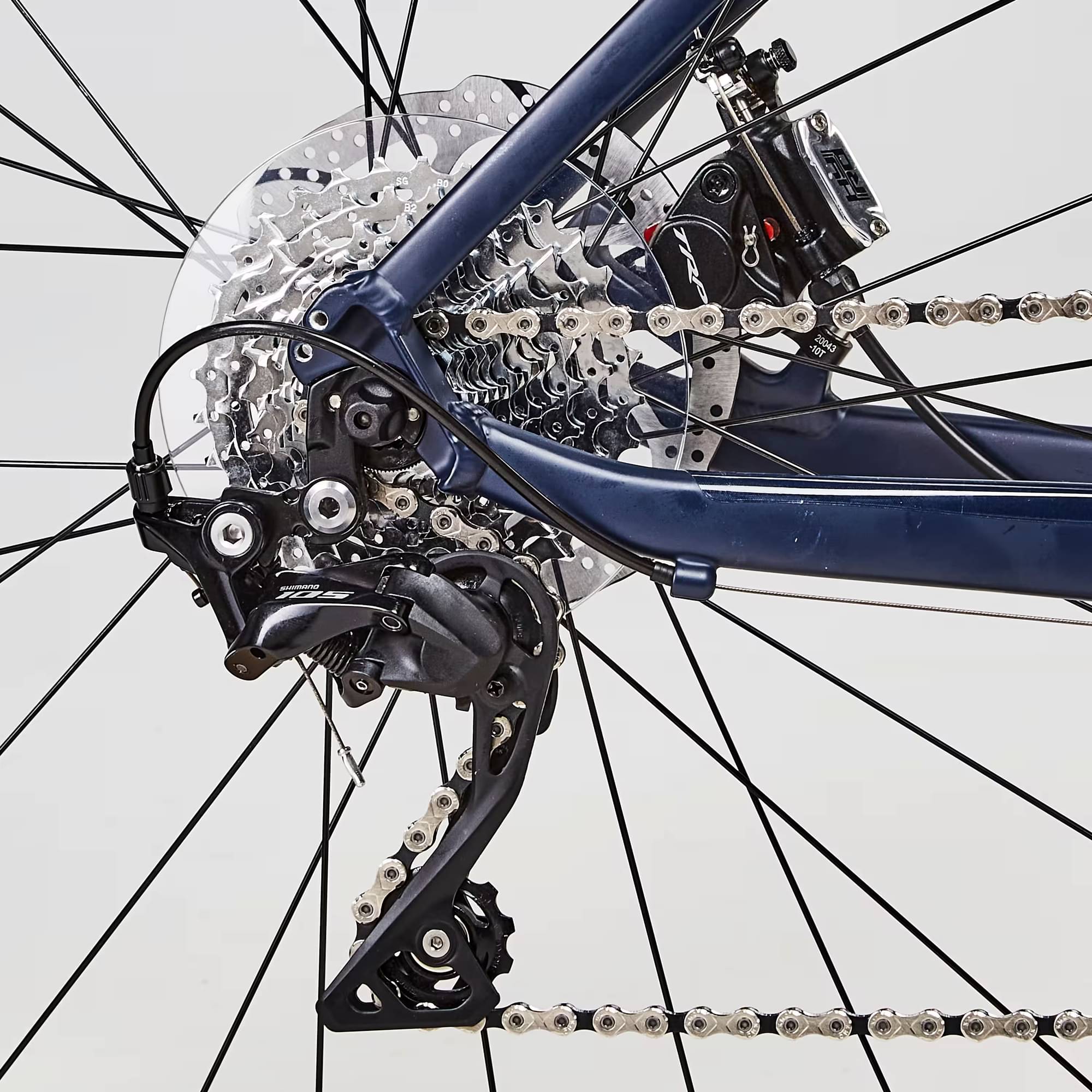

Cassette
11/32

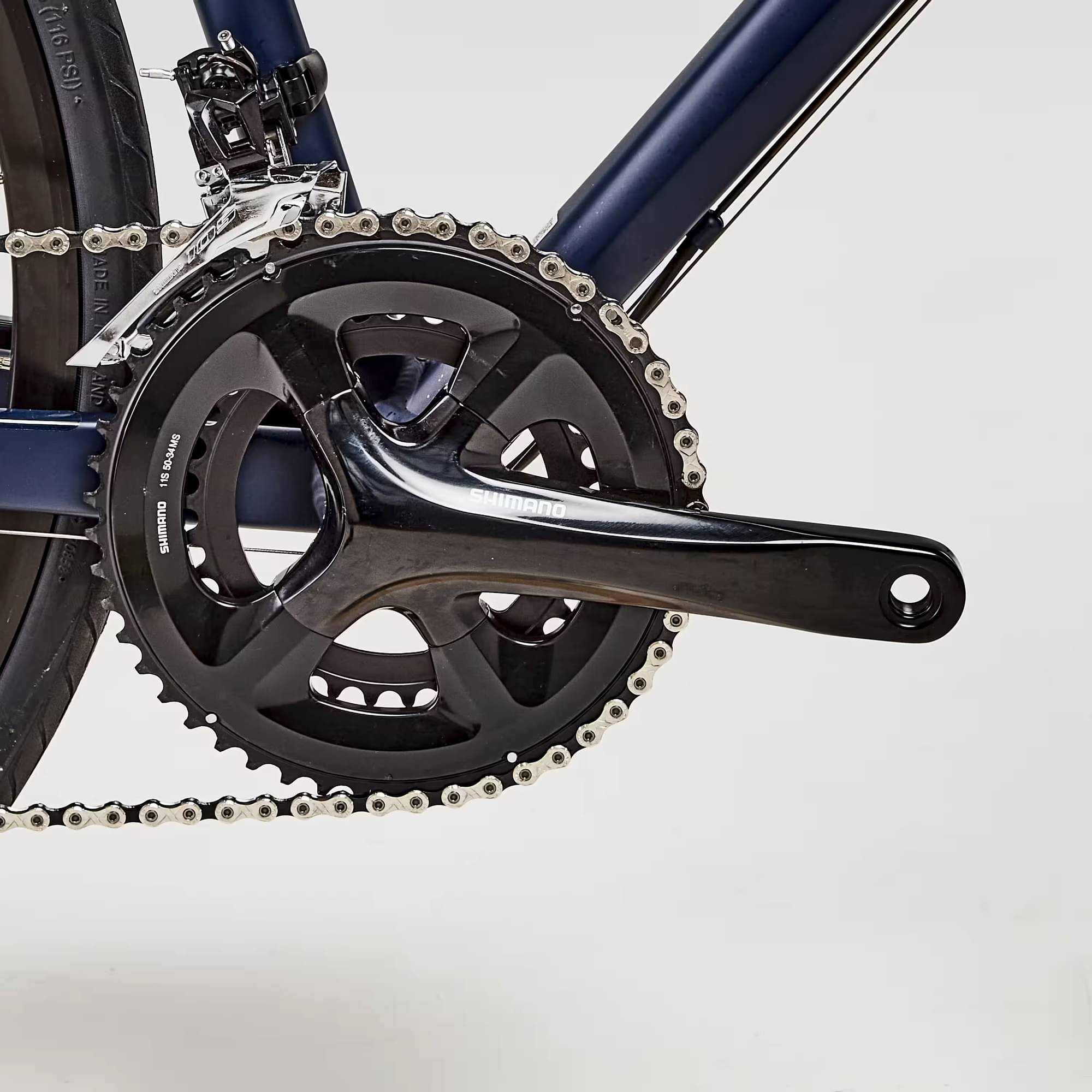

Crank
50/34
Pedals
Platform pedals included with the bike.
Wheels
Rims
New Triban Tubeless Ready* wheels 6063T6 aluminium ETRTO dimensions: 622 x 19 C 25mm high for greater lateral rigidity Crossed steel spokes for improved rigidity (28 front and 28 rear) Sealed bearings Weight per pair (without cassette and QR): 2300 g * To switch to Tubeless, you'll need a pair of Tubeless Ready tyres and a conversion kit including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid.
Tires
Triban Resist+ tyres 410 g Skinwall stiff bead 1 mm nylon anti-puncture protection Durable carcass: 55 TPI. Dimensions: 28c-622 / 700 x 28c for greater comfort. Max. pressure: 8 bar / 116 psi.These tyres are NOT Tubeless Ready

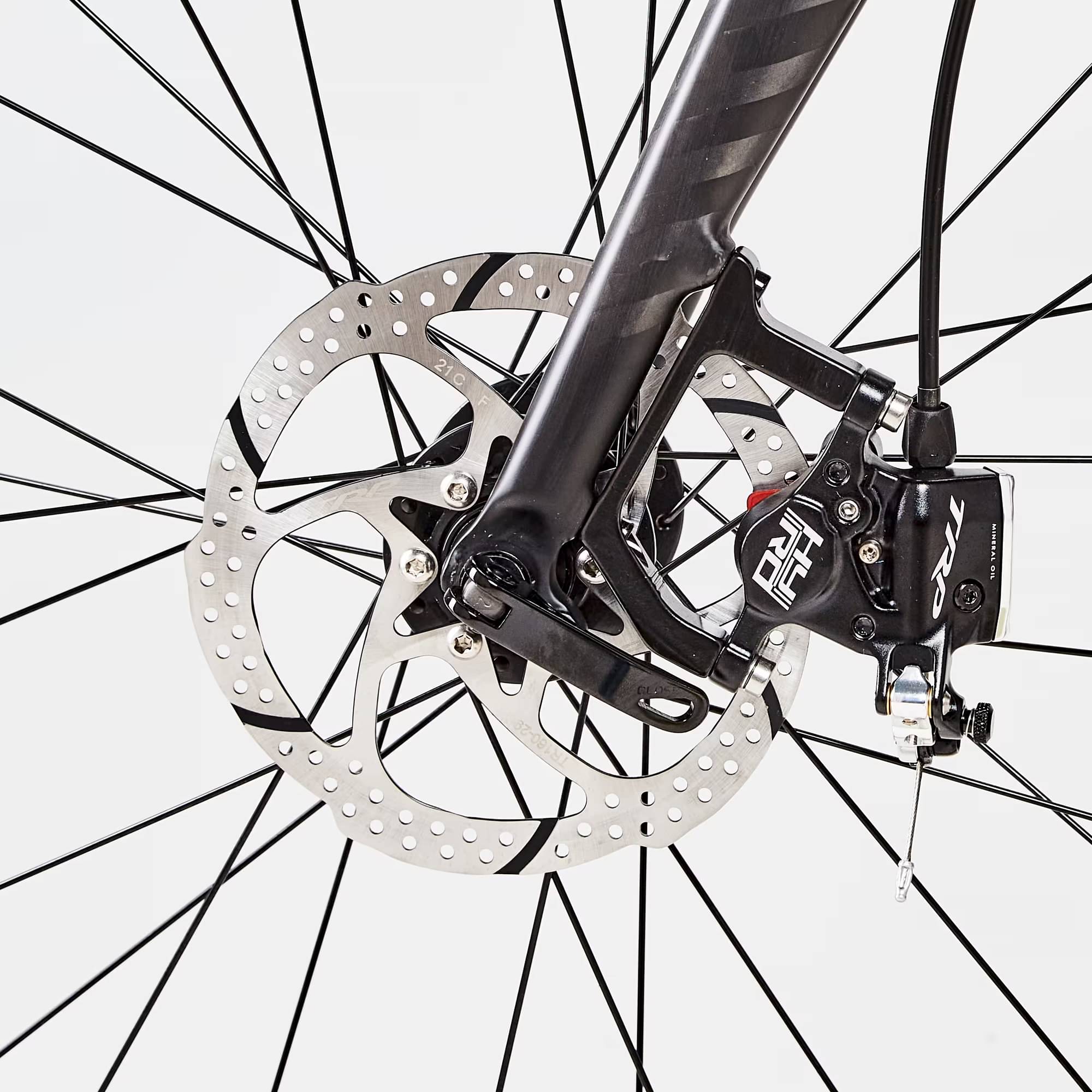

Brakes
Brakes
hydro-mechanical disc brakes
Fit data

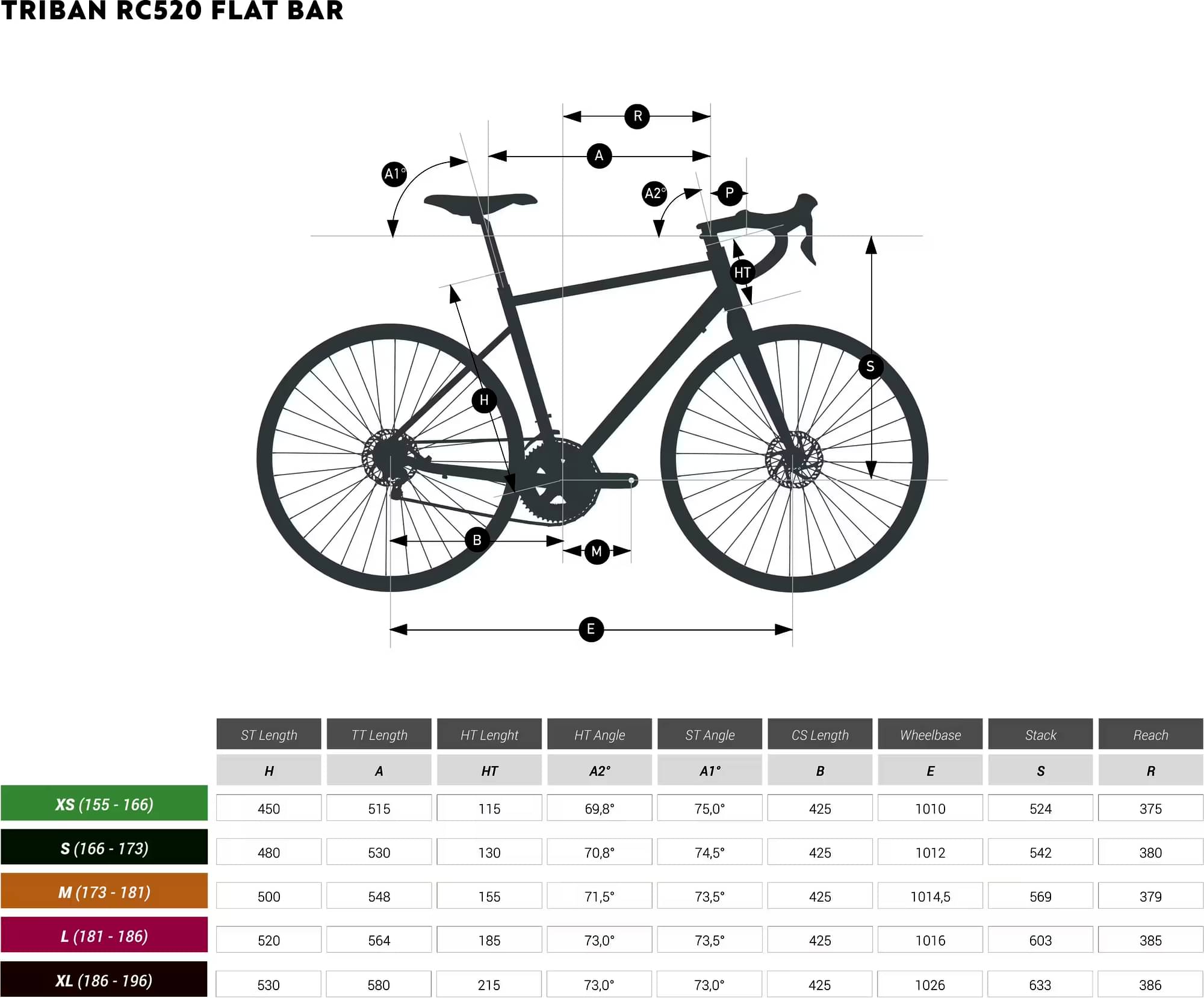

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
