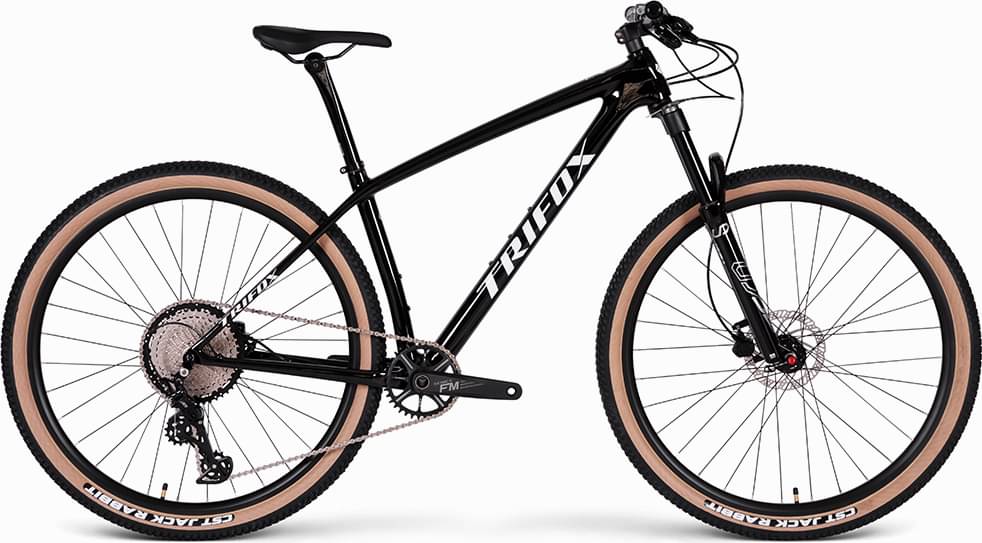

trifox SDY20 2024
2024 Mountain
Estimate price |
1,700$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 170cm
MD
165cm - 180cm
LG
173cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29er Carbon Mountain Hardtail Frame, Boost Frame, Carbon Fiber T1000, BB68 - BSA -Threaded, Axle: Ø12*148mm O.L.D (BOOST) Disc Brake, Internal Cable Routing, Suitable Seatpost 30.9mm
Suspension Fork
TRIFOX Aluminum Air pressure lockout fork, 120mm travel, alloy steerer, 110 x 15mm
Drivetrain
Shift Levers
SHIMANO Deore M6100, 12-speed; SHIMANO Deore M6100, SGS, 12-speed
Cassette
undefined 12-speed, 11-50T
Crank
12-speed, 34T, Hollow integrated chainring
Bottom Bracket
TRIFOX BSA - BB68 (? 34mm, L 68mm)
Chain
YBN 12-speed
Wheels
Rims
TRIFOX Alloy Mountain Bike Wheels WM823 BOOST
Tires
CST 29*2.1, 40mm, Clincher, 60MM F/V
Brakes
Brakes
Front: SHIMANO BR-MT200, Hydraulic Disc, 160mm, Rear: SHIMANO BR-MT200, Hydraulic Disc, 160mm
Cockpit
Handlebar
TRIFOX Carbon intergrated handlebar, 28.6mm
Seat
Saddle
TRIFOX Mountain Bicycle Comfortable, lightweight Saddle
Seatpost
TRIFOX Carbon fiber 400mm Mountain Seatpost, 2-bolt clamp, 30.9mm, T1000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 165 cm | 173 cm |
| Rider Max Height | 170 cm | 180 cm | 185 cm |
