Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Shimano -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
167cm - 179cm
LG
176cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

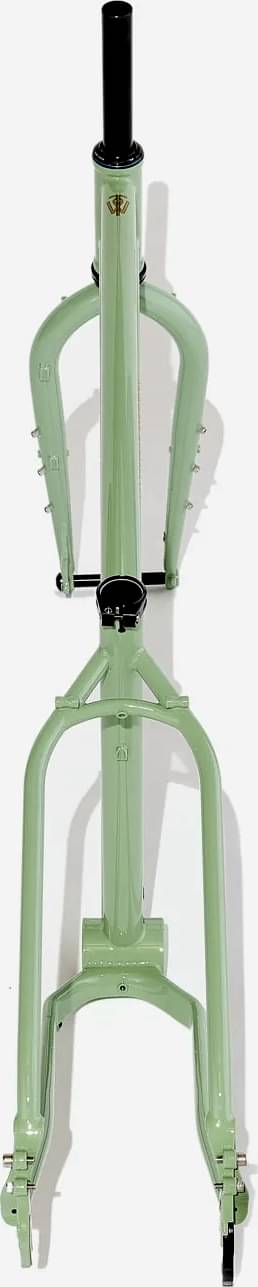

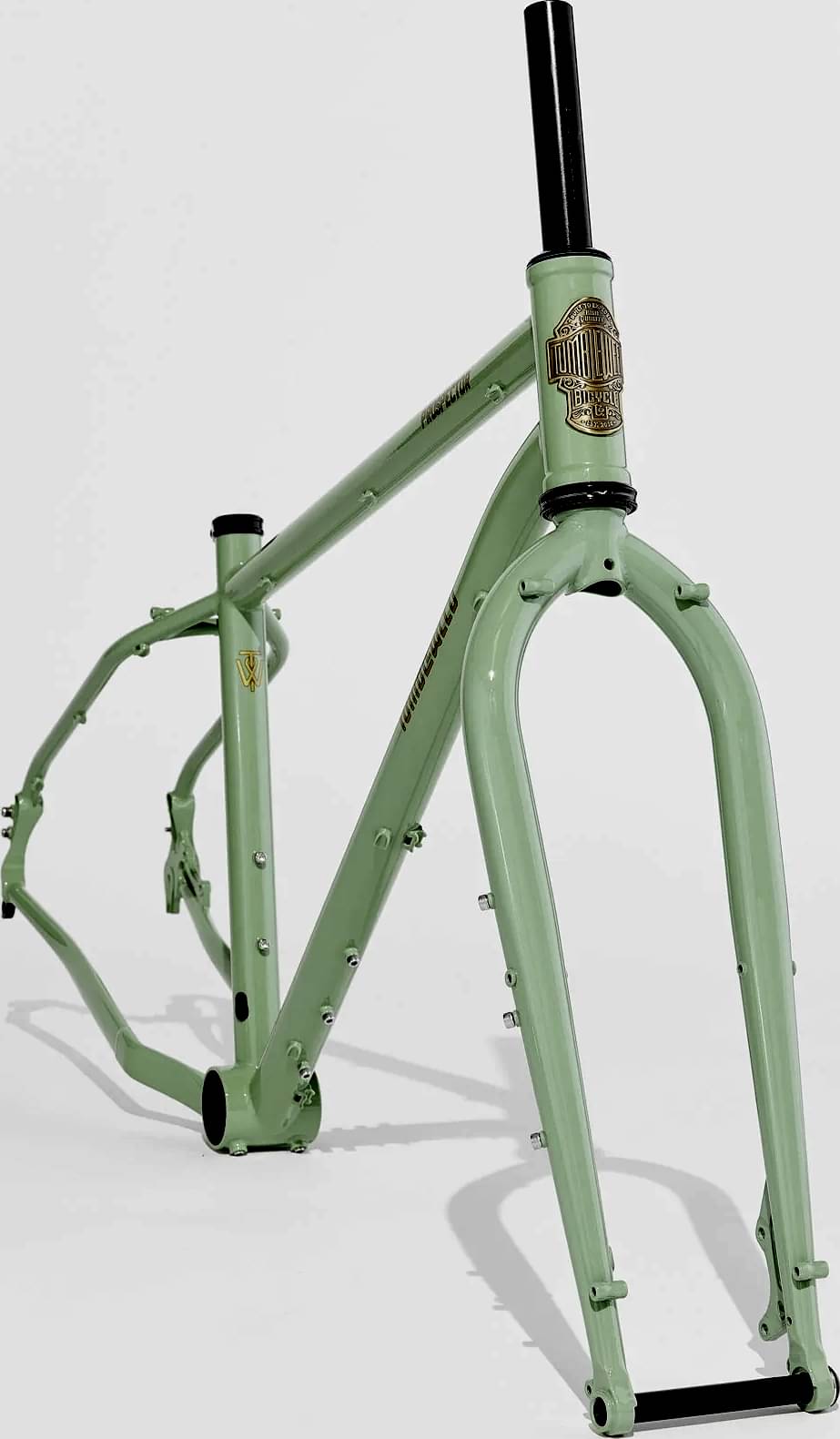

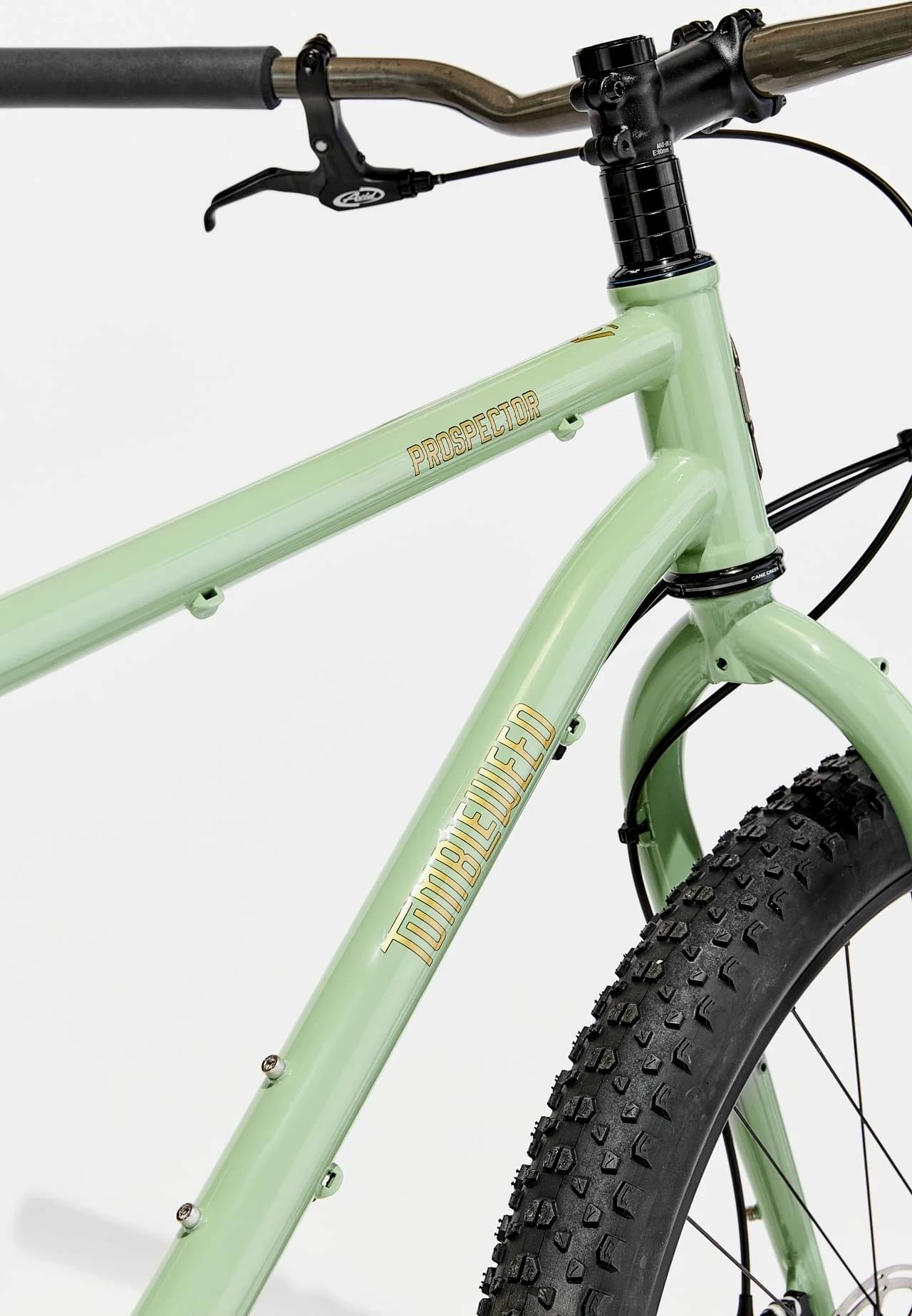

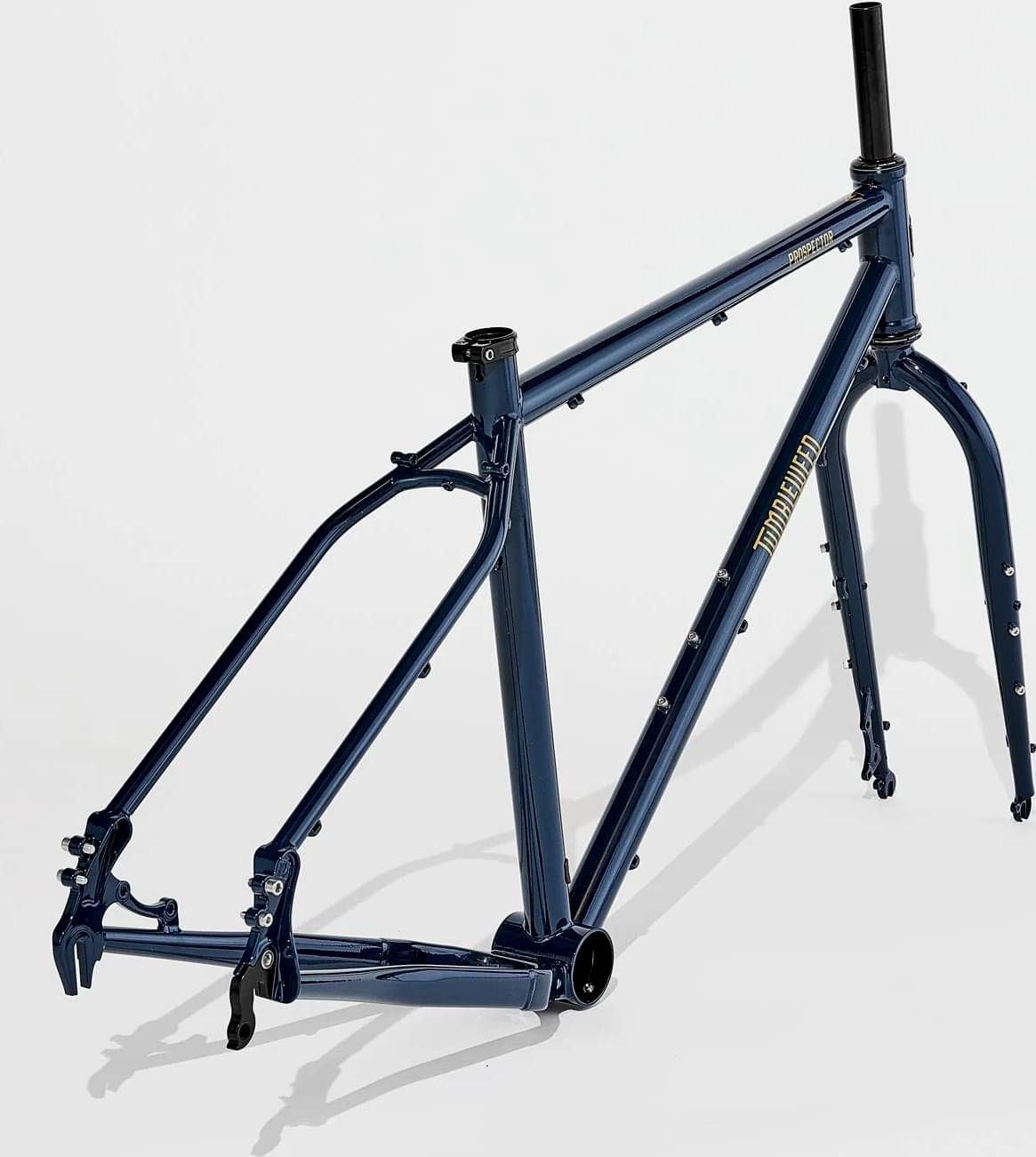

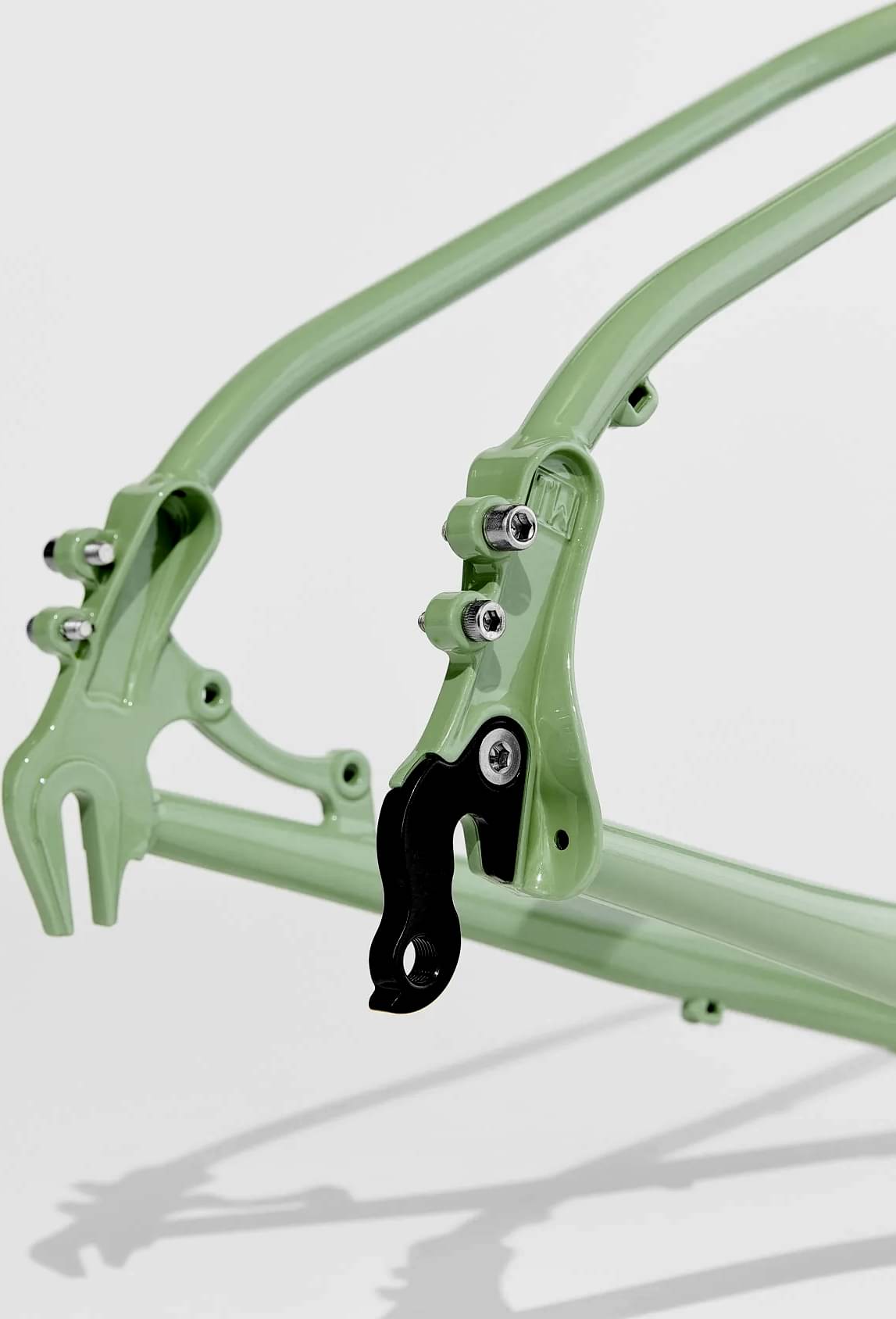

Frame

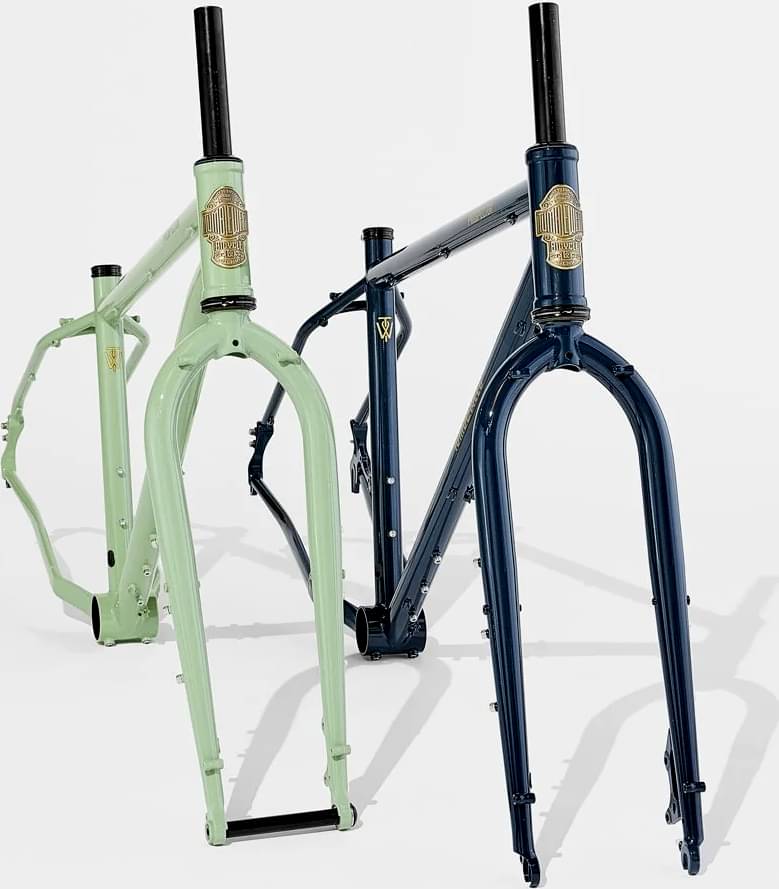

Prospector, Desert Sage or Midnight Blue

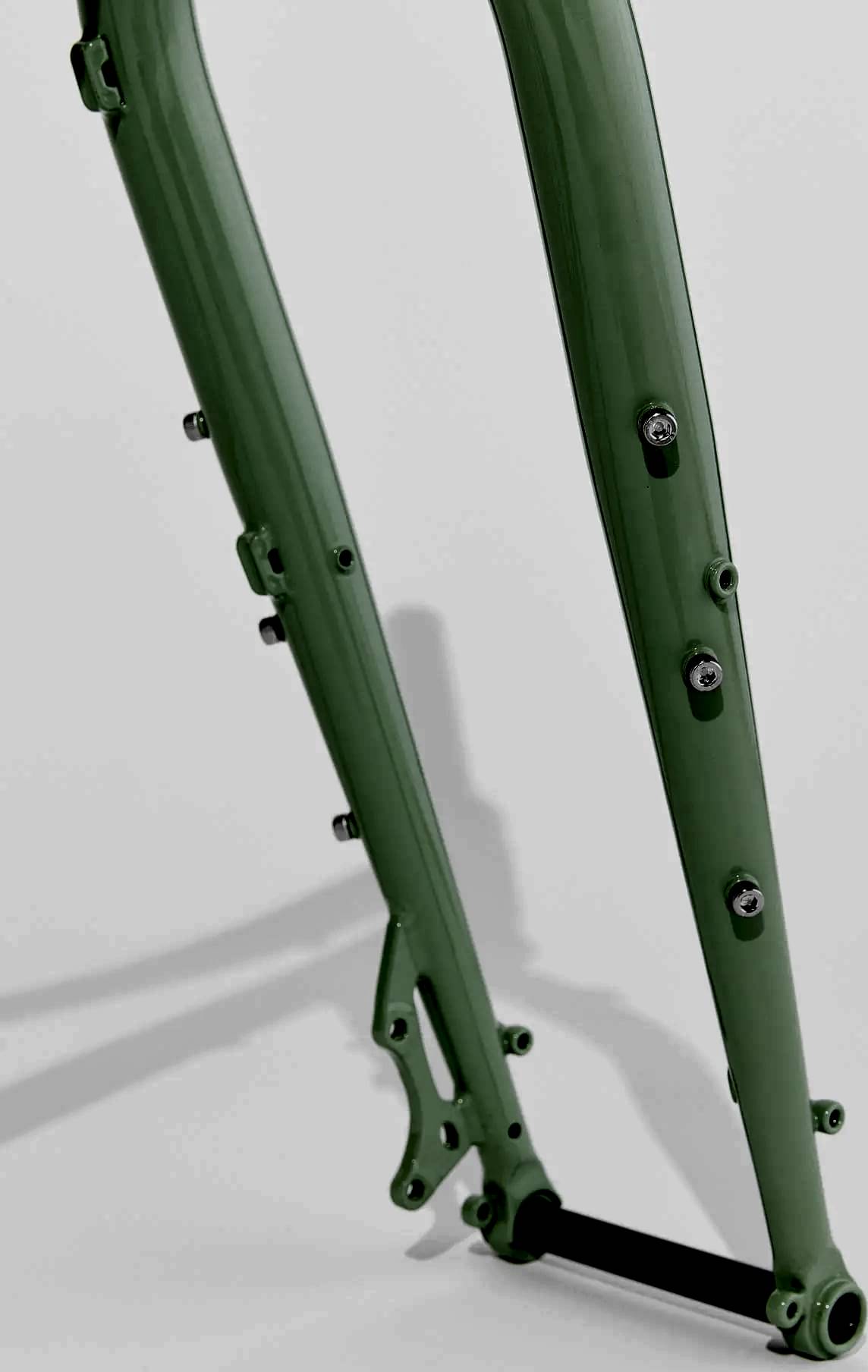

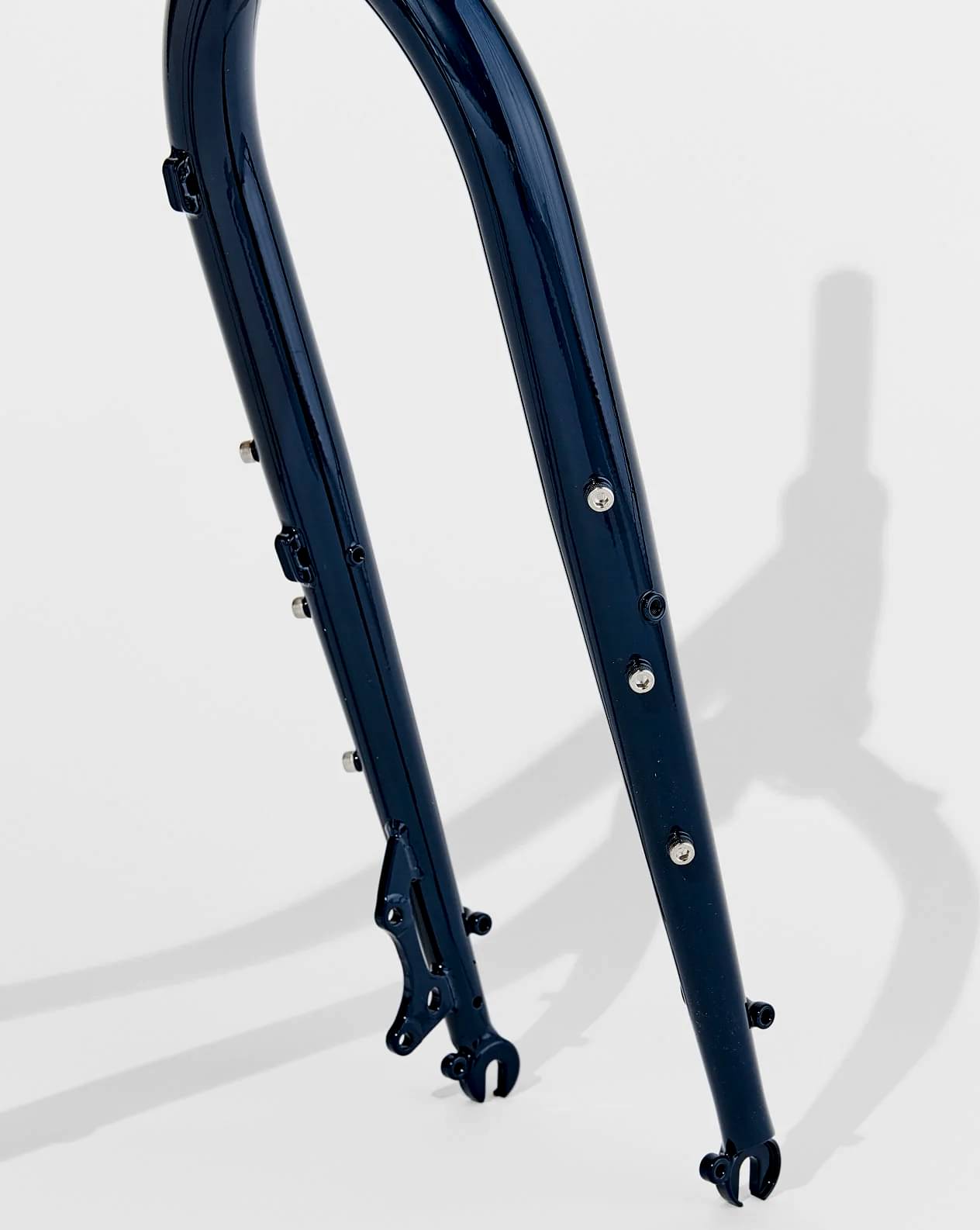

Suspension Fork
Steel Unicrown, 110x15mm, 150x15mm or 135mm QR
Drivetrain
Shift Levers
Rohloff, OEM grip shifter
Crank
Shimano, Black Super Boost
Bottom Bracket
RaceFace, BSA Threaded
Chain
SRAM, PC971
Wheels
Front Hub
Schmidt SON28, Black 32 hole Dynamo

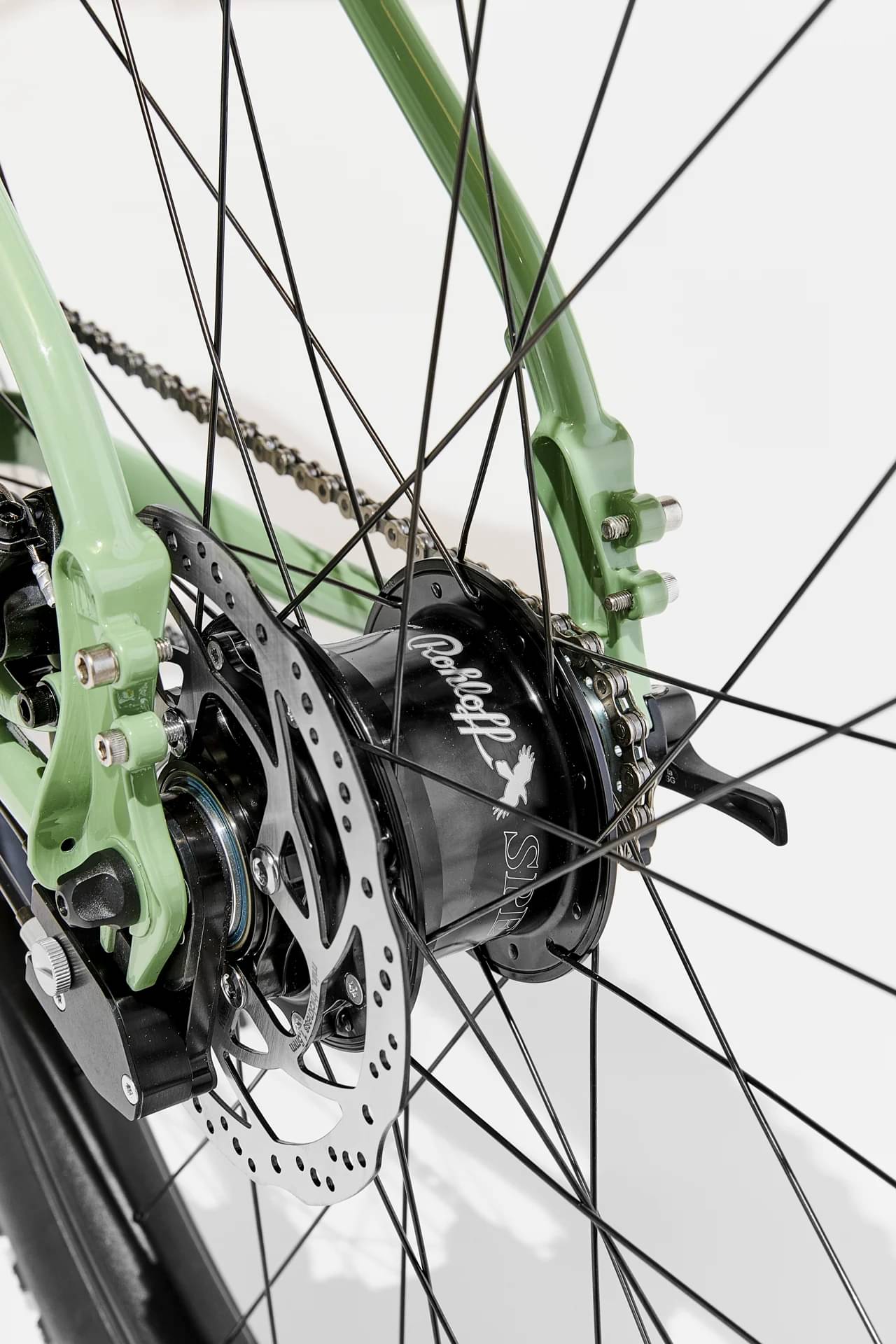

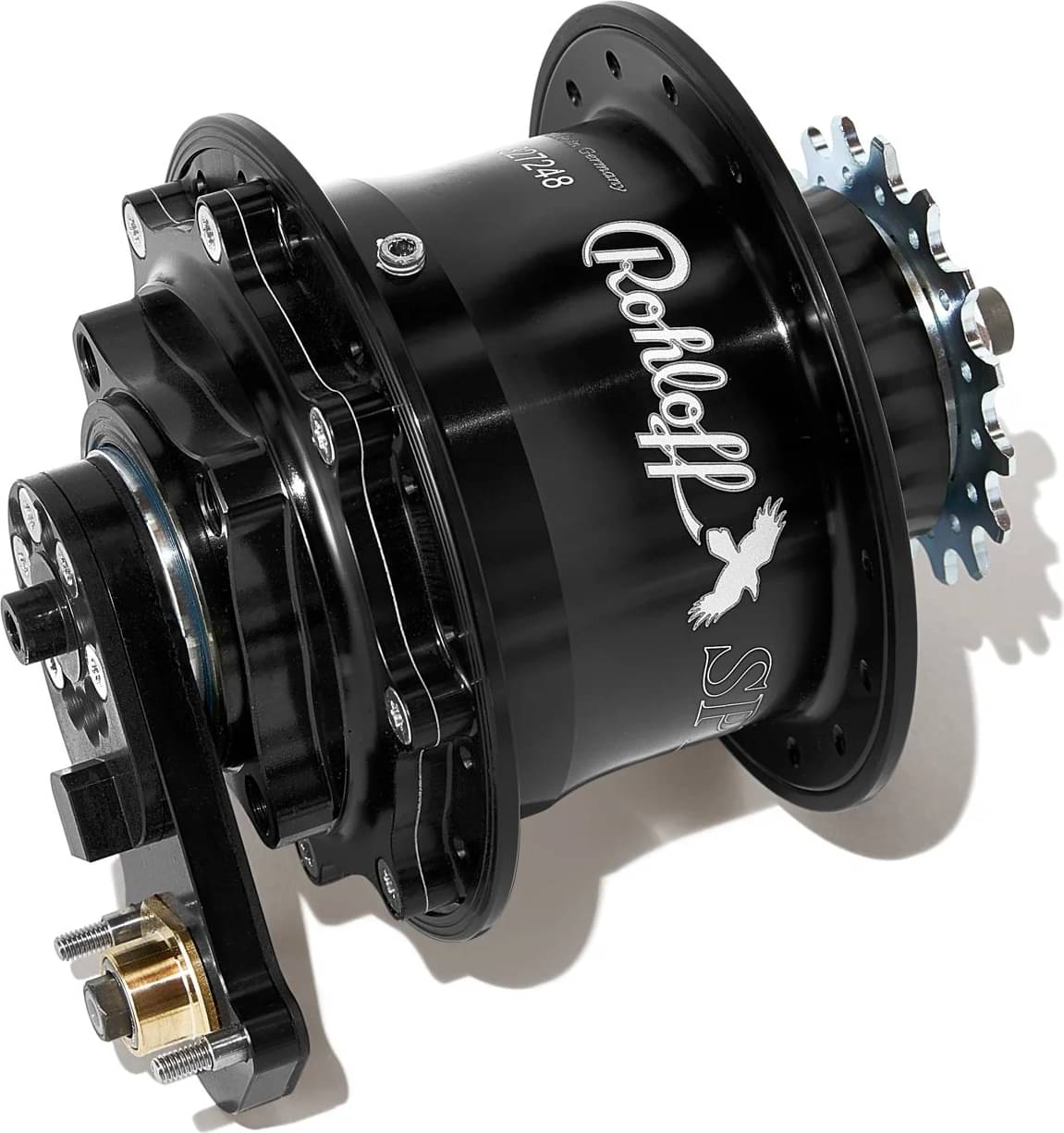

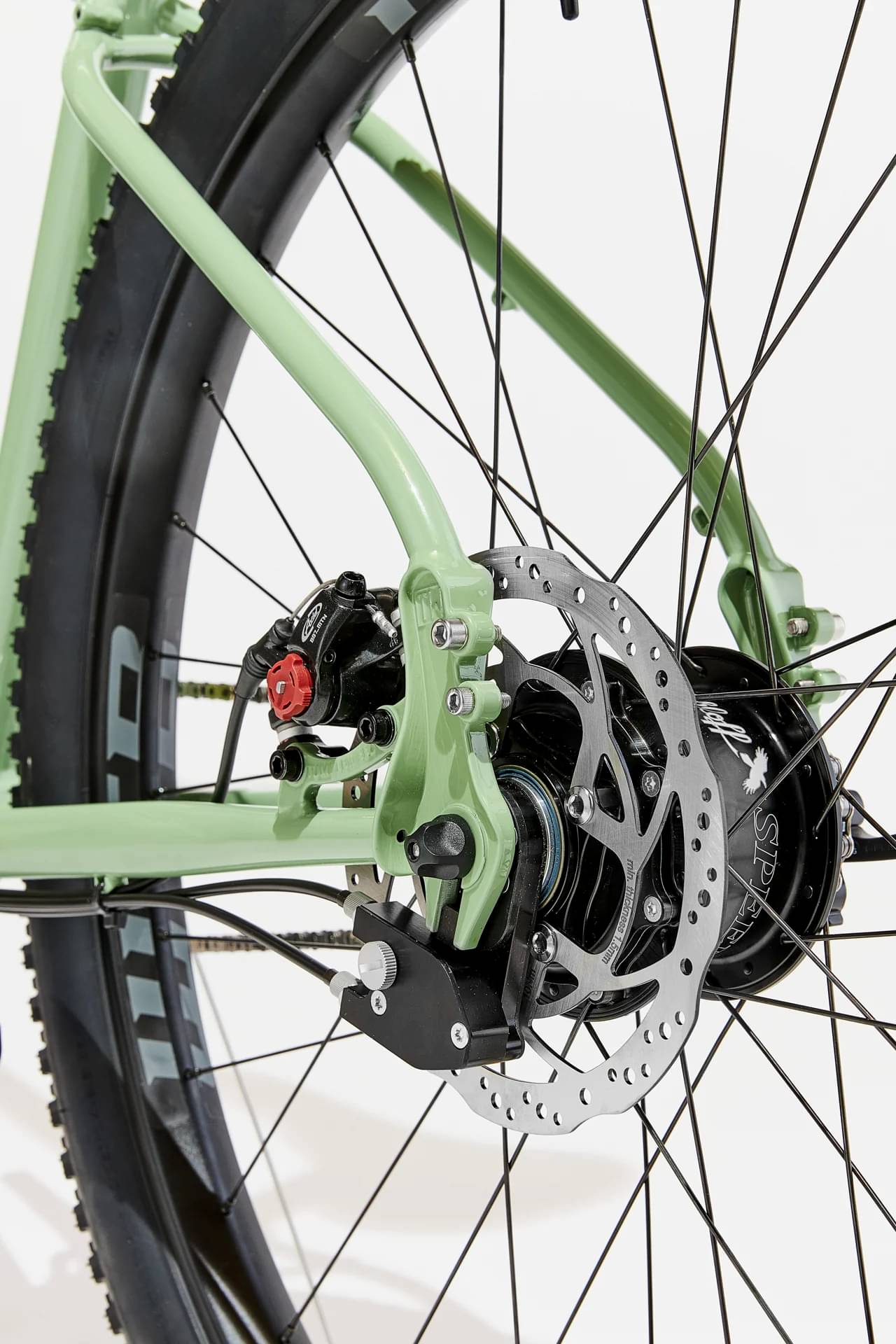

Rear Hub
Rohloff SPEEDHUB, Black, 32 hole, Quick release 16t cog
Rims
Tumbleweed, Black 27.5" 40mm Internal Width
Spokes
Sapim Race, Black 2.0/1.8 w/Brass nipples
Tires
Maxxis Rekon, 27.5x2.8"
Brakes
Brakes
Avid BB7, Black
Brake Levers
Avid FR5, Black
Cockpit
Stem
Zoom, Black 31.8mm 4 bolt
Handlebar
Tumbleweed Persuader, Black Alloy
Grips
Ergon GP1, Black, Rohloff Shifter Compatible

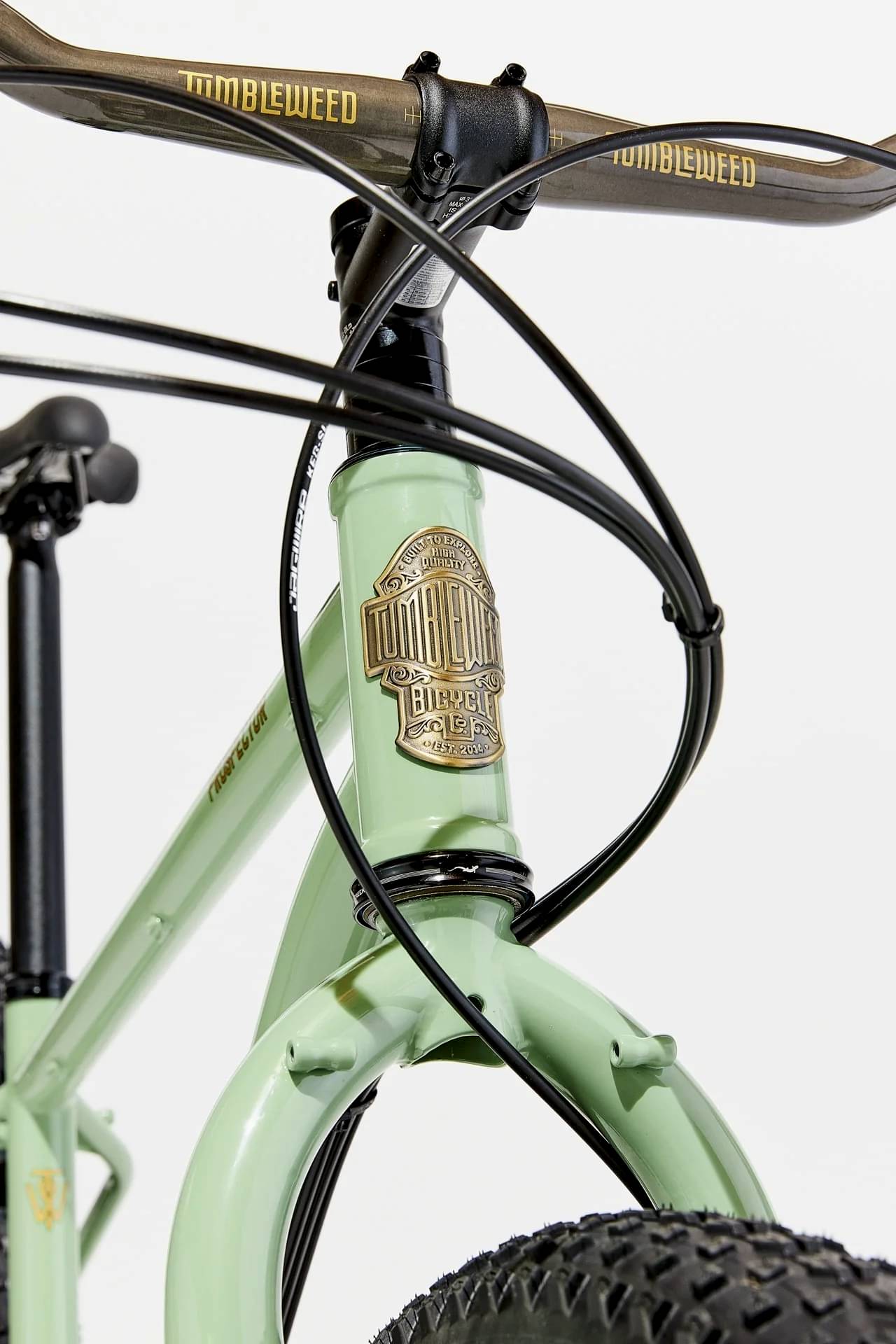

Headset
Cane Creek 40, ZS upper, EC lower, 30mm Crown Race
Seat
Saddle
WTB Rocket Wide, Black, Steel Rails
Seatpost
Kalloy, Black, 31.6mm Diameter, 410mm Length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.494 mm | 1.441 mm | 1.421 mm |
| Front Center | 678 mm | 699 mm | 720 mm | 741 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 62 mm | 53 mm | 62 mm | 64 mm |
| Stack | 608 mm | 626 mm | 640 mm | 655 mm |
| Reach | 414 mm | 419 mm | 444 mm | 461 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 546 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1128 mm | 1149 mm | 1170 mm | 1191 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 772 mm | 806 mm | 837 mm | 871 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 167 cm | 176 cm | 185 cm |
| Rider Max Height | 170 cm | 179 cm | 188 cm | 200 cm |
