Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

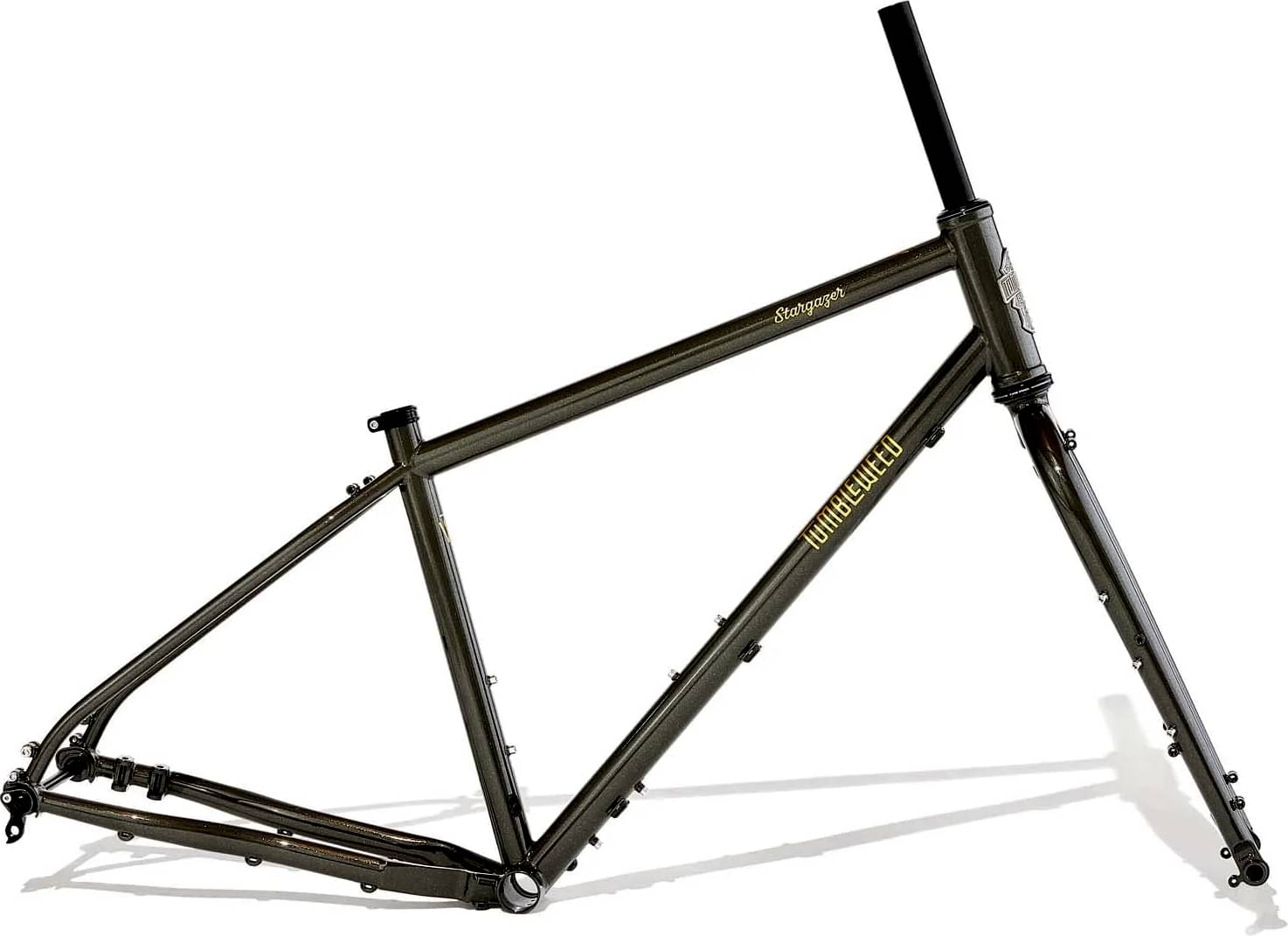

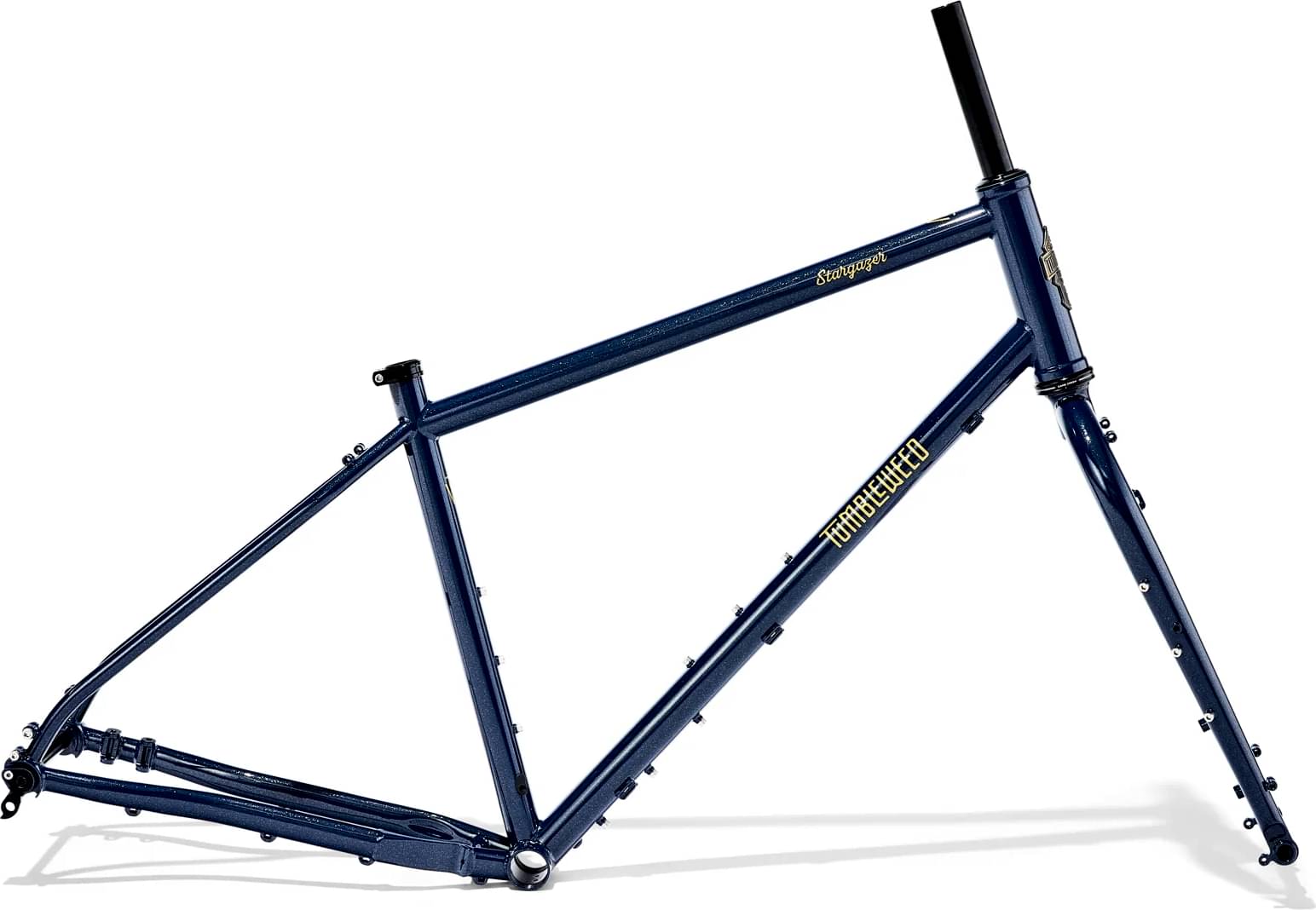

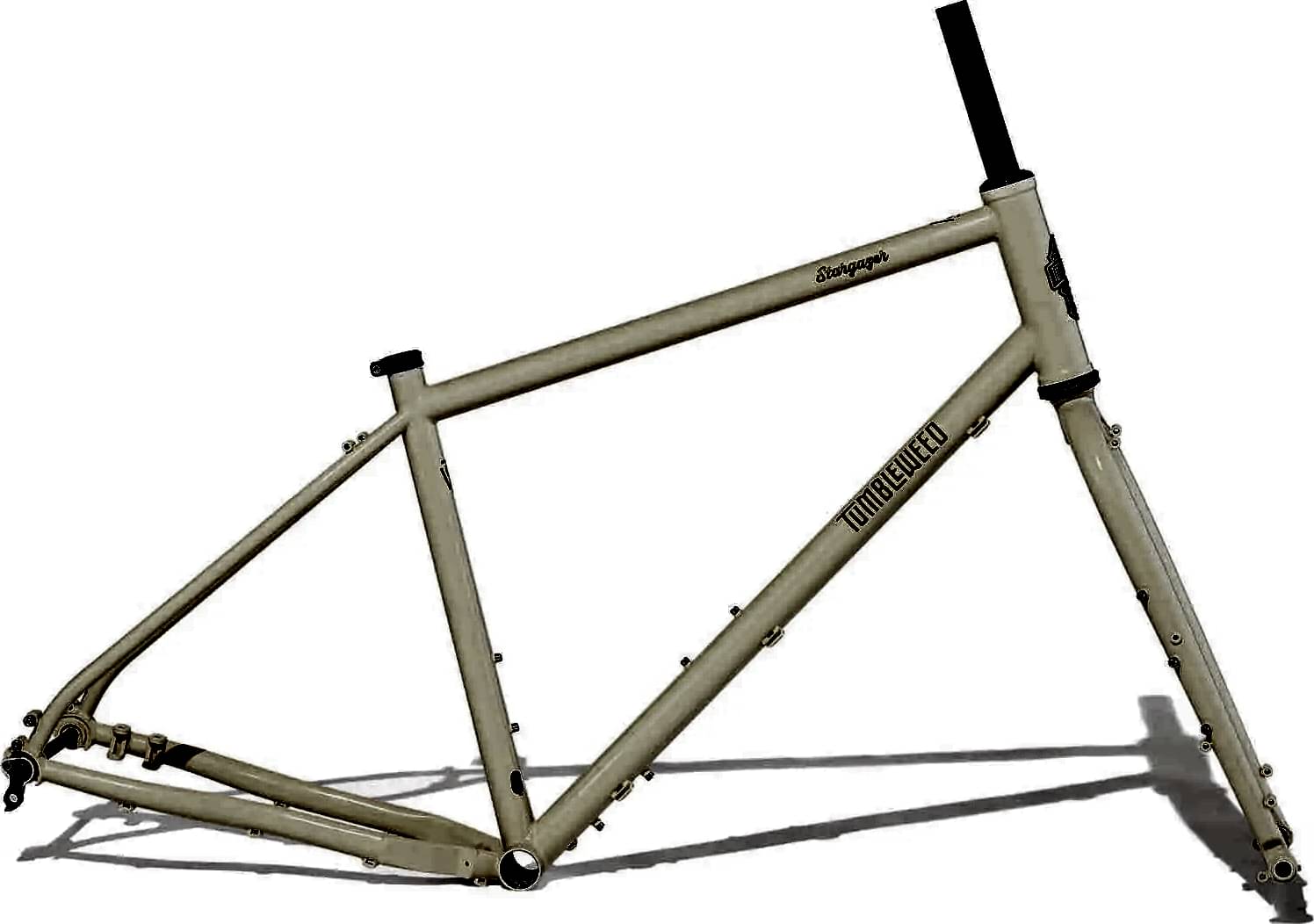

Frame
Frame

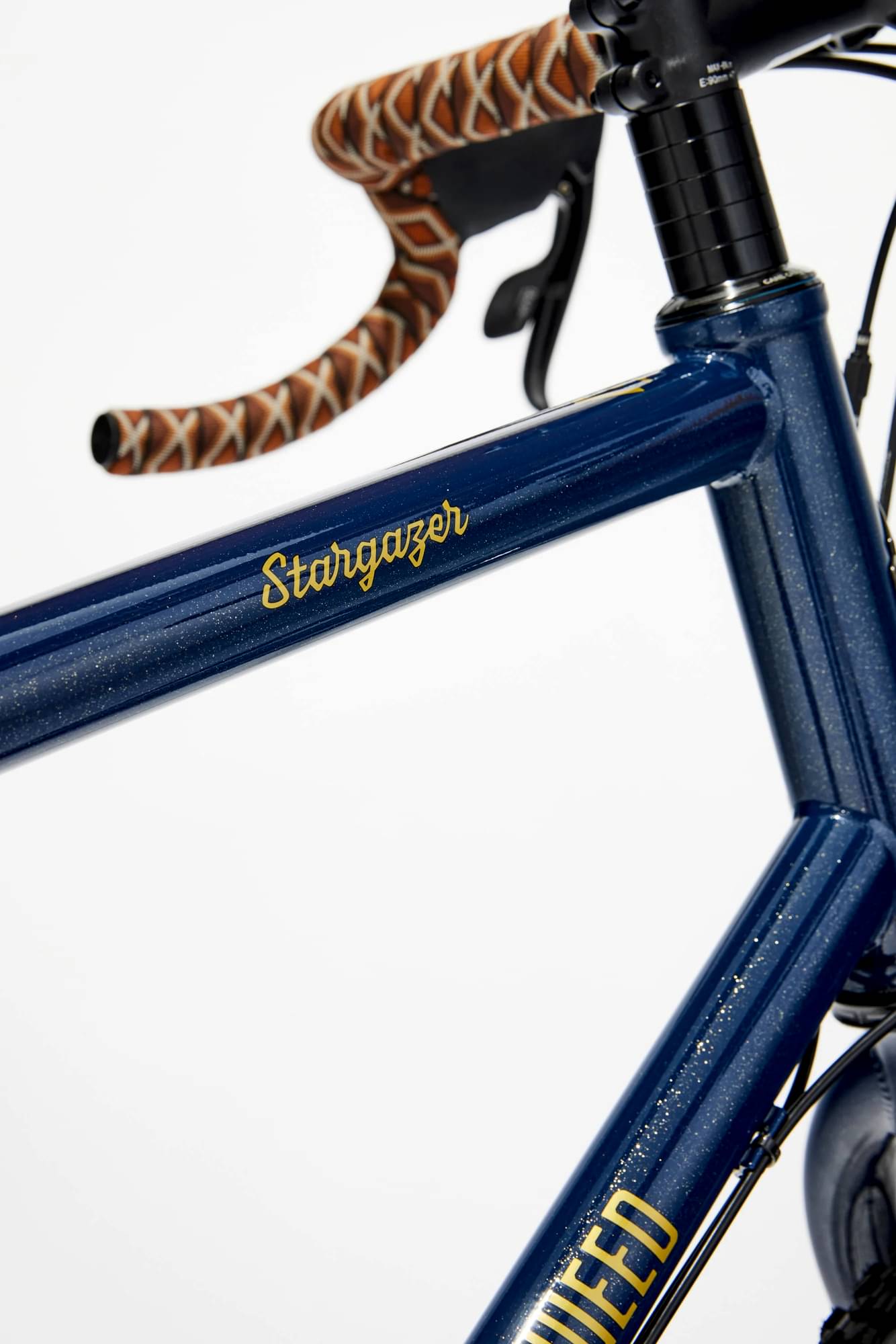

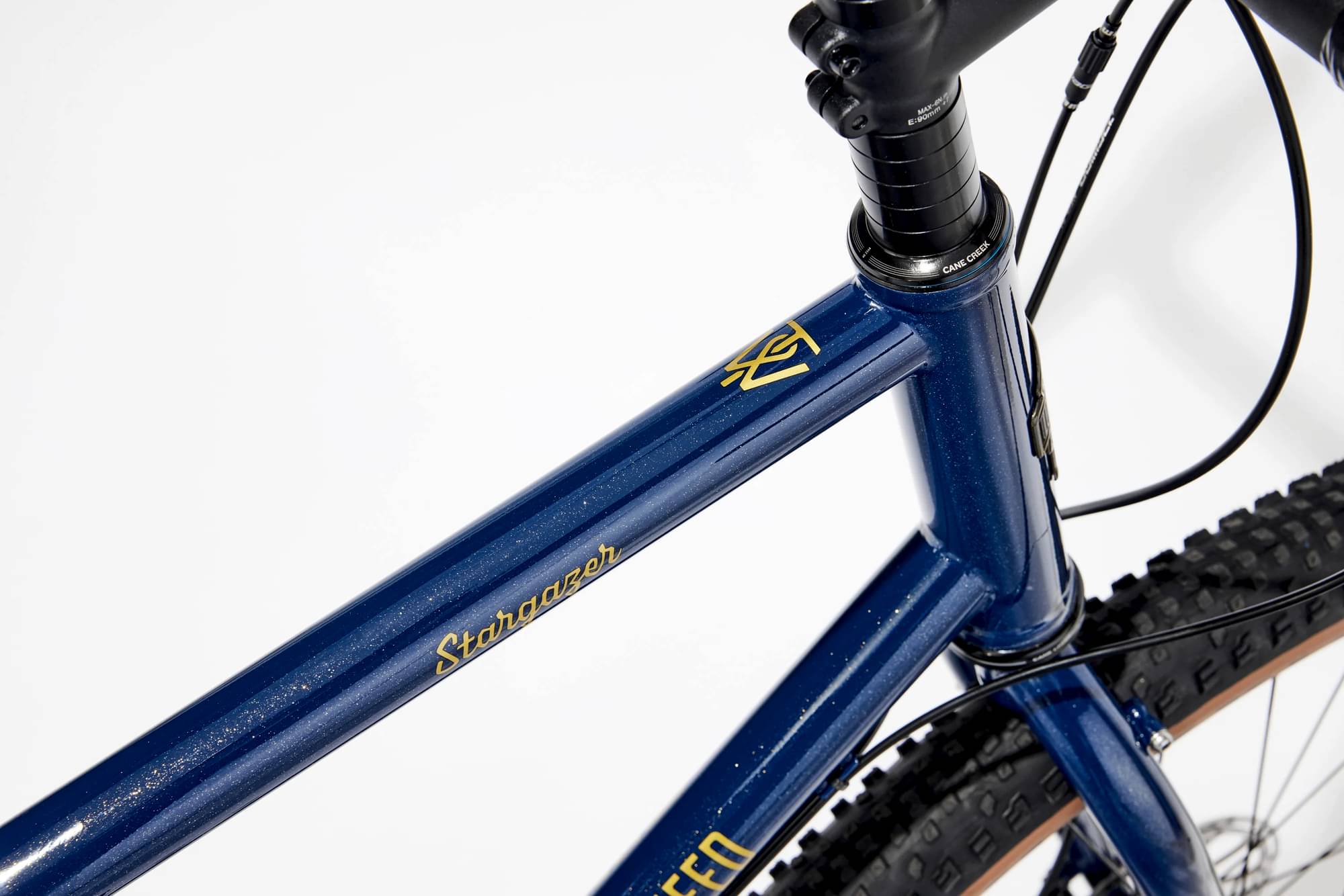

Stargazer, Starry Night or Bone
Suspension Fork
Steel Unicrown, 110mm Thru Axle Unicrown
Drivetrain

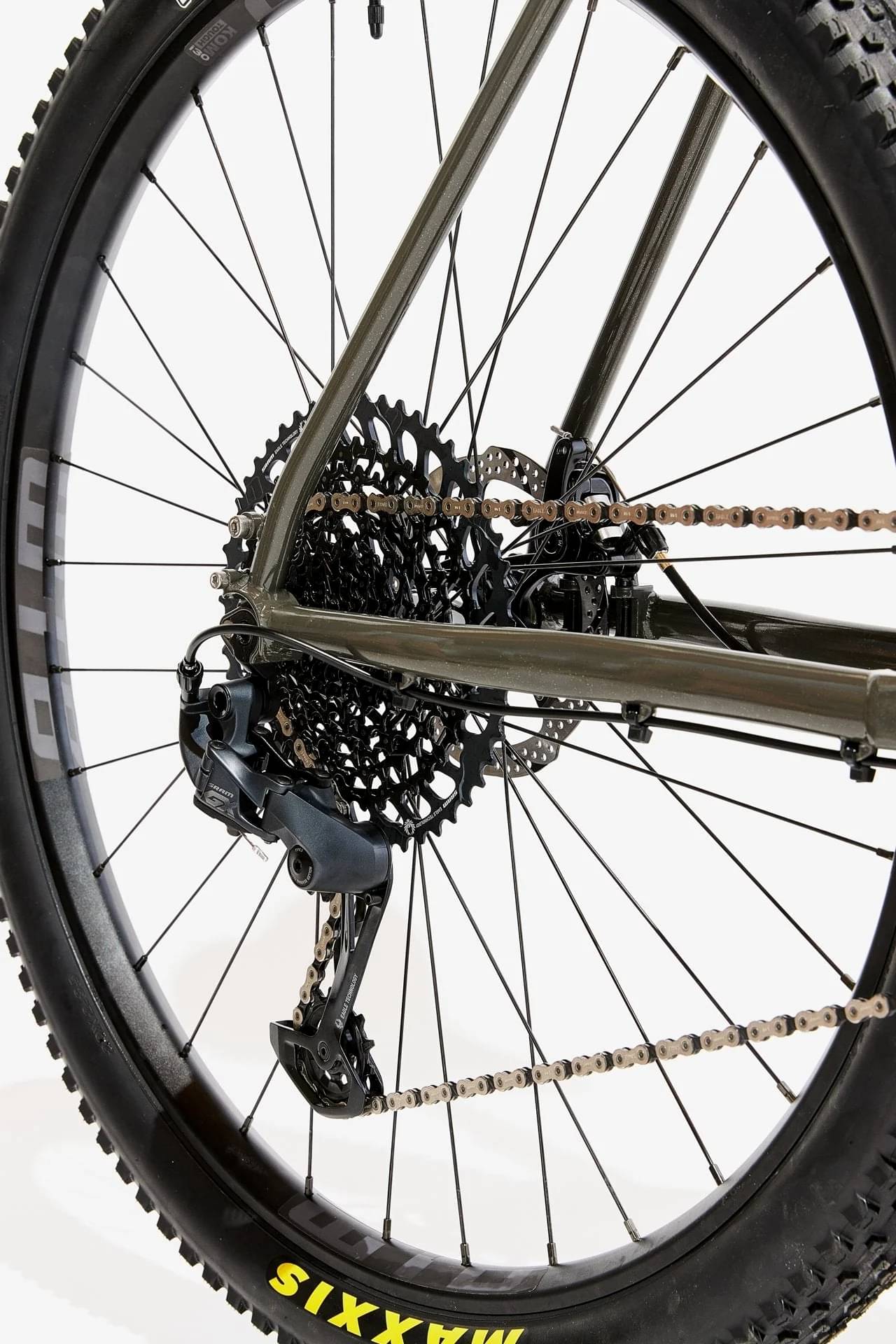

Rear Derailleur
SRAM GX Eagle, Lunar
Shift Levers
Ratio Technologies,
Cassette
SRAM GX Eagle, 10-52 tooth
Crank
RaceFace Aeffect, Black, Cinch Direct Mount
Bottom Bracket
RaceFace, BSA Threaded
Chain
SRAM, GX Eagle
Wheels
Front Hub
DT Swiss 350, Black, 110mm Thru Axle 32 hole
Rear Hub
DT Swiss 350, Black, 148x12mm 32 hole, SRAM XD driver
Rims
RaceFace, Arc 30 Offset
Spokes
Sapim Race, Black 2.0/1.8 w/Brass nipples
Tires

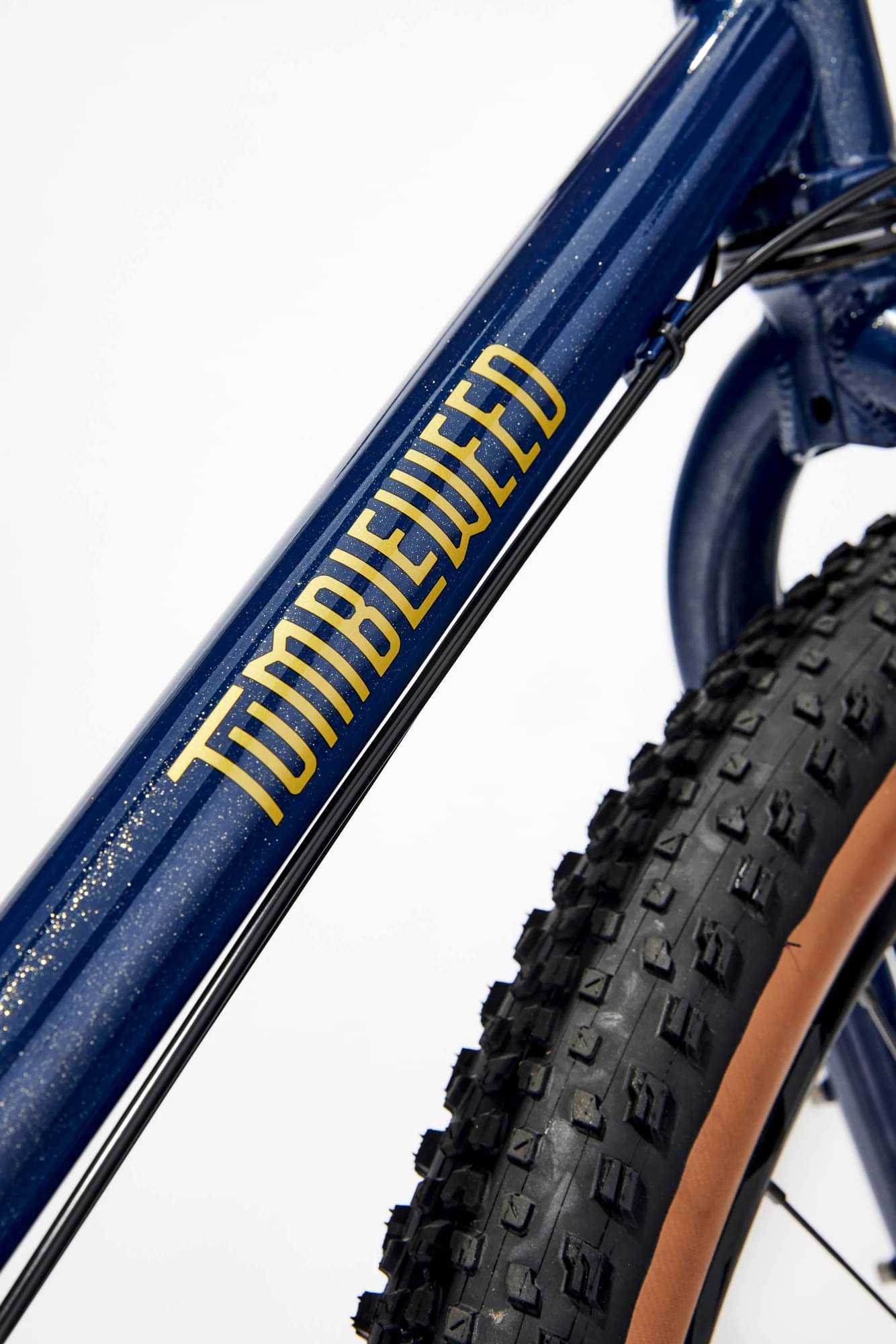

Maxxis Ikon, 29x2.35 EXO 3C TR
Brakes

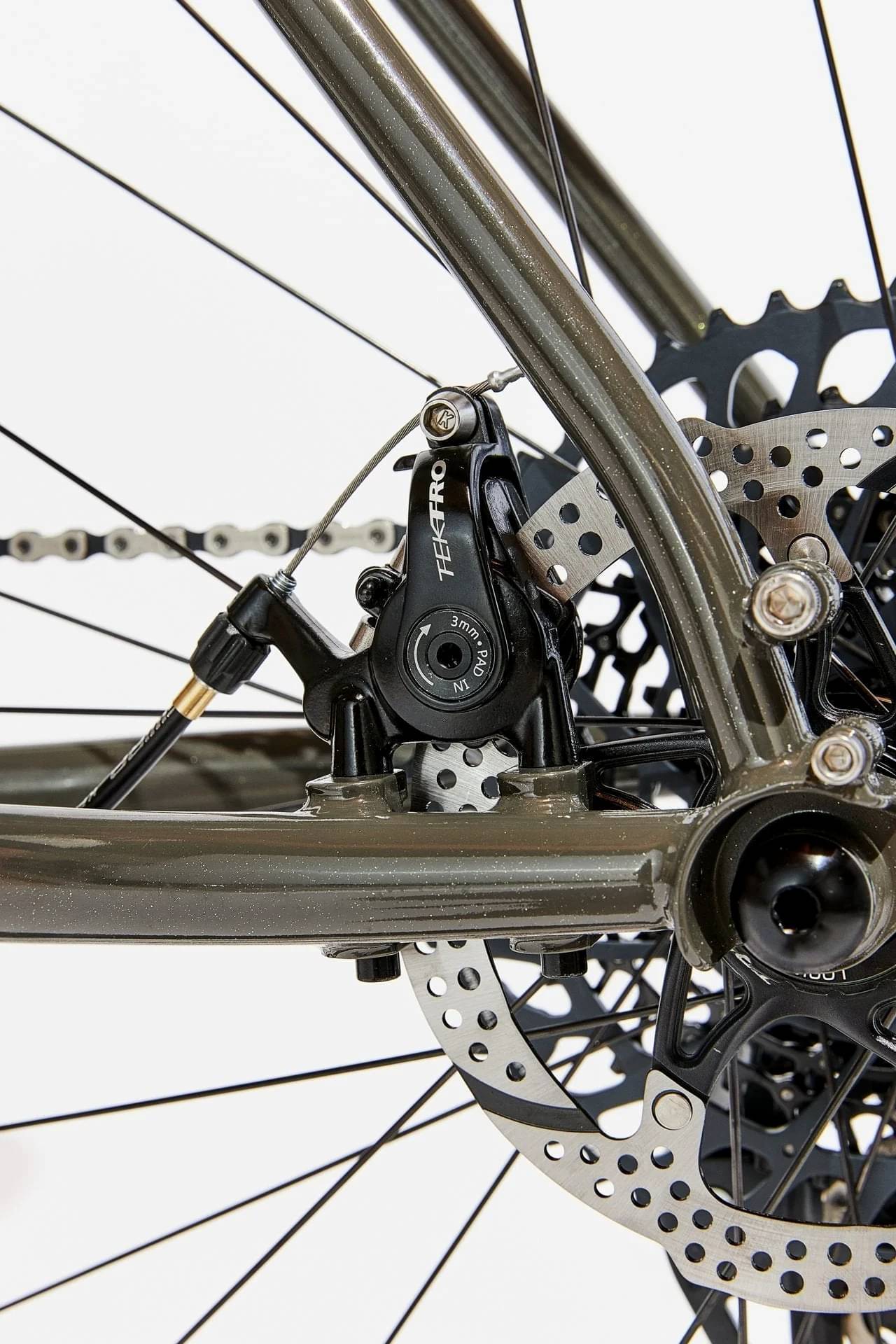

Brakes
Tektro MD-c550, Black

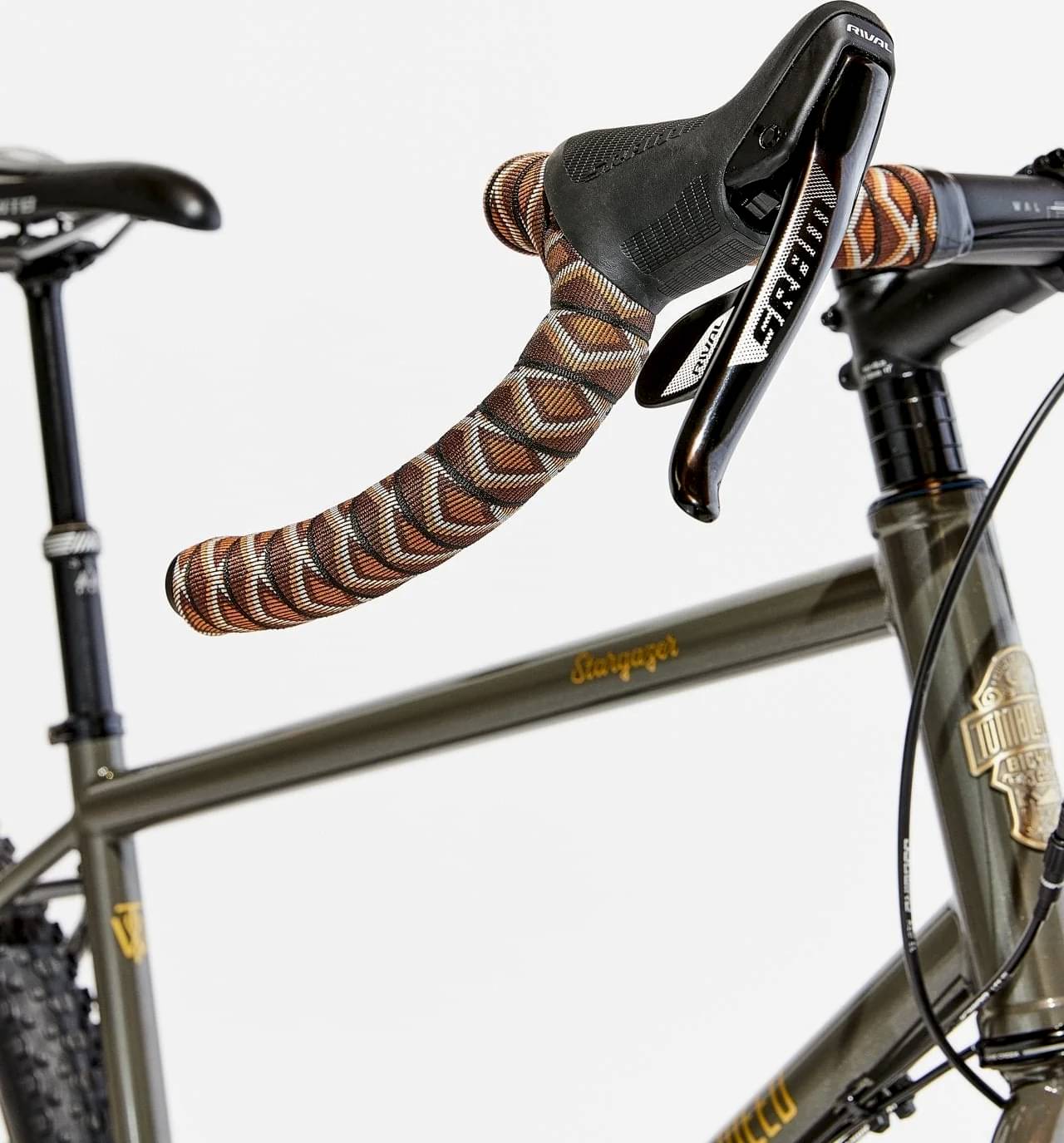

Brake Levers
SRAM Rival 22, Black
Cockpit
Stem
Zoom, Black 31.8mm 4 bolt

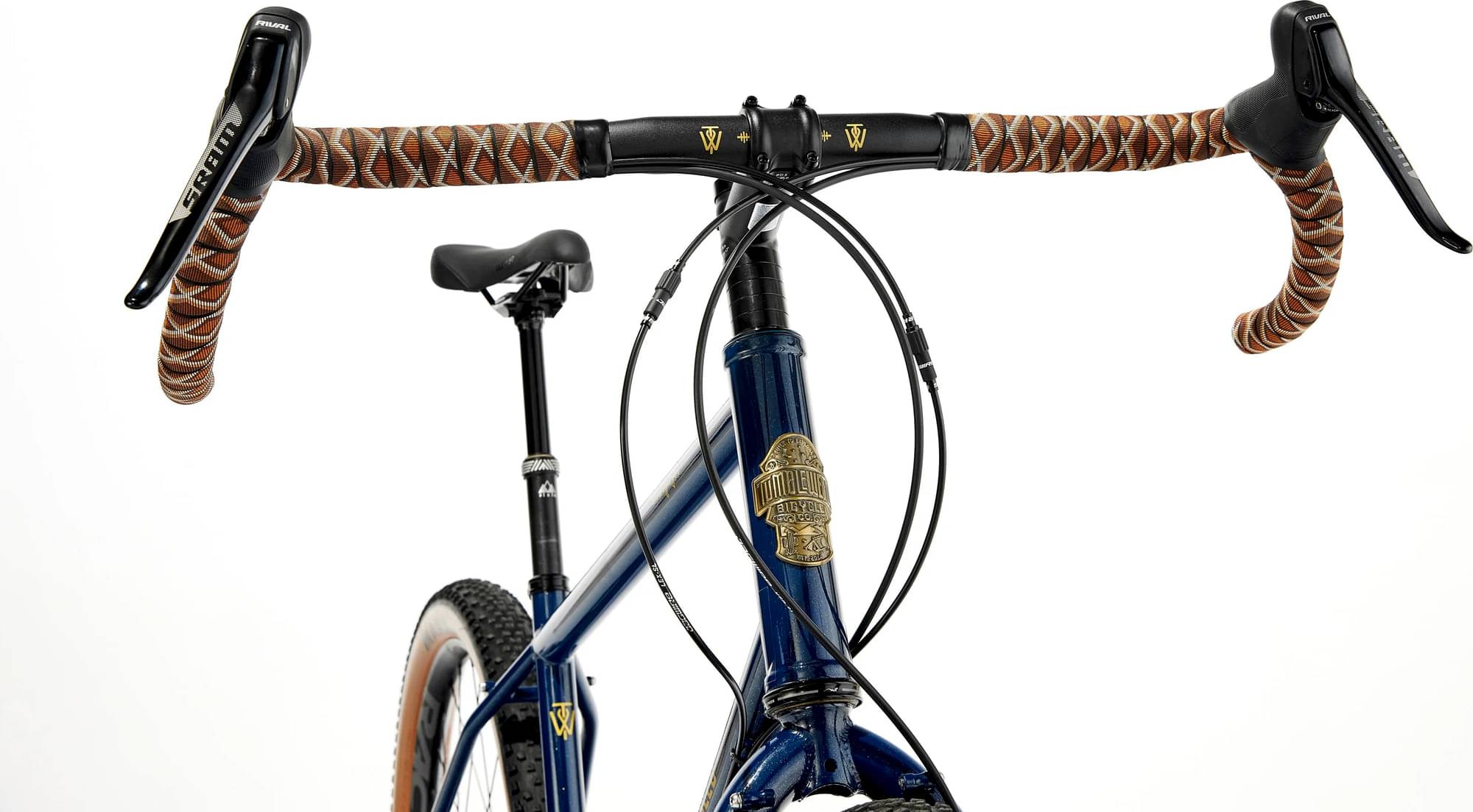

Handlebar
PNW Coast, 52cm Black
Headset
Cane Creek 40, ZS upper, EC lower, 30mm Crown Race
Seat
Saddle
WTB Pure, Black, Steel Rails

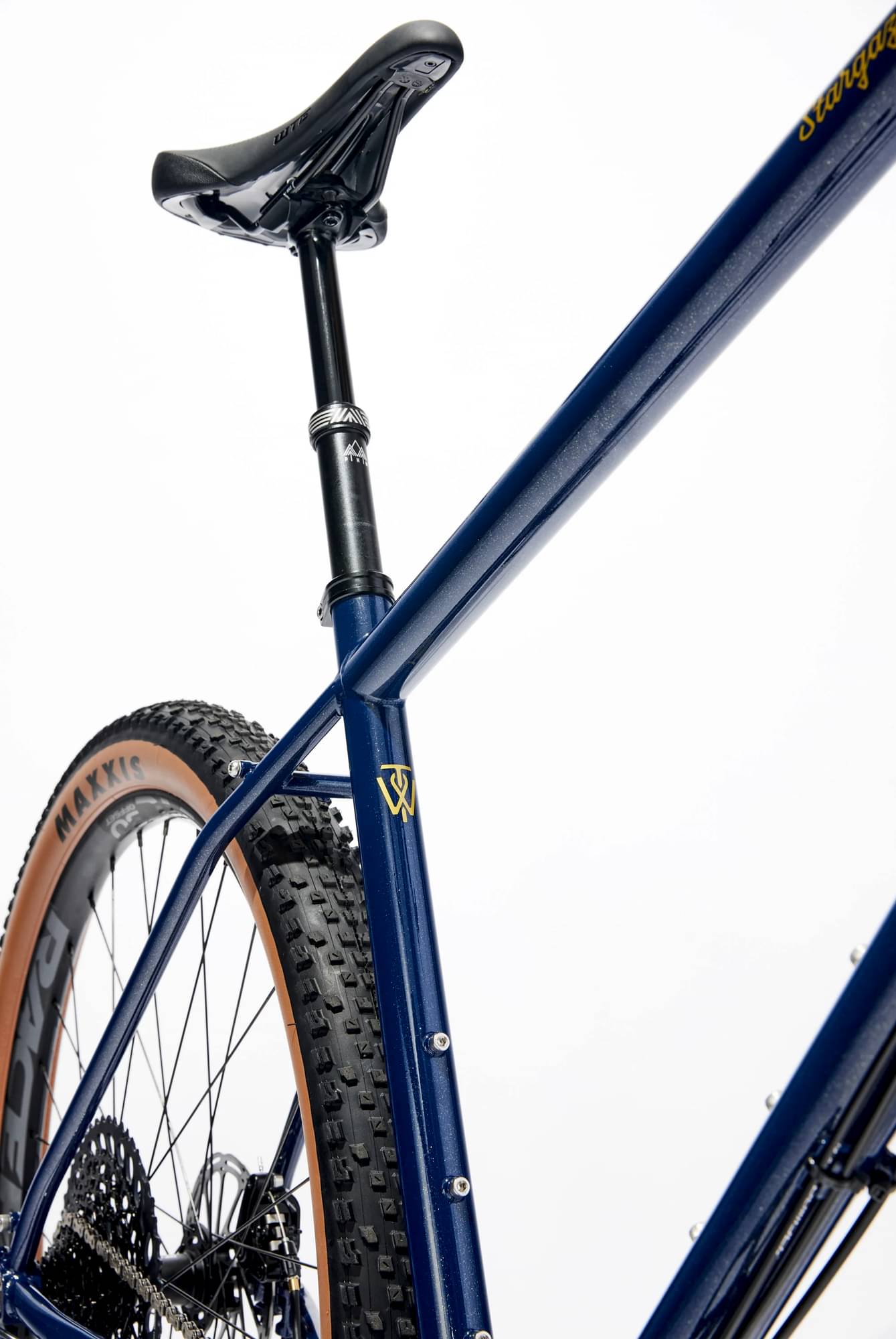

Seatpost
PNW Rainier dropper post, Black, 27.2mm Diameter, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.605 mm | 1.649 mm | 1.679 mm | 1.687 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 574 mm | 597 mm | 630 mm | 653 mm | 680 mm |
| Reach | 365 mm | 372 mm | 382 mm | 389 mm | 403 mm |
| Top Tube Length | 535 mm | 555 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 460 mm | 490 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 140 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 750 mm | 784 mm | 815 mm | 840 mm | 875 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
