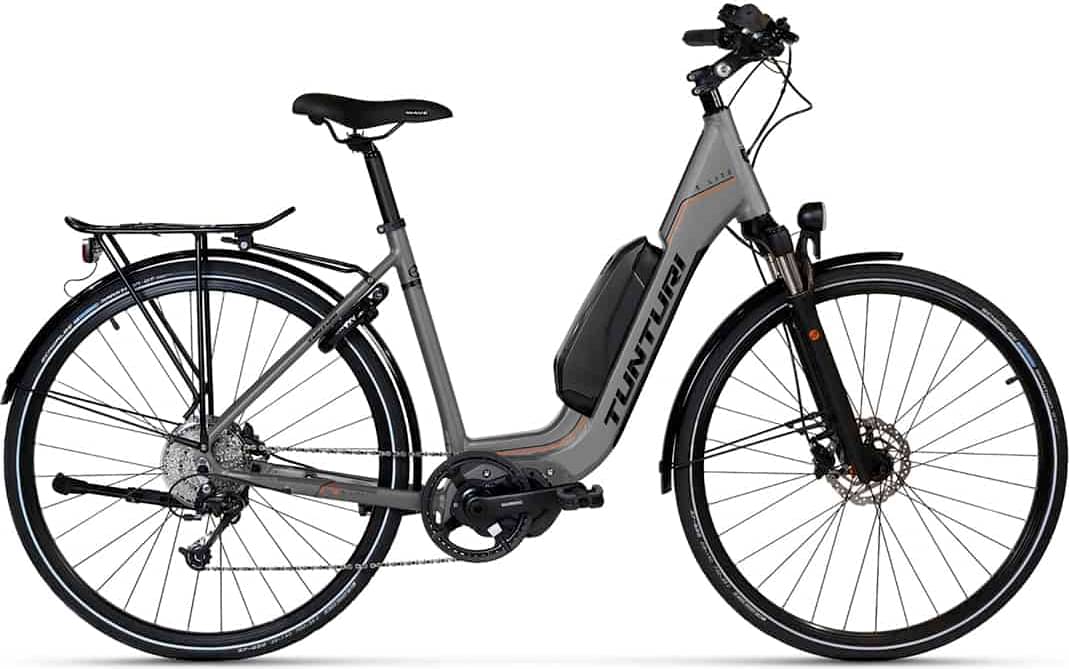

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT-E8014 Lithium-ion 36 V; 11,6 Ah / 418 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Rockshox Paragon 65 mm
Drivetrain
Rear Derailleur
Shimano RD-M4120 Deore Shadow 10-v
Front Derailleur
-
Crank
Shimano FC-E6100 38T
Pedals
Non-slip
Wheels
Rims
Rodi Connect, aluminium double wall 622x19C
Tires
Schwalbe Big Ben 50-622, puncture-proof, side reflectors
Brakes
Brakes
Shimano MT-200 hydraulic disc brakes
Cockpit
Handlebar
Aluminium 620 mm
Seat
Seatpost
Aluminium 30,4mm
Motor & Battery
Motor
Shimano STEPS E6100, 60Nm
Battery
Shimano BT-E8014 Lithium-ion 36 V; 11,6 Ah / 418 Wh
Remote
SC-E6100 2.7" (6.9cm) High, Normal, Eco
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm |
|---|---|
| Wheels | 29" |
| Rider Min Height | 120 cm |
