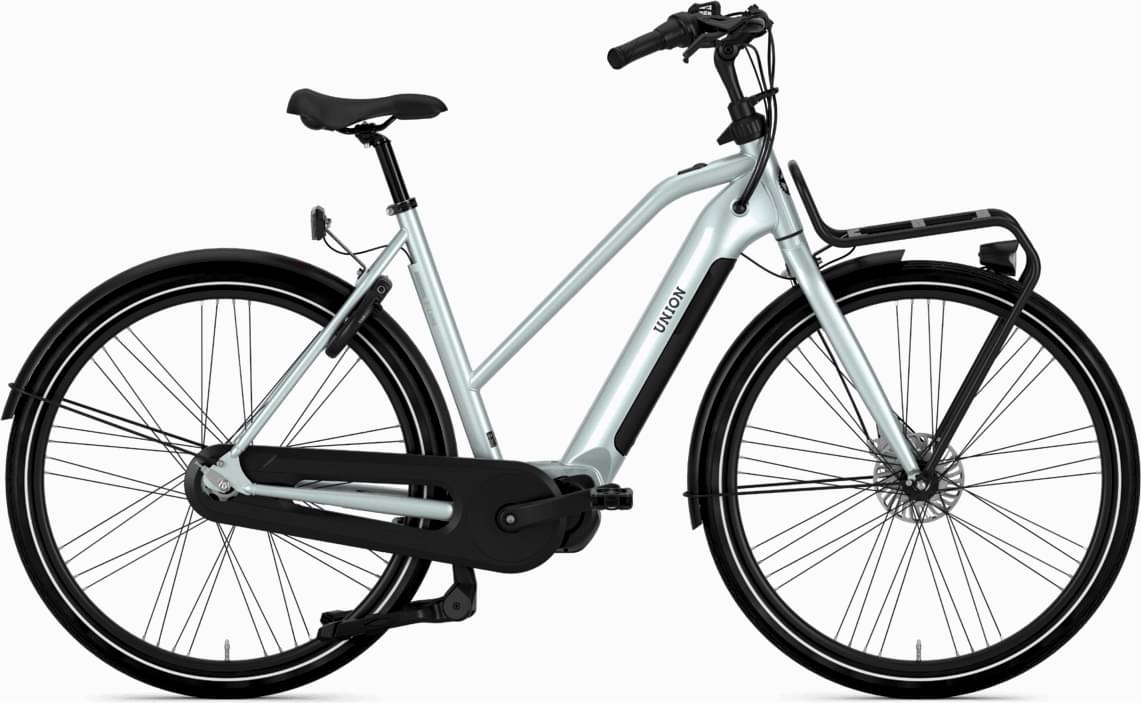

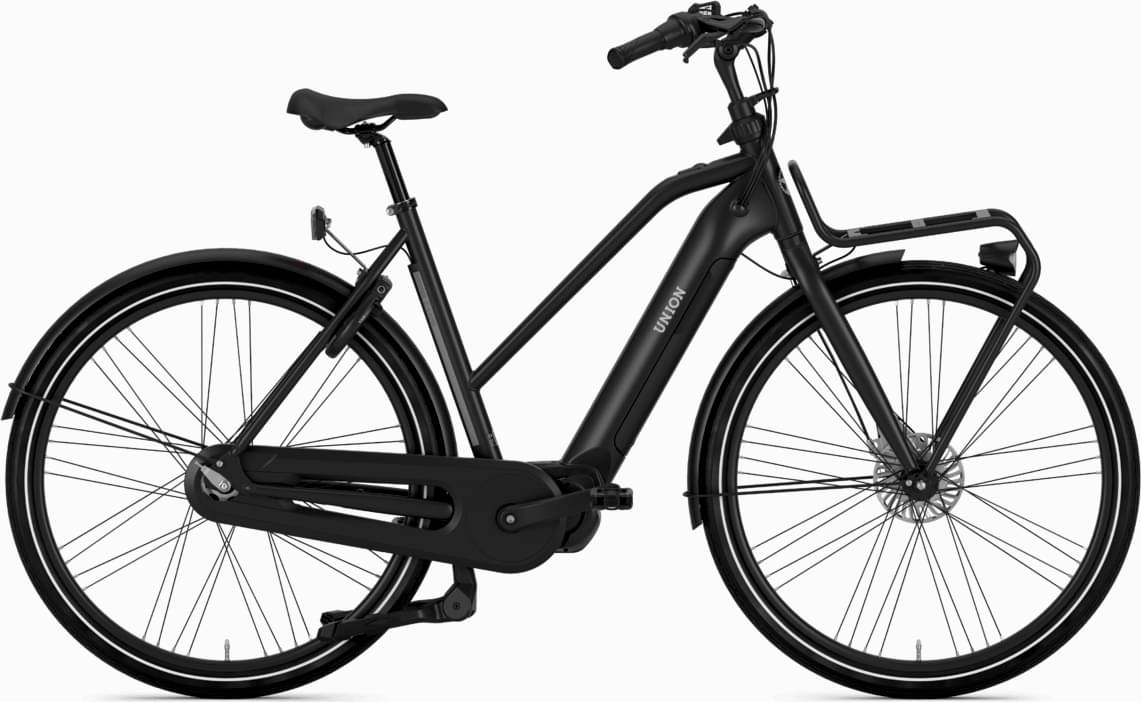

union E-Lane 2024
2024 E-bike
Estimate price |
3,256$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Shimano 40Nm mid-drive -
Battery Charger: Shimano, Battery charger description: 2 Ah, Battery position: Integrated in the frame -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame description: Aluminum frame with battery beautifully integrated into the down tube. 71° seat tube angle and 69° head tube angle give the bike a sporty look with comfortable handling., Frame material: Aluminum, Cable integration: Yes, Frame shape: Mid-Step, Frame size (cm): 49, 54
Suspension Fork
Front fork description: Steel, unsprung, Front fork material: Steel, Front fork suspension: Fixed, unsprung
Wheels
Rims
Wiel voor: 38, Wiel achter: 18, Velg voor: StarDubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Velg achter: StarDubbelwandig aluminium voor extra sterkte en goede rij-eigenschappen, Voornaaf: Shimano, Achternaaf: Shimano Nexus, Wielgrootte voor: 28"
Tires
Front wheel ETRTO: 50-622, Front tire: Schwalbe Fat Frank, Rear tire: Schwalbe Fat Frank, Front tire description: Schwalbe Fat Frank
Brakes
Brakes
Front brake type: Roller brake, Brake systems code: T7, Front brake brand: Shimano, Primary rear brake model: BR-C6000R, Front brake: Shimano Shimano, Rear brake: Shimano BR-C6000R
Seat
Saddle
Saddle: Selle Royal
Motor & Battery
Motor
E-bike system brand: Shimano STEPS, E-bike system motor position: Middle, E-bike max. speed (km/h): 25, E-bike max. speed (mph): 15, E-bike motor max. torque: 40
Battery
Charger: Shimano, Battery charger description: 2 Ah, Battery position: Integrated in the frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 54cm |
|---|---|---|
| Wheels | 29" | 29" |
