Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

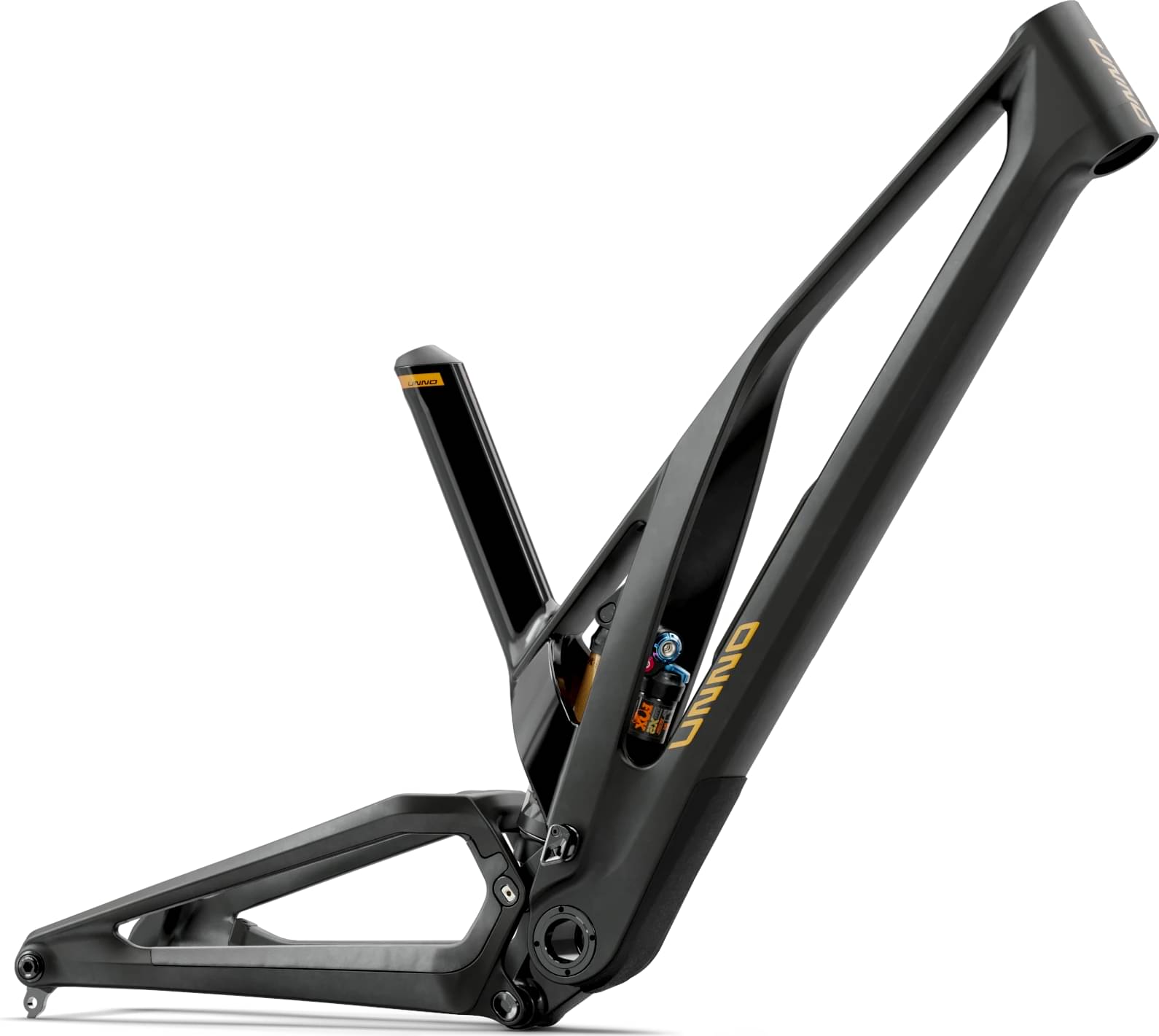

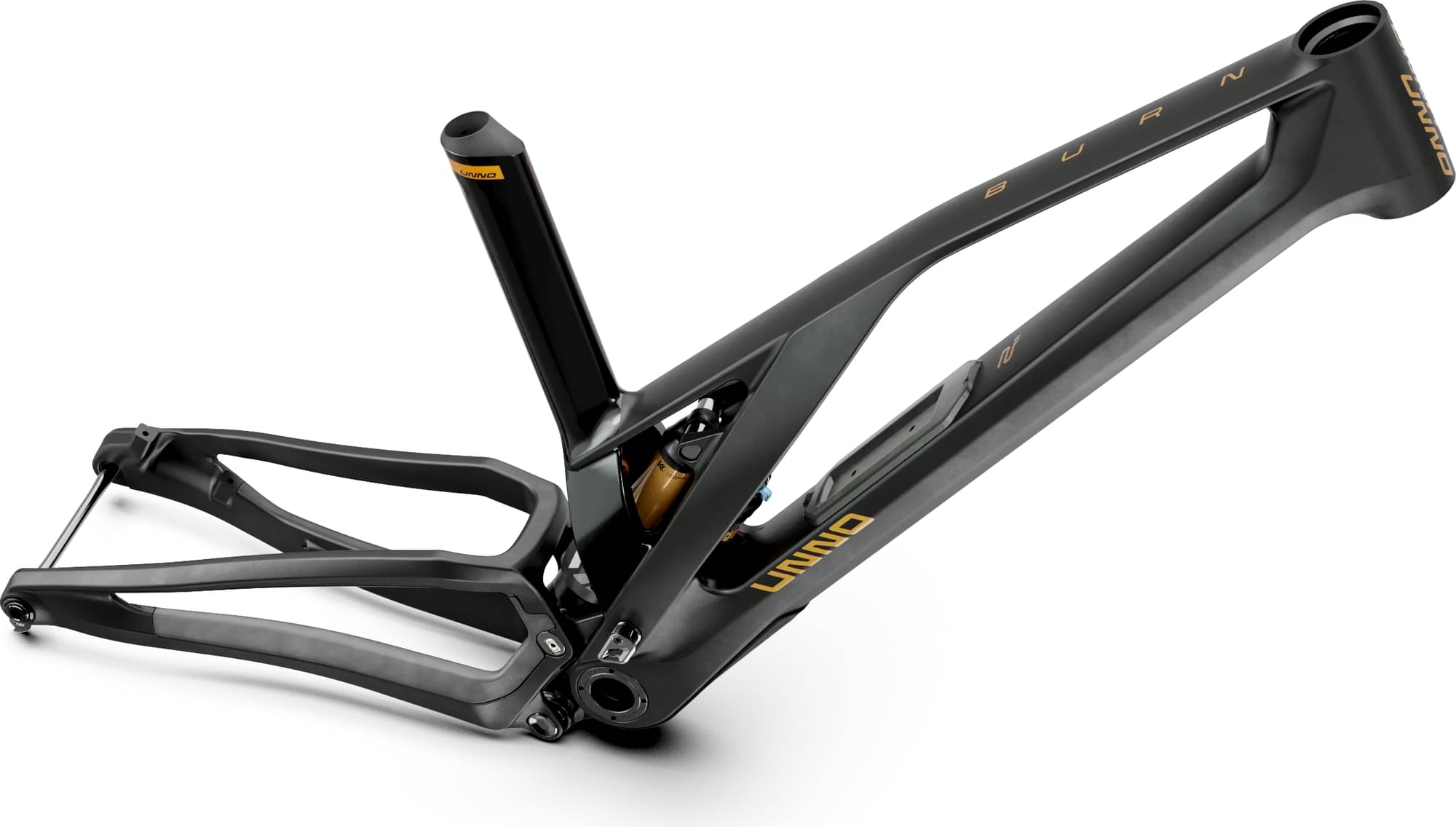

Unno BURN; Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
Rear Shock
Fox Float X2 Factory; 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR.
Cockpit
Headset
Acros Internal Cable Routing; IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.
