Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Rear 160mm -
Fork RockShox ZEB Select -
Groupset GX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch 750Wh.; Integrated. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

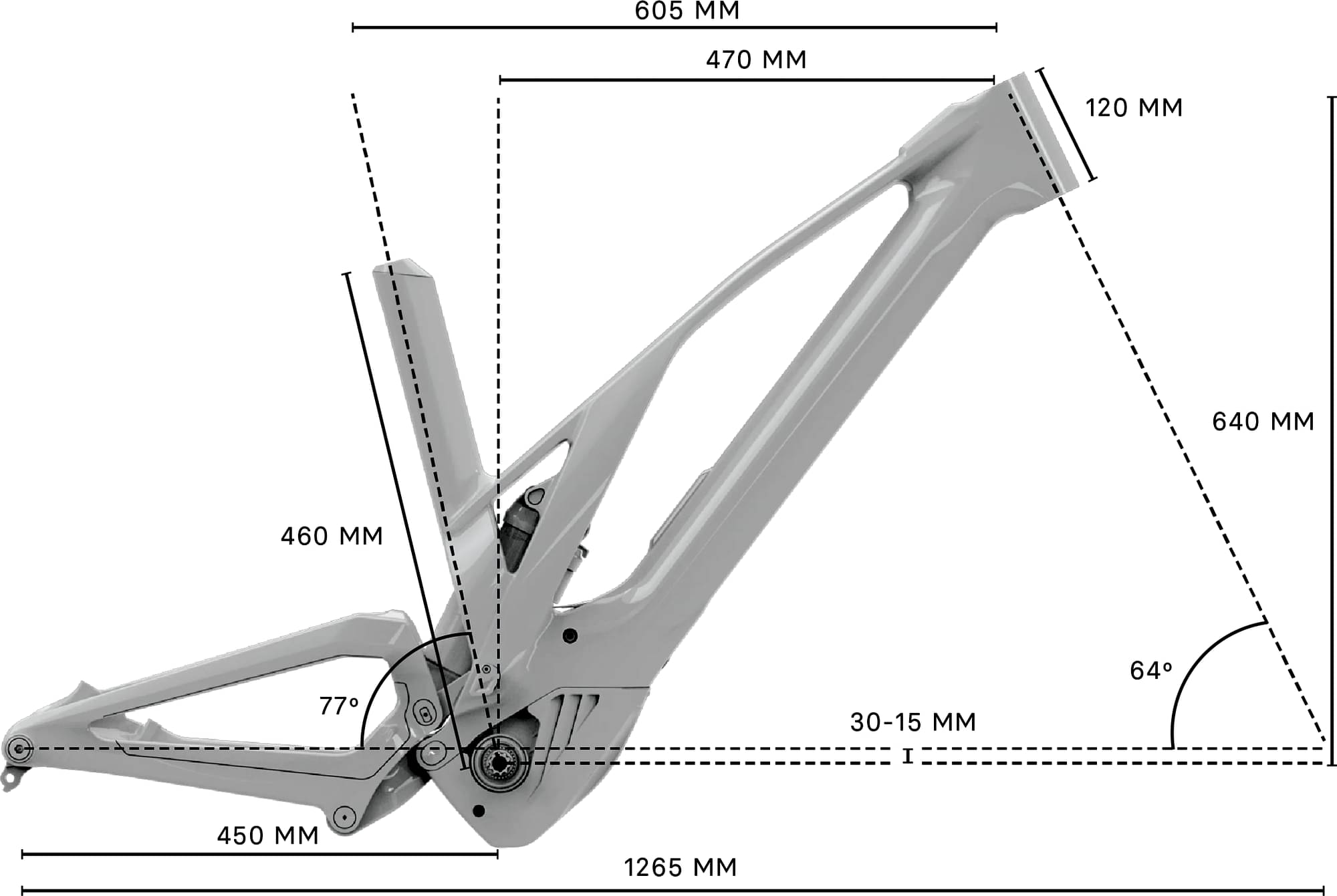

Unno MITH; Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
Suspension Fork
Rockshox ZEB Select; Charger RC, Debonair+ and 38mm stanchions.
Rear Shock
Rockshox Superdeluxe Select; Debonair+. 230x65mm.
Drivetrain
Rear Derailleur
SRAM GX Eagle; 12 speed. Mechanical. X-Actuation. Colour: Lunar. Cage material: aluminum. Pulley bearings: steel.
Cassette
SRAM GX; XG 1275. 500% Range. 10-50. Finish: black. X-Glide 2.
Crank
SRAM GX Eagle; Alloy. Lunar. 12 speed.
Chain
SRAM GX; Eagle technology. 120 links. Solid pin.
Wheels
Rims
DT Swiss H1900 Spline; Mullet. 29" front and 27.5" Rear. 30mm inner width. E-bike specific. DT 370 Hub.
Tires
Front: Continental Kryptotal-F Enduro; 29x2.40. Foldable skin SL. Black/Black., Rear: Continental Kryptotal-R Enduro; 27.5x2.40. Foldable skin SL. Black/Black.
Brakes
Brakes
Formula Cura 4; 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
Cockpit
Stem
E*Thirteen Base; Alloy. 35mm.
Handlebar
E*Thirteen Base; Alloy. 35mm.
Headset
Acros Internal Cable Routing; IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.
Seat
Saddle
Selle Italia; SLR Boost.
Seatpost
OneUp V3; Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3.
Motor & Battery
Motor
Bosch Performance Line CX; Bosch Smart System. Comptabile with Bosch Connectmodule. 85Nm. Rim Magnet.
Battery
Bosch 750Wh.; Integrated.
Remote
Bosch Remote LED; Control Unit BRC3600 Smart System.
